2014 4000 WATT HK PL-3015 FIBER LASER – 5′ X 10′ TABLE, CHILLER INCLUDED

In Stock

A 2014 HK PL-3015 4,000-watt fiber laser with a 5′ x 10′ dual shuttle table, Siemens SINUMERIK 840D SL control, and included chiller. Cuts mild steel up to 0.787″ and stainless up to 0.393″ with ± 0.0008″ repeatability at speeds to 5,511 IPM.

Add to wishlist
Request Quote
  • Freight delivery in 5-15 business days after your order is confirmed
  • Shipping quotes at competitive prices, shown before you pay
  • Local pickup available at our Othello, WA warehouse (by appointment)
  • Support Monday-Friday, 10:00 AM - 4:00 PM
SKU: 900
Categories: ,
Tags: , , , , , , ,

Description

The 2014 HK PL-3015 Fiber Laser is a high-performance CNC laser cutting system built for fast, precise sheet metal fabrication. Powered by a 4,000-watt fiber laser source and controlled by the reliable Siemens SINUMERIK 840D SL controller, this machine delivers clean, accurate cuts across a wide range of materials.

Designed around a generous 5′ x 10′ table with a dual shuttle table configuration, it maximizes productivity by allowing continuous load/unload cycles. The heavy-duty frame supports workpieces up to 1,984 lbs while maintaining excellent precision.

  • Laser Power: 4,000 Watts (Fiber)
  • Table Size: 5′ x 10′
  • Axis Travels: X 122″, Y 62.2″, Z 3.9″
  • Max Positioning Speed: 5,511 IPM
  • Repeatability: ± 0.0008″
  • Mild Steel Capacity: 0.787″
  • Stainless Steel Capacity: 0.393″

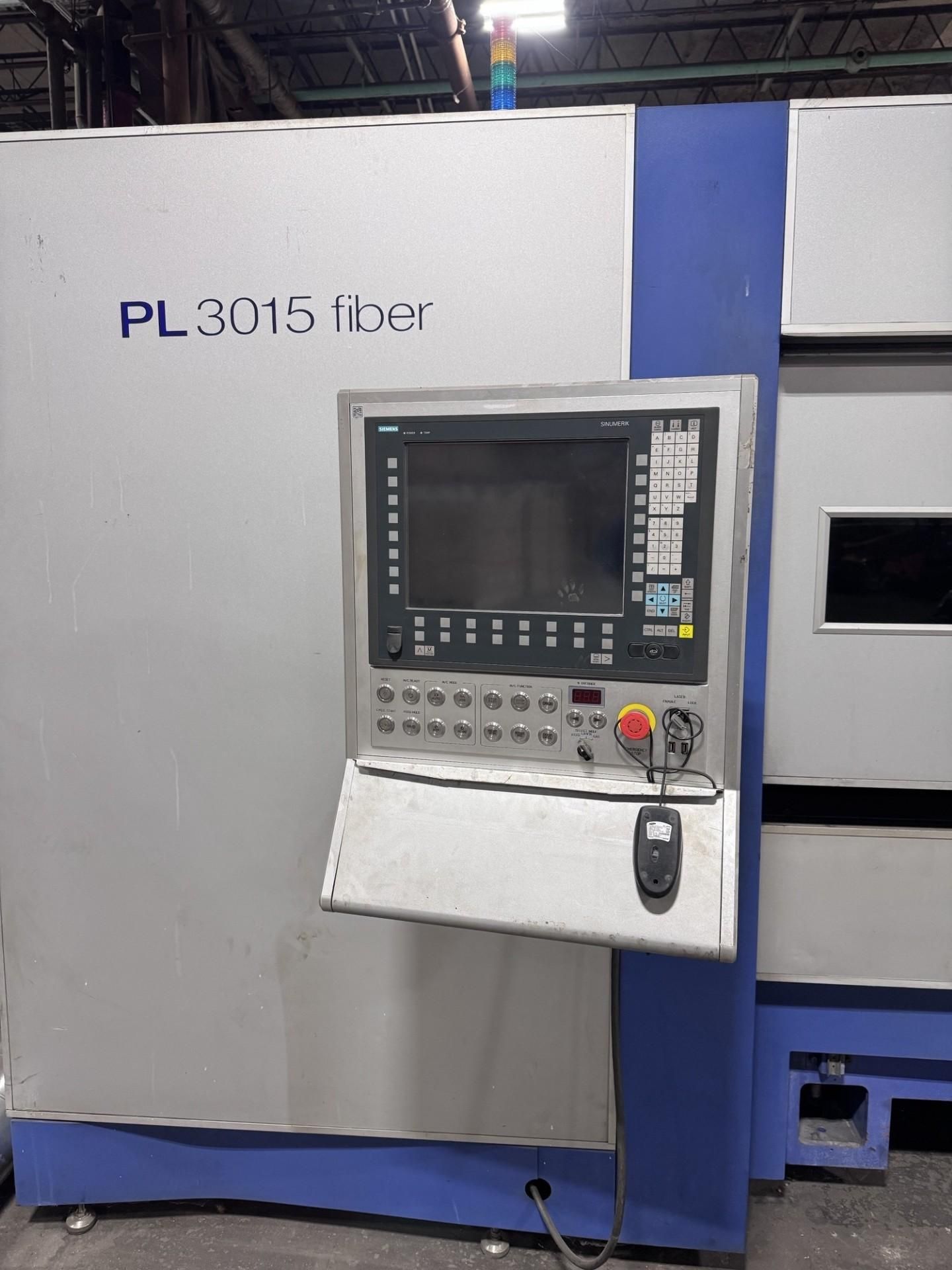

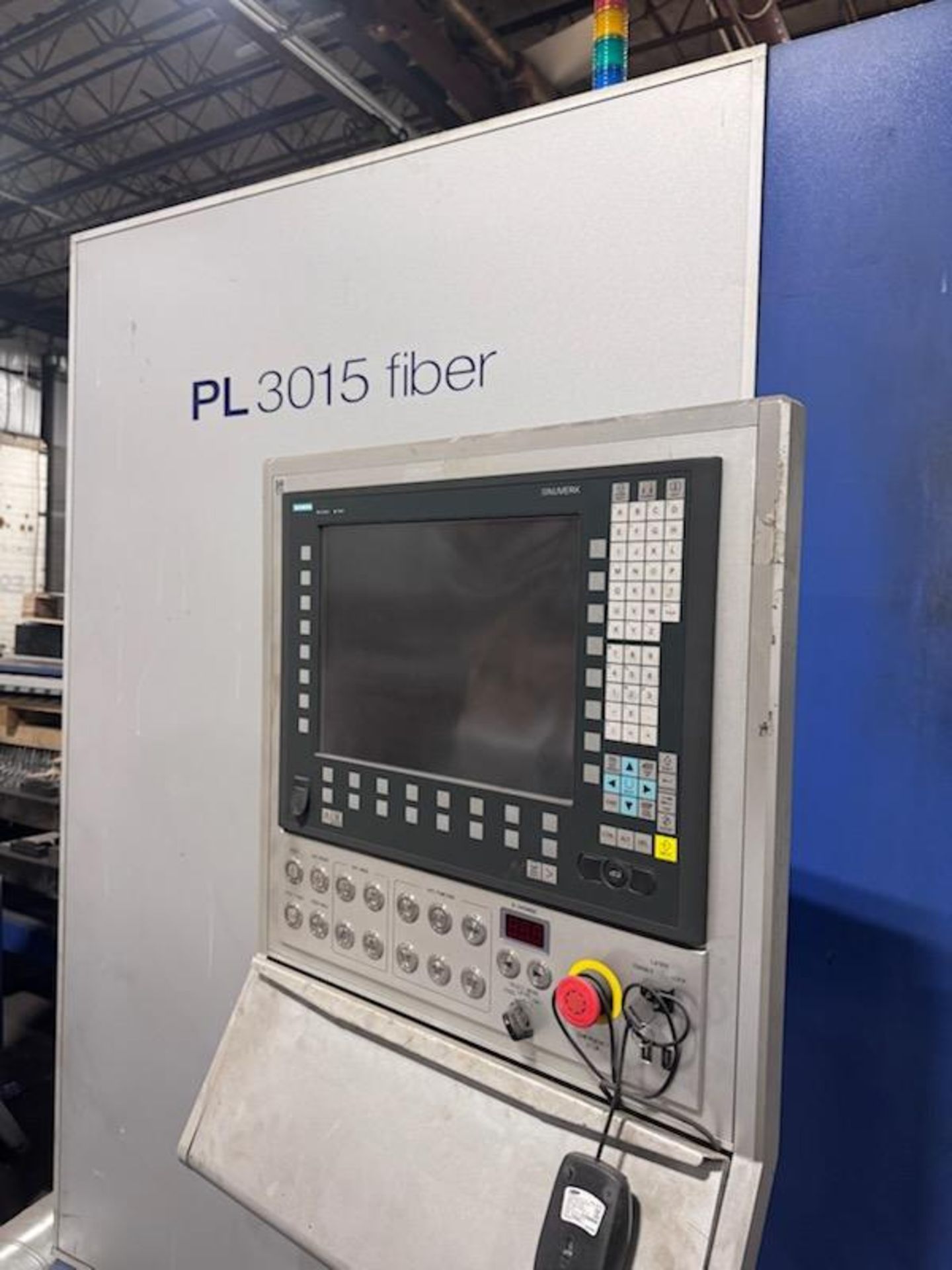

  • Controller: Siemens SINUMERIK 840D SL
  • Chiller Included

Ideal for job shops and production environments, this fiber laser combines speed, accuracy, and versatility. All specifications are assumed correct but should be confirmed by the purchasing entity.

Additional information

Weight 27557.75 lbs
Dimensions 383.86 × 124.02 × 88.58 in
