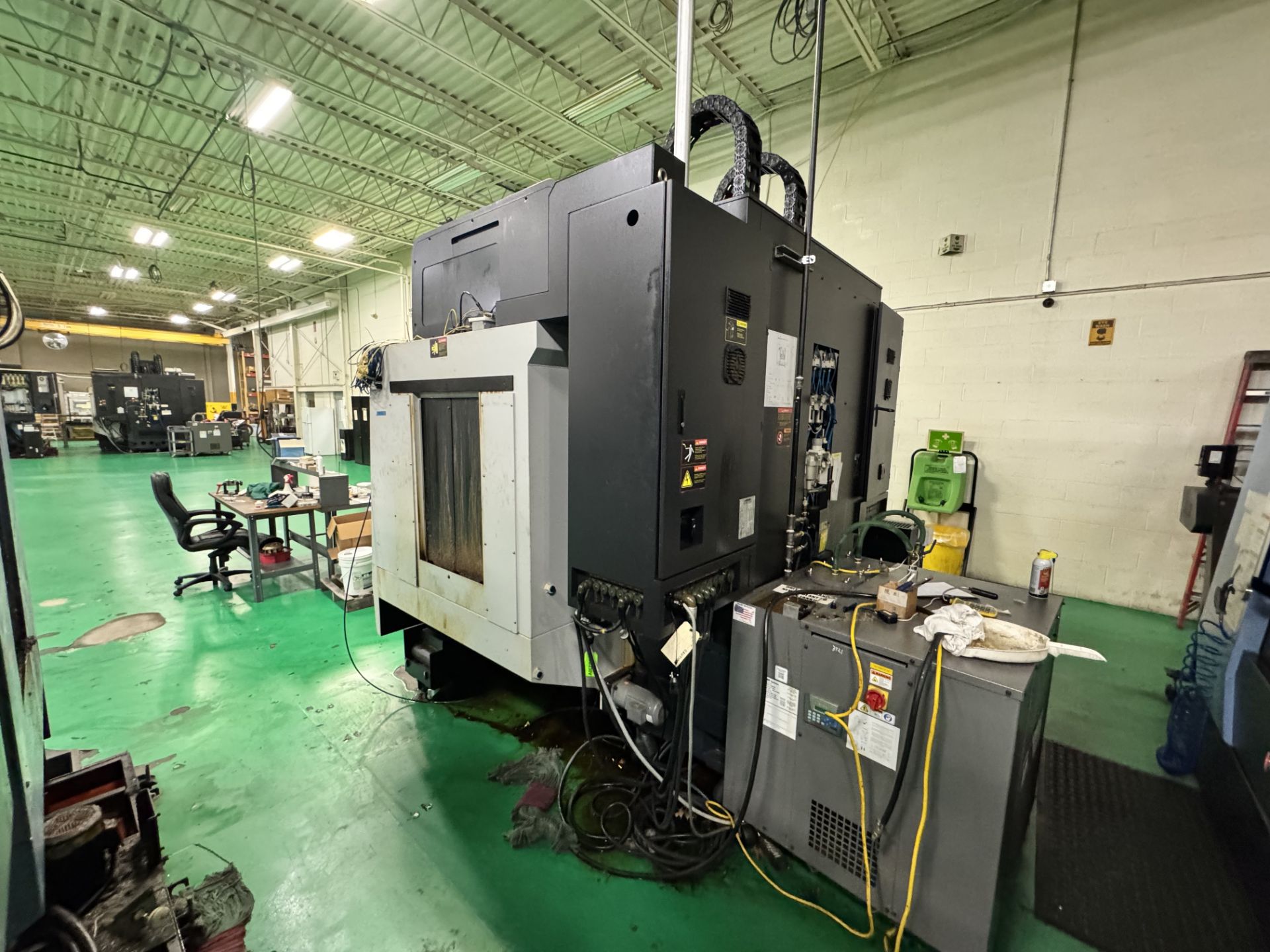

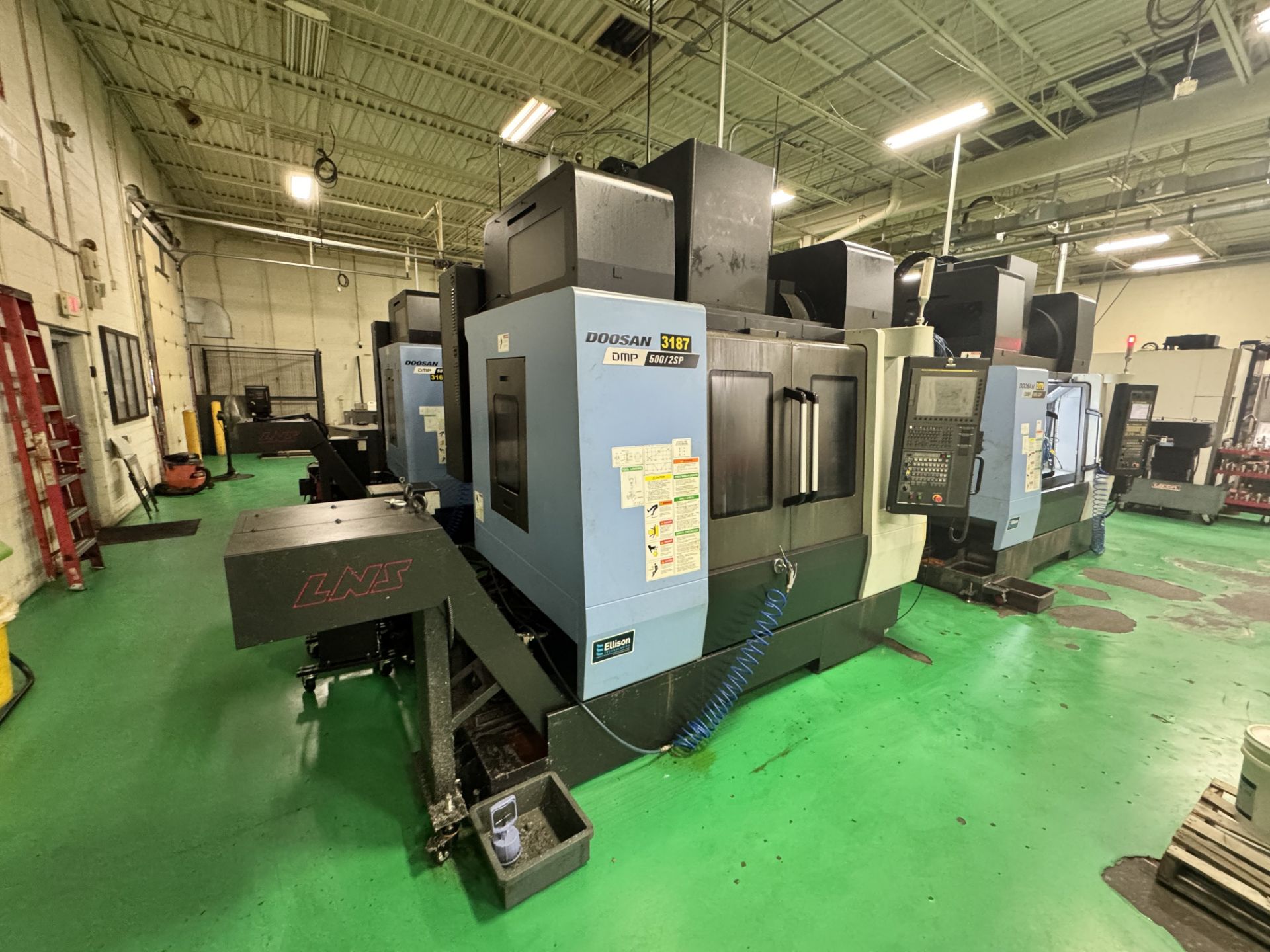

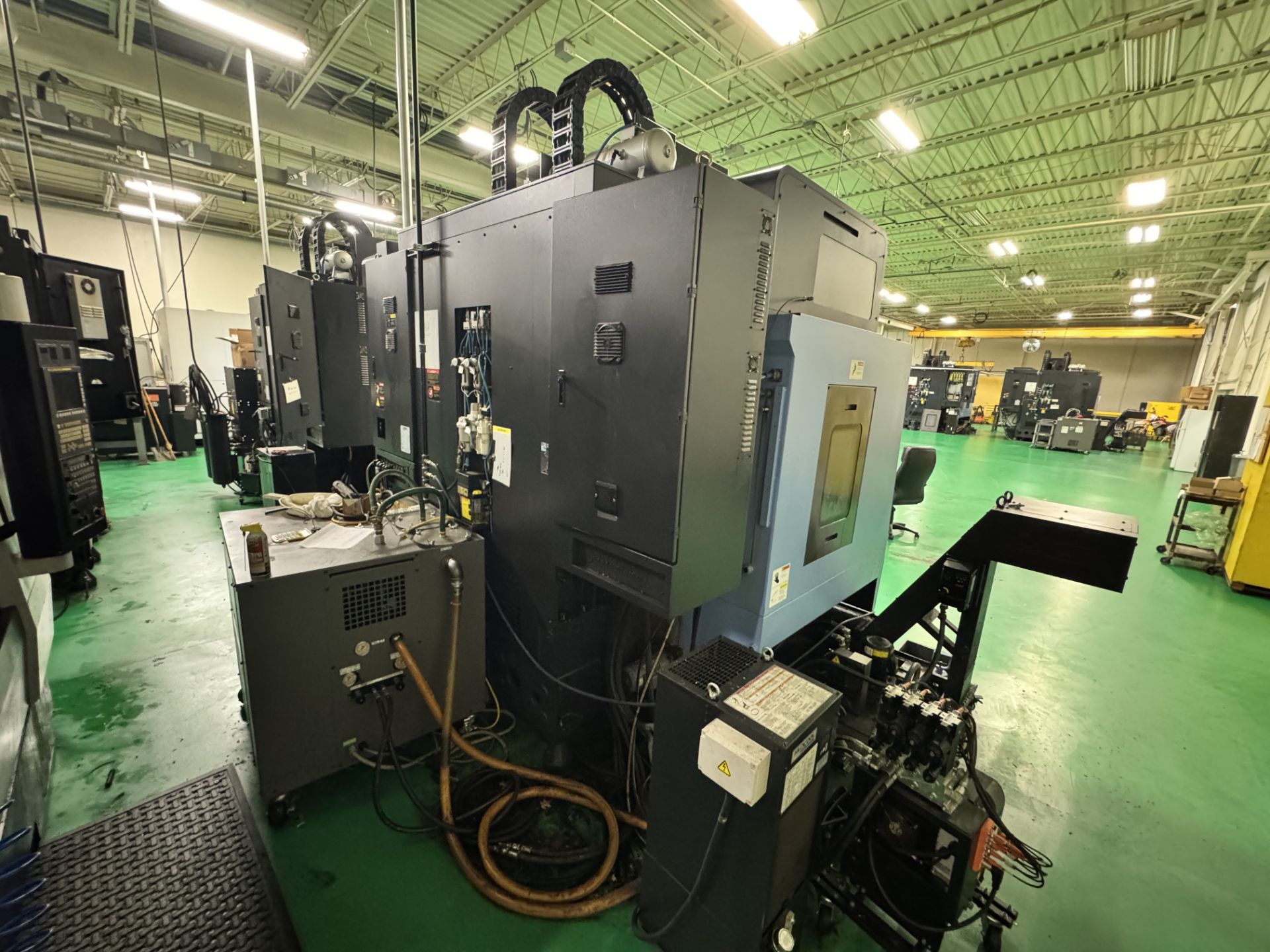

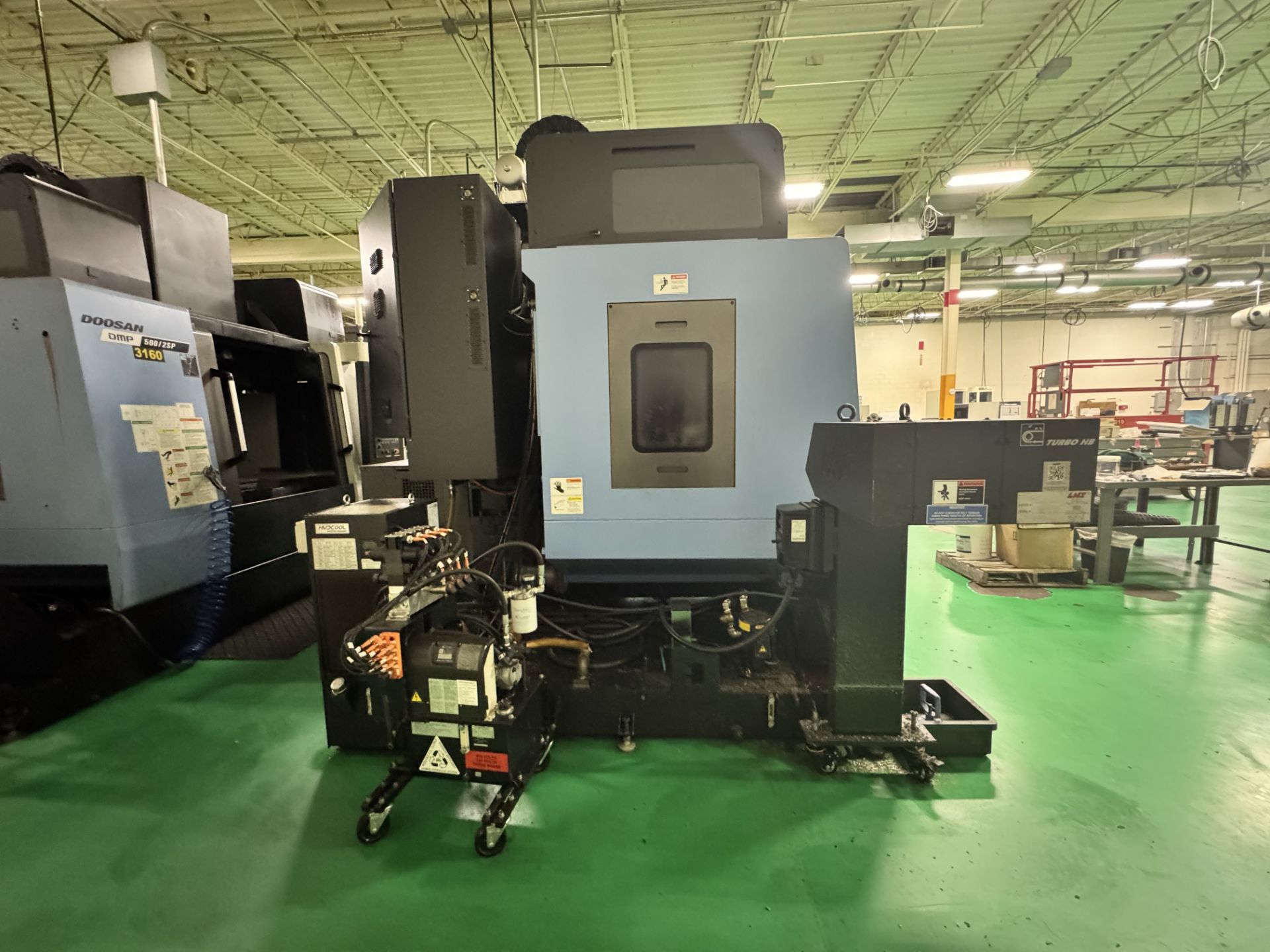

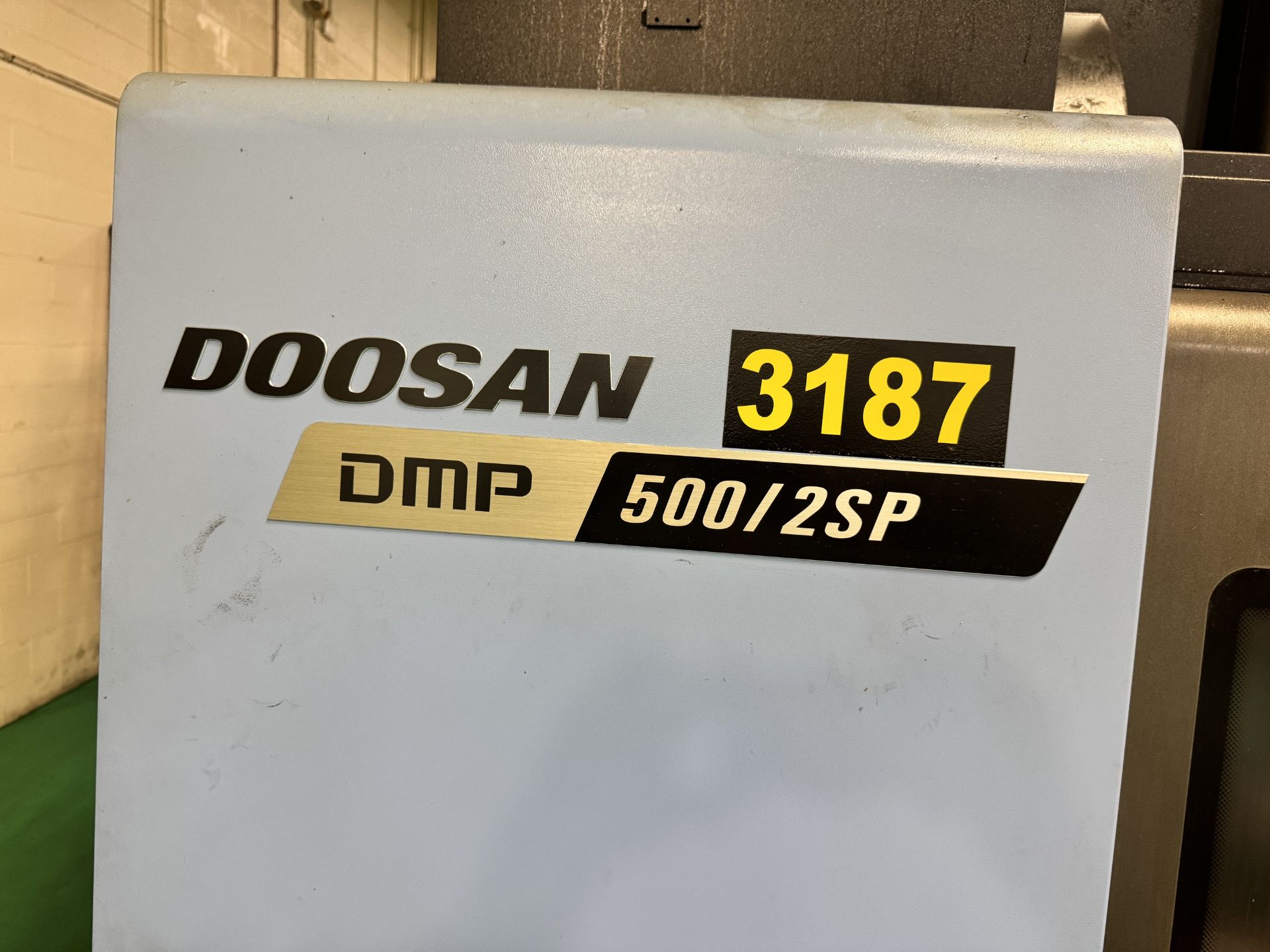

2019 Doosan DMP500/2SP CNC Vertical Machining Center

Description

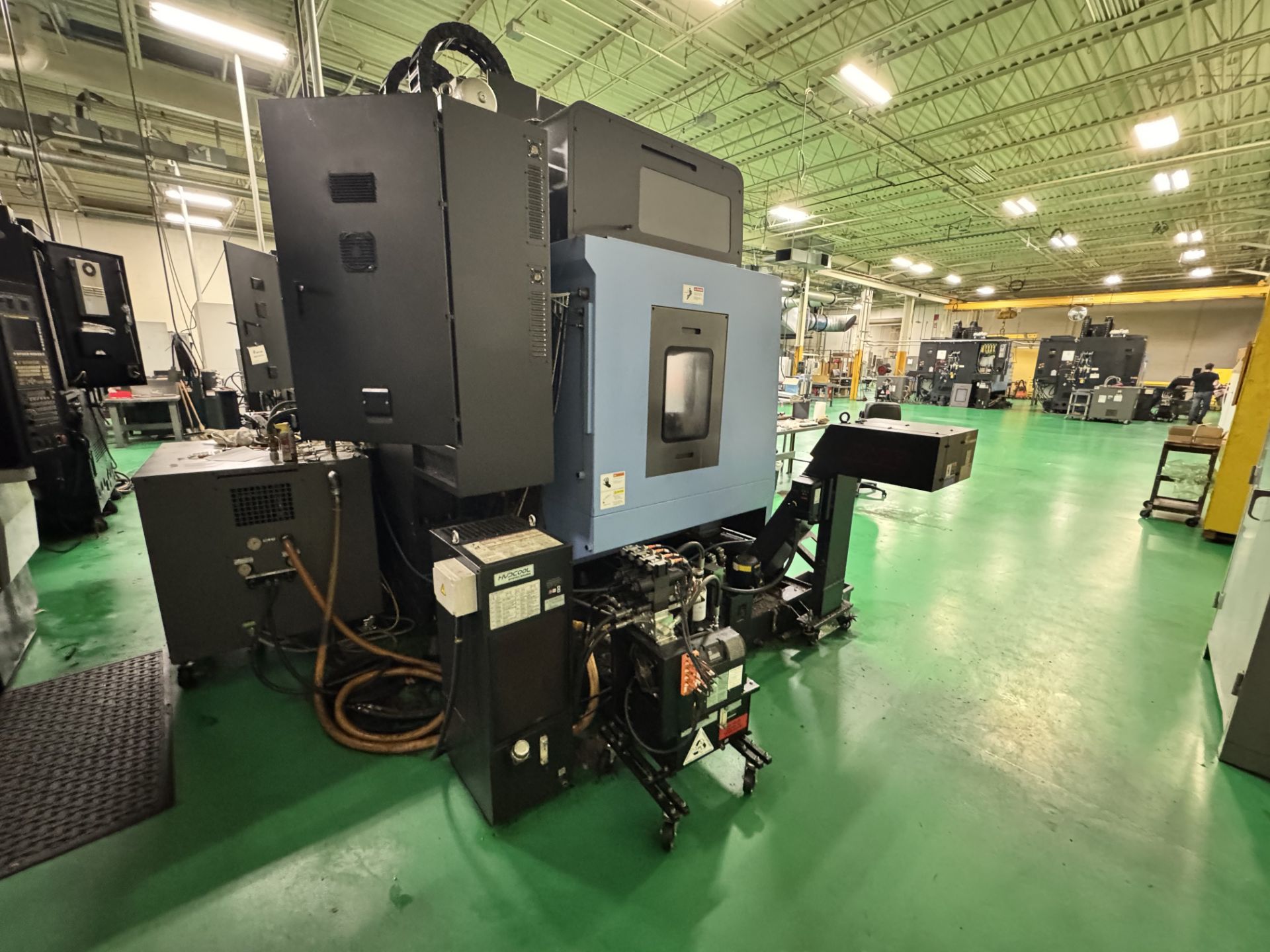

The 2019 Doosan DMP500/2SP CNC Vertical Machining Center is a dual-spindle production powerhouse engineered to double output by machining two parts simultaneously. With two independent spindles and two automatic tool changers, this machine delivers the capacity of two VMCs in a single compact footprint, dramatically reducing tooling duplication and floor space.

Key features include:

• Dual 12,000 RPM BT40 Big Plus spindles rated at 25 HP each for high-speed, high-precision cutting
• Generous travels: 40.90″ X, 20.50″ Y, and 23.60″ Z axis
• Robust table measuring 47.2″ x 20.5″ with a 1,764 lb maximum load capacity
• Dual independent side-mount ATCs (2 x 30 tool magazines) with 1.7-second tool changes and 3.5-second chip-to-chip time
• W-axis for easy dual-spindle tool length adjustment (0.8″)
• Roller-type linear guideways on all axes with rigid column and base construction

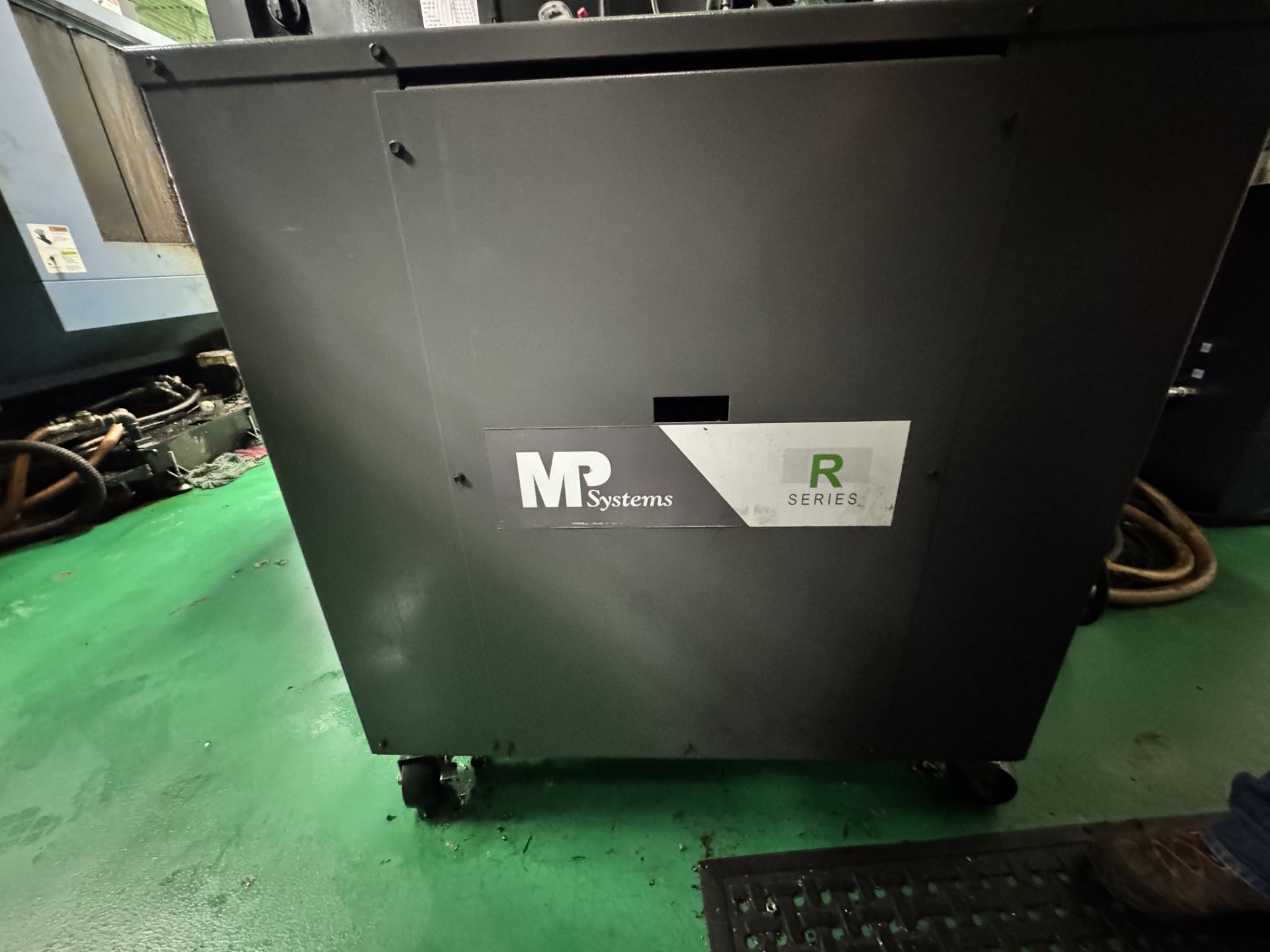

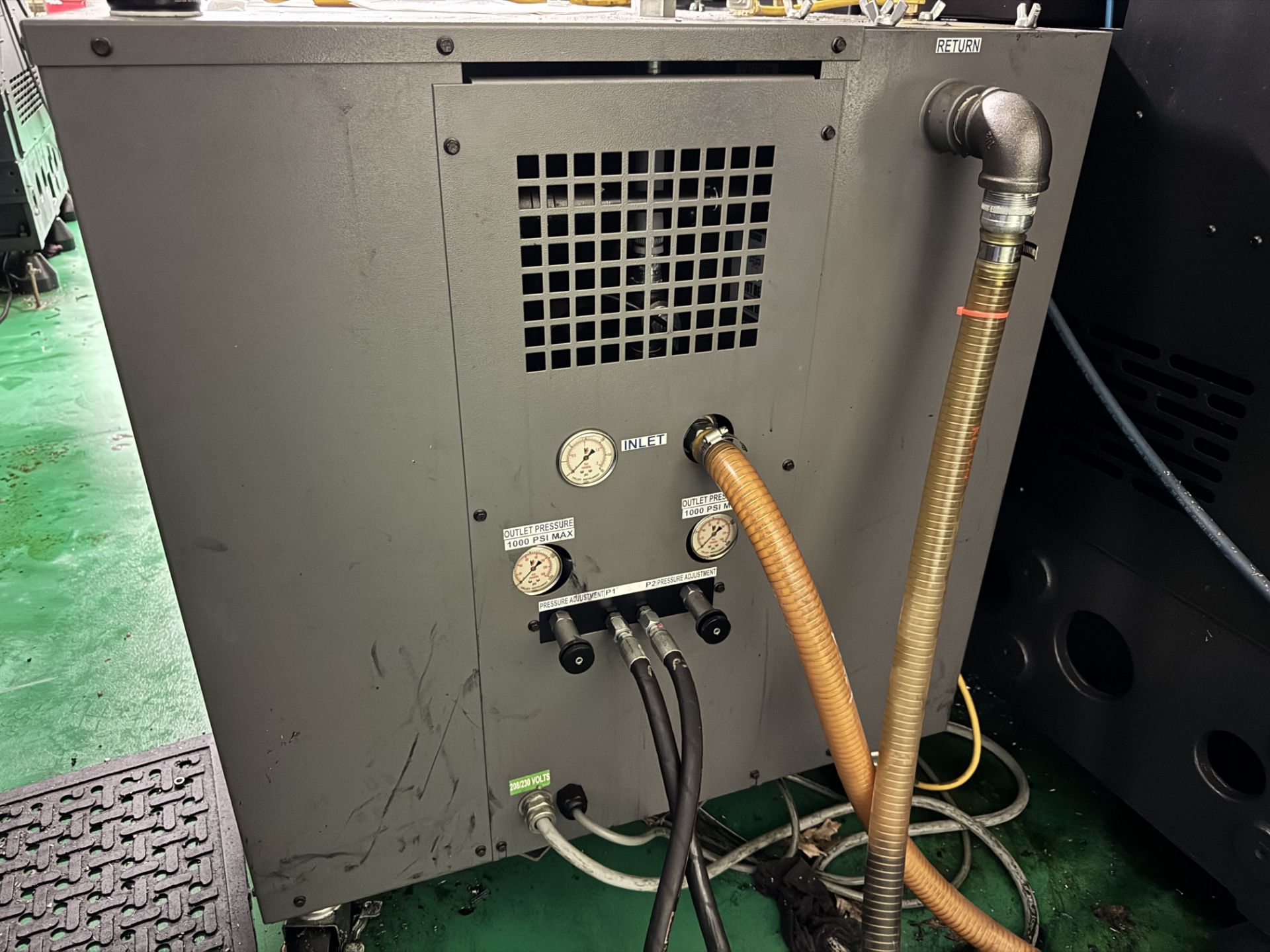

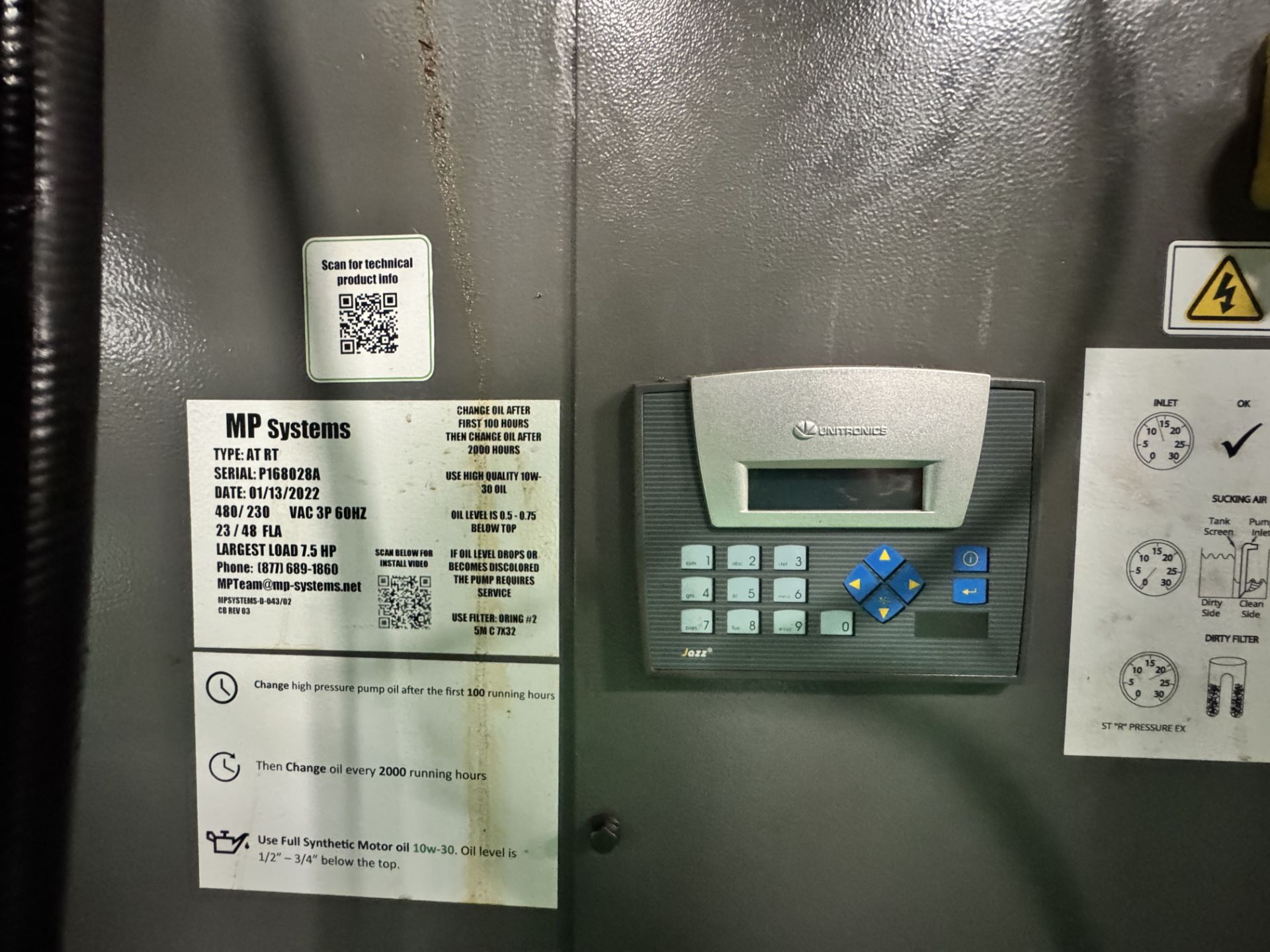

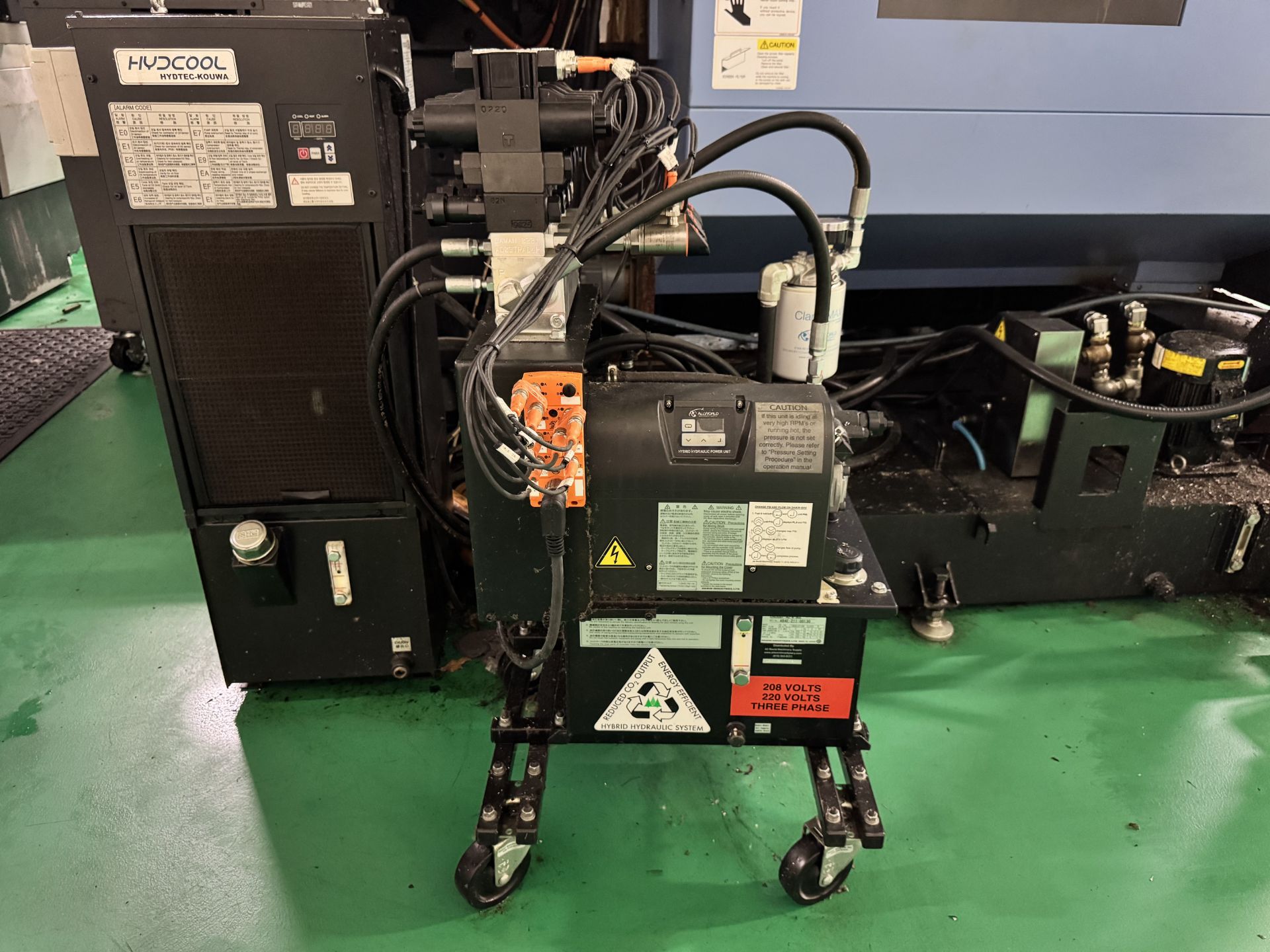

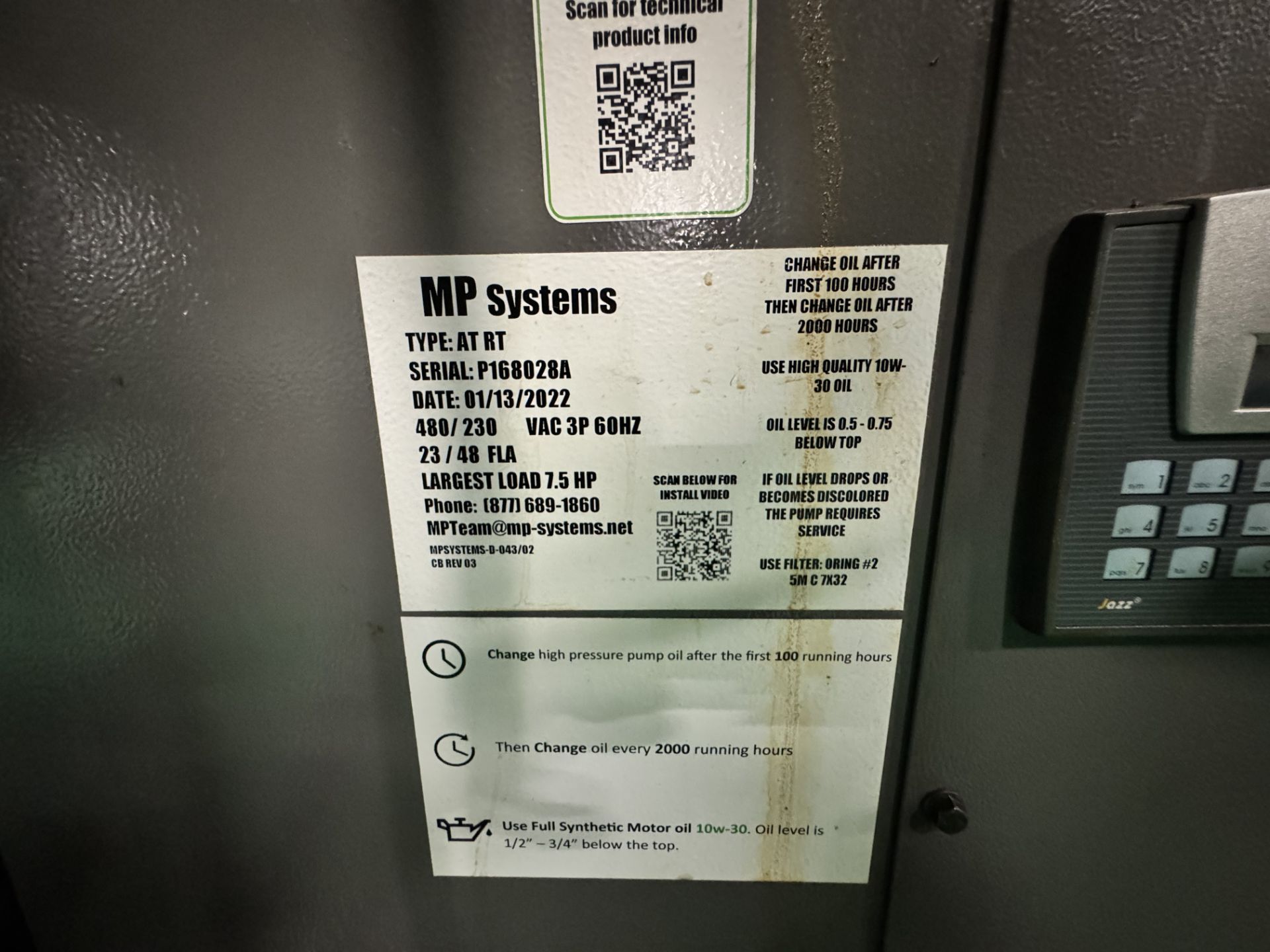

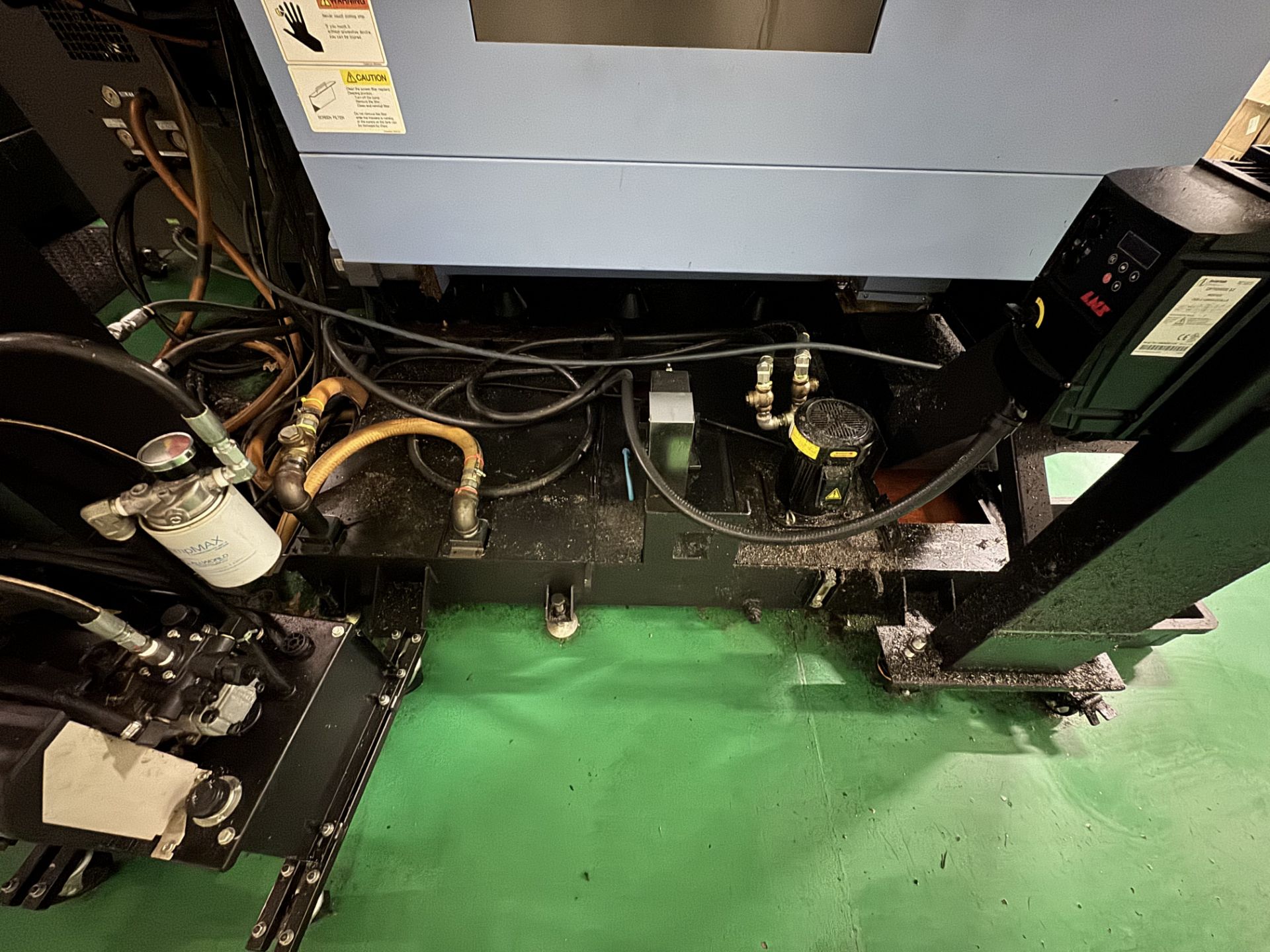

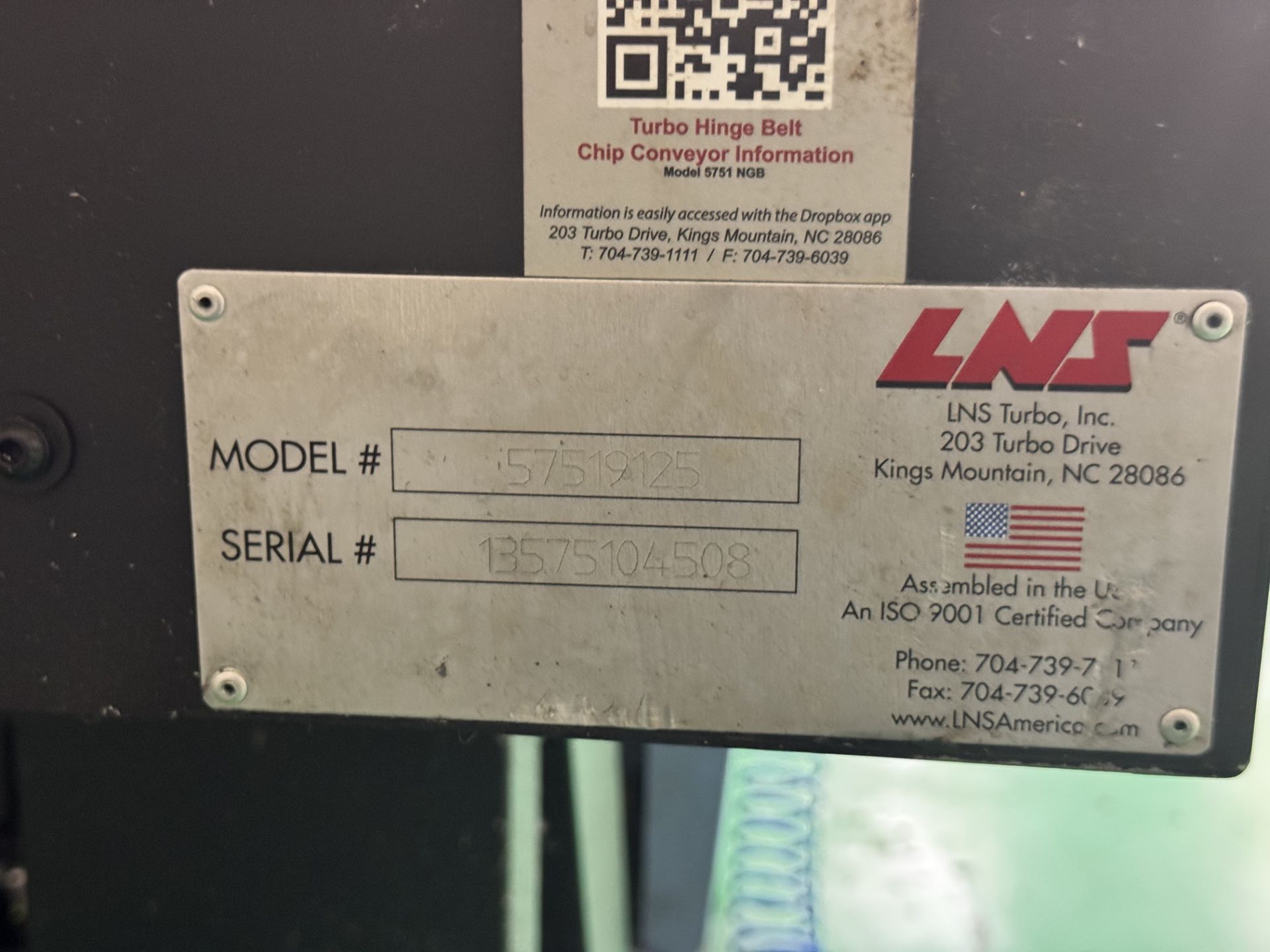

• LNS Chip Blaster, chip conveyor, and high-pressure coolant

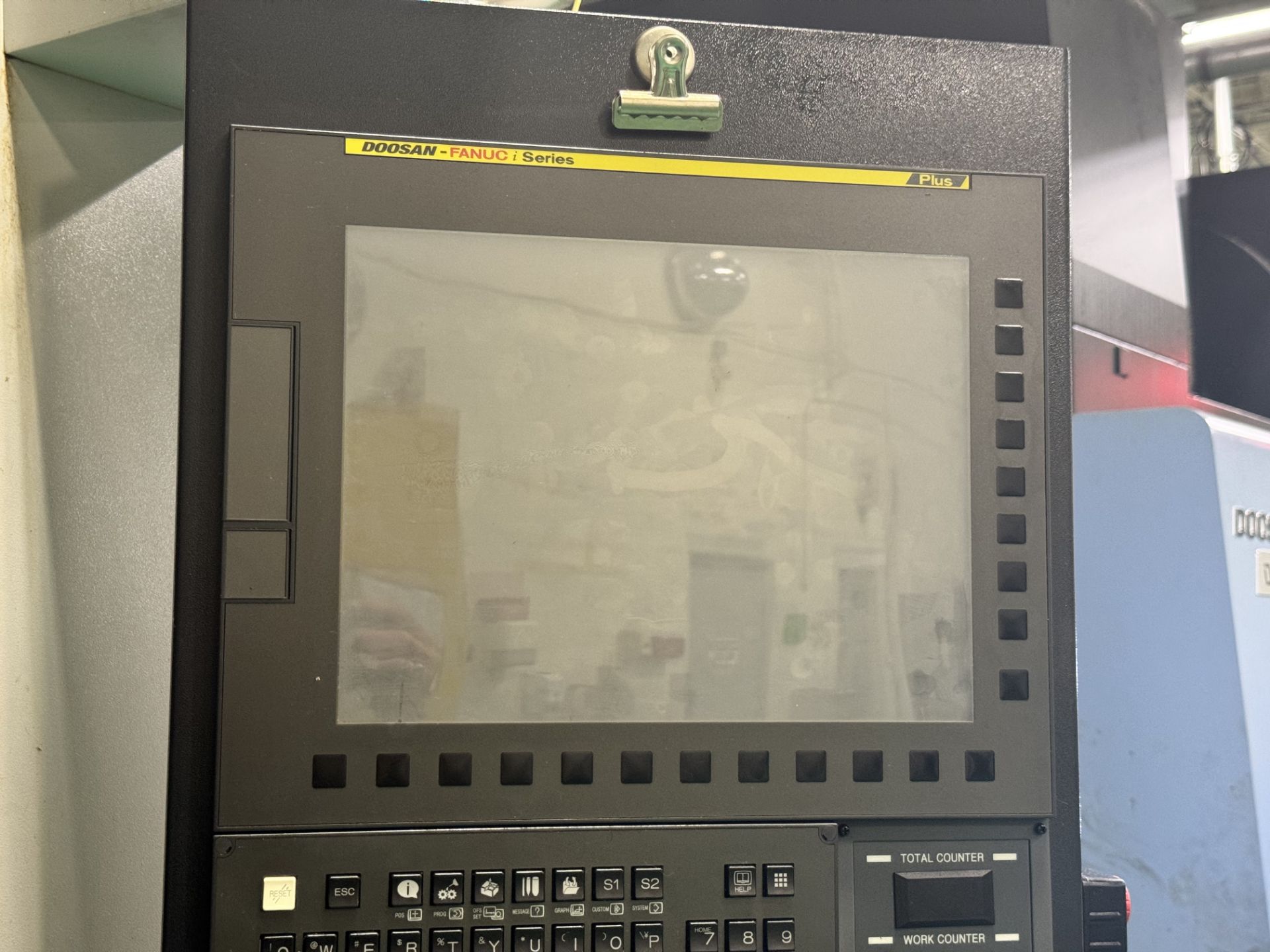

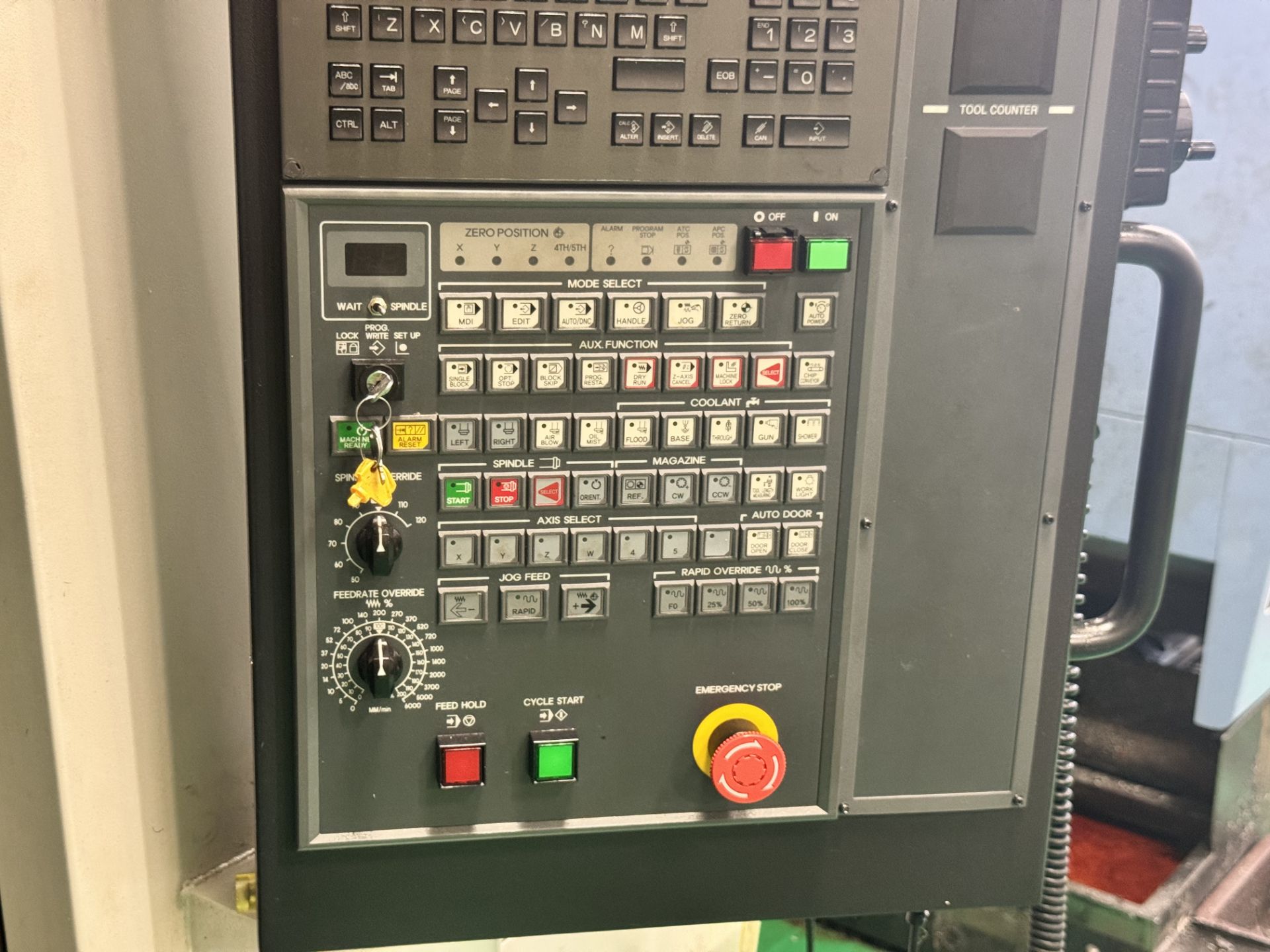

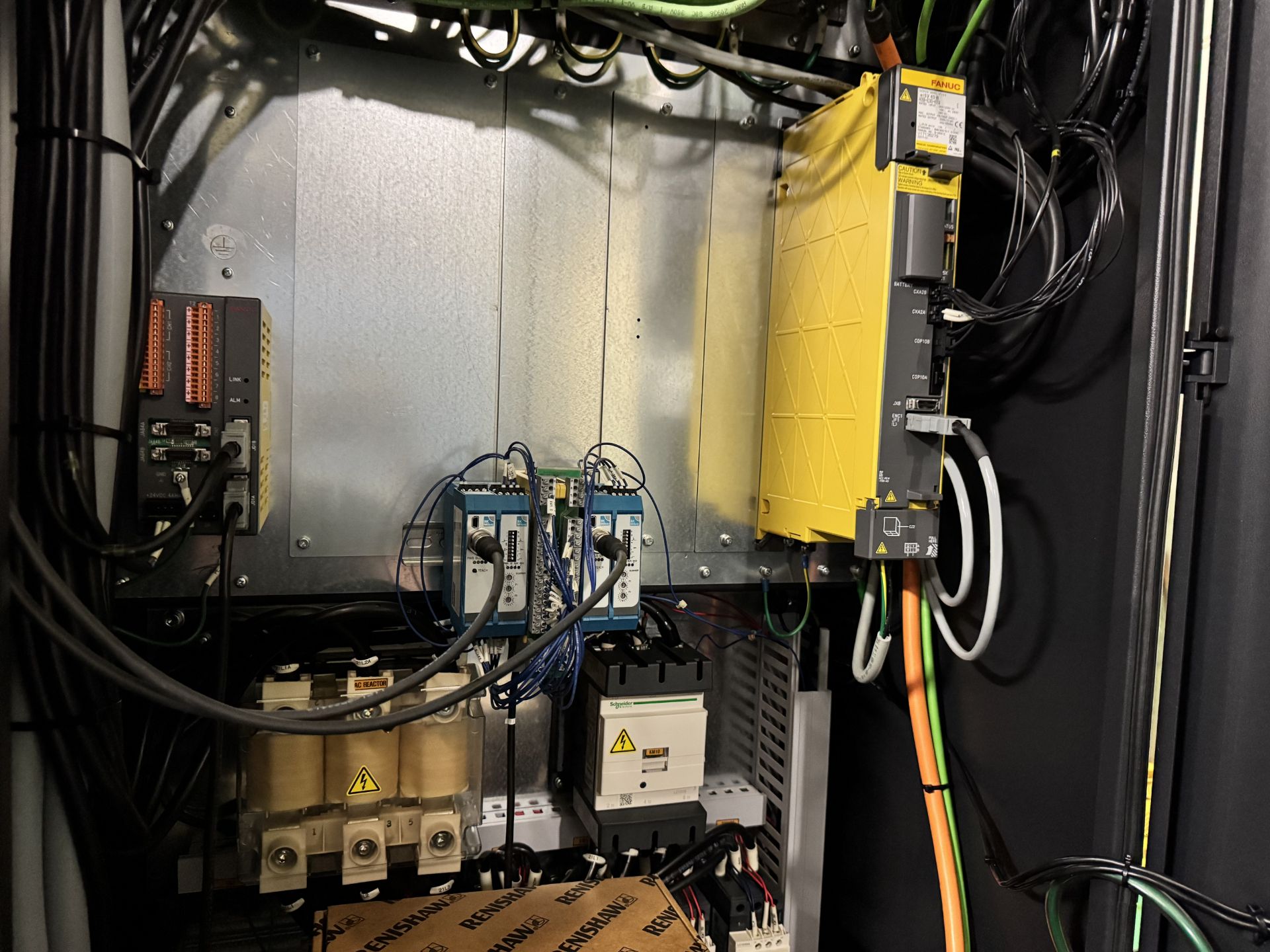

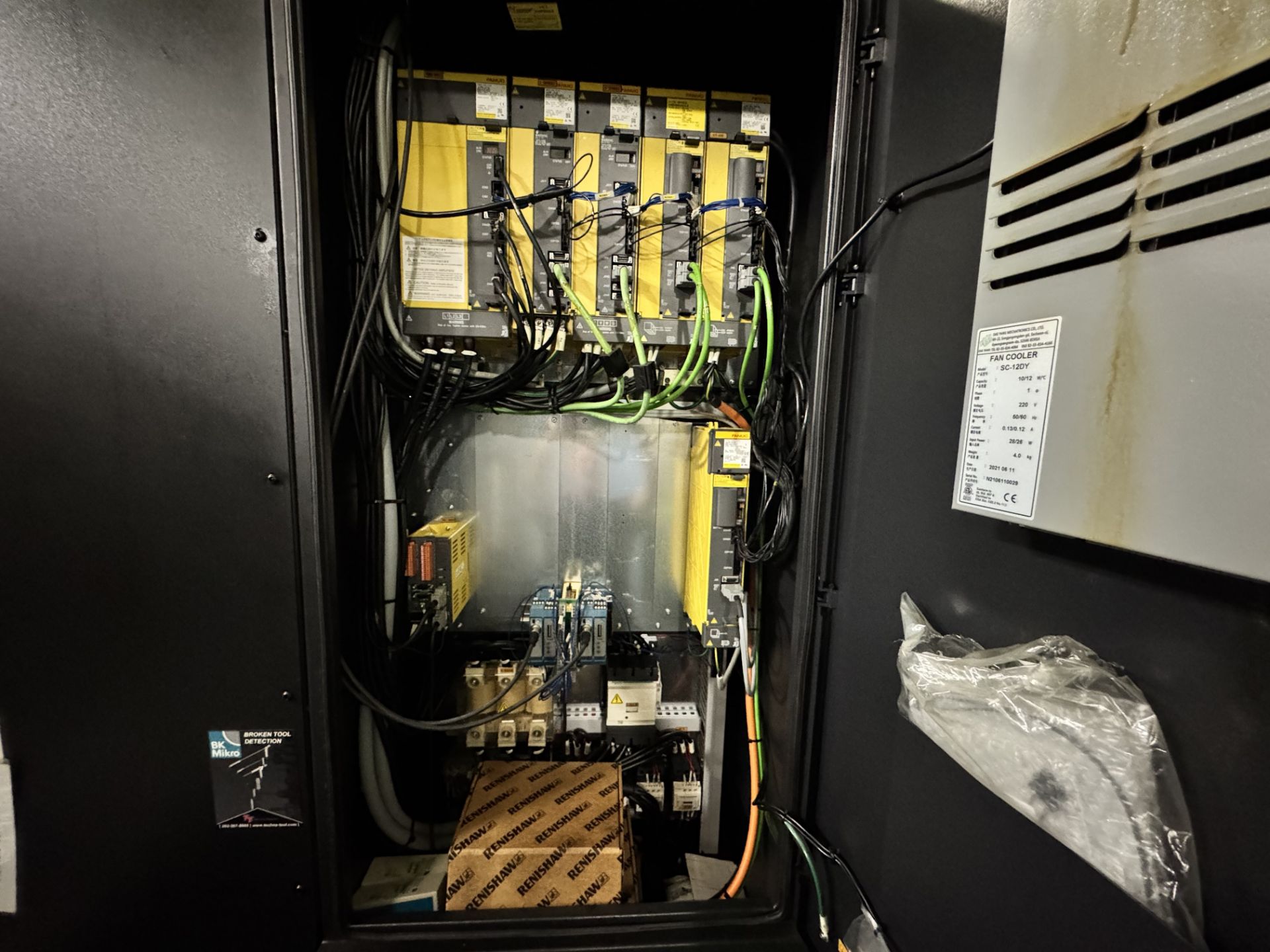

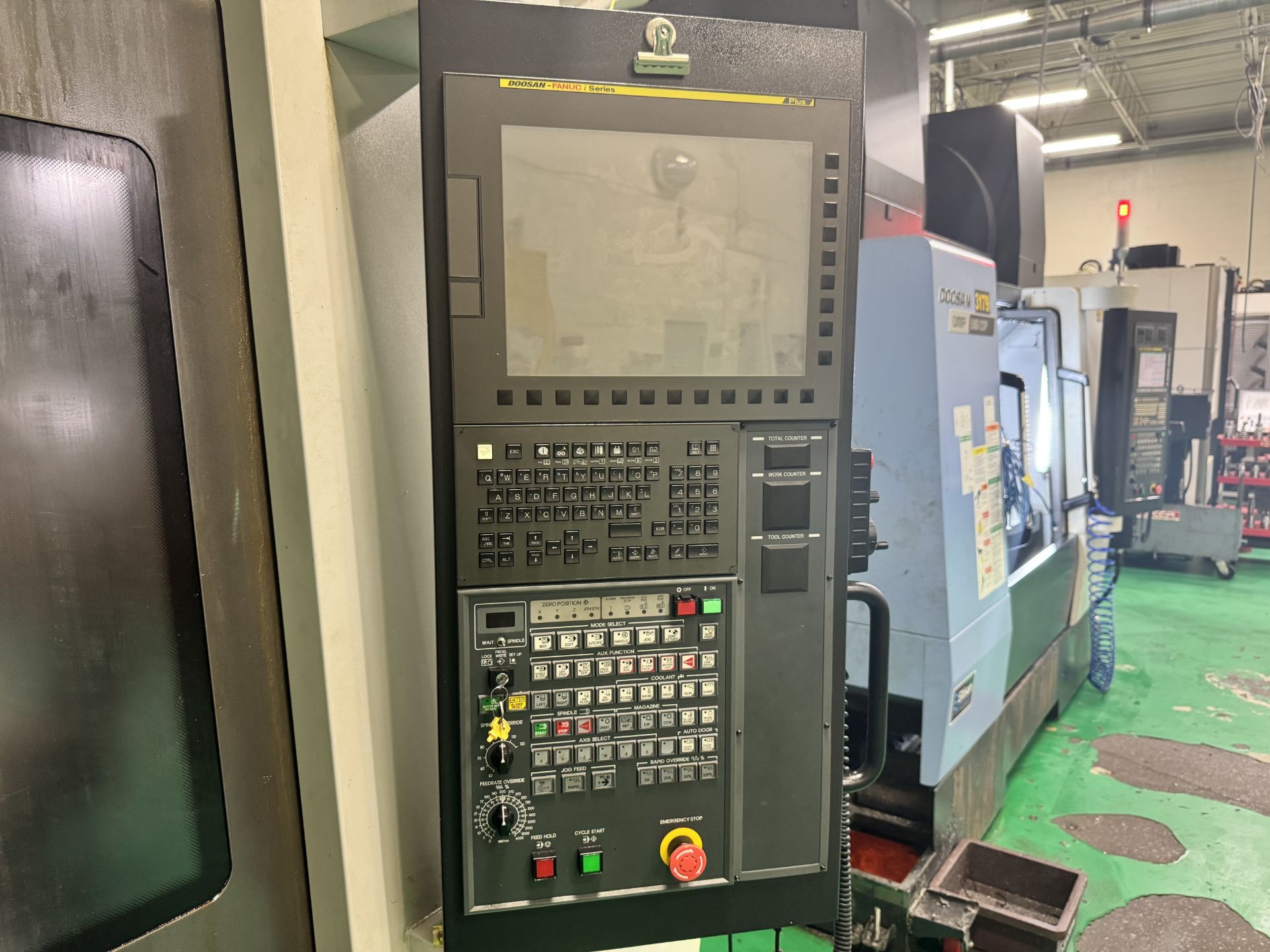

• Wired for a Nikken 4th axis and equipped with a Fanuc i-Series CNC control

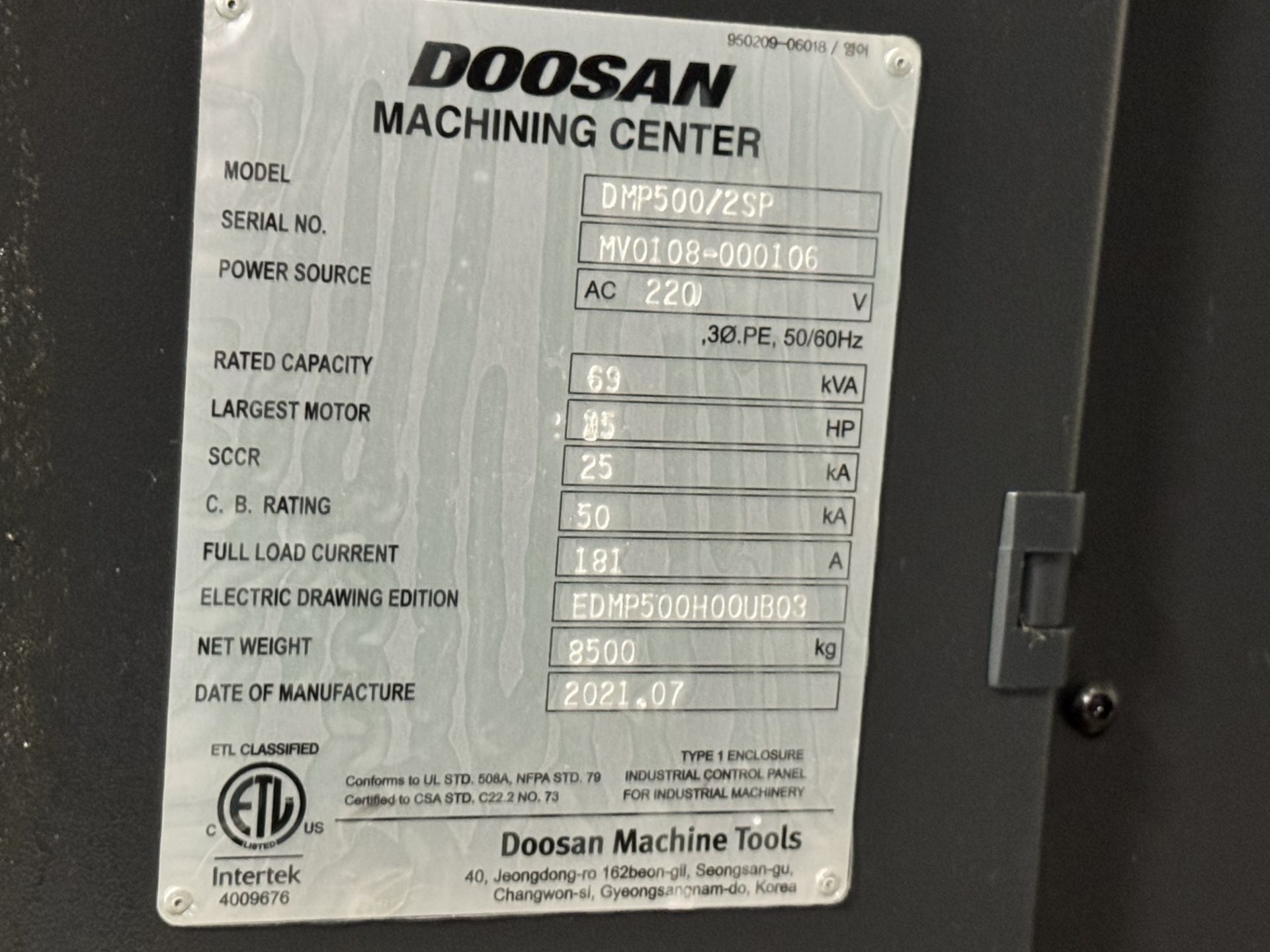

Ideal for production job shops and high-volume manufacturers, this machine offers exceptional throughput while maintaining tight dimensional control on a 220V electrical supply.
