2020 Doosan DMP500/2SP- 2 Spindle CNC Vertical Machining Center
High-productivity 2020 Doosan DMP500/2SP twin-spindle CNC vertical machining center with BT40 Big Plus spindles at 12,000 RPM, 25 HP, dual 30-tool ATCs, and Fanuc i Series control. Machines two parts simultaneously for doubled output in a compact footprint.
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description

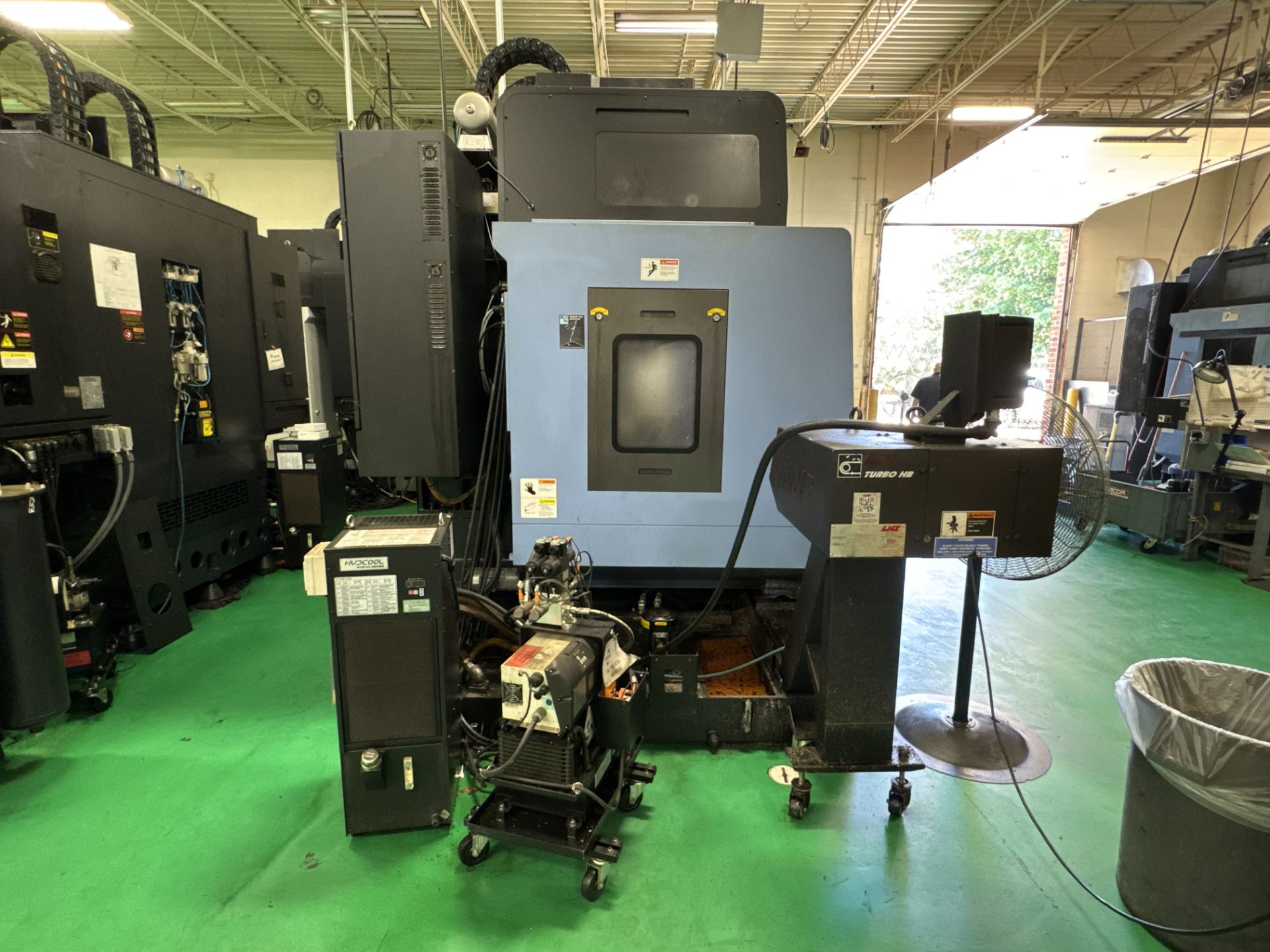

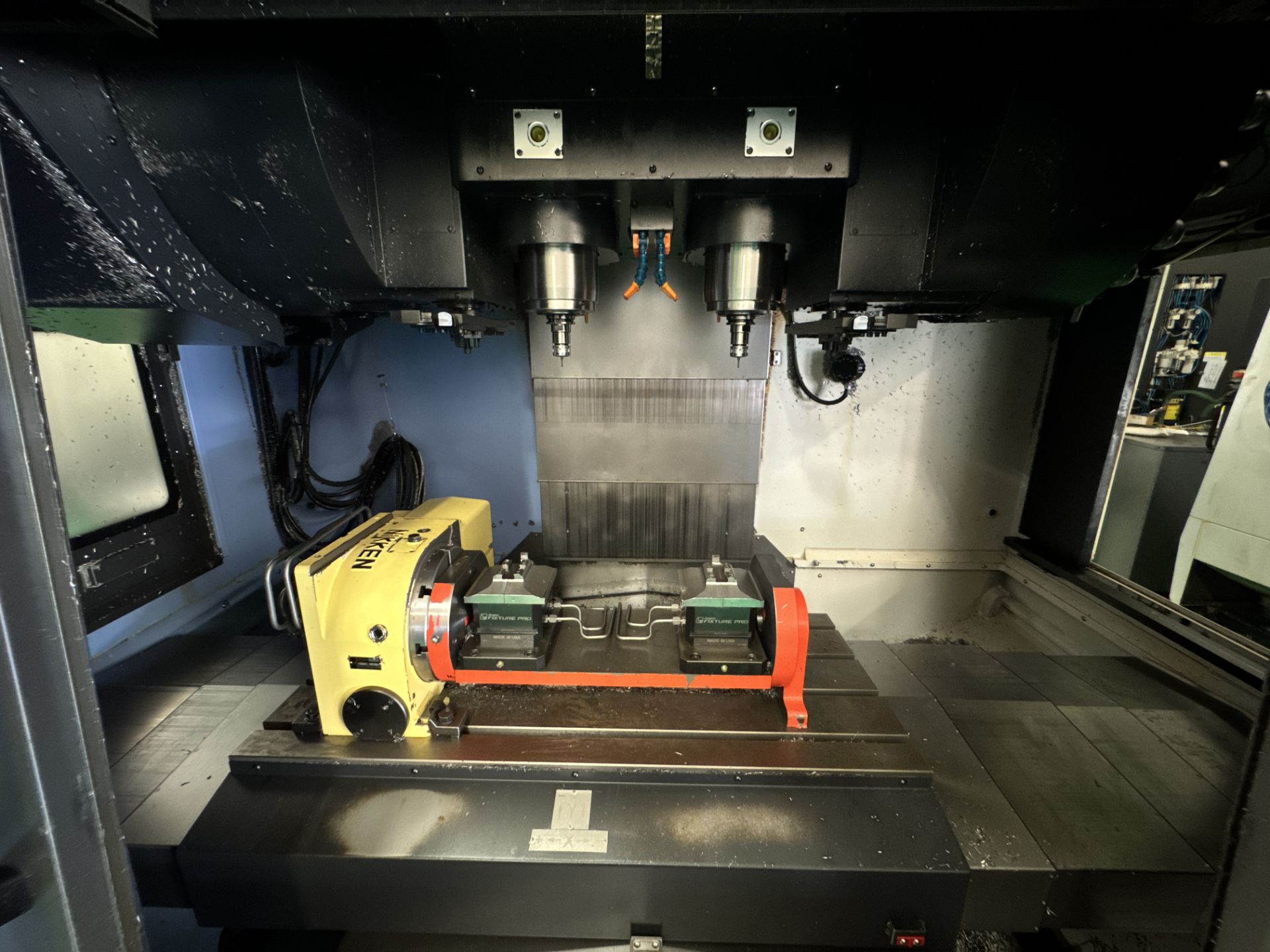

The 2020 Doosan DMP500/2SP is a high-productivity 2-spindle CNC vertical machining center engineered for production job shops and high-volume parts manufacturers. Equipped with two spindles and two independent automatic tool-change systems, it effectively doubles productivity by machining two parts simultaneously while reducing loading, unloading, and idle times.
- Table Size: 47.2″ x 20.5″ with a max load of 1,764 lbs
- Axis Travels: X 40.9″, Y 20.5″, Z 23.6″
- Spindle: BT40 (Big Plus) taper, 12,000 RPM, 25 HP
- Rapid Traverse: 1575 / 1575 / 1417 ipm

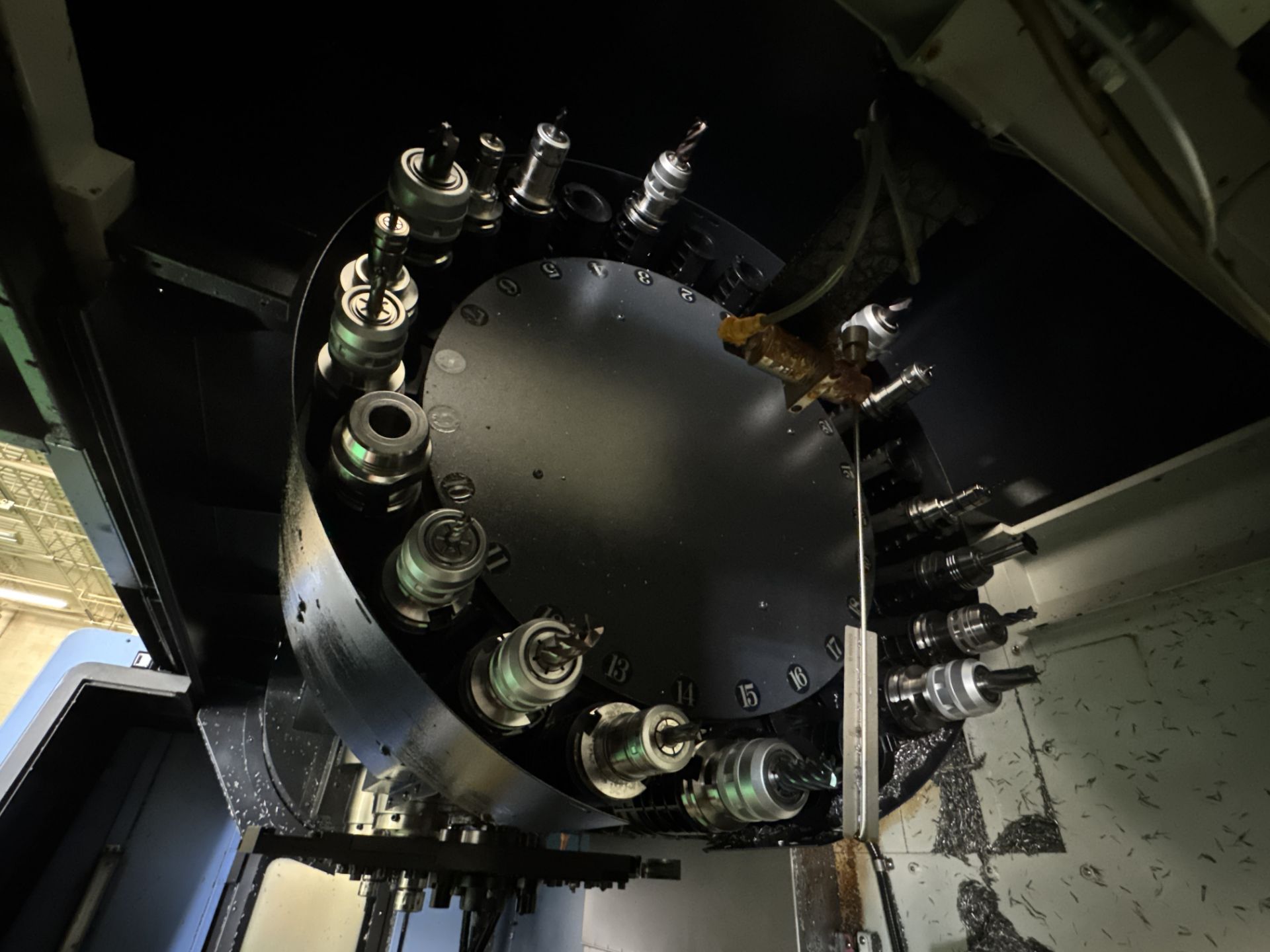

- Tool Changers: Dual side-mount magazines, 30 tools per spindle (2 x 30)
- Tool Change: 1.7 sec tool-to-tool, 3.5 sec chip-to-chip
- W-Axis: 0.8″ dual-spindle tool length adjustment

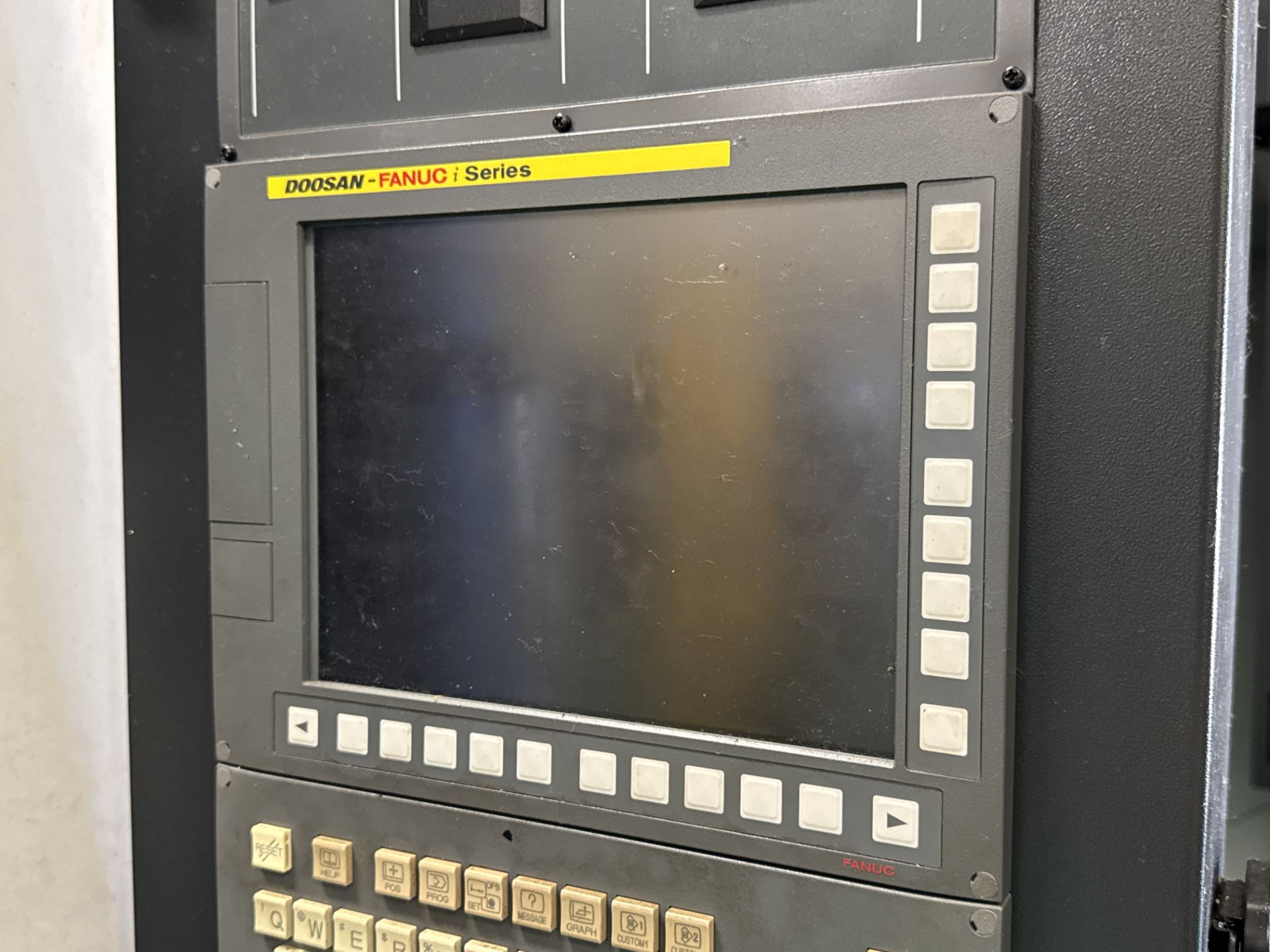

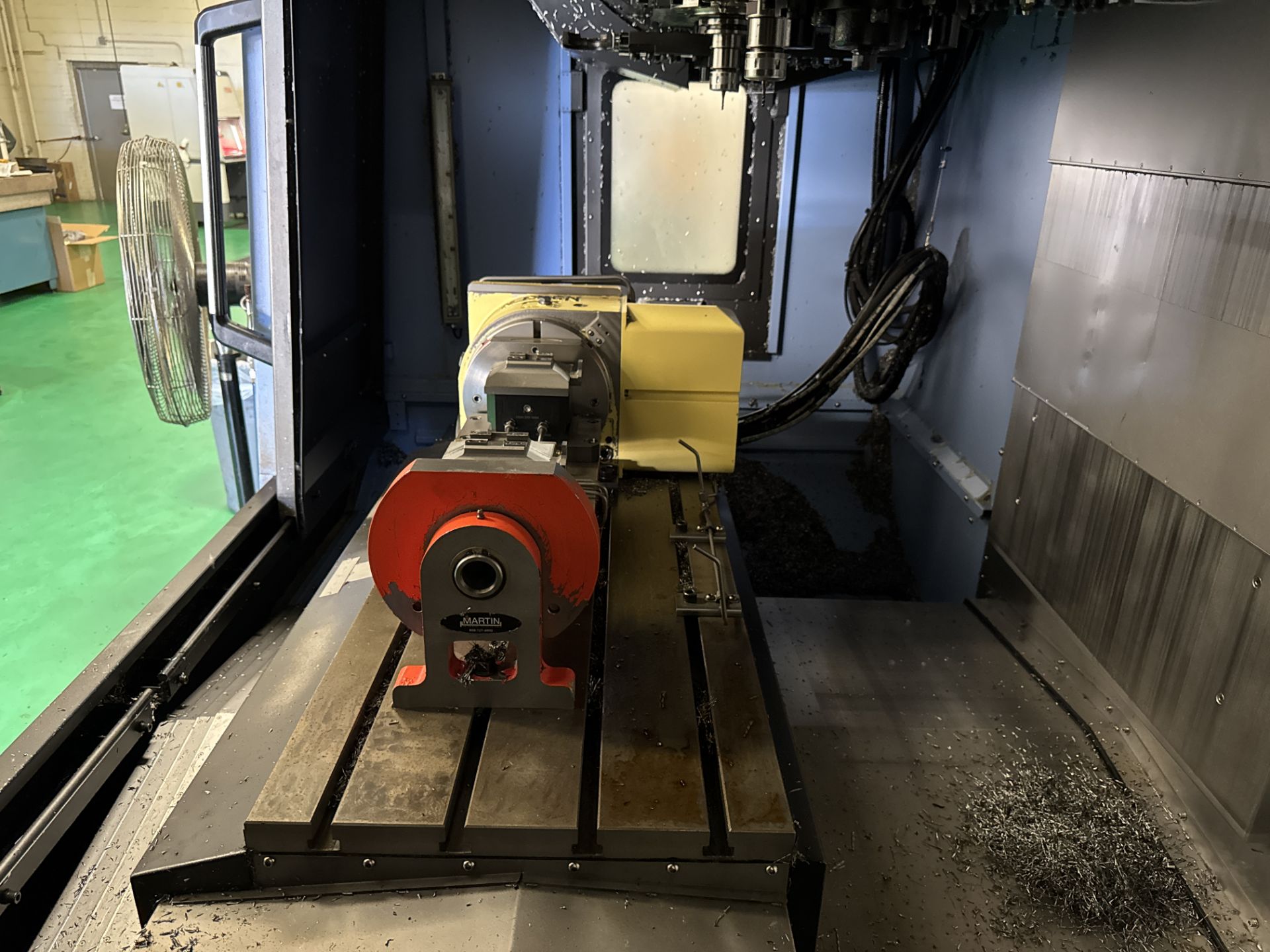

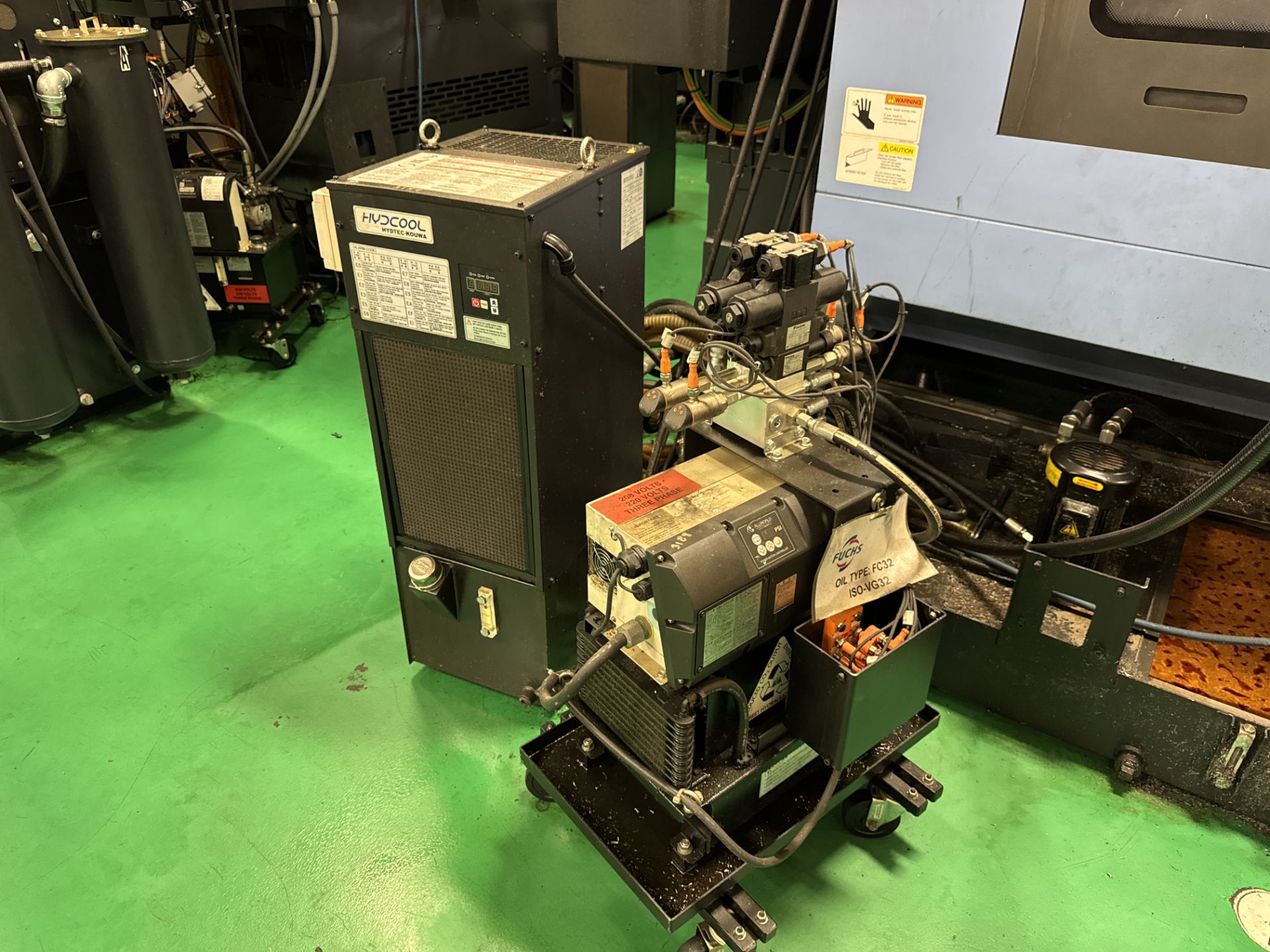

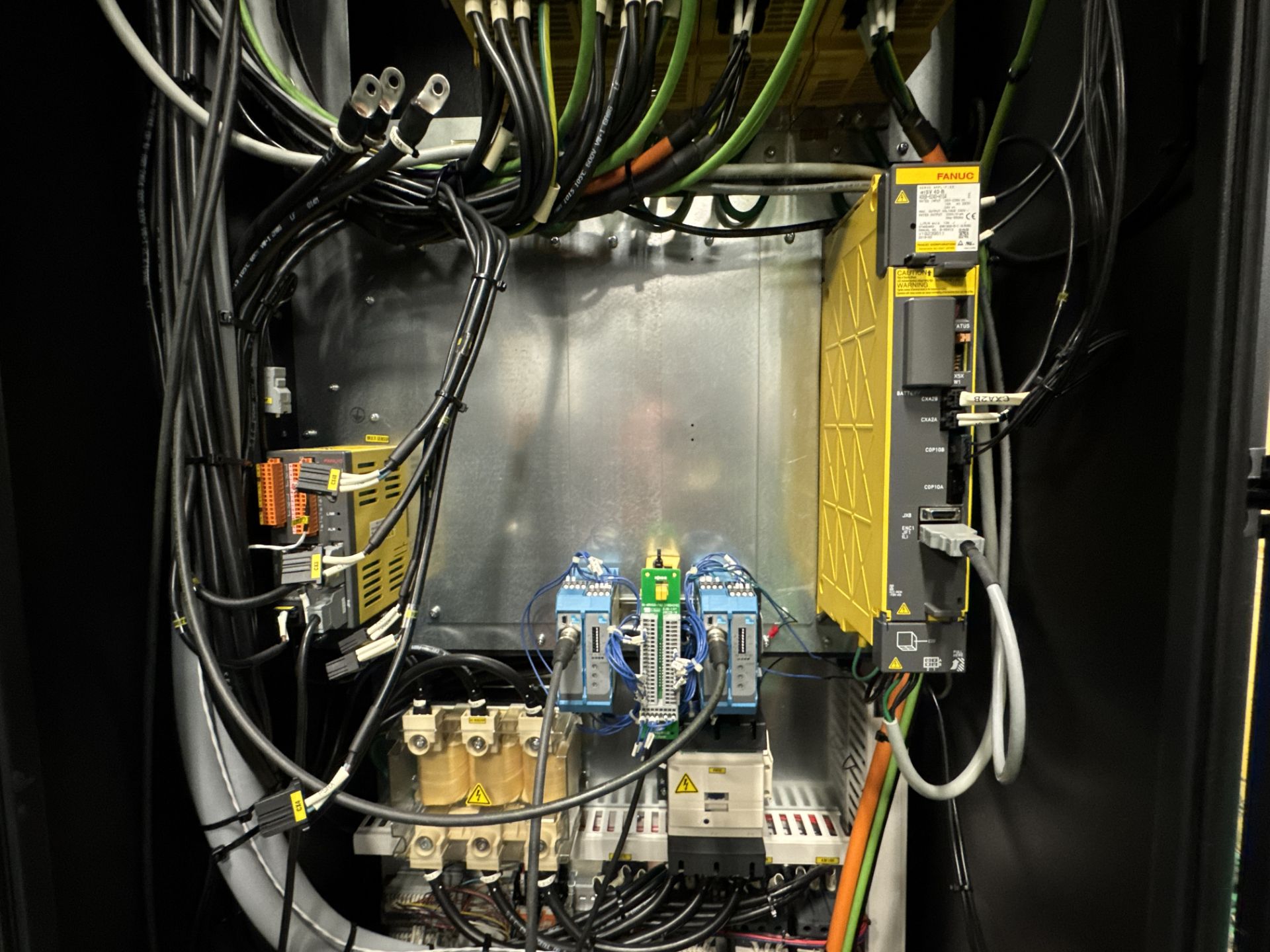

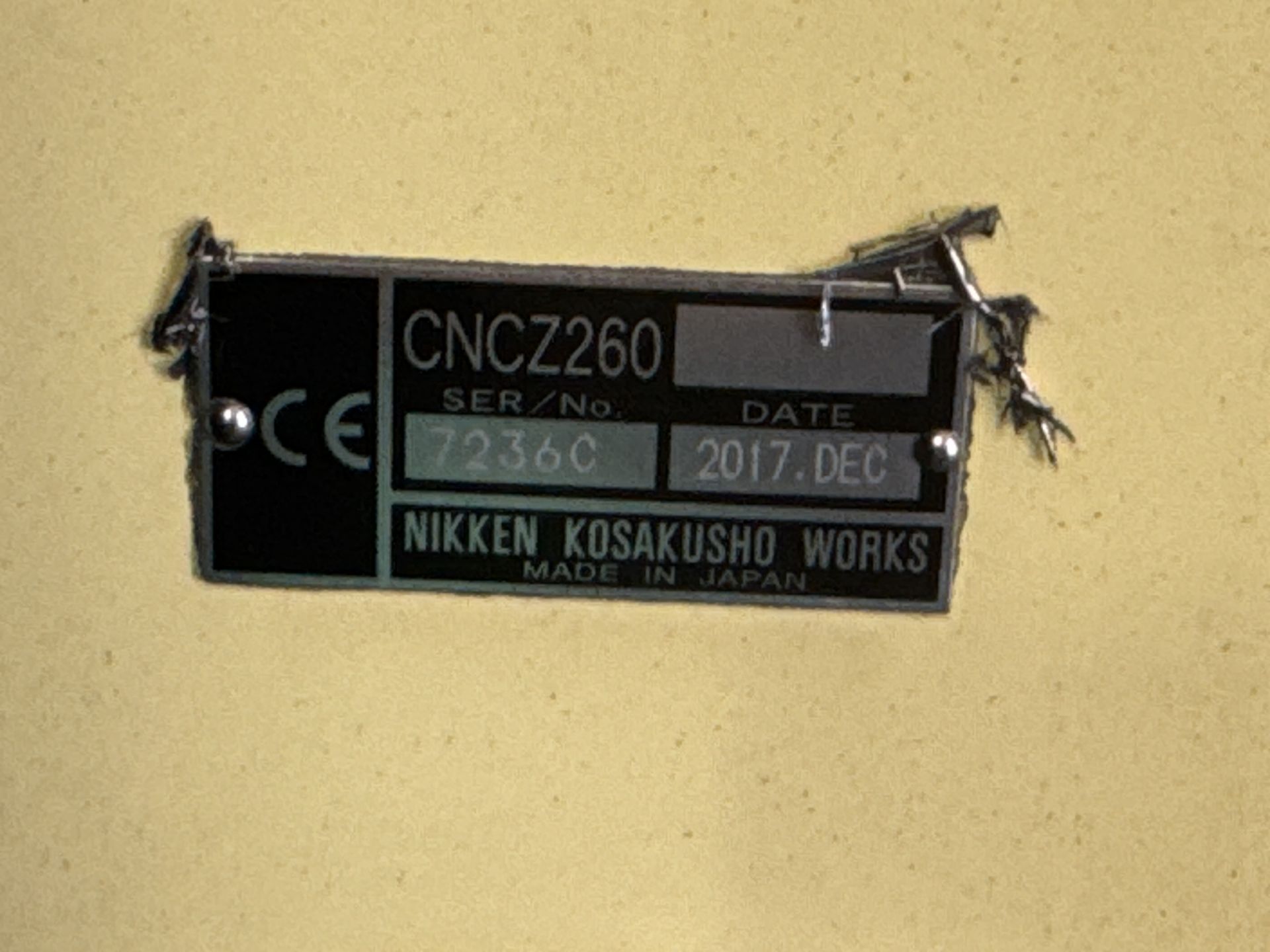

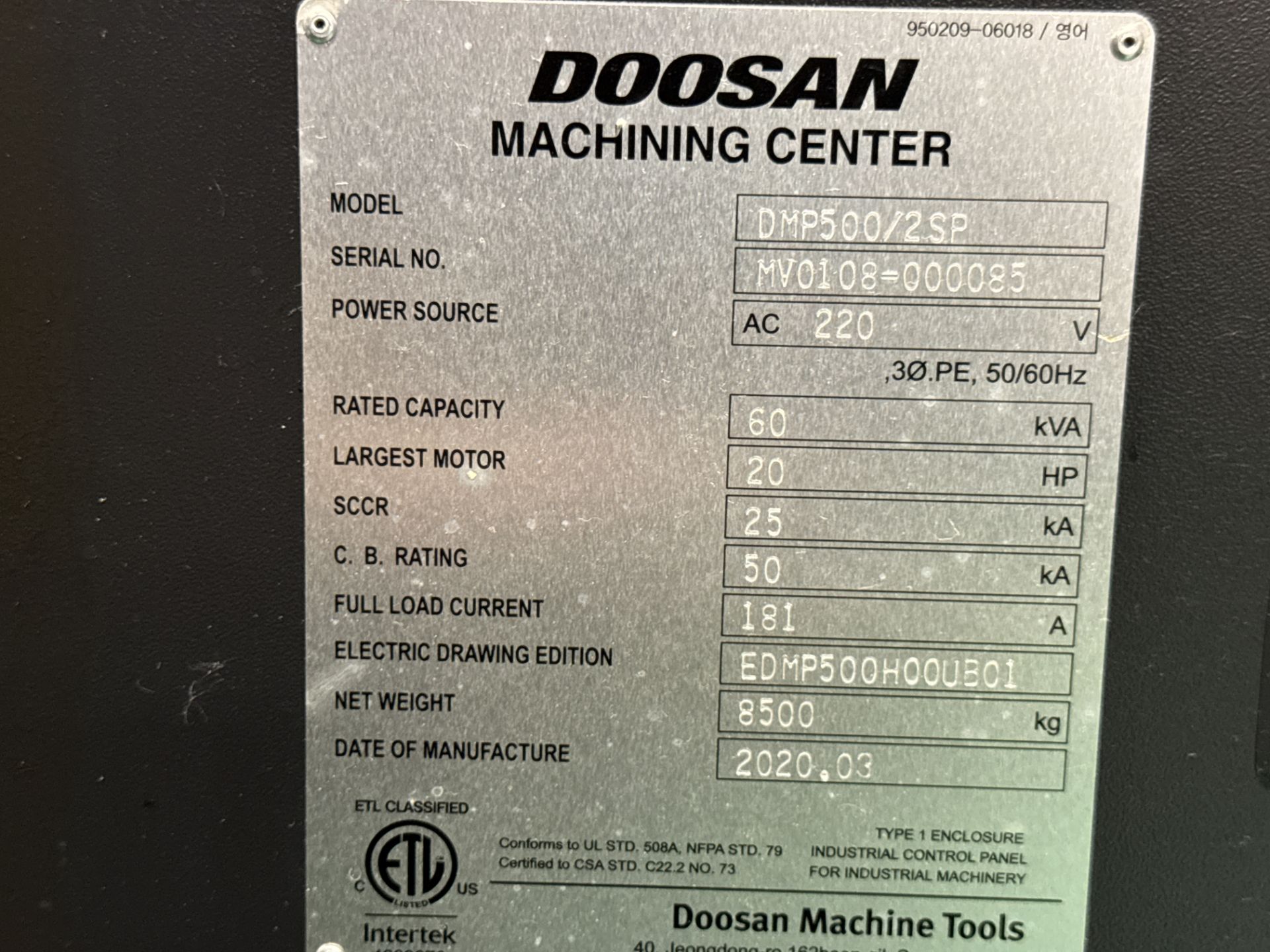

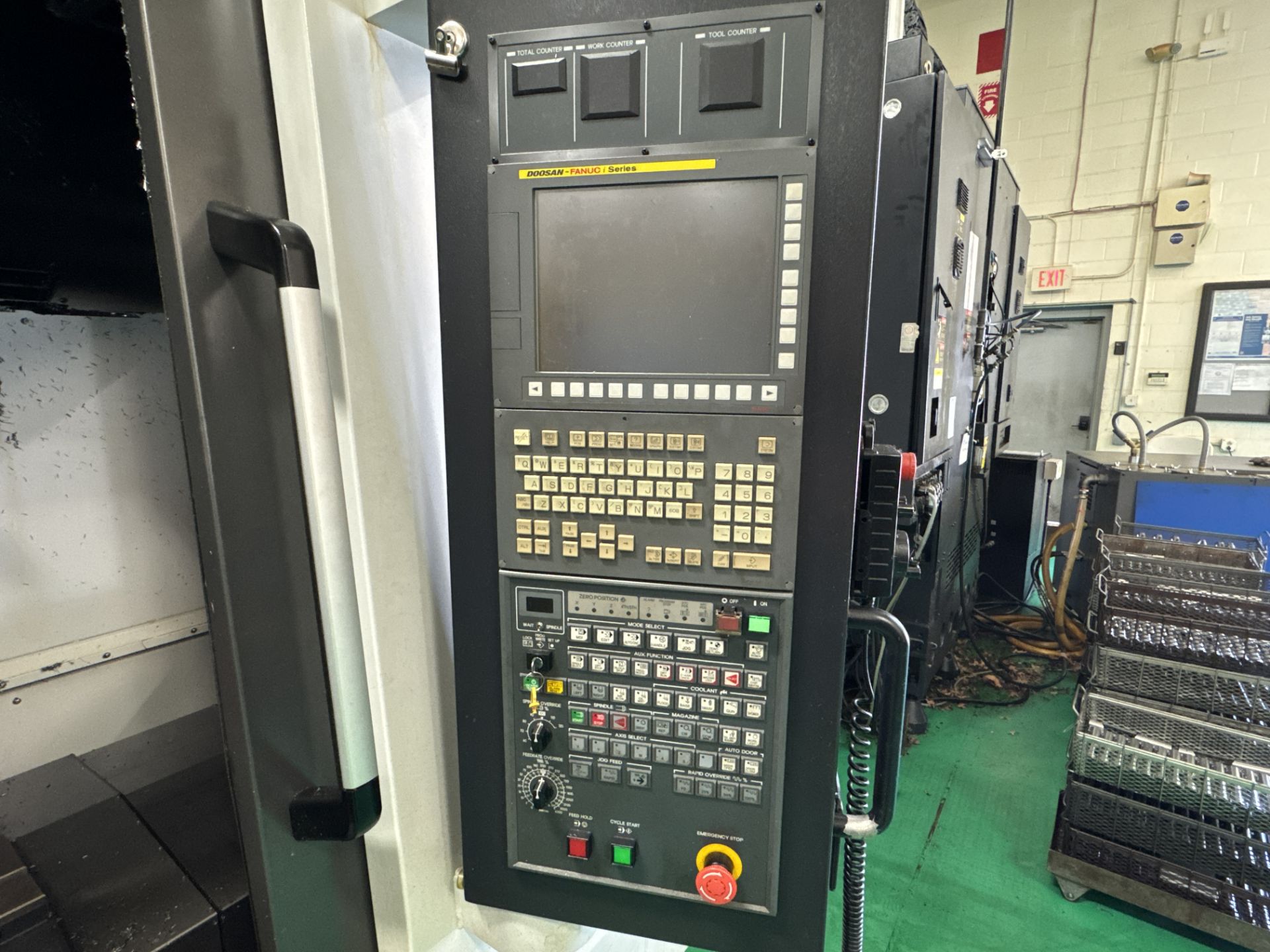

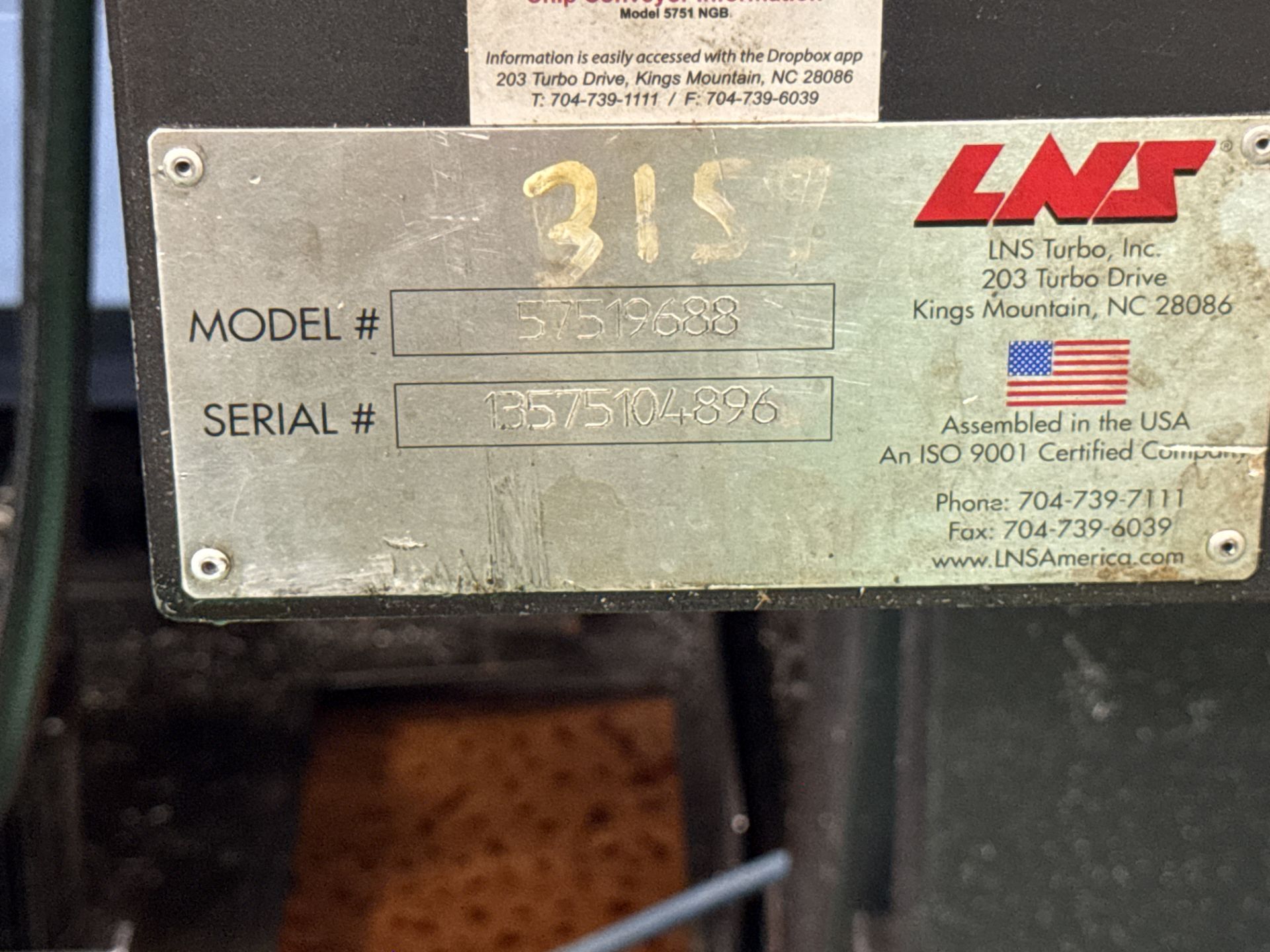

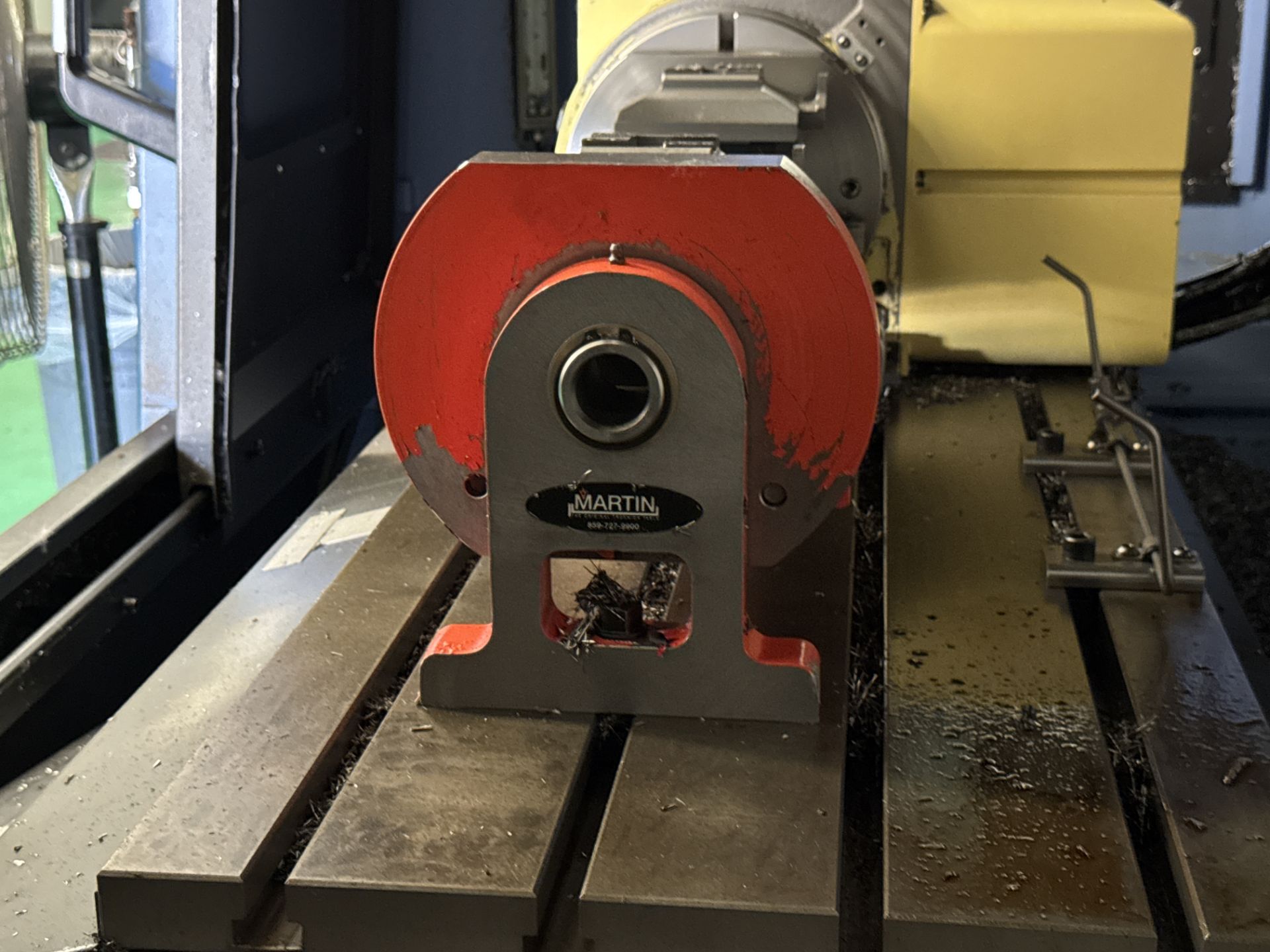

This machine features a Fanuc i Series CNC control, roller-type linear guideways on all axes, rigid column and base construction, high-pressure coolant, LNS Chip Blaster, and chip conveyor. It is wired for a Nikken 4th axis and runs on 220V power. Designed to output the work of two machining centers in a compact footprint with less capital investment, the DMP500/2SP delivers exceptional value and reliability for demanding production environments.
Additional information
| Weight | 18739.27 lbs |
|---|---|
| Dimensions | 92.64 × 108.66 × 138.19 in |
