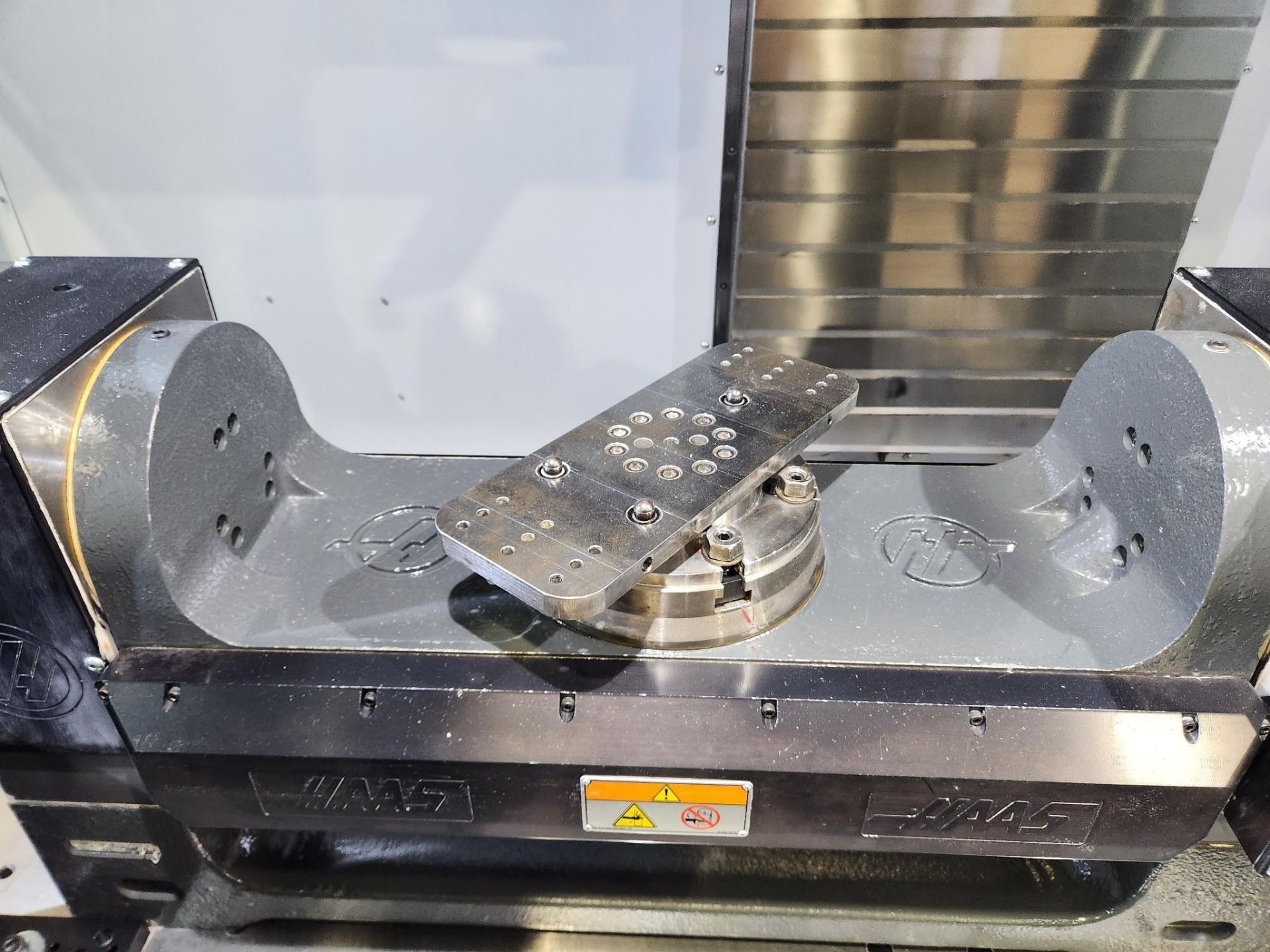

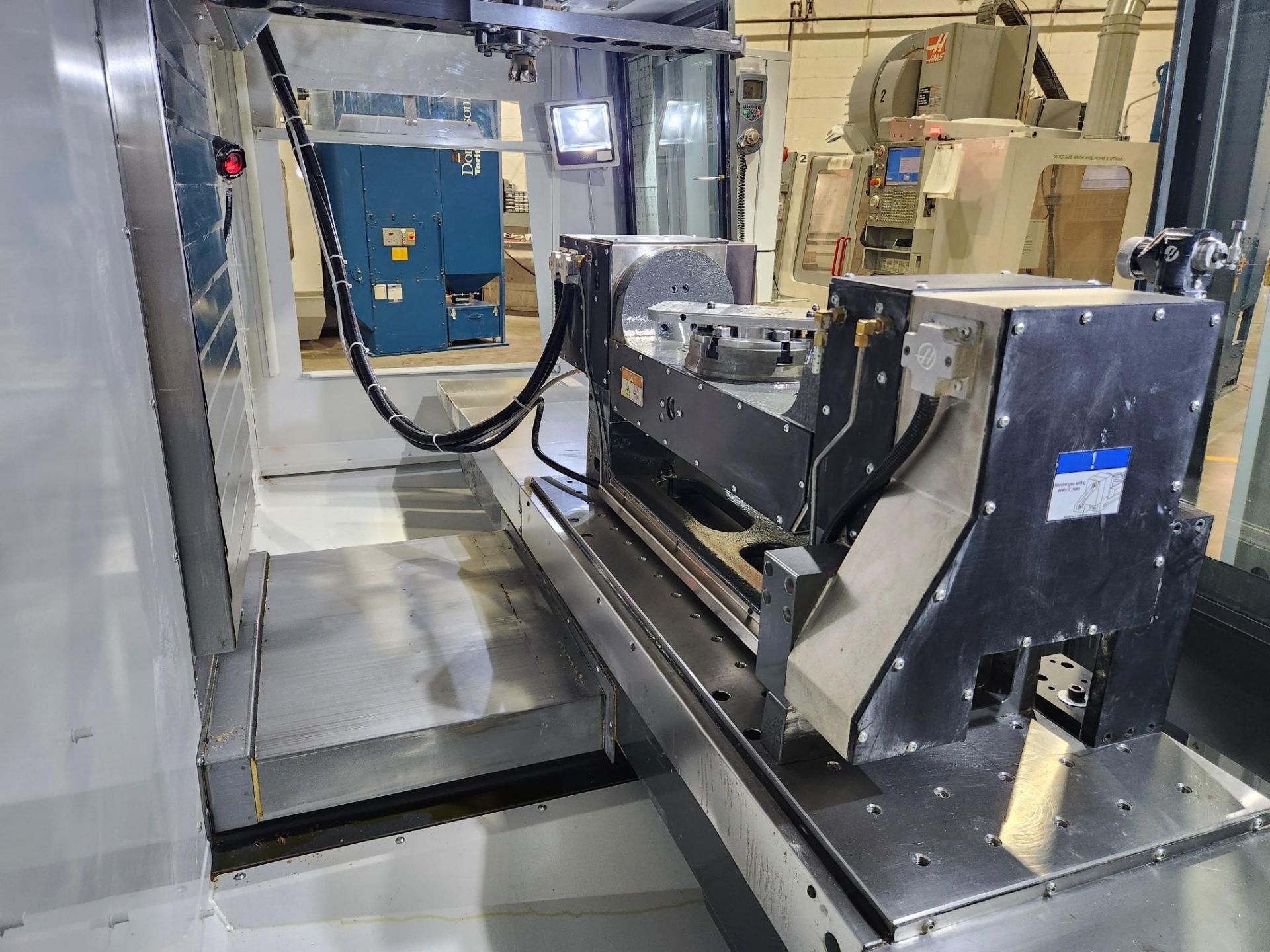

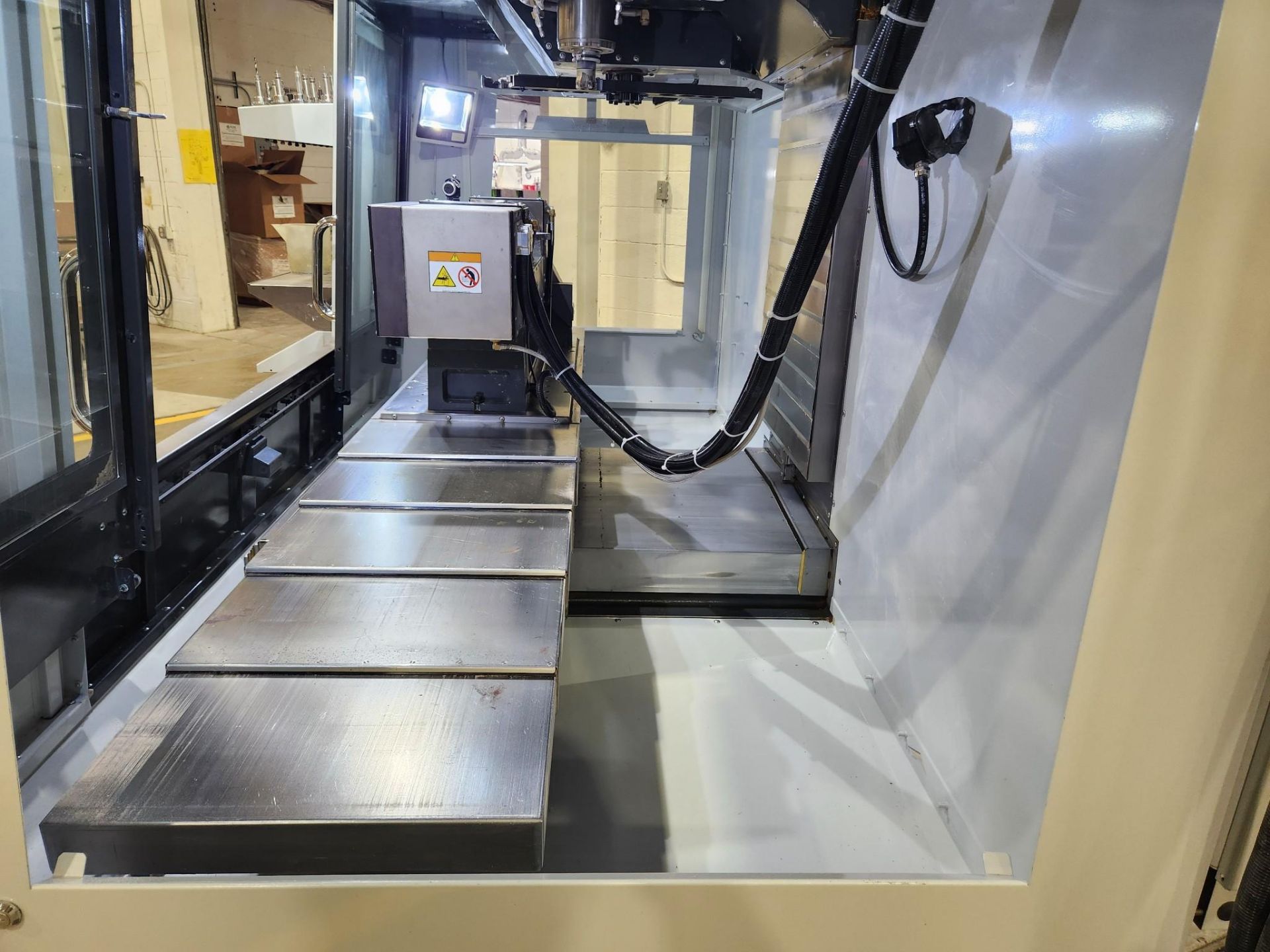

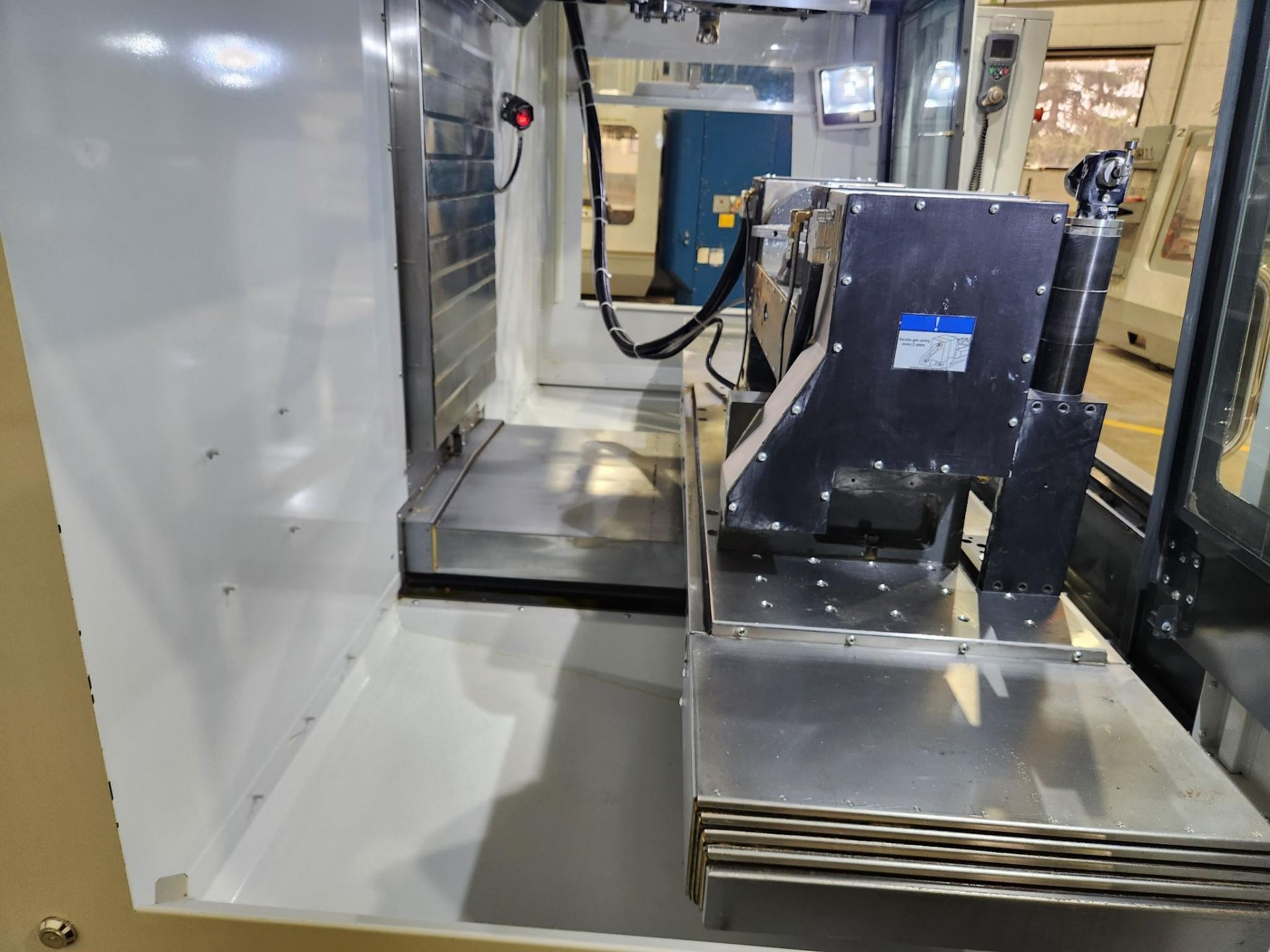

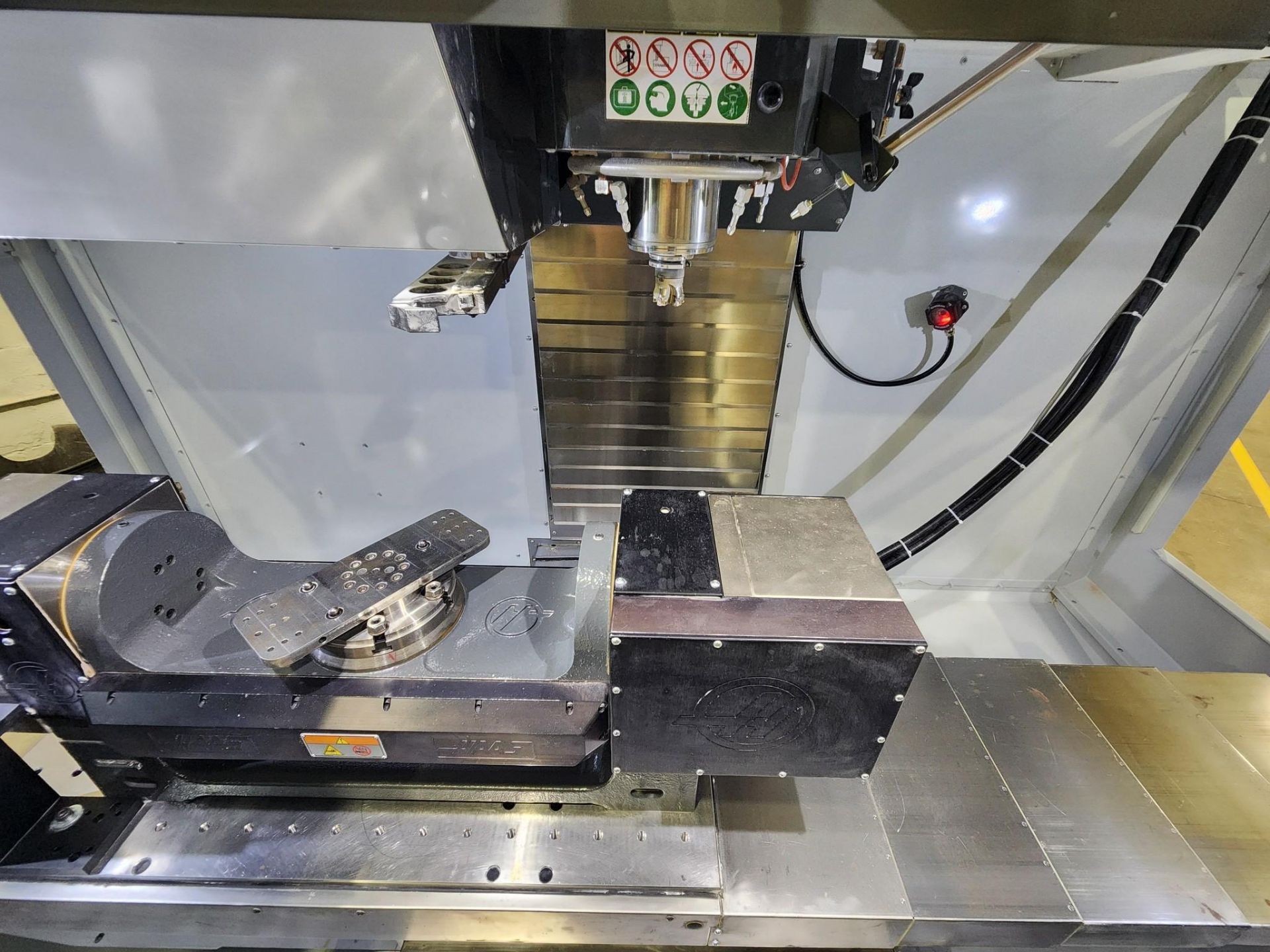

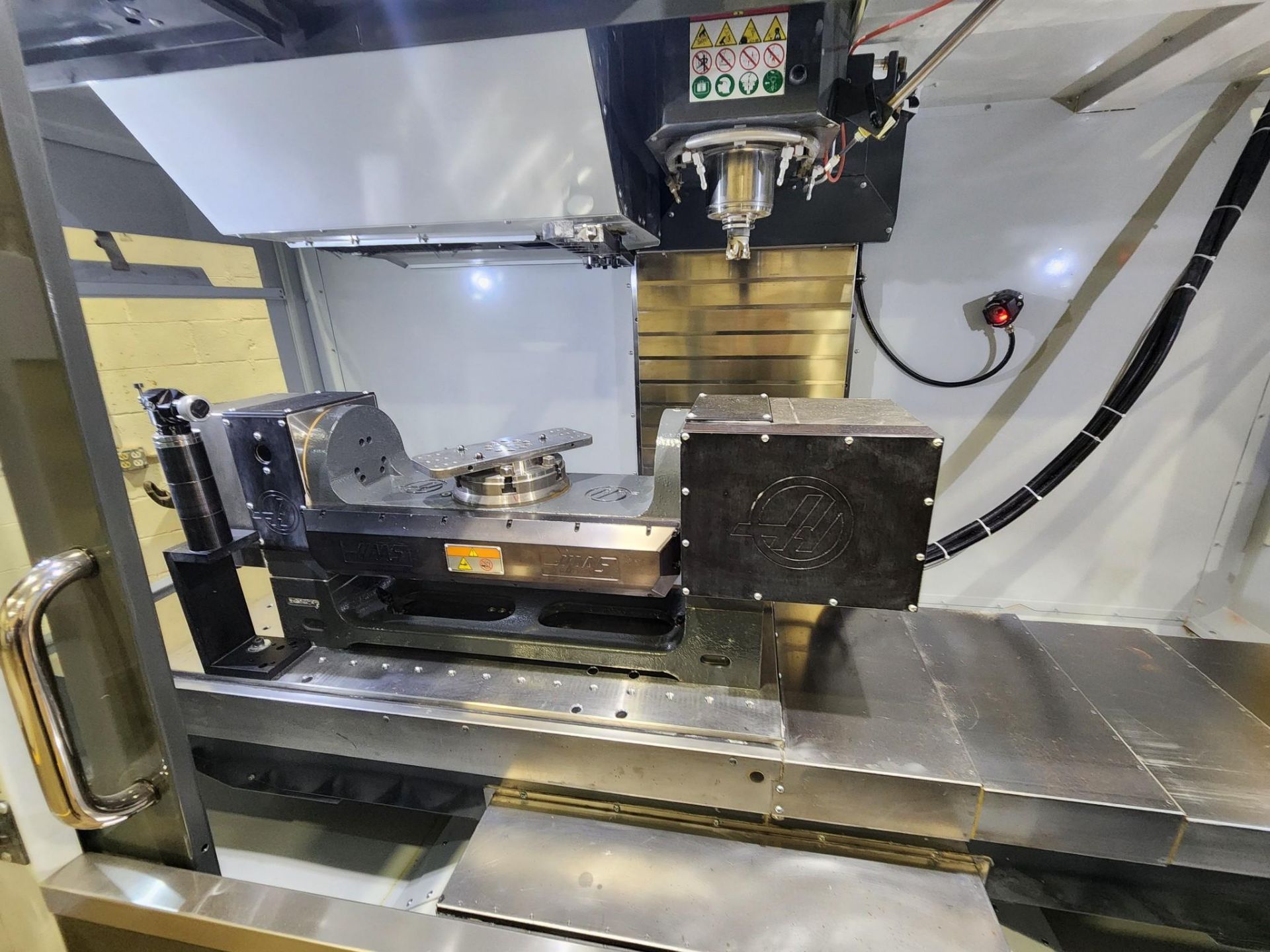

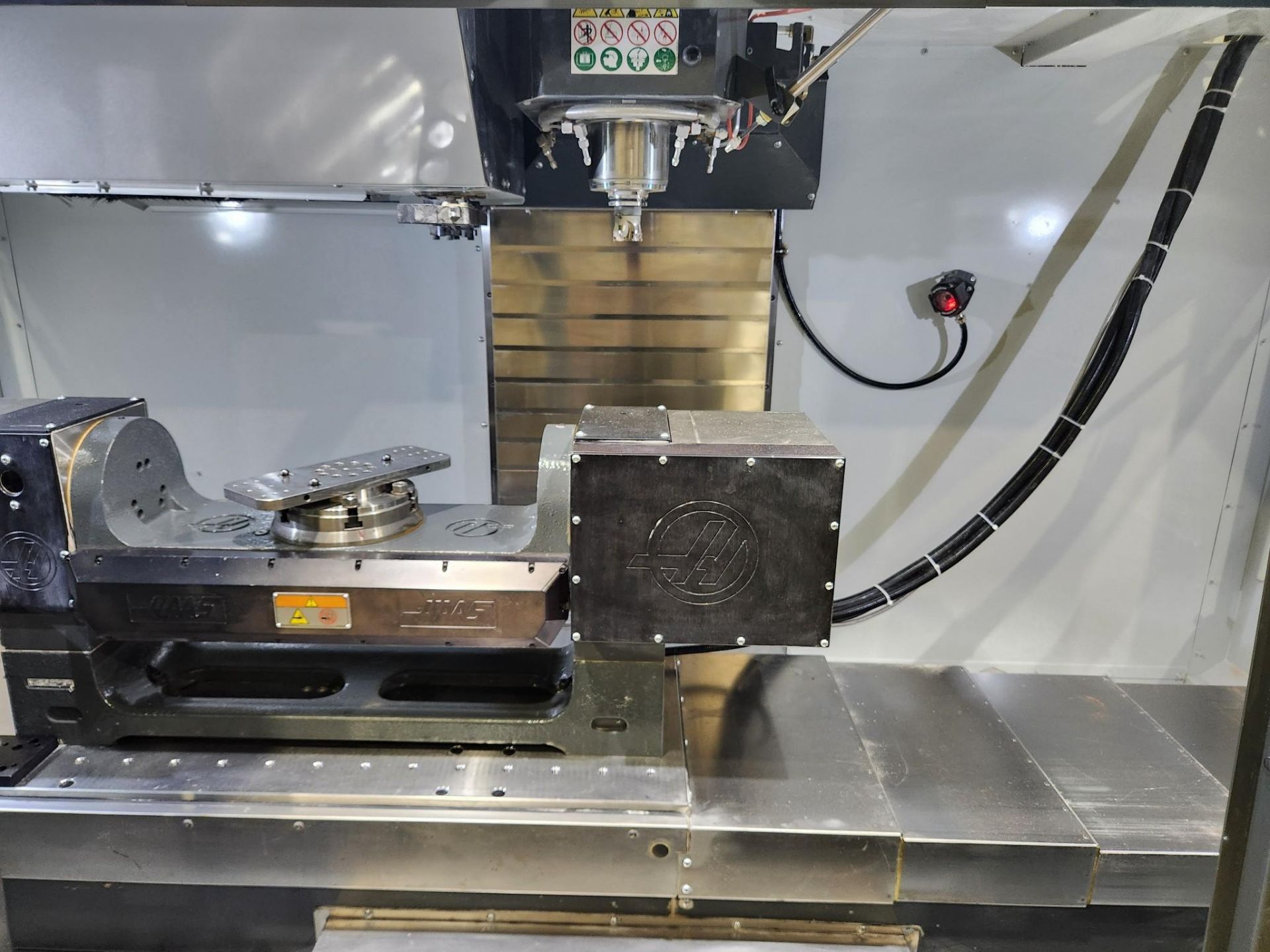

2020 HAAS TR-210 5-AXIS TRUNNION ROTARY TABLE
2020 Haas TR-210 Dual-Axis 5-Axis Trunnion Rotary Table with 8.3″ (210 mm) T-slotted platter, 200 lb capacity, ±120° tilt, and 360° rotary. Includes A/B-axis brakes, Haas 4th/5th axis interface, and cables for precise 3+2 and full 5-axis machining.
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description
The 2020 Haas TR-210 5-Axis Trunnion Rotary Table is a dual-axis trunnion designed to deliver maximum rigidity and accurate performance for both 3+2 and full 5-axis machining of medium to large parts. This precision rotary table expands the capability of a compatible CNC mill, enabling complex multi-sided machining in a single setup.
Key features and specifications include:
- Platter Diameter: 8.3″ (210 mm) T-slotted platter with 6 T-slots at 60°
- Maximum Weight on Platter: 200 lbs
- Maximum Part Swing: 23.5″
- A-Axis (Tilt) Travel: ±120° with 300 ft-lbs continuous torque
- B-Axis (Rotary) Travel: 360° with 210 ft-lbs continuous torque
- Maximum Speed: 60°/sec
- Dual-axis trunnion configuration with A-axis and B-axis brakes
This unit comes equipped with the 210 mm T-slotted platter, both axis brakes, the Haas 4th/5th axis interface, and cables. The TR-210 requires a Haas mill with 4th- and 5th-axis drives for true multi-axis operation. All specifications are assumed correct but must be confirmed by the purchasing entity.
Additional information
| Weight | 809.98 lbs |
|---|---|
| Dimensions | 58.27 × 23.23 × 27.17 in |
