2022 ELUMATEC SBZ-628 S PROFILE MACHINING CENTER

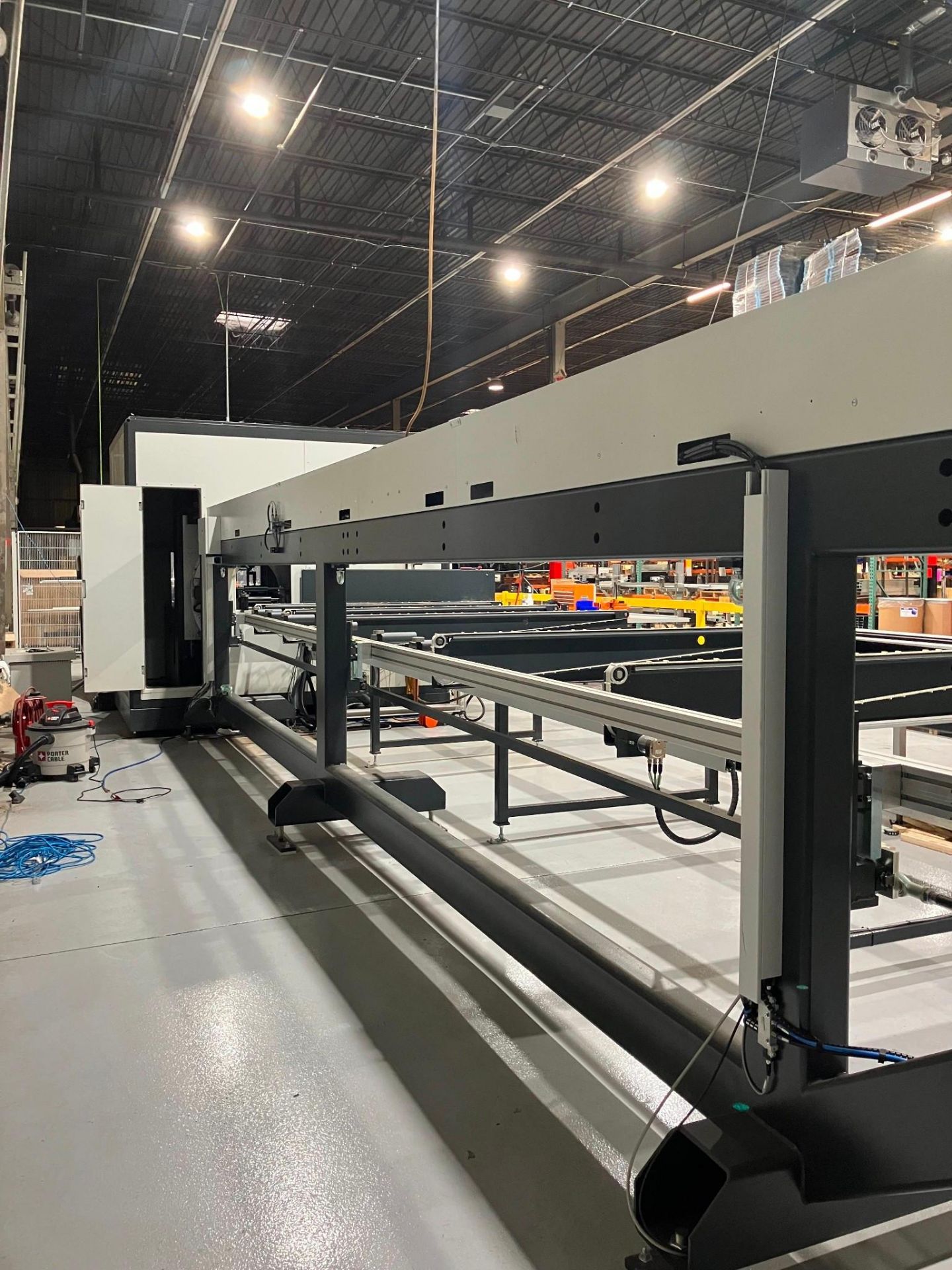

Fully automated 2022 Elumatec SBZ-628 S pass-through profile machining center for windows, doors, and curtain walls. Features four servo router spindles, a 2-axis saw with 650 mm blade, loading and unloading magazines, and Beckhoff drive control for high-speed aluminum profile fabrication.
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description
The 2022 Elumatec SBZ-628 S Profile Machining Center is a fully automated, pass-through system engineered for the high-speed fabrication of windows, doors, and curtain wall components from aluminum, PVC, and thin-walled profiles. This like-new unit delivers exceptional throughput with precision machining in a single automated production flow.

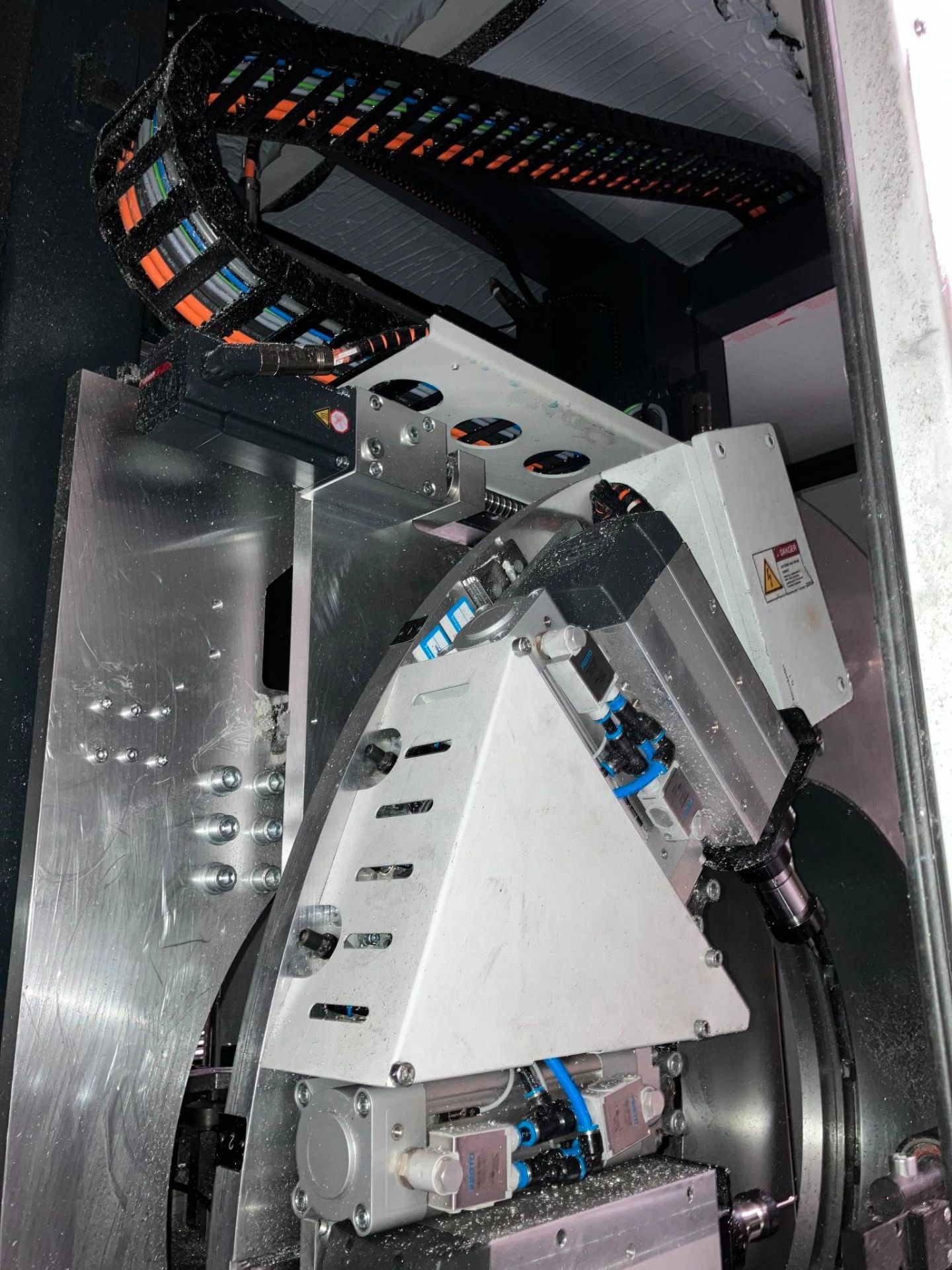

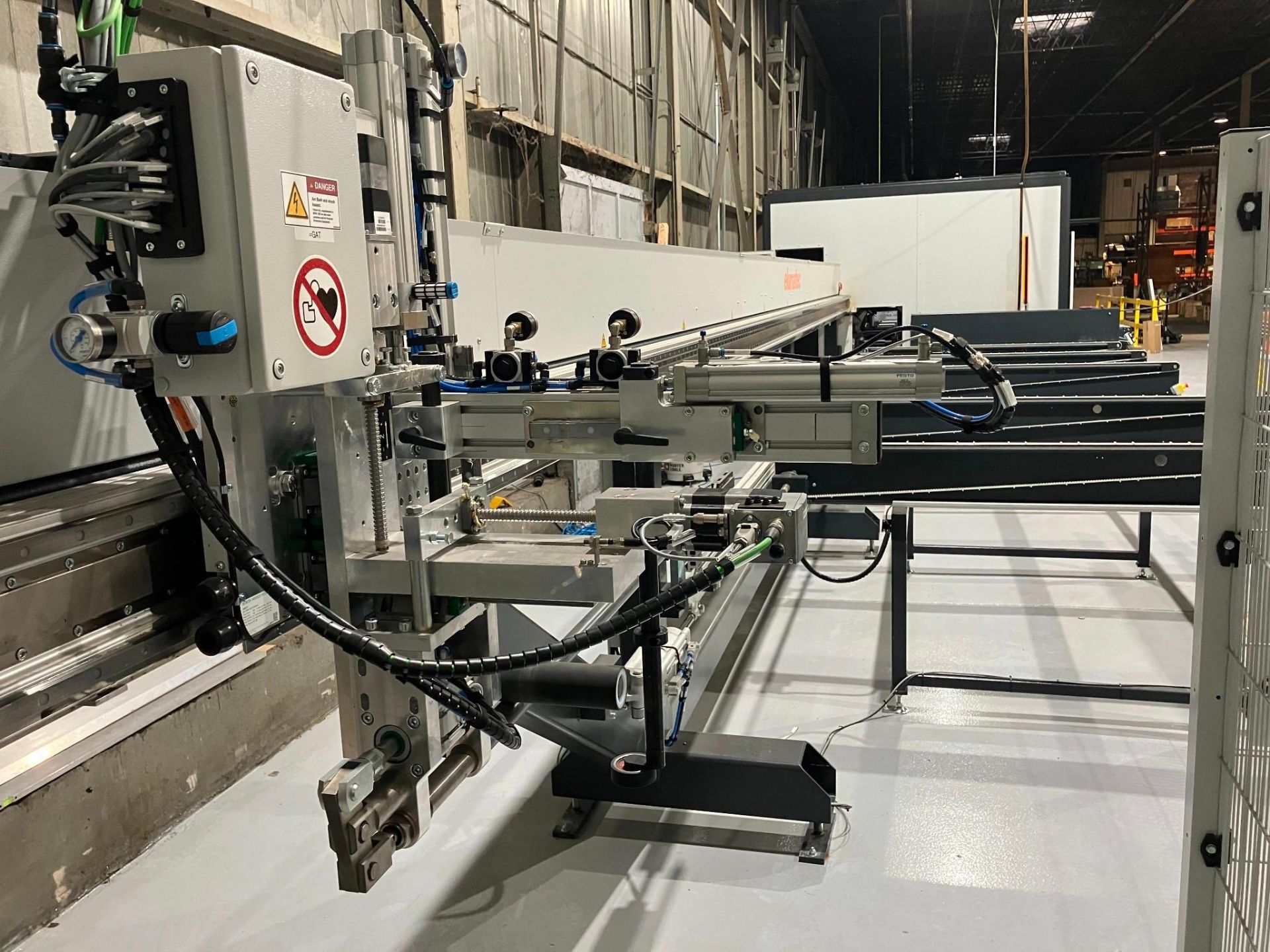

Configured with a left loading magazine for automatic production, the machine features four servo-assisted router spindles for routing and drilling, with continuous positioning over 360° on the profile bar for flexible clamping situations. Separating cuts adjust continuously from -45° to 90° (lead cut) and 90° to 45° (end cut).
- Max. profile cross-section (WxH): 200 x 160 / 160 x 200 mm
- Min. profile cross-section: 30 x 10 mm
- Blank bar length: 7,600 mm
- Finished part length: 350–4,600 mm

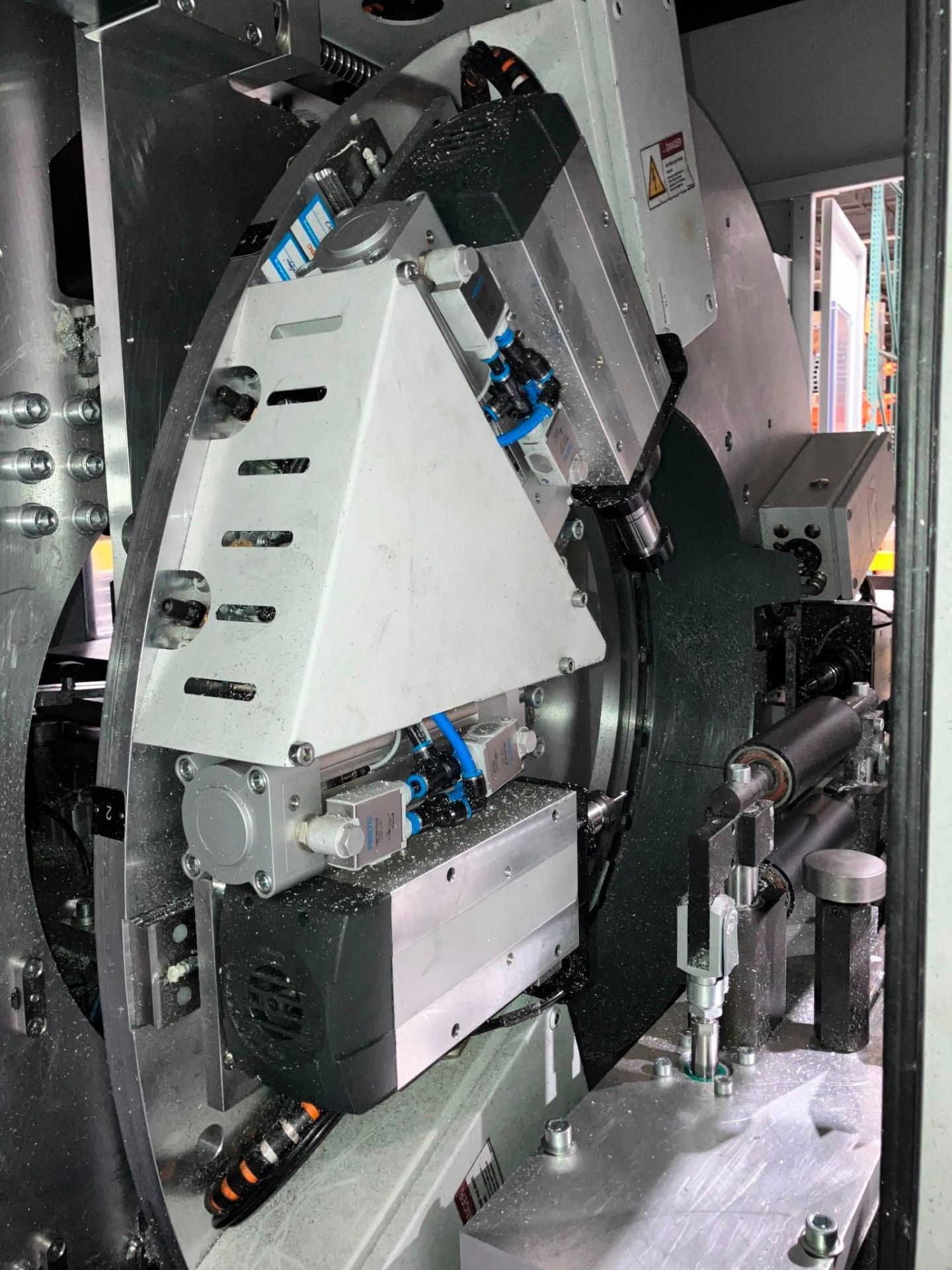

- Machining station: 4-axis with 4 router spindles

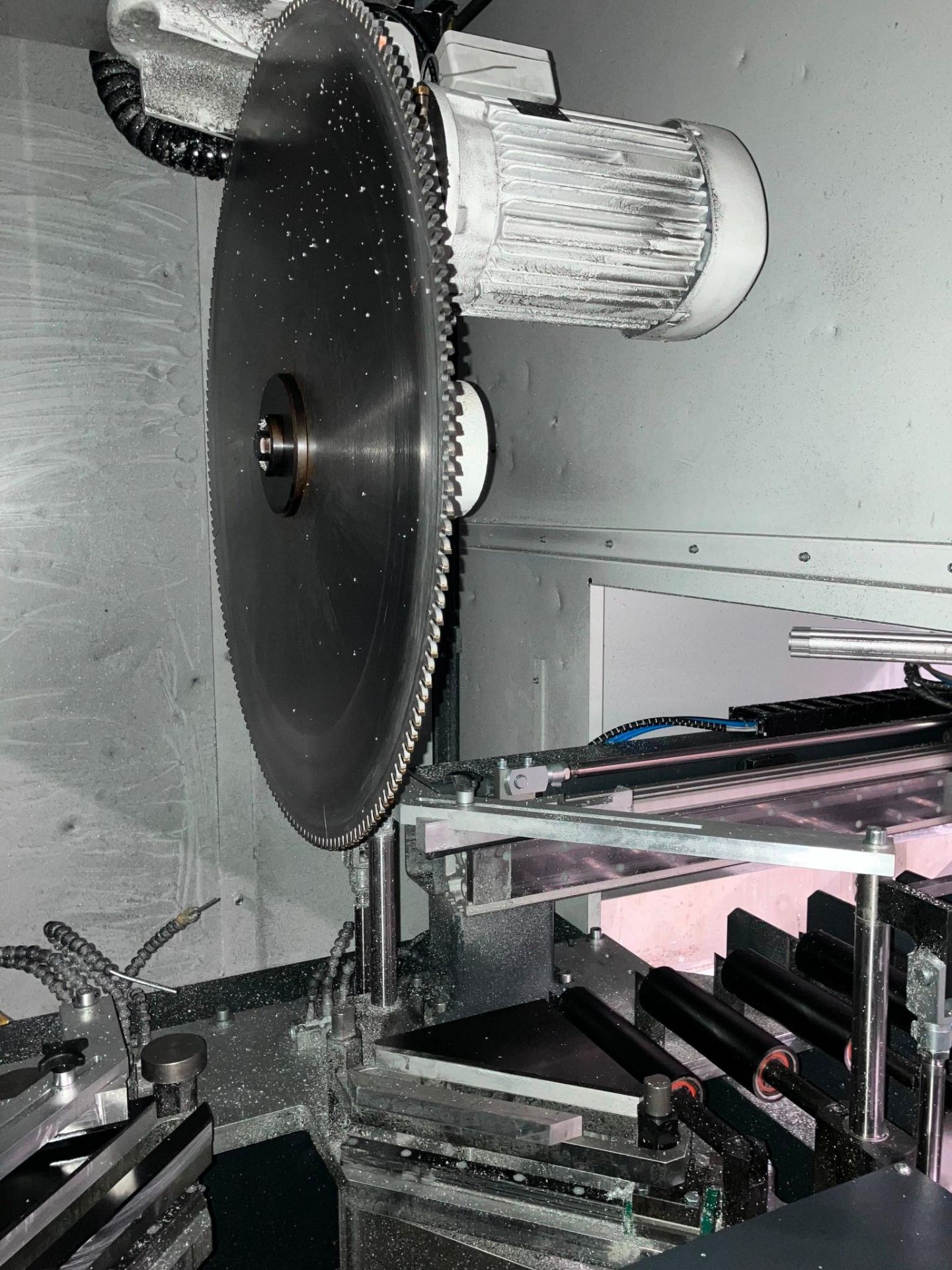

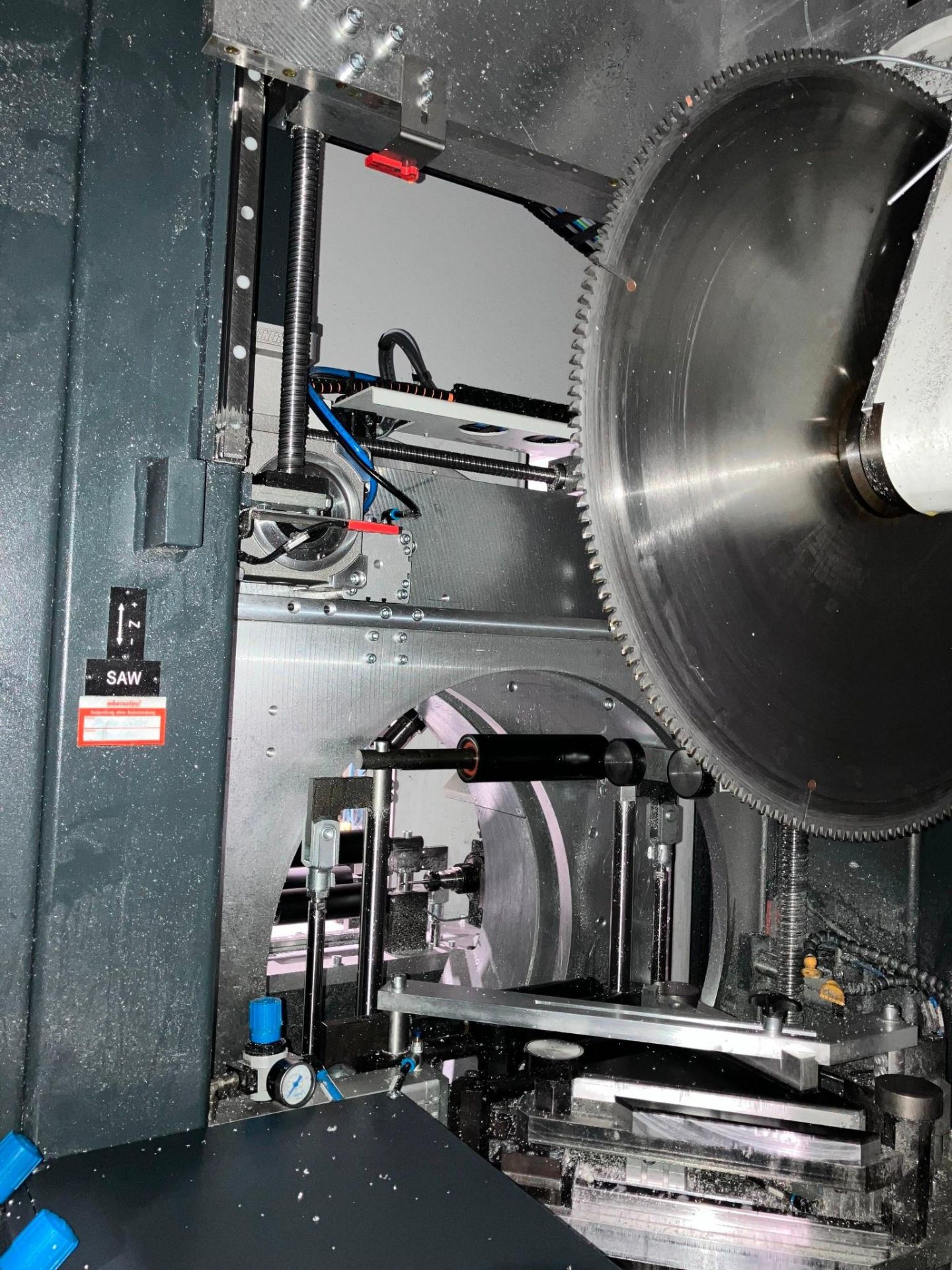

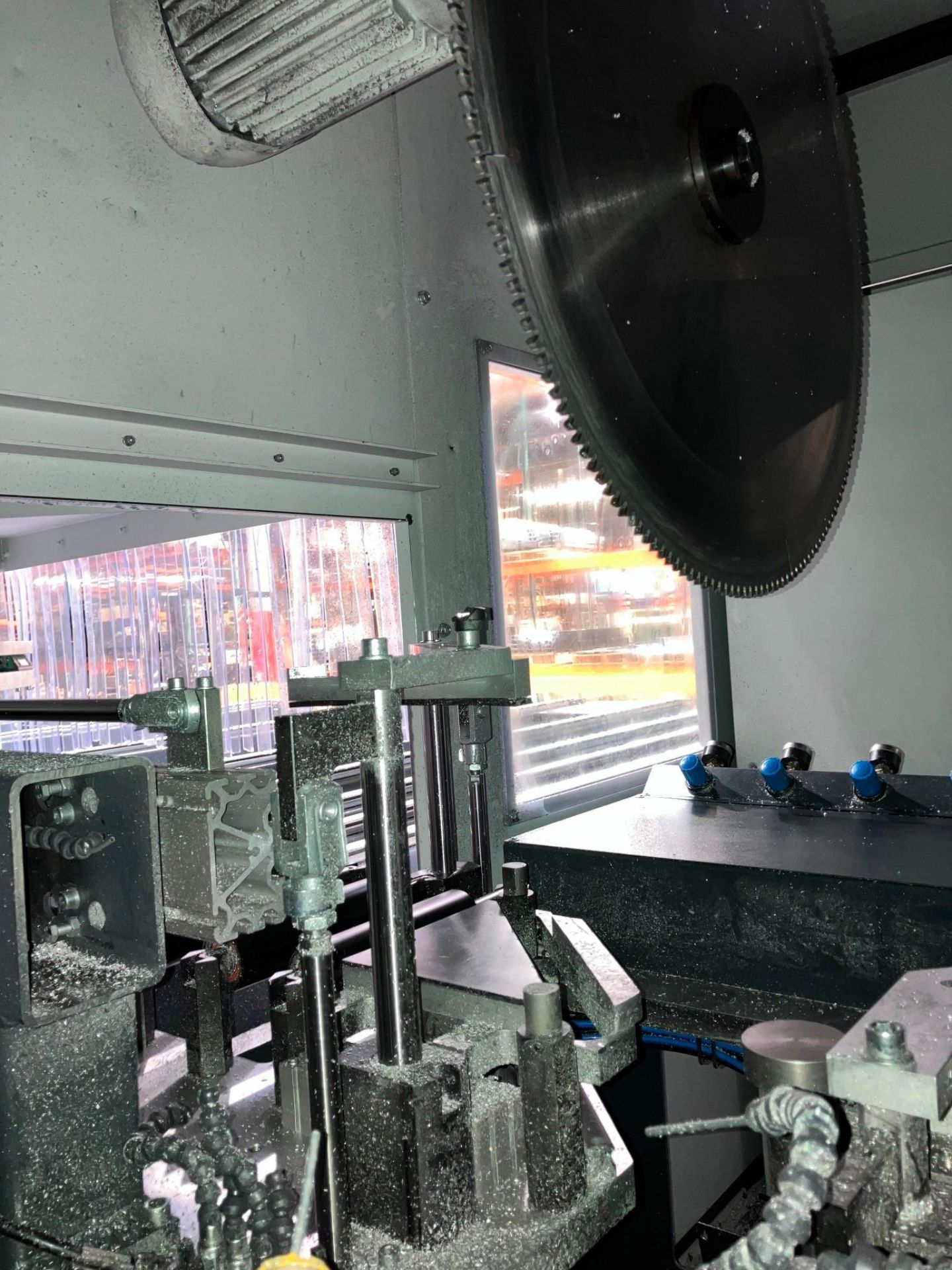

- Saw: 2-axis, single 650 mm blade, 45°–135° pivoting

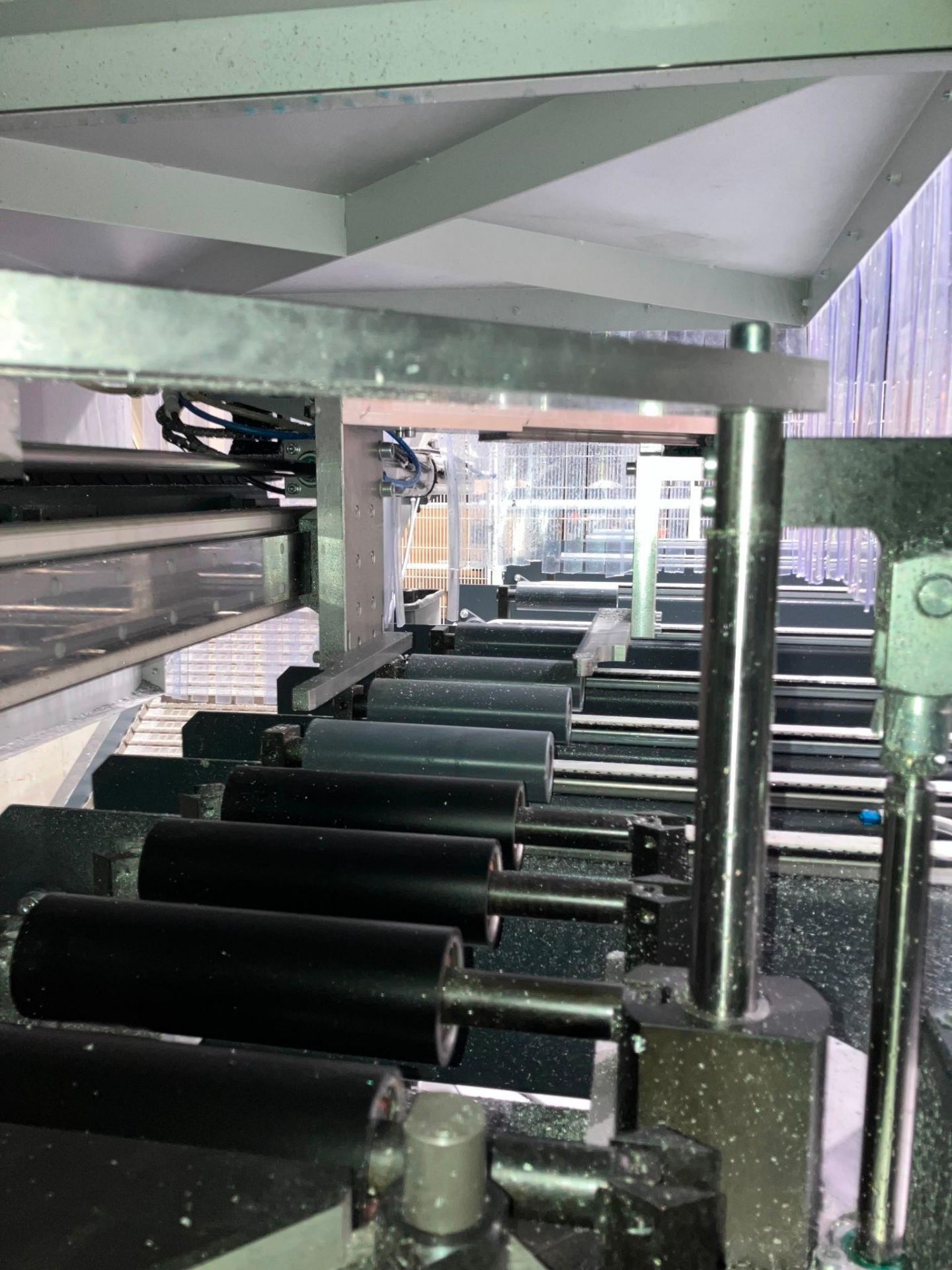

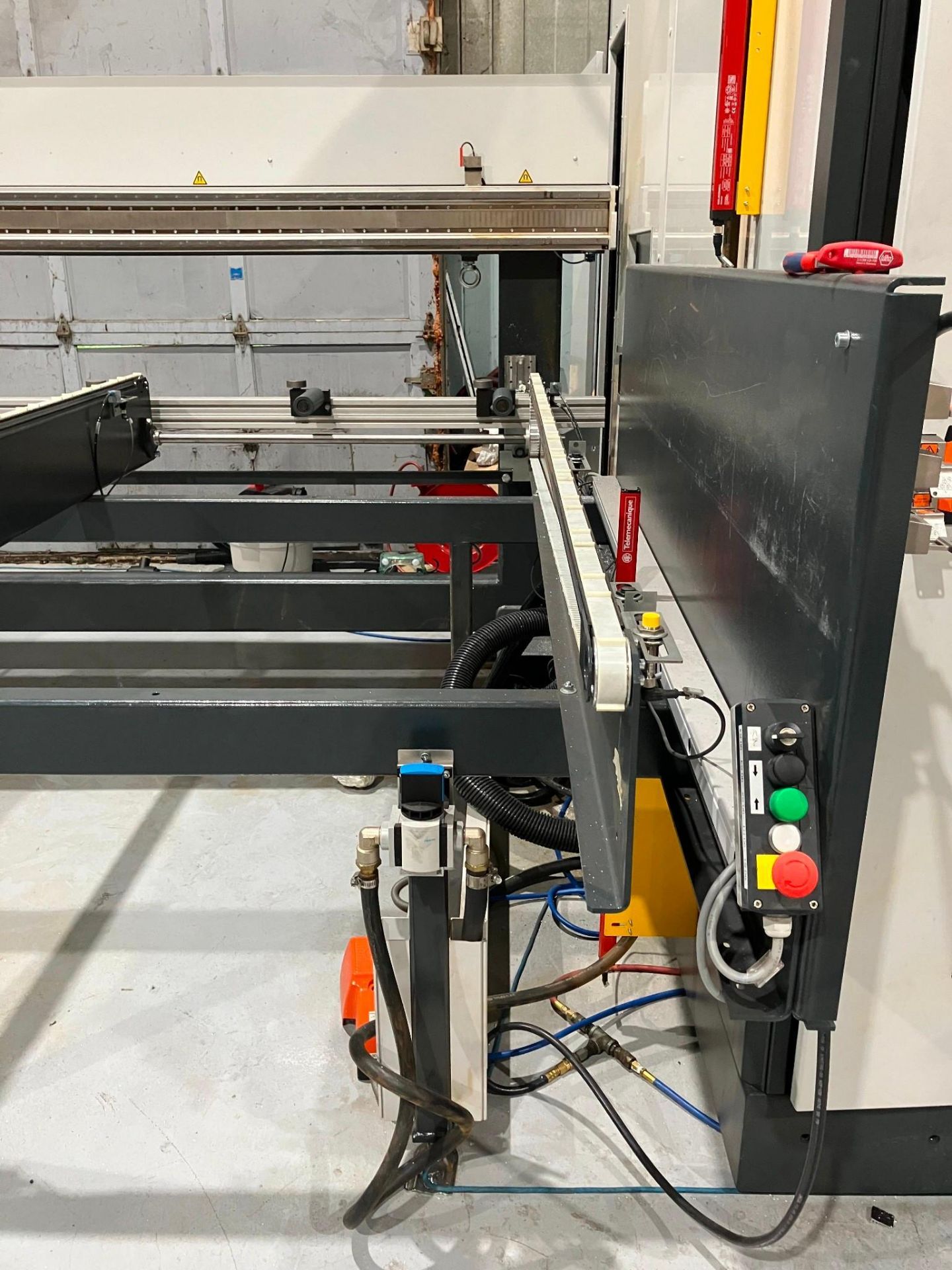

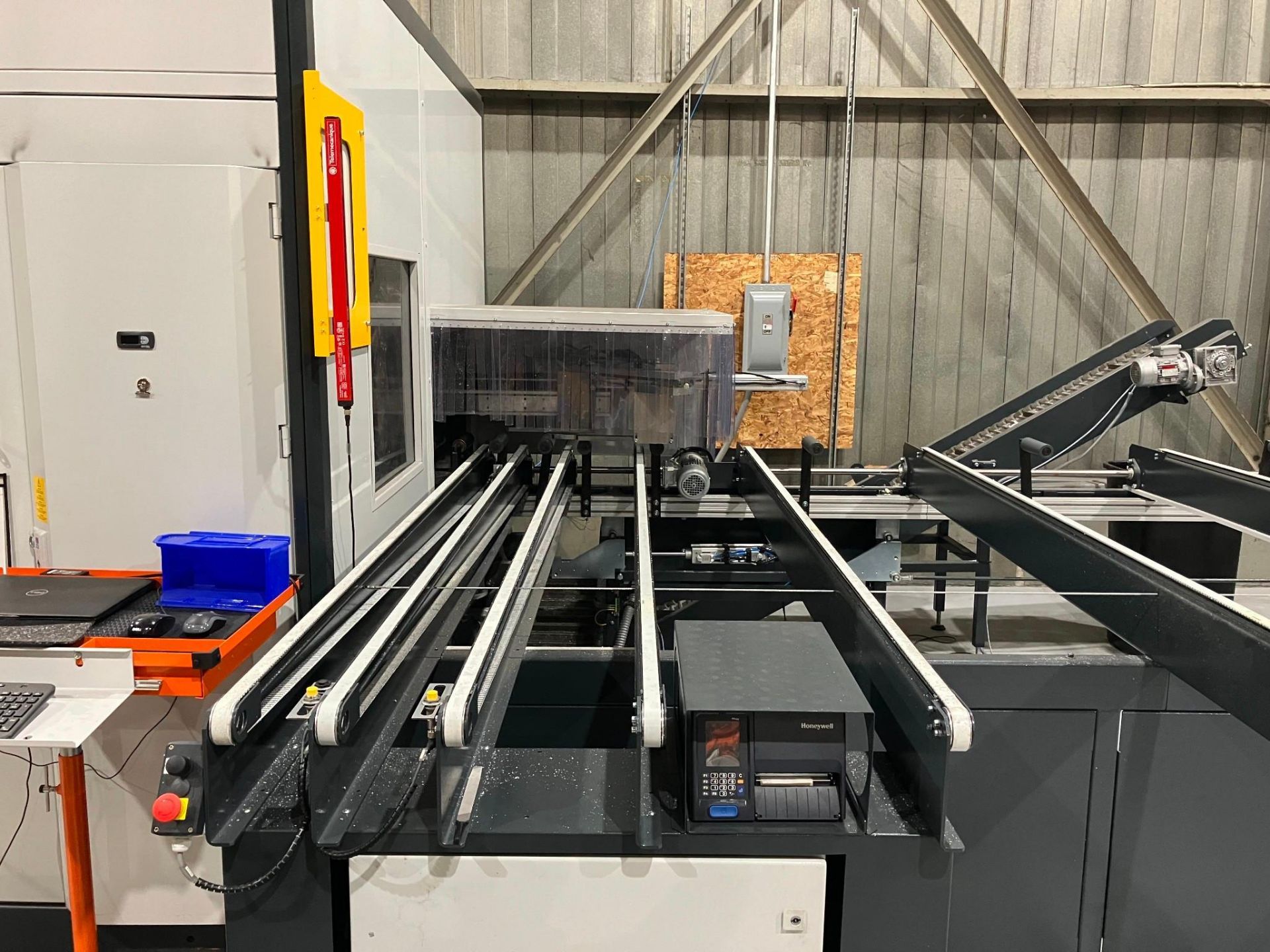

- Outfeed conveyor: lifting station with 8 swing arms, up to 4,000 mm width

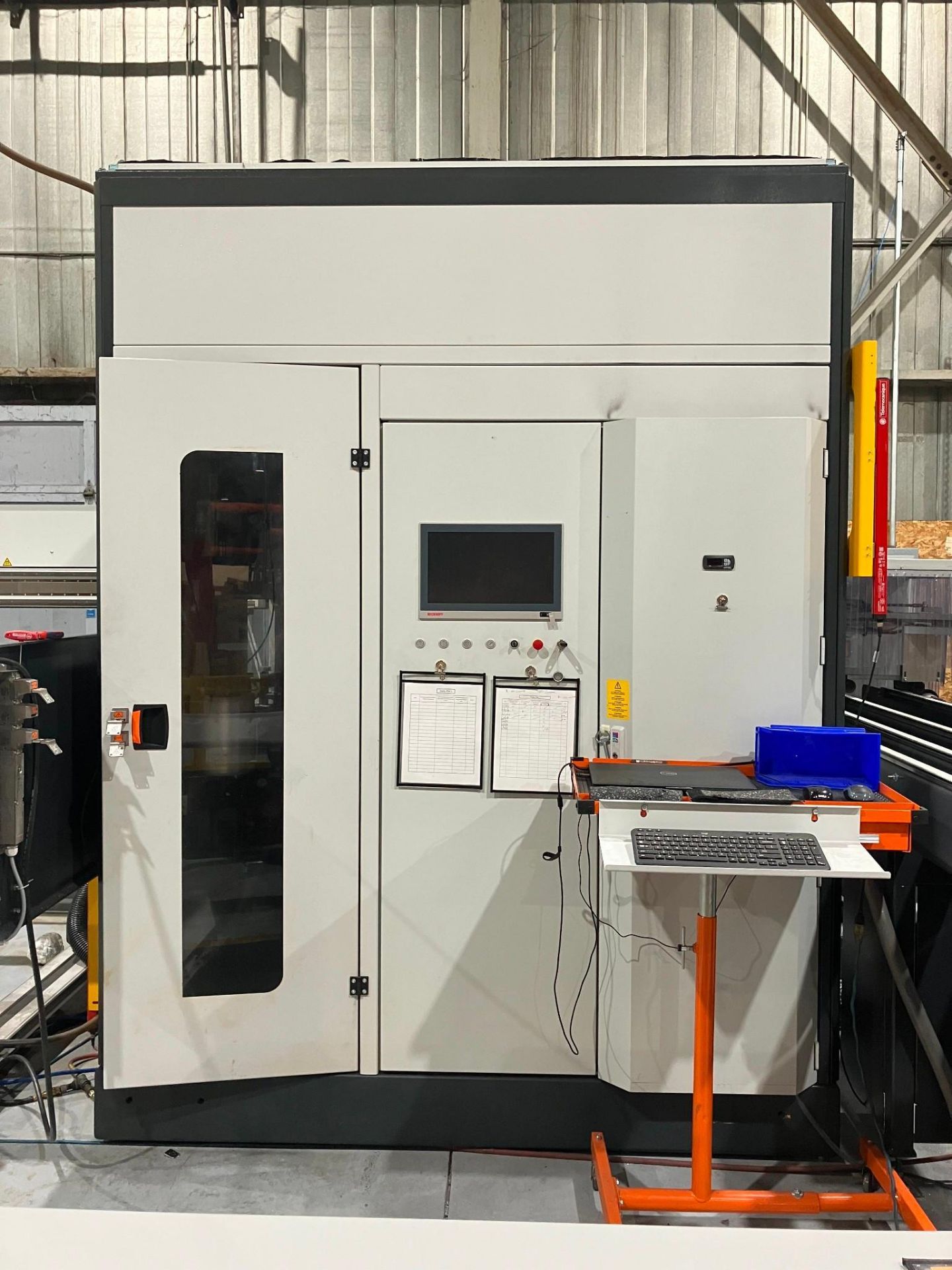

Equipped with Beckhoff drive control and easy-access maintenance elements, the SBZ-628 S simplifies one-operator production while maintaining reliable, continuous output for demanding metal construction applications.
Additional information
| Weight | 17636.96 lbs |
|---|---|
| Dimensions | 472.44 × 133.86 × 110.24 in |
