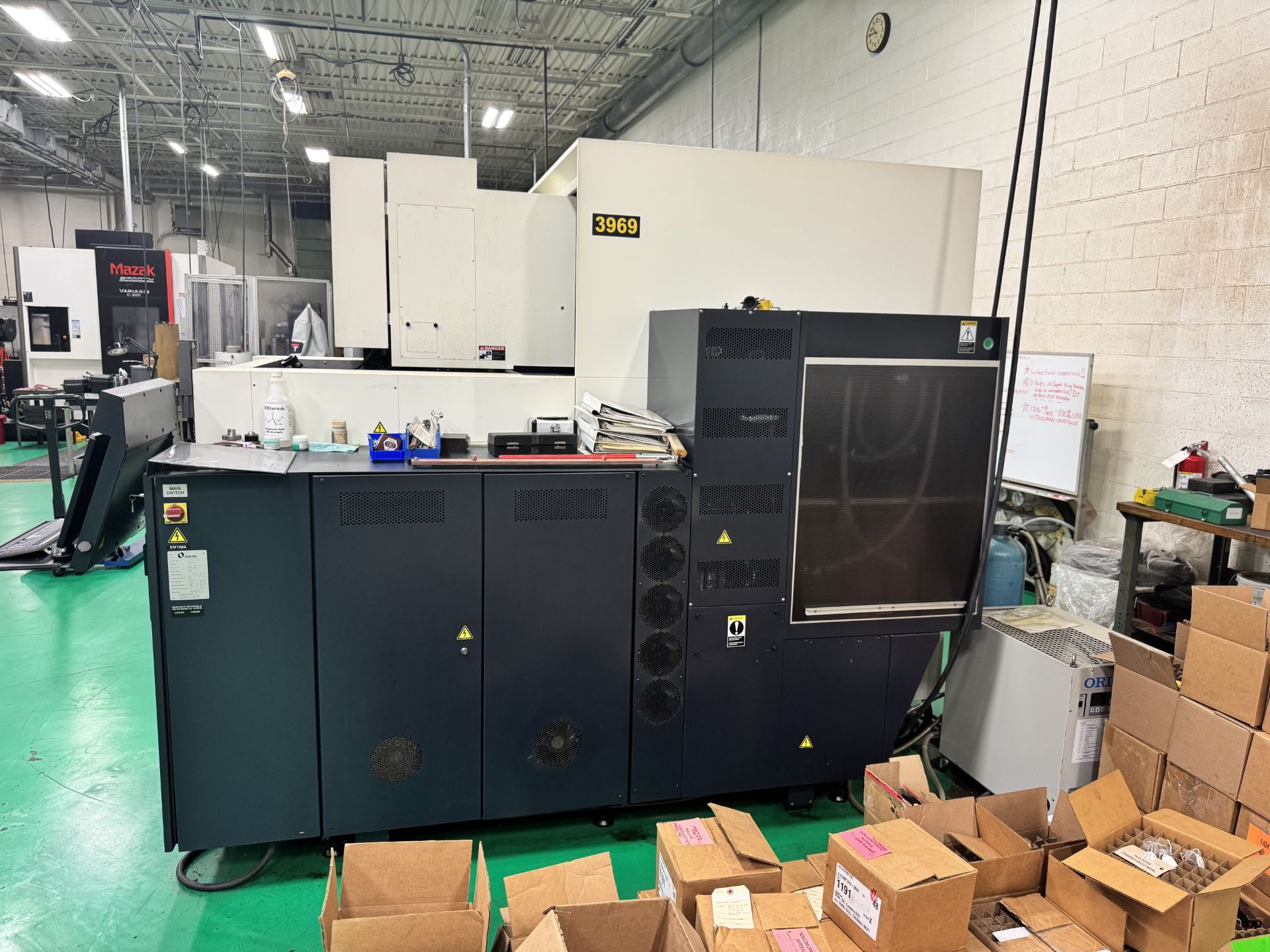

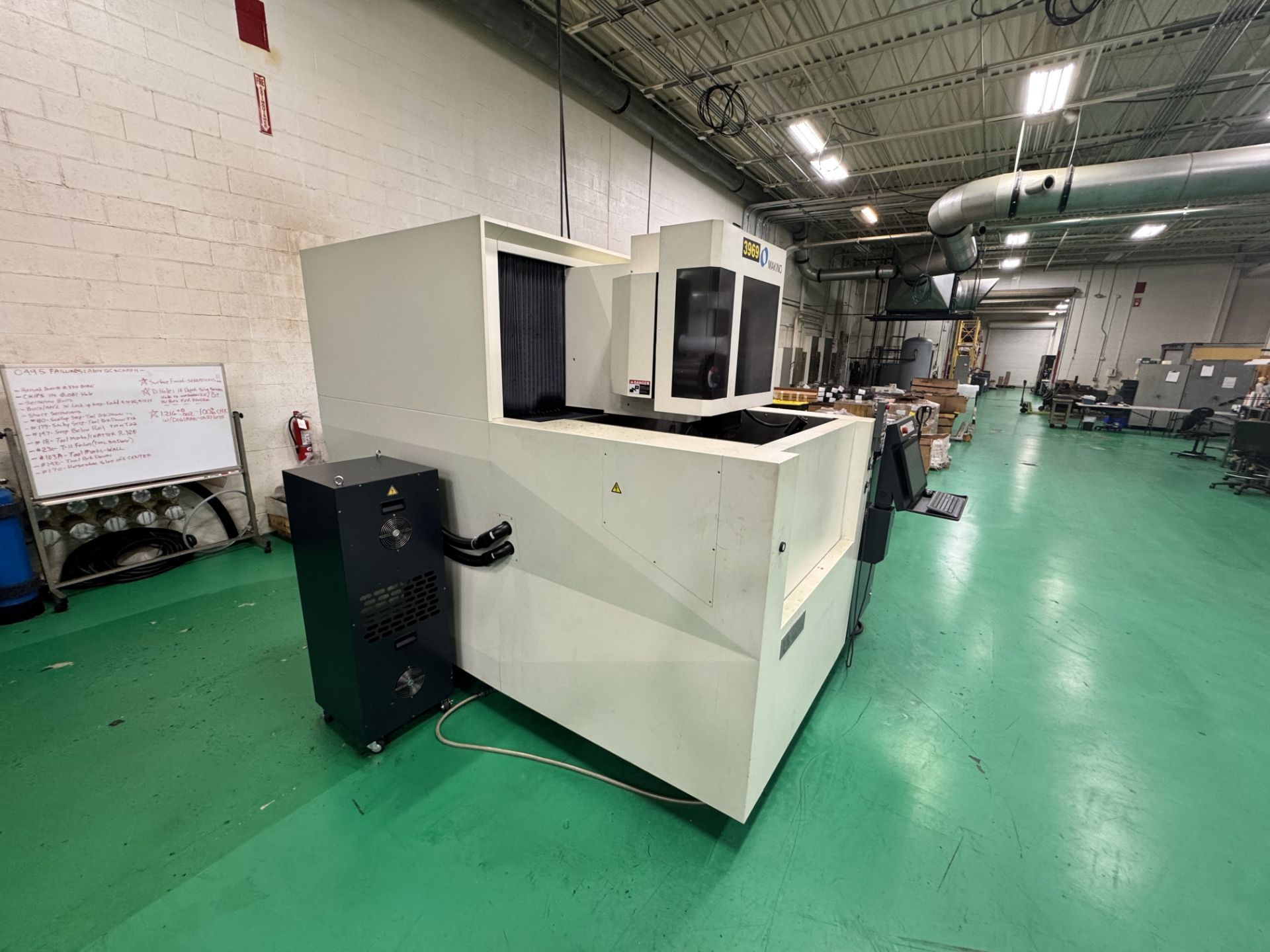

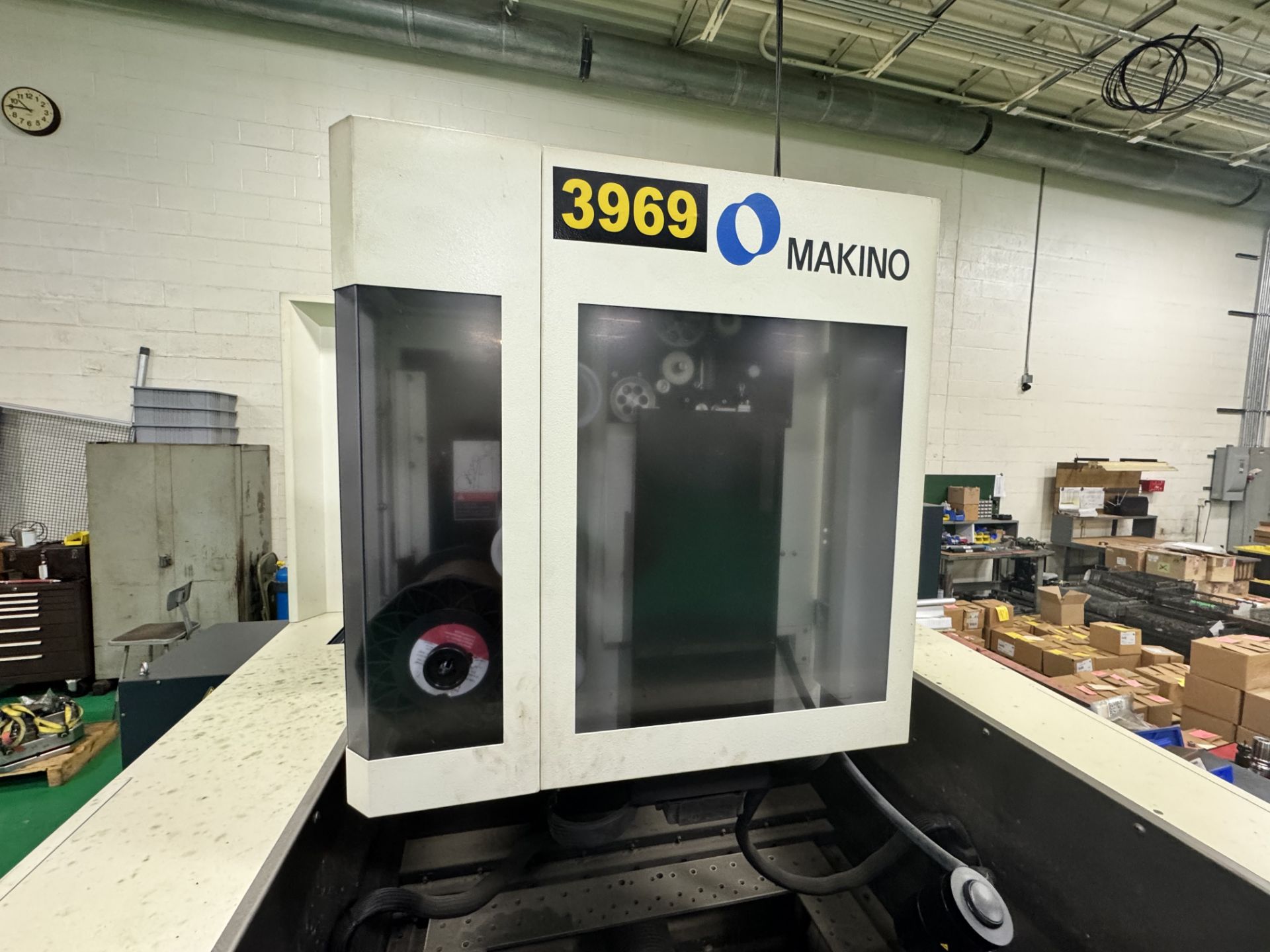

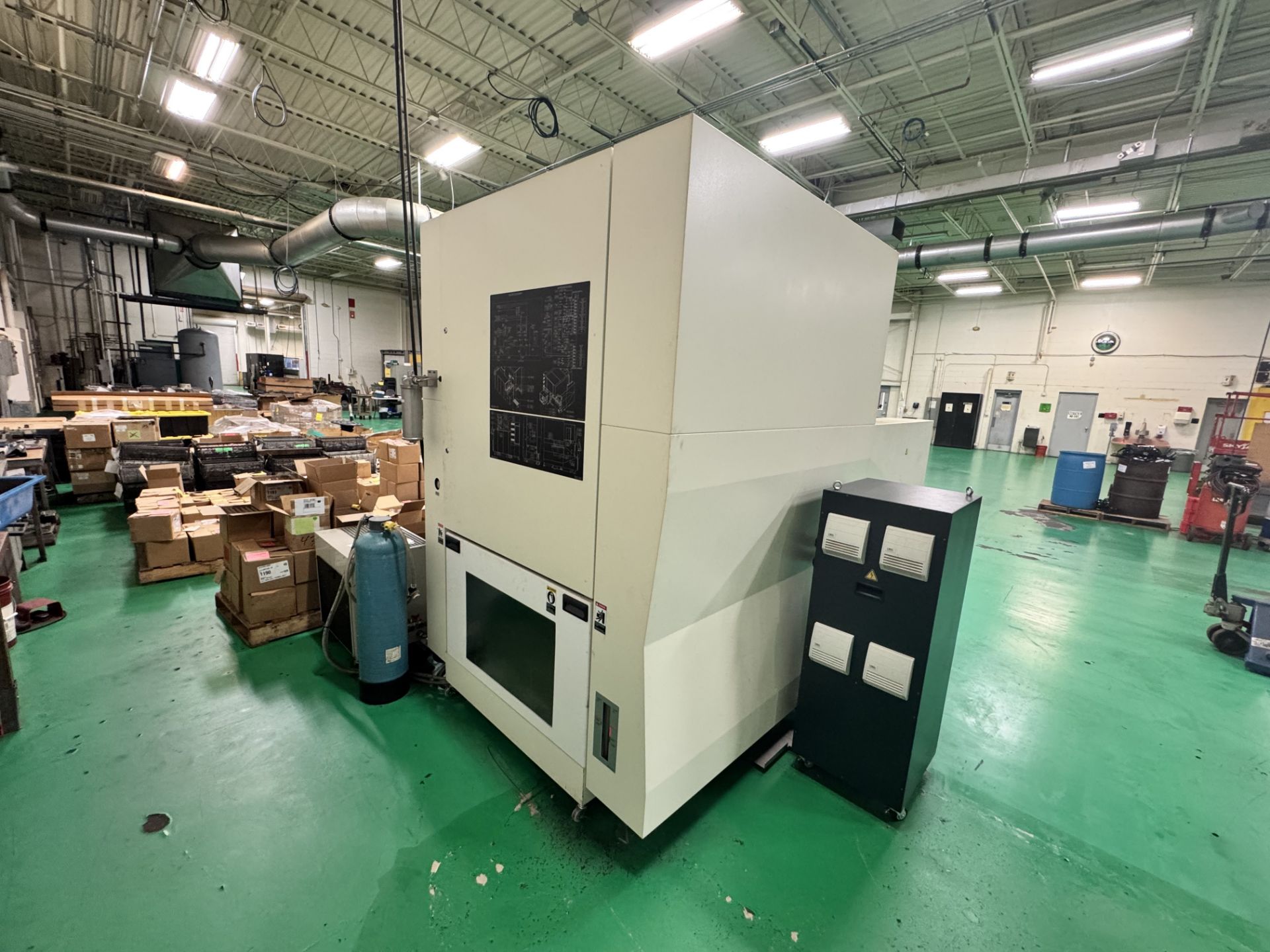

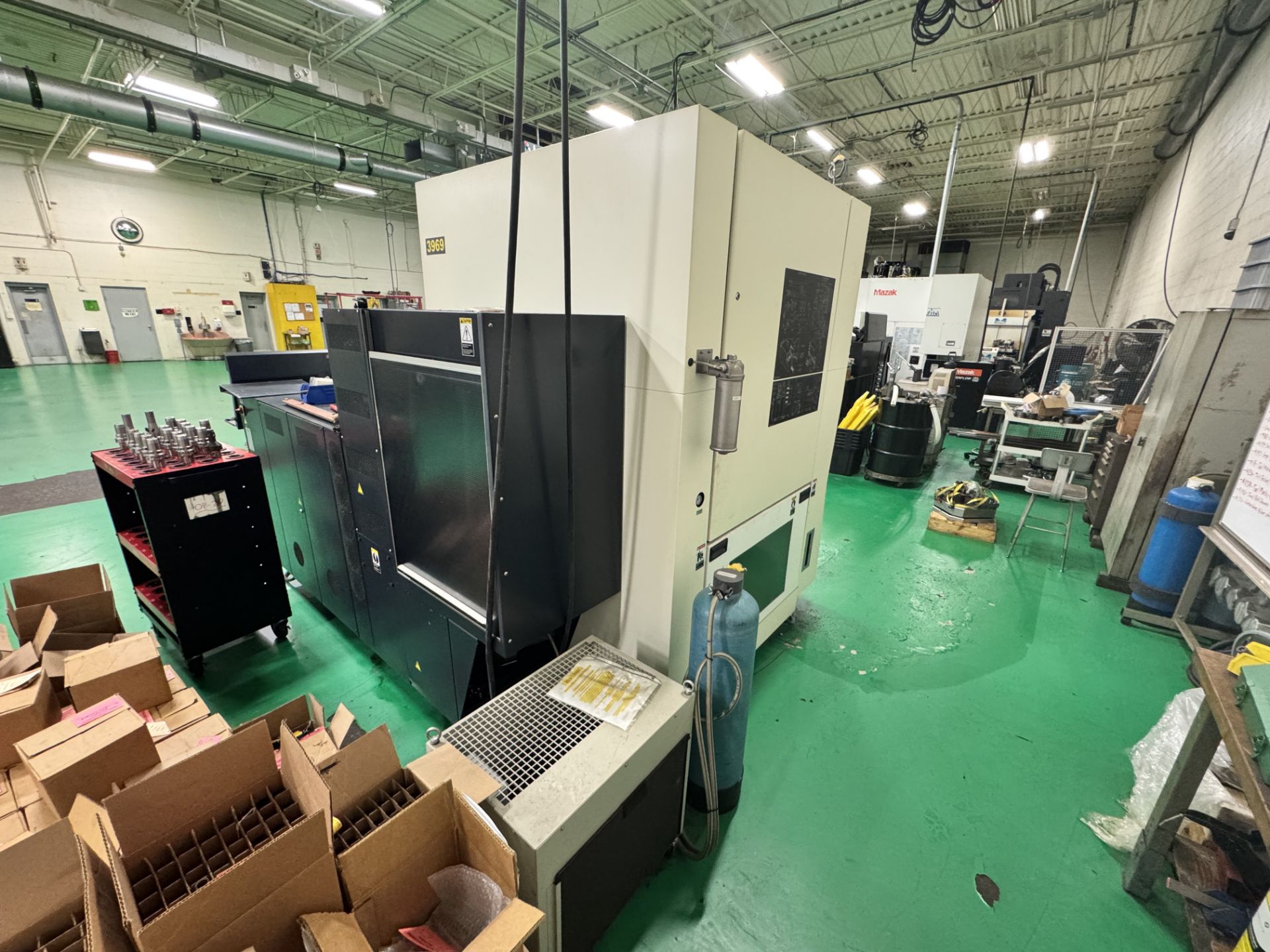

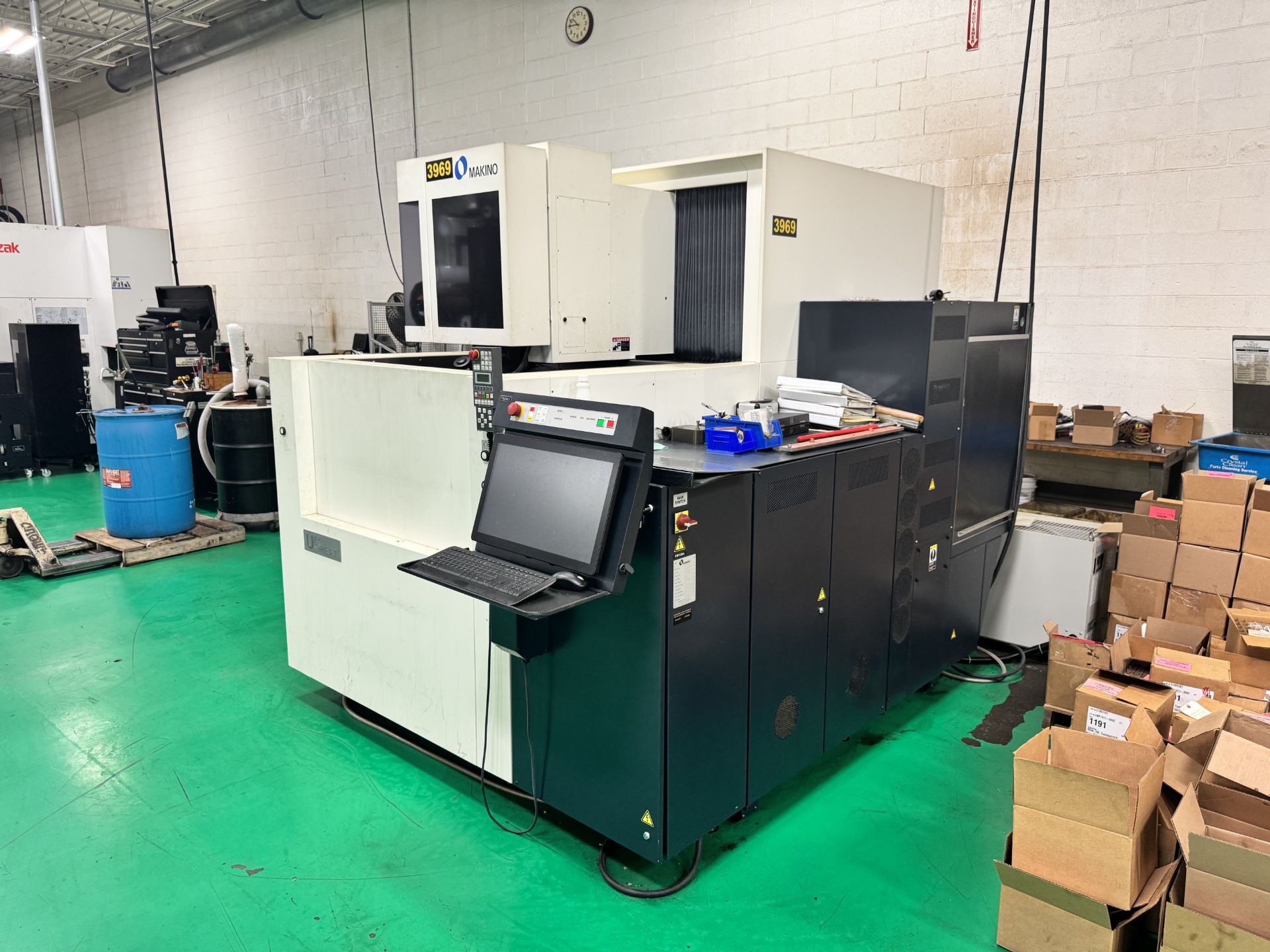

2023 Makino U6 5-Axis Wire EDM

Description

The 2023 Makino U6 5-Axis Wire EDM delivers an exceptional blend of speed, accuracy, and fine surface finish for the most demanding precision applications. Engineered for aerospace, medical, and high-precision die and mold work, this machine pairs generous travels with sub-micron repeatability on a stable, thermally controlled platform.

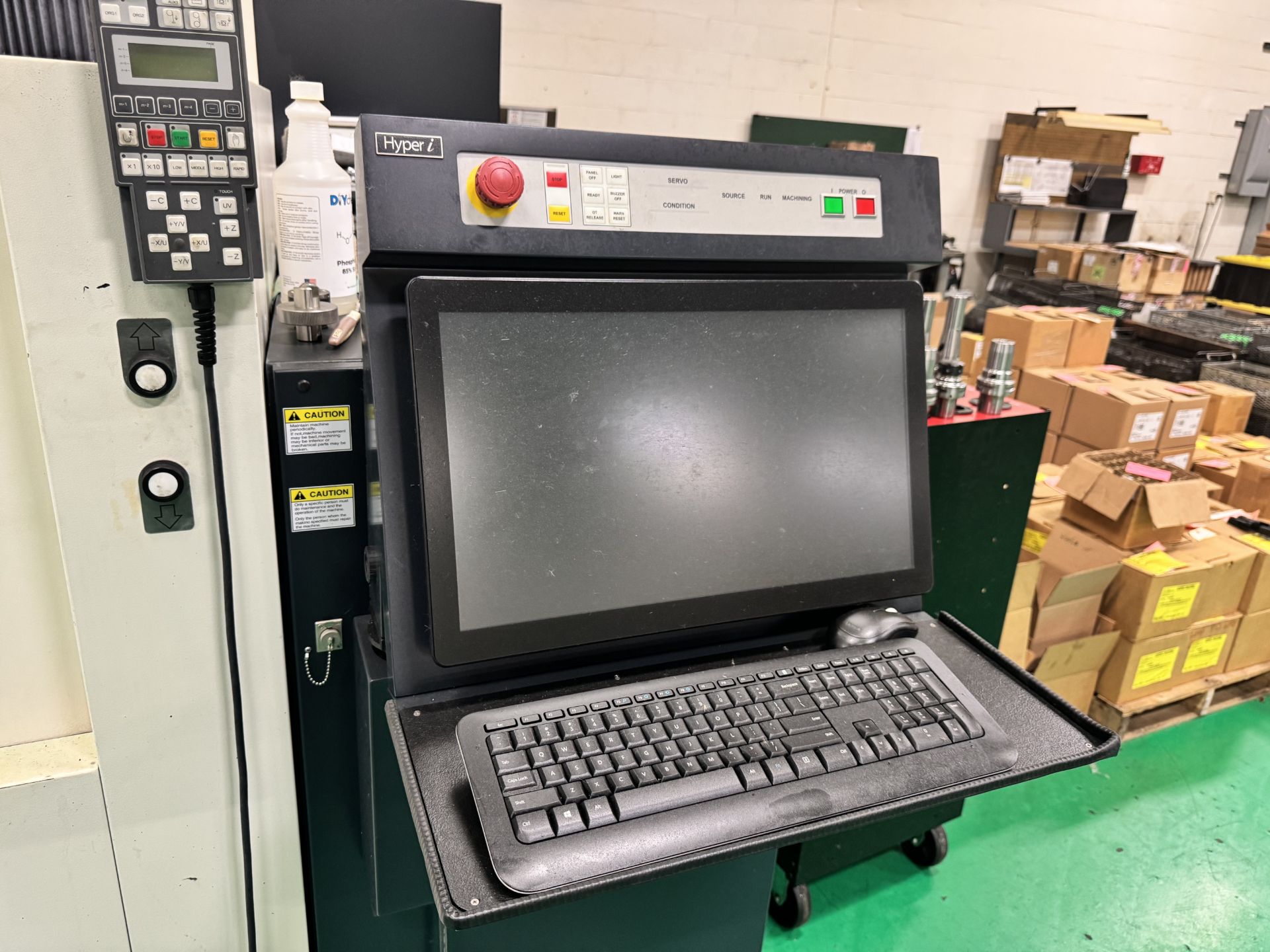

Equipped with the advanced Makino Hyper-I CNC Control, operators benefit from an intuitive large-format HD touchscreen interface with smartphone-style Pinch, Swipe, and Drag operation.

• Axis Travels: X 25.60″ / Y 17.70″ / Z 16.50″; U & V ±3.0″

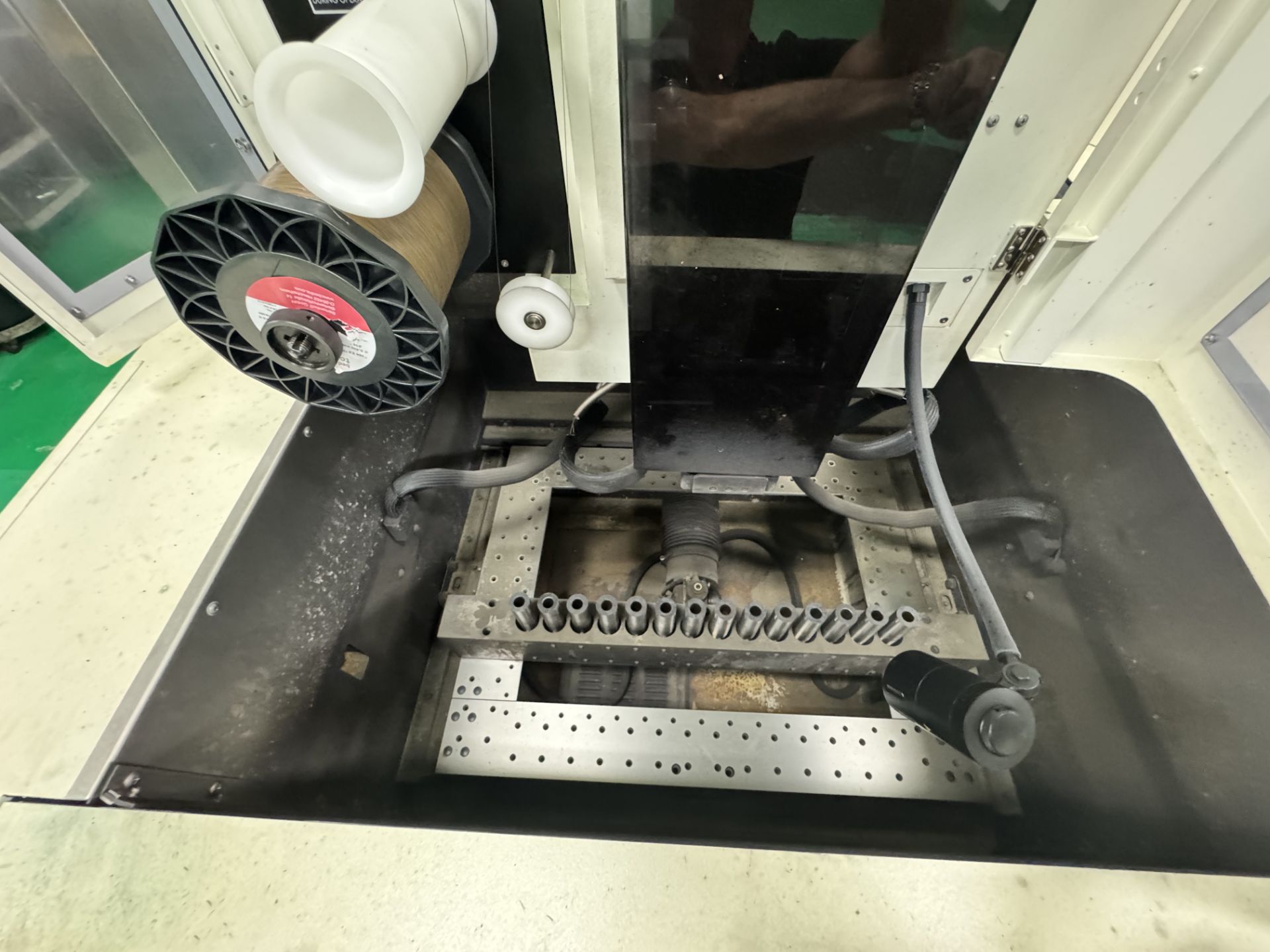

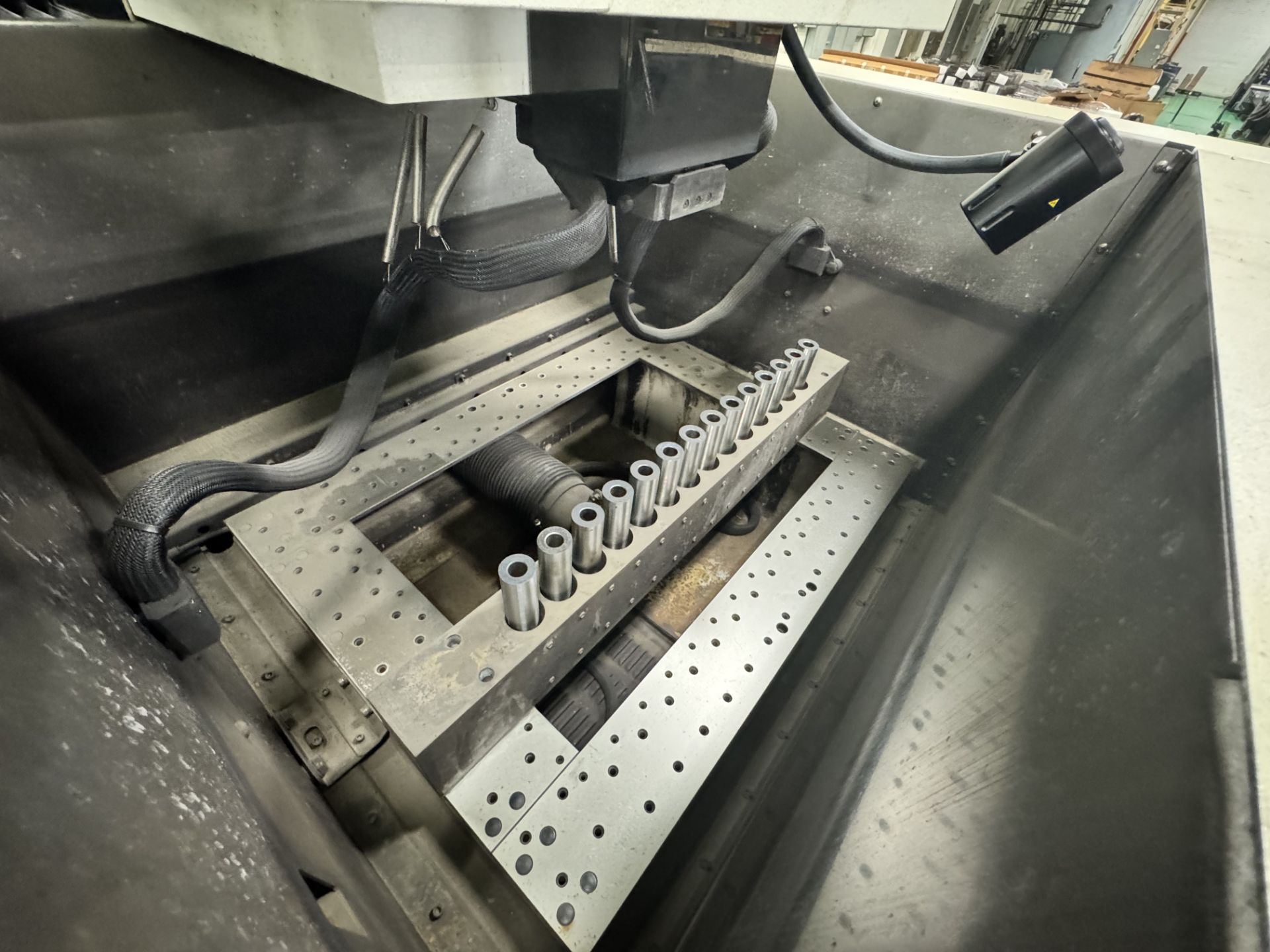

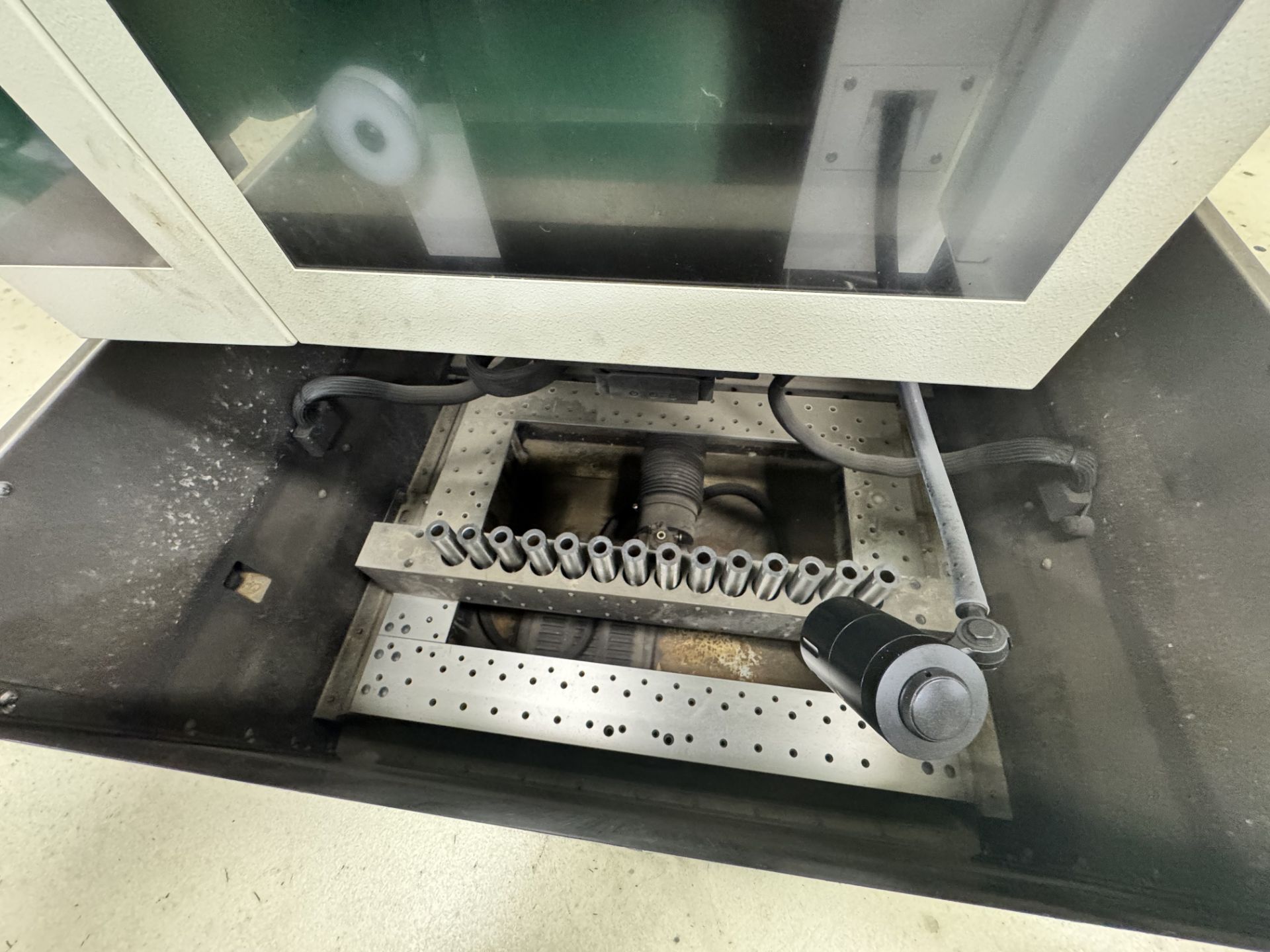

• Work Tank Size: 42.12″ x 34.64″
• Table Size: 35.8″ x 28″
• Max Workpiece Weight: 3,307 lbs
• Wire Sizes: 0.004″, 0.006″, 0.008″, 0.010″, 0.012″, and 0.016″ Ø

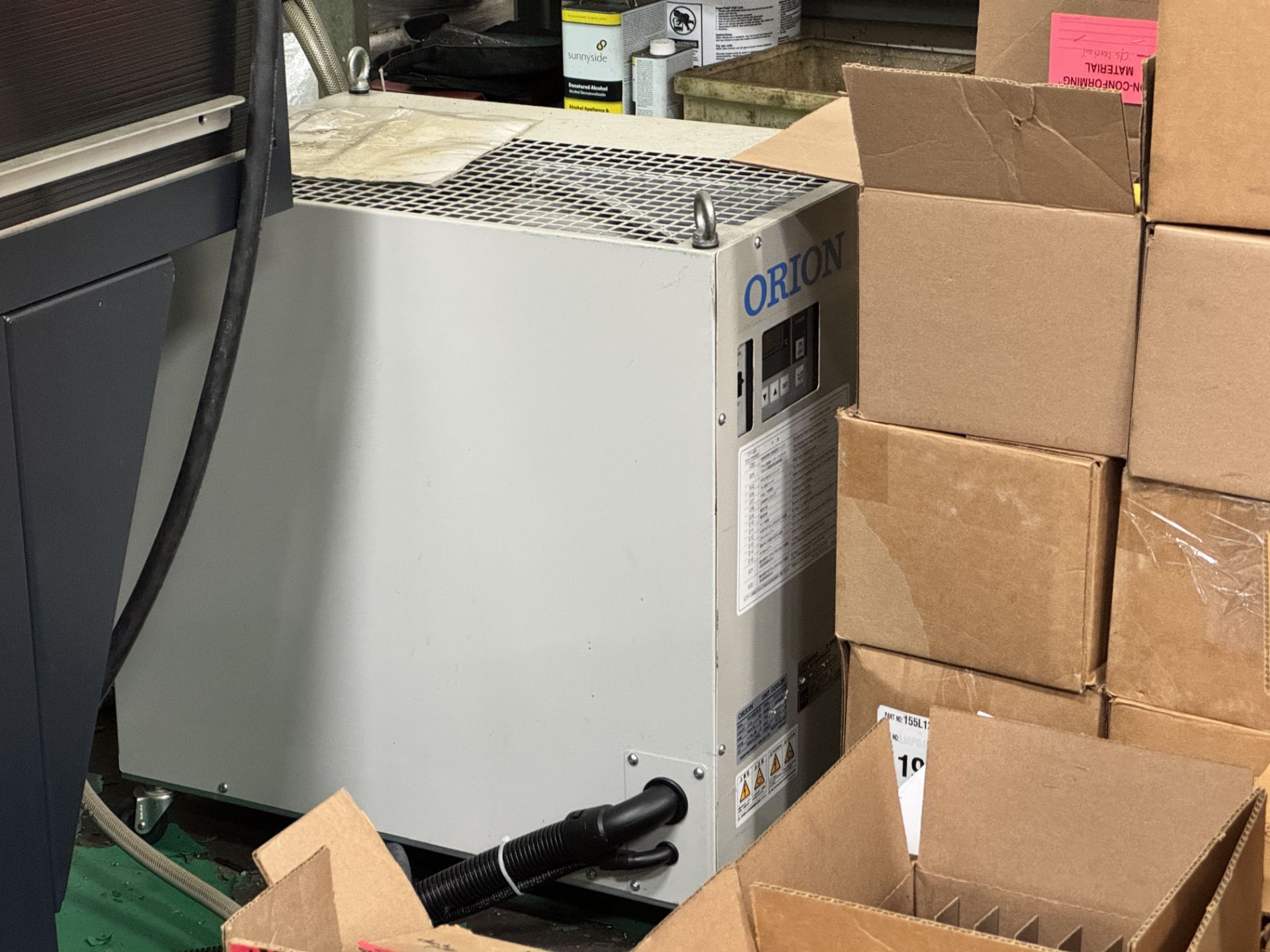

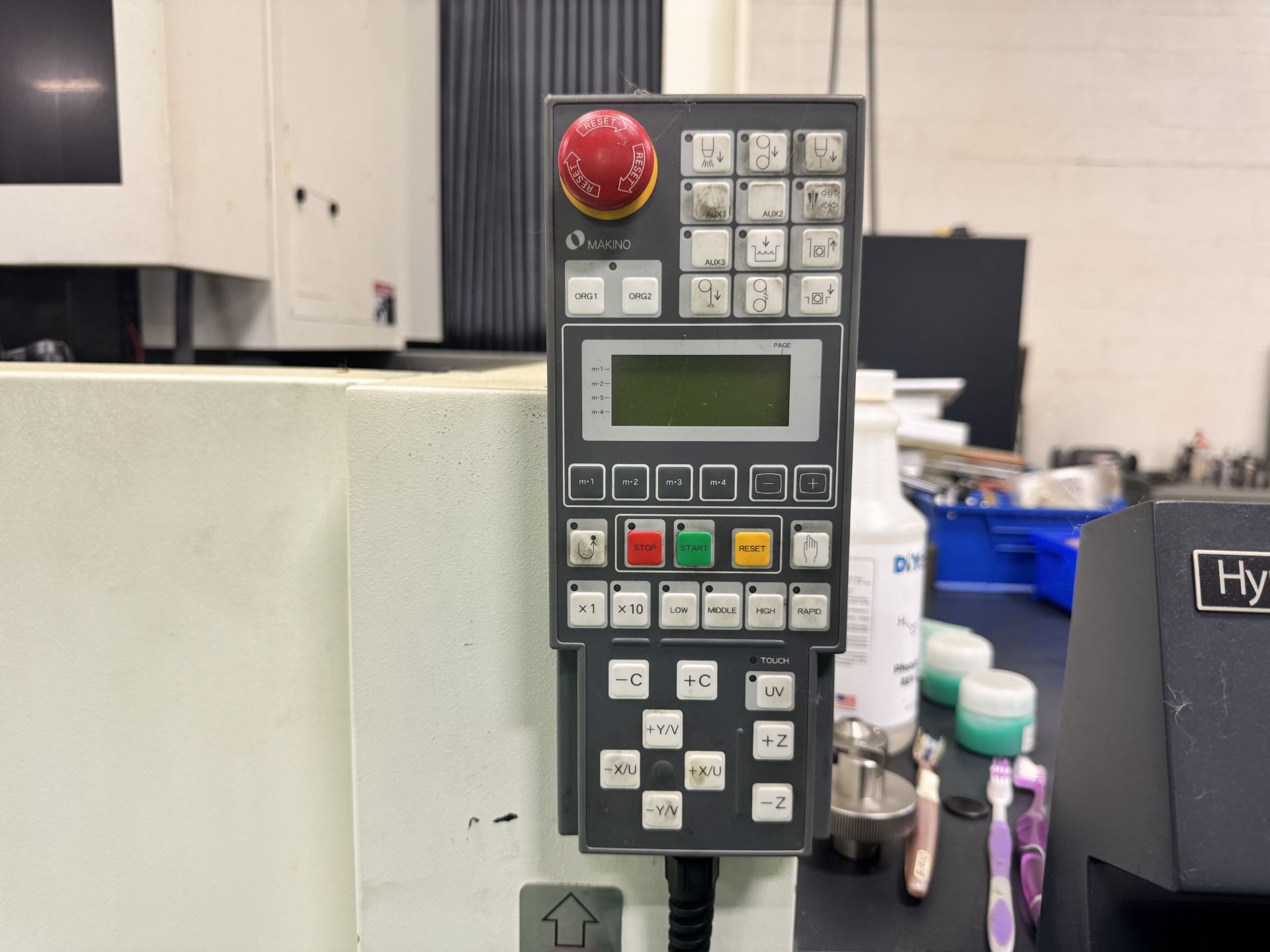

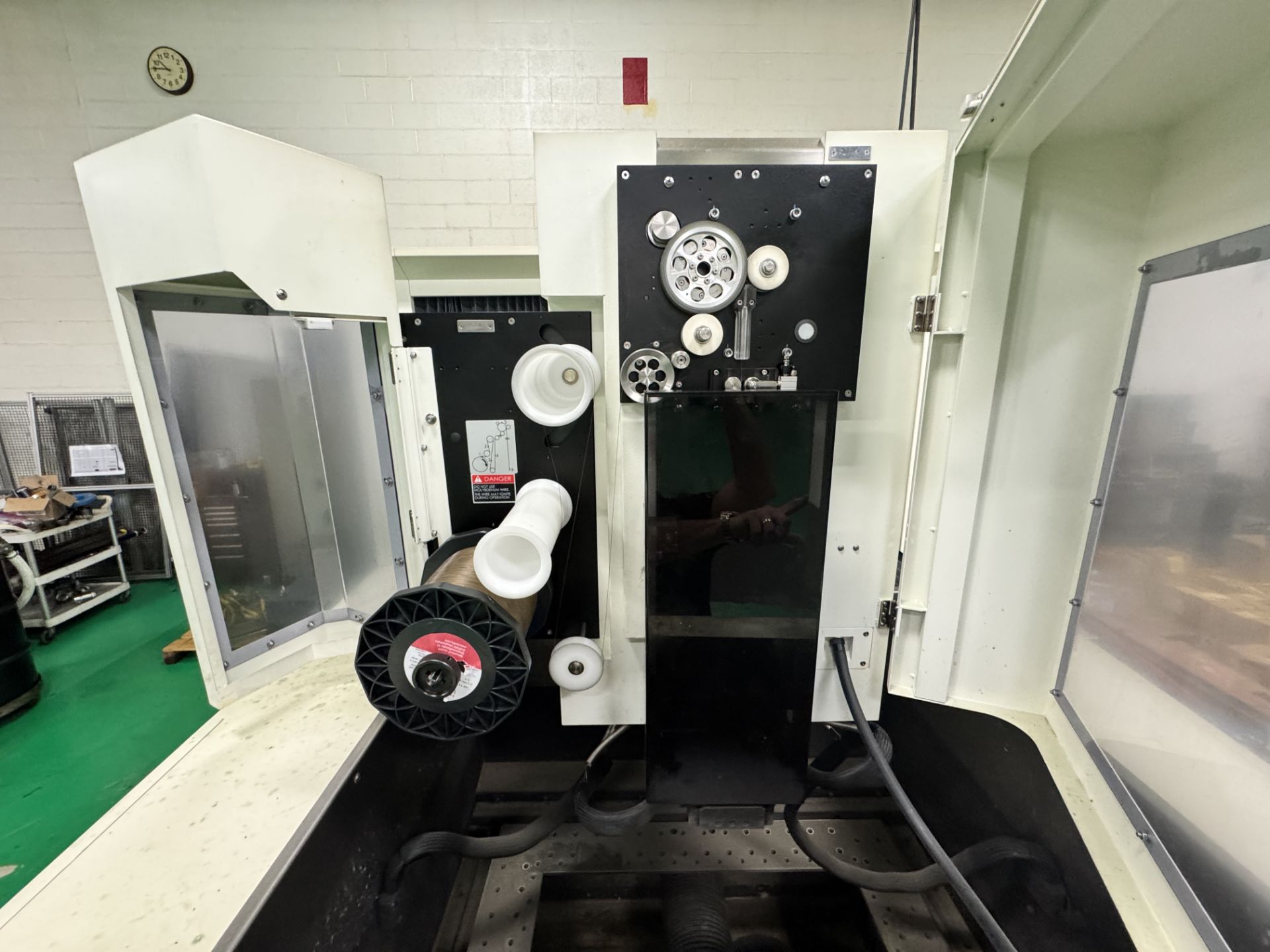

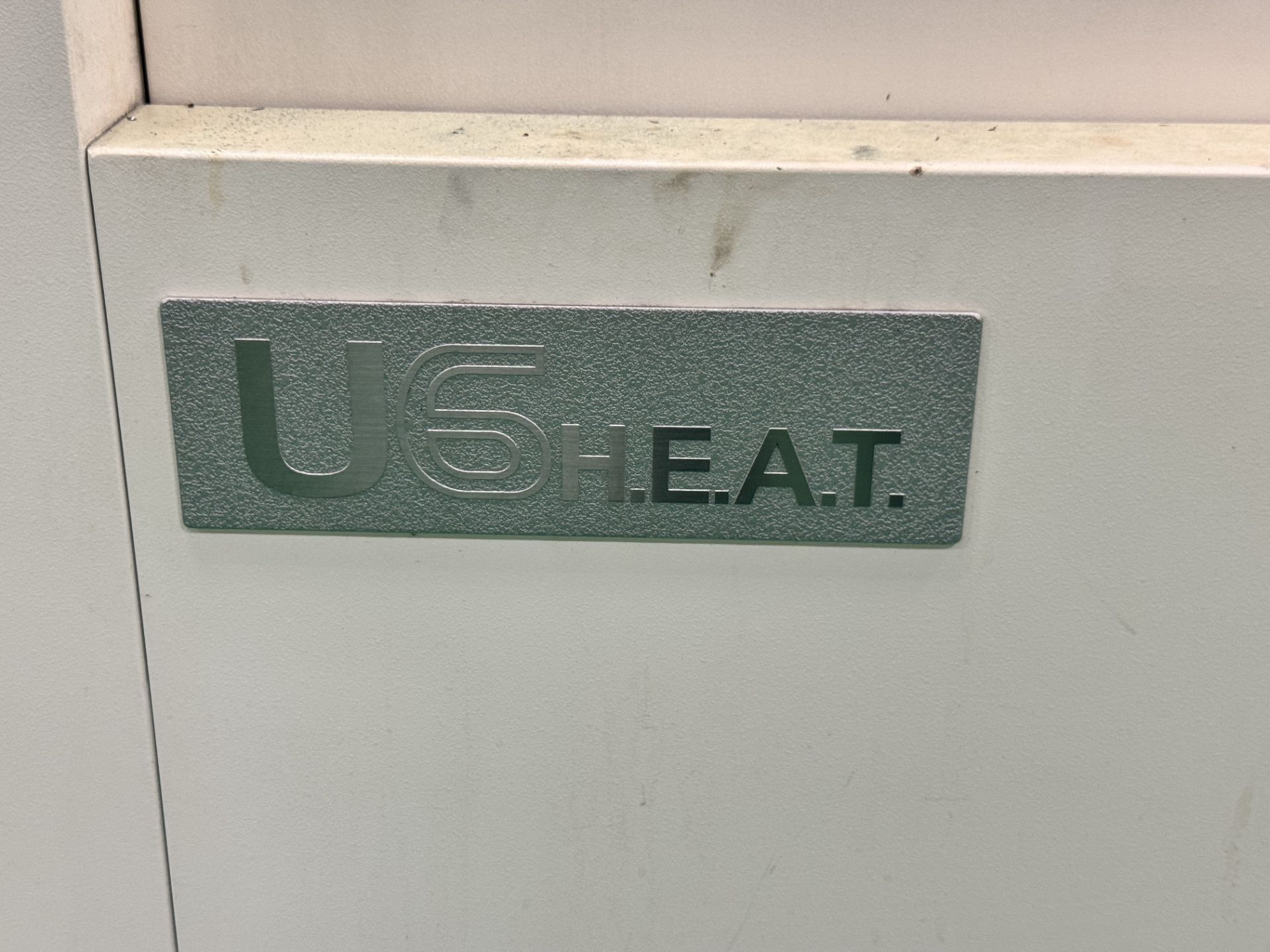

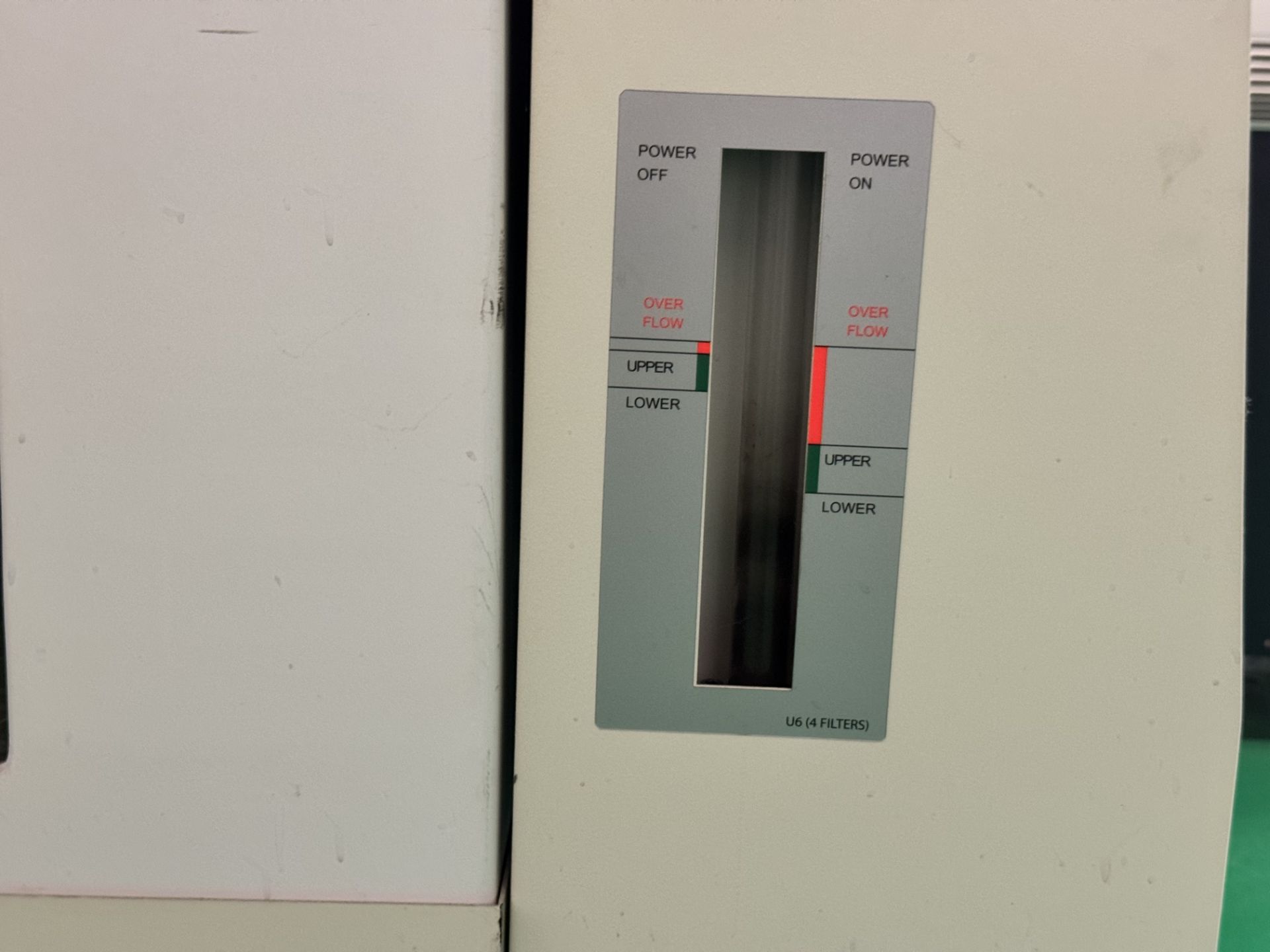

Factory options include an Automatic Wire Threader, Split-V Wire Guide System, 4-filter filtration system, Orion high-capacity chiller, H.E.A.T. Technology for high-speed machining, and a hand pendant for convenient operator control. H.E.A.T. Technology enables use of 0.016″ coated wire for feedrates up to twice as fast as traditional brass wire, while the low-maintenance Split-V guides last significantly longer than conventional round guides. A proven performer for shops seeking productivity and precision.
