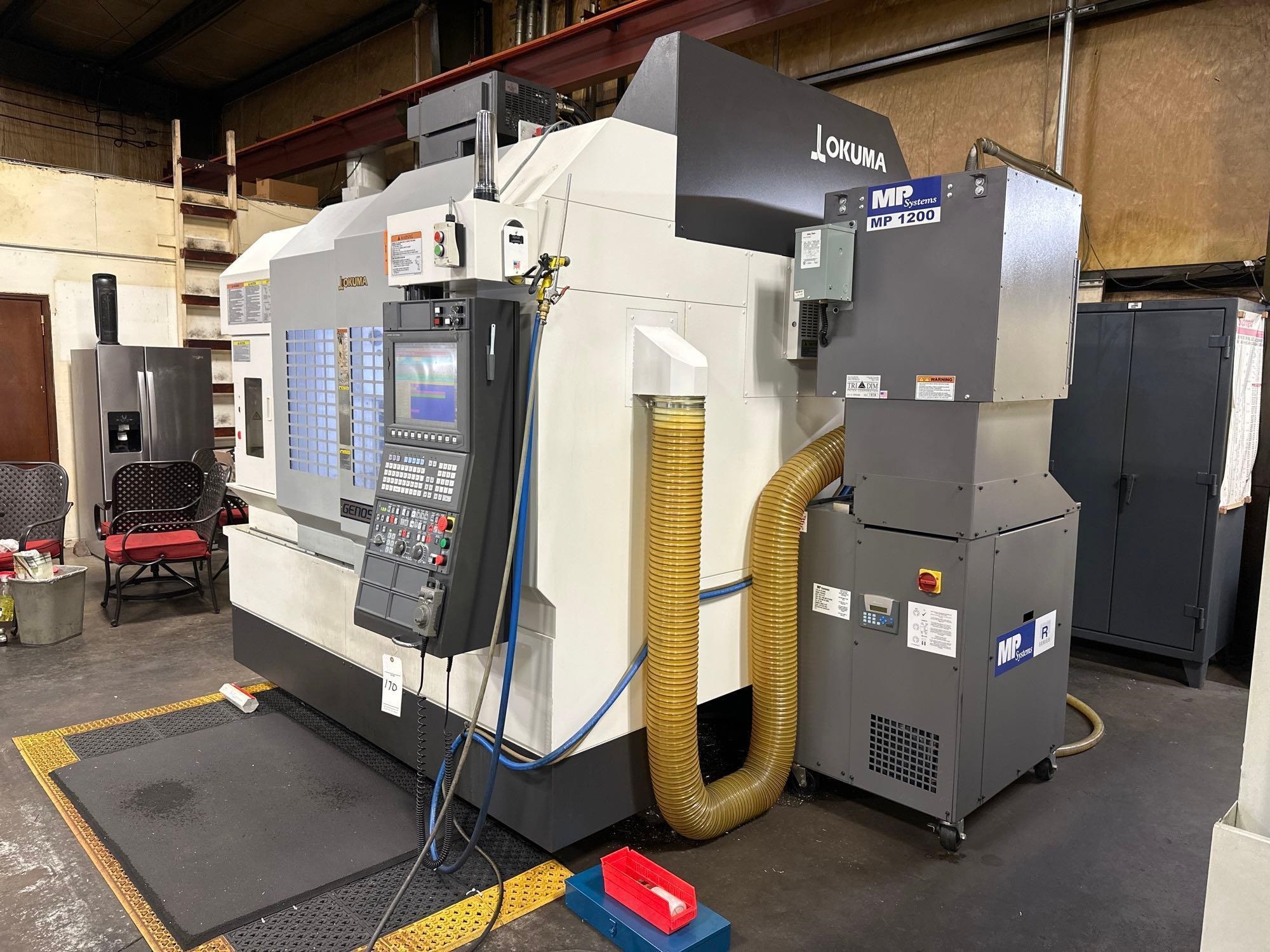

OKUMA GENOS M560-V
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM

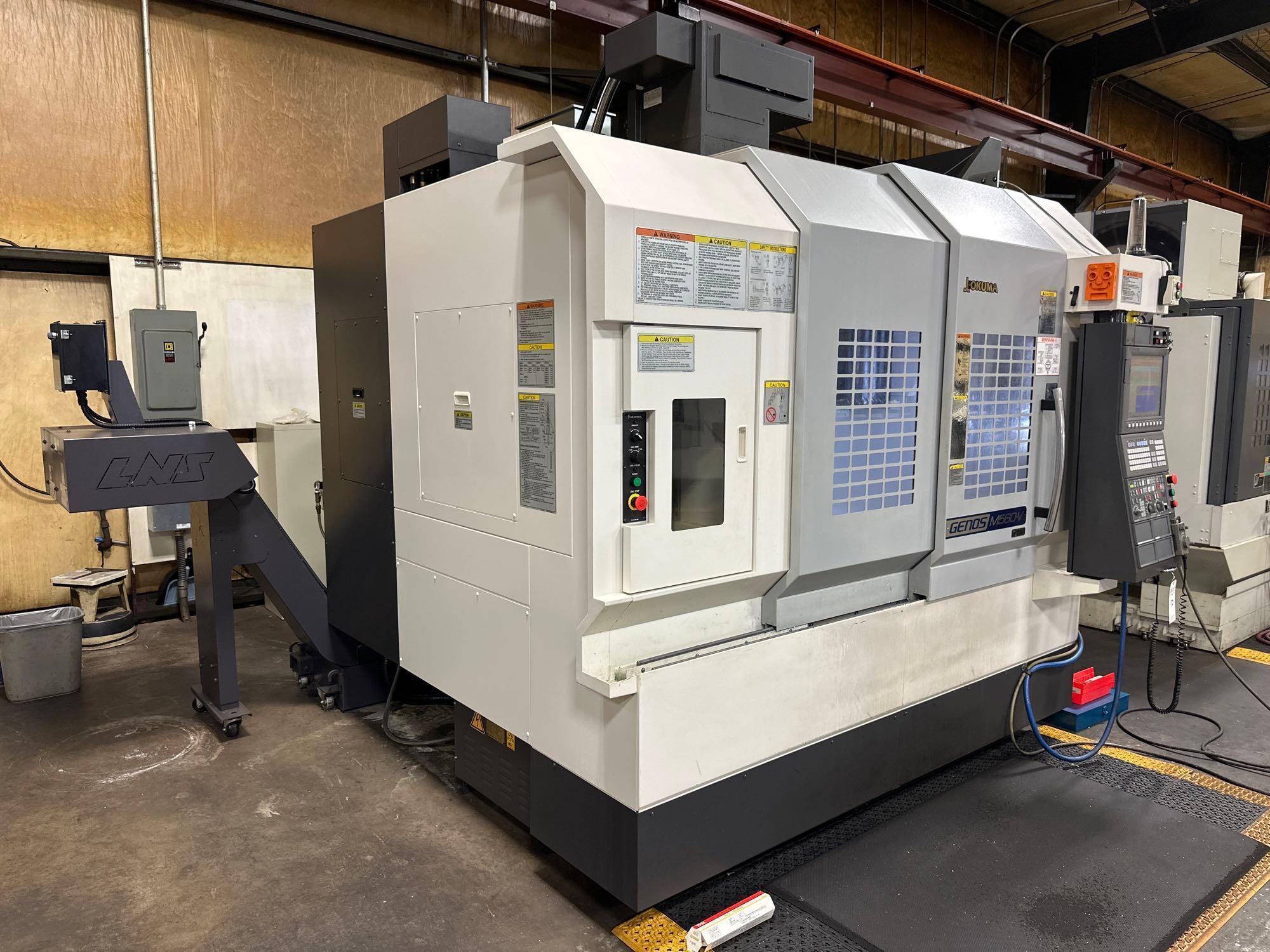

Description
GENERAL INFORMATION
Manufacturer: Okuma

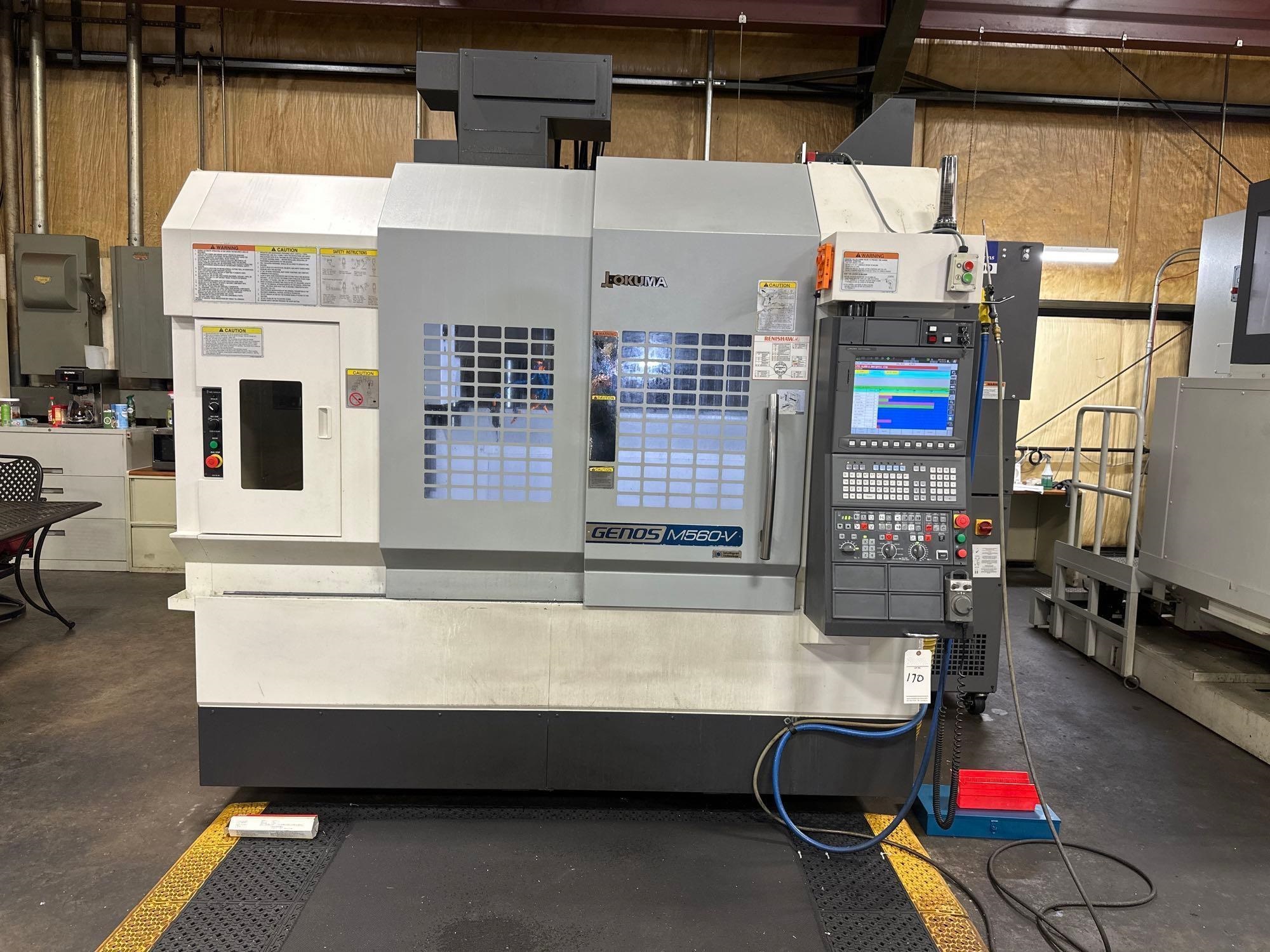

Model: GENOS M560-V
Year: 2018
Machine Type: CNC Vertical Machining Center (VMC)

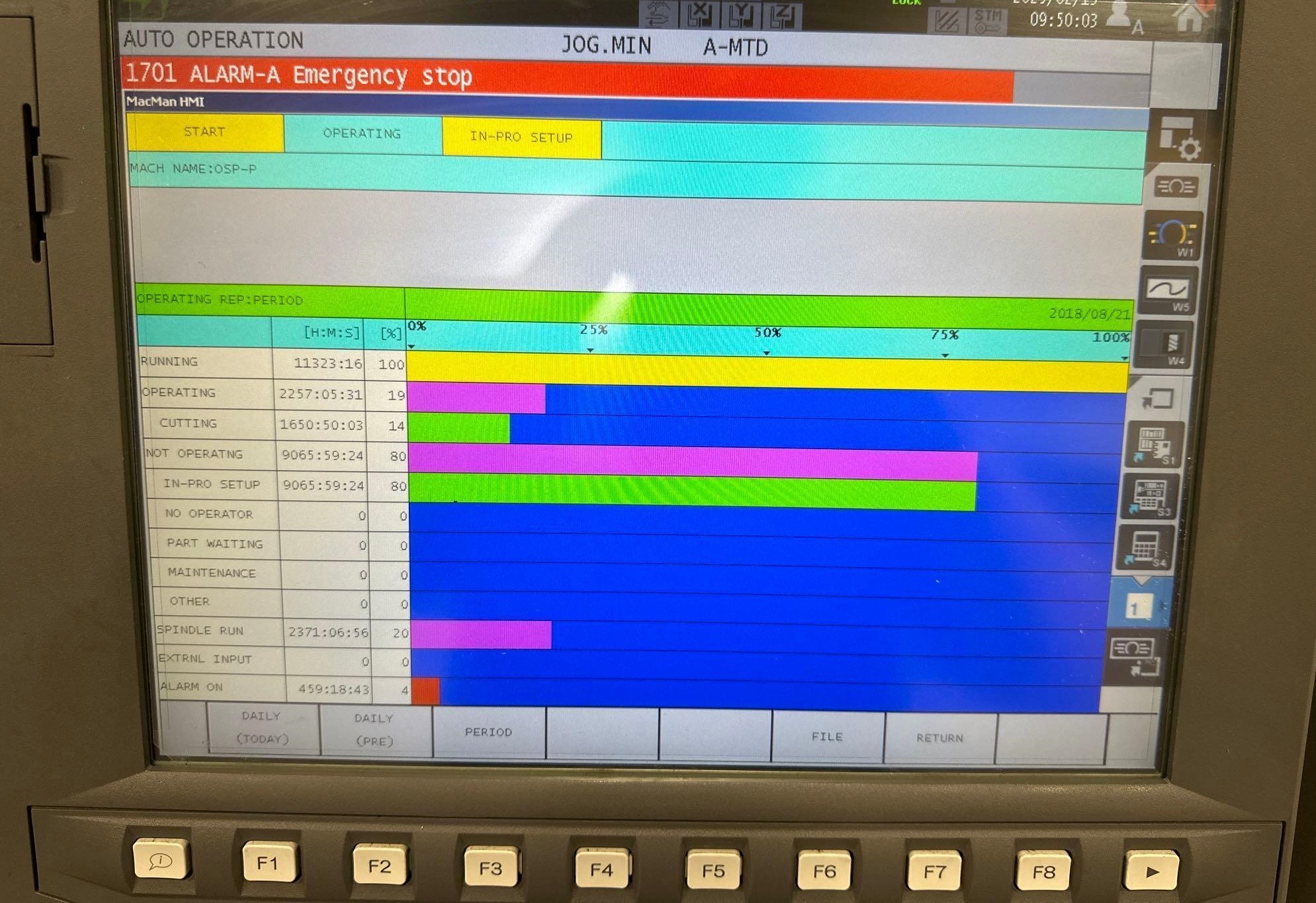

Control System: THINC Hi-Content Control System
Machine Weight: Approximately 16,500 lbs.
MACHINE TRAVELS
X-Axis Travel: 41.34″
Y-Axis Travel: 22.05″
Z-Axis Travel: 18.11″
RAPID TRAVERSE RATES
X-Axis: 1,575 IPM
Y-Axis: 1,575 IPM
Z-Axis: 1,262 IPM

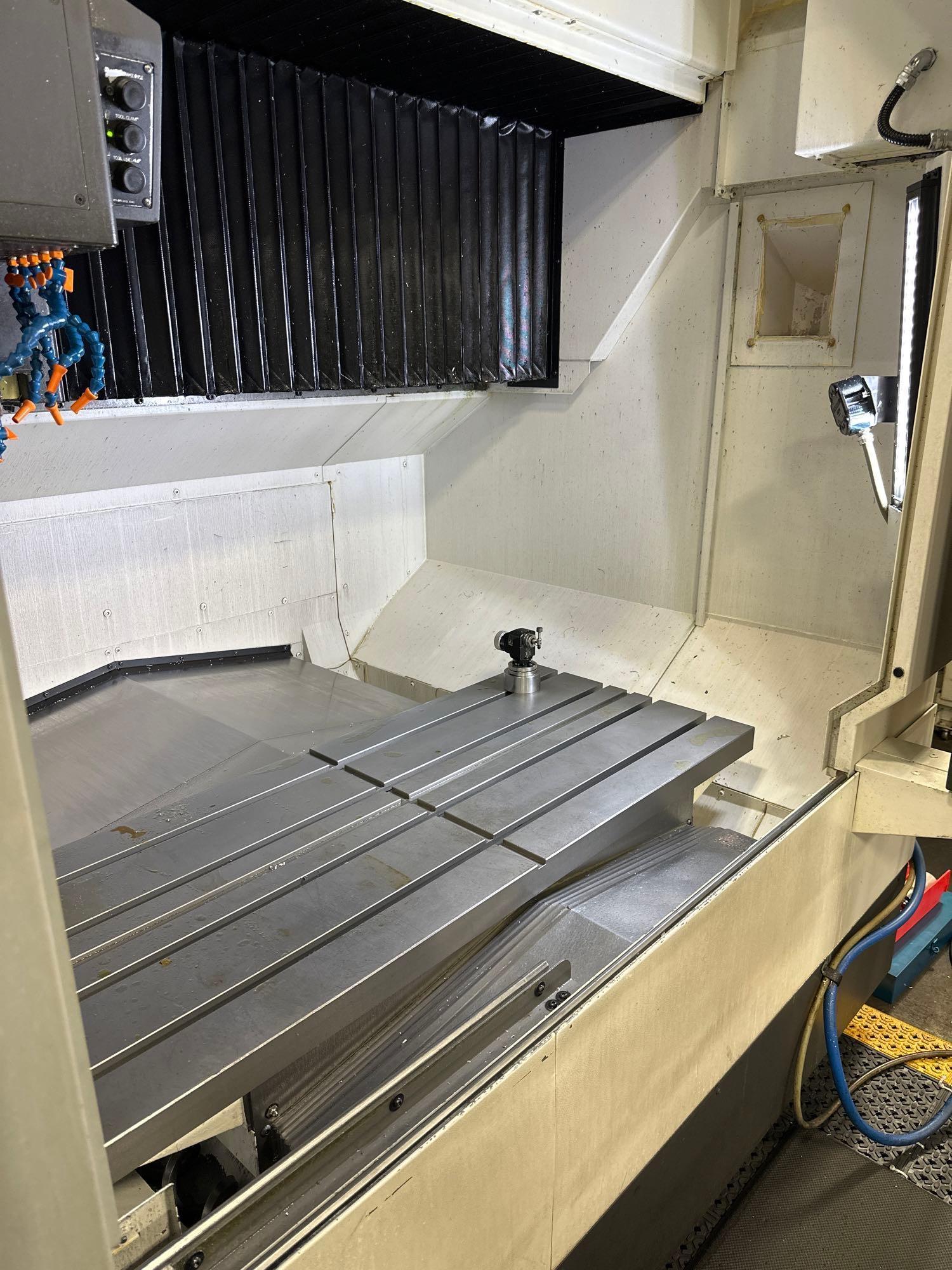

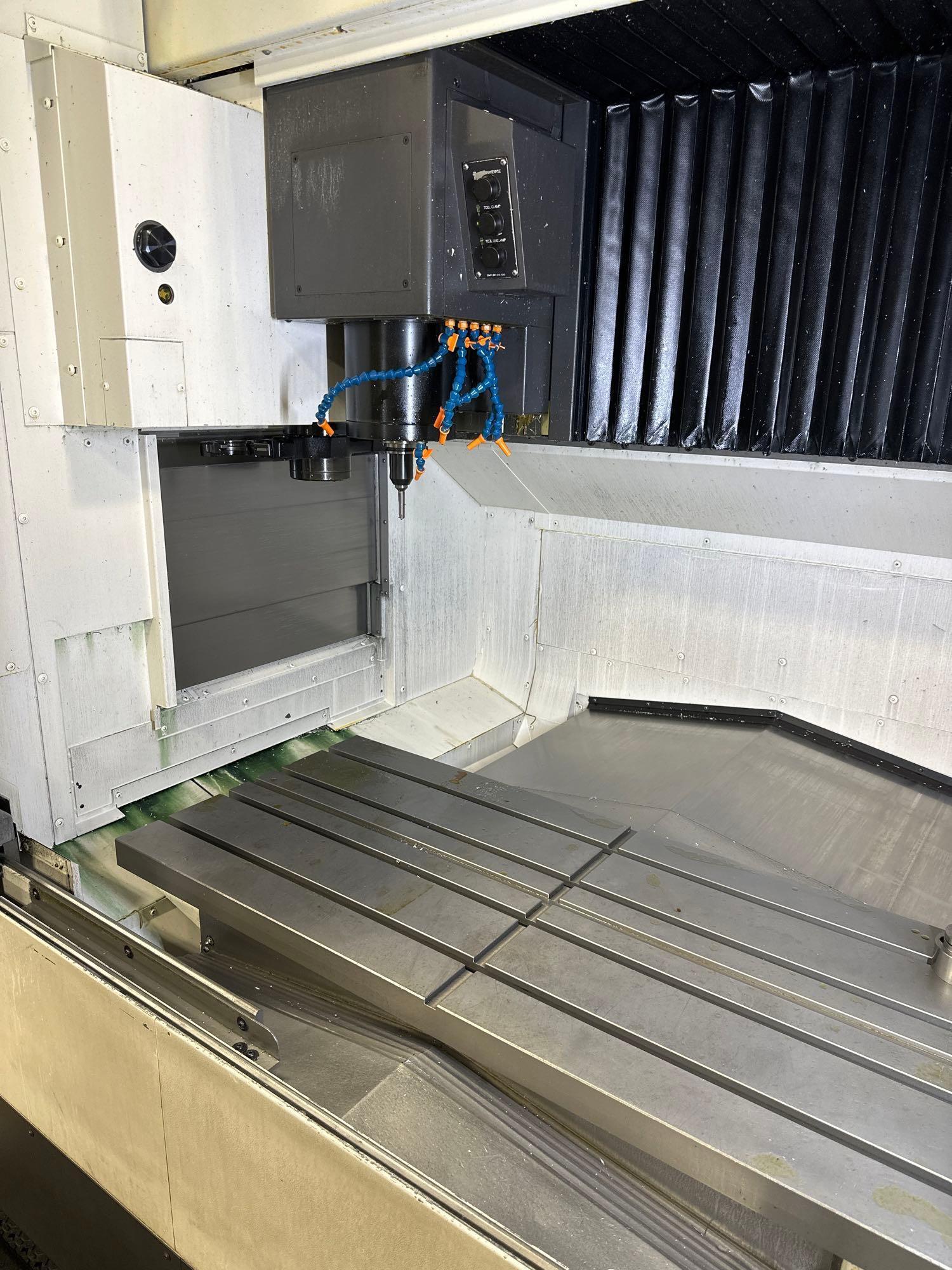

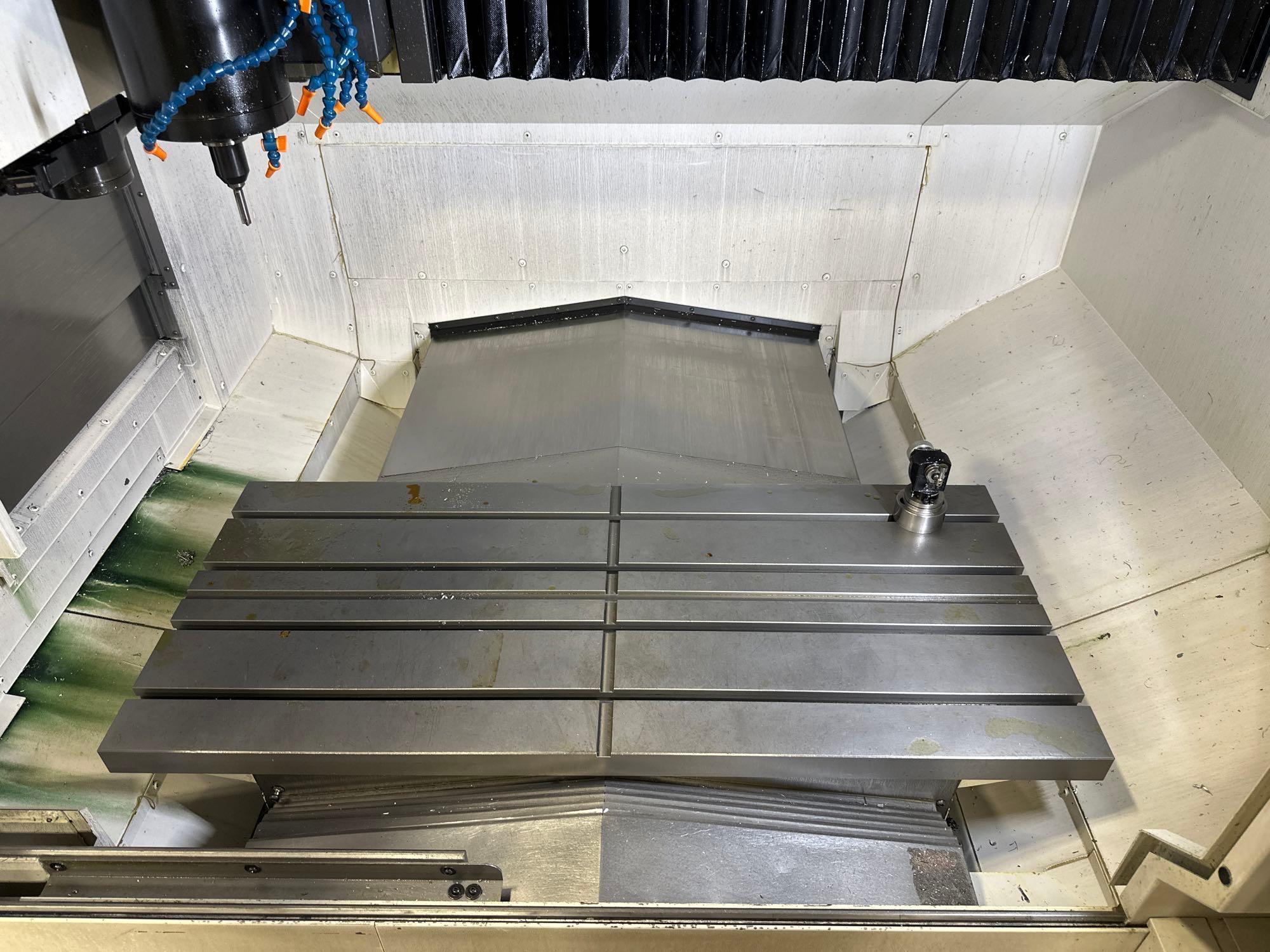

TABLE

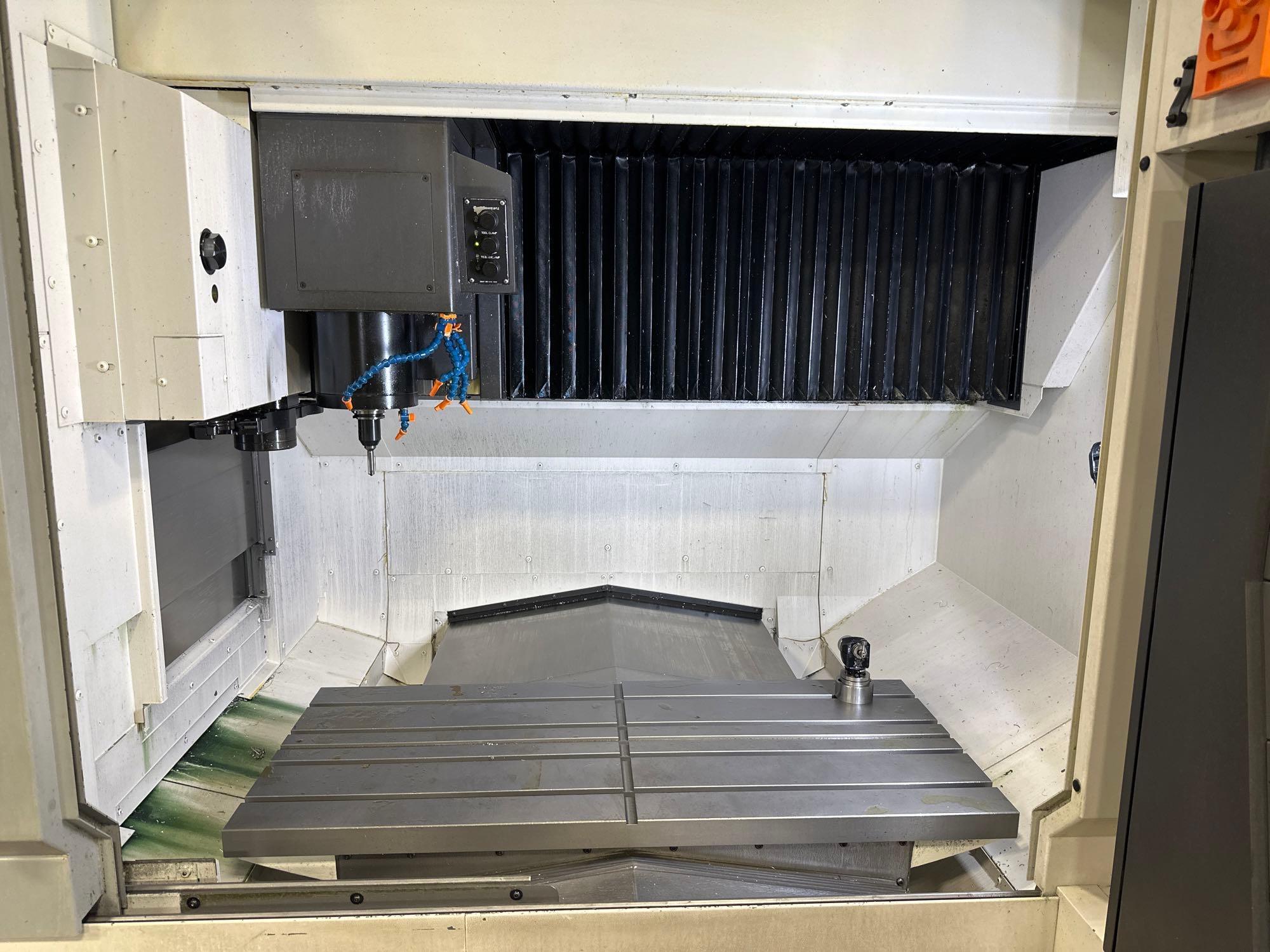

Table Size: 51.18″ × 22.05″
Maximum Table Load: 1,980 lbs.

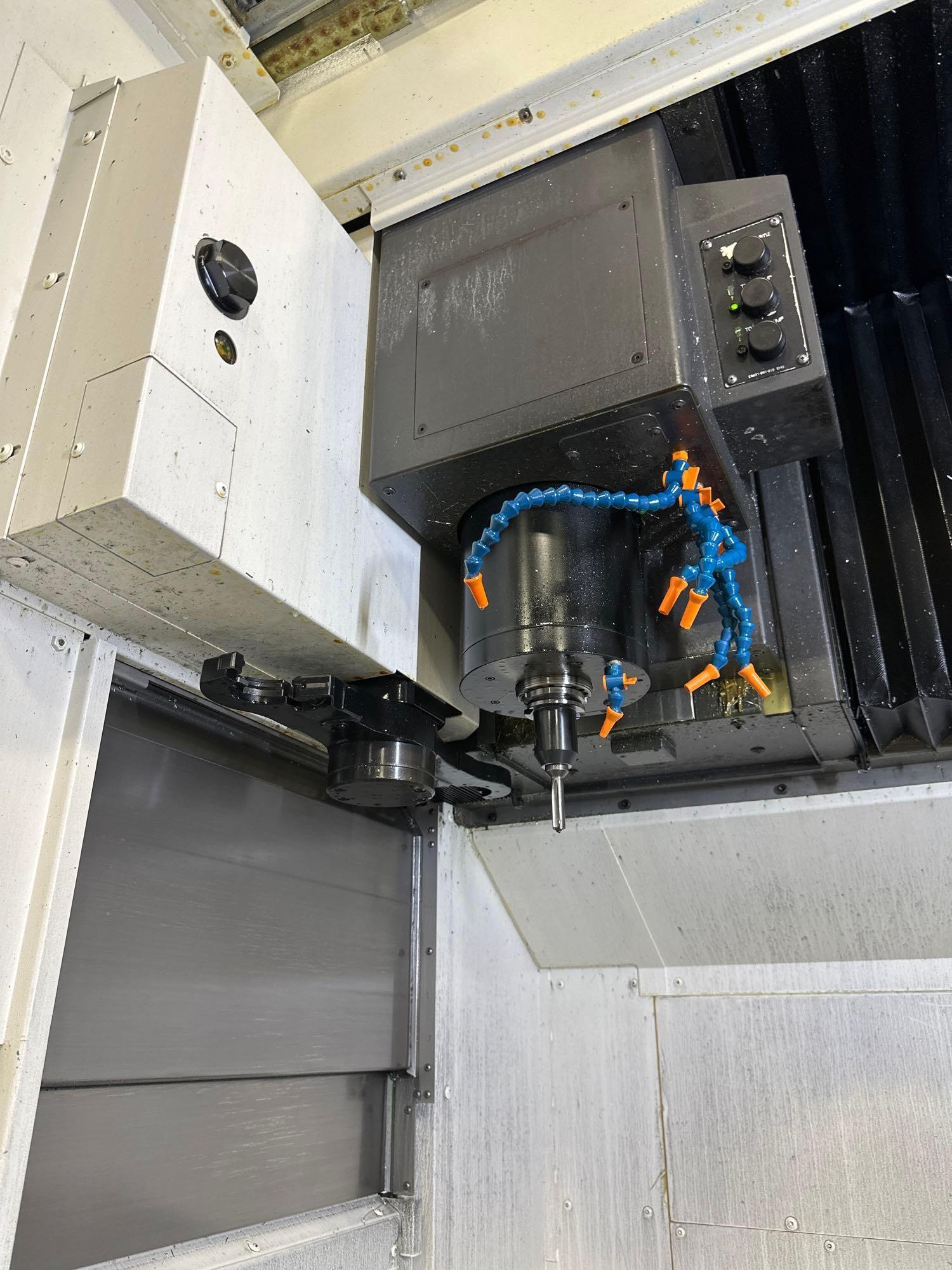

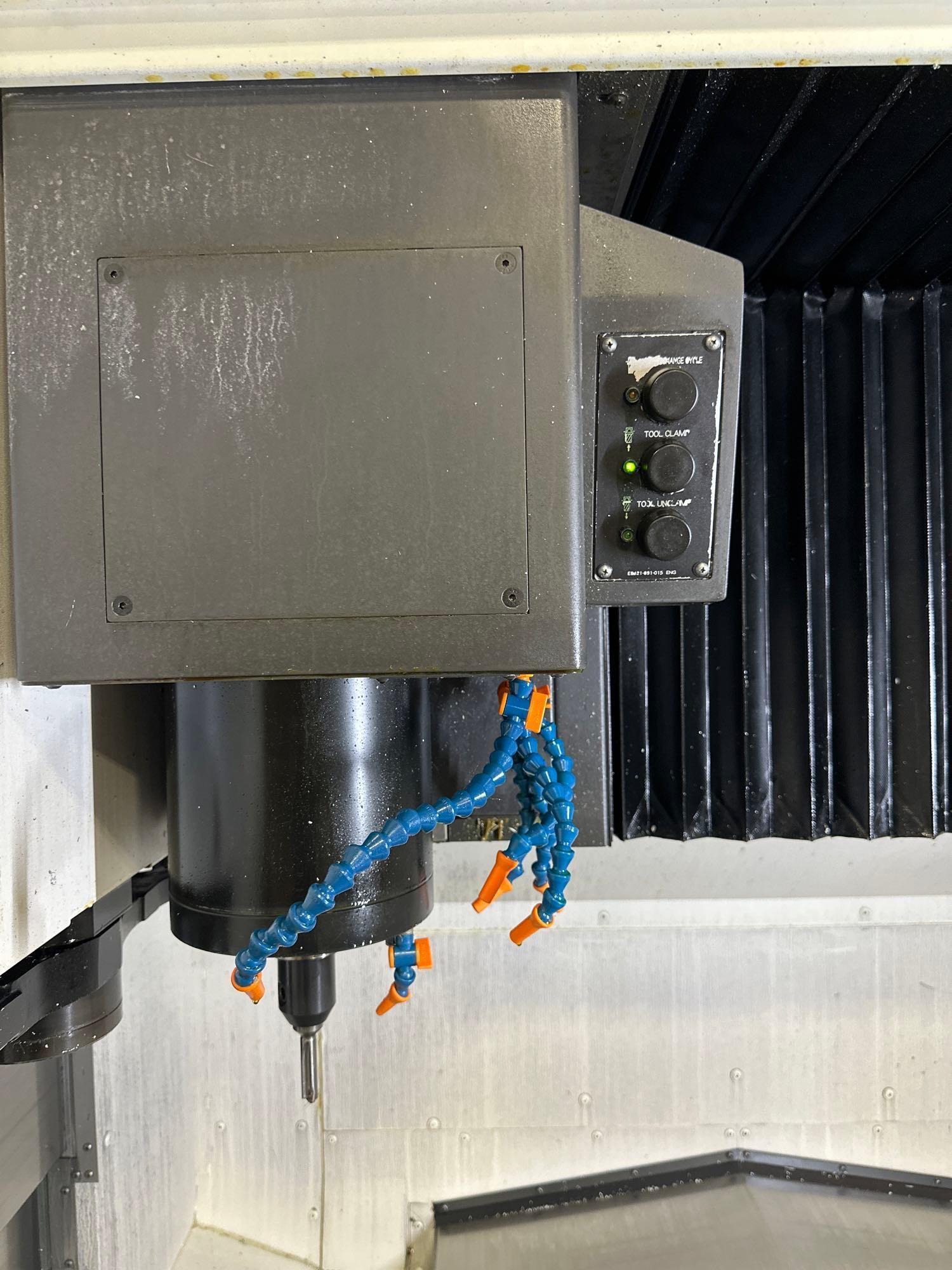

SPINDLE
Spindle Motor Power: 30 HP
Maximum Spindle Speed: 15,000 rpm
Spindle Taper: CAT40 BIG-PLUS
TOOL CHANGER

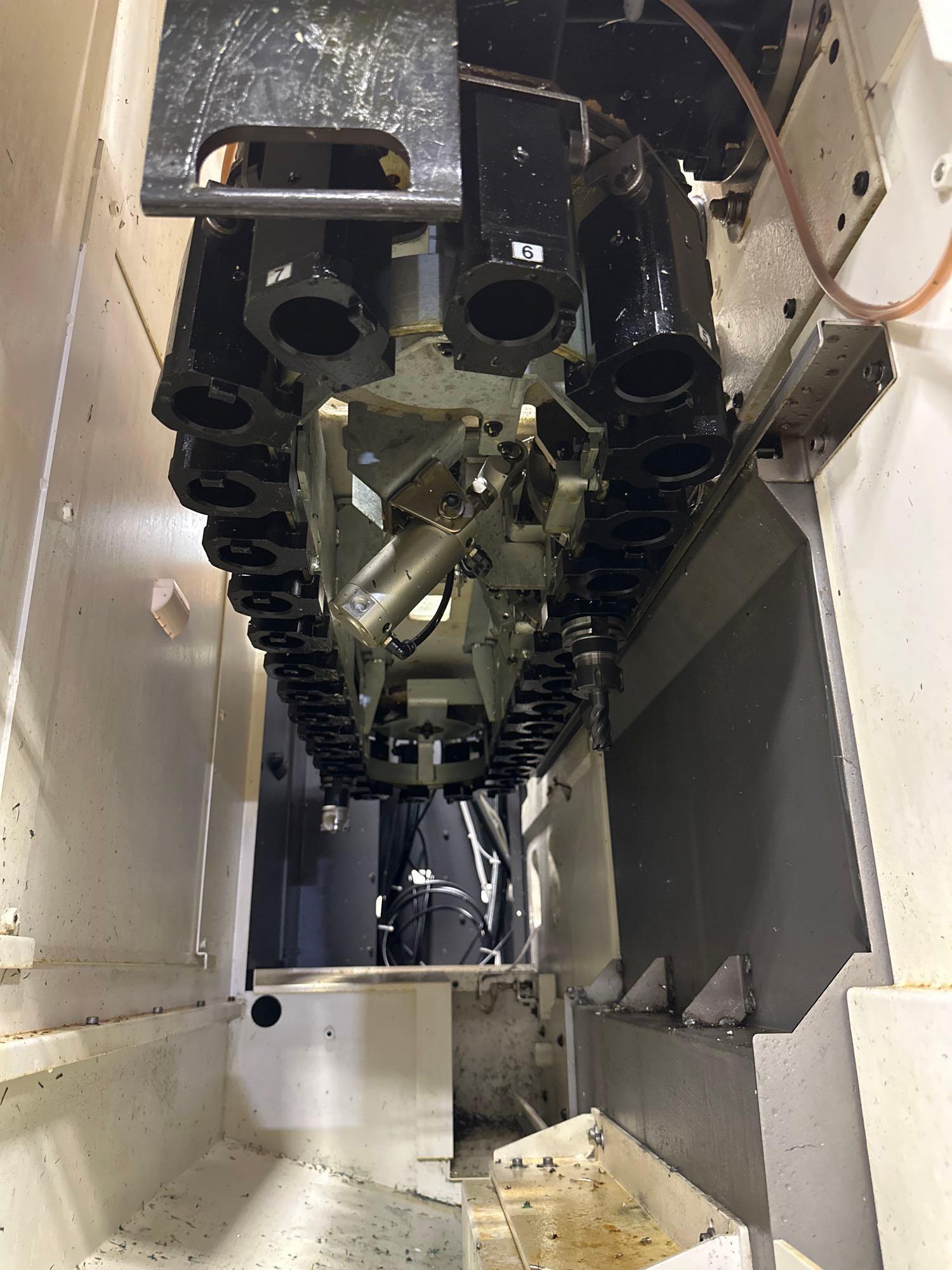

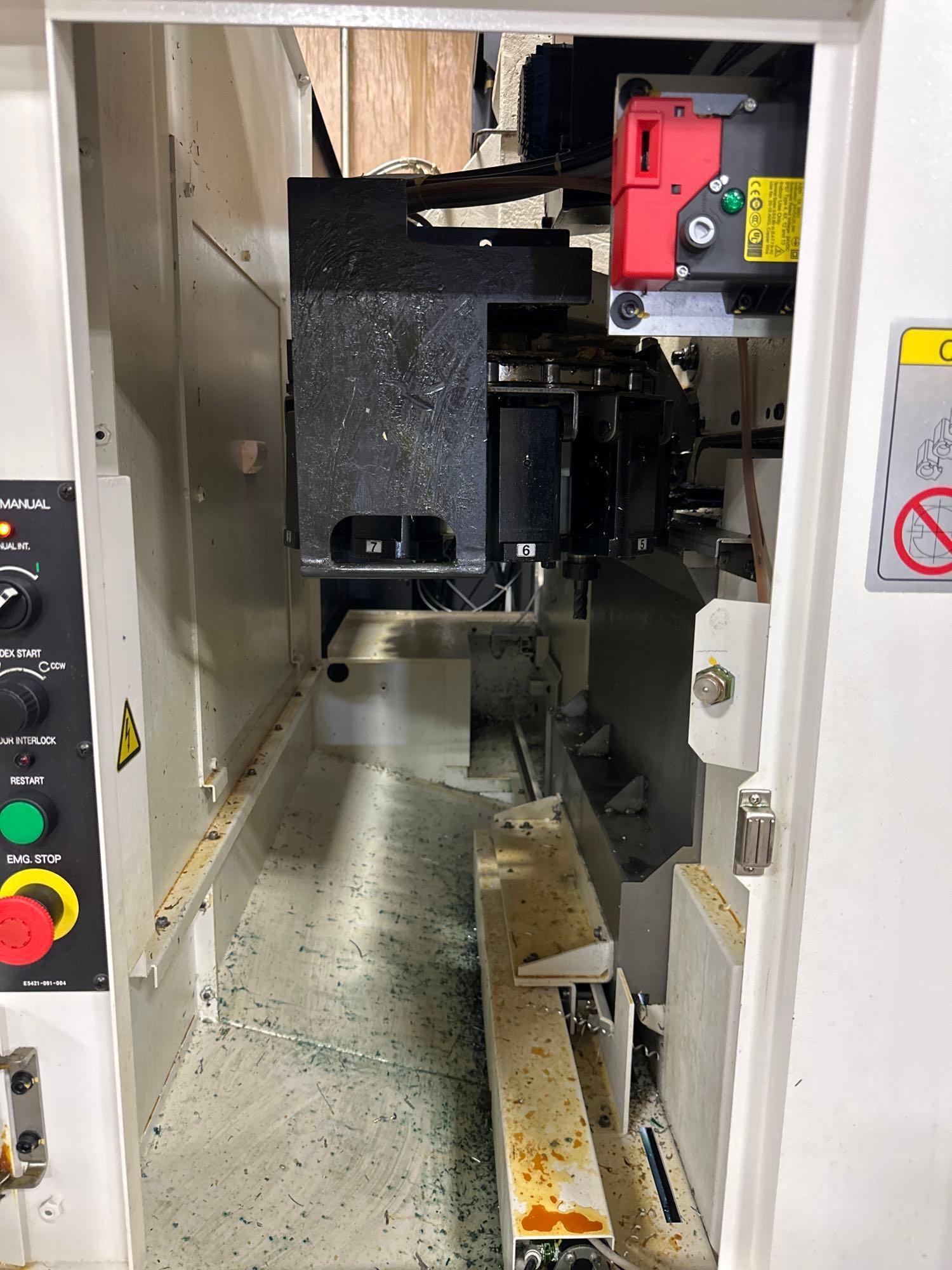

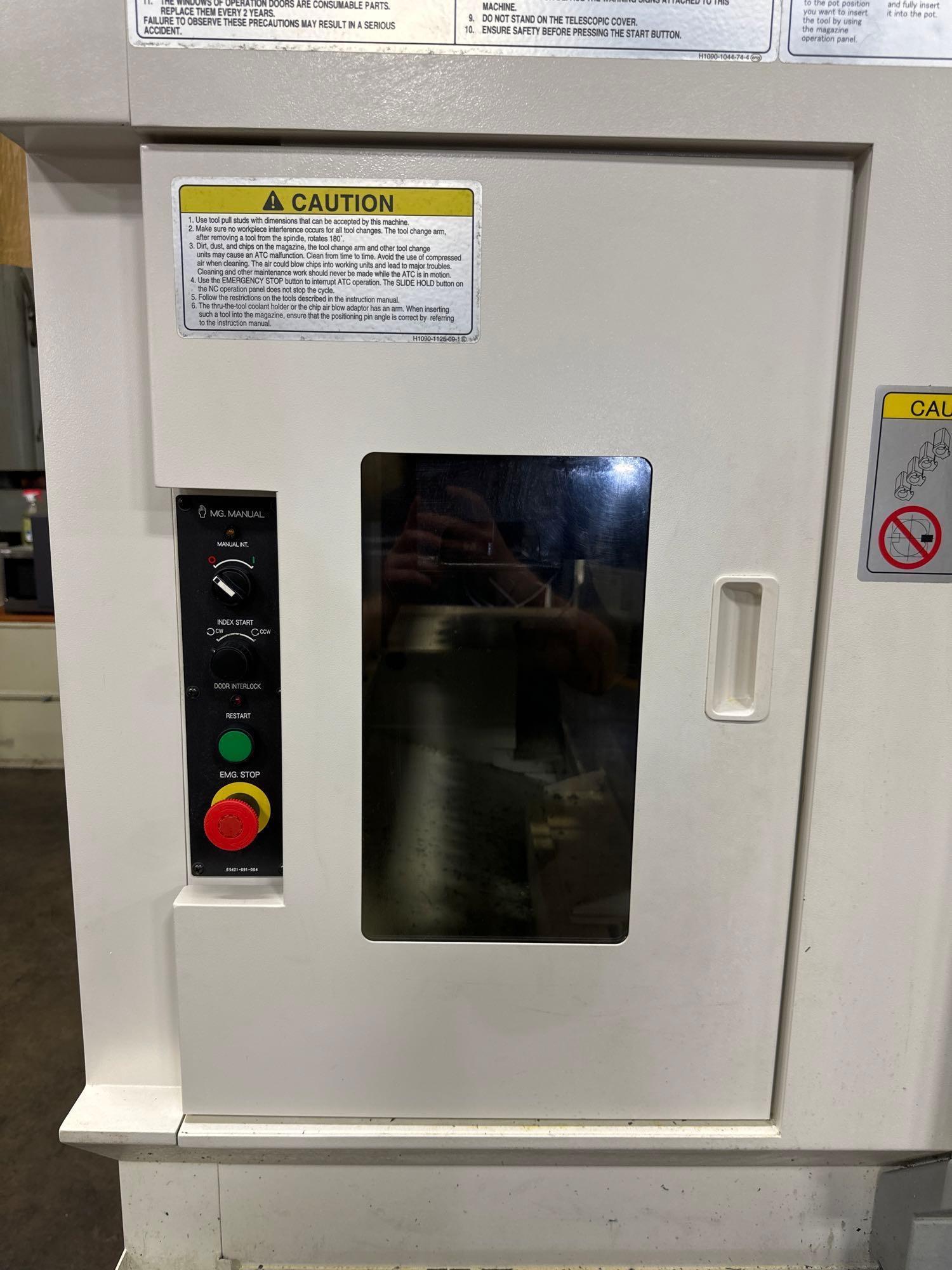

Automatic Tool Changer: 32-Station ATC
CONTROL & FEATURES

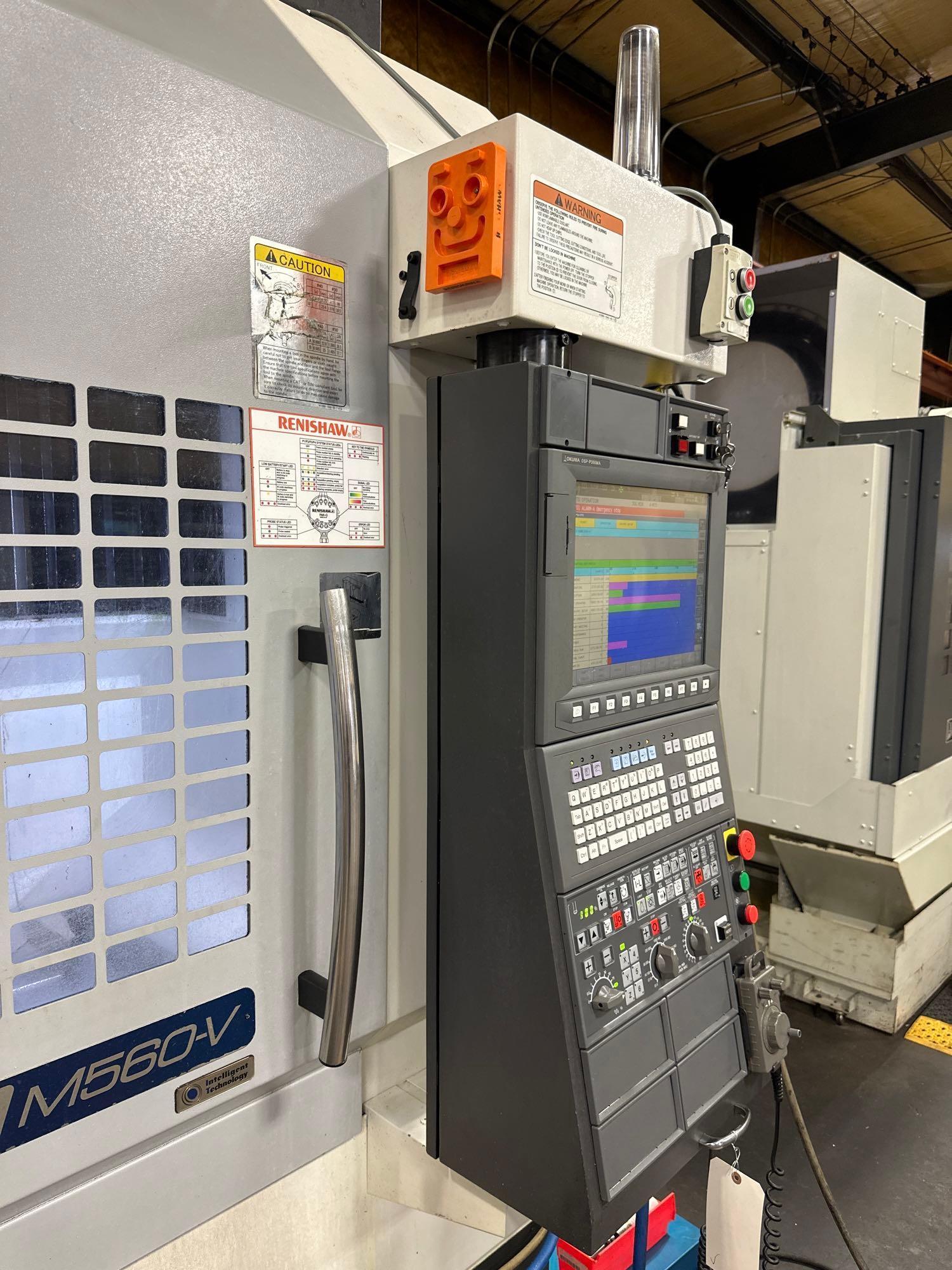

THINC Hi-Content Control System

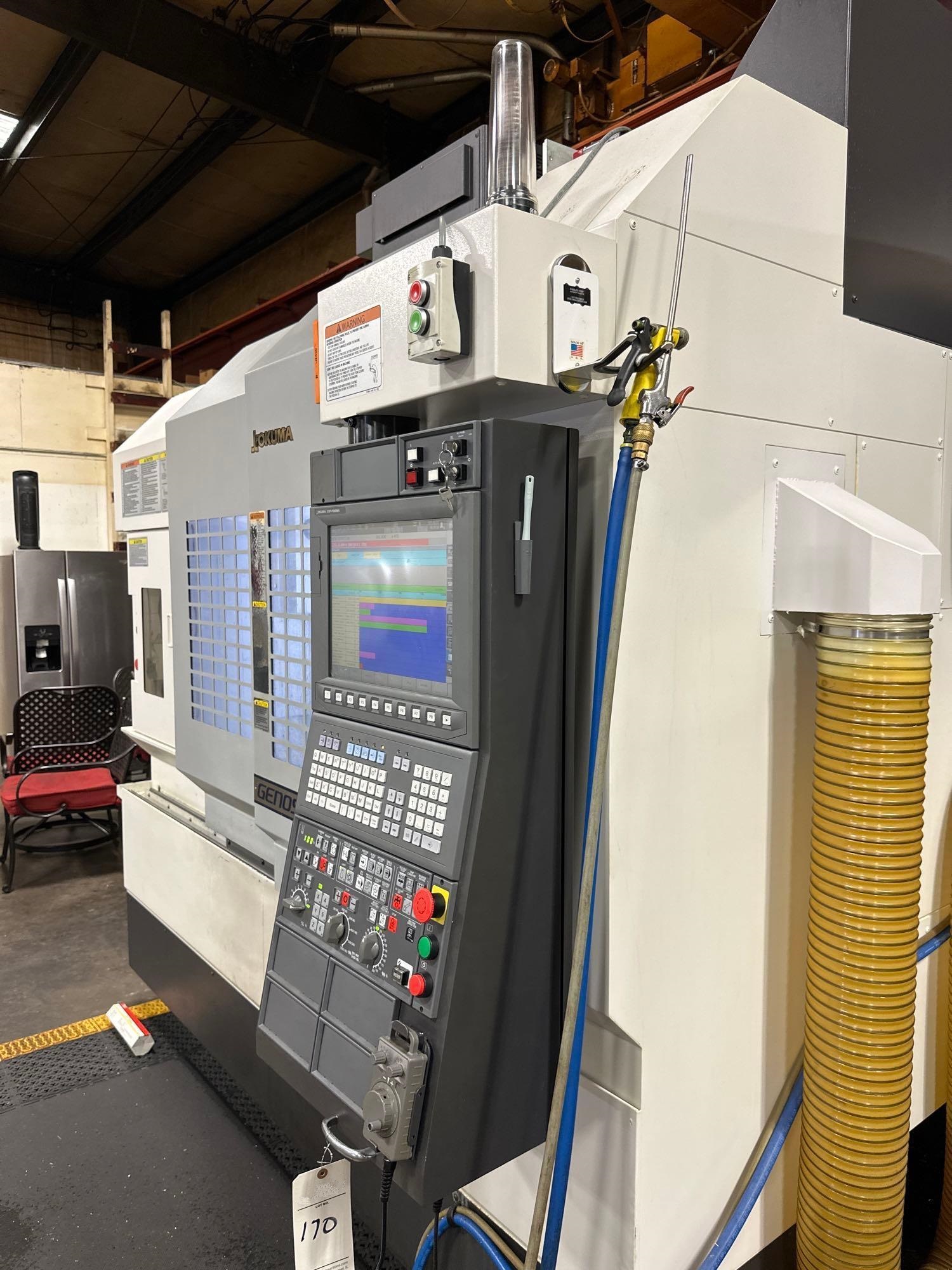

15″ Color TFT Touch Display
3D Animation
160 GB Hard Drive
512 MB RAM
Ethernet Connectivity

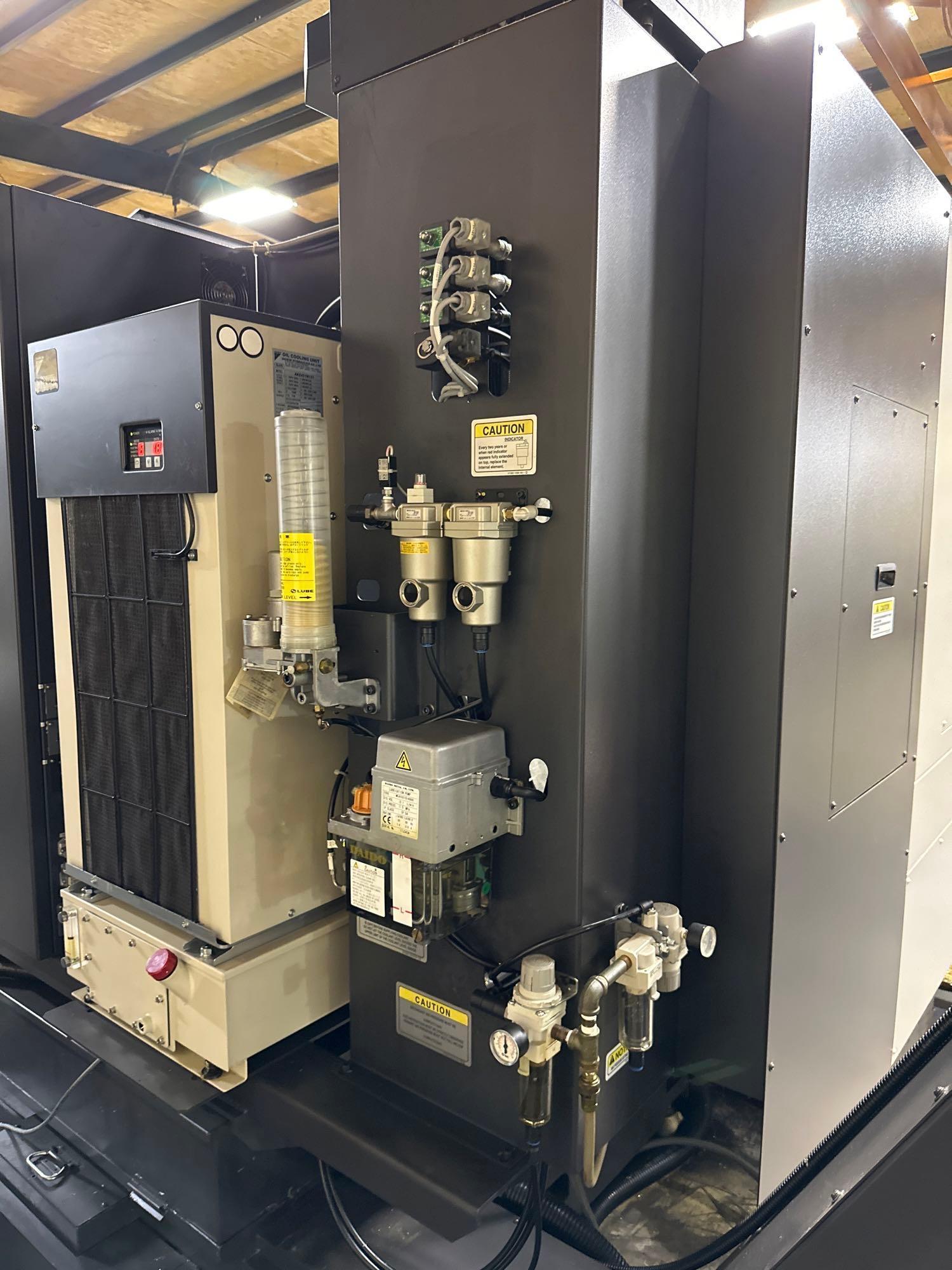

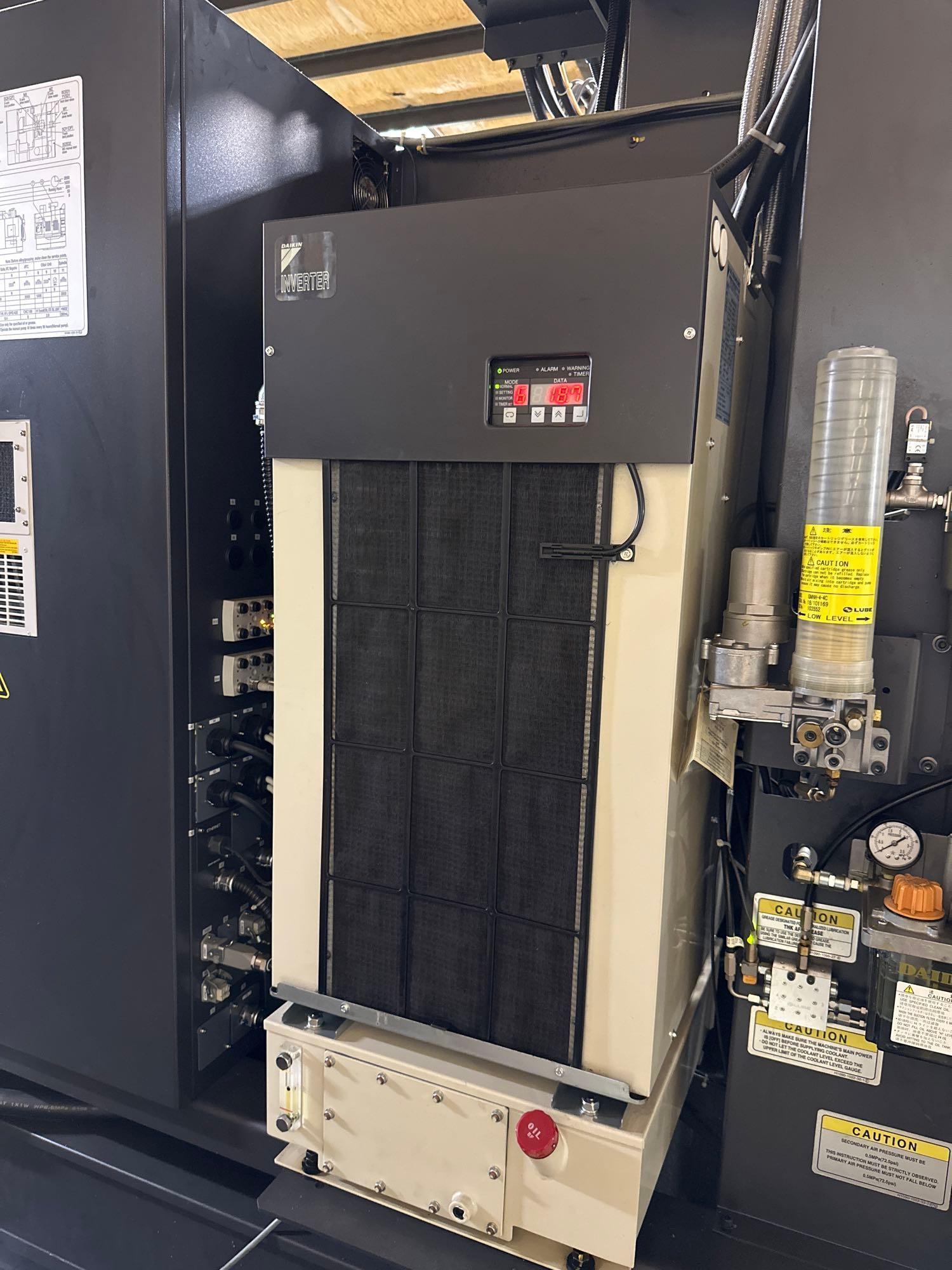

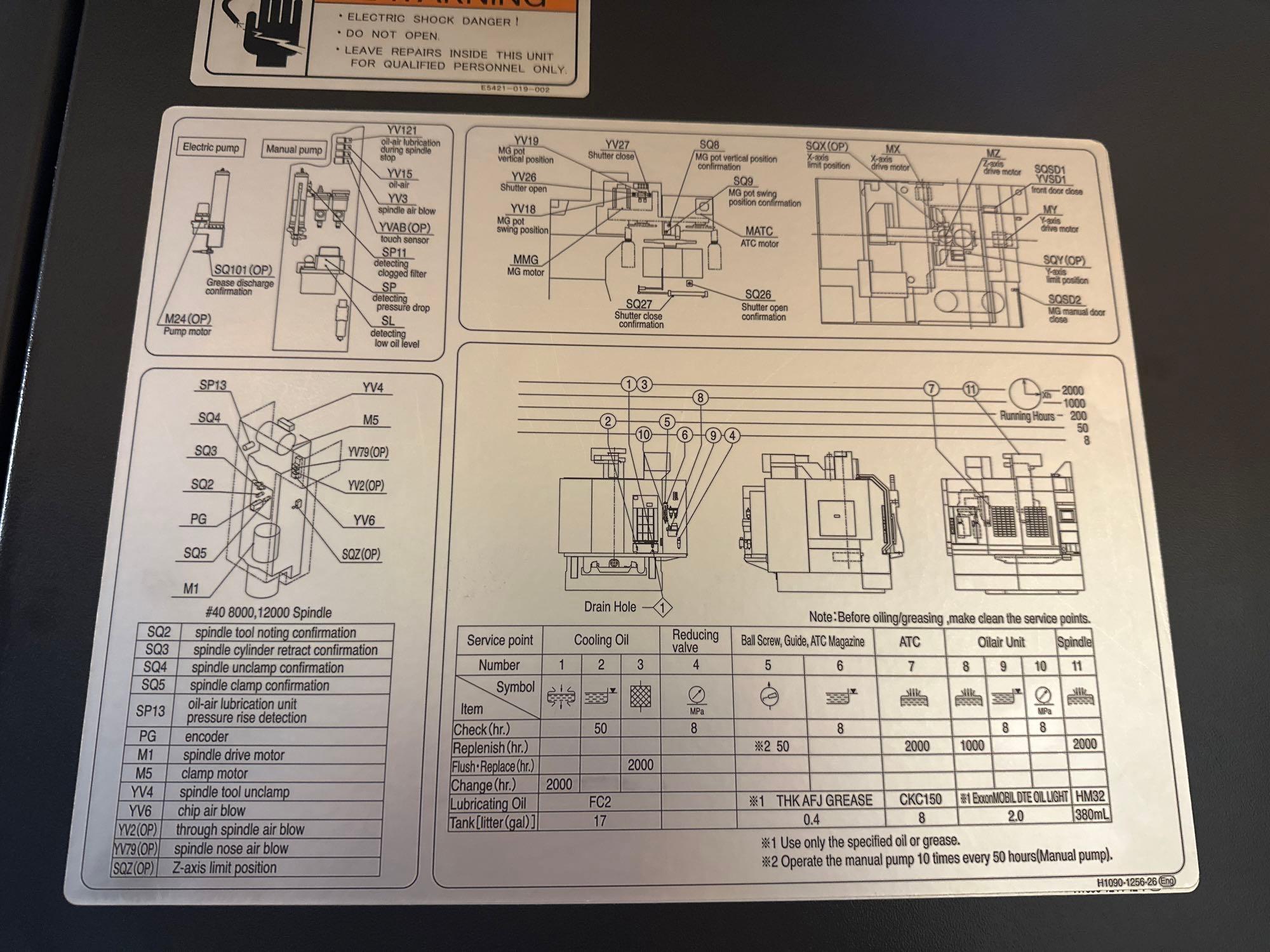

Automatic Grease Lubrication System
EQUIPPED WITH

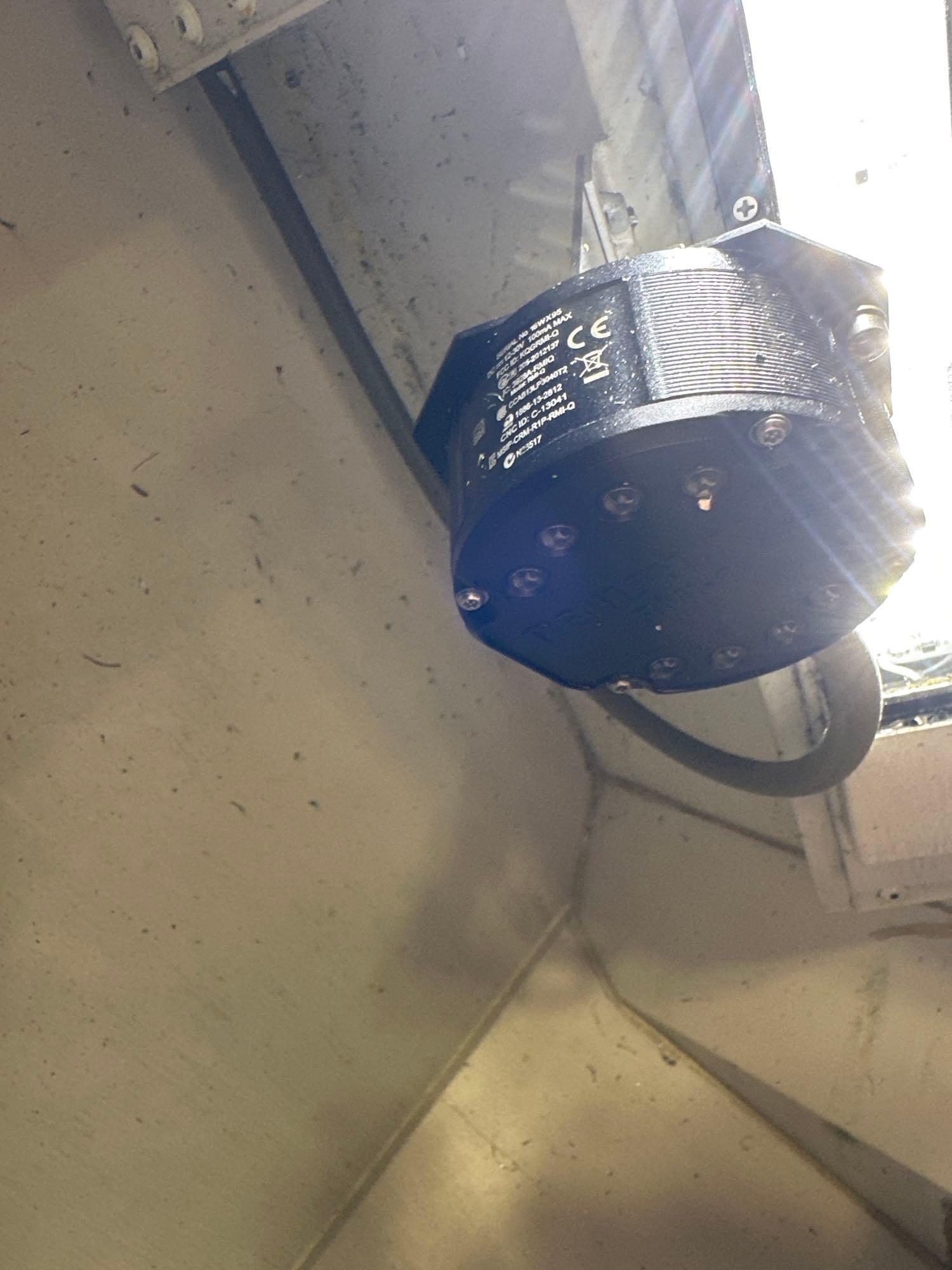

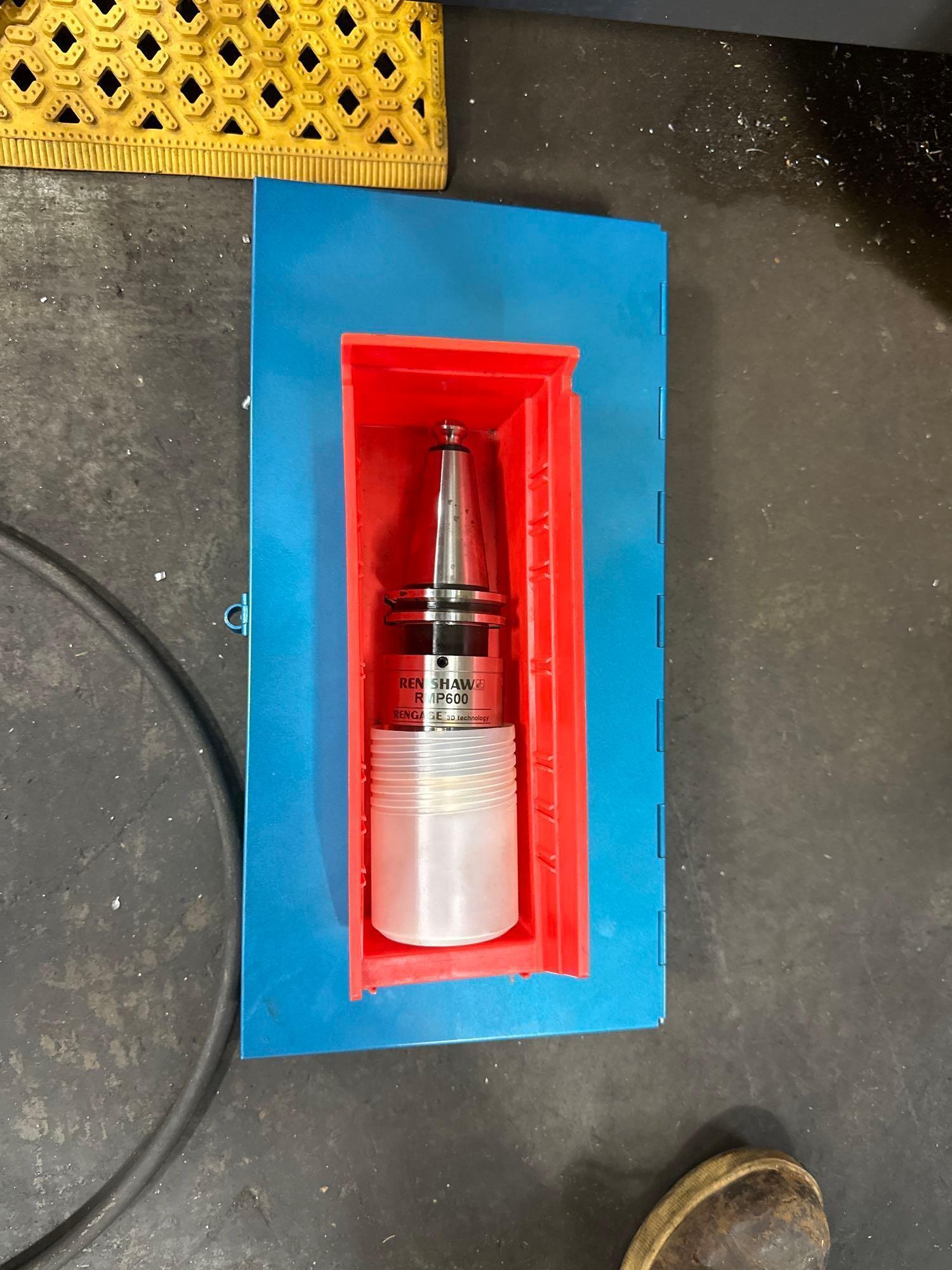

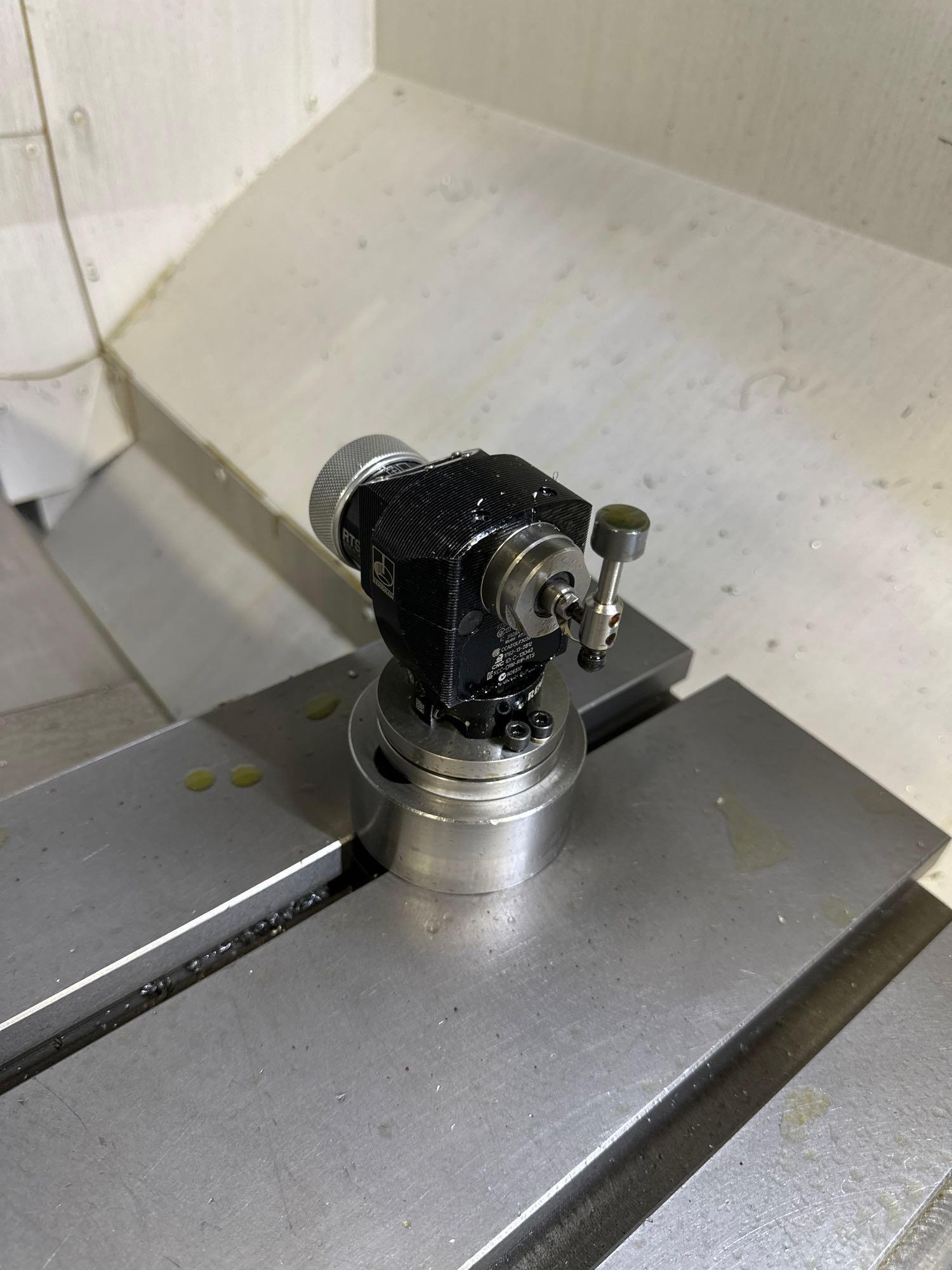

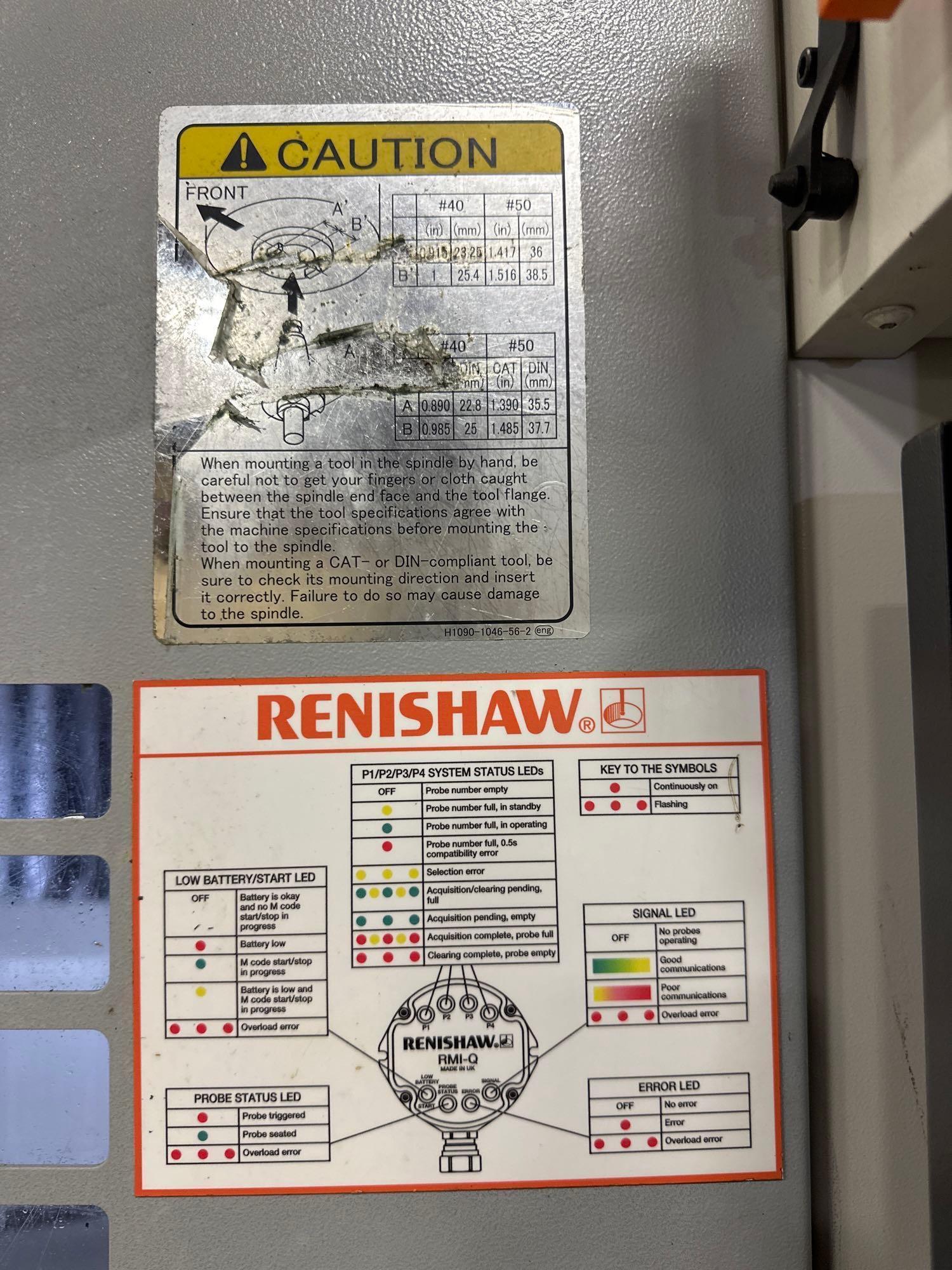

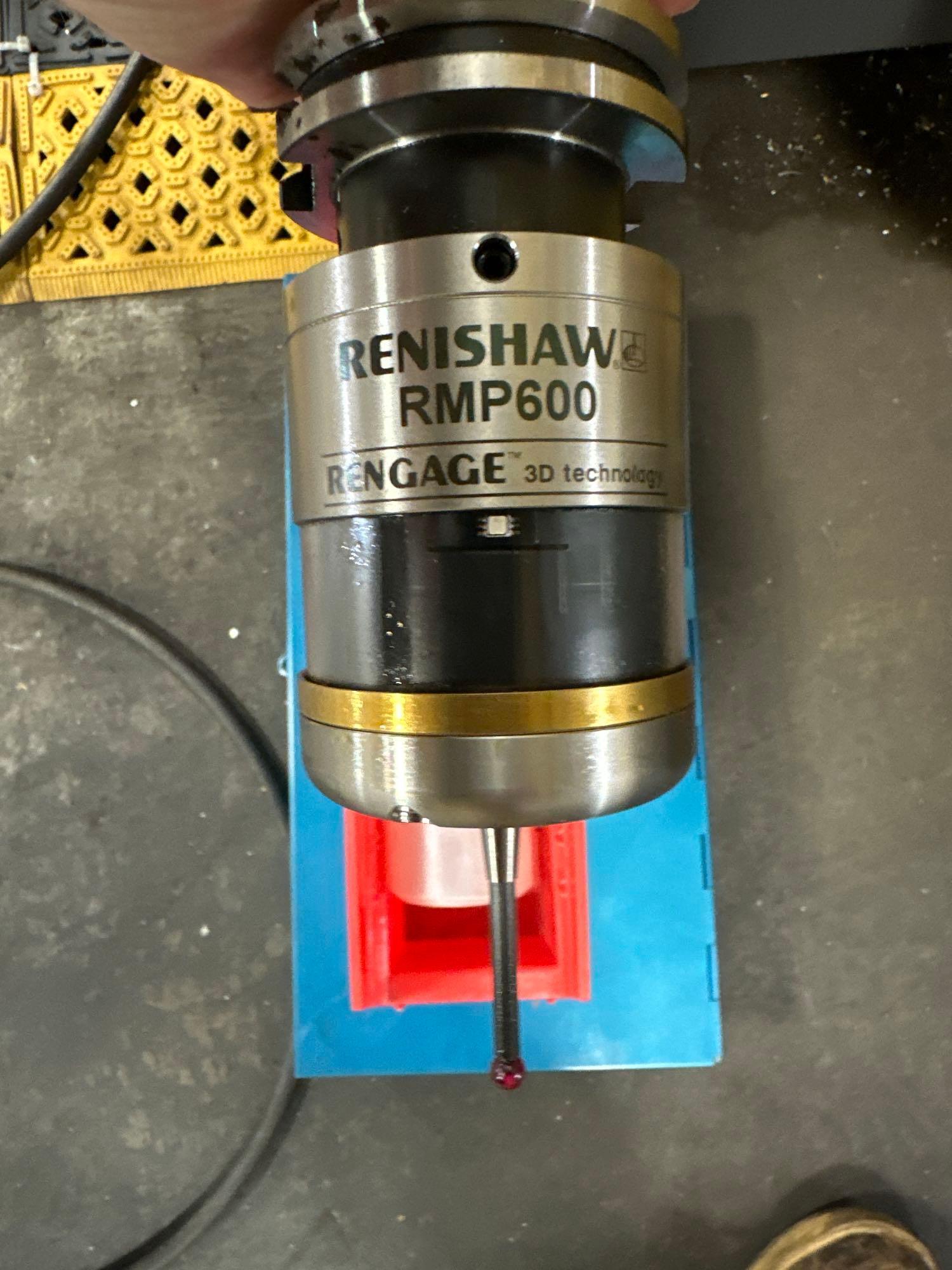

Renishaw Probe Package

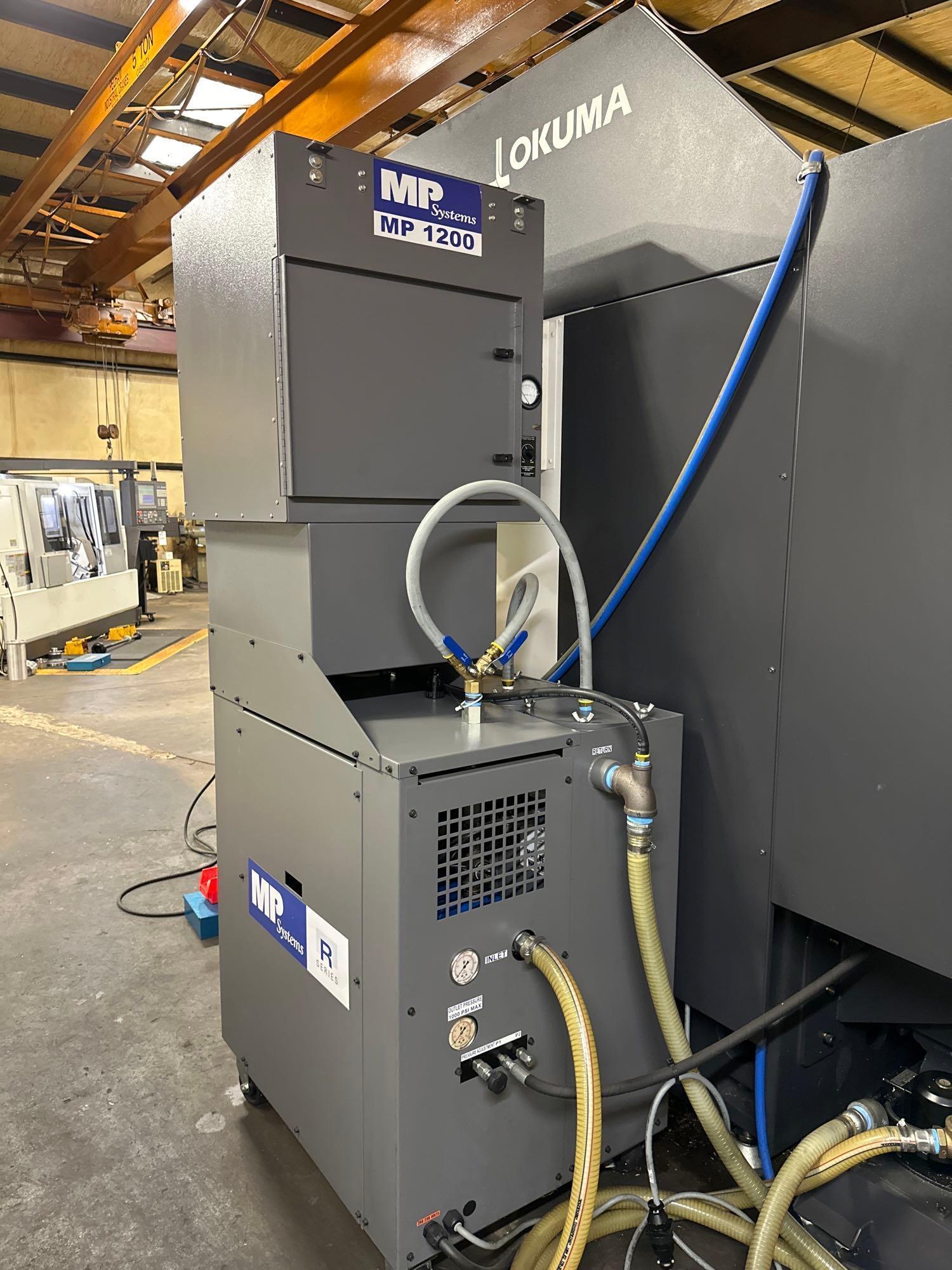

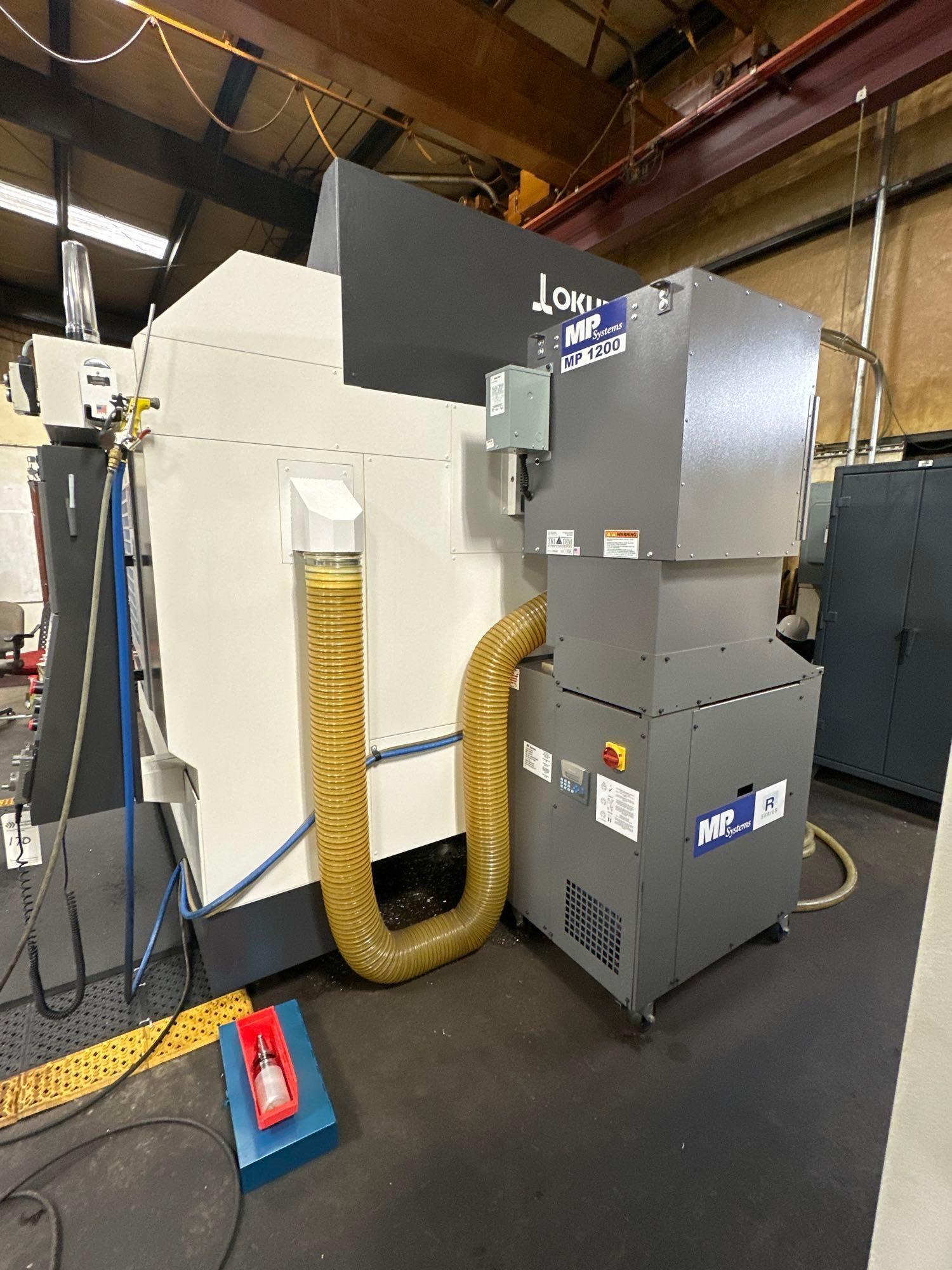

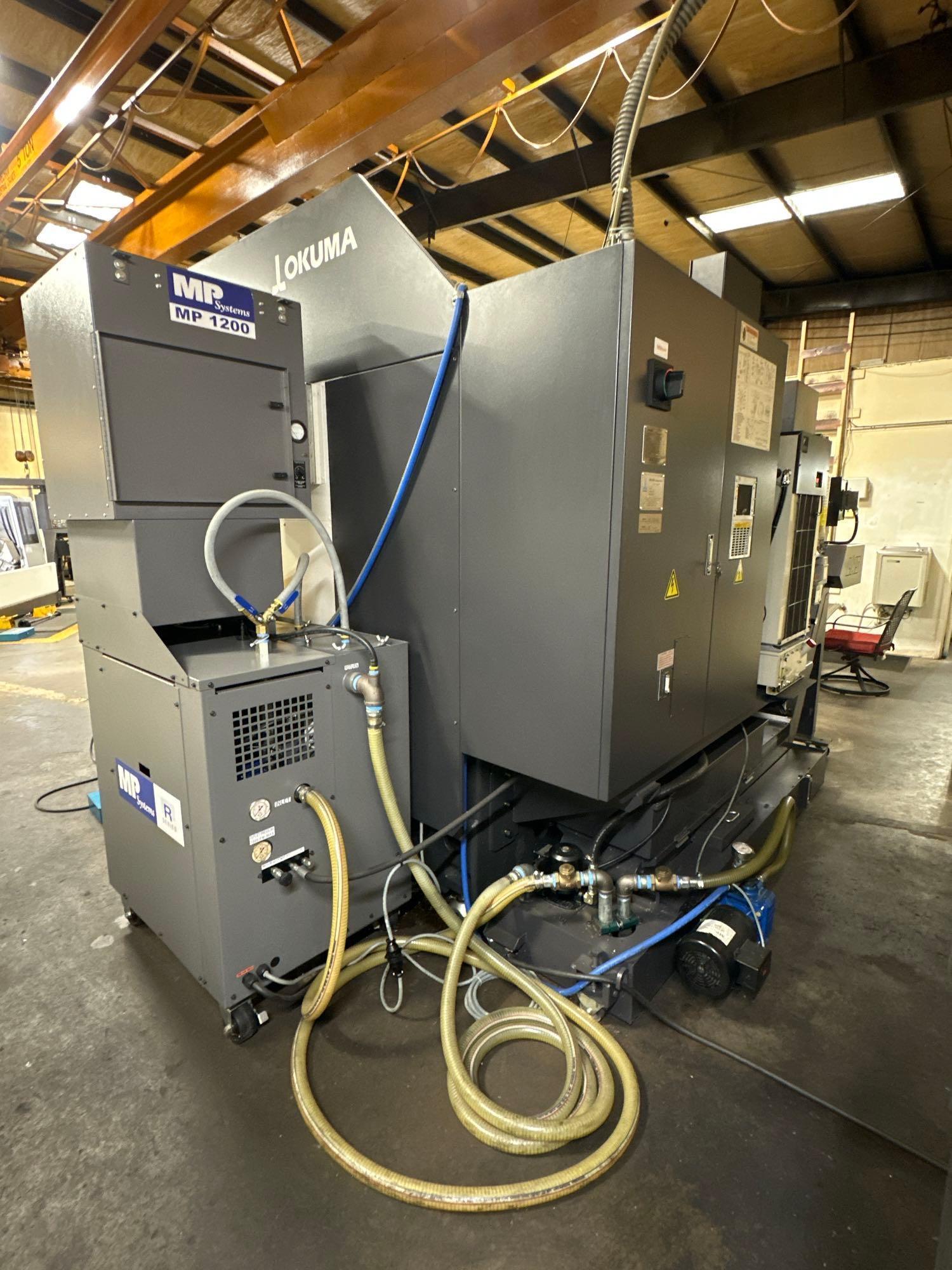

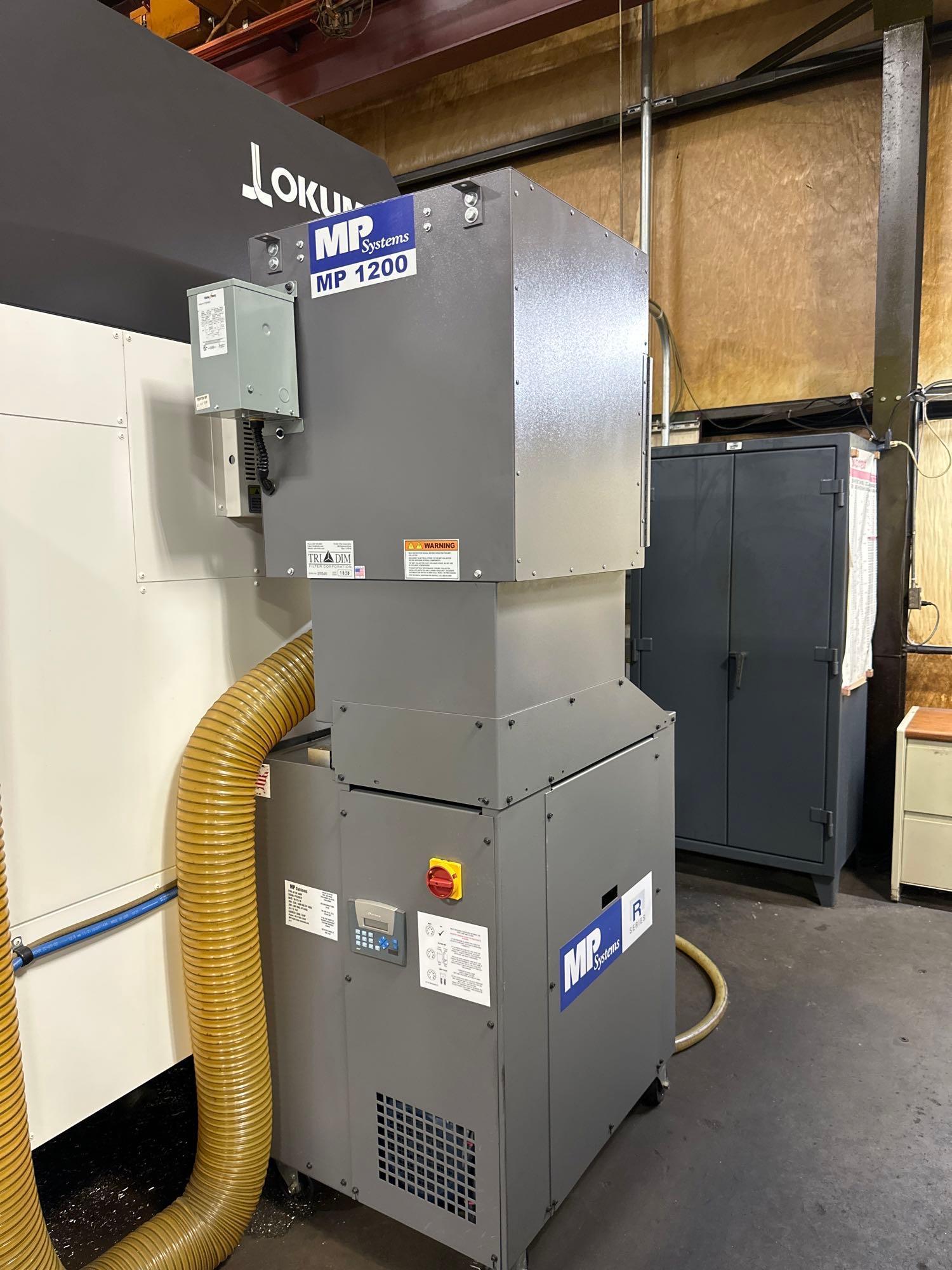

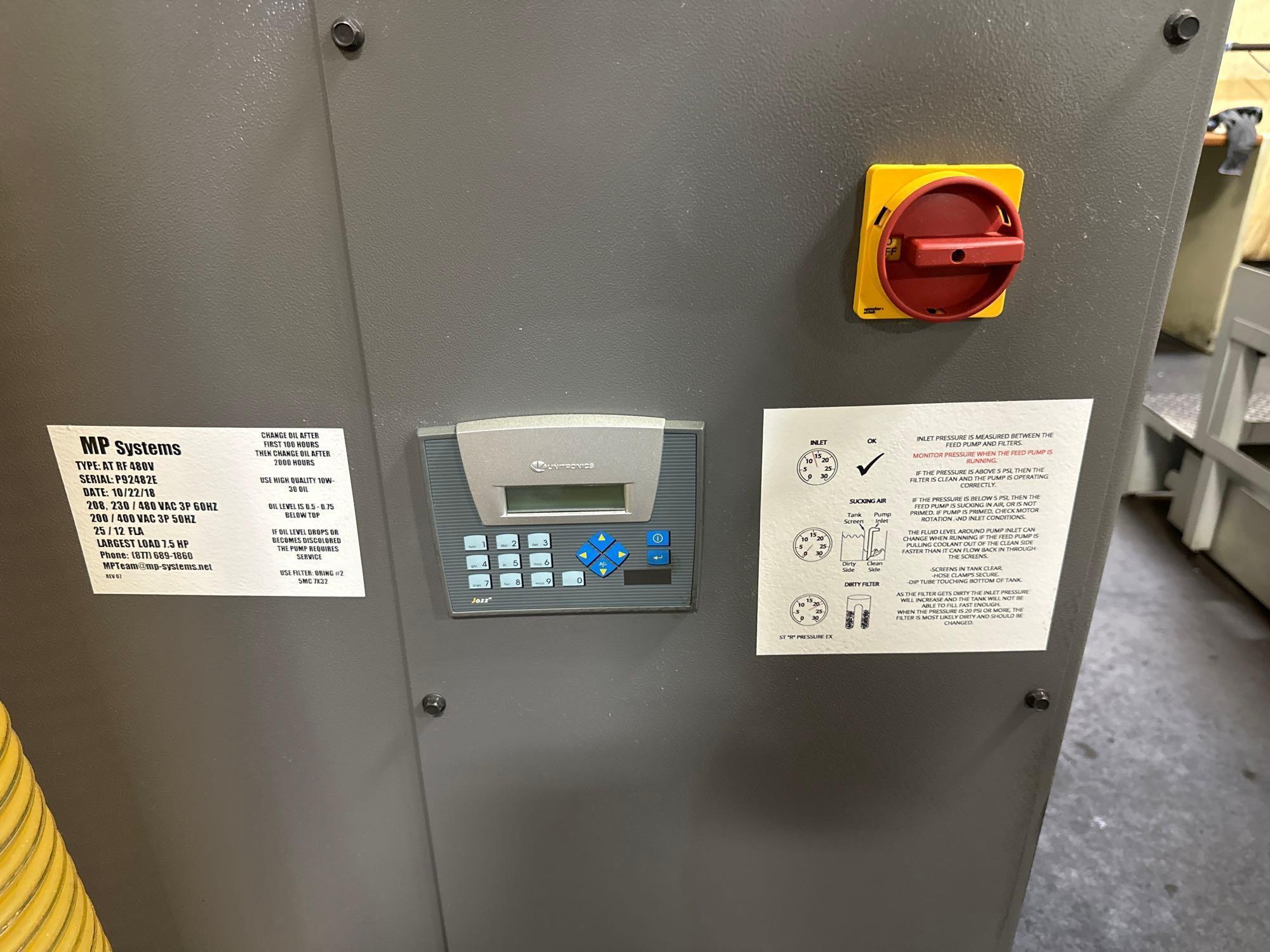

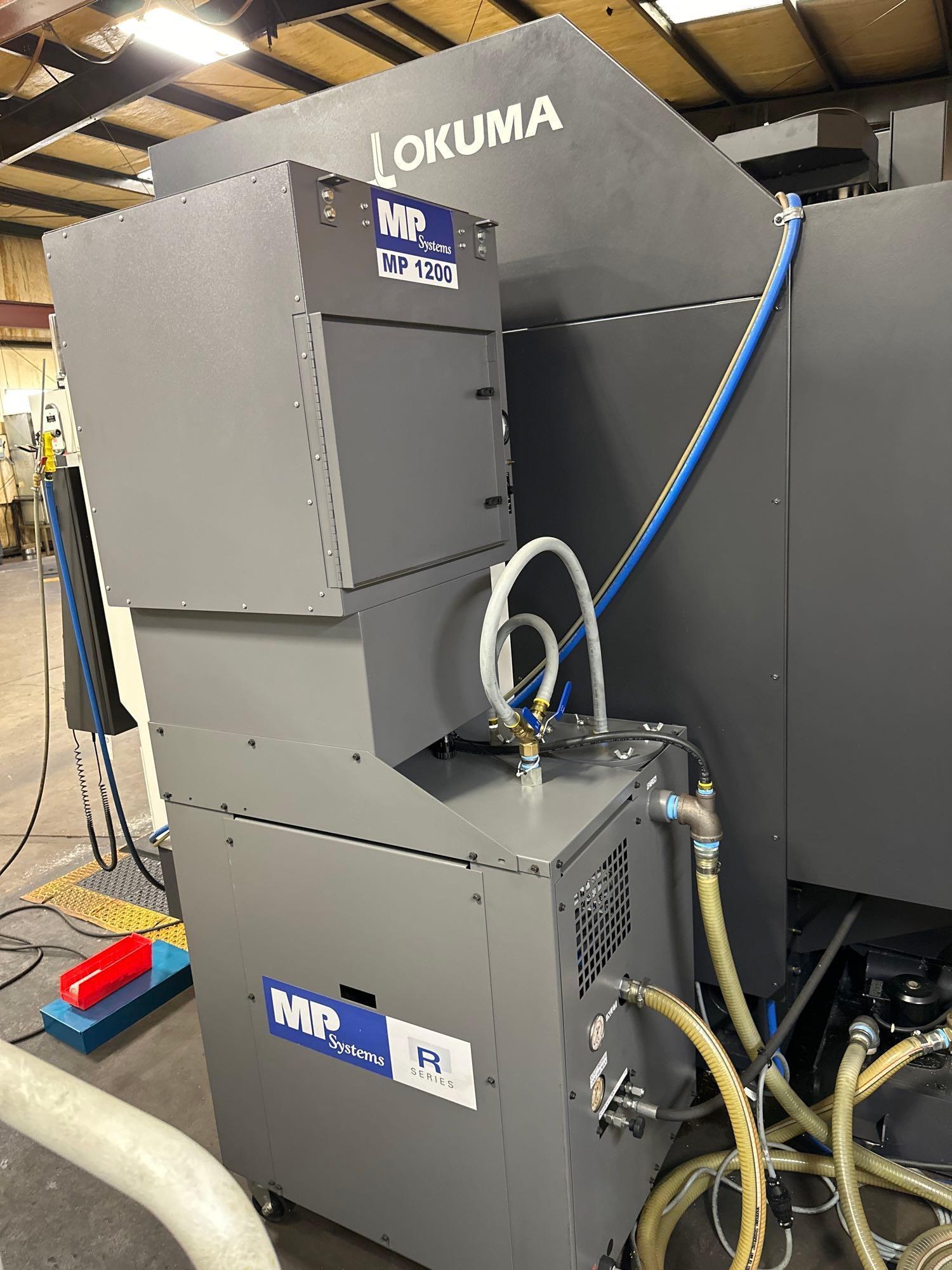

MP Systems 1,000 PSI High-Pressure Coolant System
Mist Collector

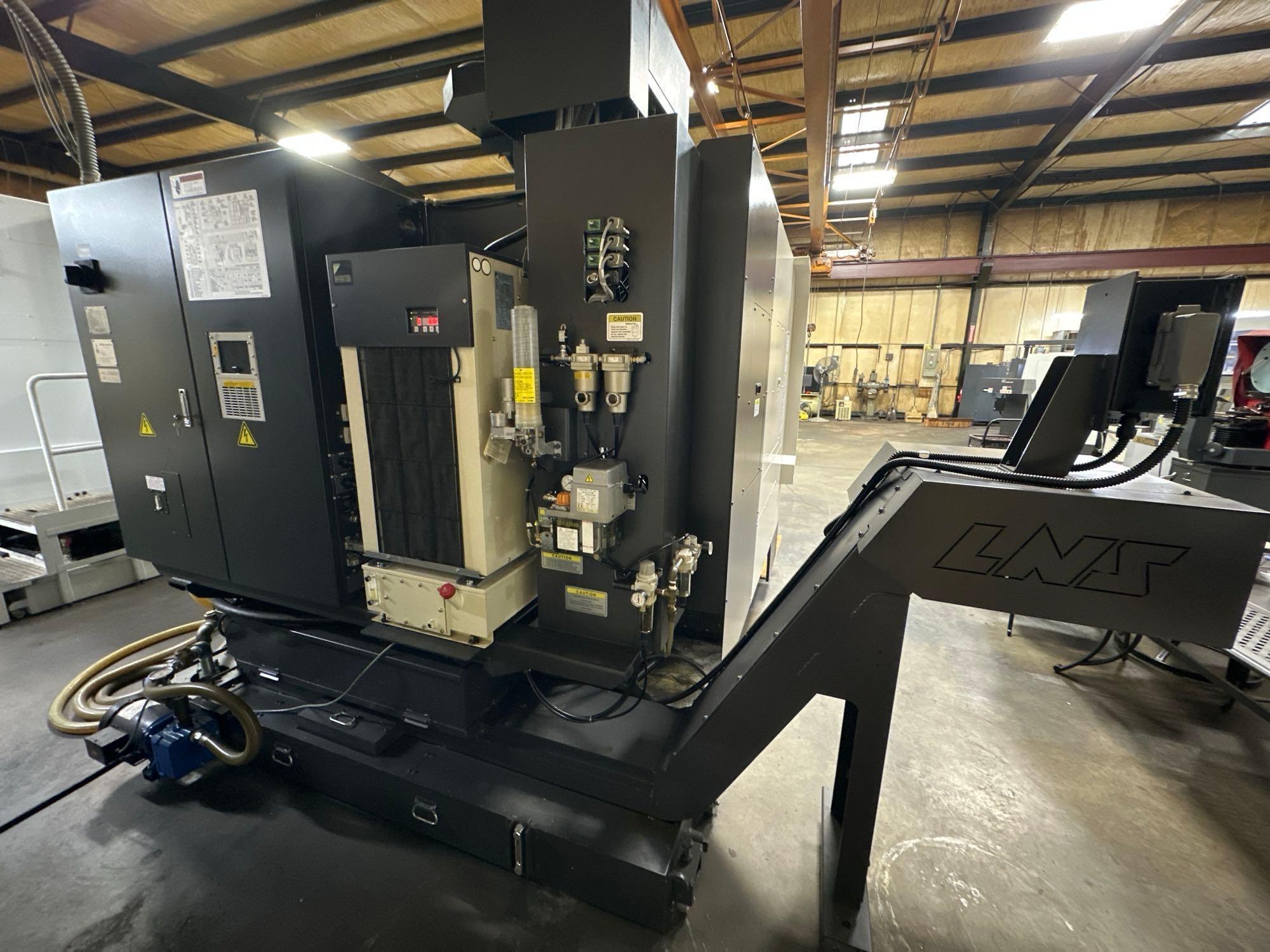

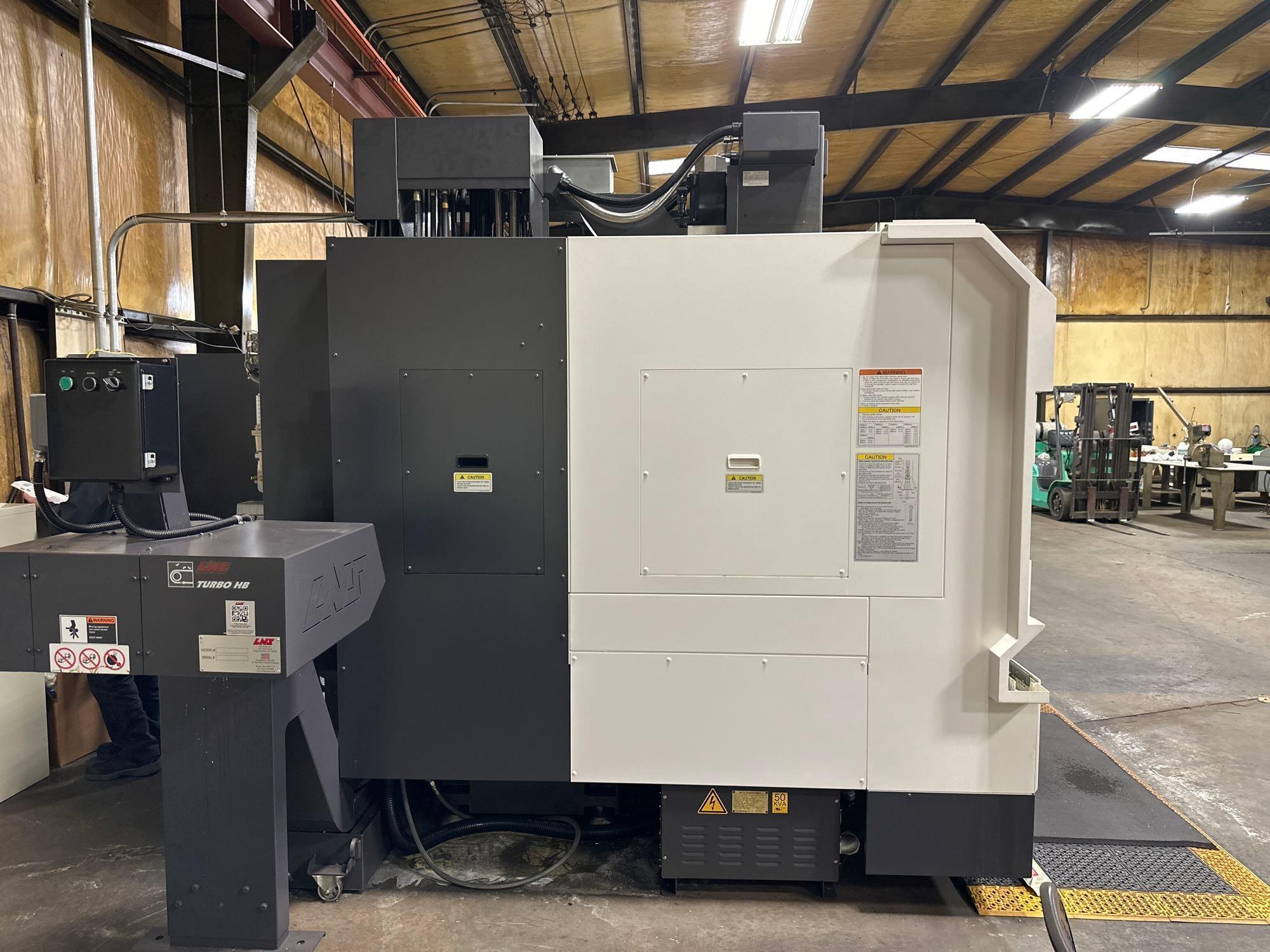

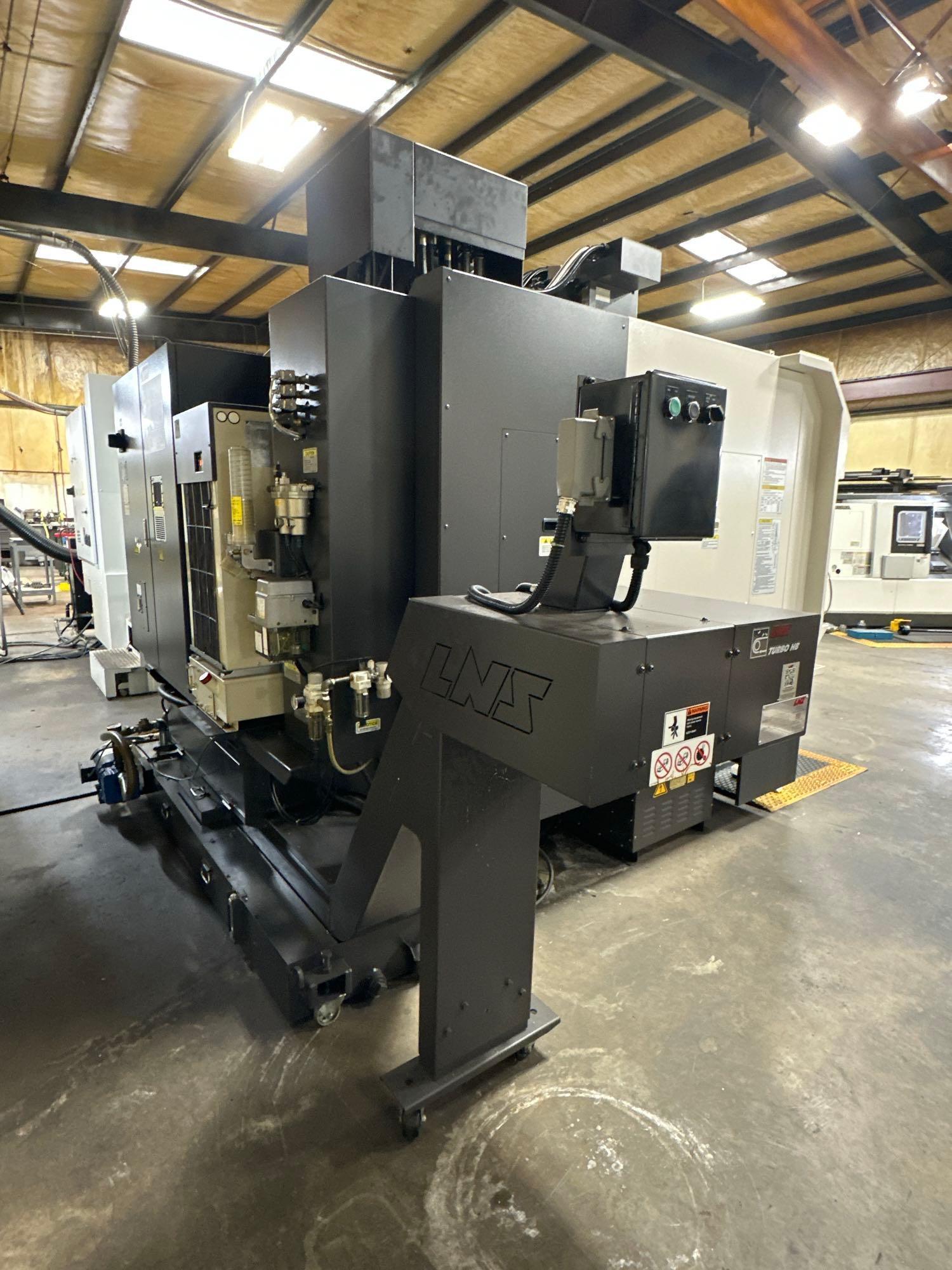

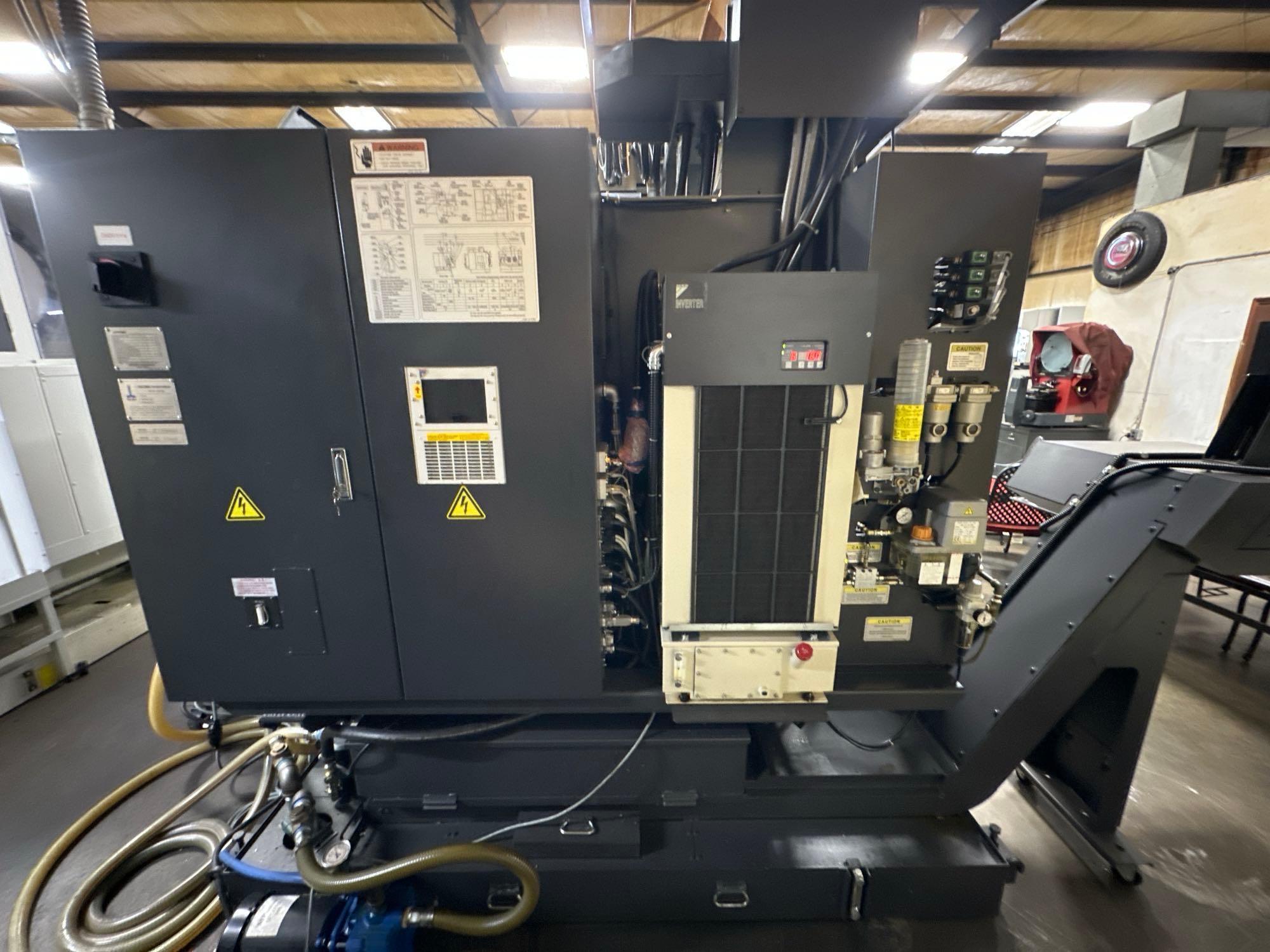

Chip Conveyor
Automatic Lubrication Pump
Splash Gun Kit

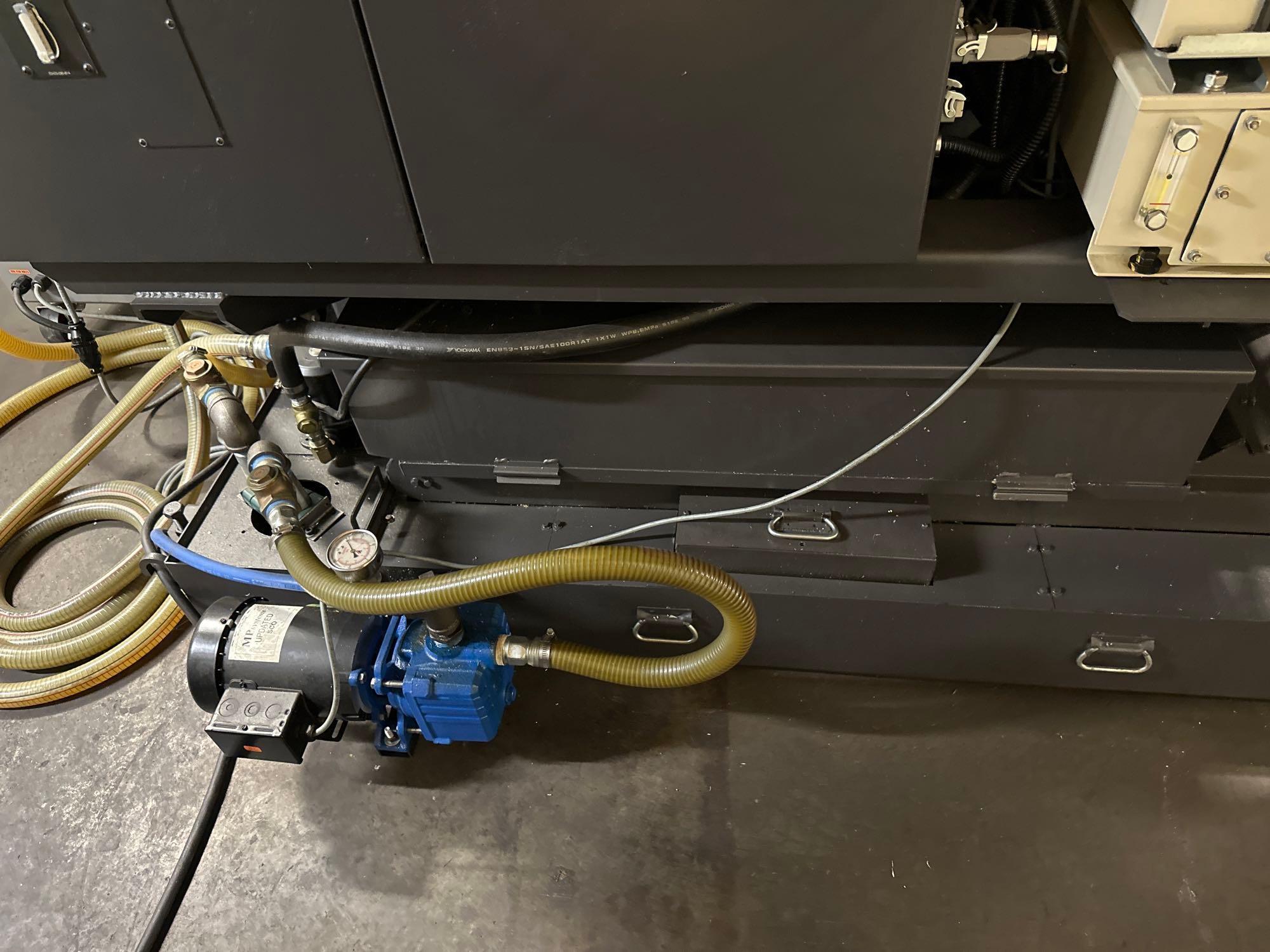

COOLANT SYSTEM
Coolant Pressure: 1,000 PSI
High-Pressure Through-Coolant System
Mist Collection System
MACHINE DIMENSIONS & WEIGHT
Dimensions: 122″ × 99″ × 108″
Weight: Approximately 16,500 lbs.
KEY HIGHLIGHTS
High-speed 15,000 rpm spindle
CAT40 BIG-PLUS spindle interface
32-station automatic tool changer
Renishaw probing package for precision setup and measurement
1,000 PSI high-pressure coolant system
Chip conveyor and mist collector included
THINC control with touchscreen display and 3D animation
APPLICATIONS
Ideal for precision milling, drilling, tapping, and machining complex components across automotive, aerospace, tooling, and general industrial manufacturing.
