Waukesha L7042GSI

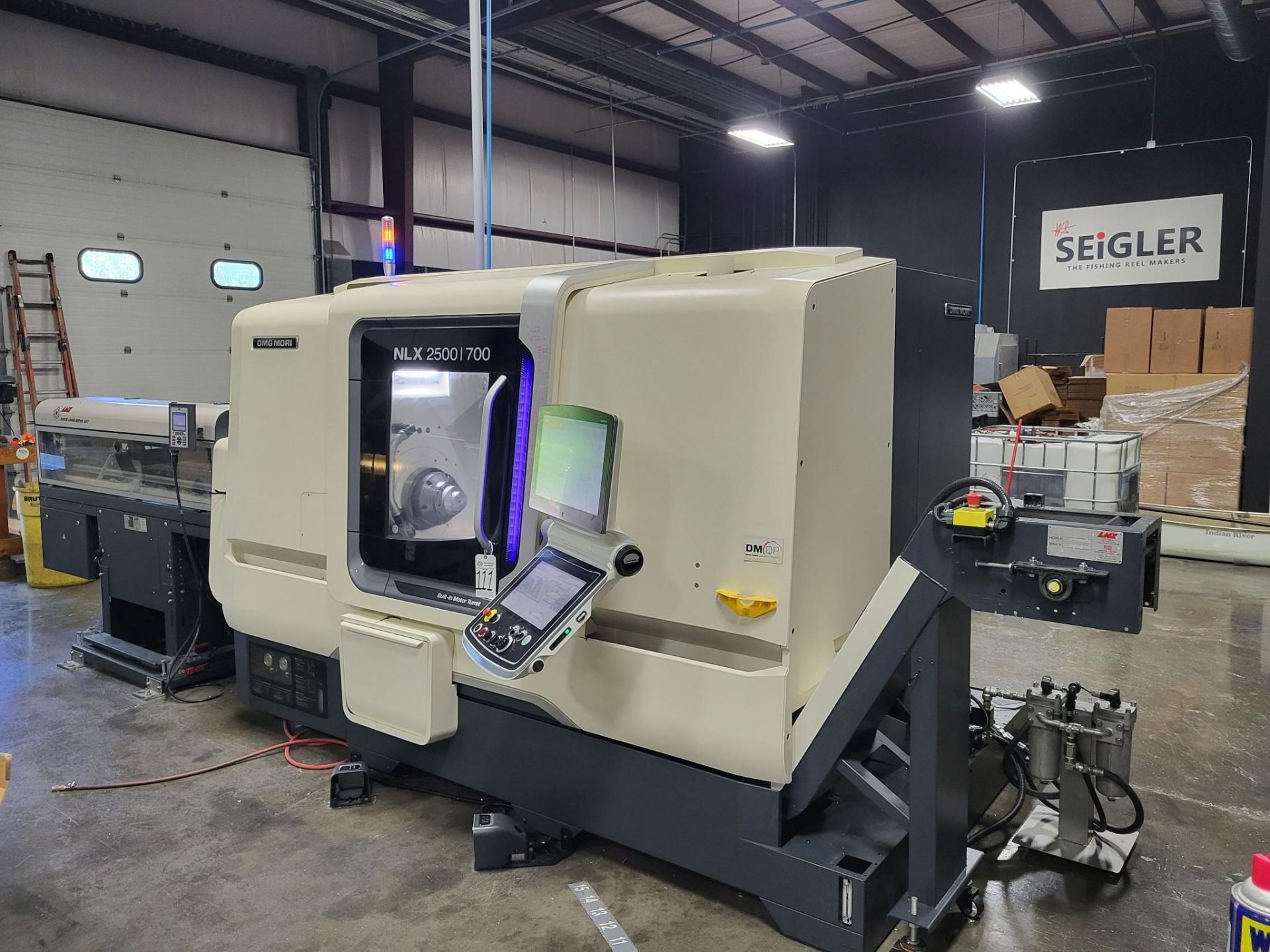

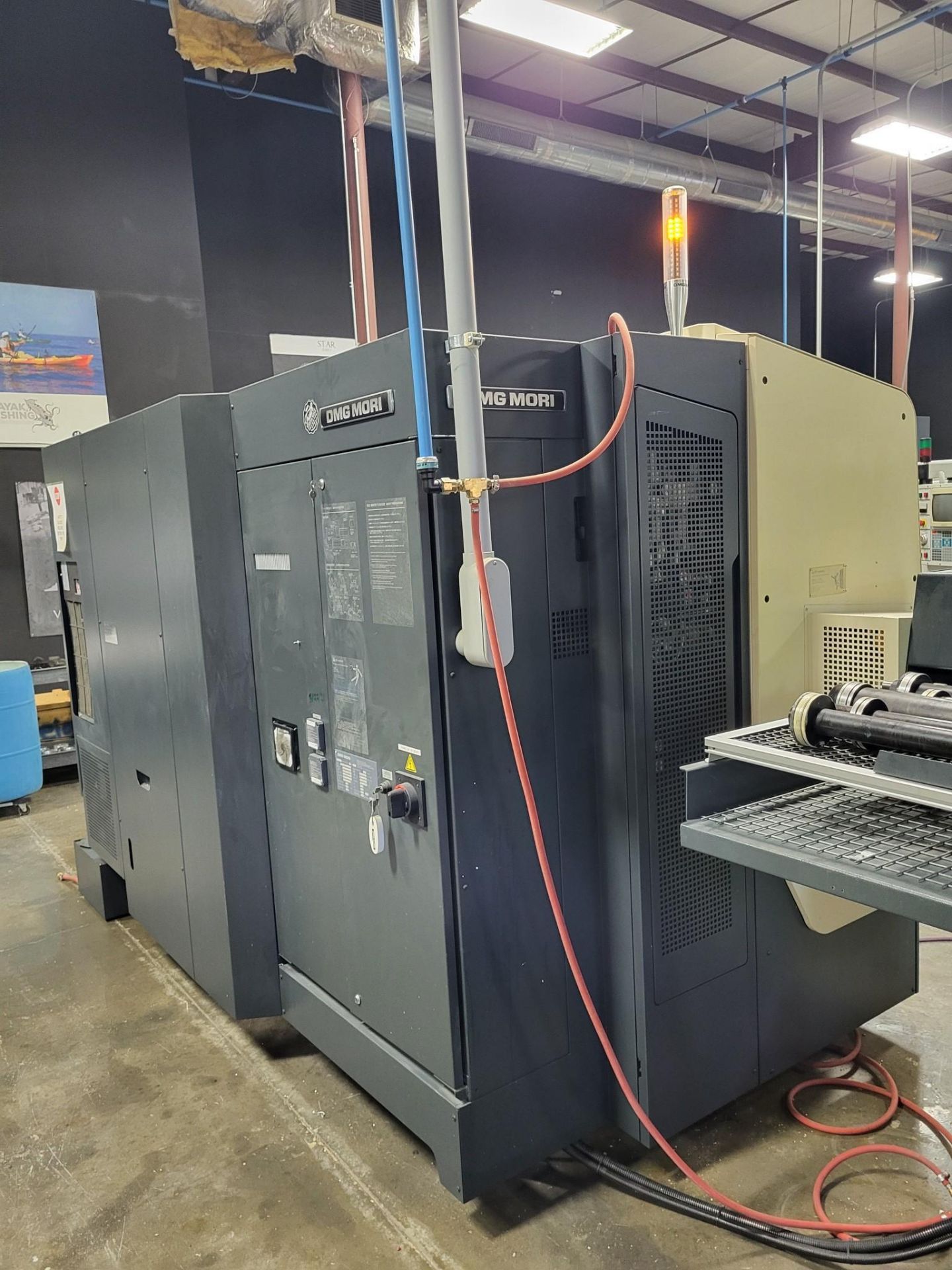

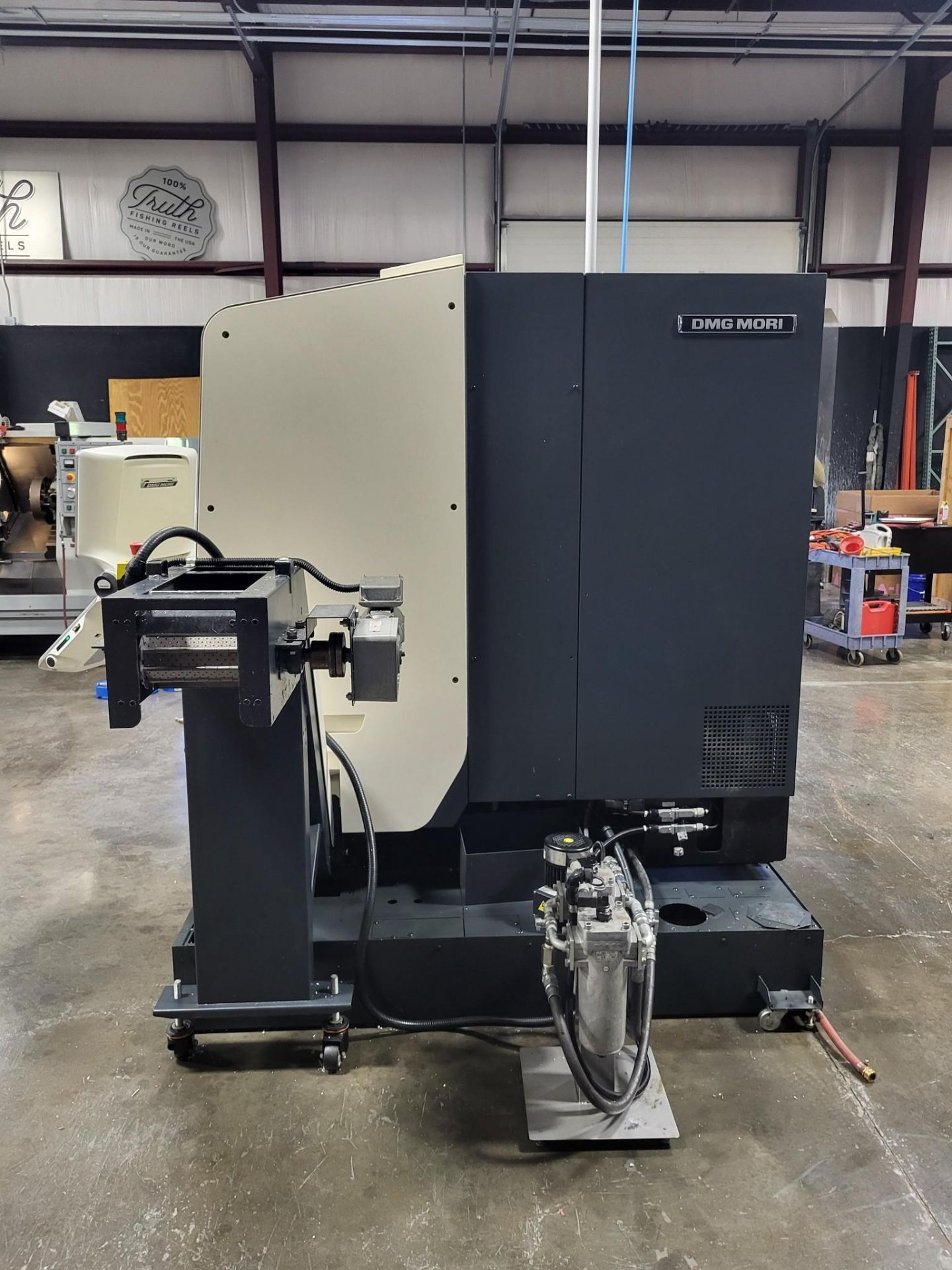

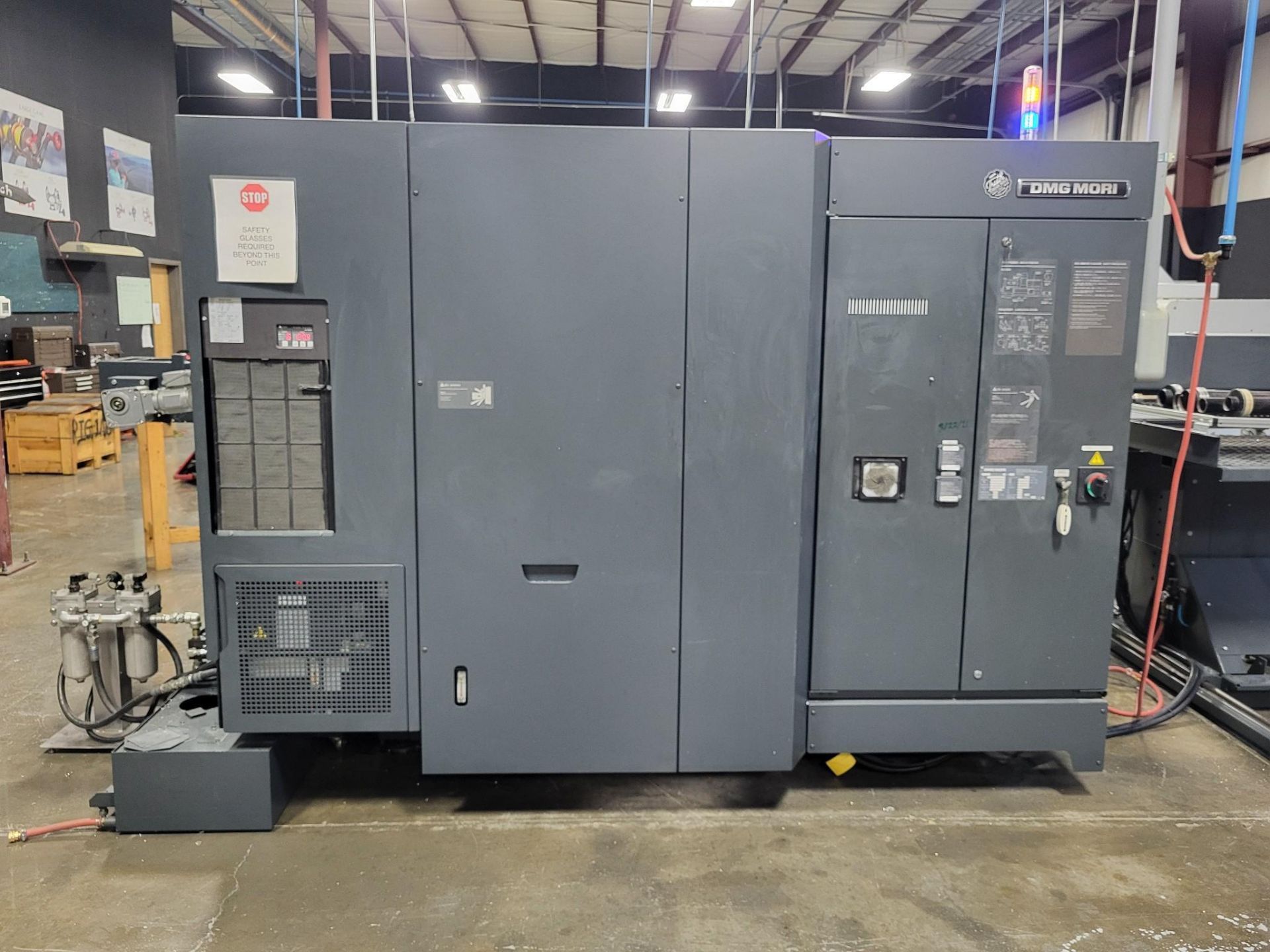

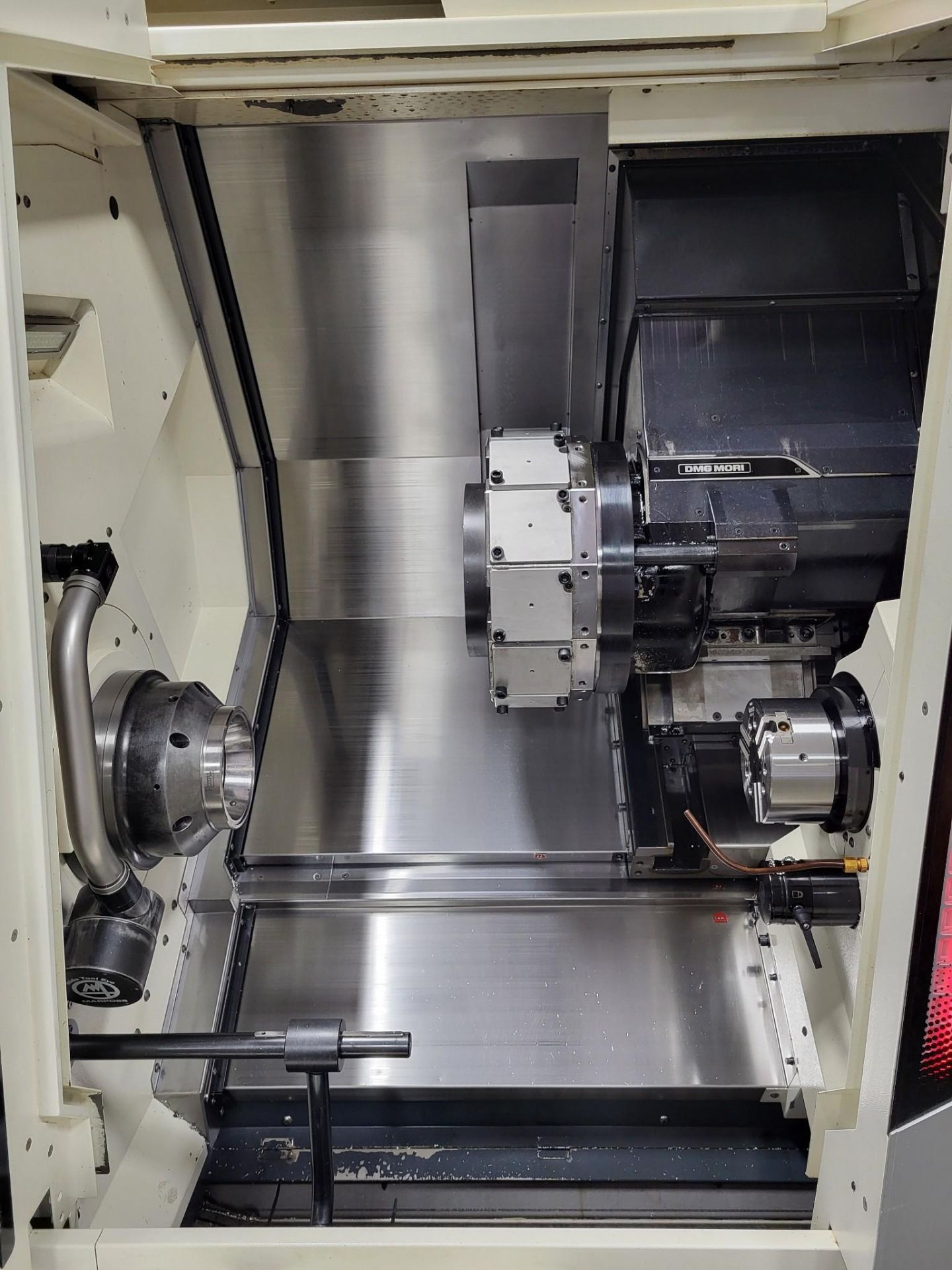

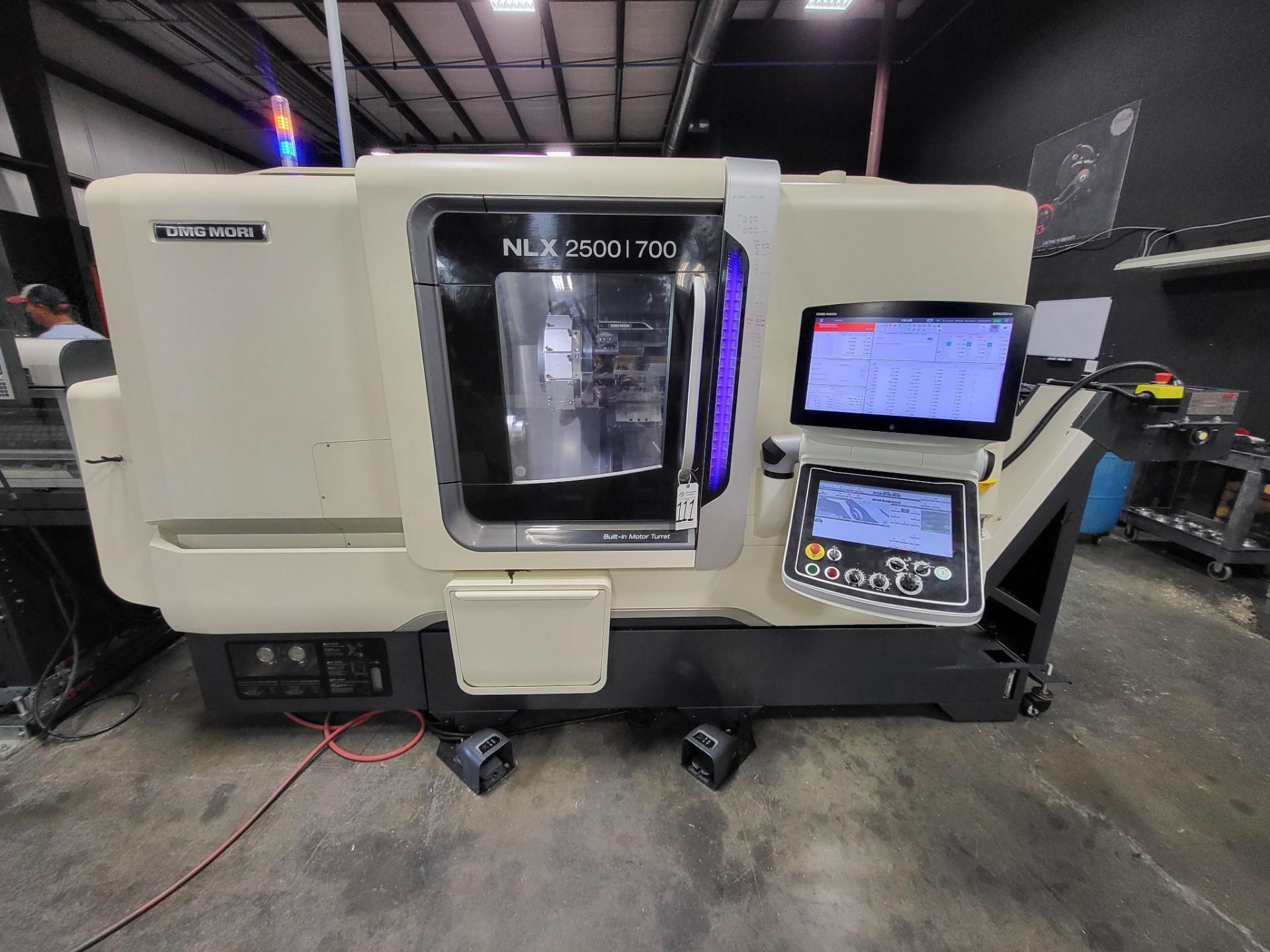

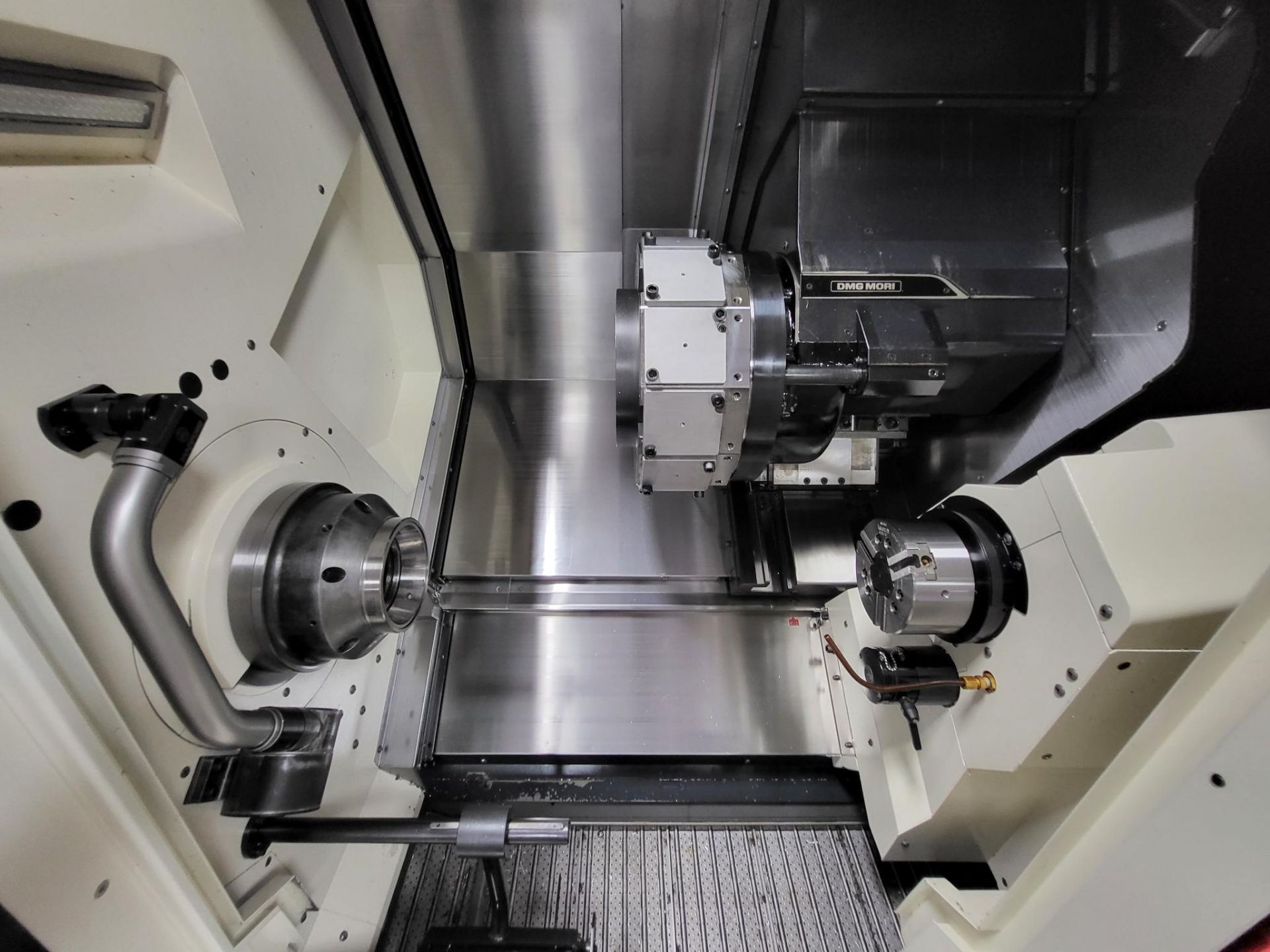

DMG MORI NLX 2500/700 CNC TURNING CENTER
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description
GENERAL INFORMATION
Manufacturer: DMG MORI
Model: NLX 2500/700
Year: 2018
Machine Type: CNC Turning Center
Configuration: Y-Axis, Sub Spindle
CNC Control: M730UM CELOS
Machine Weight: Approximately 17,500 lbs
MACHINE SPECIFICATIONS
Maximum Swing Diameter: 36.22″
Maximum Turning Diameter: 14.40″
Maximum Workpiece Length with Tailstock: 49.41″
Maximum Workpiece Length (Type 700): 28.66″
Maximum Chuck Size: 12″
X-Axis Travel: 10.2″
Z-Axis Travel: 31.2″
Maximum Main Spindle Speed: 6,000 rpm
Maximum Bar Capacity: 4.02″ (102 mm)

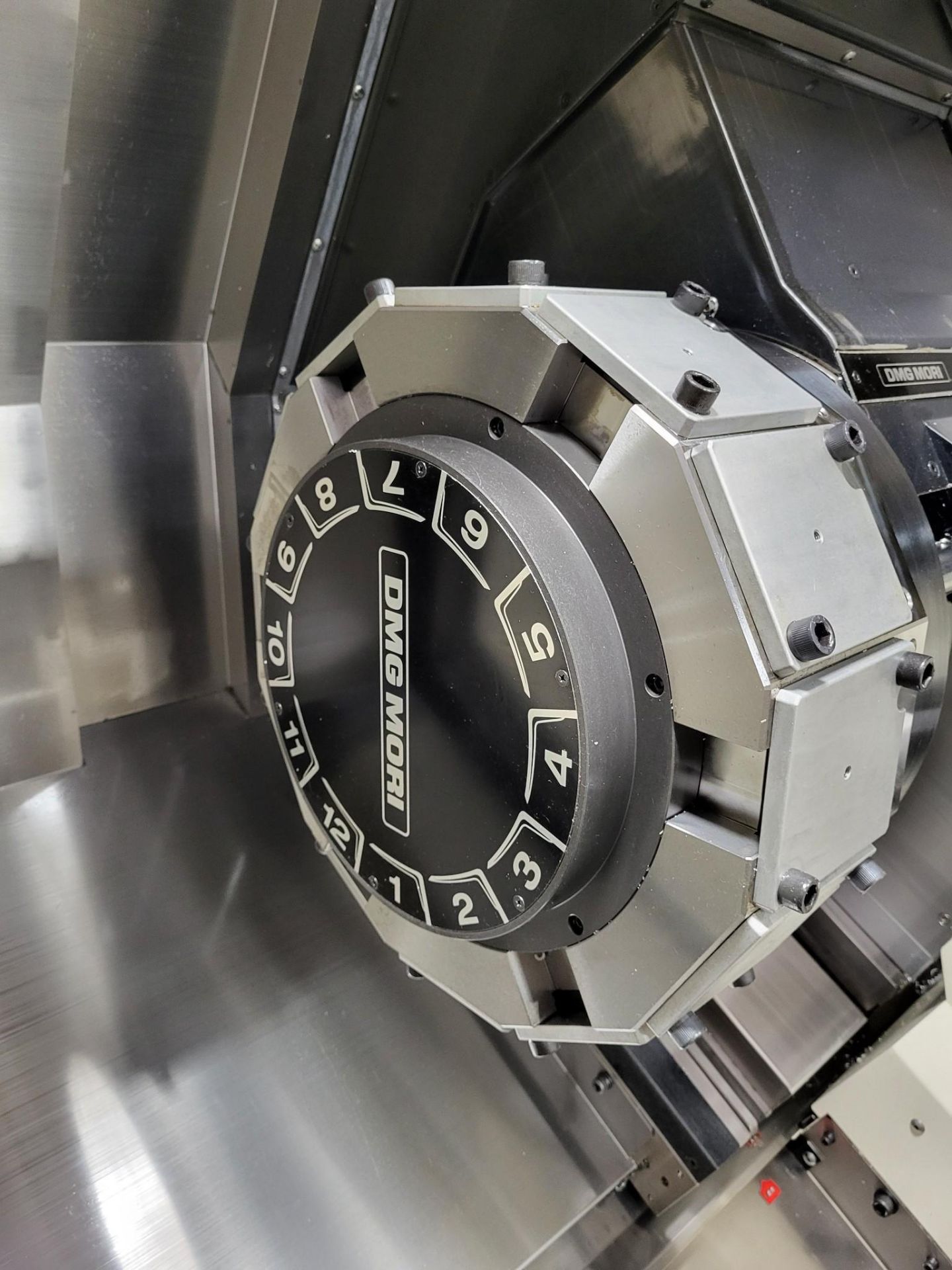

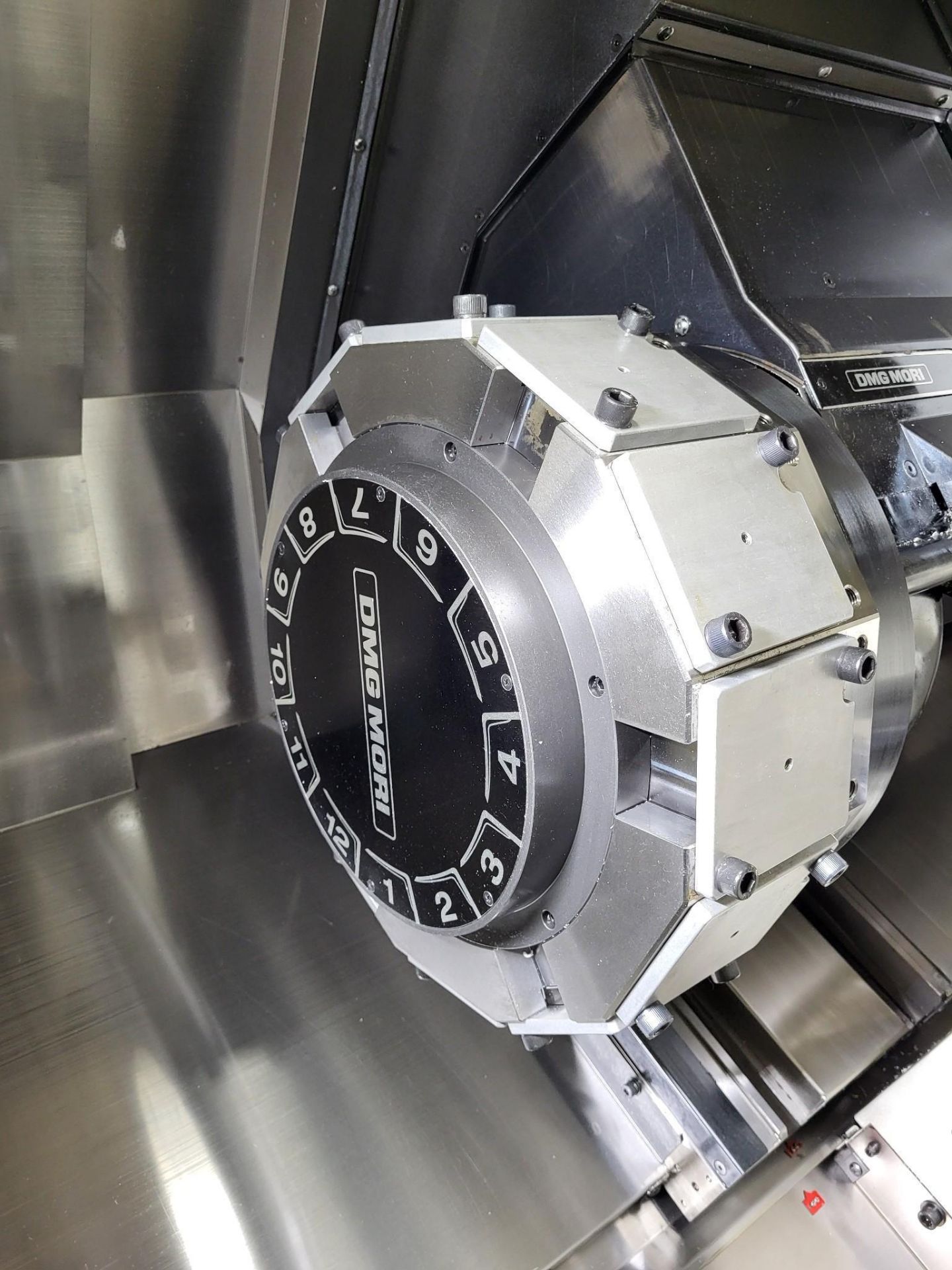

Turret Capacity: 12 tools
Rapid Traverse Rate (X/Y/Z): 1.18 / 0.39 / 1.18 (units as provided; please verify)

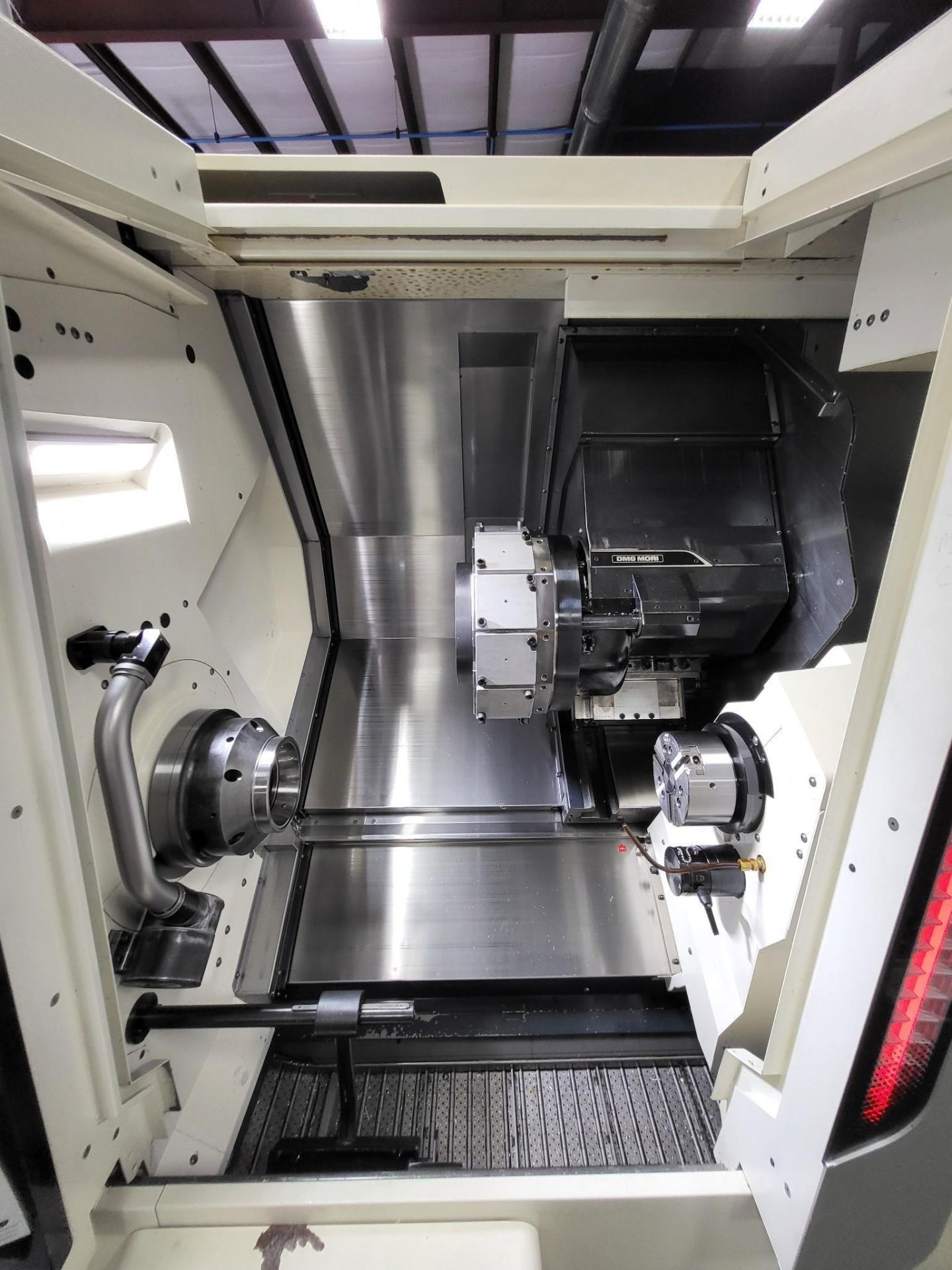

SPINDLE & AXIS CONFIGURATION

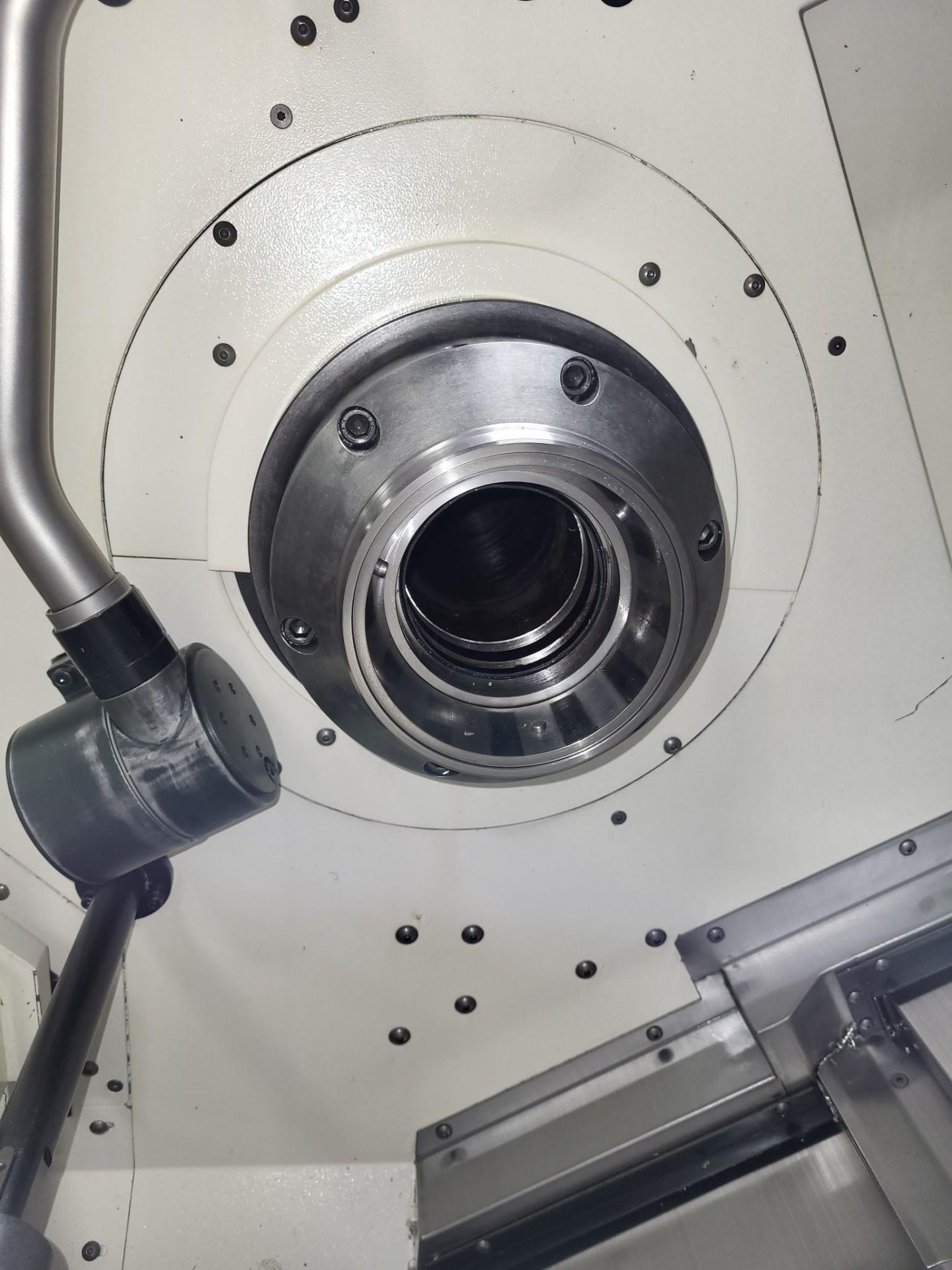

111 mm through-hole main spindle
6,000 rpm main spindle
12″ Kitagawa main spindle chuck

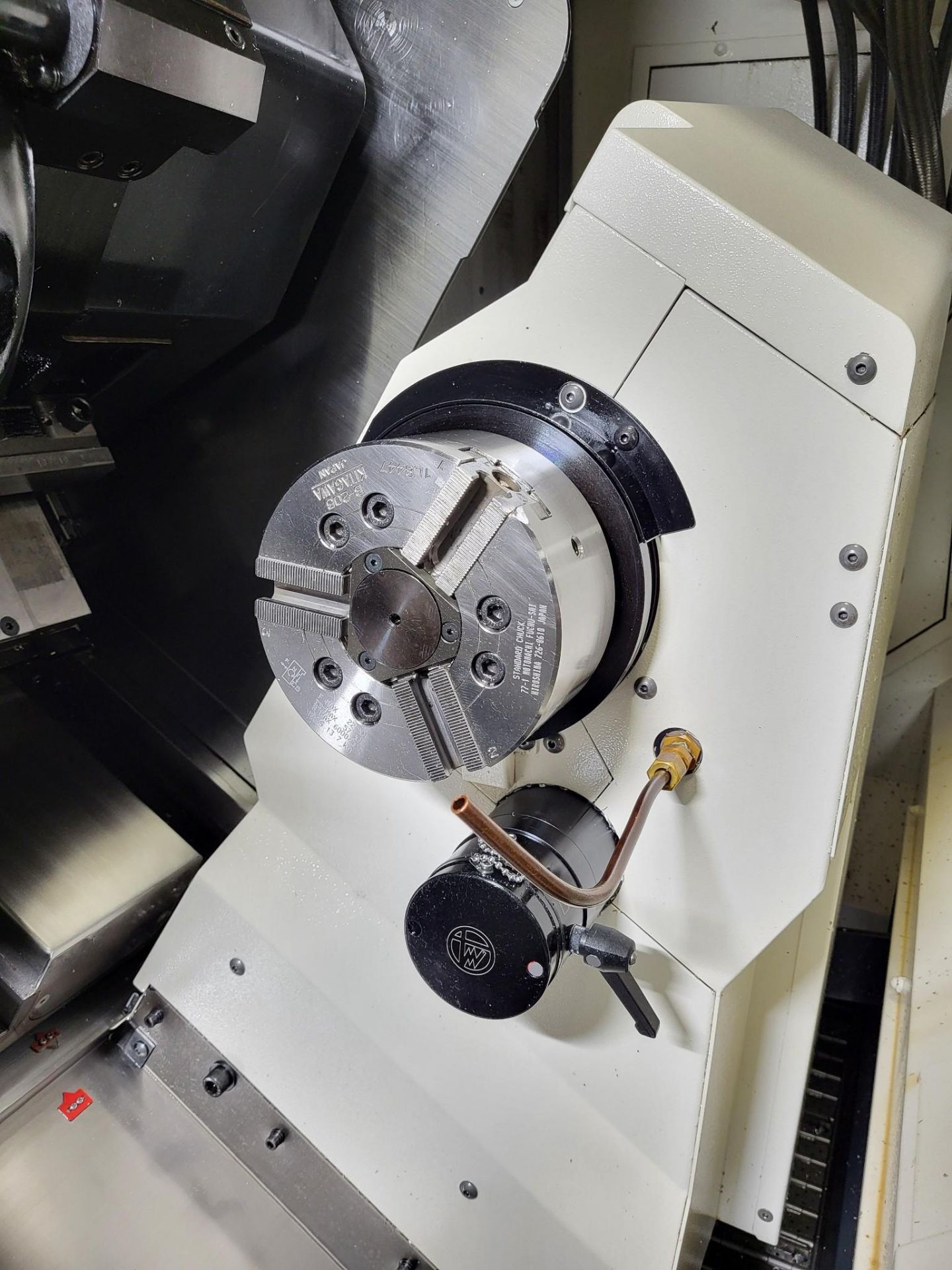

6″ Kitagawa sub-spindle chuck
Y-axis capability
Sub-spindle for additional machining flexibility
EQUIPPED WITH

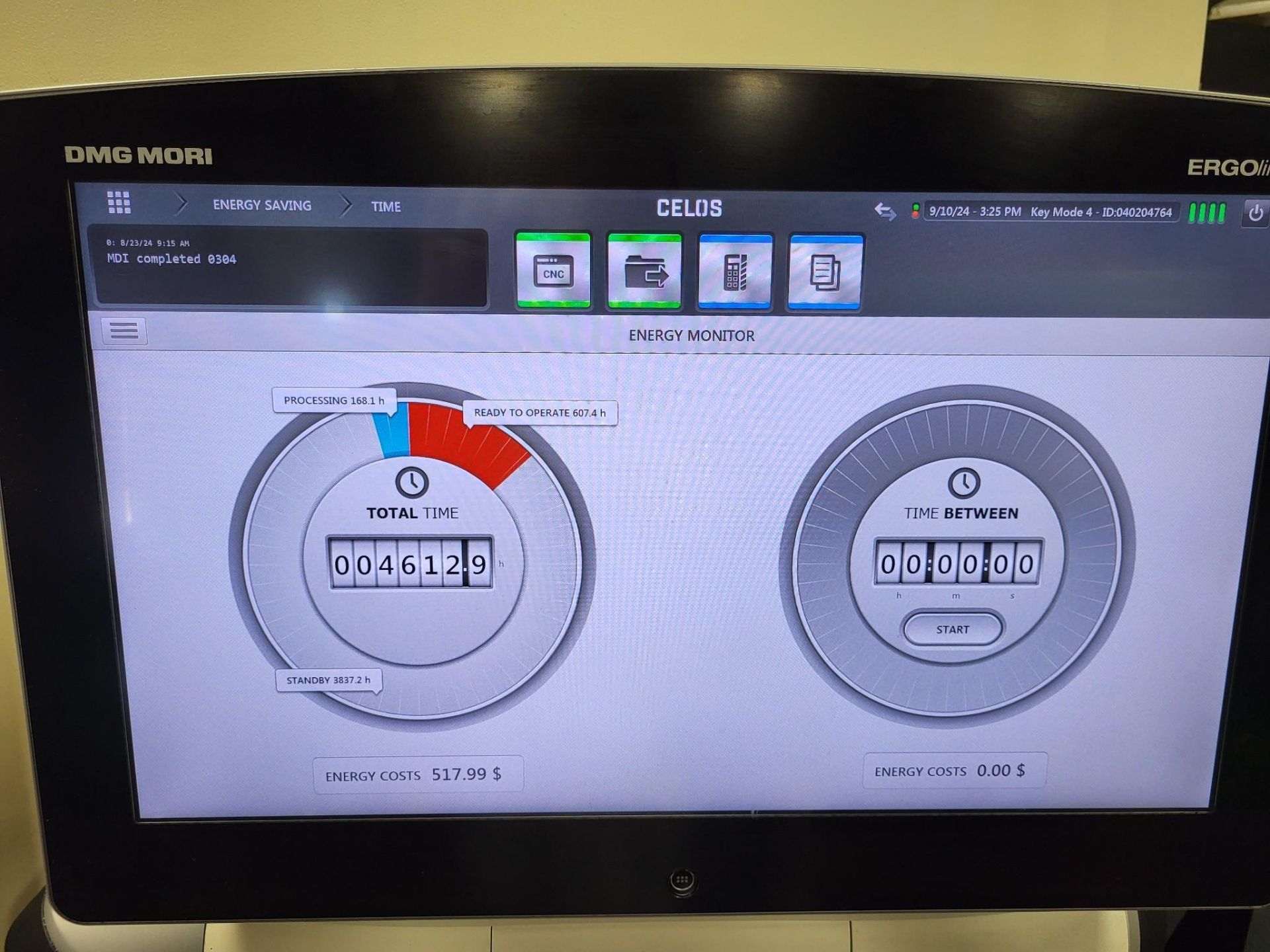

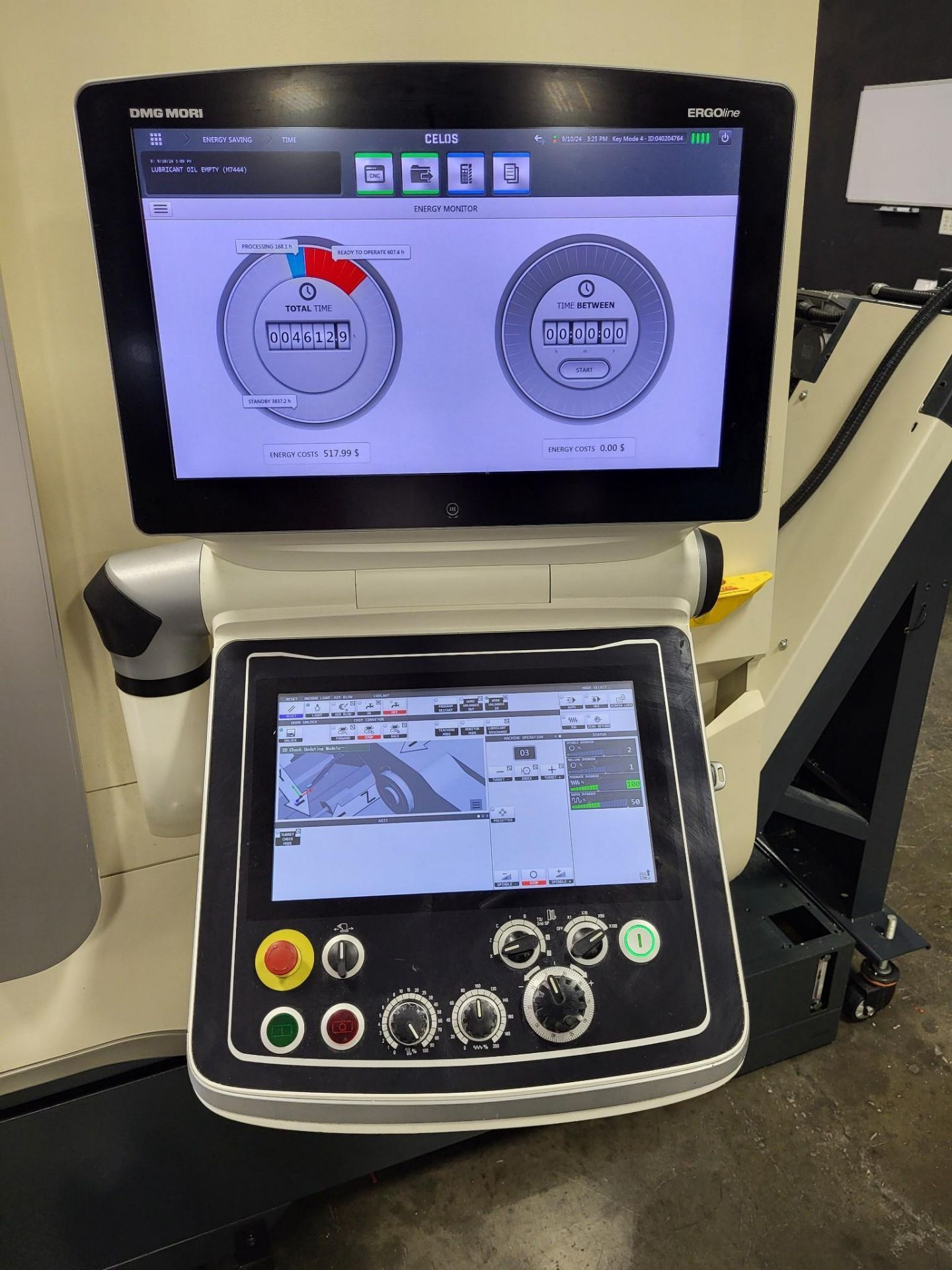

DMG MORI M730UM CELOS control
Chip conveyor
High-pressure coolant system
Coolant line filter
Mist collector interface
Bar feeder interface
5 external M-codes
Manual Pulse Generator
Program restart function

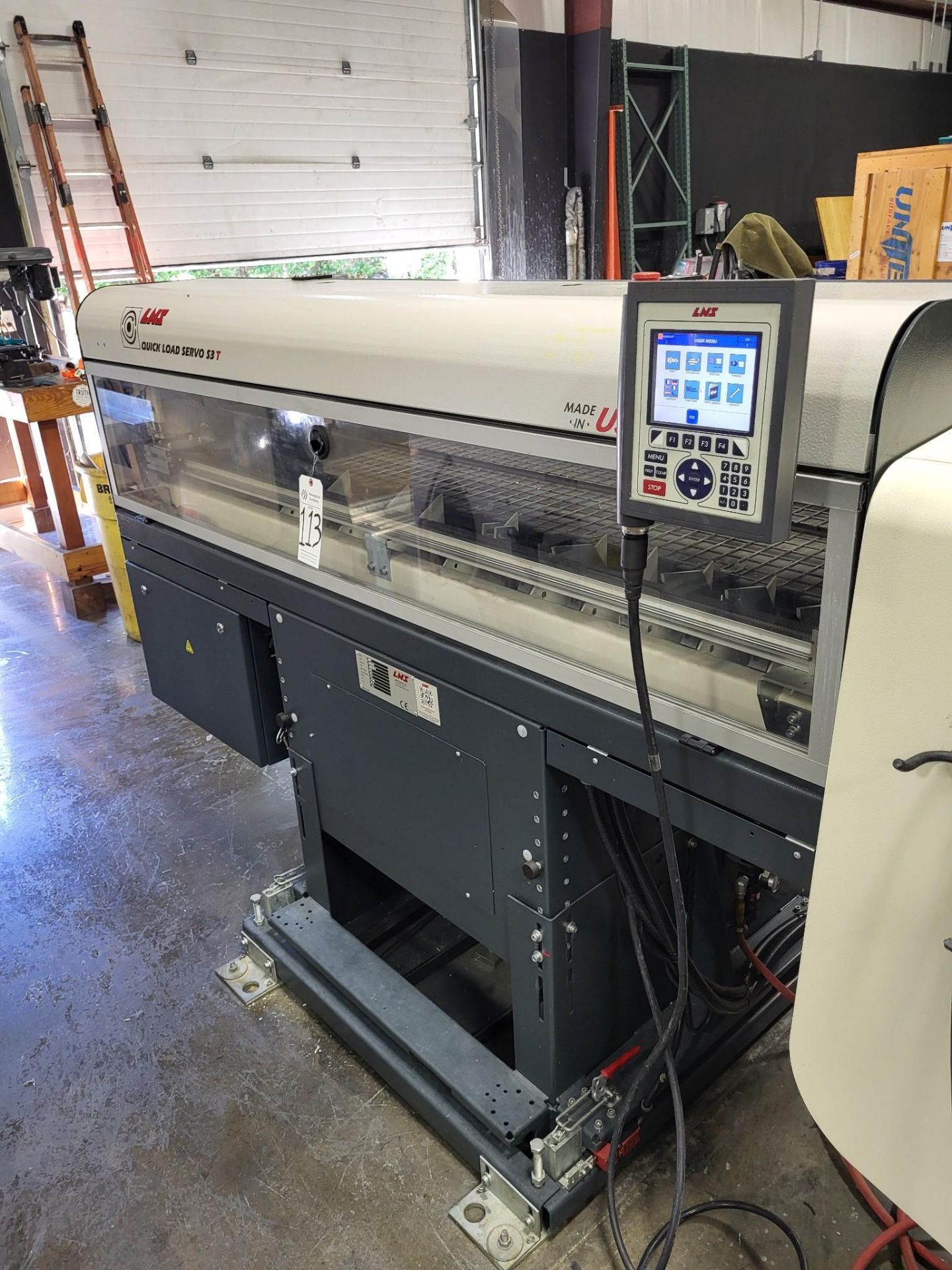

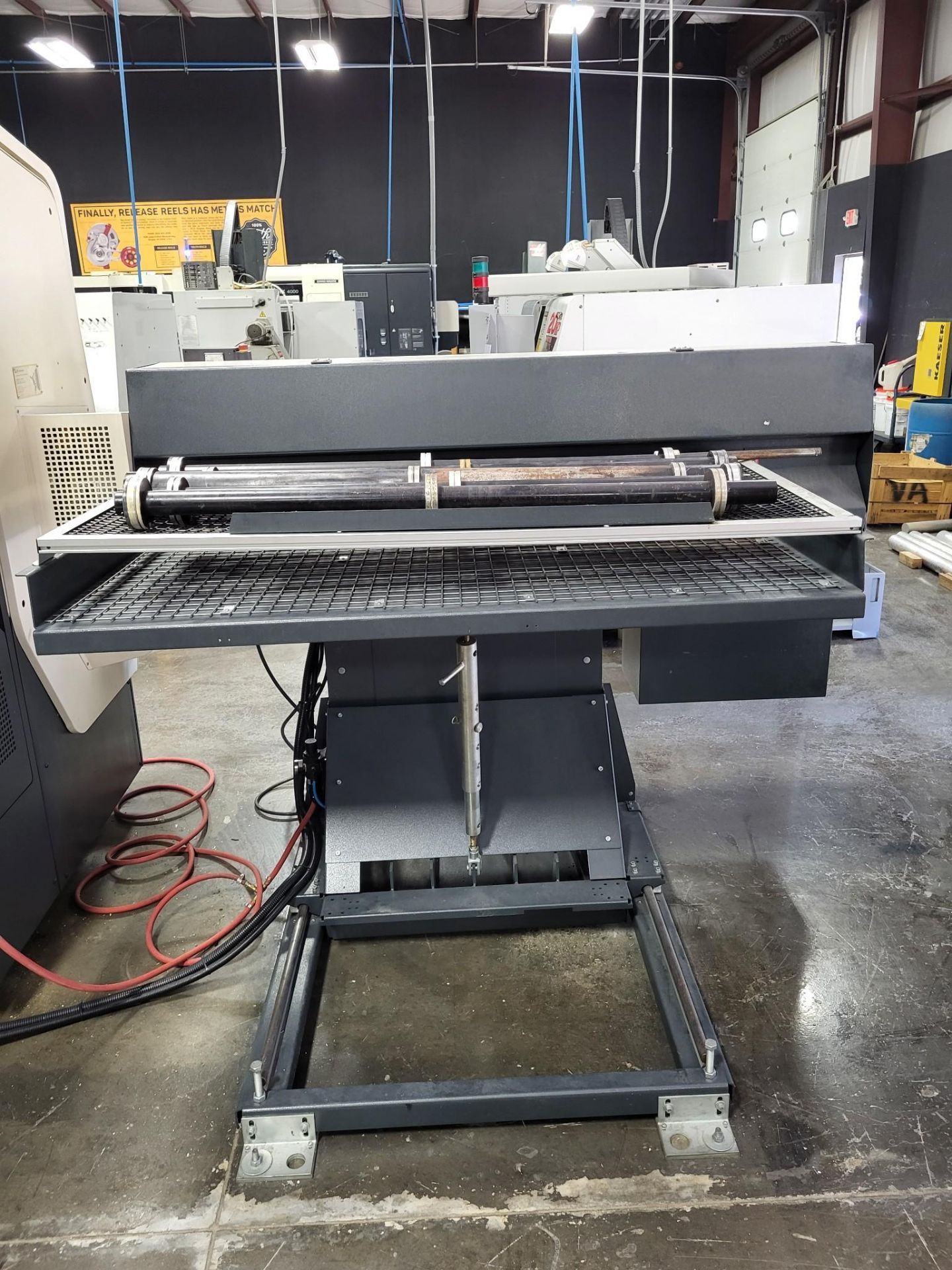

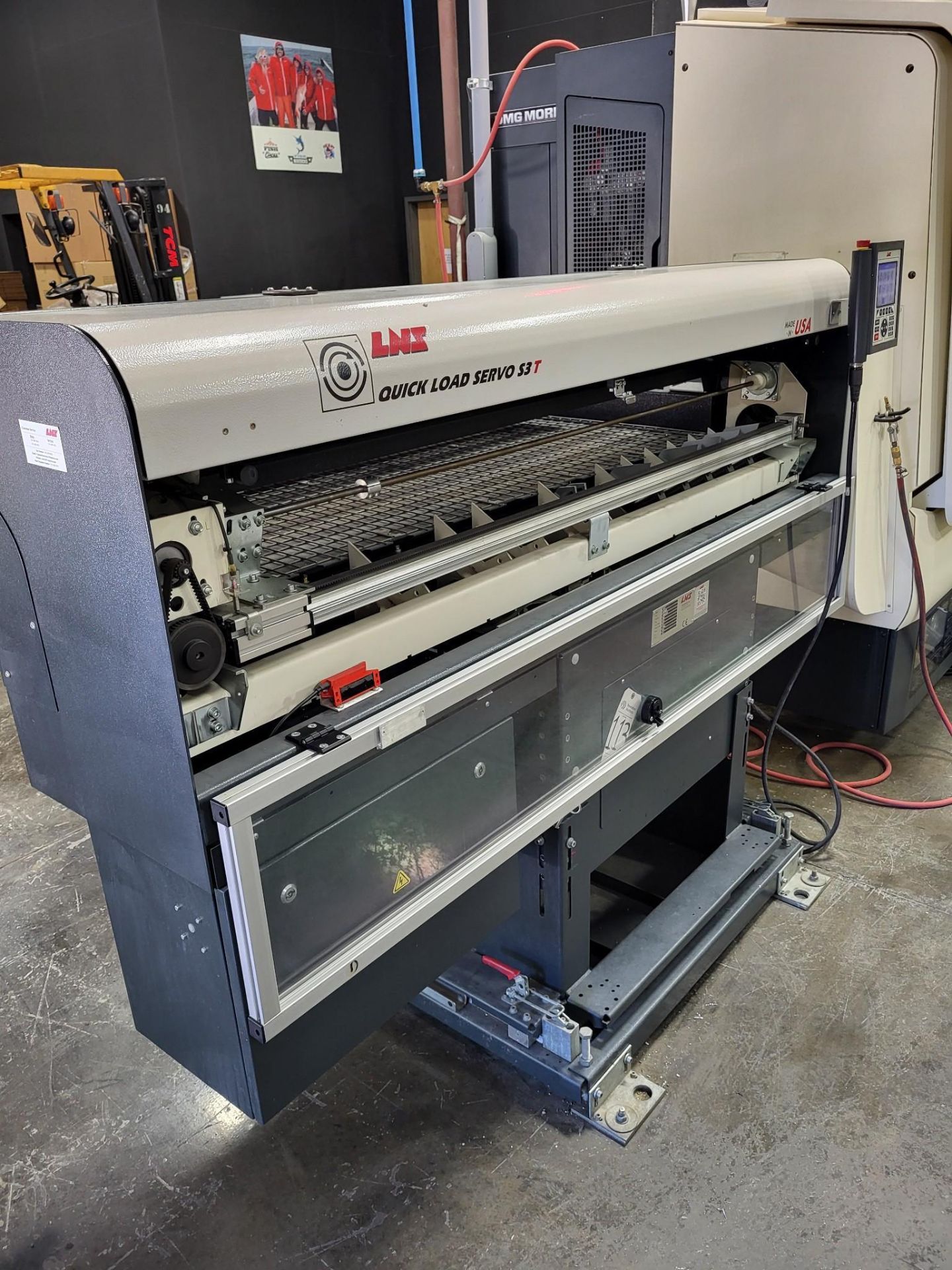

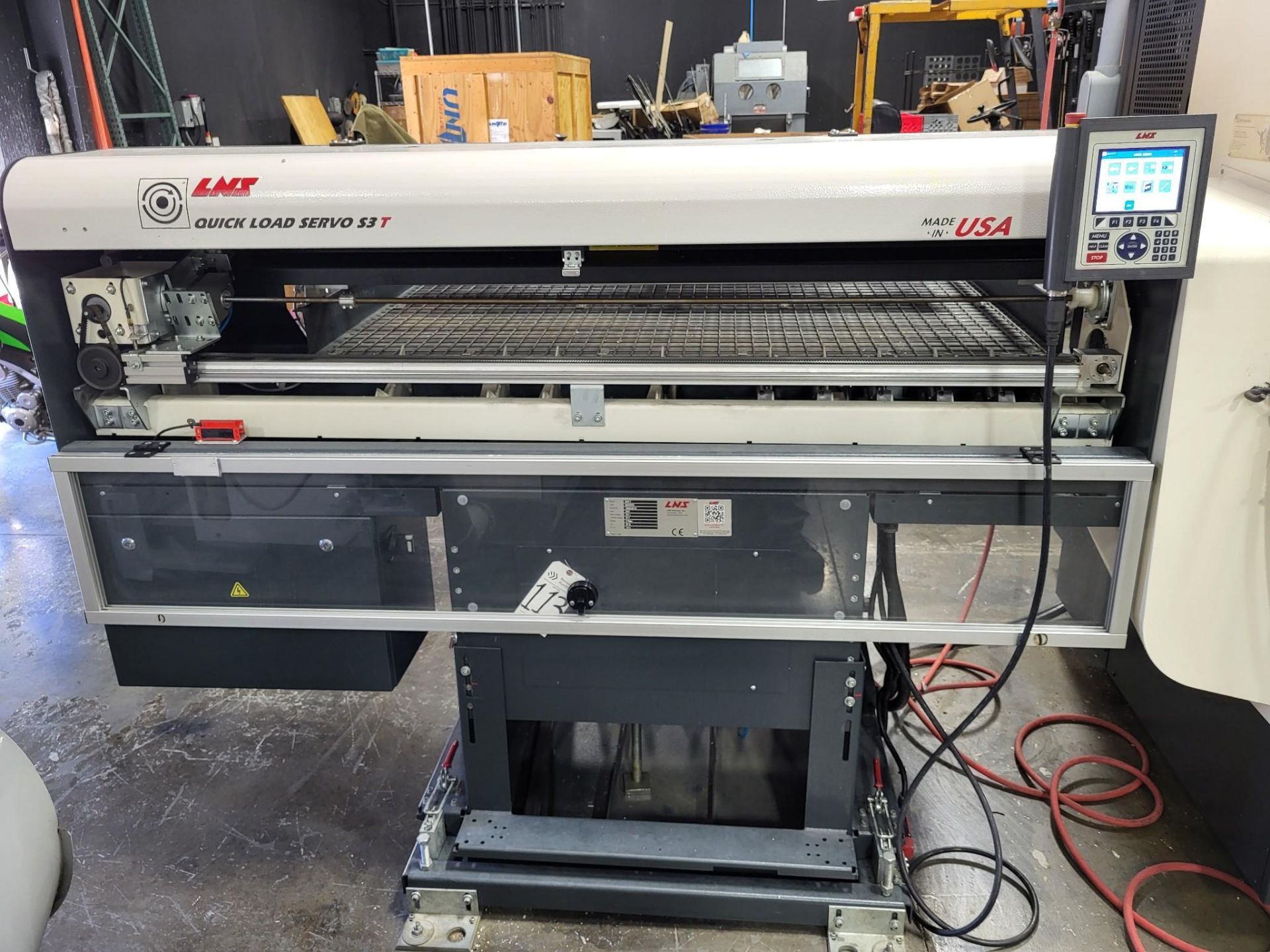

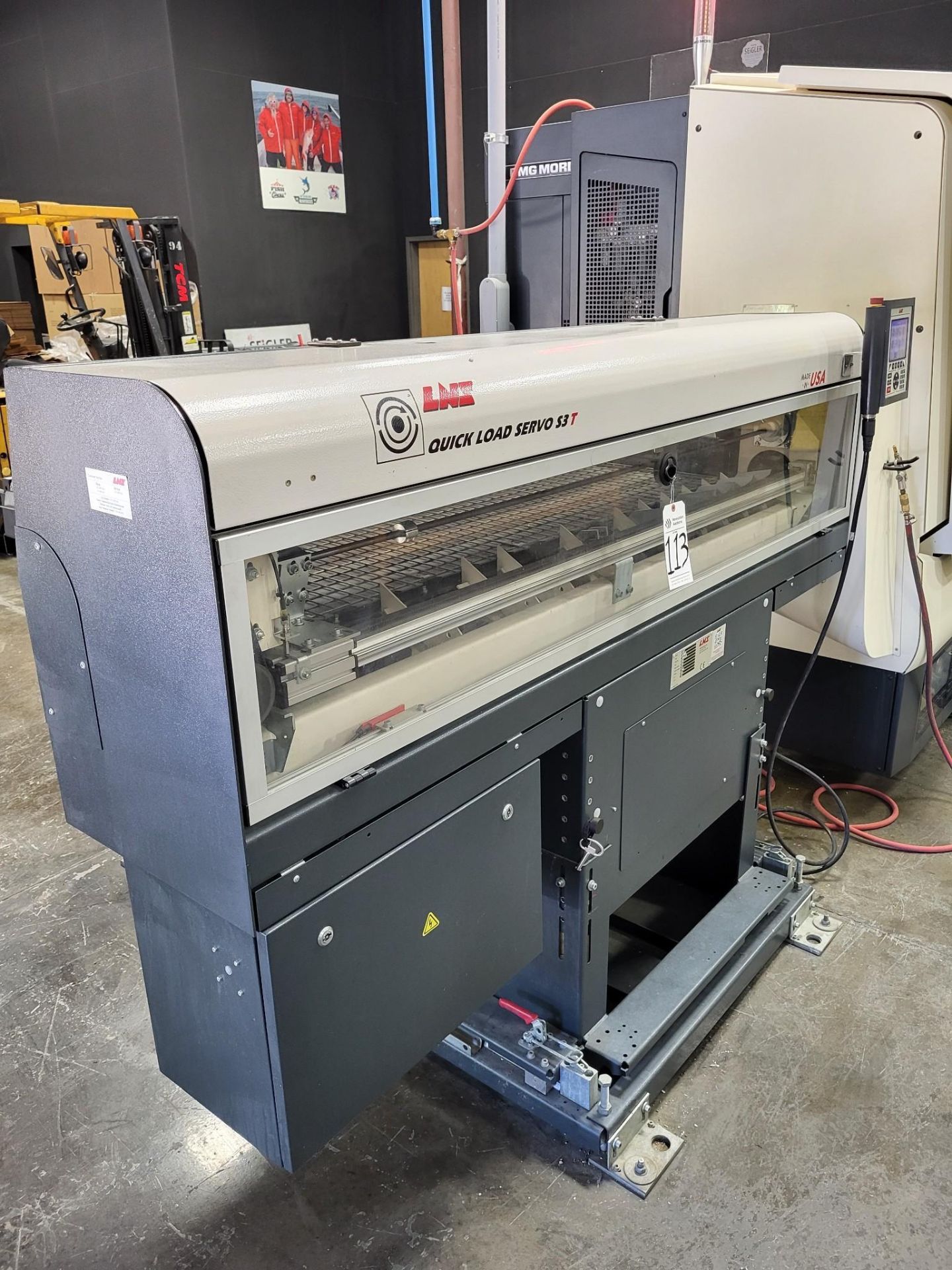

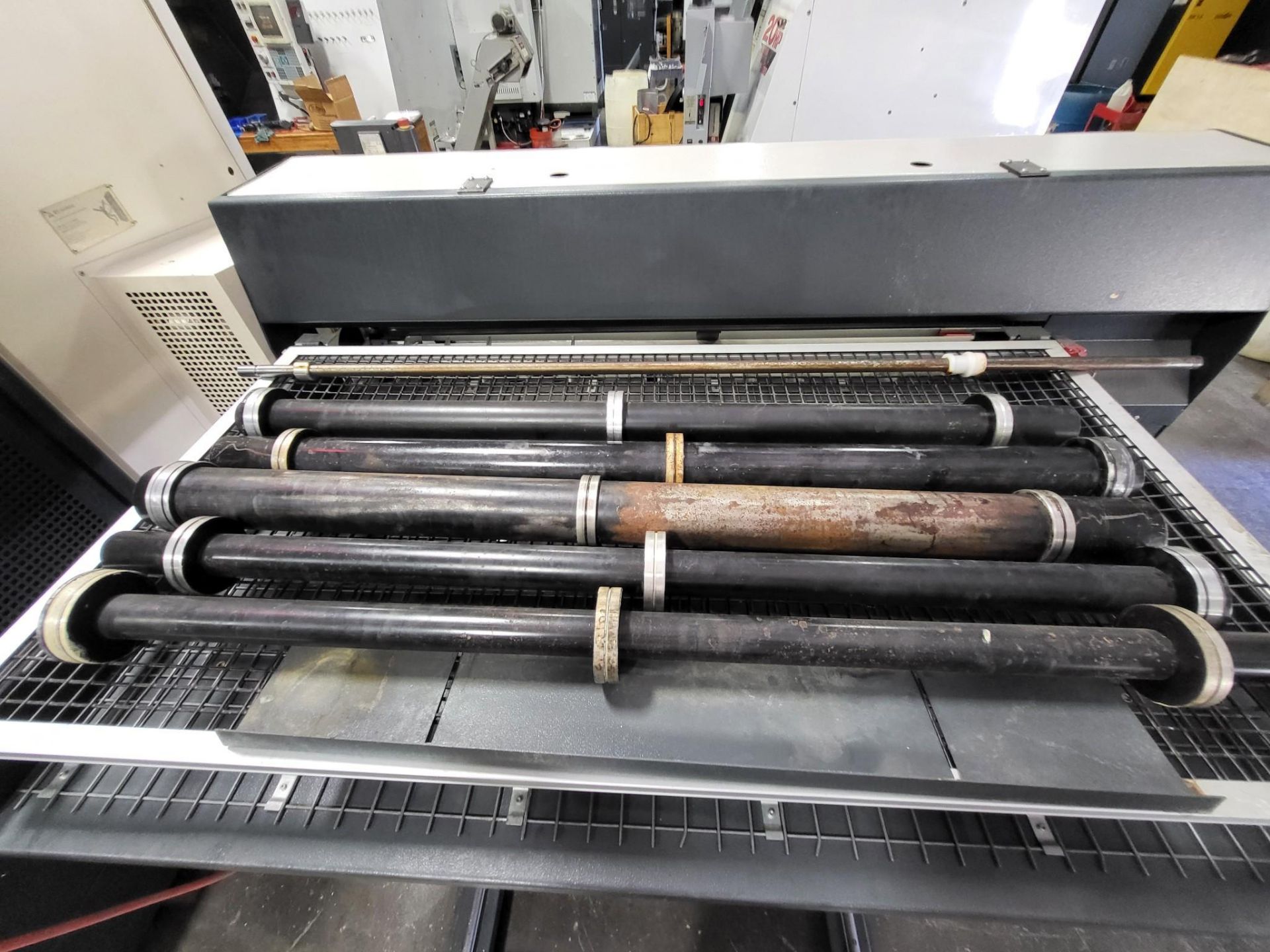

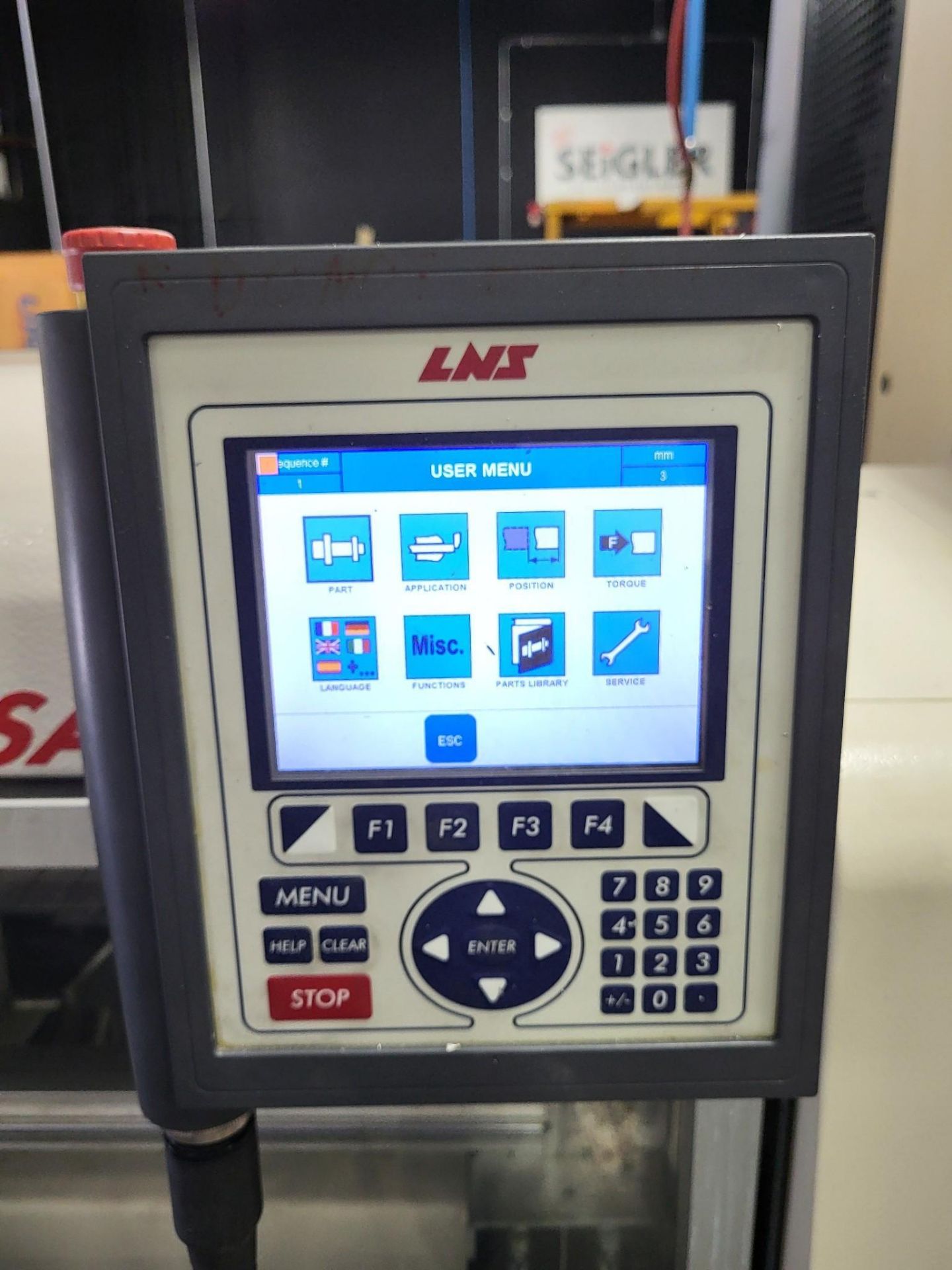

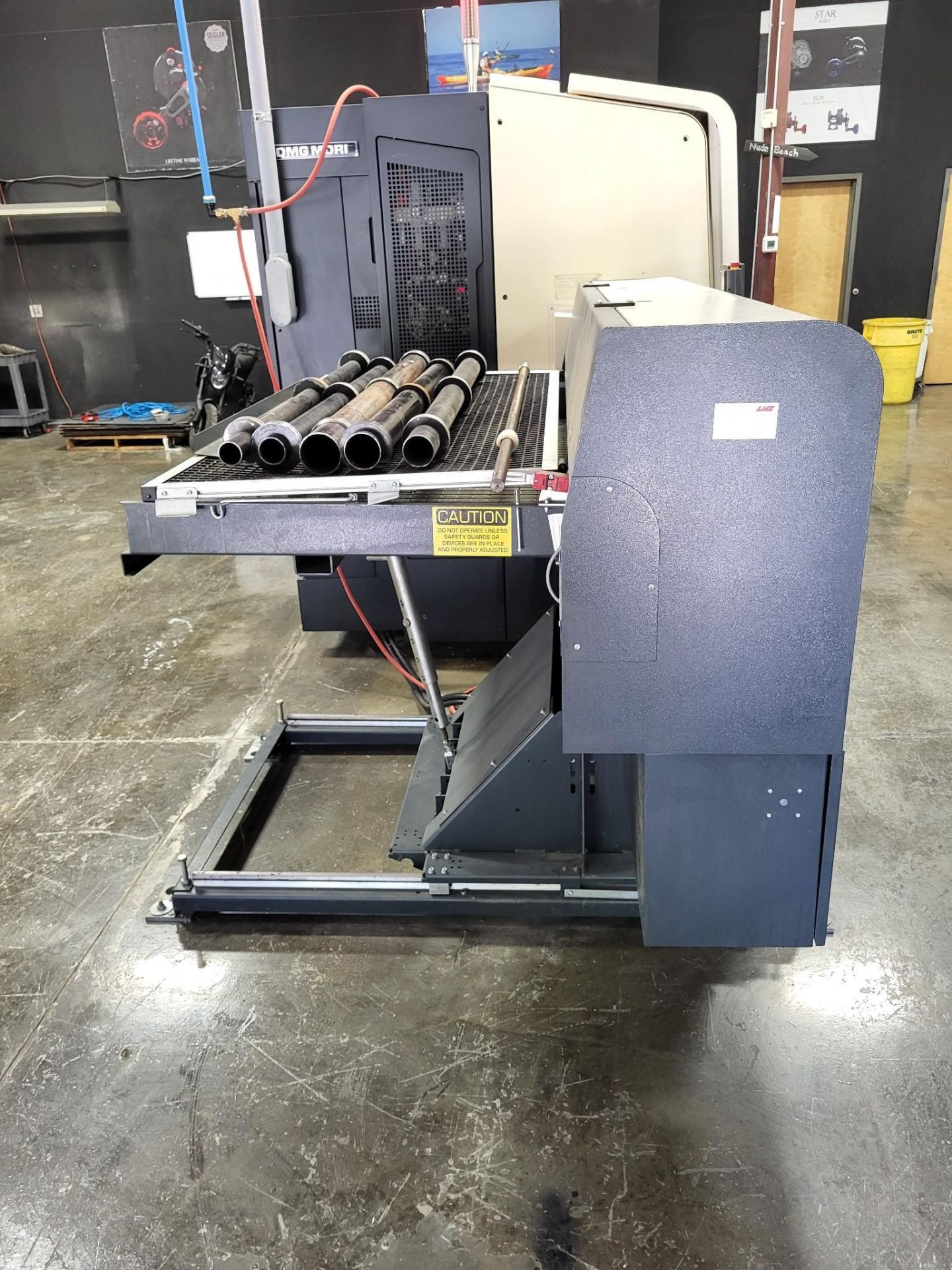

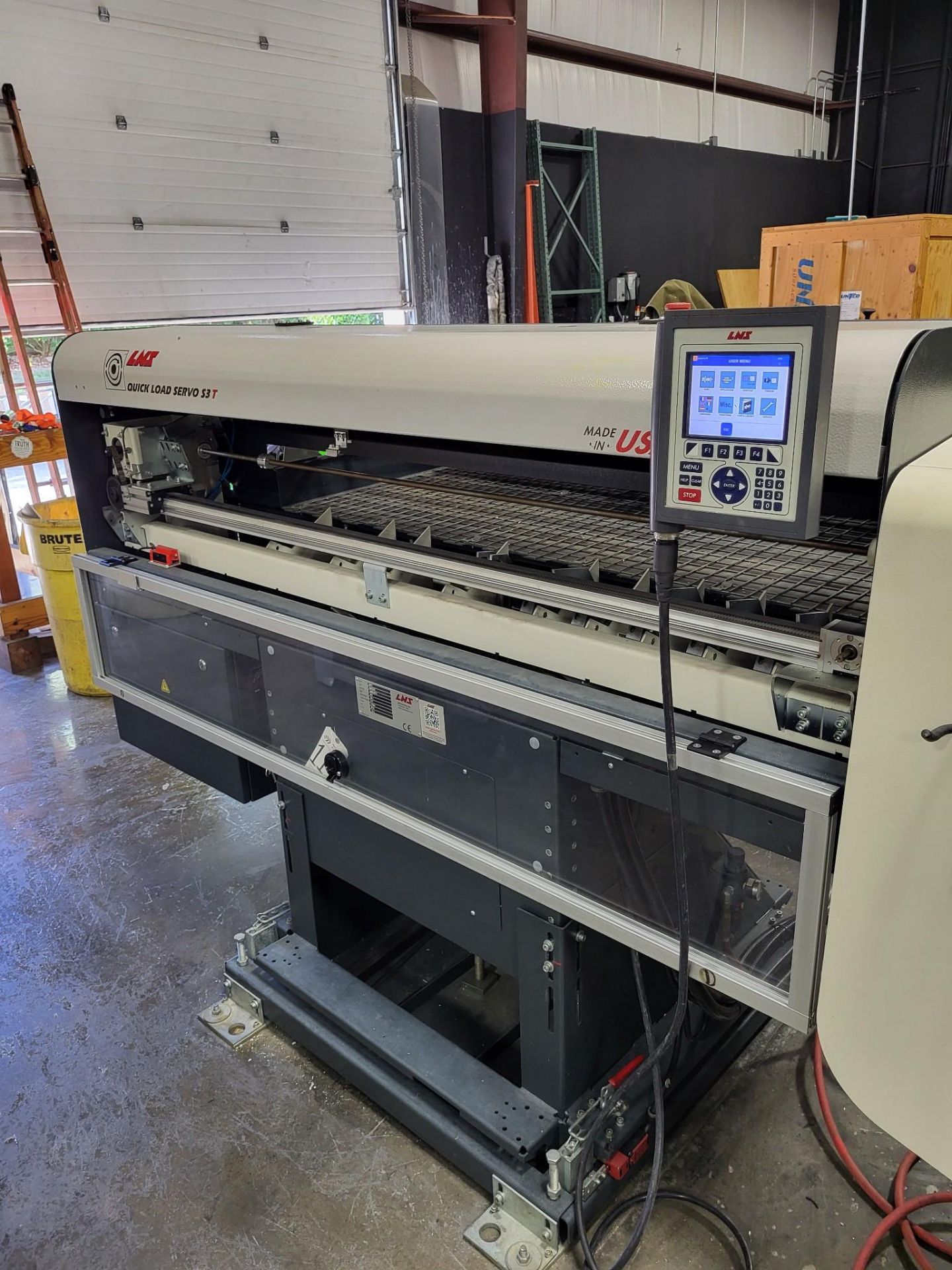

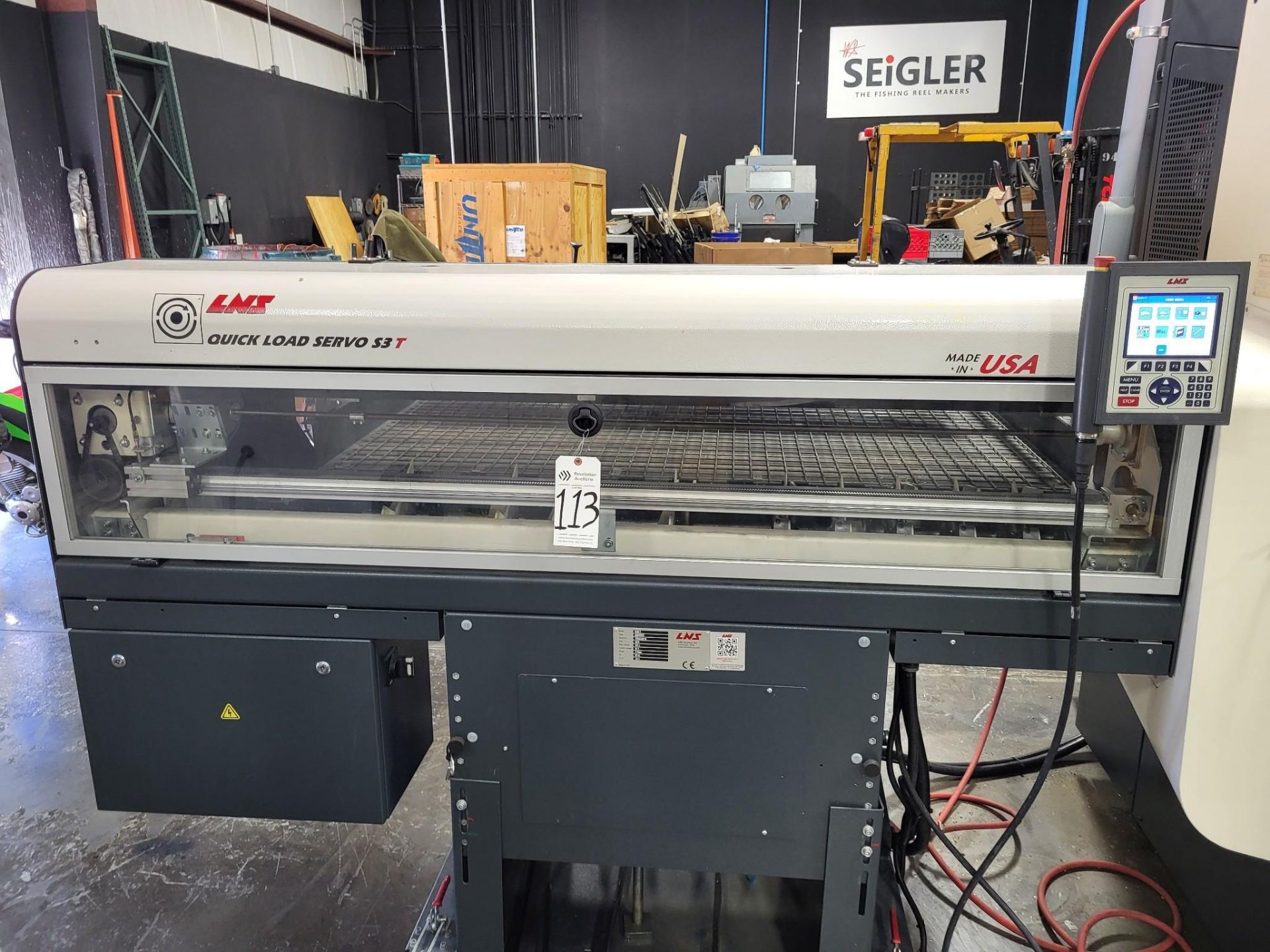

BAR FEEDER – LNS QUICK LOAD SERVO S3T
Year: 2018
Bar Diameter Range: 0.250″–4.75″ (as specified)
Bar Length: 63″
Loader Rack Capacity: 39″
Loading Time: 15 seconds
Changeover Time: 15 seconds
Air Requirements: 80–100 PSI
Power Supply: 230 / 380 / 420 / 480 V
Dimensions (L × W × H): 81″ × 59″ × 50″
Weight: 1,500 lbs
MACHINE DIMENSIONS
Main Machine (L × W × H): 166″ × 87″ × 83″
KEY HIGHLIGHTS
Y-axis and sub-spindle configuration for complex turning operations
High-speed 6,000 rpm main spindle
Large 111 mm main spindle through-hole
Integrated high-pressure coolant system
LNS automatic bar feeder included
CELOS control for convenient machine operation
APPLICATIONS
Suitable for precision turning, multi-axis machining, and production of complex components requiring main- and sub-spindle operations with automatic bar feeding.
