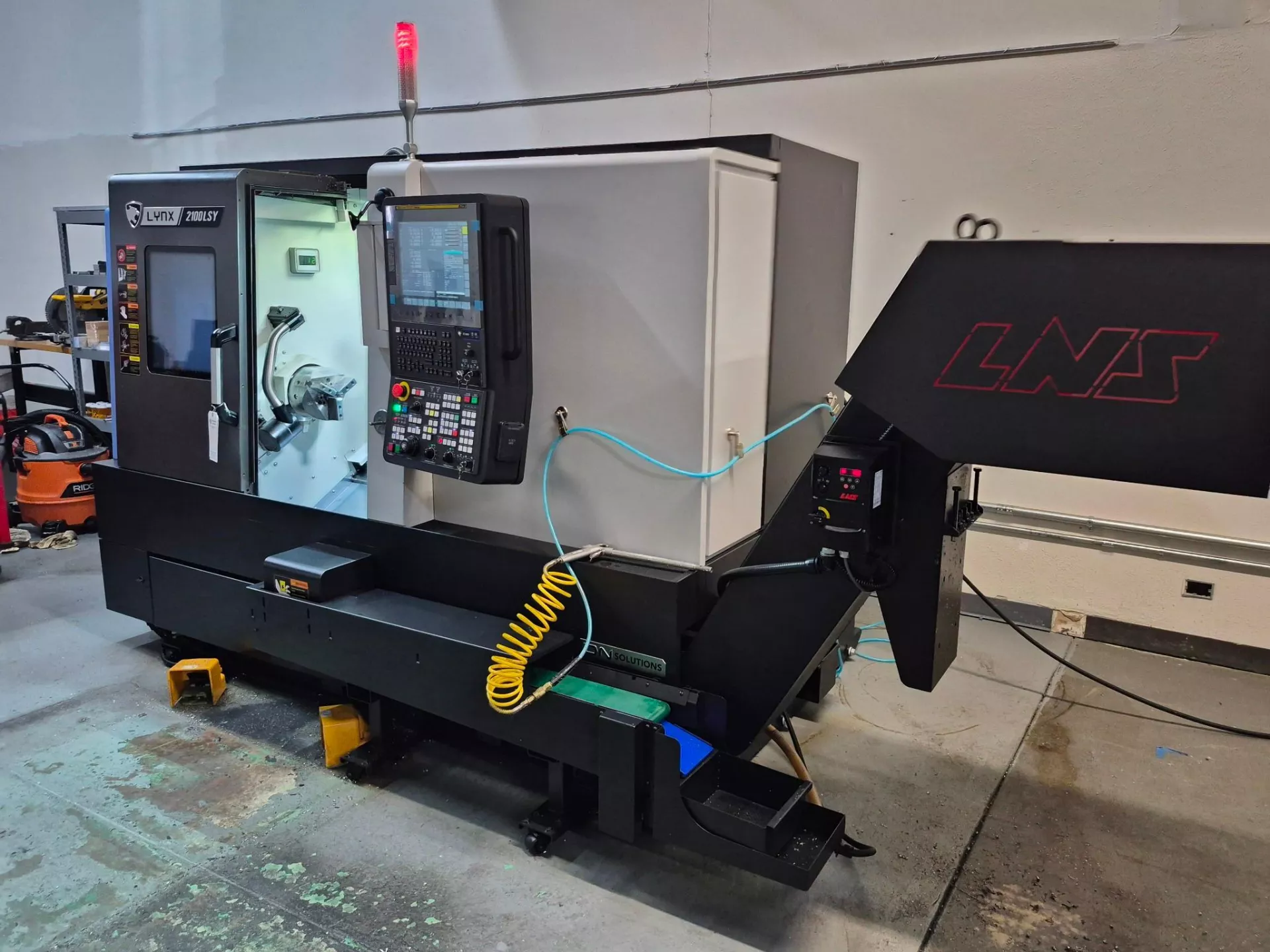

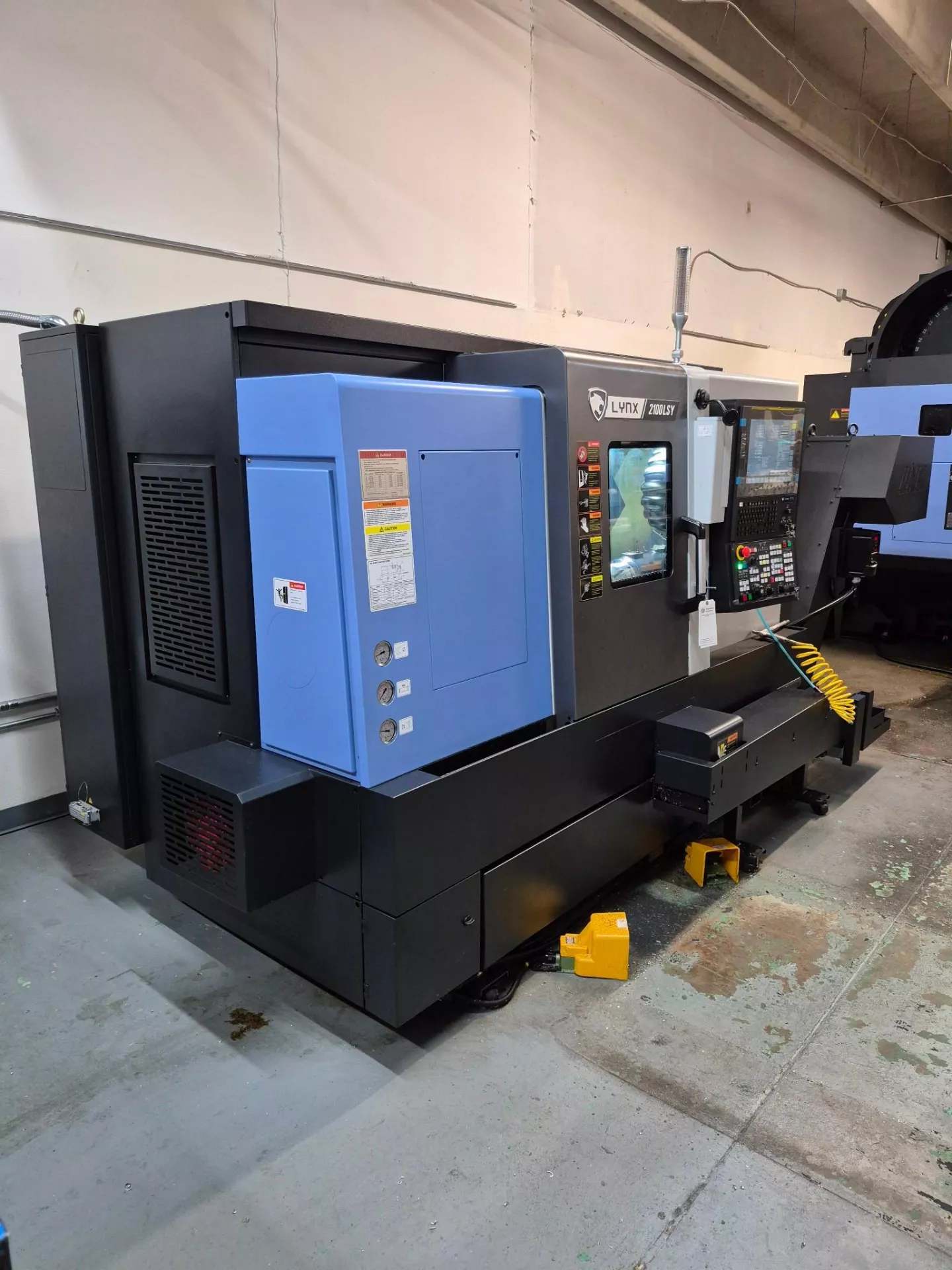

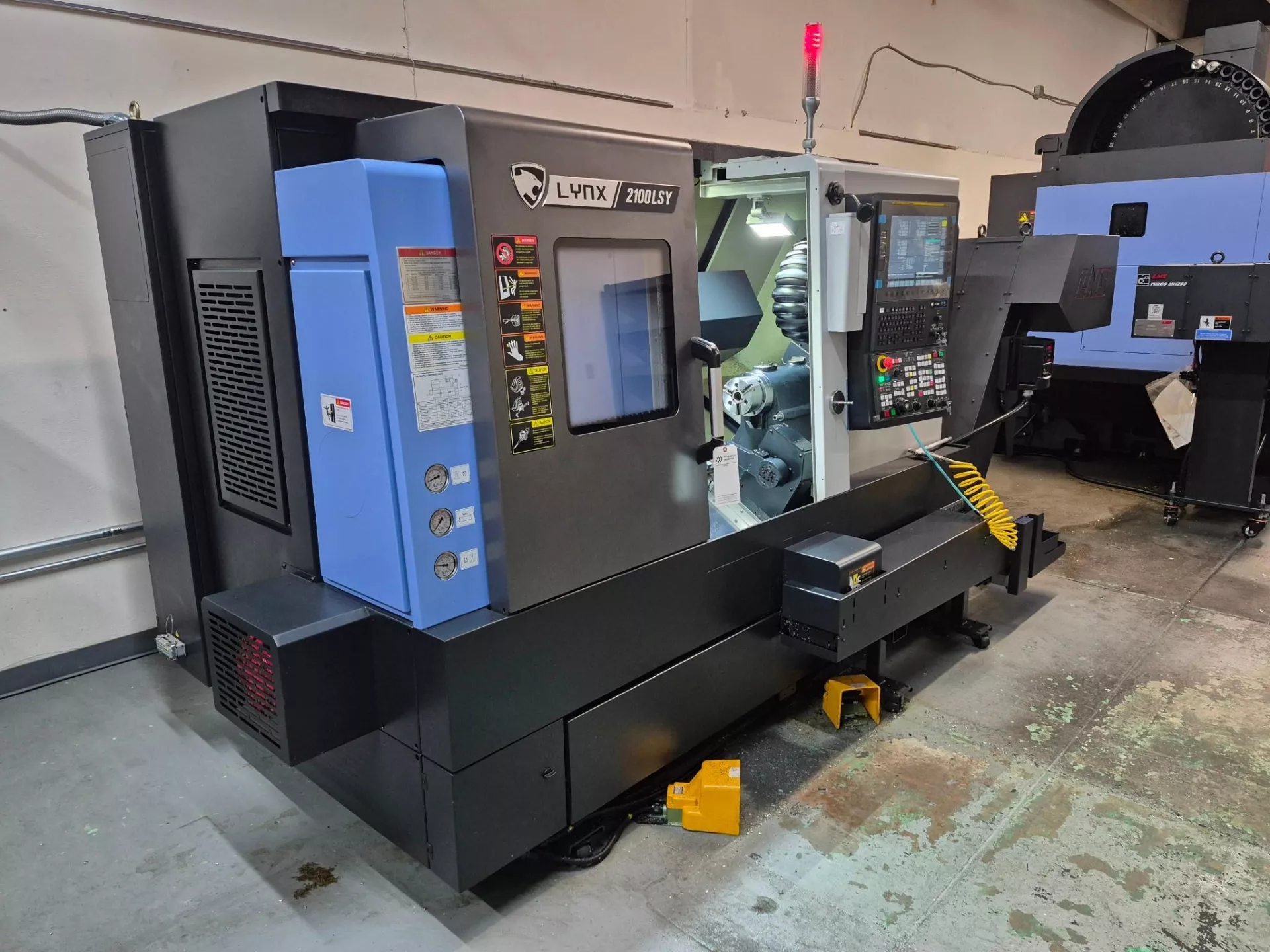

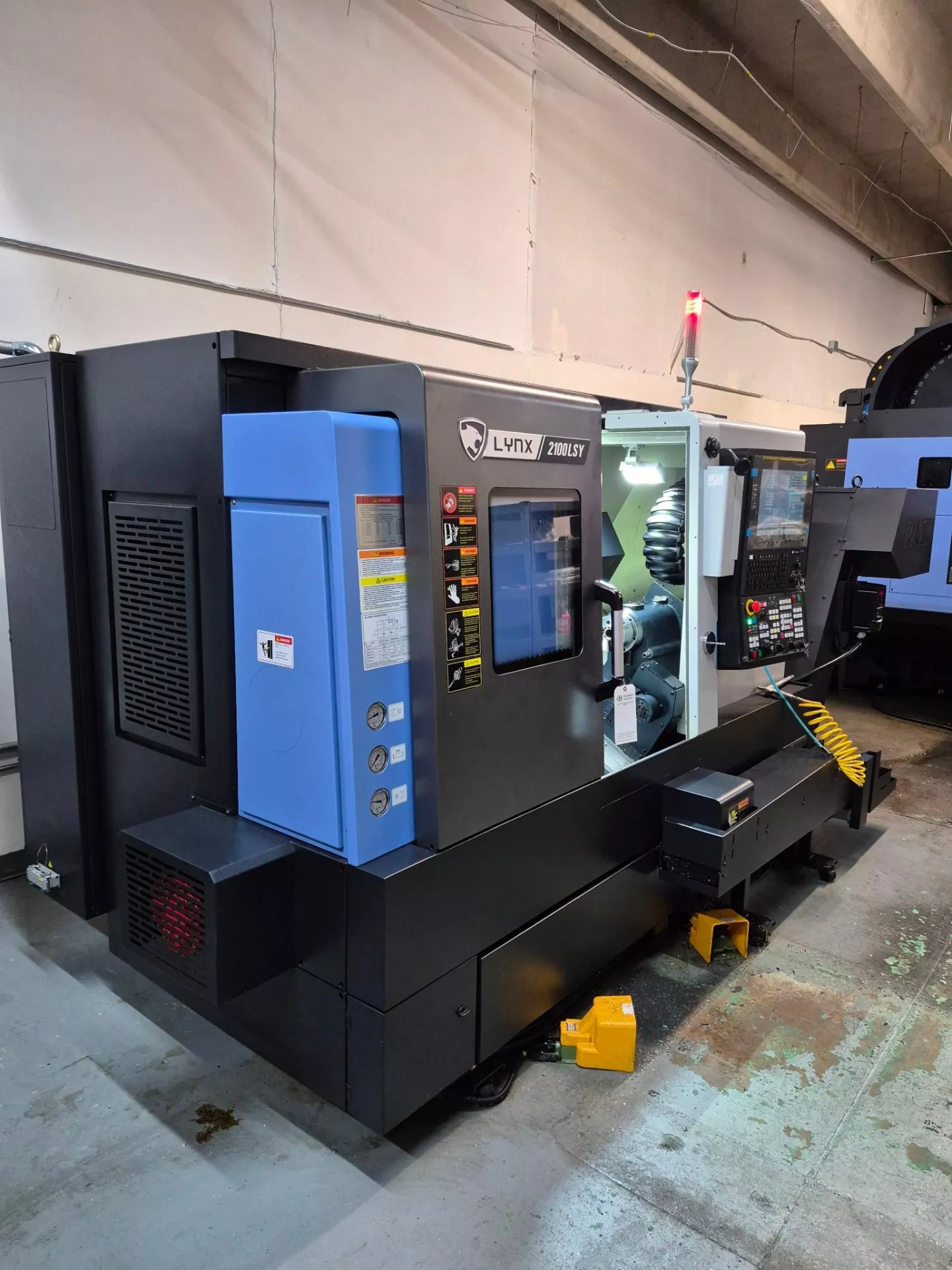

DN SOLUTIONS (DOOSAN) LYNX 2100LSYB
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description
GENERAL INFORMATION
Manufacturer: DN Solutions (Doosan)

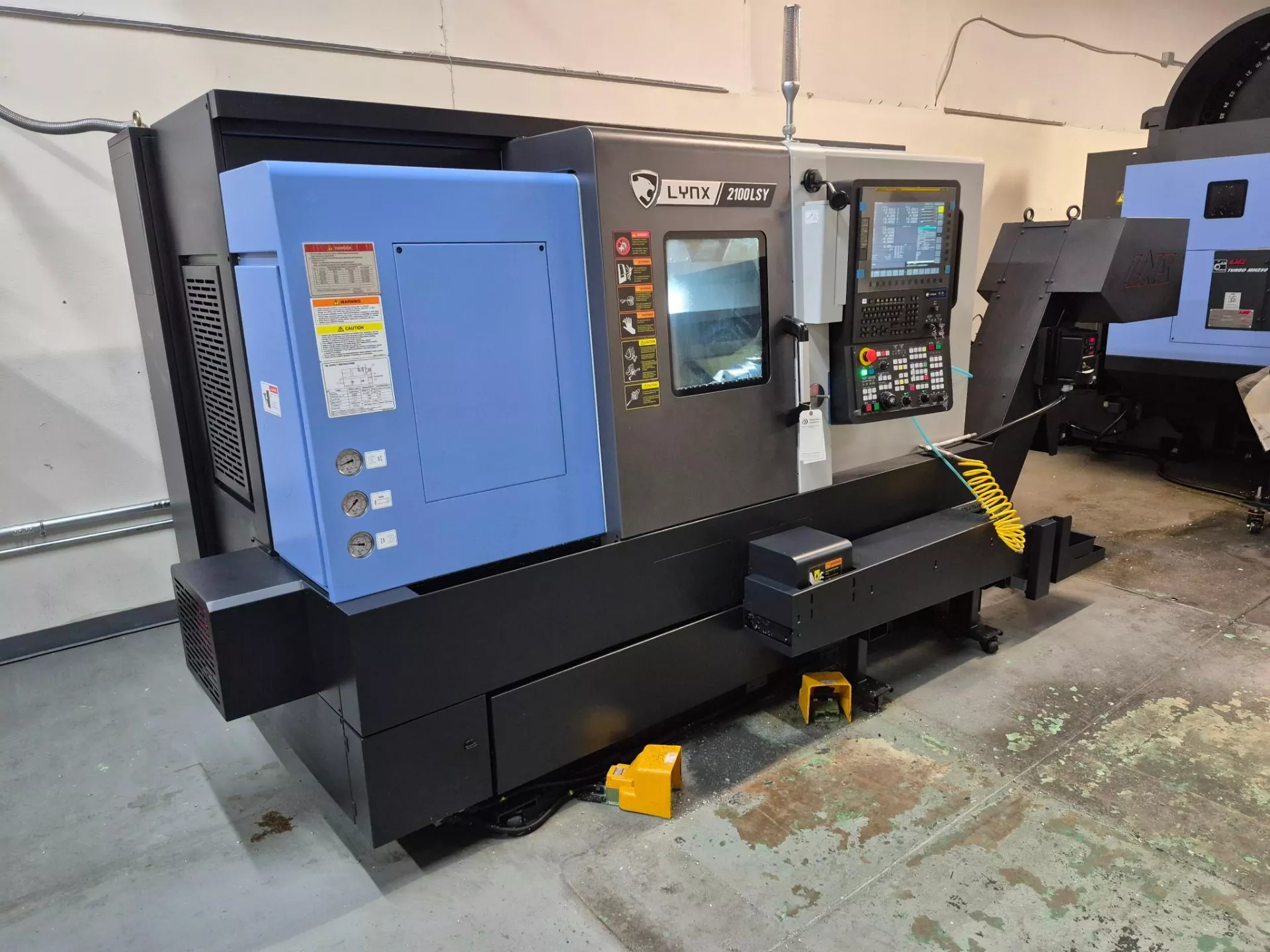

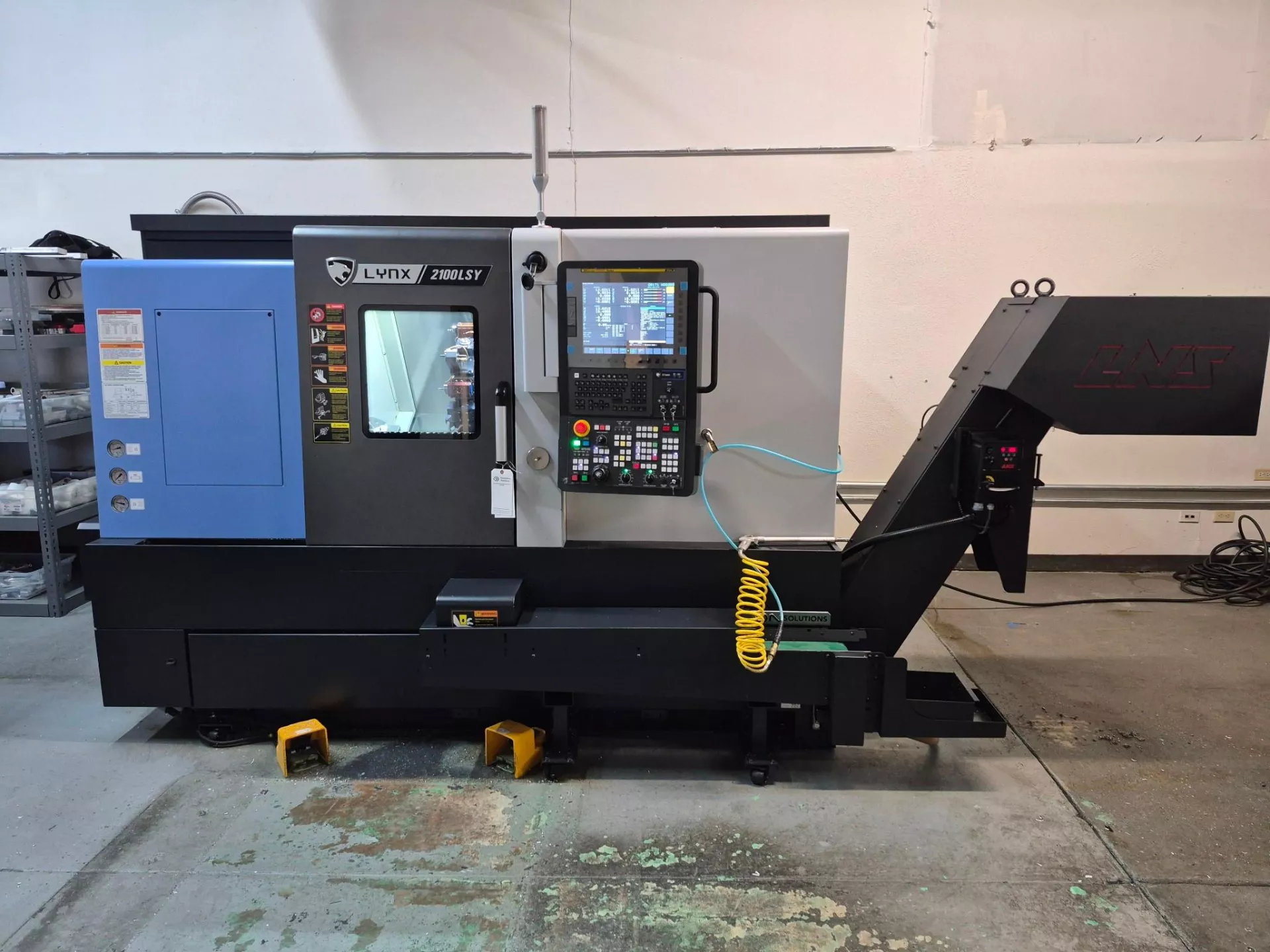

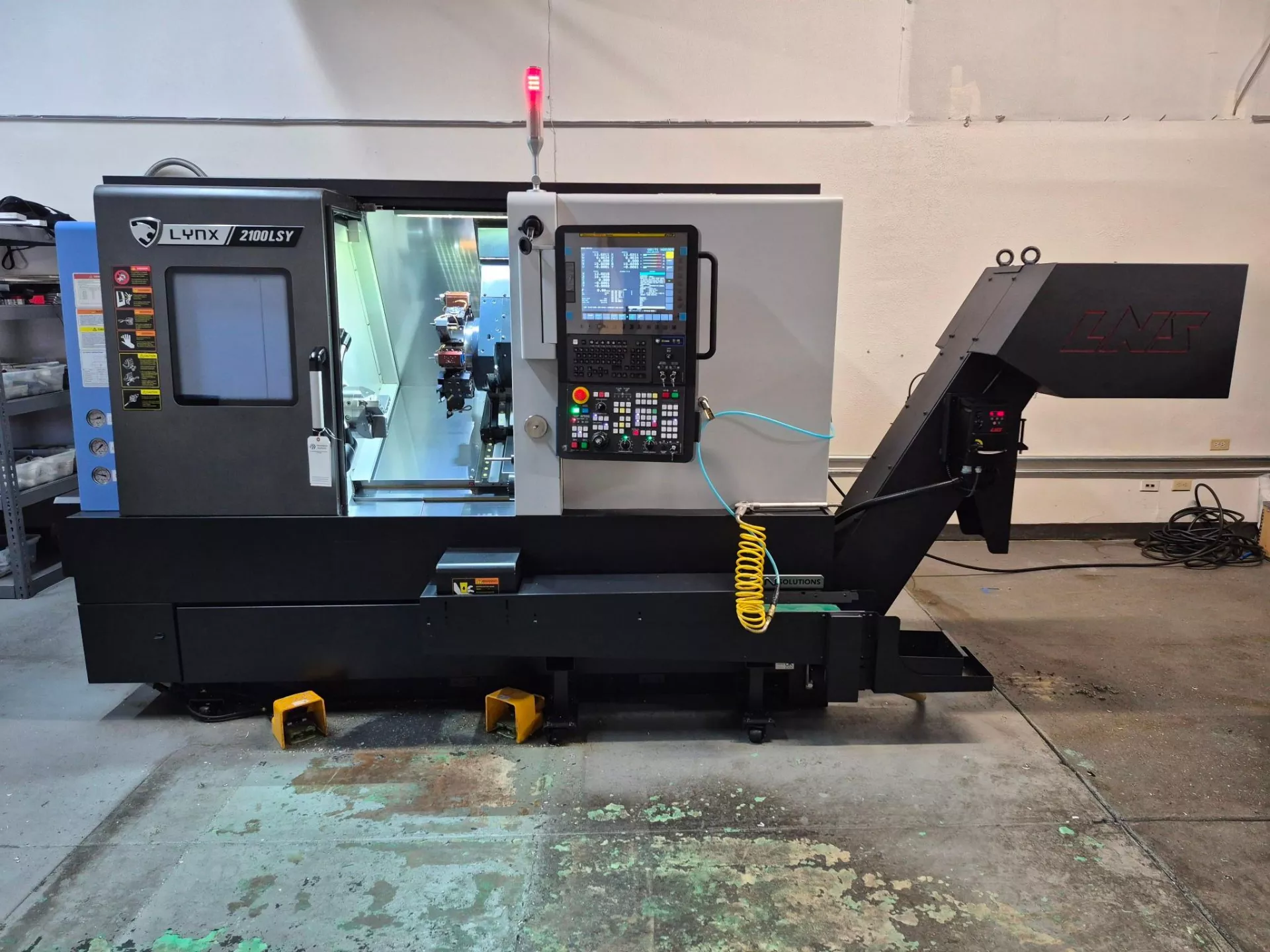

Model: Lynx 2100LSYB
Year: 2022
Machine Type: High-performance CNC turning center
Configuration: Long bed, sub-spindle, Y-axis and big bore

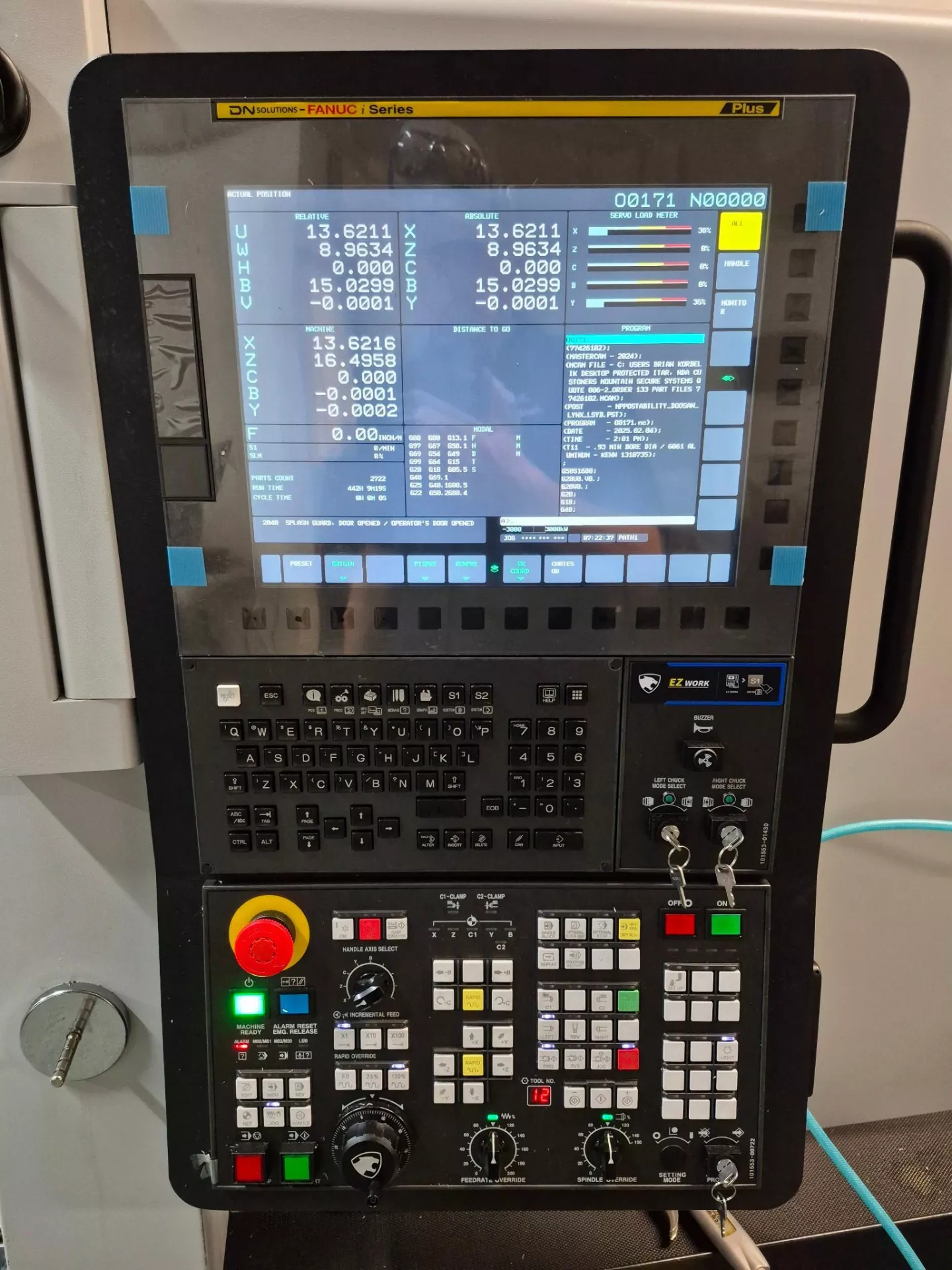

CNC Control: FANUC 0i-Plus with iHMI touchscreen interface
MACHINE CAPACITY
Maximum Swing Over Bed: 23.6″ (600 mm)
Maximum Swing Over Saddle: 15.7″ (400 mm)
Maximum Turning Diameter: 11.8″ (300 mm)
Maximum Turning Length: 20.1″ (510 mm)
Maximum Bar Working Diameter: 2.6″ (65 mm)
AXIS TRAVELS
X-Axis: 8.1″ (205 mm)
Y-Axis: 4.1″ (105 mm), ±2.1″ (±52.5 mm)
Z-Axis: 22.0″ (560 mm)
B-Axis / Sub-Spindle: 22.0″ (560 mm)
MAIN SPINDLE
Maximum Spindle Speed: 4,500 RPM
Spindle Motor Power: 20 HP (15 kW), 30-minute rating
Spindle Torque: 124.6 ft-lbs (169 Nm)
Spindle Nose: A2-6
Chuck Size: 8″ (210 mm) hydraulic

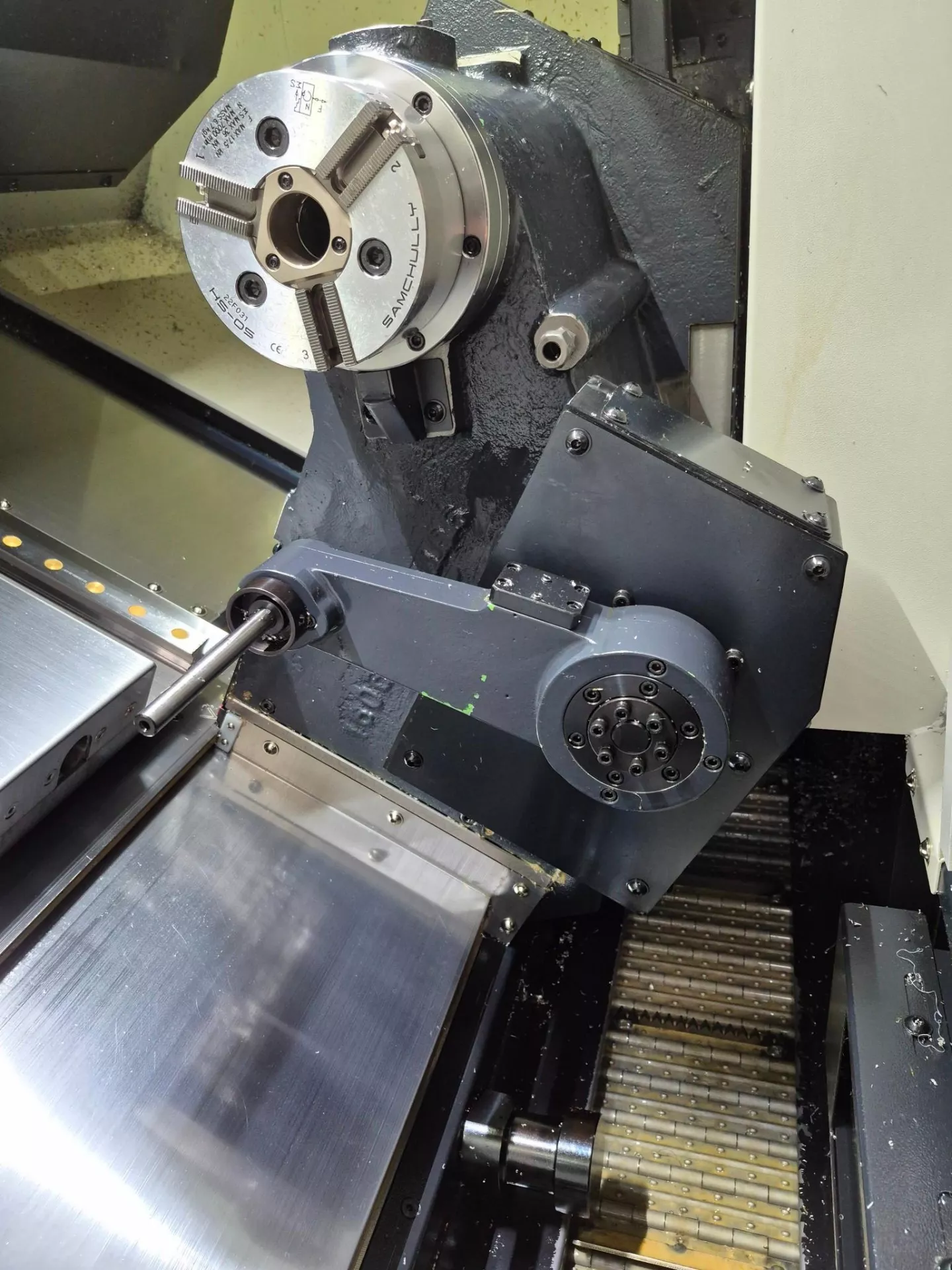

SUB-SPINDLE
Maximum Spindle Speed: 6,000 RPM
Spindle Motor Power: 7.5 HP (5.5 kW)
Spindle Torque: 34.6 ft-lbs (47 Nm)

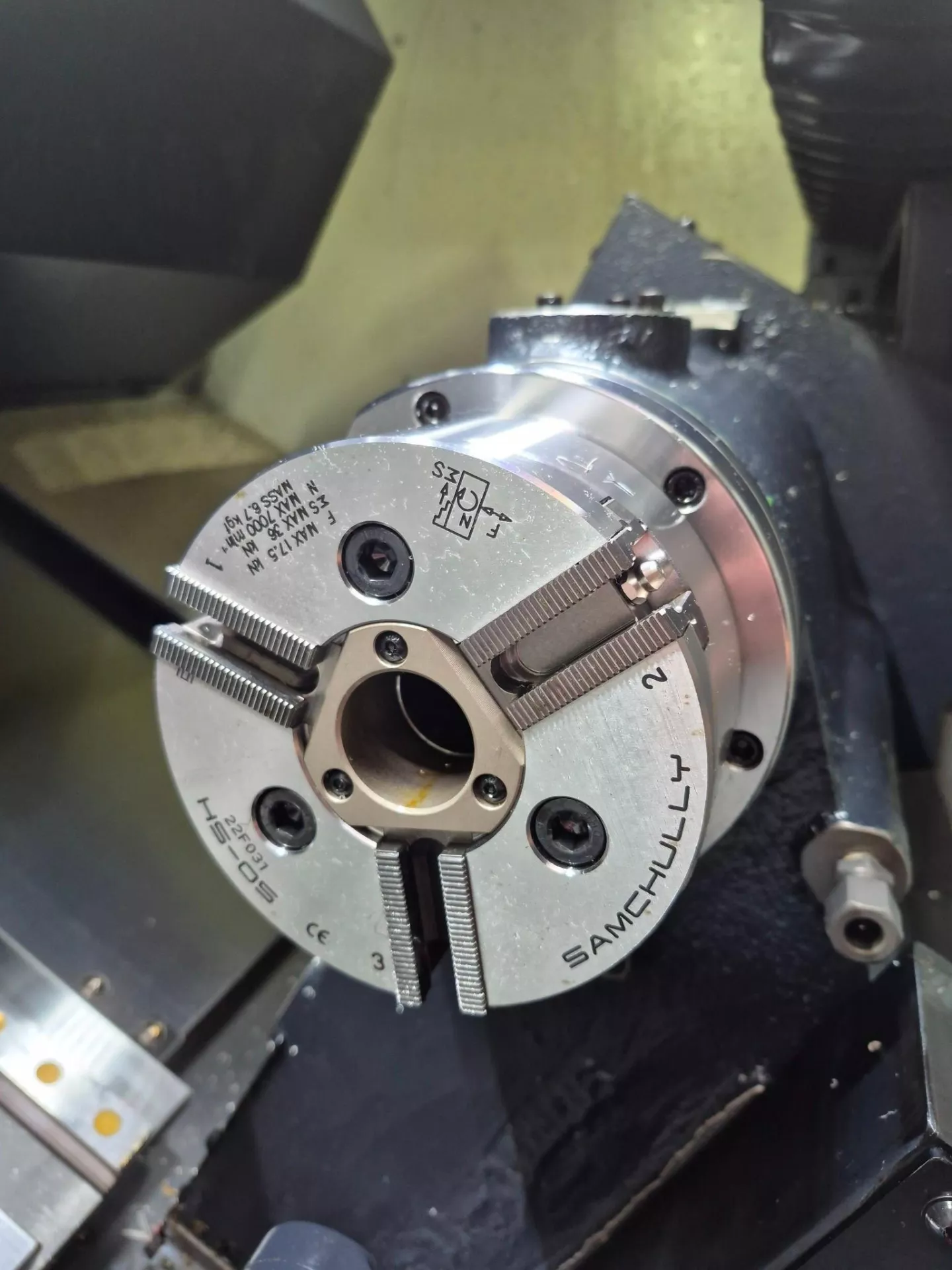

Chuck Size: 5″ (135 mm)

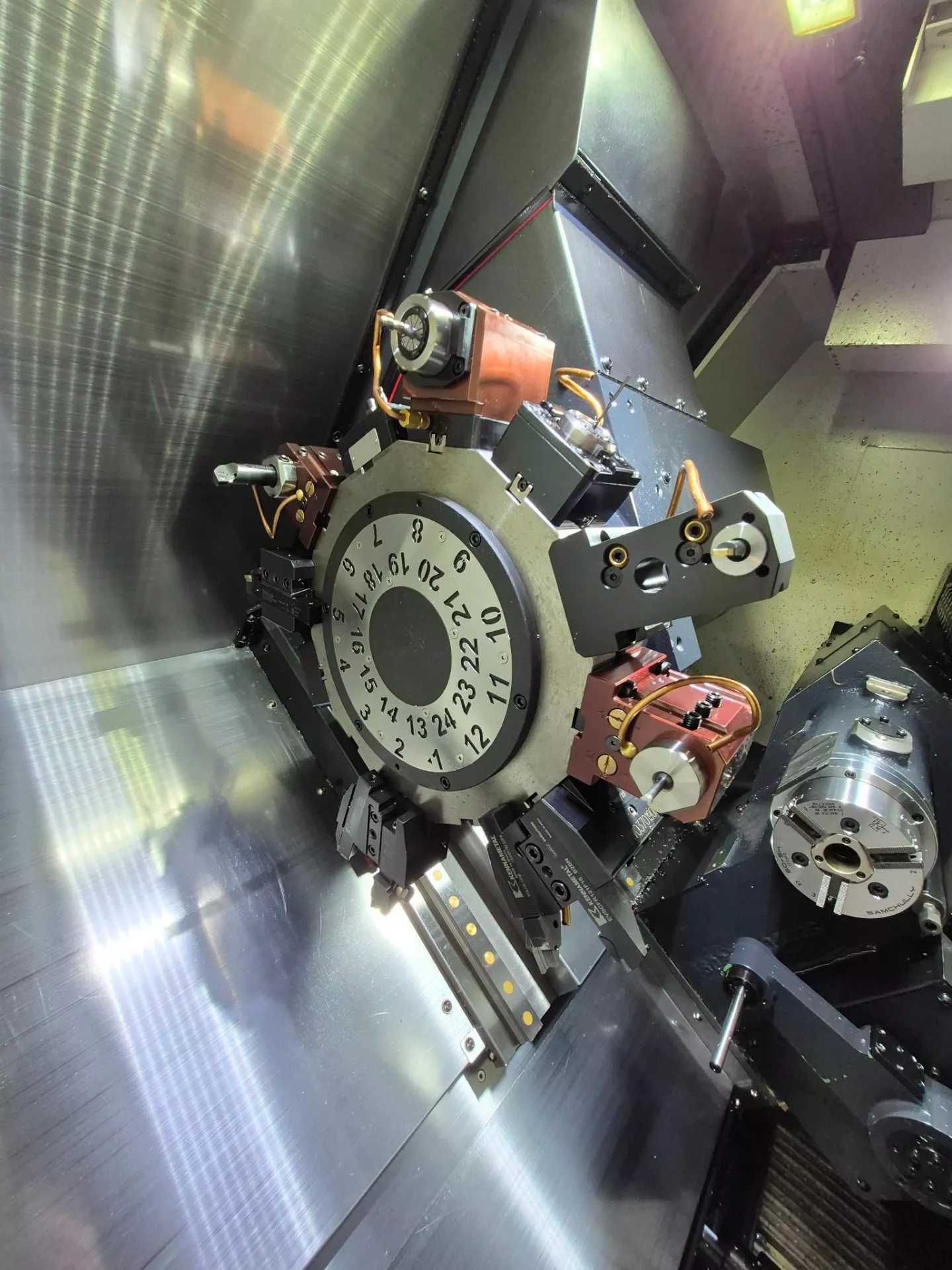

TURRET & LIVE TOOLING
12 Tool Stations / 24-Position Index
BMT 45 Servo-Driven Turret
Live Tool Speed: 6,000 RPM
Live Tool Motor Power: 5 HP (3.7 kW)
Turret Indexing Time: 0.11 seconds
FEED RATES
X-Axis Rapid Traverse: 1,181 IPM (30 m/min)
Y-Axis Rapid Traverse: 394 IPM (10 m/min)
Z-Axis Rapid Traverse: 1,417 IPM (36 m/min)
EQUIPPED WITH

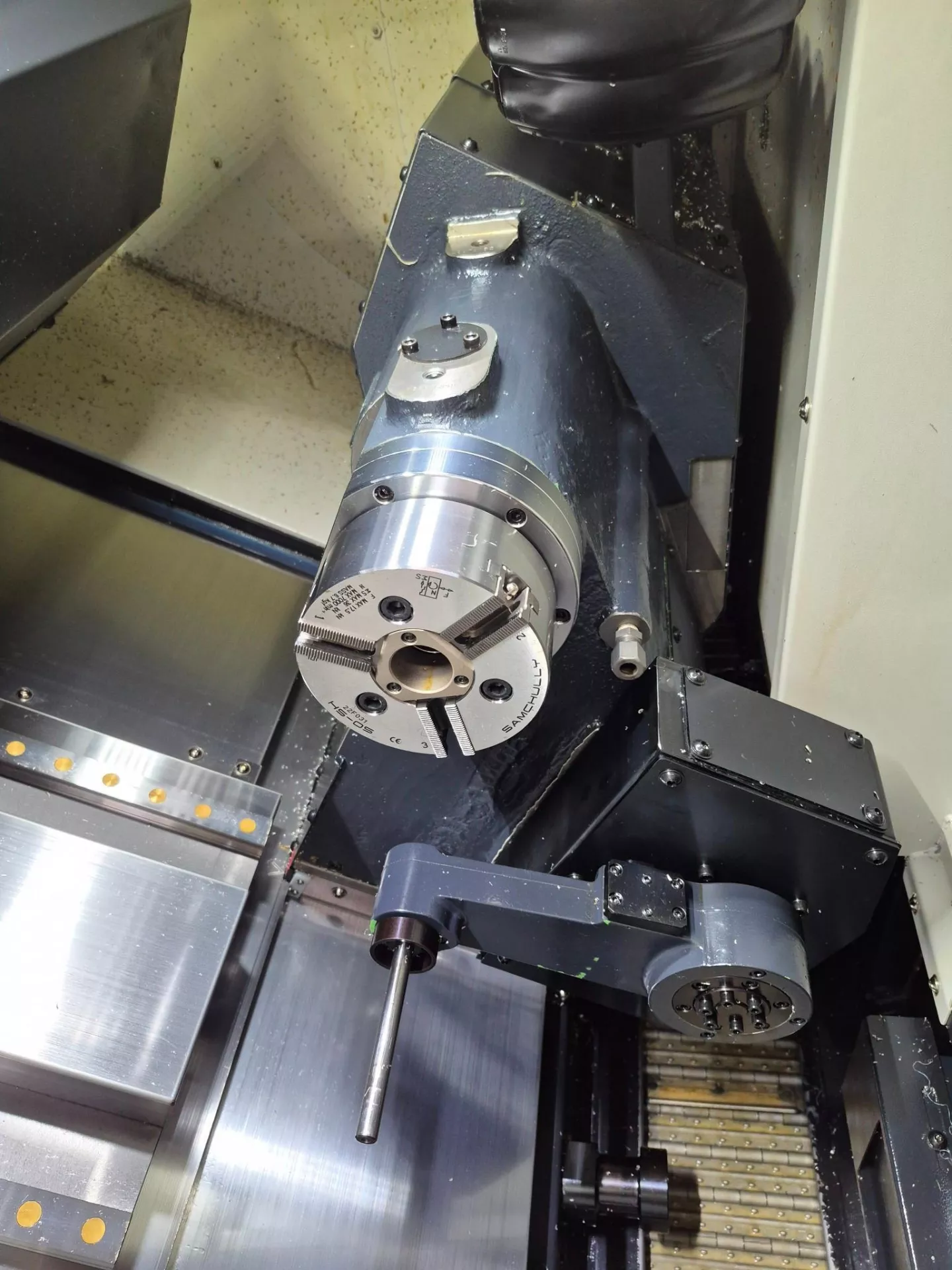

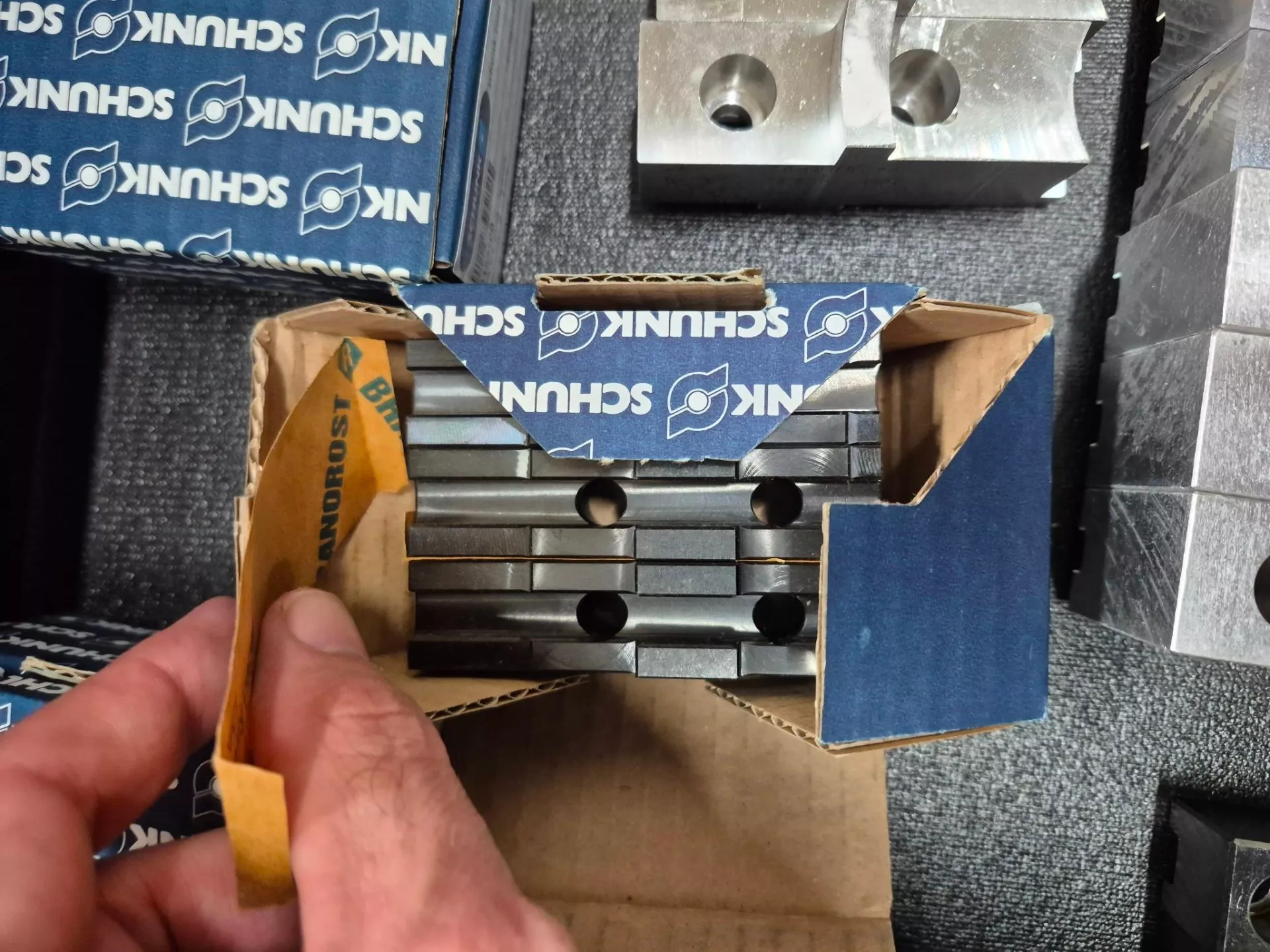

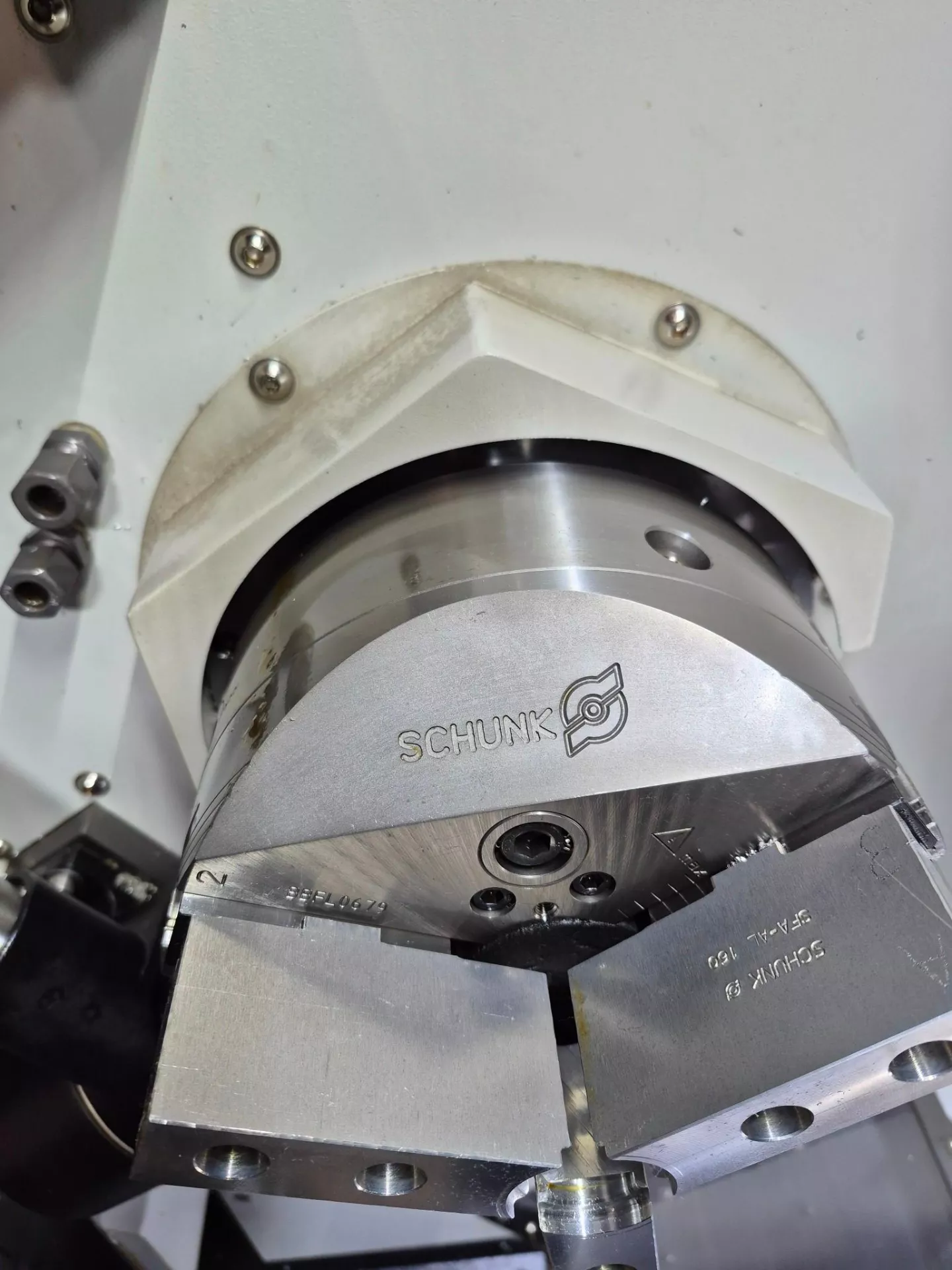

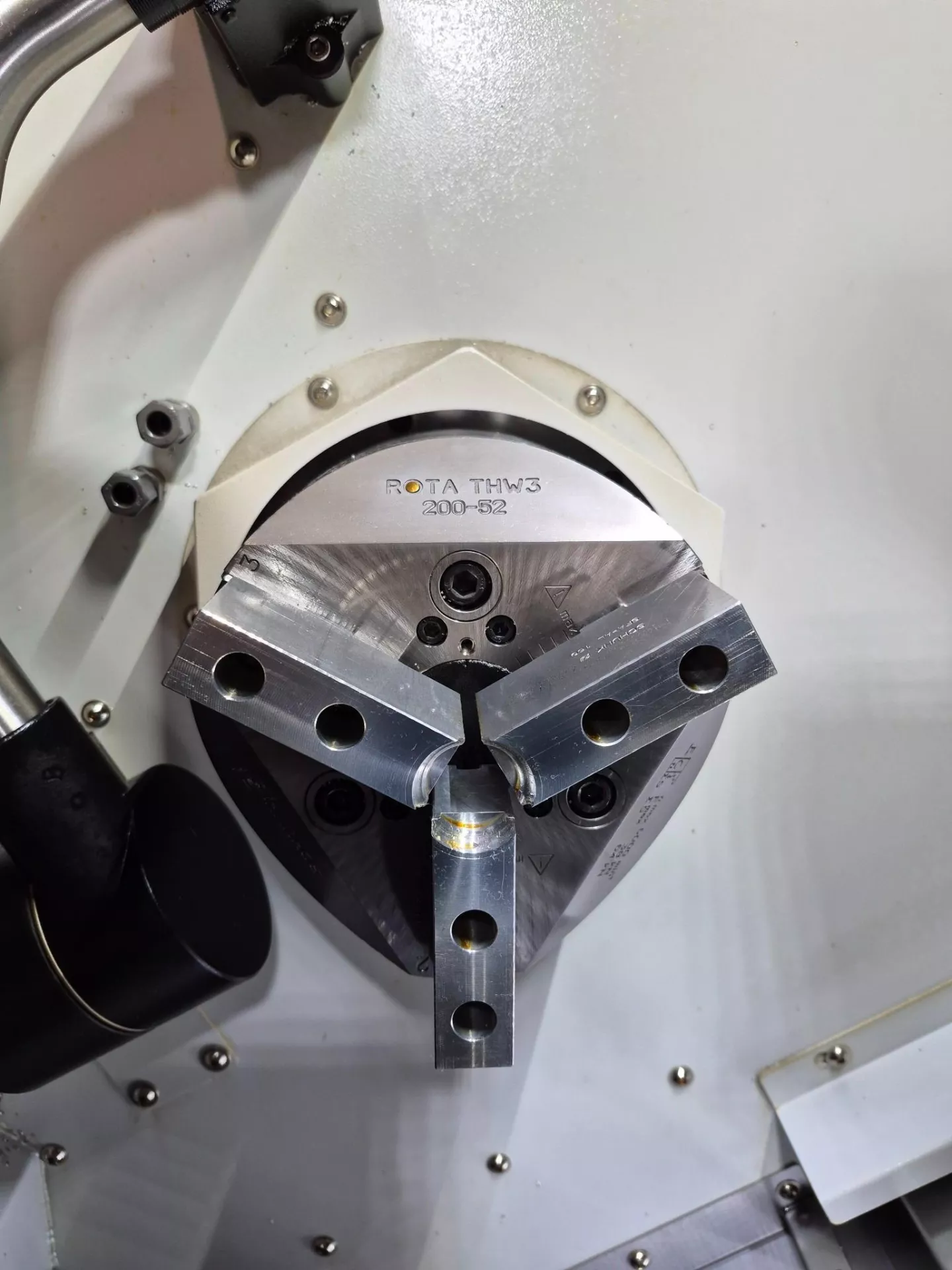

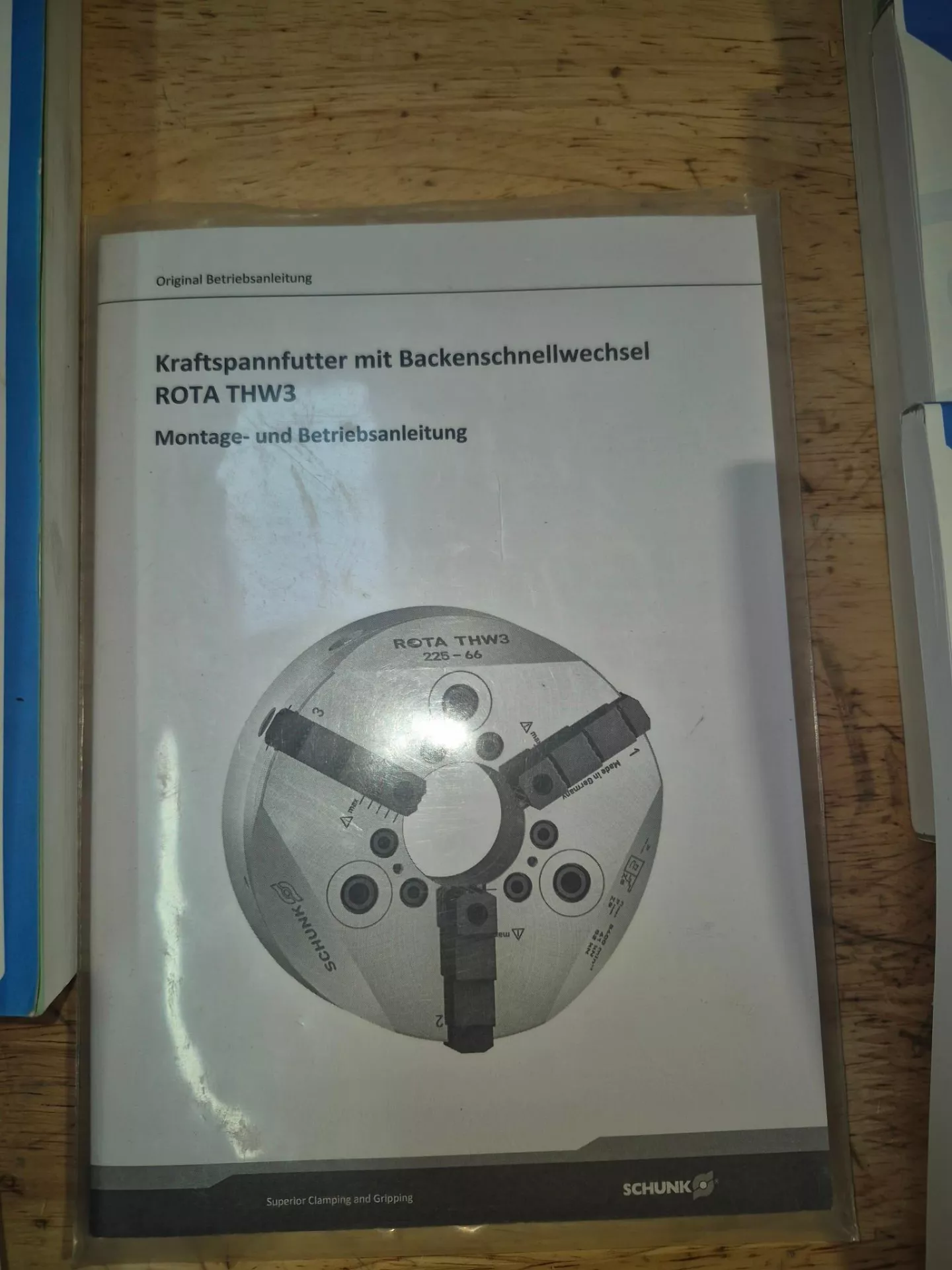

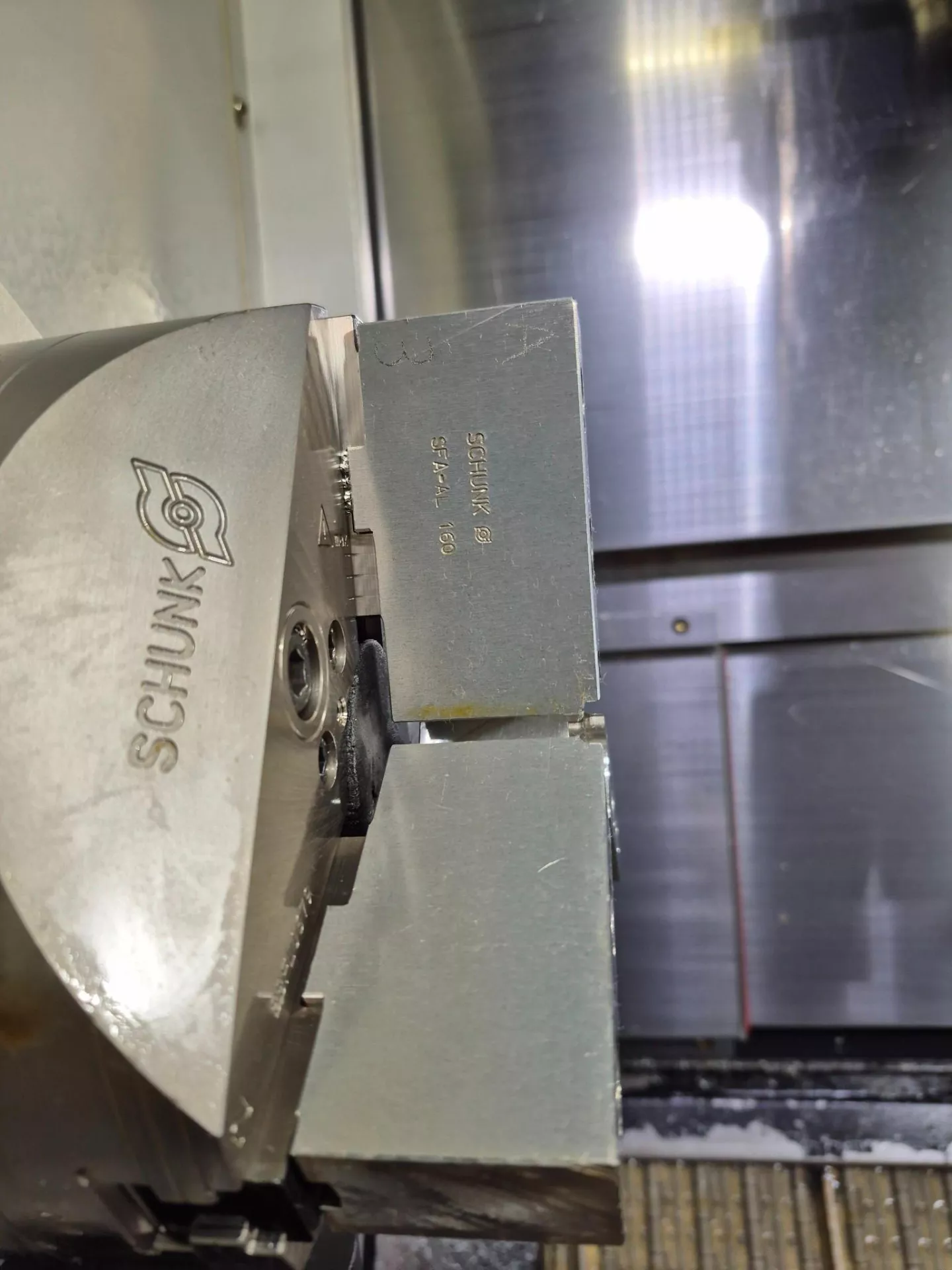

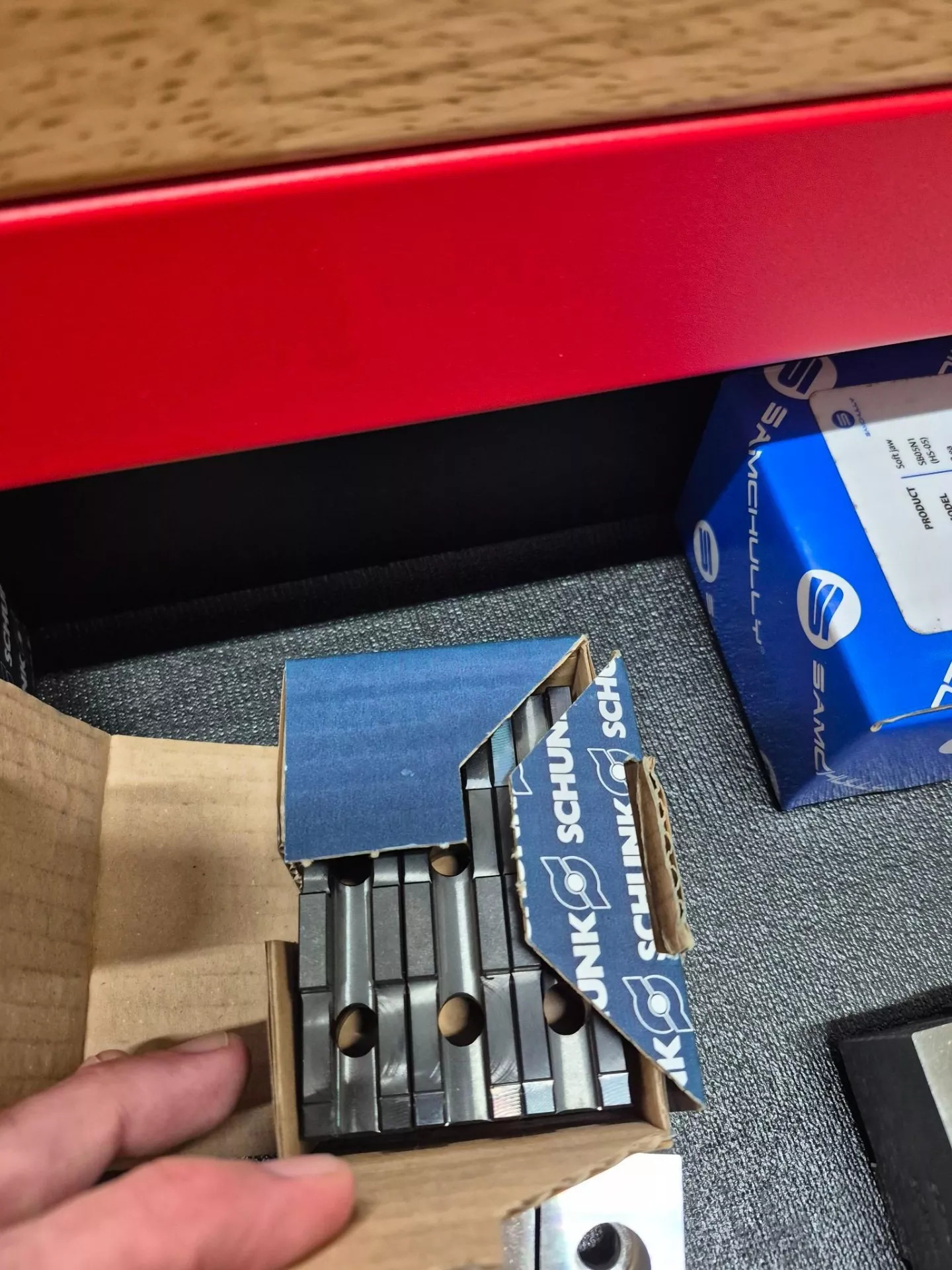

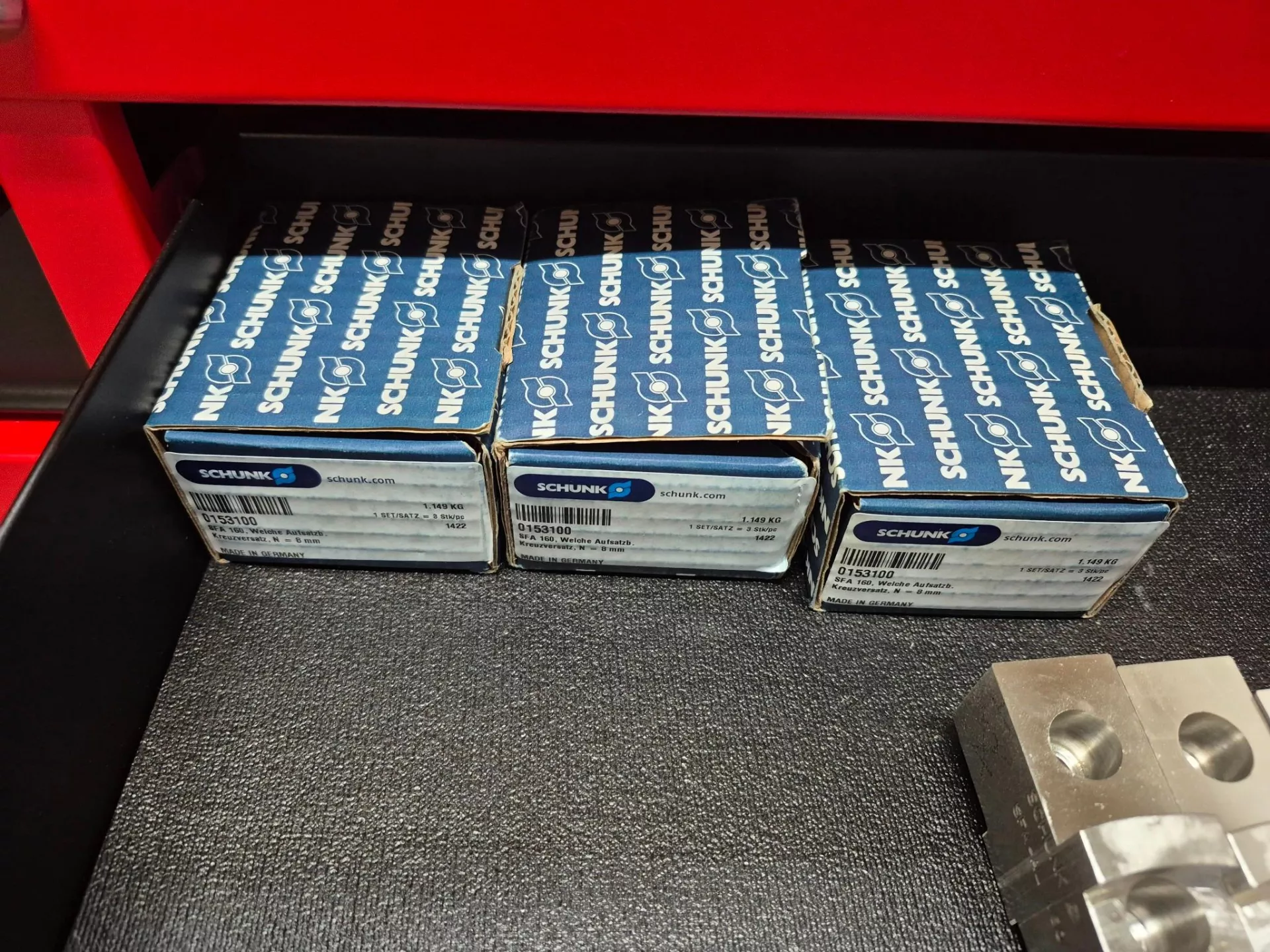

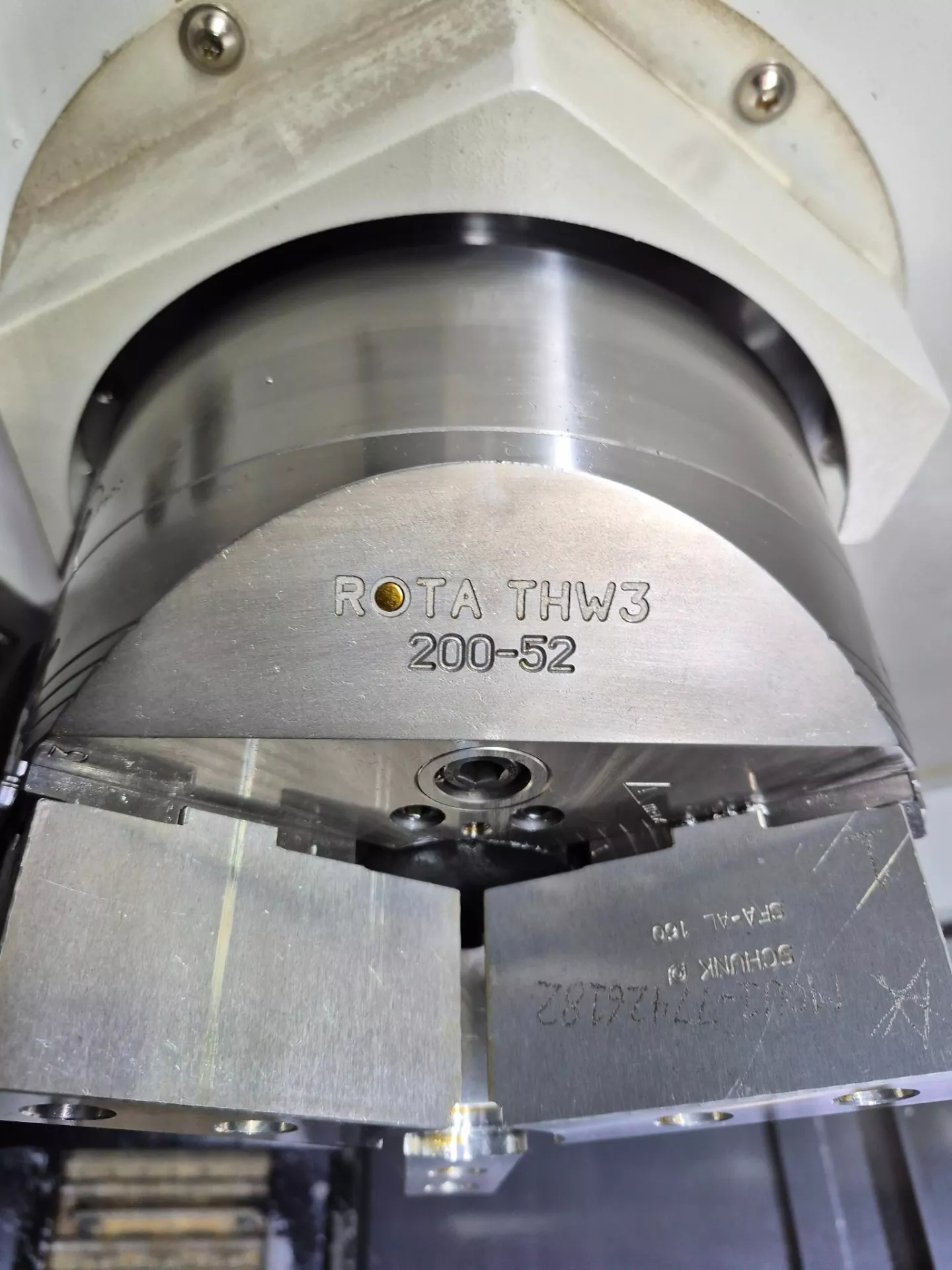

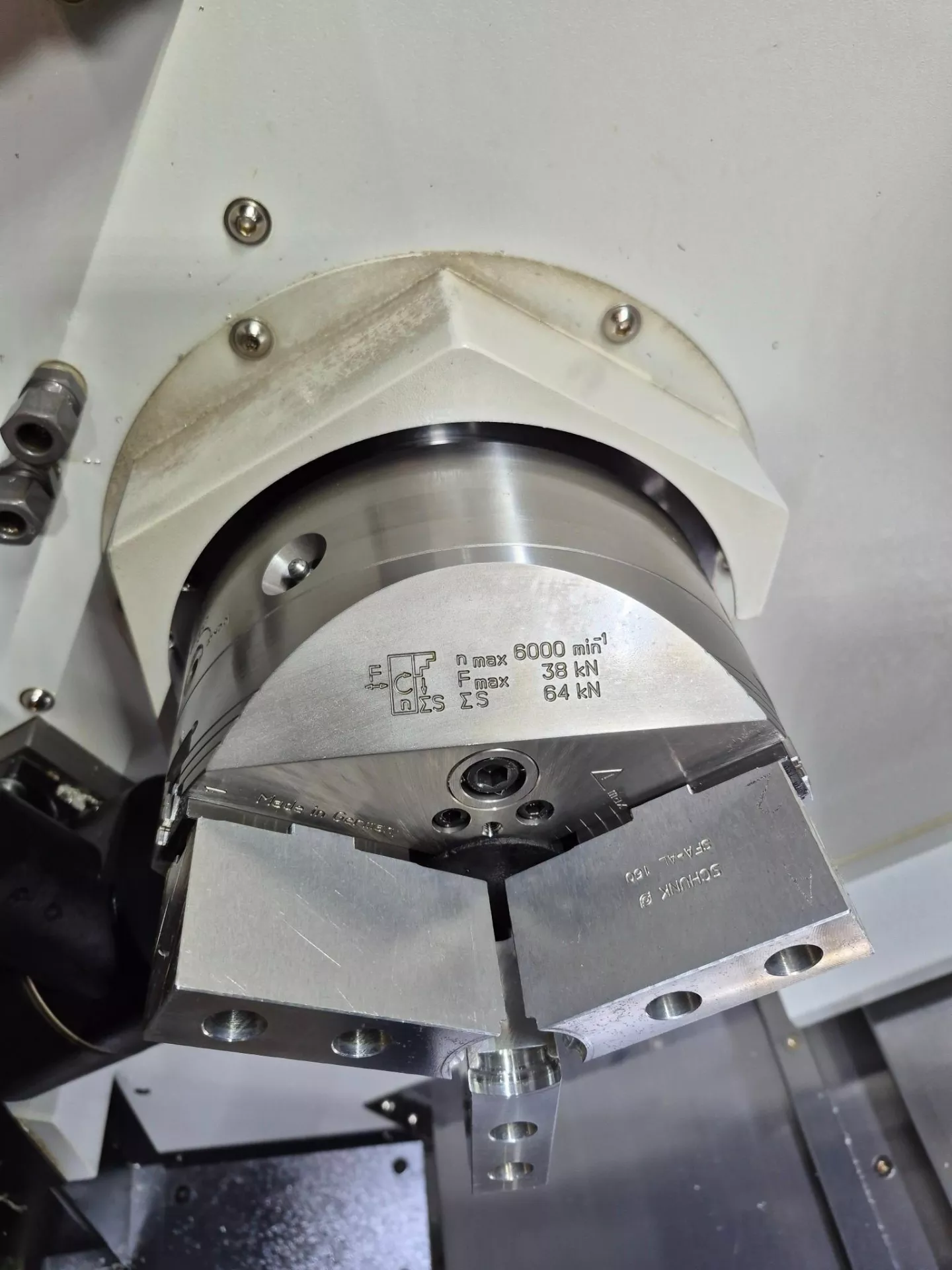

SCHUNK ROTA THW3 200-52 sealed 3-jaw quick-change power lathe chuck
Programmable parts catcher

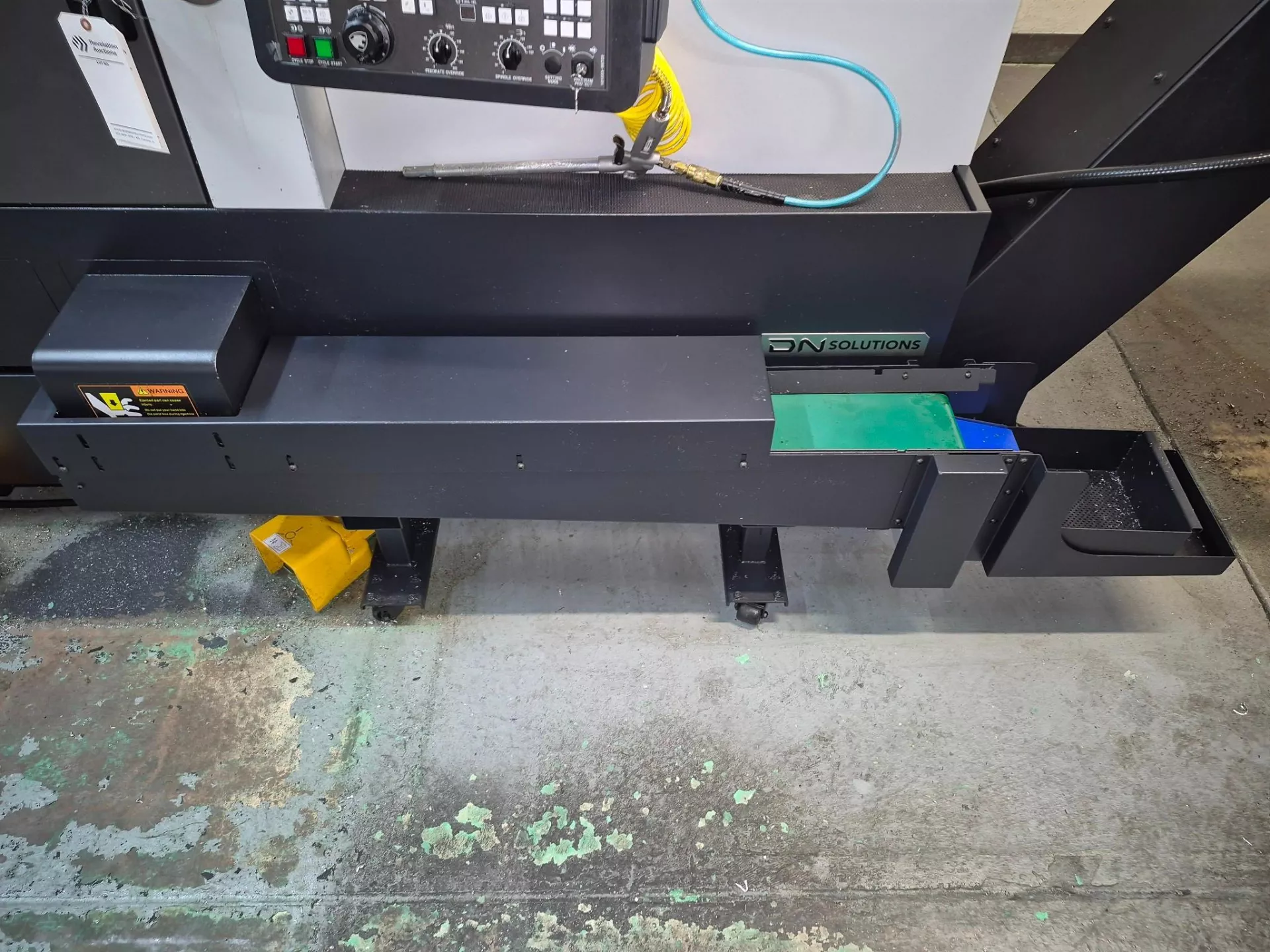

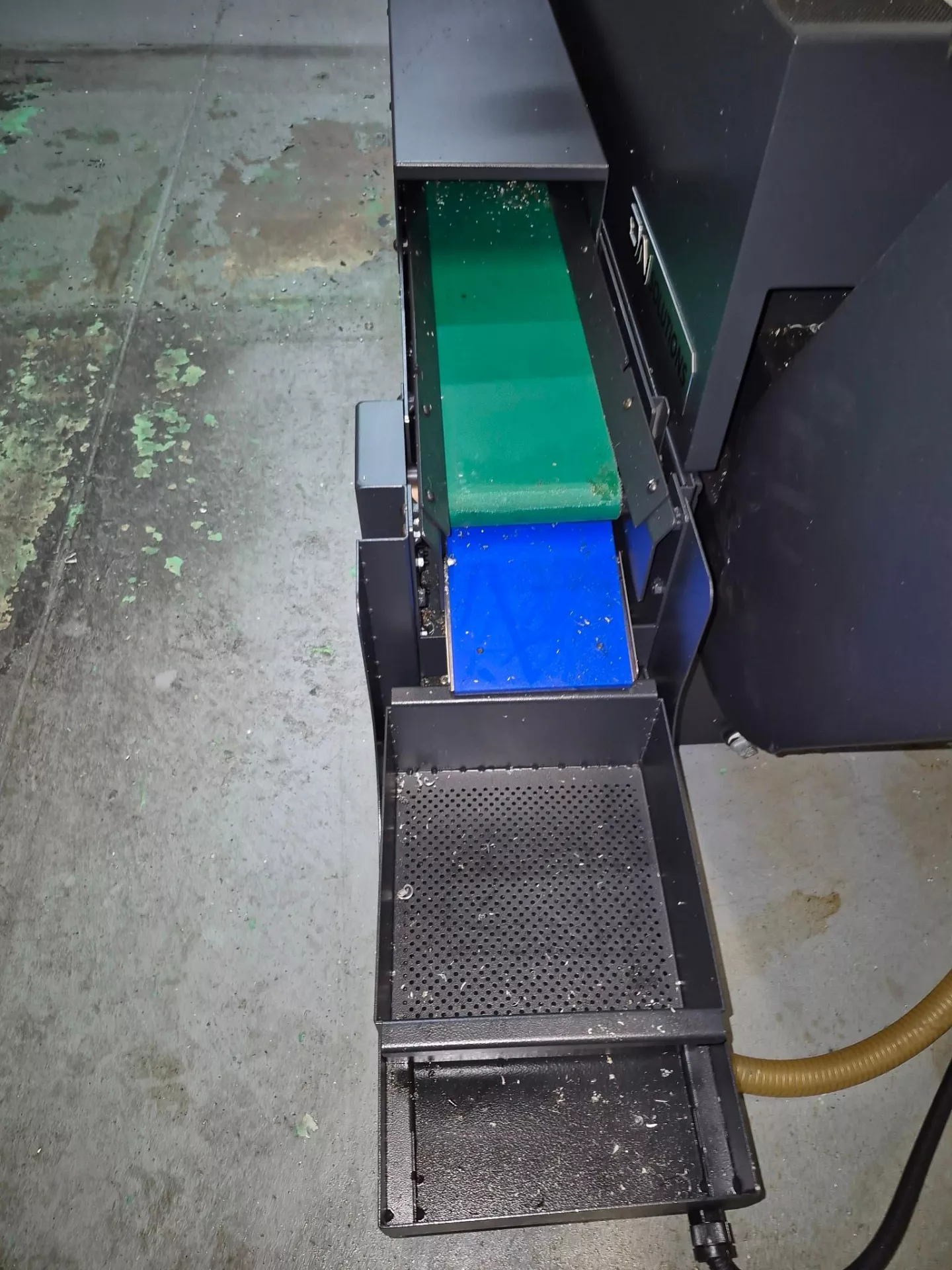

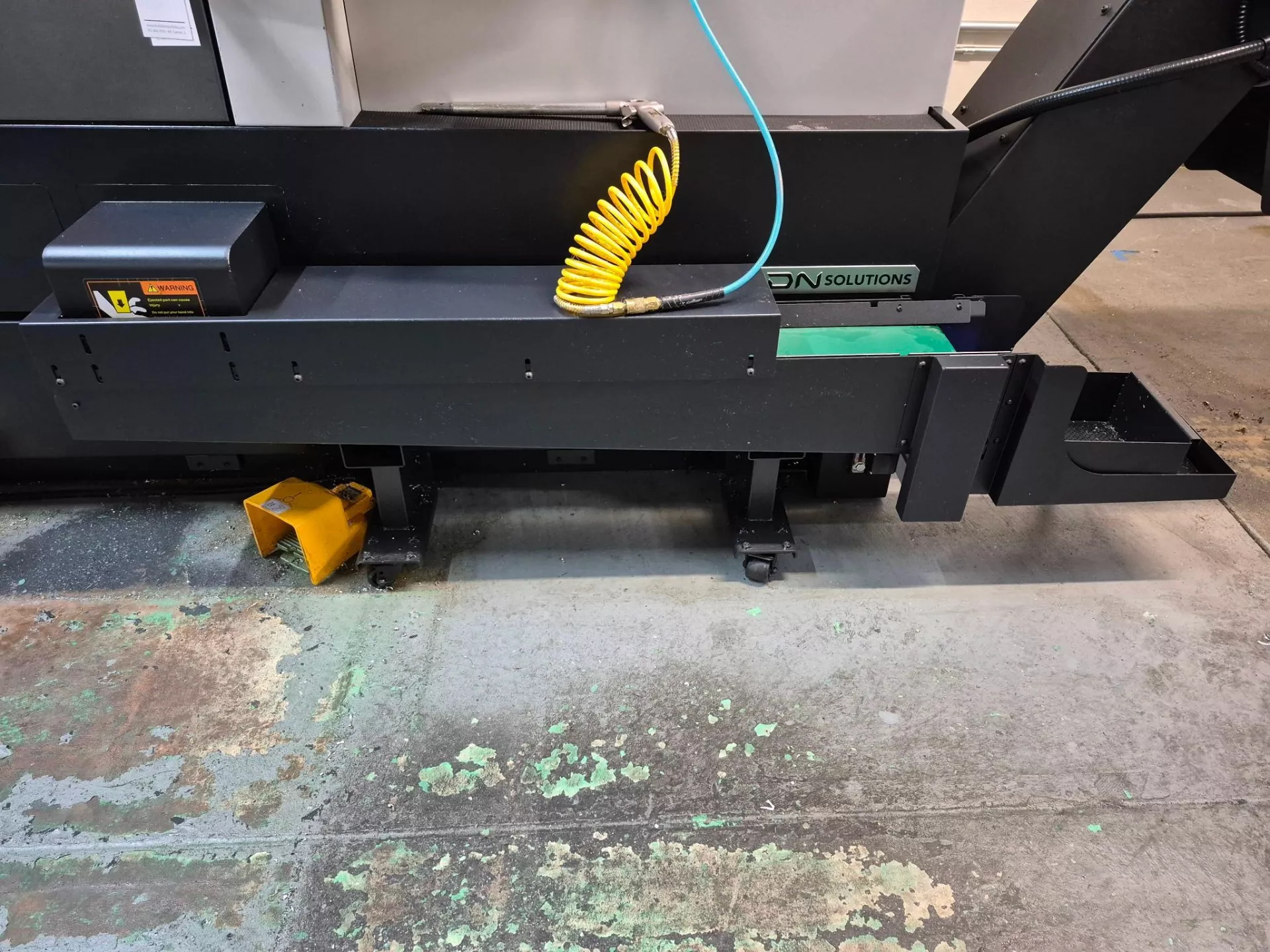

Parts conveyor

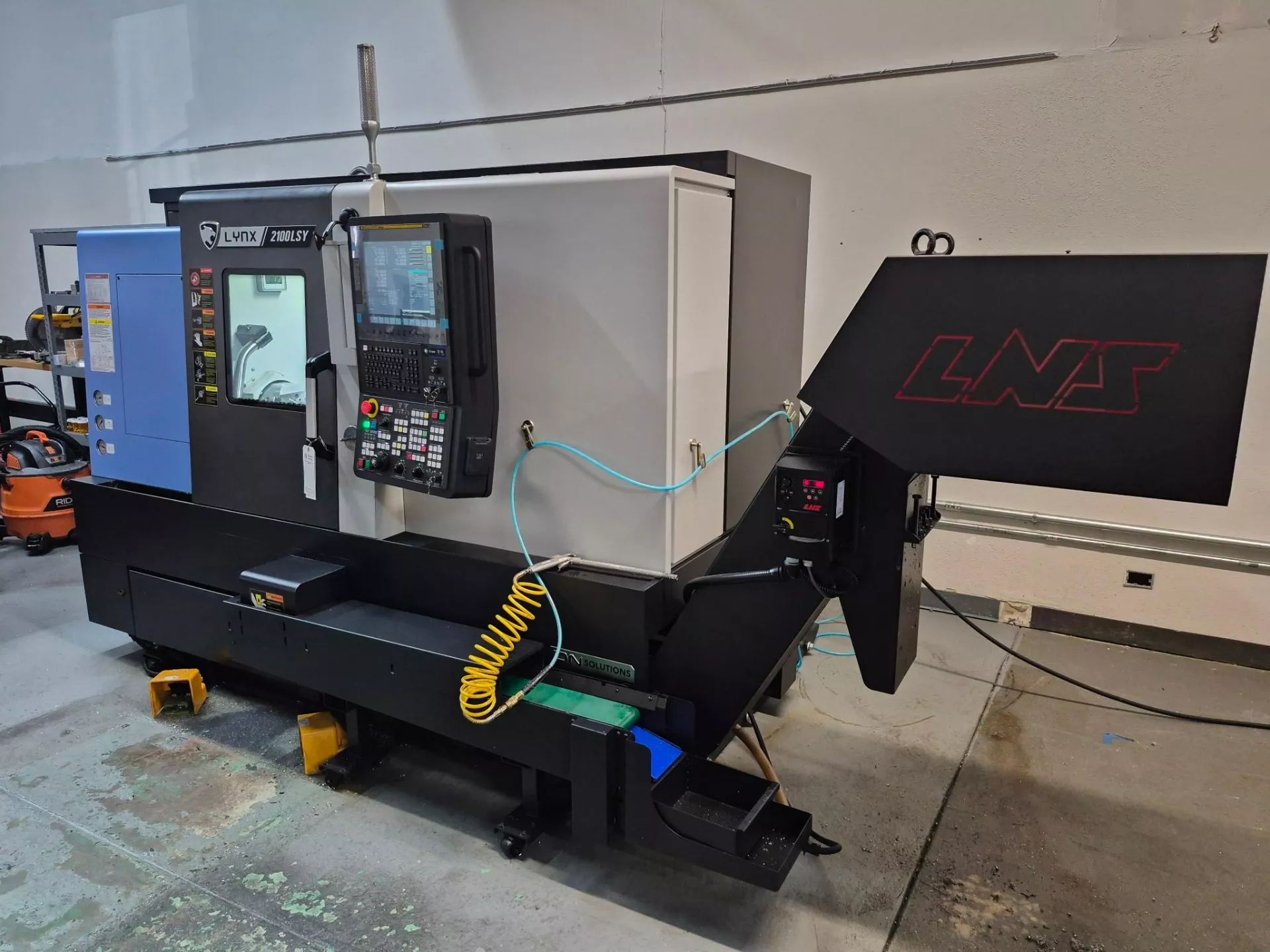

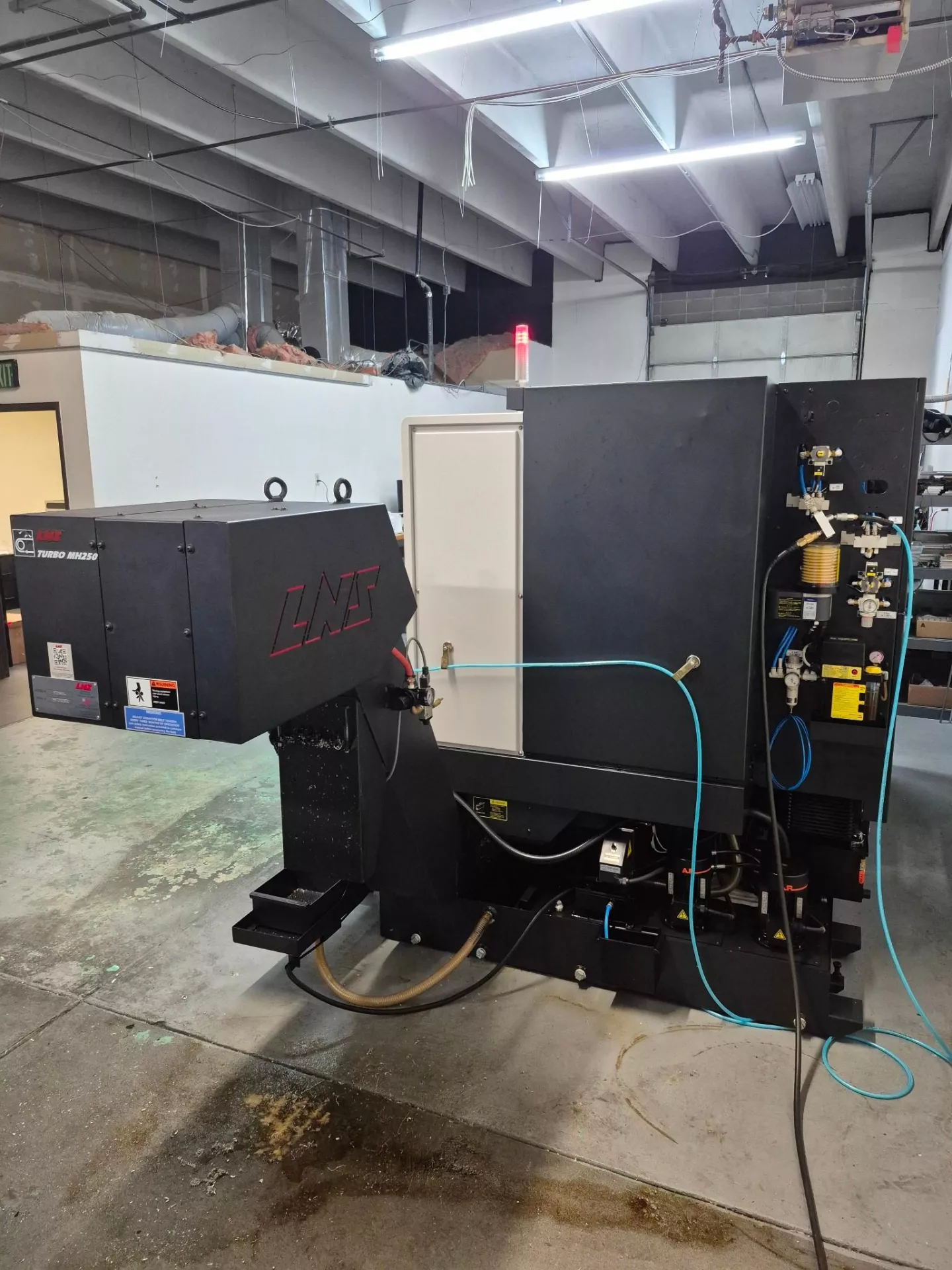

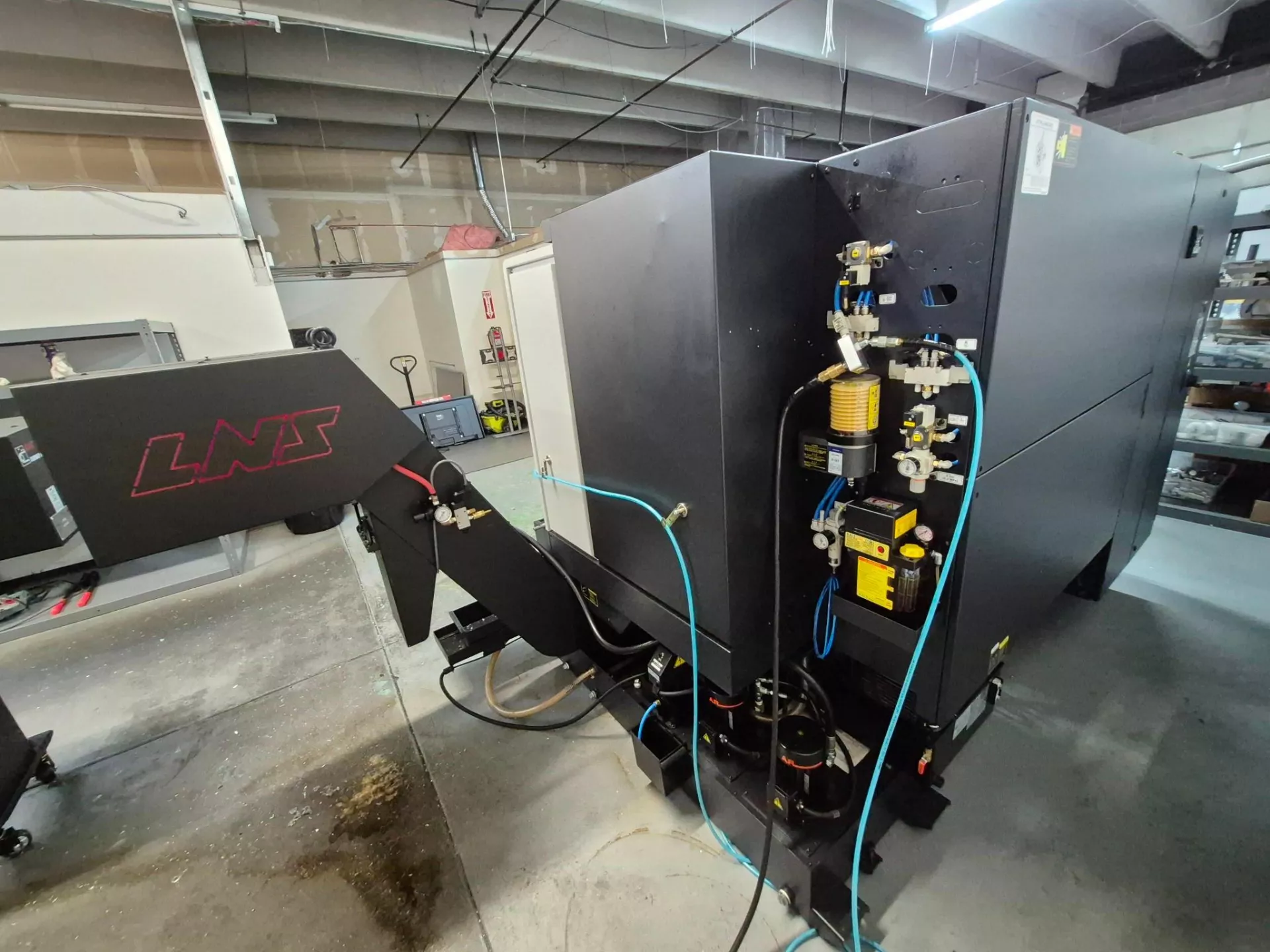

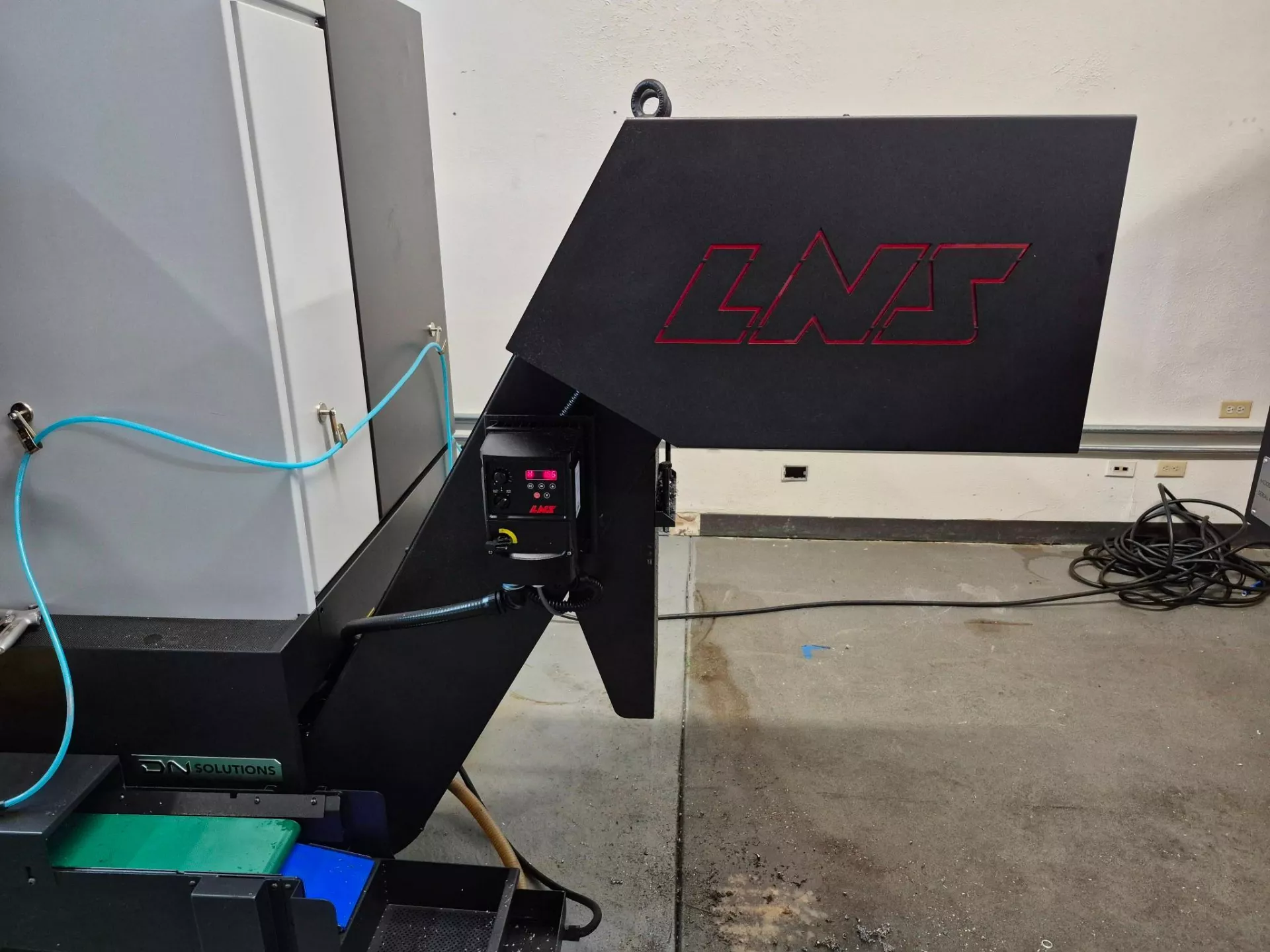

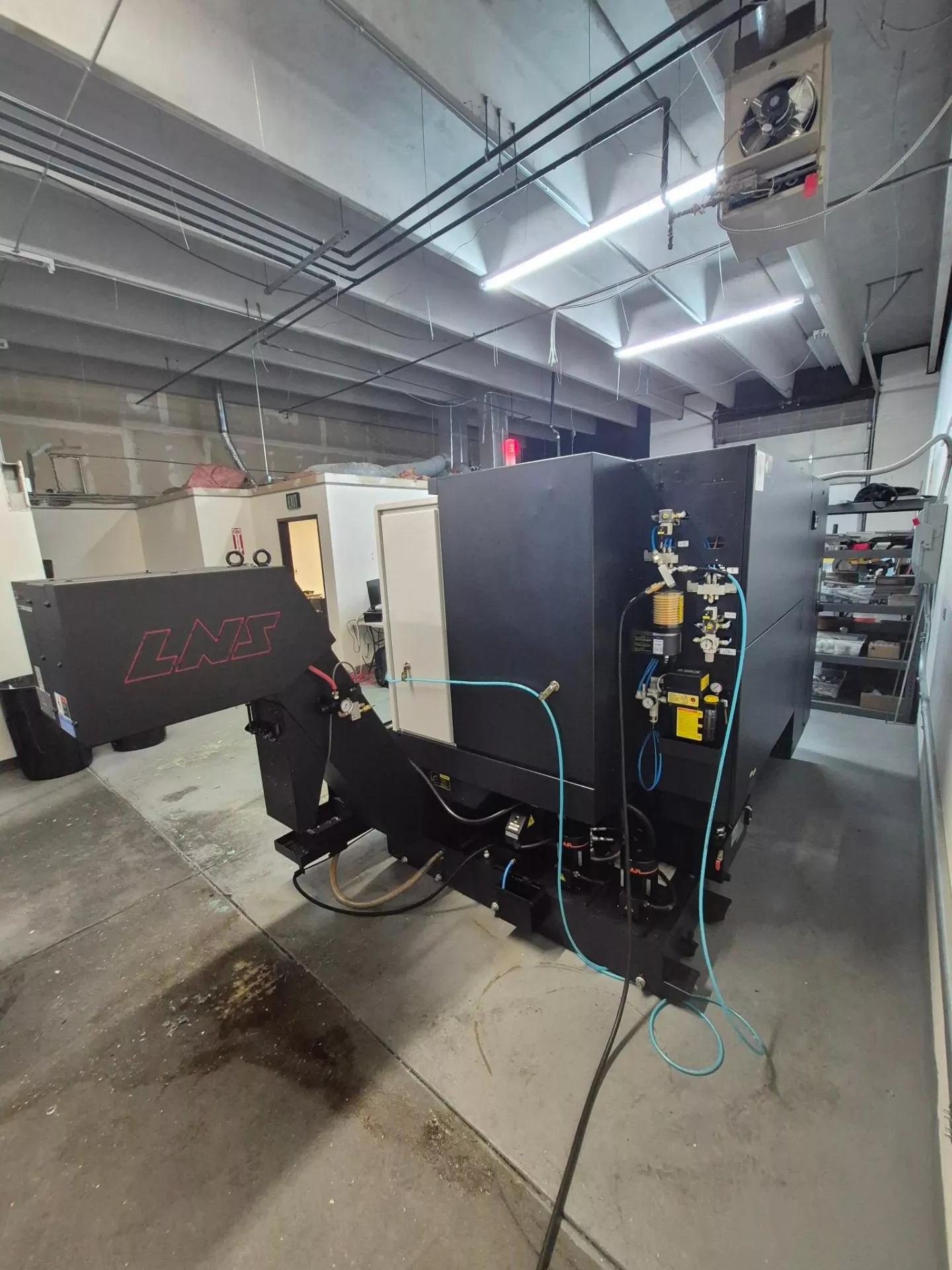

LNS / Hennig hinge-belt chip conveyor

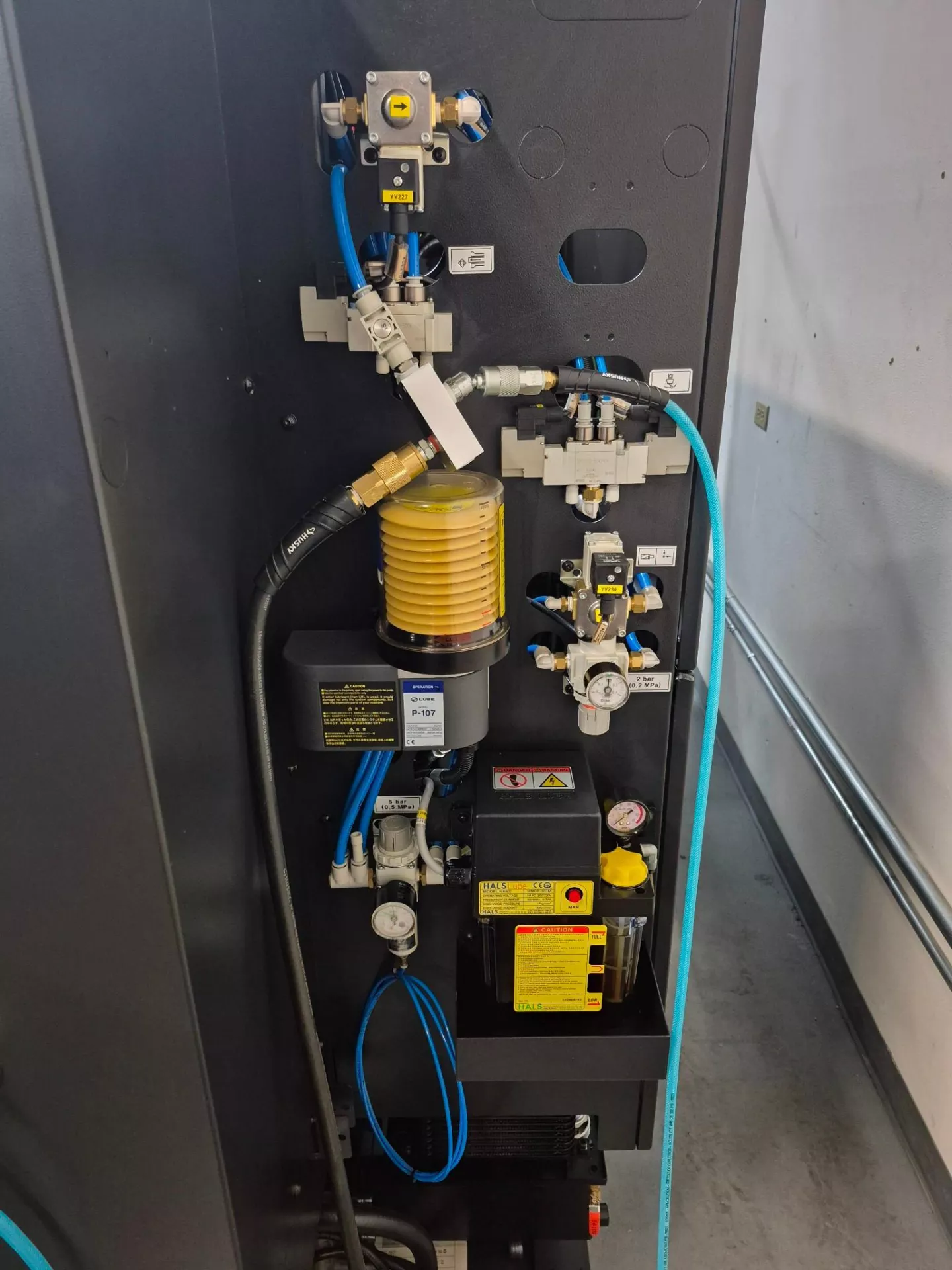

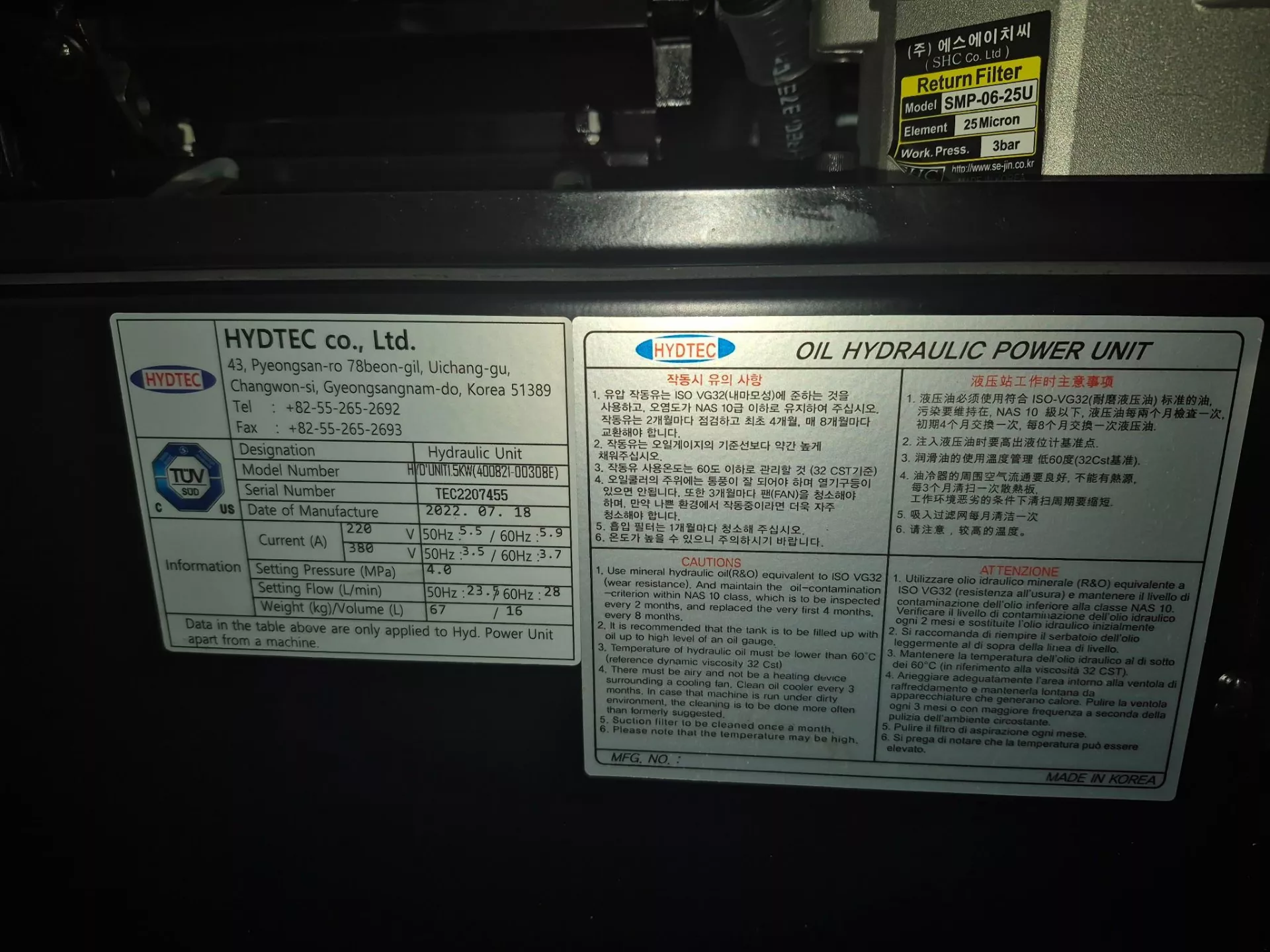

Automatic grease lubrication system
Flood coolant system

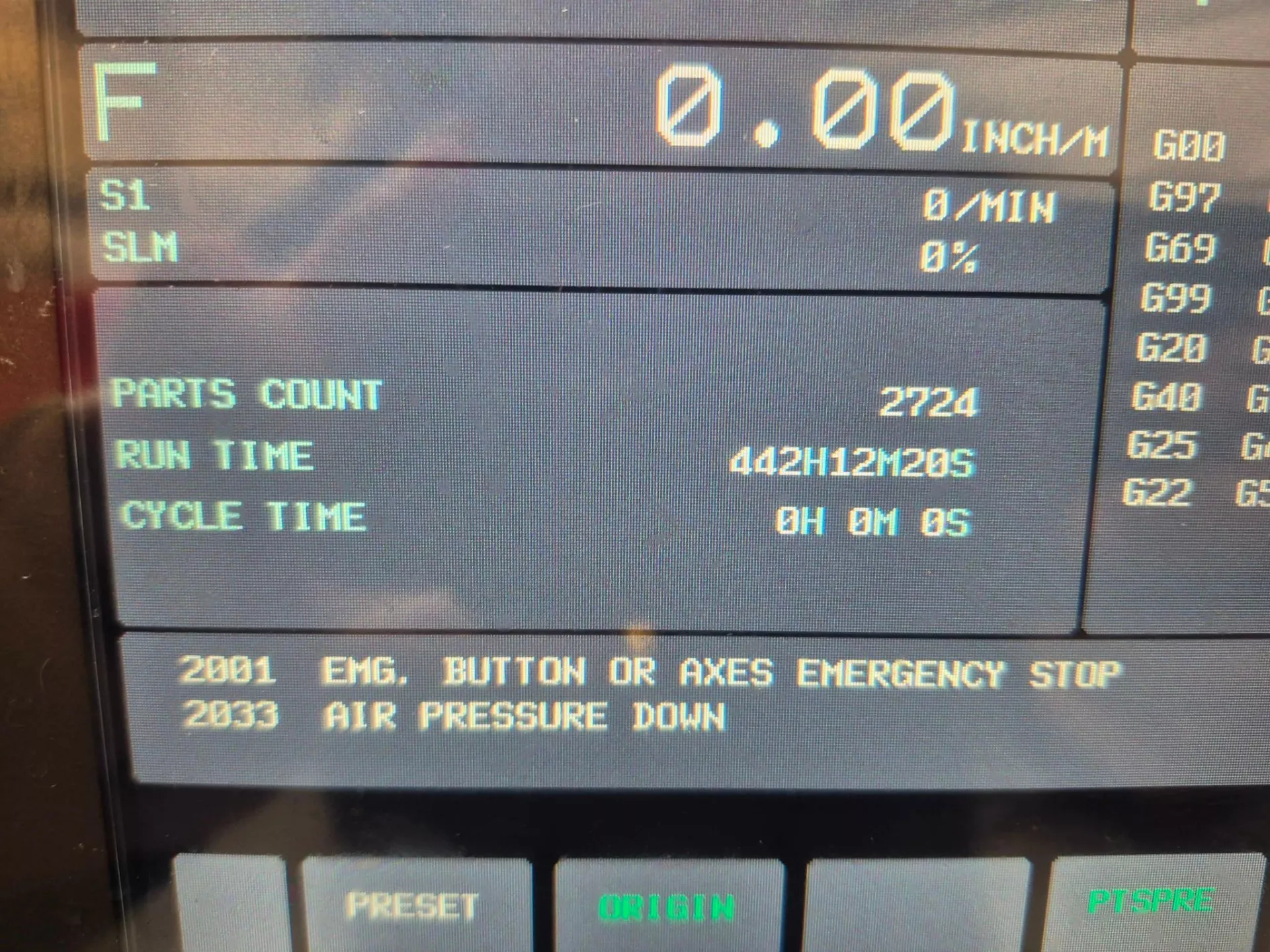

FANUC 0i-Plus CNC control with iHMI touchscreen interface

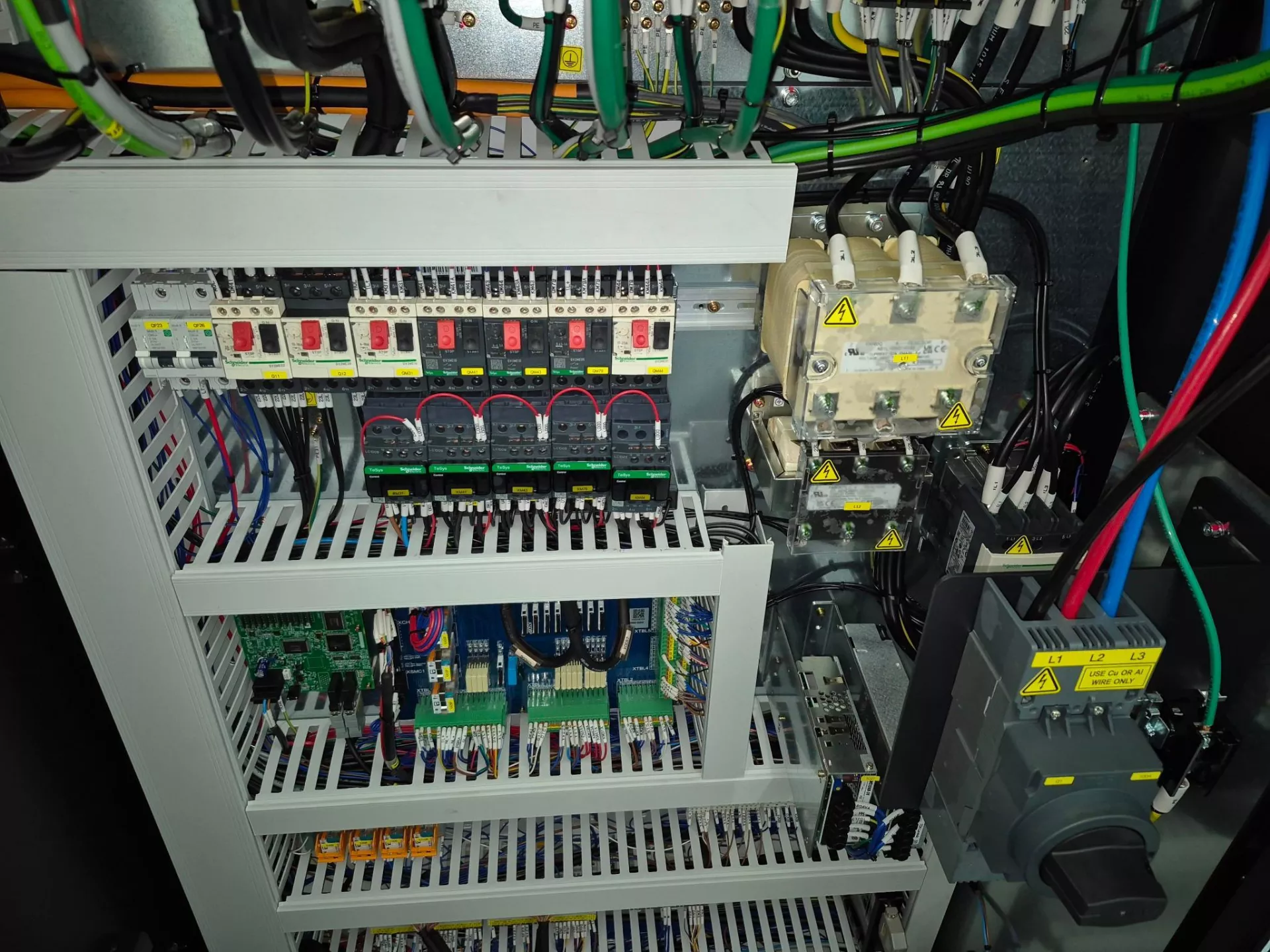

ELECTRICAL SPECIFICATIONS
Power Supply: 220 V, 3-phase, 50/60 Hz
Rated Capacity: 33.66 kVA
Full Load Current: 88.34 A
DIMENSIONS & WEIGHT
Machine Dimensions (L × W): Approx. 113.4″ × 67.4″ (2,880 × 1,711 mm)
Machine Height: 75.6″ (1,921 mm)
Net Weight: Approx. 9,259 lbs (4,200 kg)
KEY HIGHLIGHTS
Dual-spindle configuration for efficient part transfer and reduced handling
Y-axis capability for complex milling and turning operations
Big-bore capacity for bar-fed production
High-speed live tooling and servo-driven turret
Integrated parts handling and chip management systems
APPLICATIONS
Ideal for precision turning, milling, and multi-operation machining of complex components, including automotive parts, industrial components, shafts, fittings, and other production workpieces.
