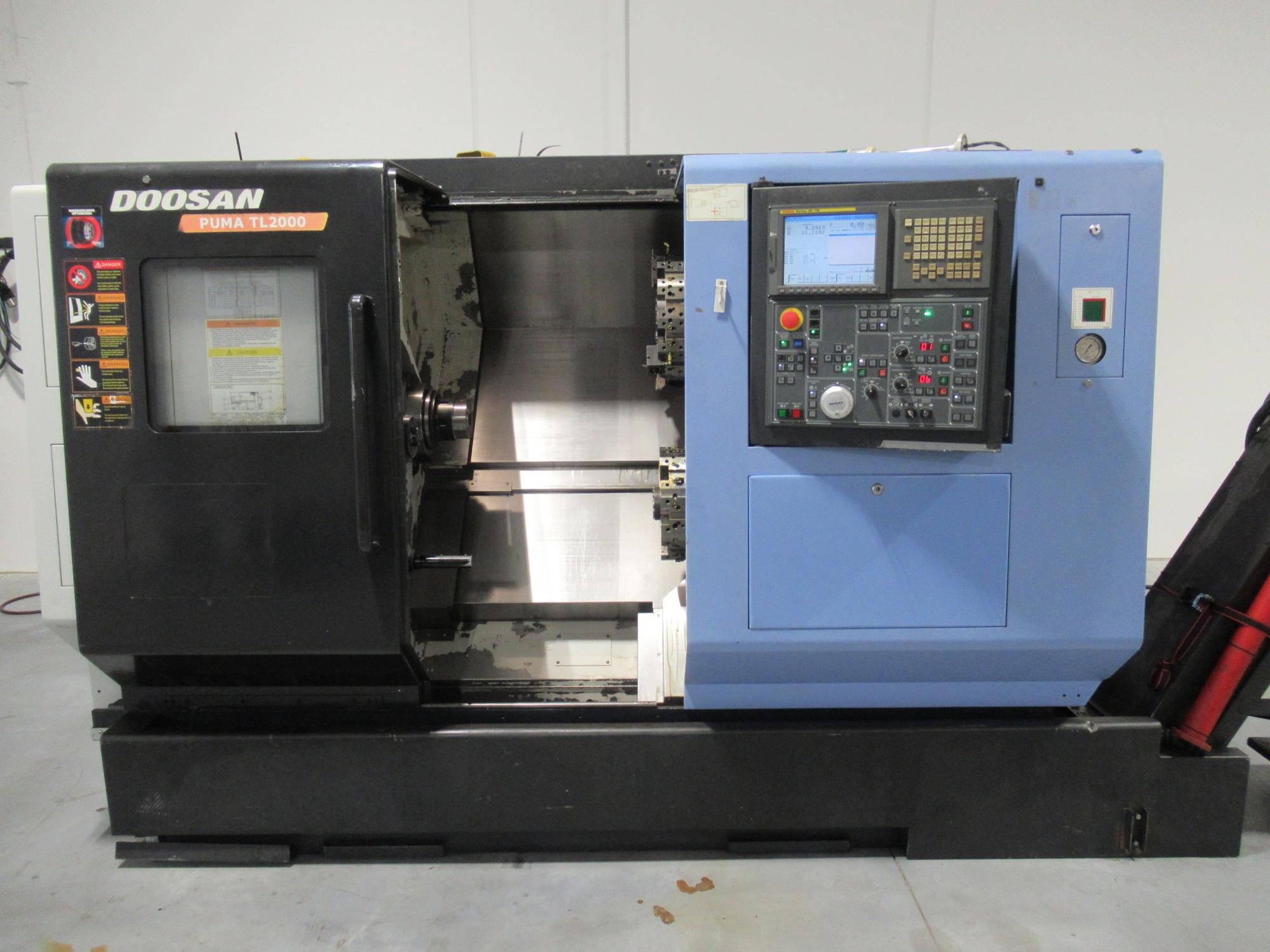

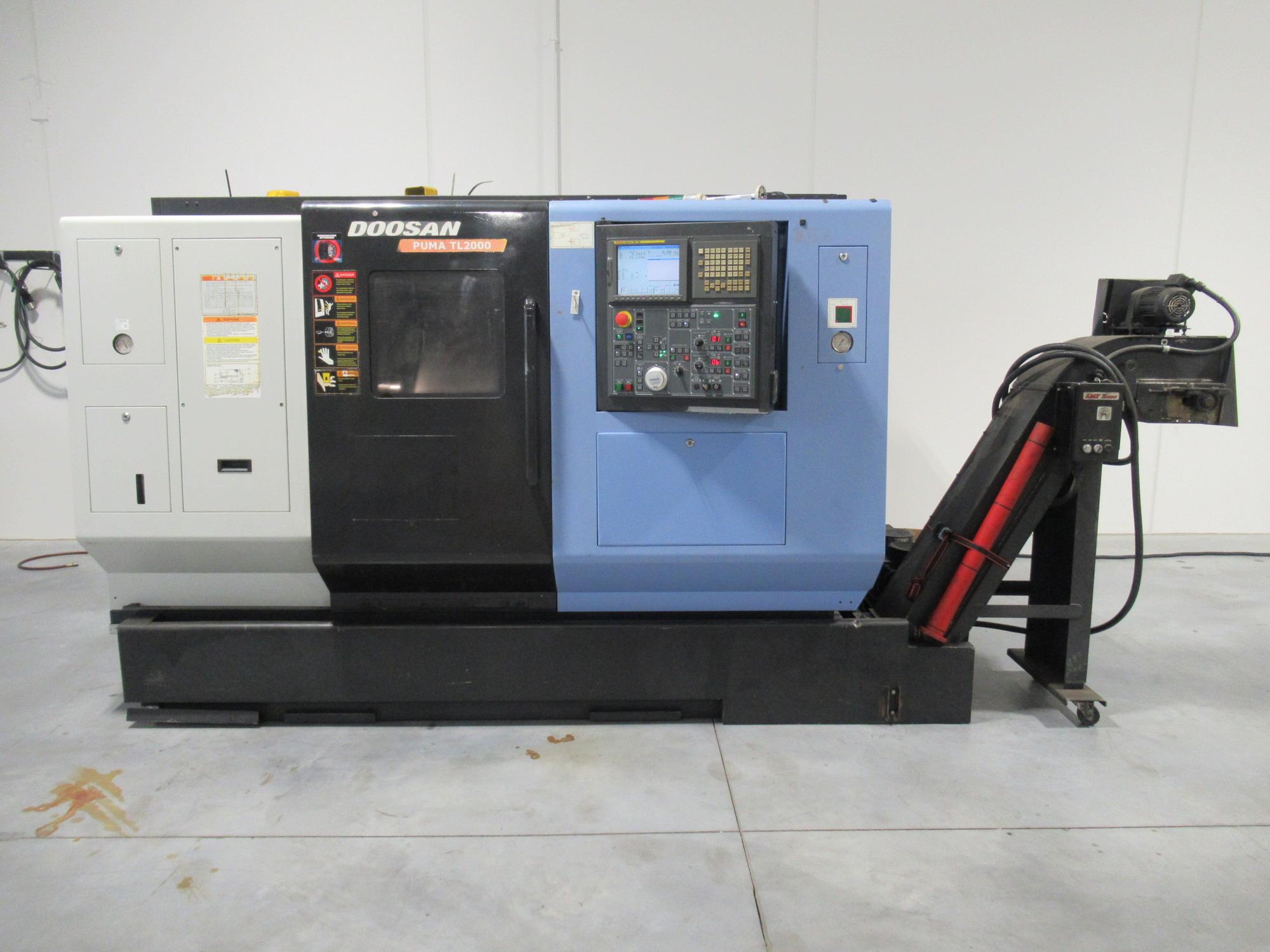

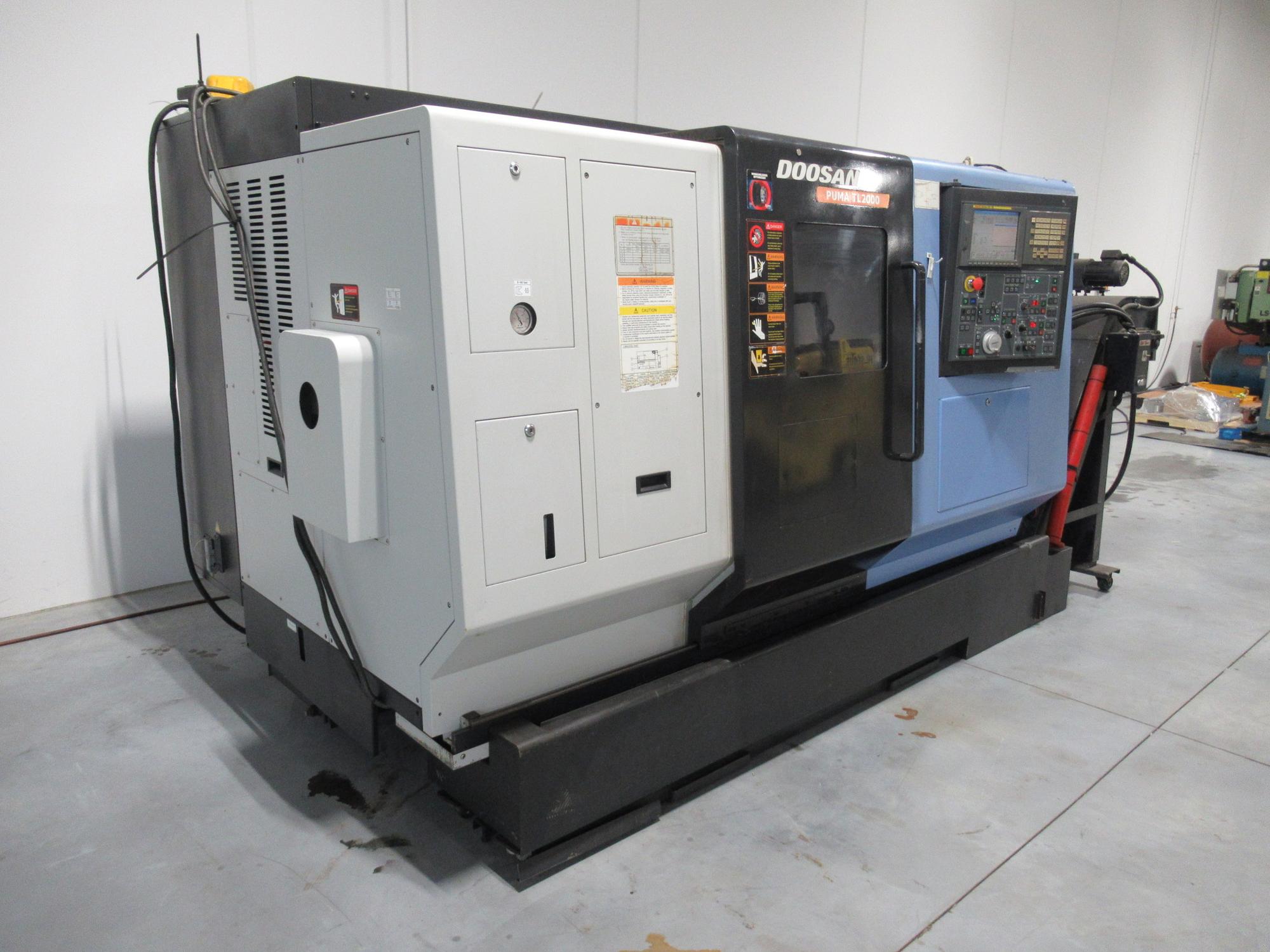

DOOSAN PUMA TL2000 CNC TURNING CENTER
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description
GENERAL INFORMATION
Manufacturer: Doosan
Model: Puma TL2000
Year of Manufacture: 2007

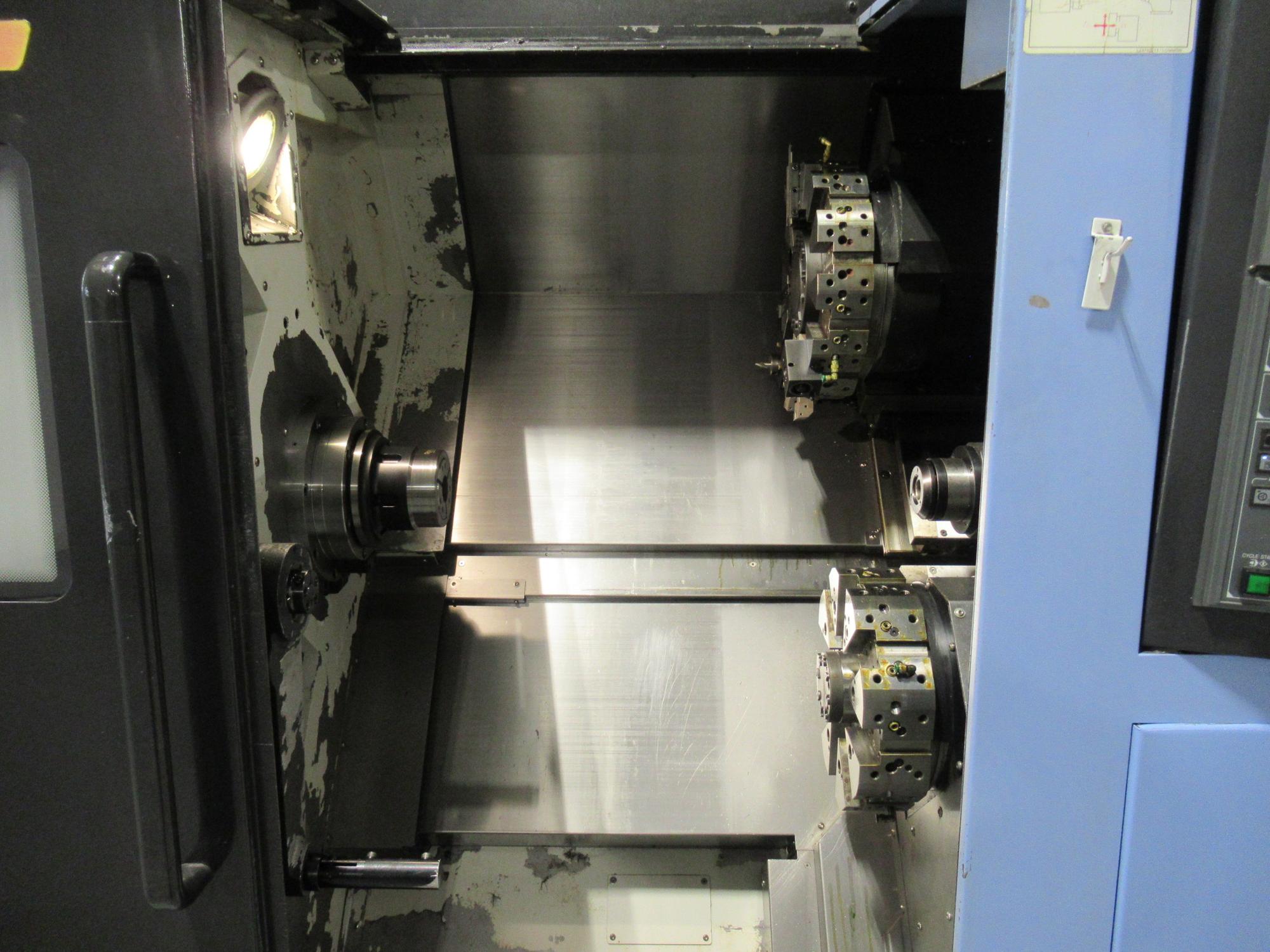

Machine Type: CNC Turning Center with Upper and Lower Turrets
CNC Control: Fanuc Series 18i-TB
Electrical Requirements: 200/220 V, 3-Phase
MACHINE CAPACITY
Maximum Swing: 23.6″
Maximum Turning Diameter (Upper Turret): 14.6″
Maximum Turning Diameter (Lower Turret): 9.4″
Maximum Turning Length: 23.6″
Swing Over Saddle (Upper): 16.9″
SPINDLE
Chuck Size: 8″
Maximum Spindle Speed: 5,000 RPM
Spindle Nose: A2-6
Bar Capacity: 2.6″
Spindle Bore: 3.0″
Spindle Drive Power: 25 HP

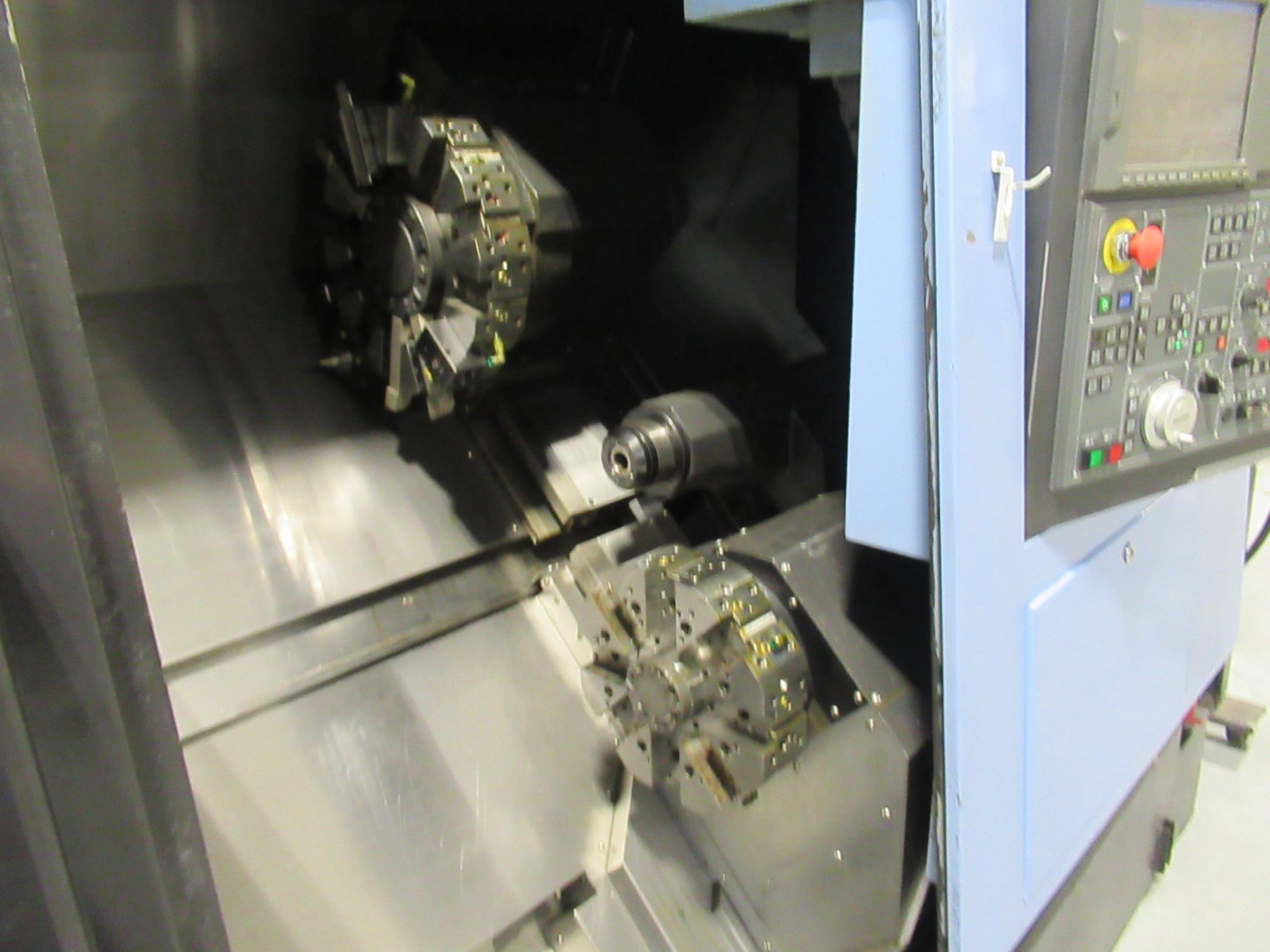

TURRETS & AXES
Upper Turret Capacity: 12 Stations
Upper Turret Travel (X/Z): 9.8″ × 25.6″
Lower Turret Capacity: 8 Stations
Lower Turret Travel (X/Z): 5.9″ × 24.8″
TAILSTOCK
Programmable Hydraulic Tailstock
Tailstock Travel: 4.7″
EQUIPPED WITH

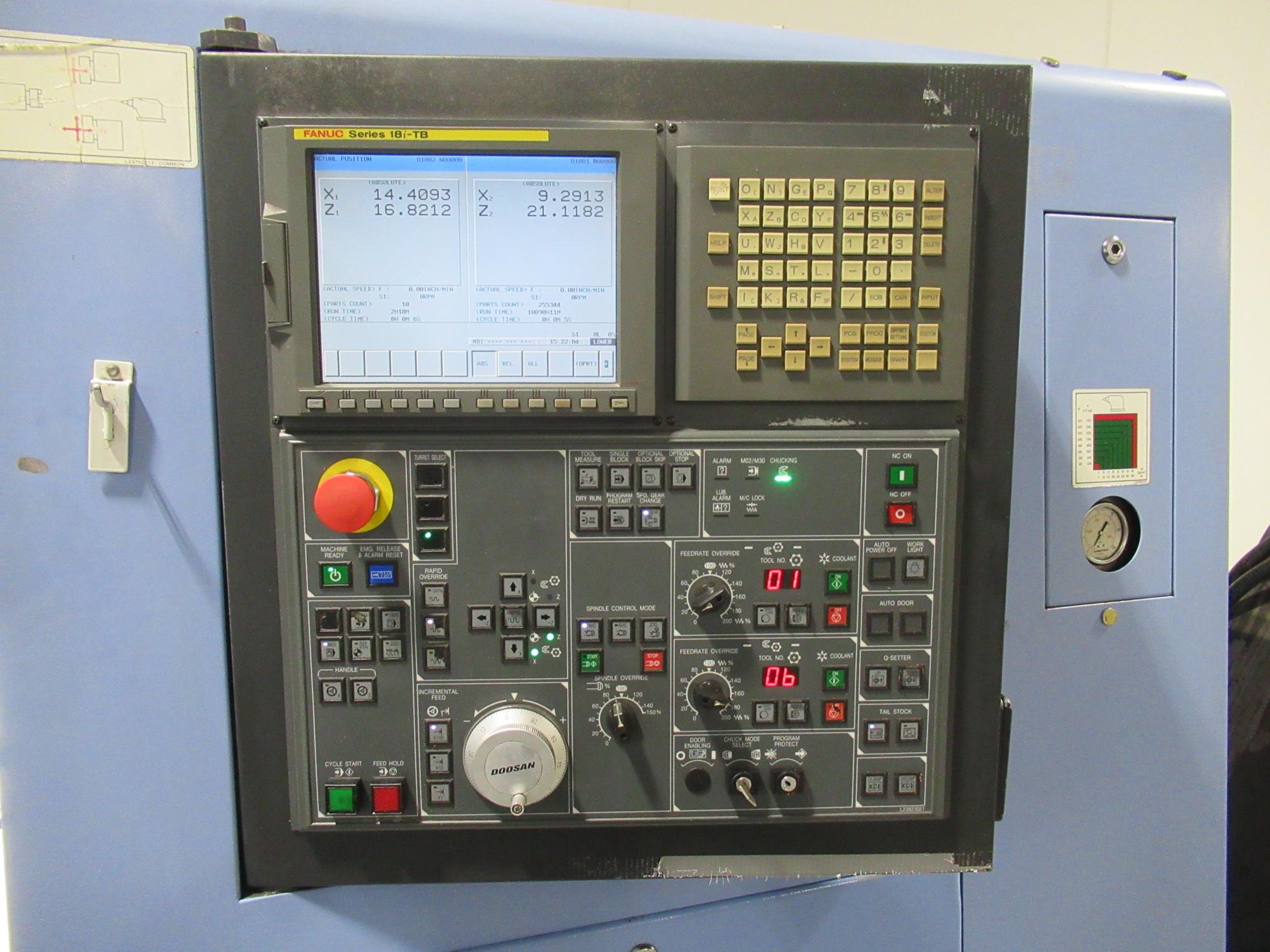

Fanuc 18i-TB CNC Control

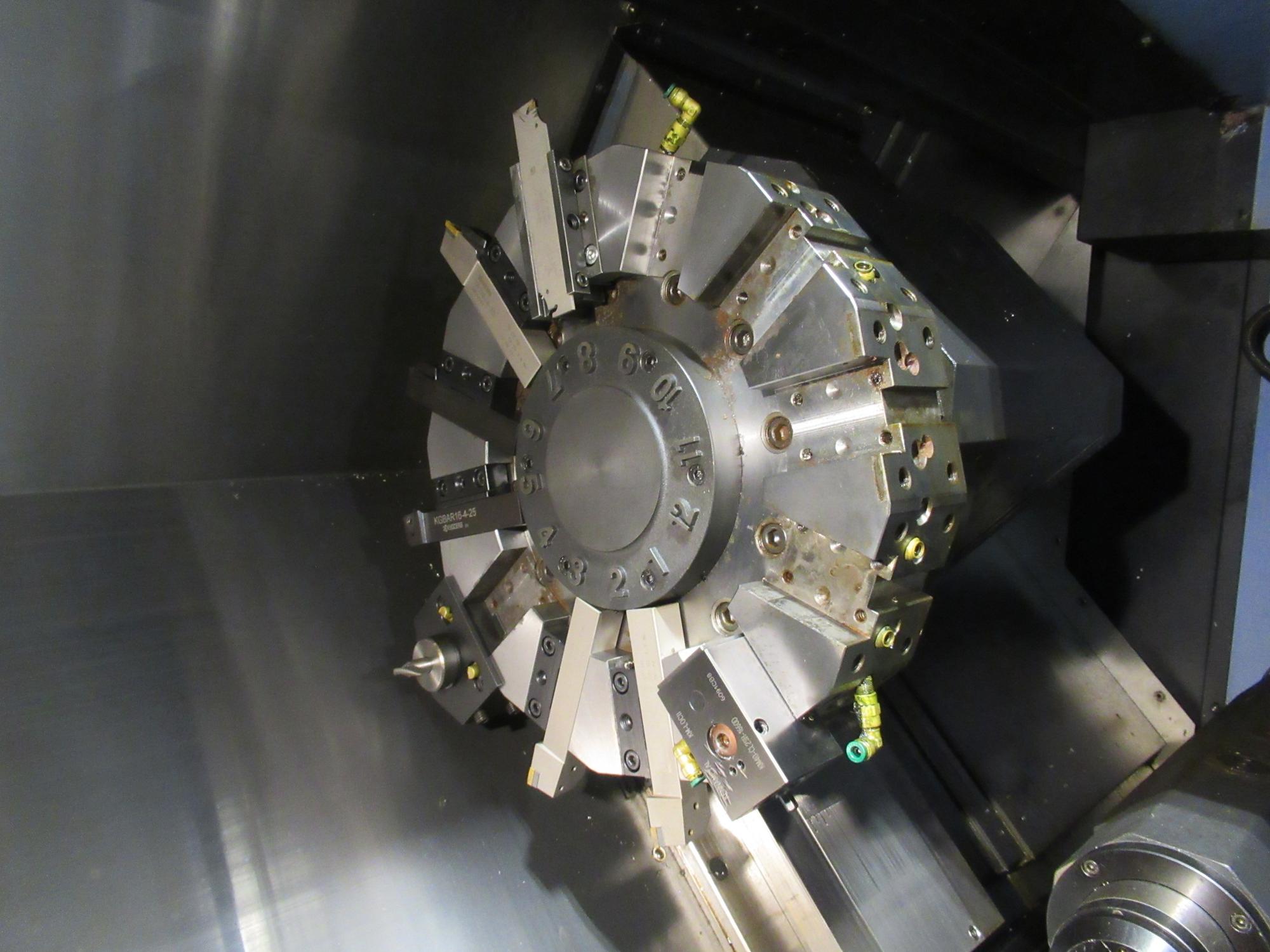

Upper 12-Station Turret

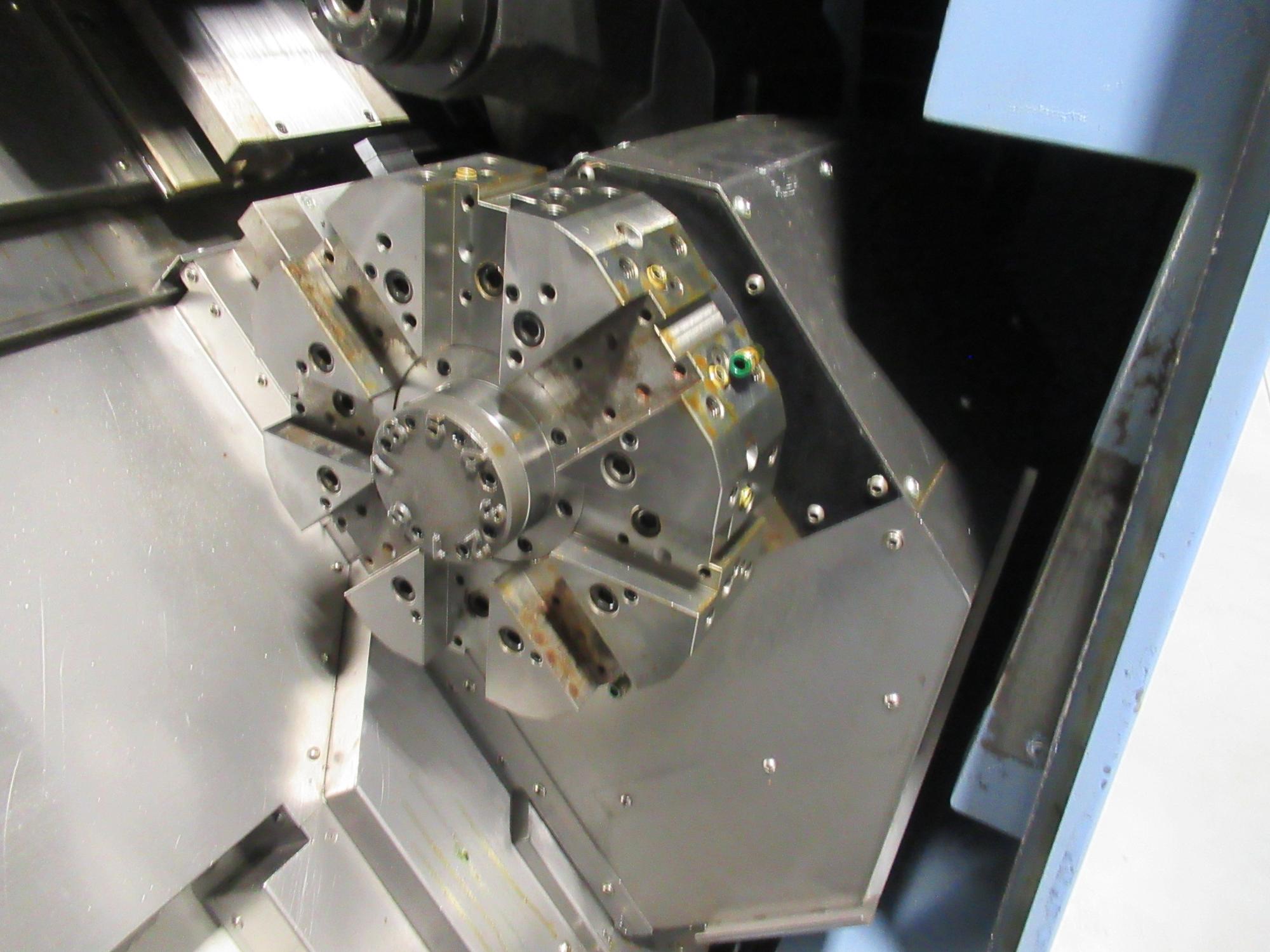

Lower 8-Station Turret

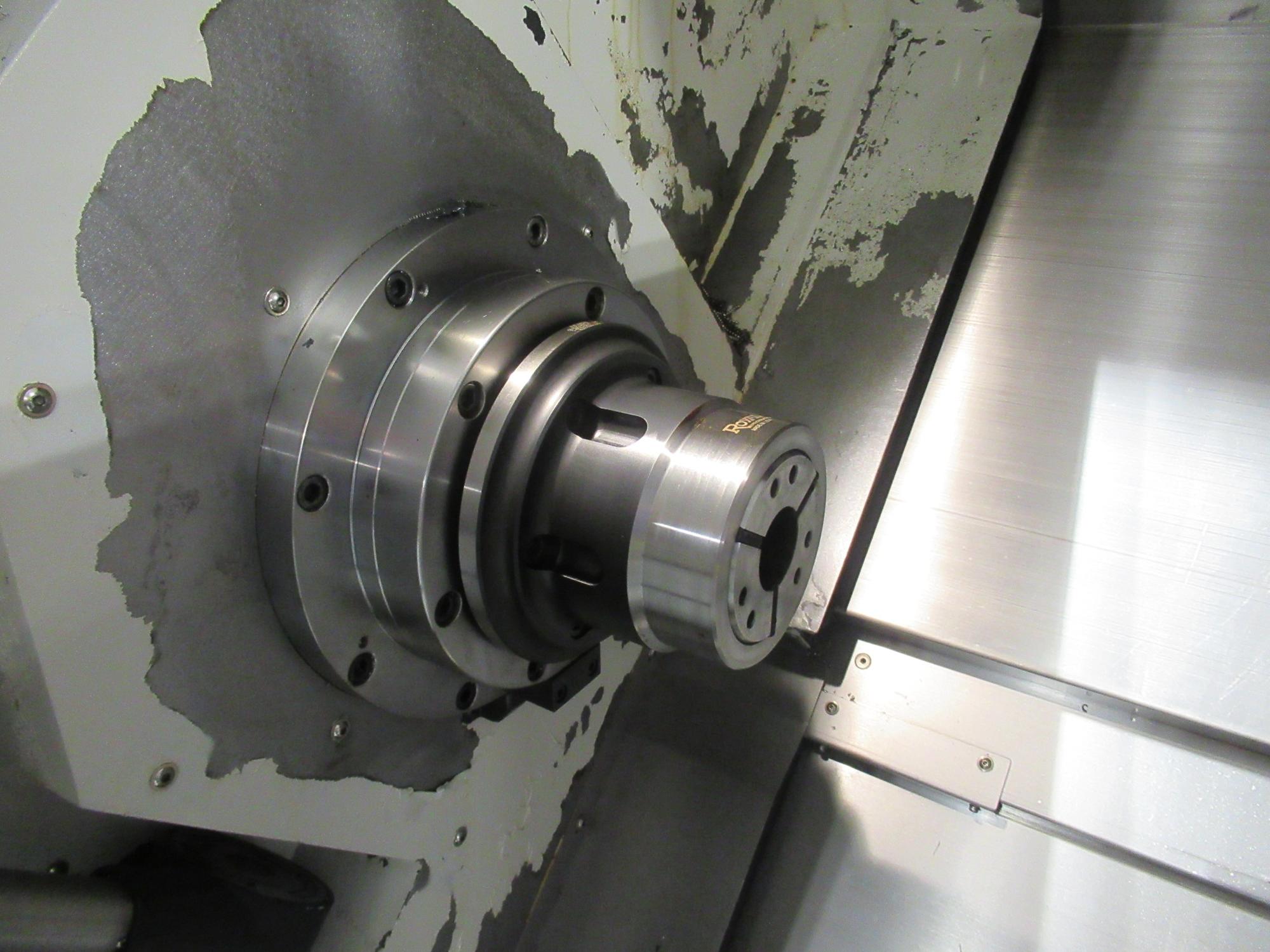

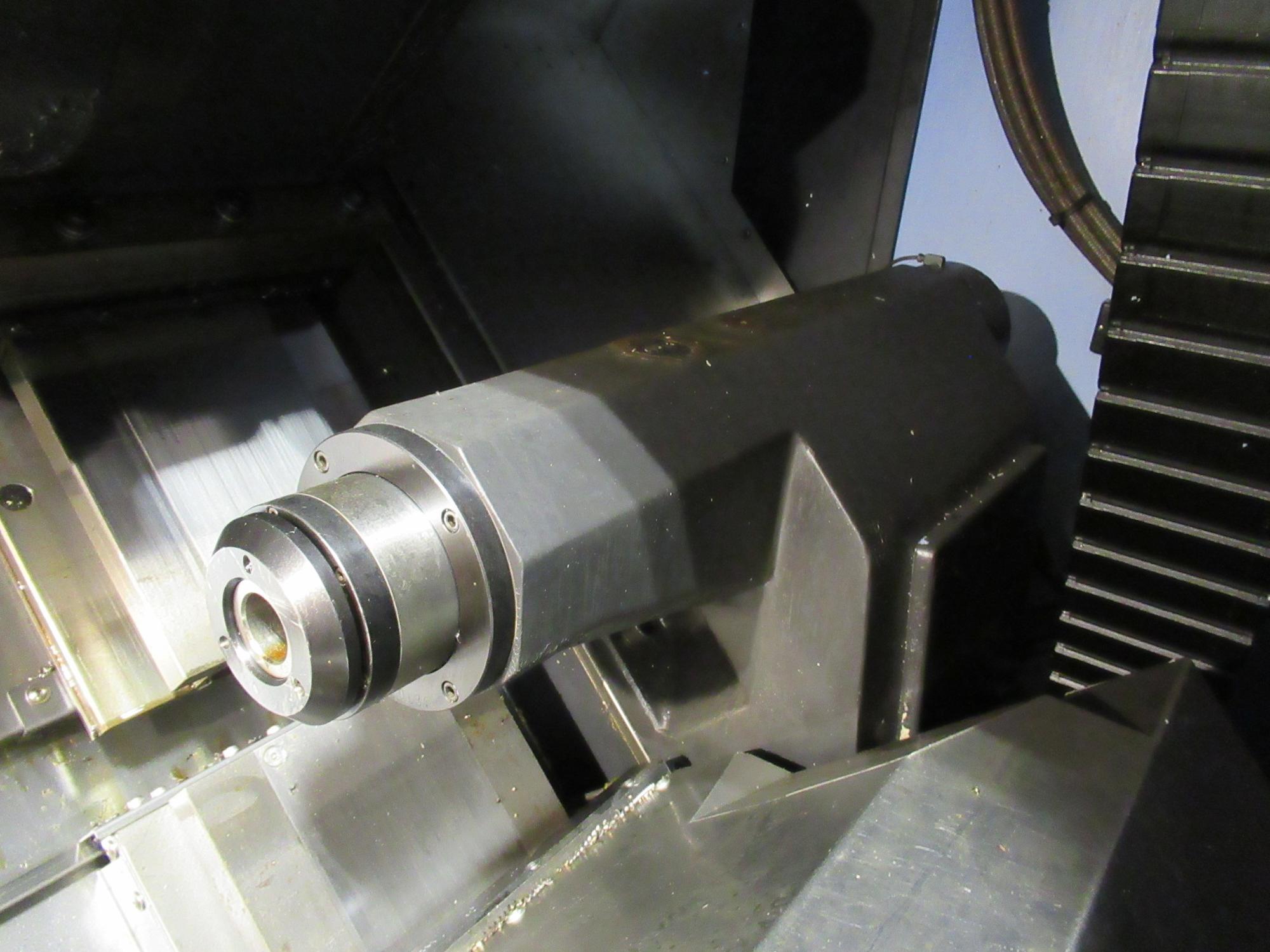

Royal QG-65 Collet Chuck
Hydraulic Tailstock

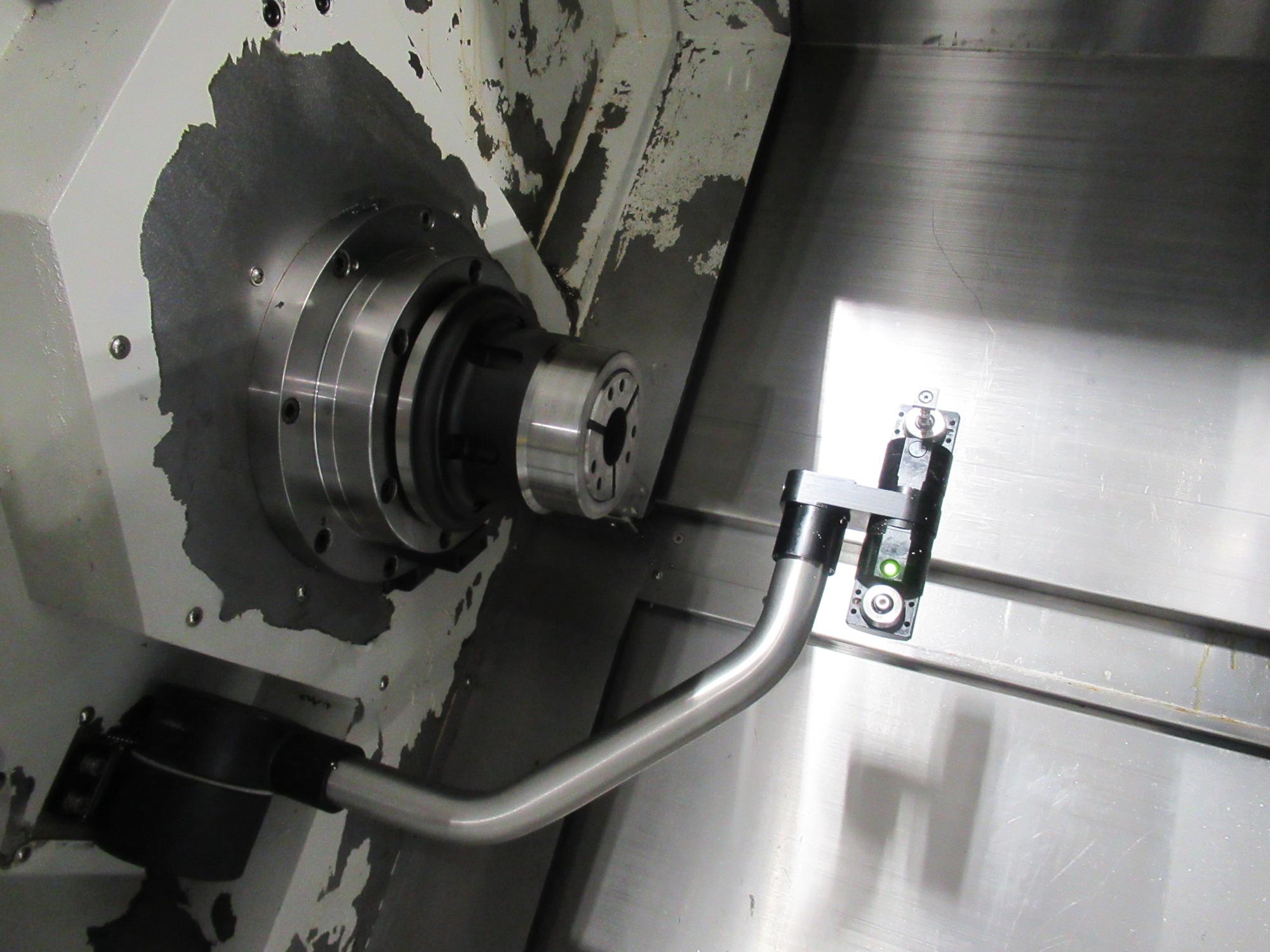

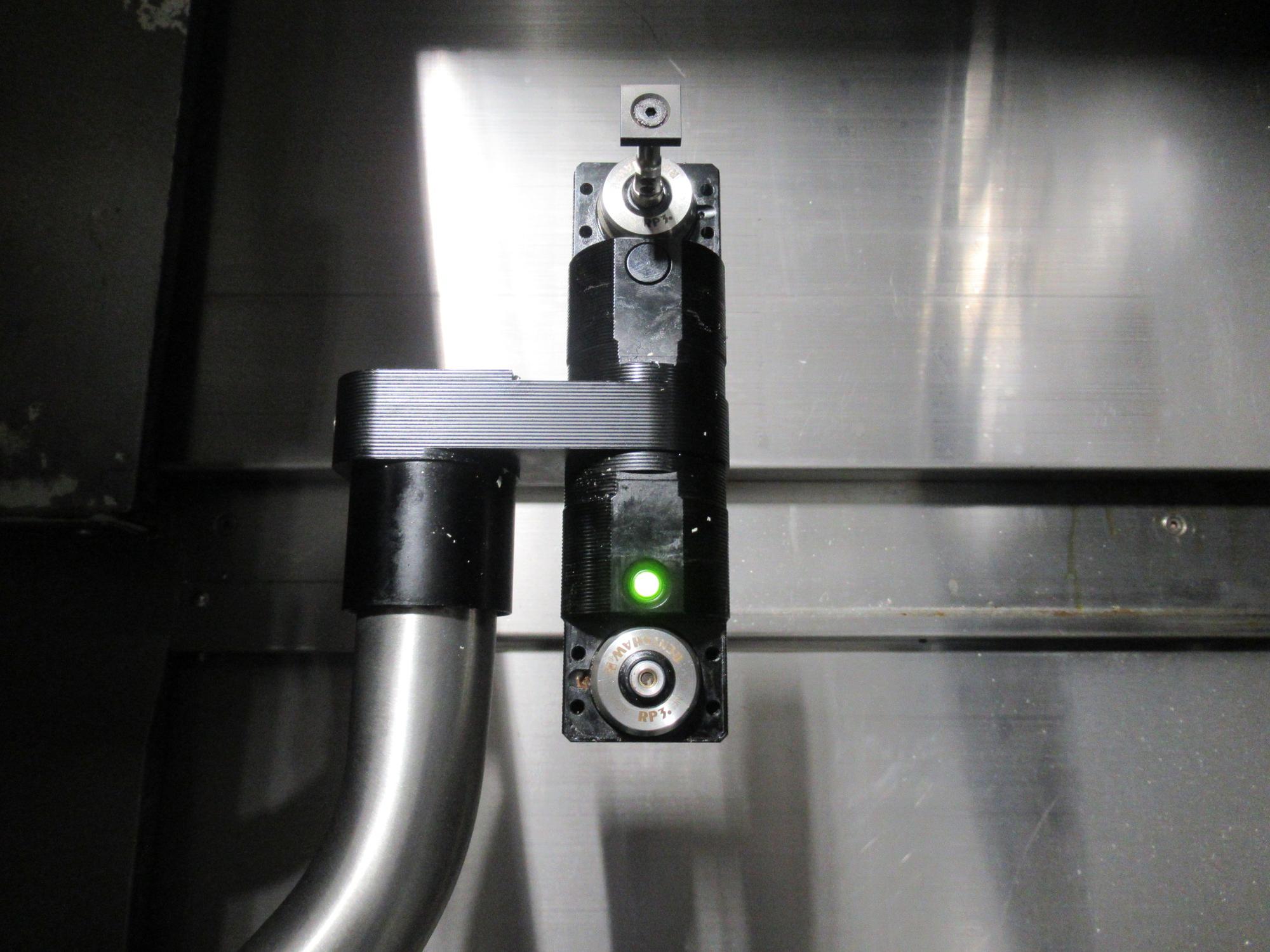

Tool Presetter
Parts Catcher (Basket Missing)

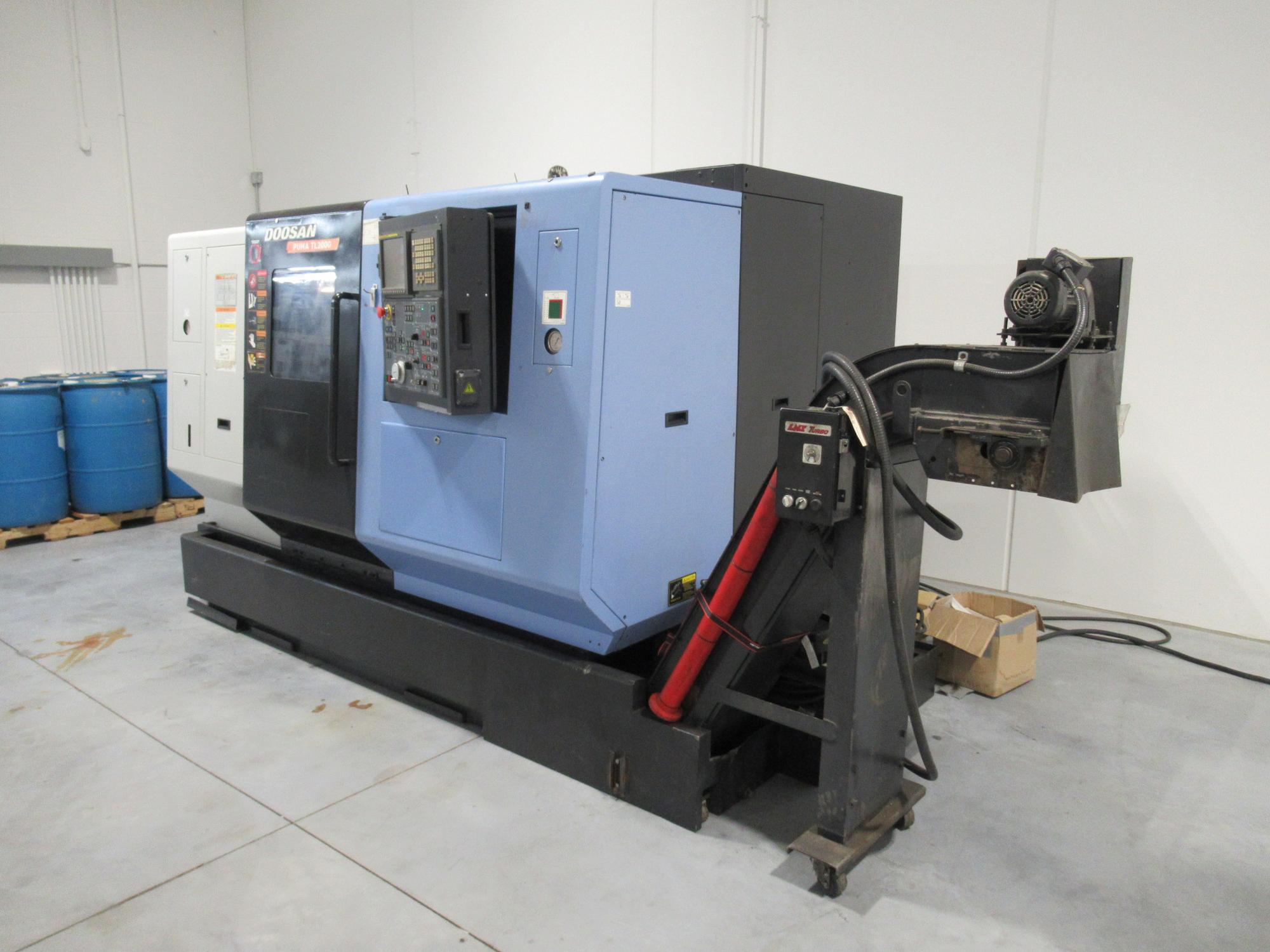

LNS Chip Conveyor
3 Boring Bar Holders
5 Wedge Clamps
Various Tooling
Remote Foot Switches
RS232 Port and Cat 5 Connection

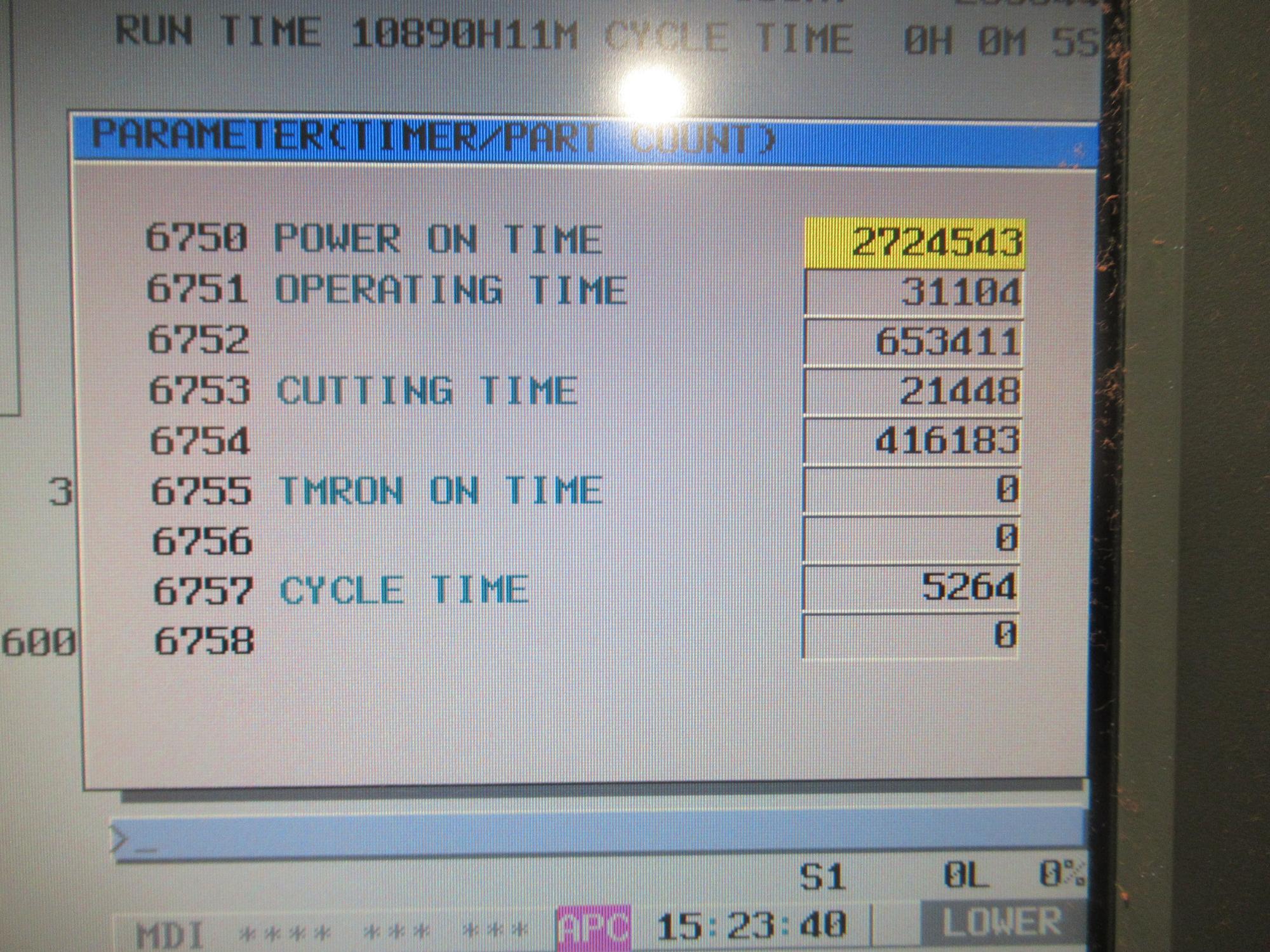

Manuals, Keys, and Machine Parameters
DIMENSIONS & WEIGHT
Main Unit Dimensions: 128″ L × 84″ W × 76″ H
Approximate Main Unit Weight: 16,000 lbs
L-Shaped Chip Conveyor / Coolant Tank: 164″ L × 60″ W × 66″ H
IMPORTANT NOTES
The upper turret select button is not working.
The axis drive batteries are dead.
The parts catcher basket is missing.
Live tool speeds are not available in the supplied specifications.
