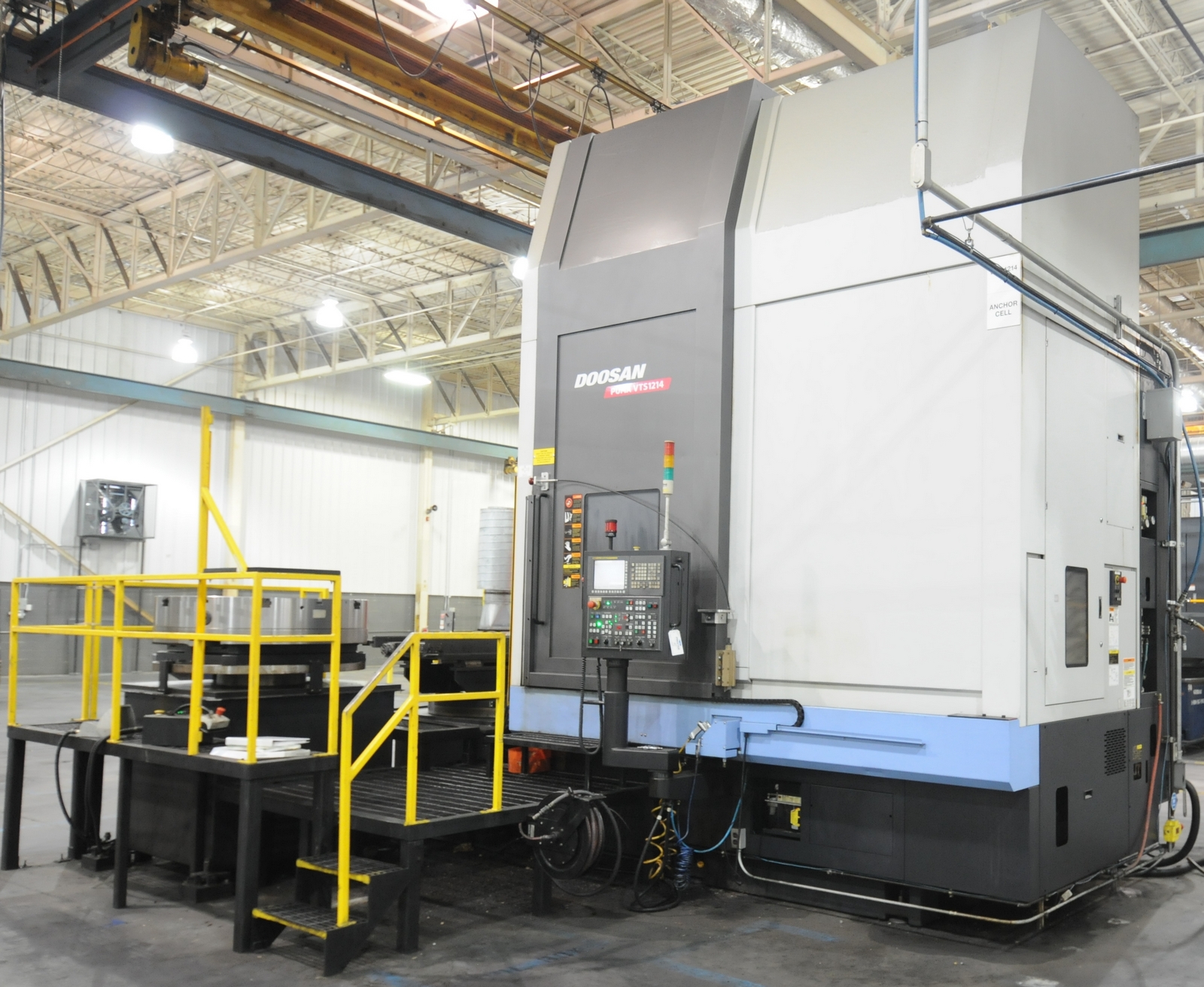

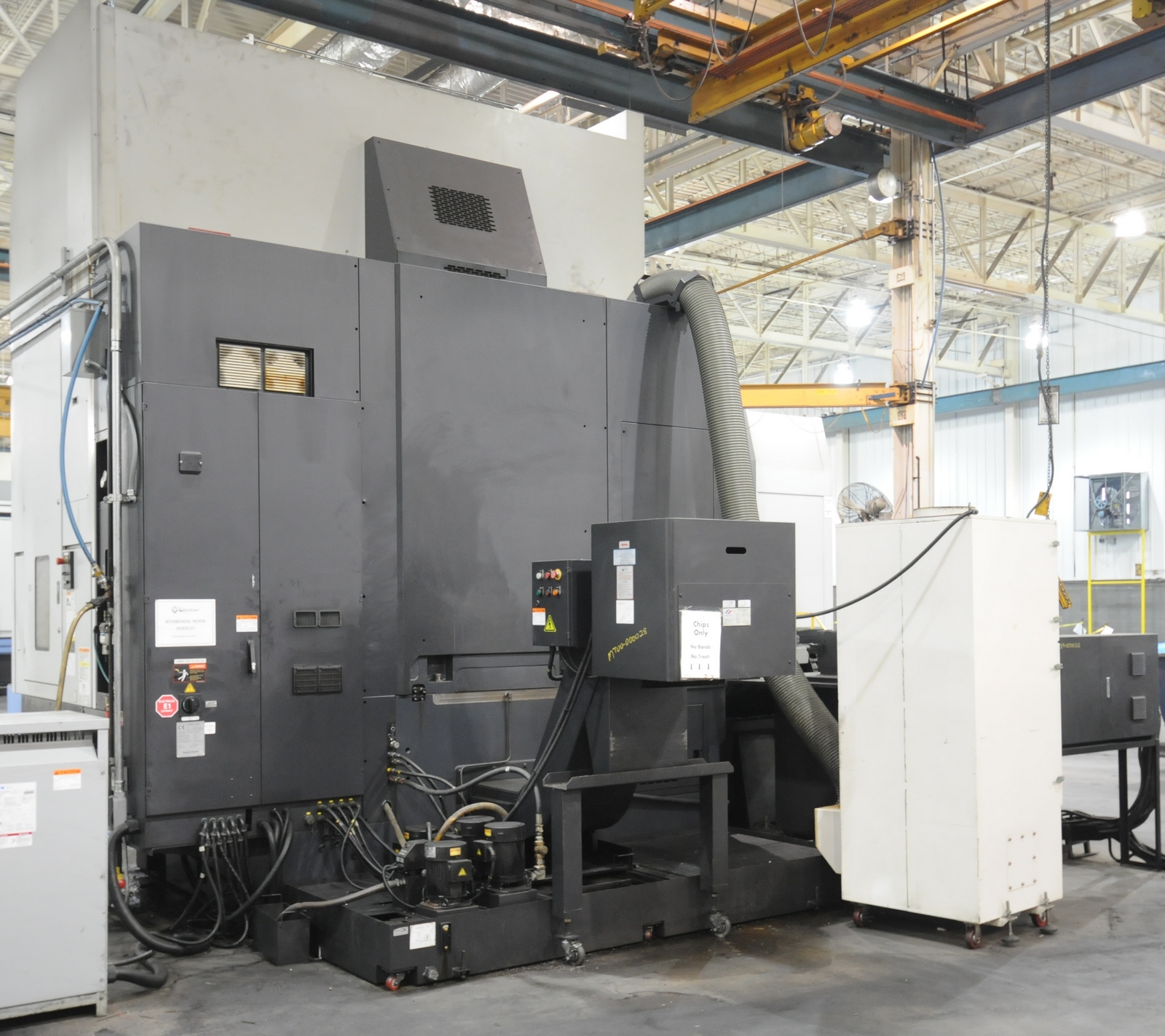

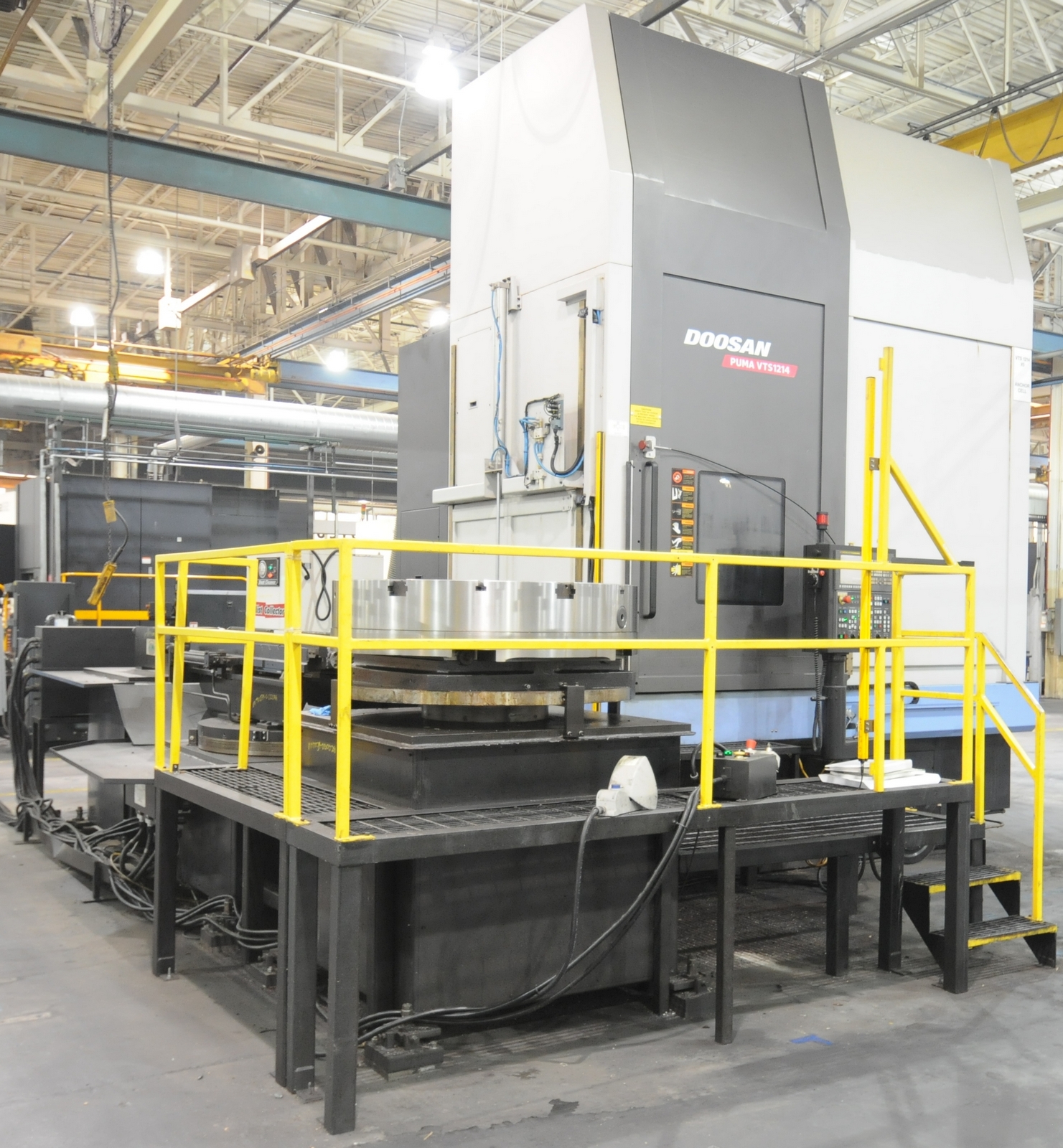

Doosan PUMA VTS1214 CNC Vertical Turning Center
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description
GENERAL INFORMATION
Manufacturer: Doosan
Model: PUMA VTS1214
Year: 2012
Machine Type: CNC Vertical Turning Center

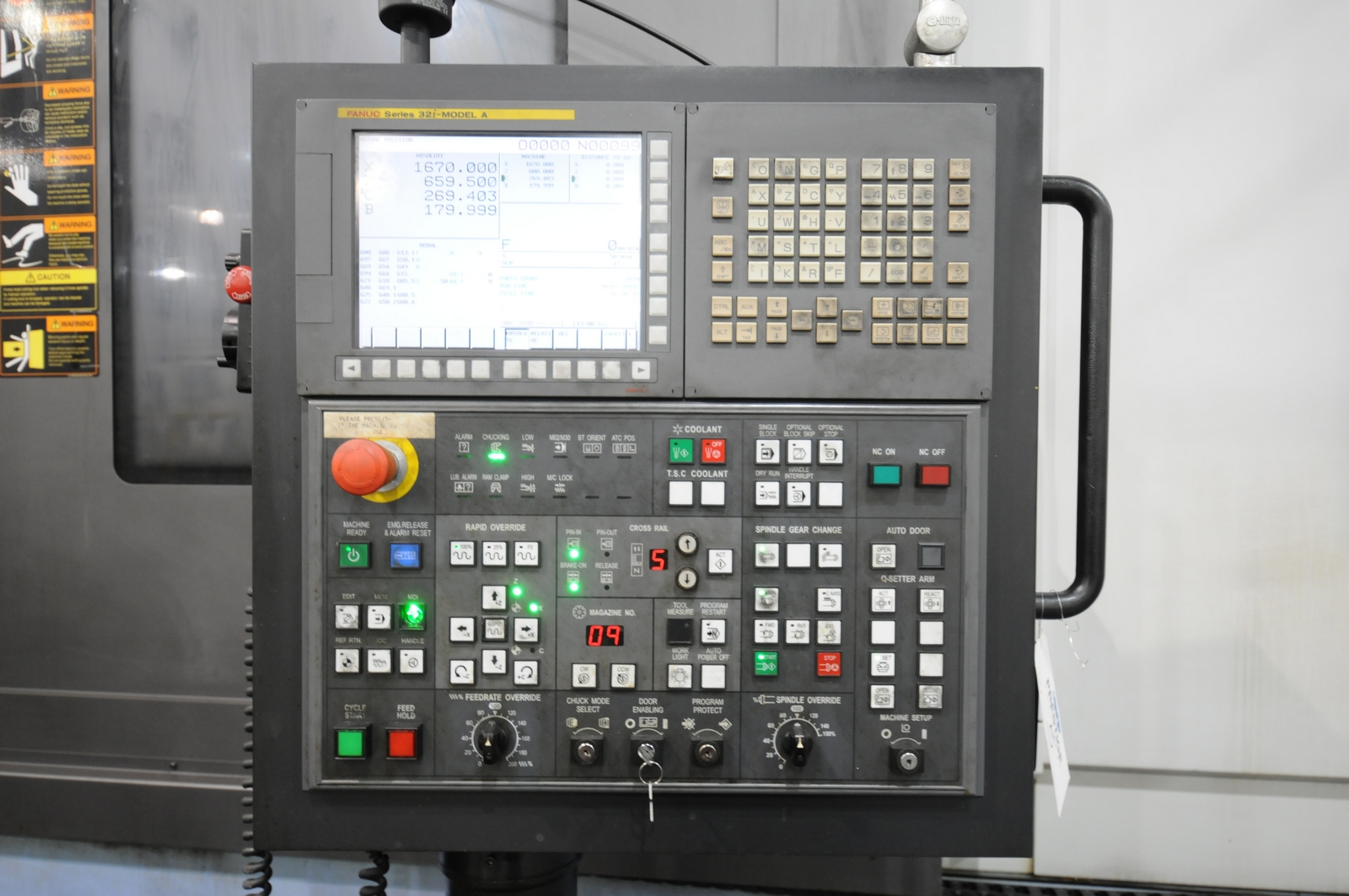

CNC Control: FANUC Series 31i-Model A
Approximate Power-On Hours: 27,585
Approximate Run Time Hours: 7,631
Approximate Cutting Hours: 2,194
TECHNICAL SPECIFICATIONS
Swing Over Bed: 55.11″
Swing Over Cross Rail: 29.52″
Maximum Turning Diameter: 53.14″
Maximum Turning Height: 32.04″
X-Axis Travel: 57.08″
Z-Axis Travel: 31.49″
W-Axis (Cross Rail) Travel: 23.62″ (5.90″ × 4 steps)
Rapid Traverse X/Z: 472.44 in/min
Maximum Table Capacity: 8,800 lbs
Low Gear Spindle Speed: 83–250 RPM
High Gear Spindle Speed: 329–630 RPM
Main Spindle Drive Power: 80/75/60 HP (10-minute/30-minute/continuous)
Spindle Bore: 3.93″
Automatic Tool Changer: 15 stations
Electrical Requirements: 220 V, 60 Hz, 3-phase
INCLUDED EQUIPMENT

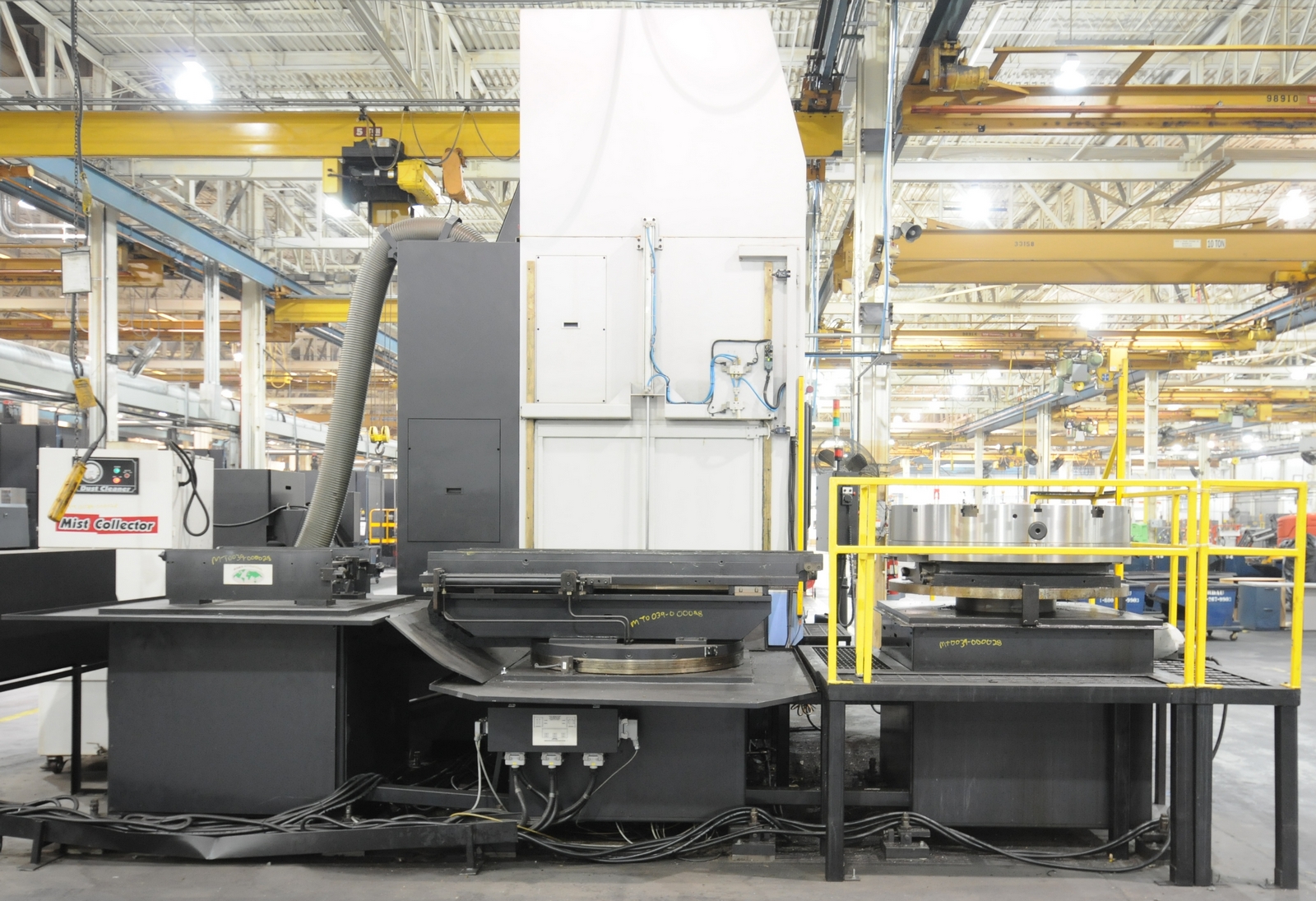

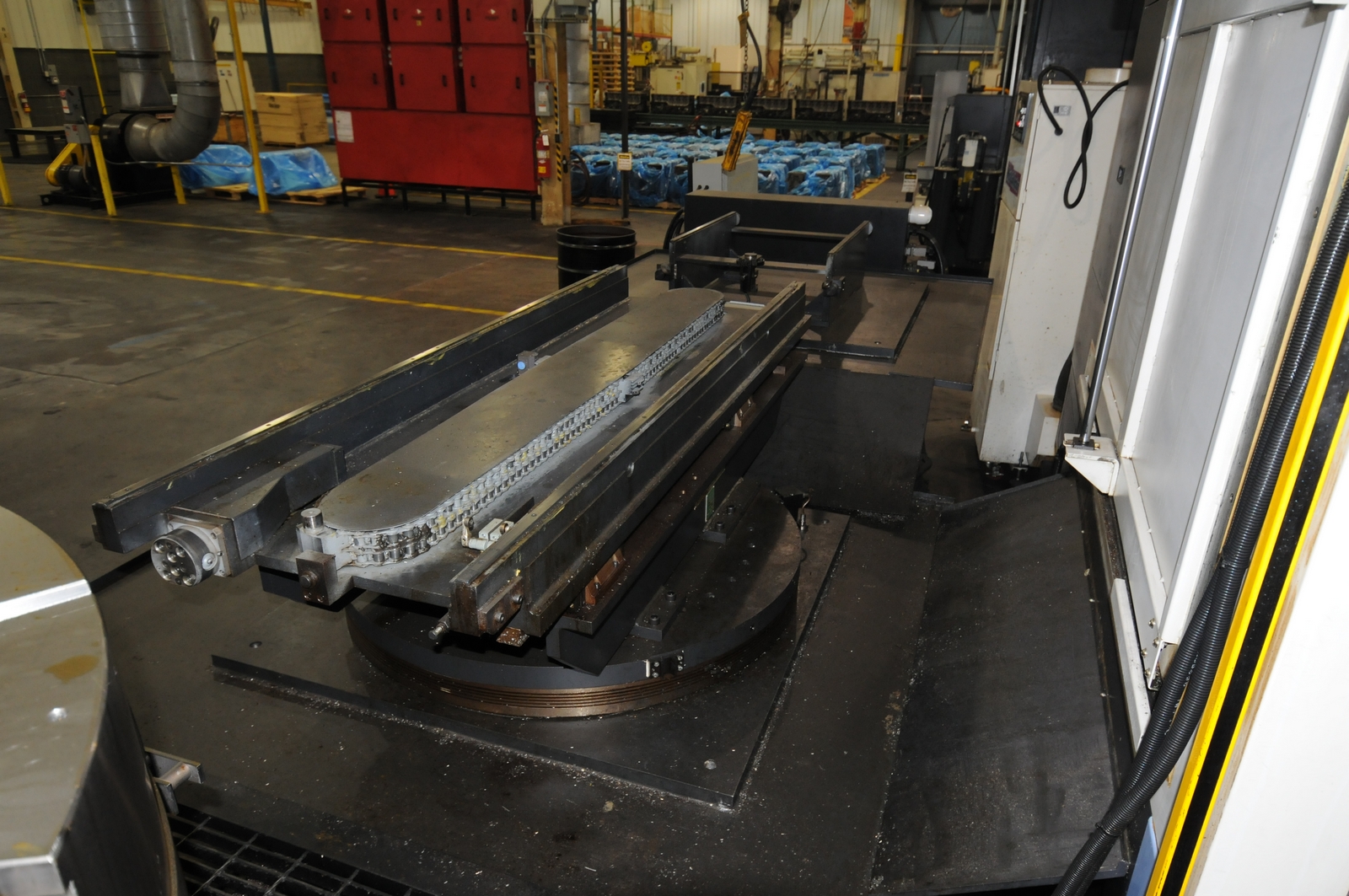

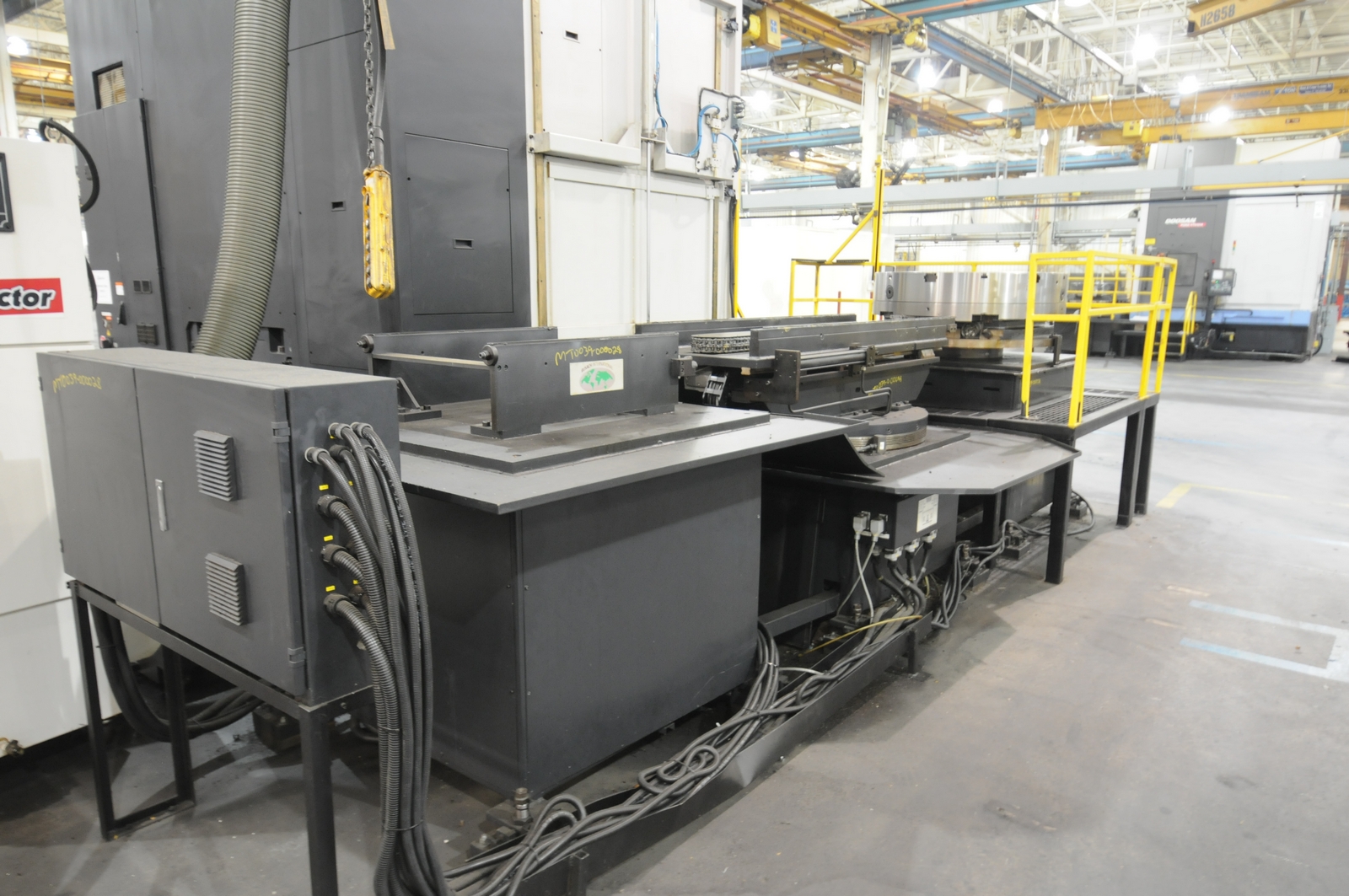

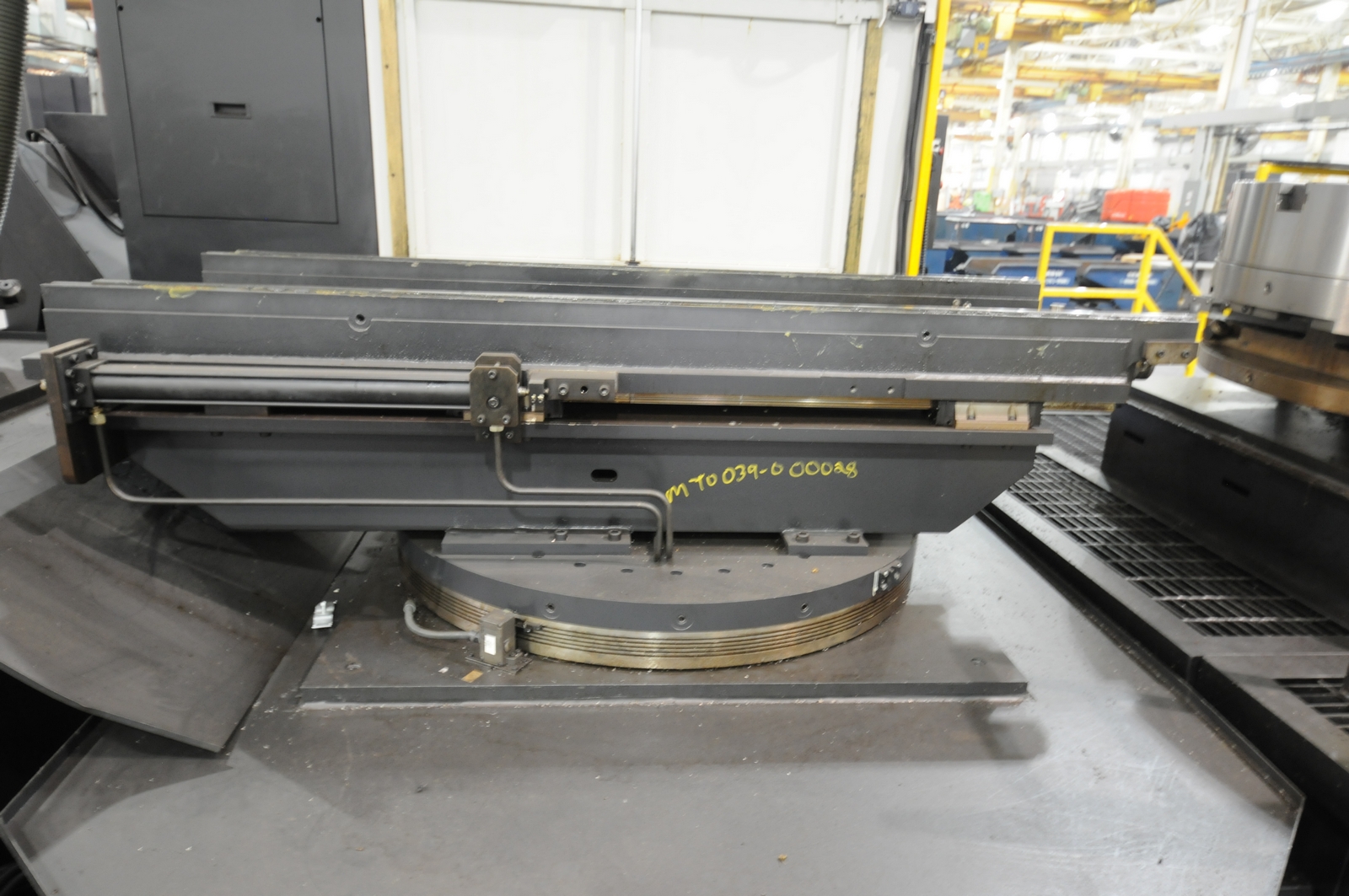

Rusach 8-10 D1250 Integrated Twin-Pallet Automatic Pallet Changer (2012)

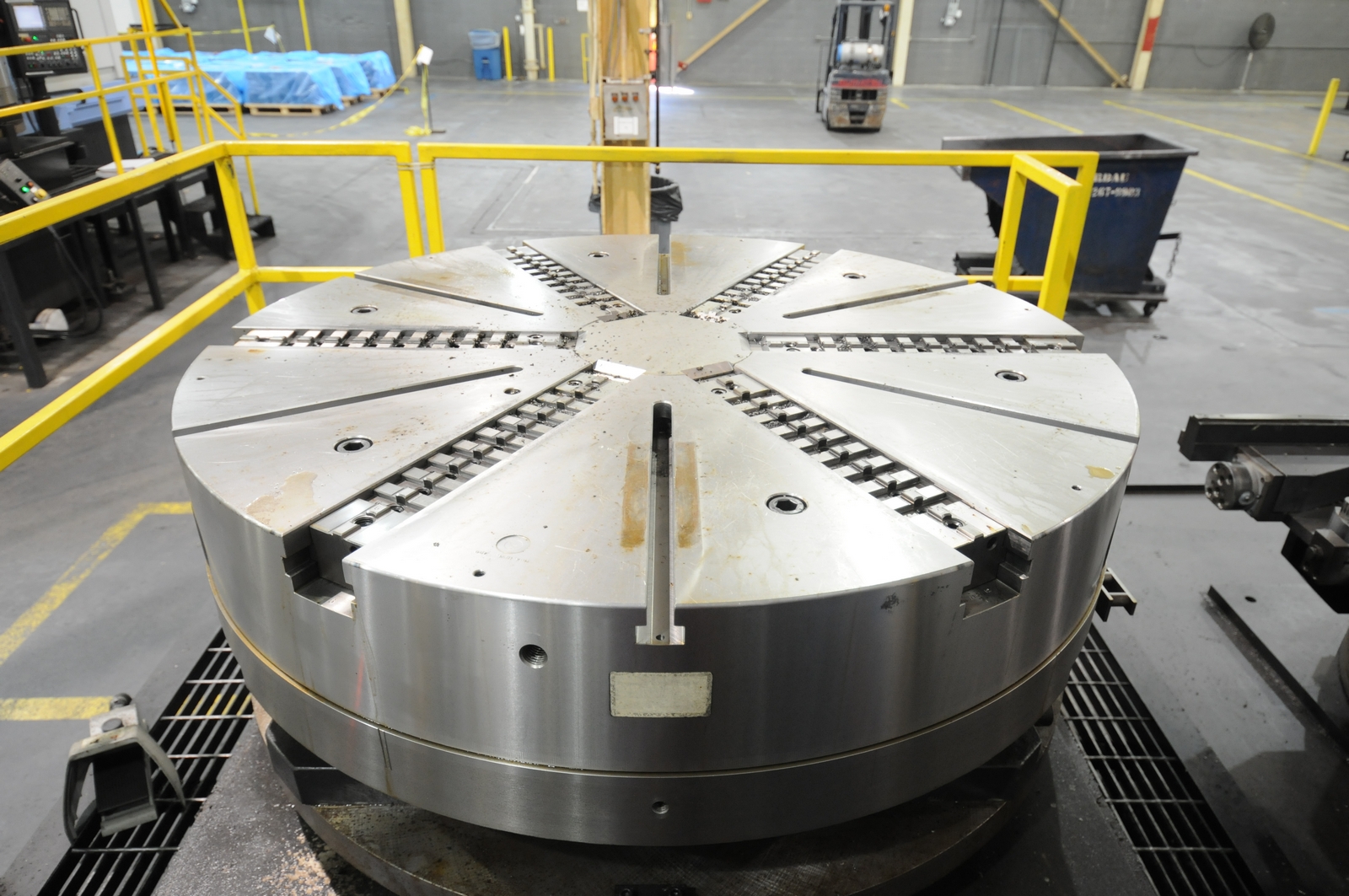

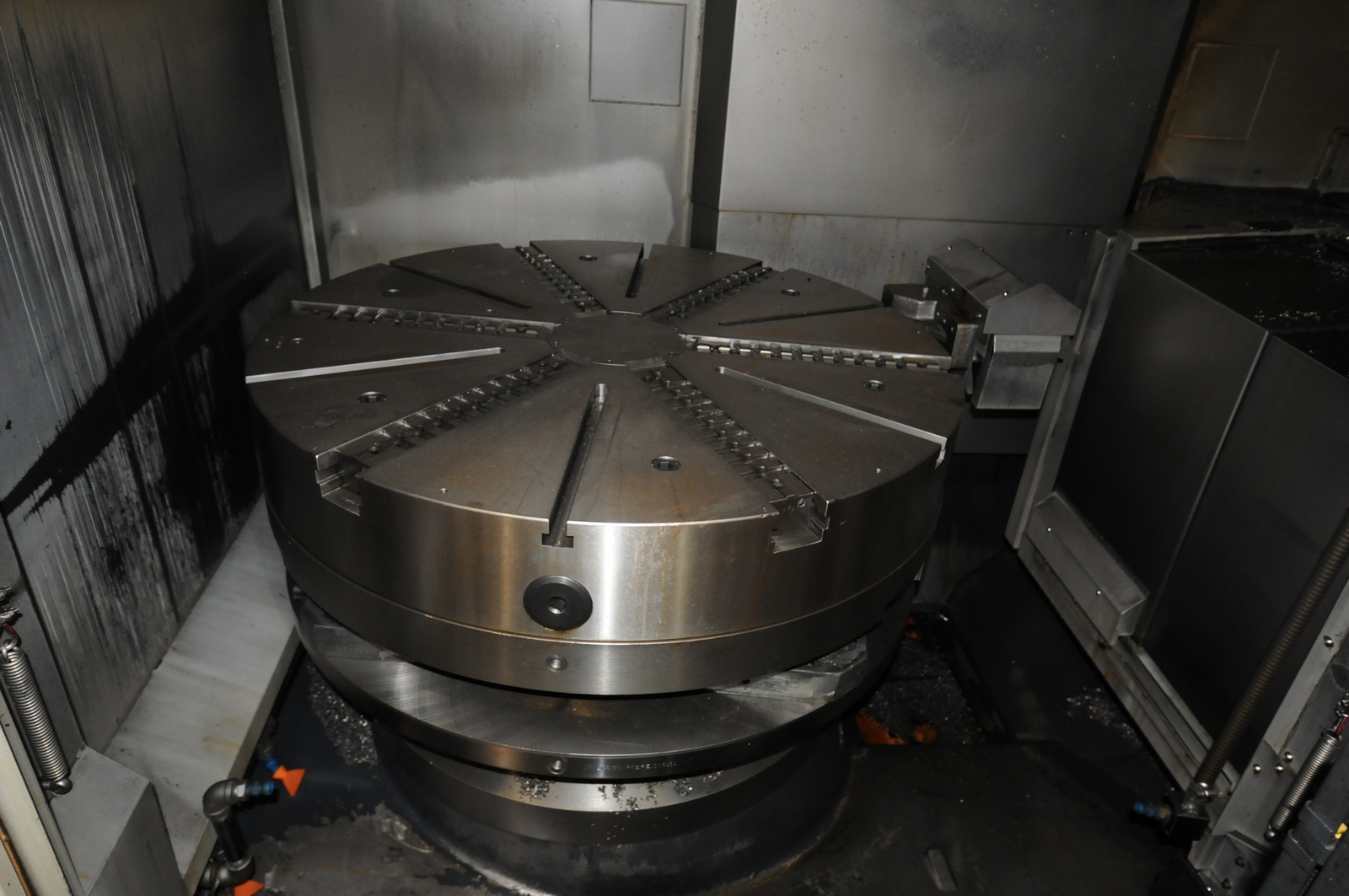

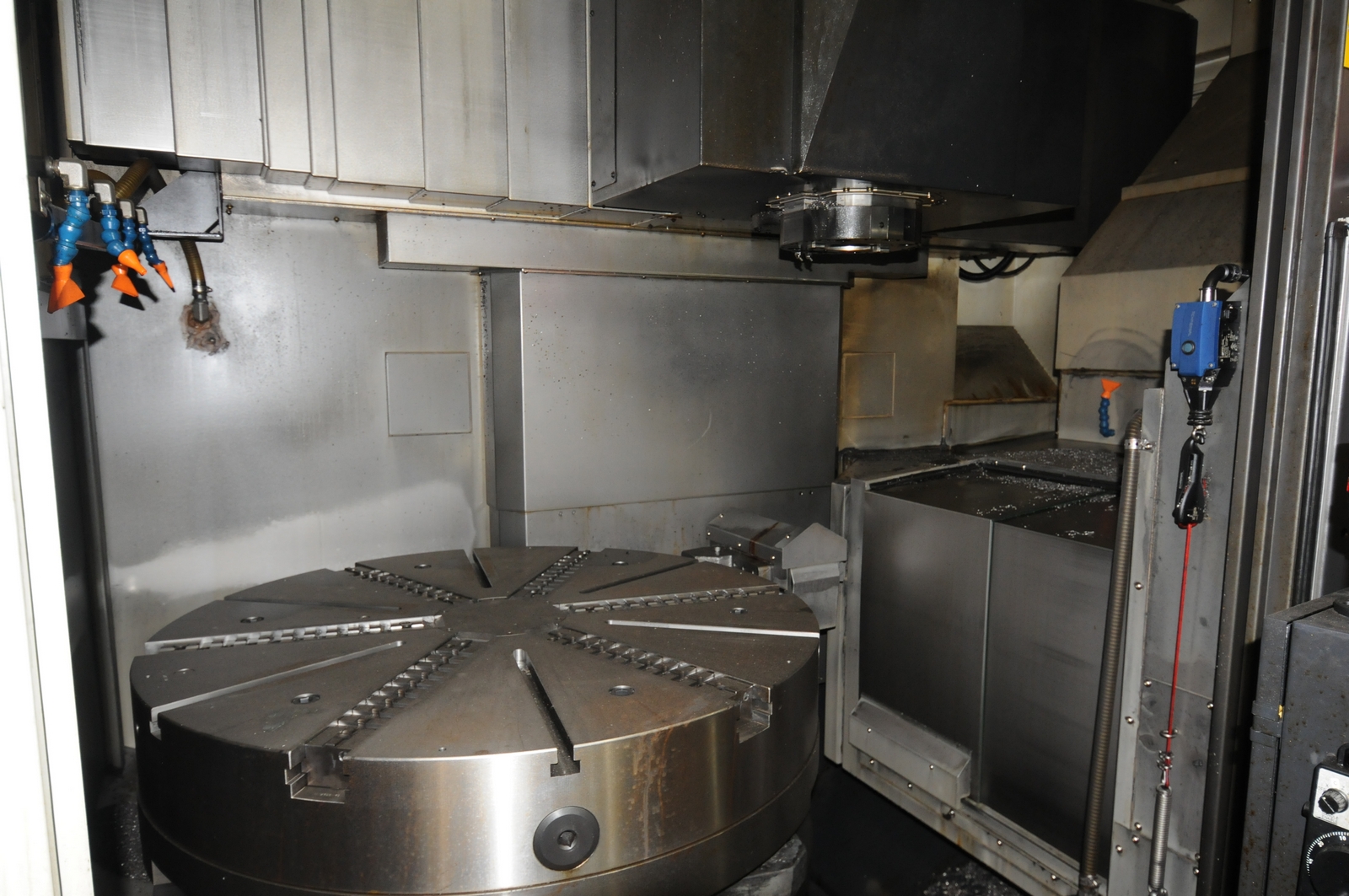

(2) 39.37″ Diameter Chucks
Automatic Doors
Light Curtain Safety Interlocks

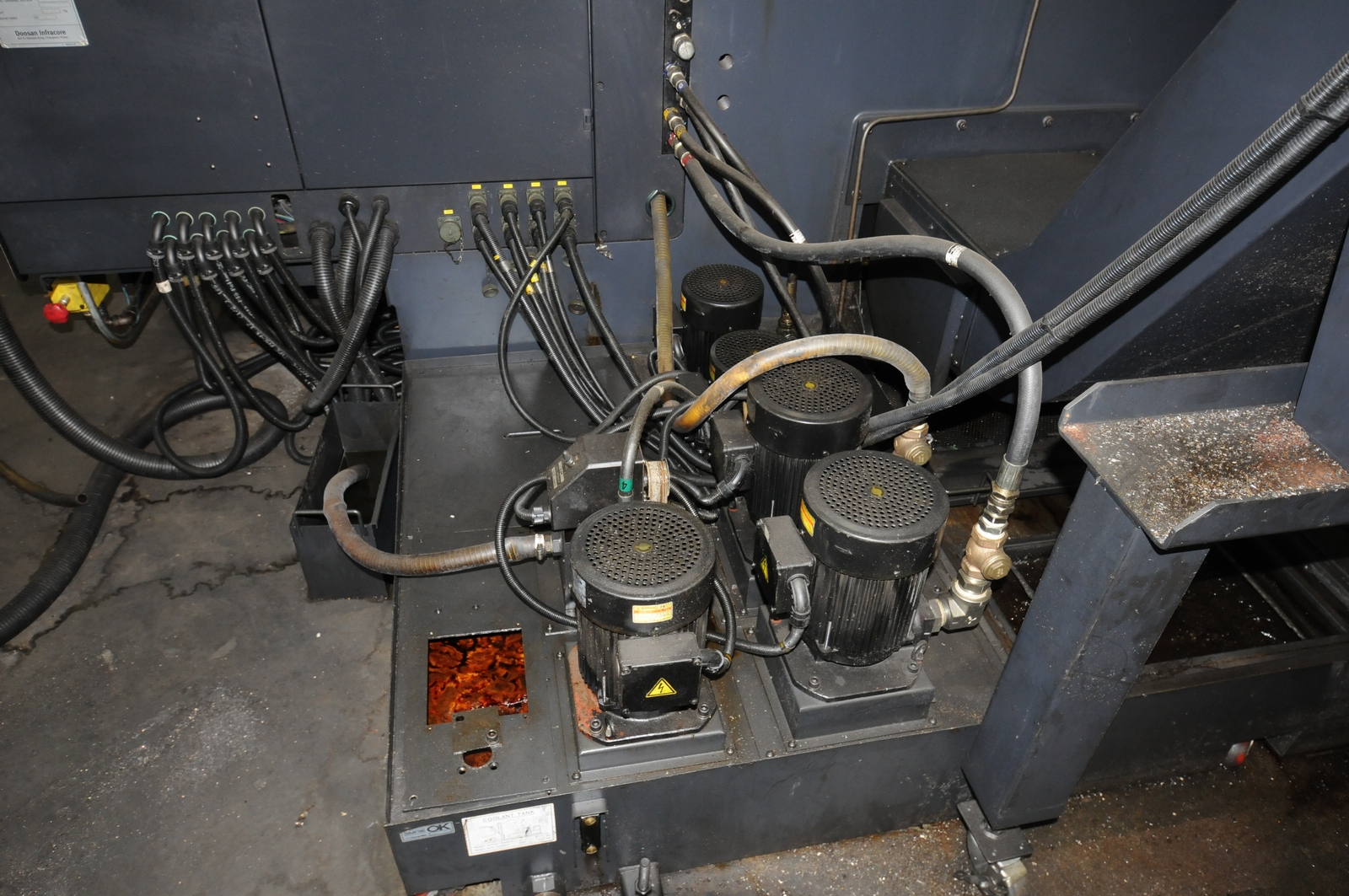

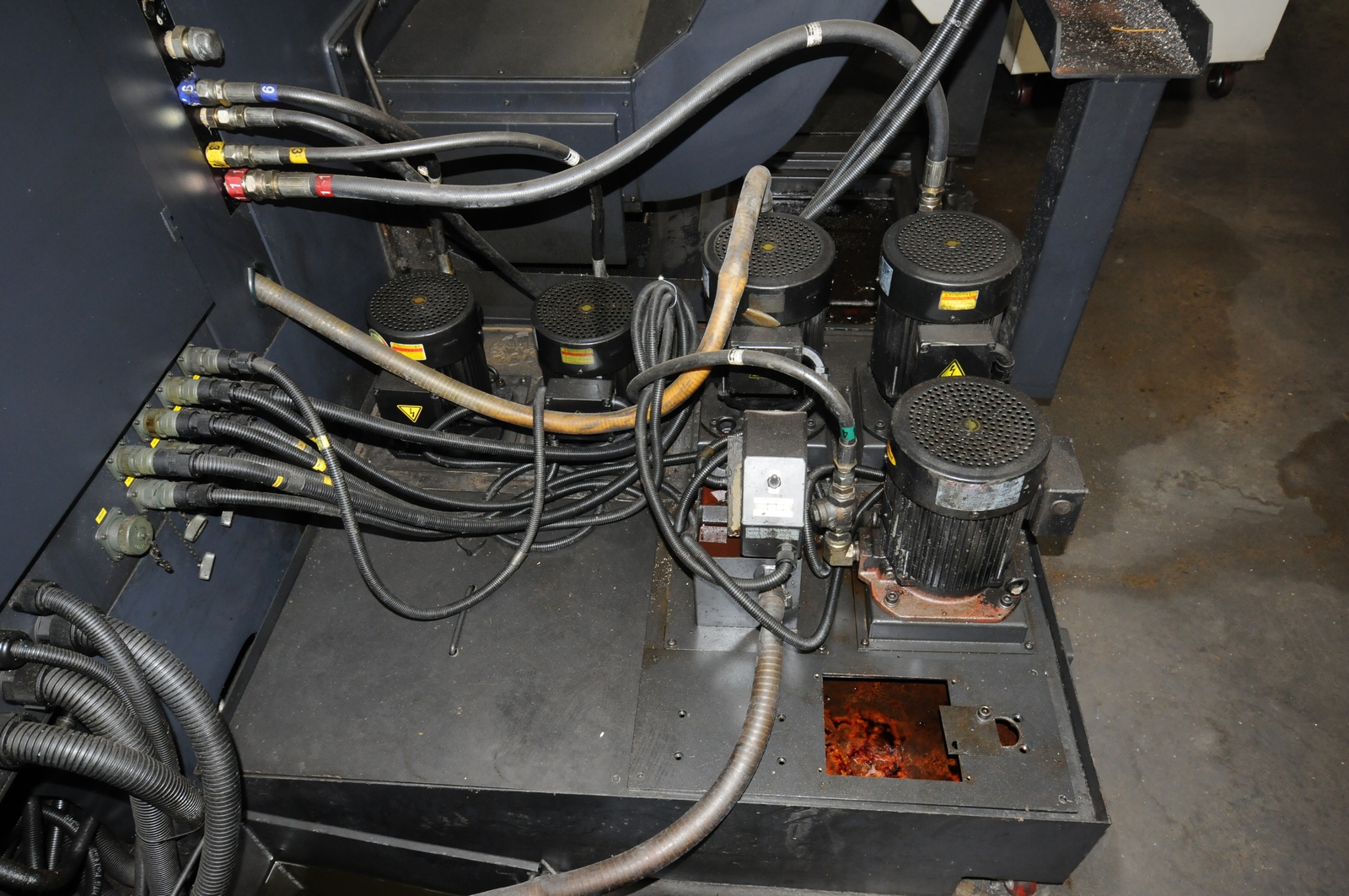

Coolant System
Oil Skimmer

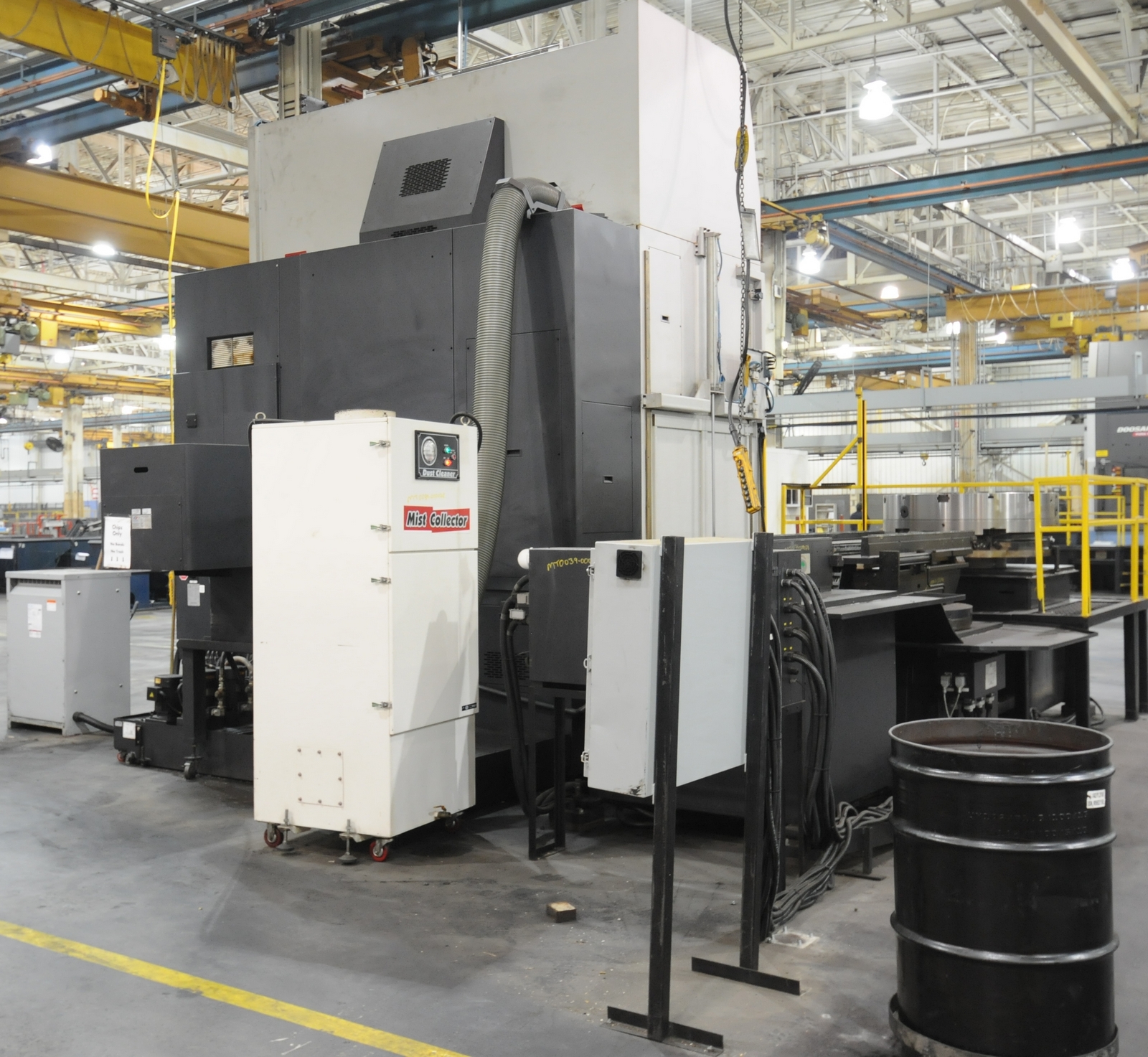

Mist Collector

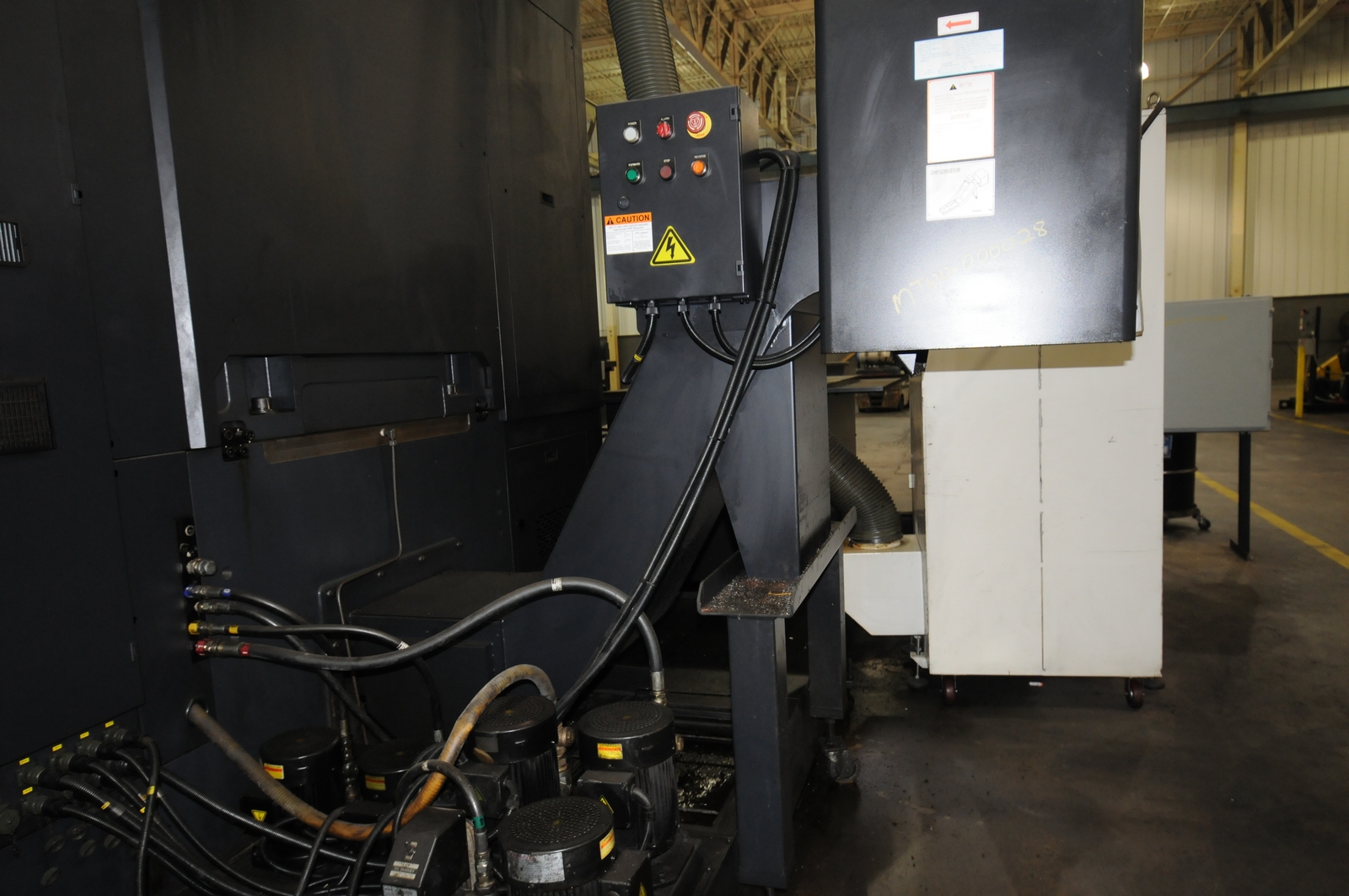

Hinged Belt-Type Chip Conveyor with Rear Discharge
Transformer
KEY HIGHLIGHTS
Large-capacity CNC vertical turning center
FANUC Series 31i-Model A CNC control
Twin-pallet system for improved production efficiency
Two 39.37″ diameter chucks
15-station automatic tool changer
Automatic doors and light curtain safety interlocks
Integrated coolant, oil skimming, mist collection, and chip removal systems
APPLICATIONS
Precision vertical turning of large components
Heavy-duty metal machining
Industrial and energy-sector component manufacturing
Large-diameter parts production
General heavy manufacturing and machining operations
