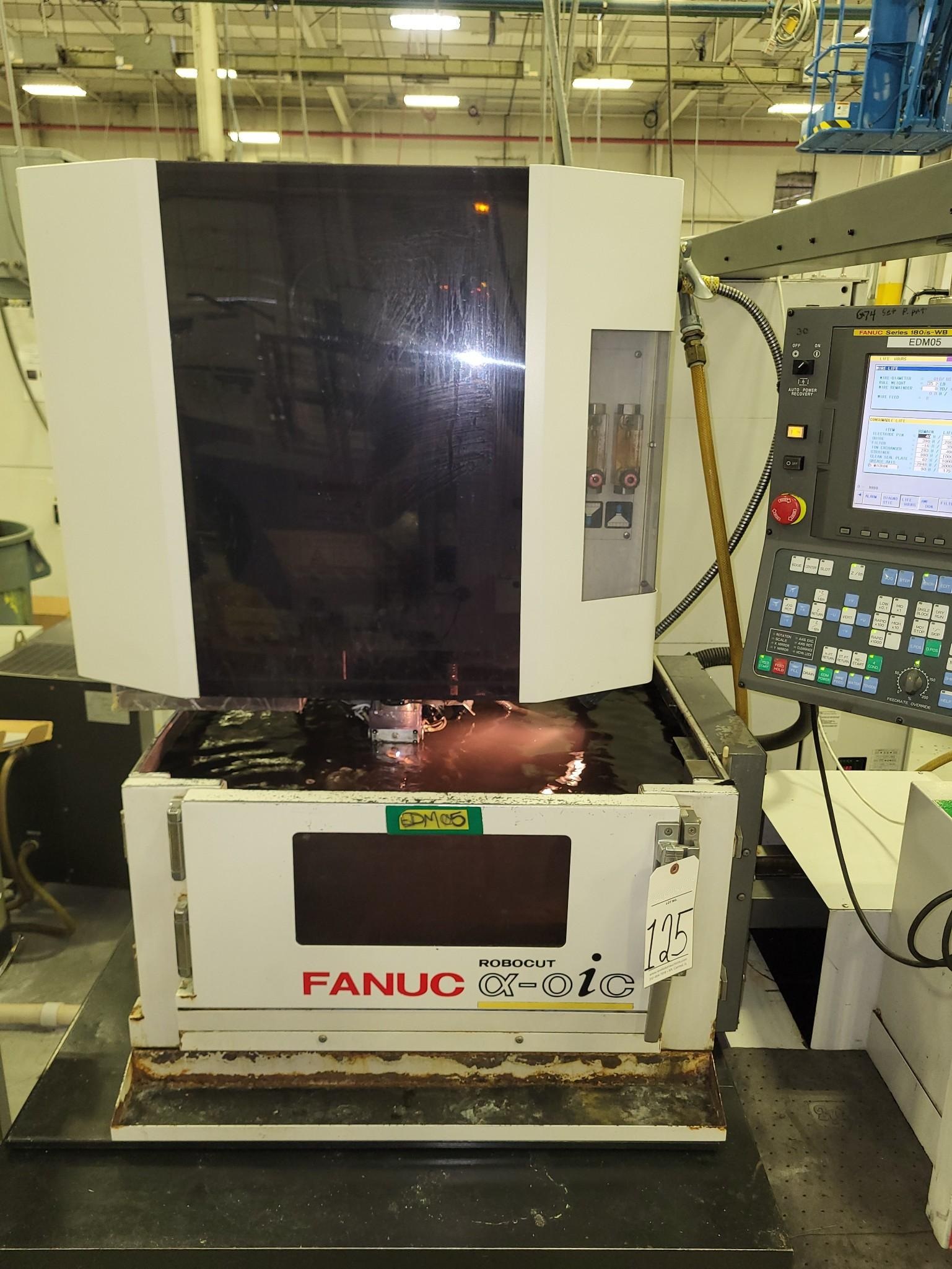

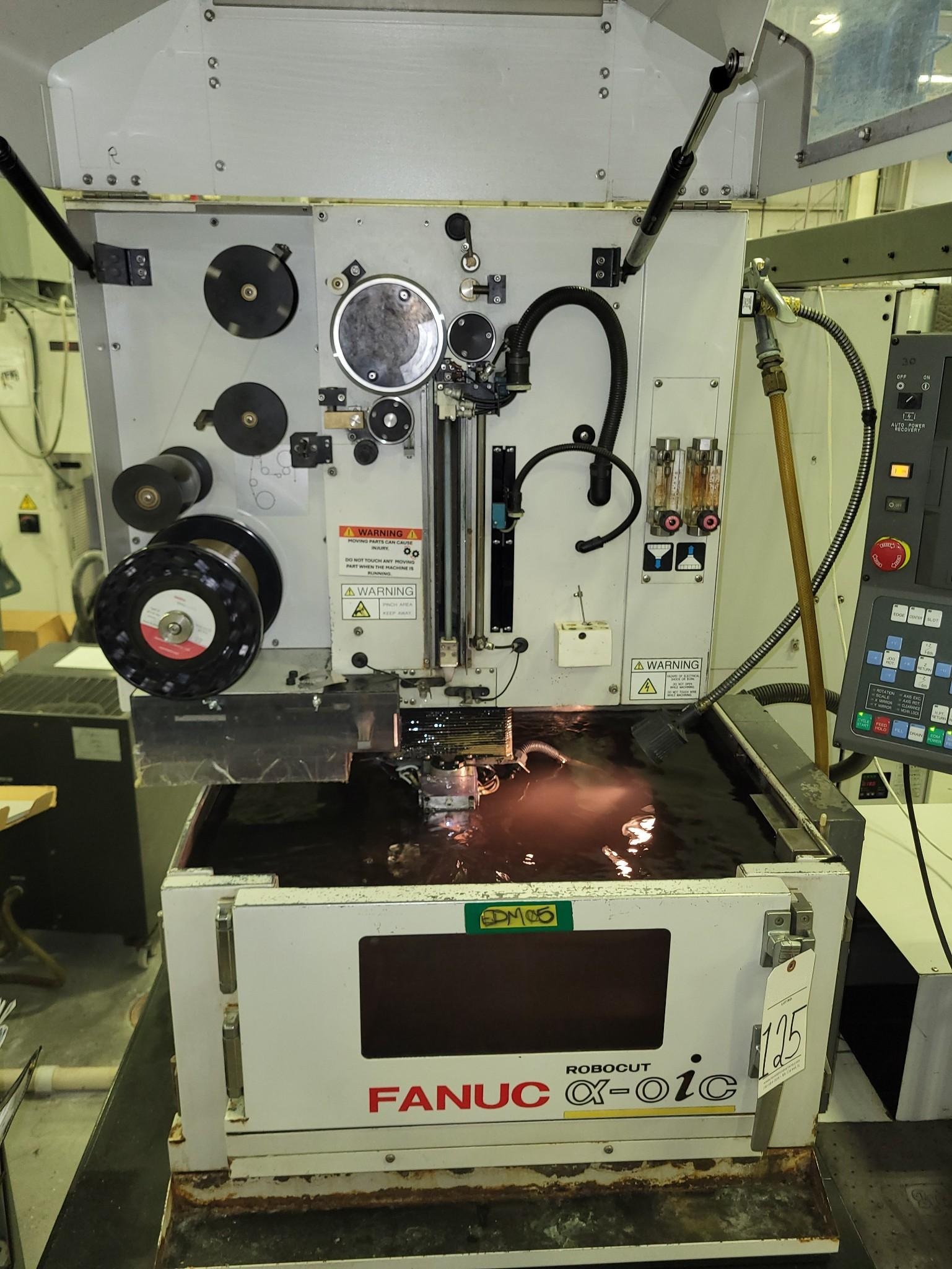

FANUC ROBOCUT Alpha 0iC CNC Wire EDM Machine
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description
GENERAL INFORMATION
Manufacturer: FANUC
Model: ROBOCUT Alpha 0iC
Year: 2004
Machine Type: CNC Wire Electrical Discharge Machining (EDM)

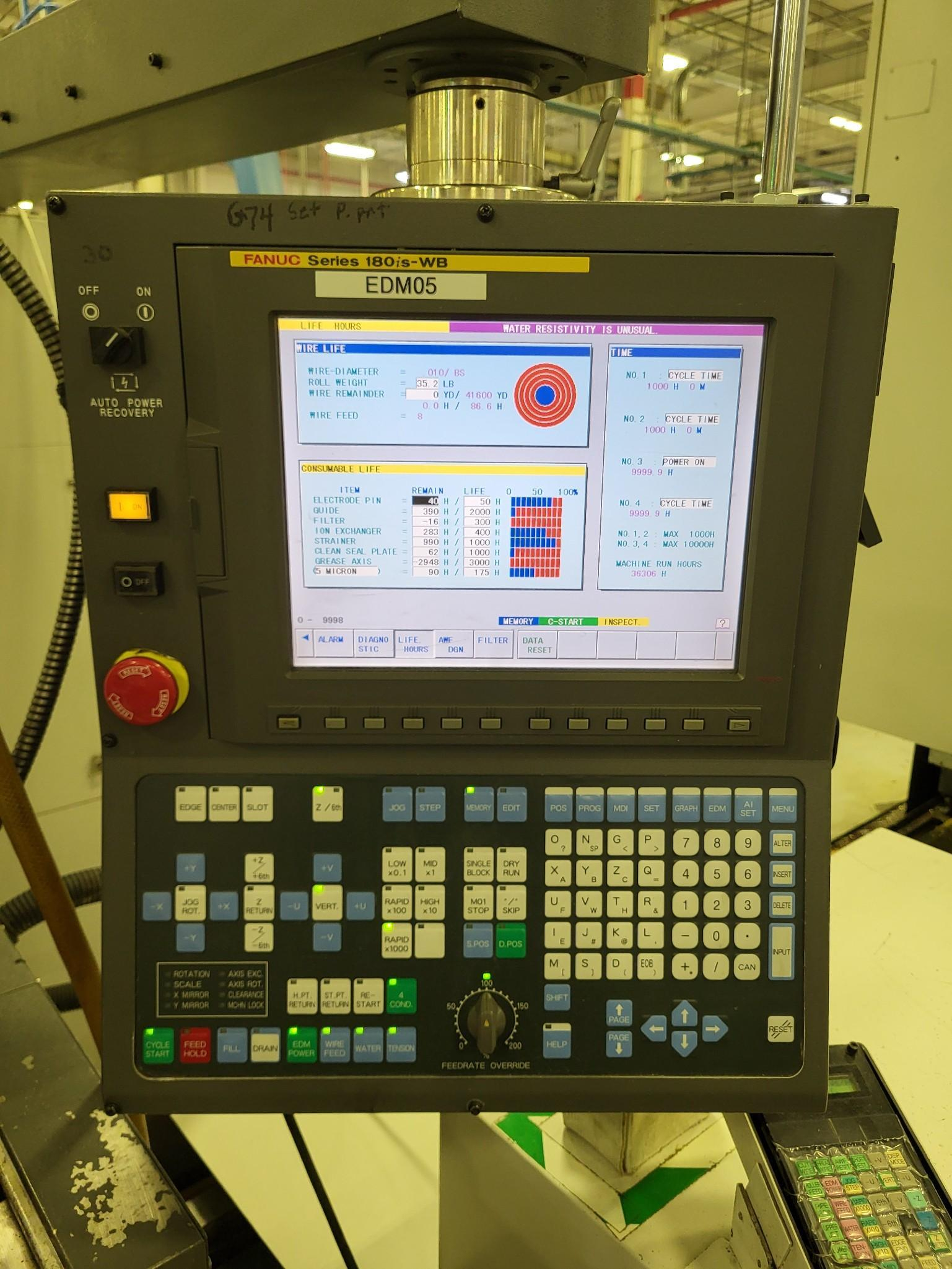

CNC Control: FANUC Series 180iS-WB with remote pendant
Main Unit Weight: Approx. 4,200 lbs
Main Unit Dimensions (L × W × H): 55″ × 62″ × 99″
SPECIFICATIONS
Maximum Workpiece Size: 26″ × 17″ × 10″
X-Axis Travel: 12.6″
Y-Axis Travel: 8.7″
Z-Axis Travel: 10″
U/V-Axis Travel: ±2.634″
Maximum Taper Angle: ±20° with AWF on; ±30° with AWF off
Maximum Workpiece Height: 10″
Maximum Workpiece Weight: 1,100 lbs
Wire Diameter Range: 0.004″–0.012″
Wire Speed: 0–590 IPM
Dielectric Fluid Capacity: 127 gallons
Maximum Machining Speed: 31 square inches per hour

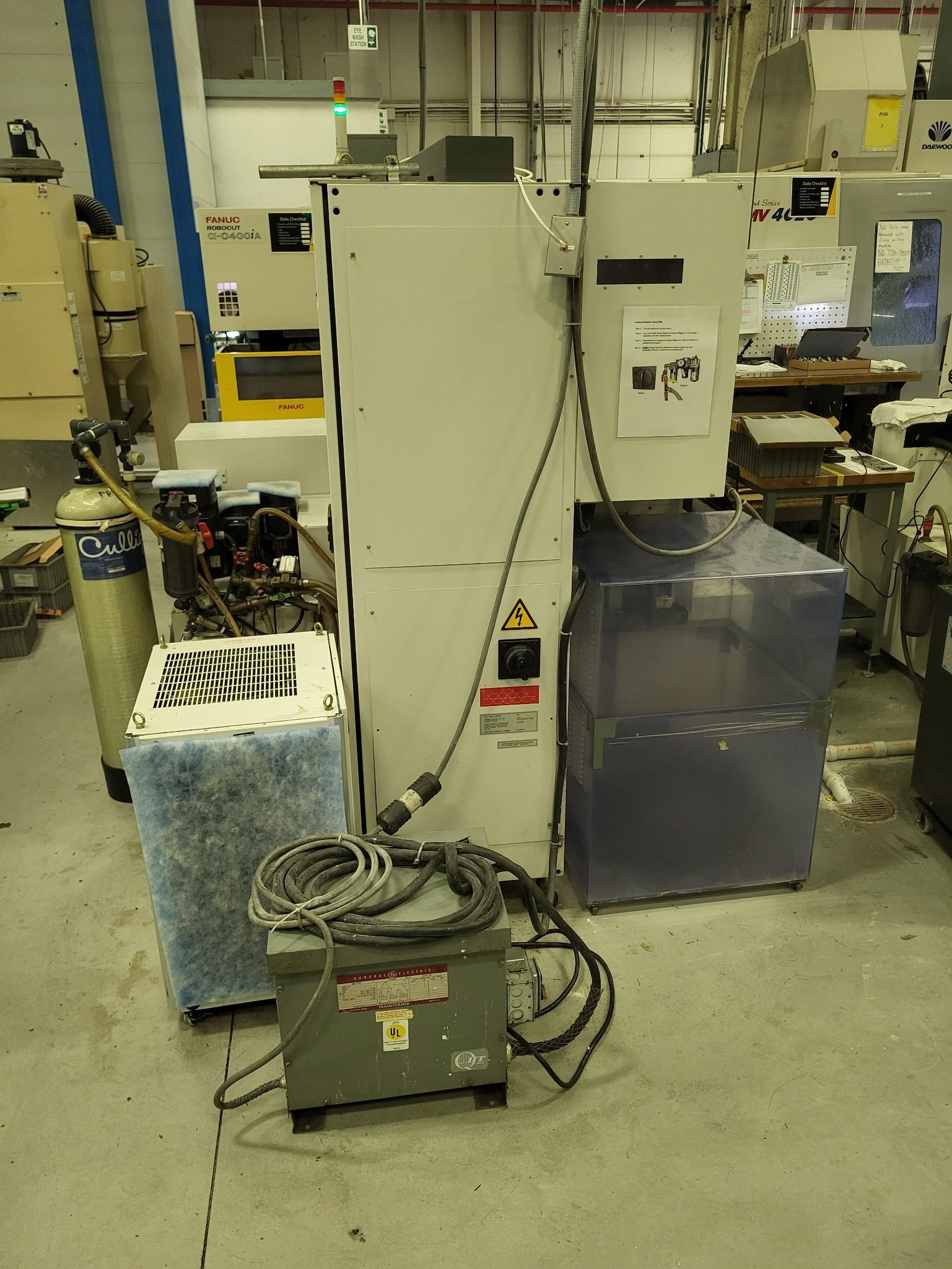

INCLUDED EQUIPMENT
Automatic wire threading system

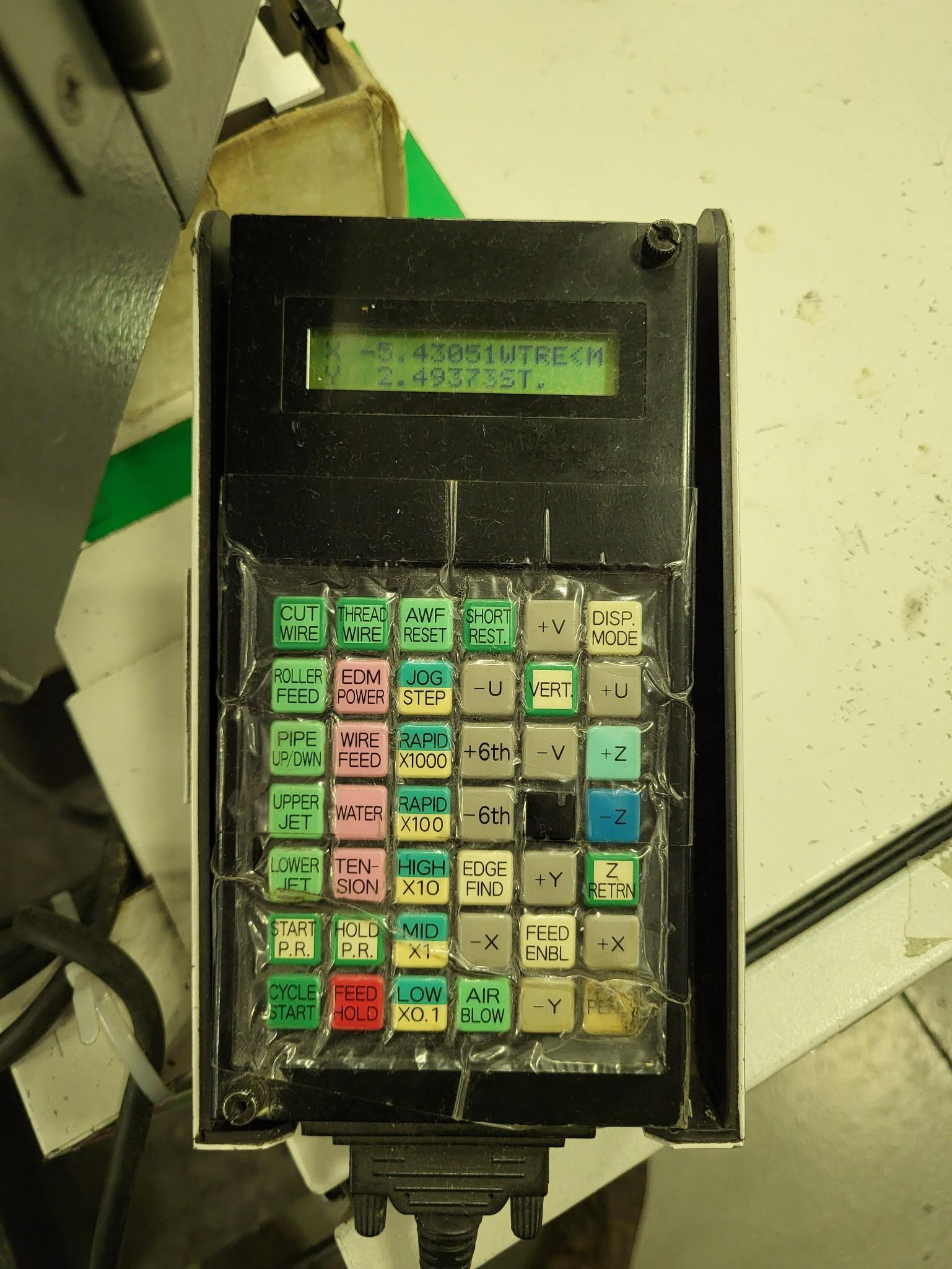

Remote CNC control pendant

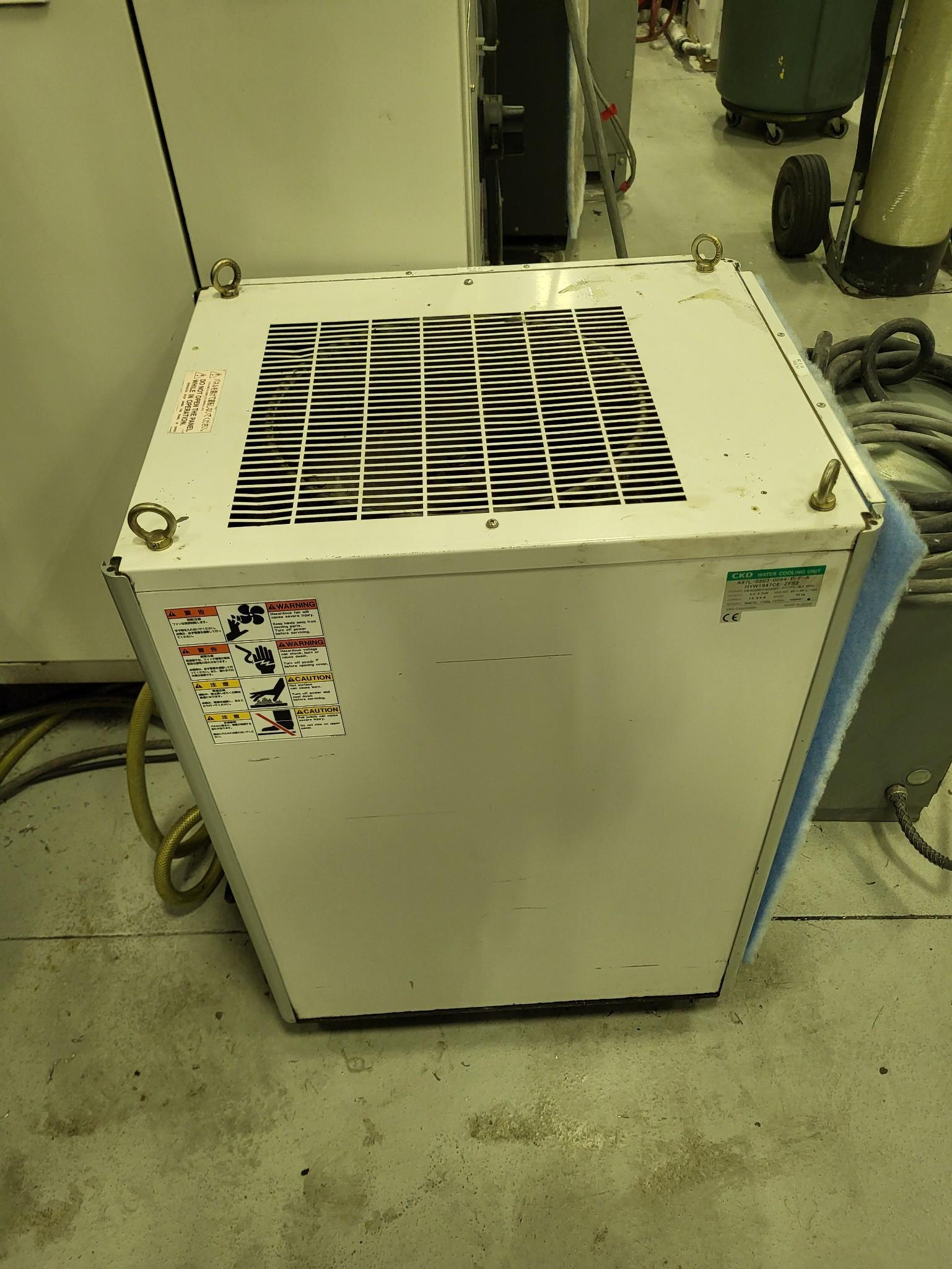

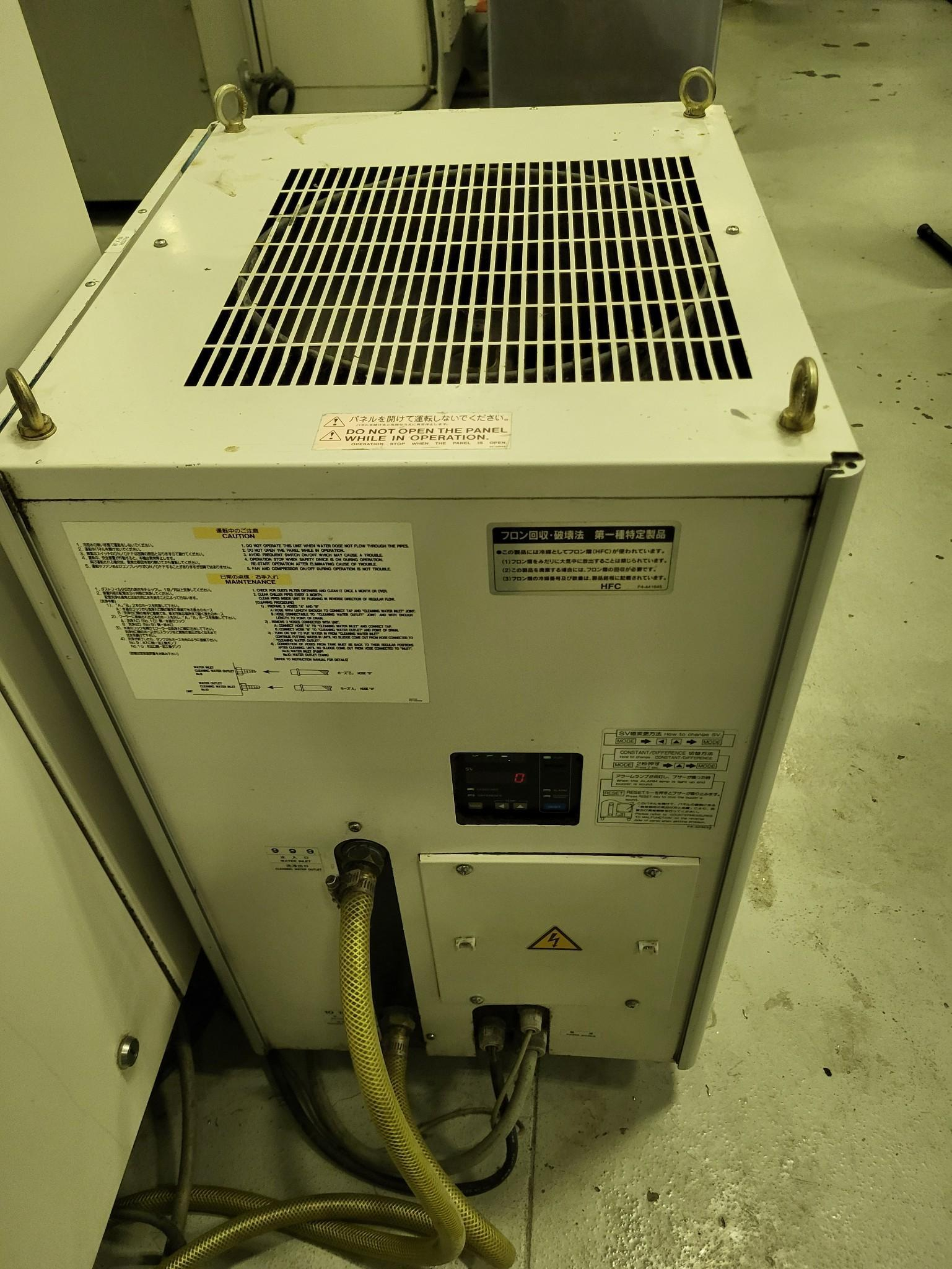

Chiller

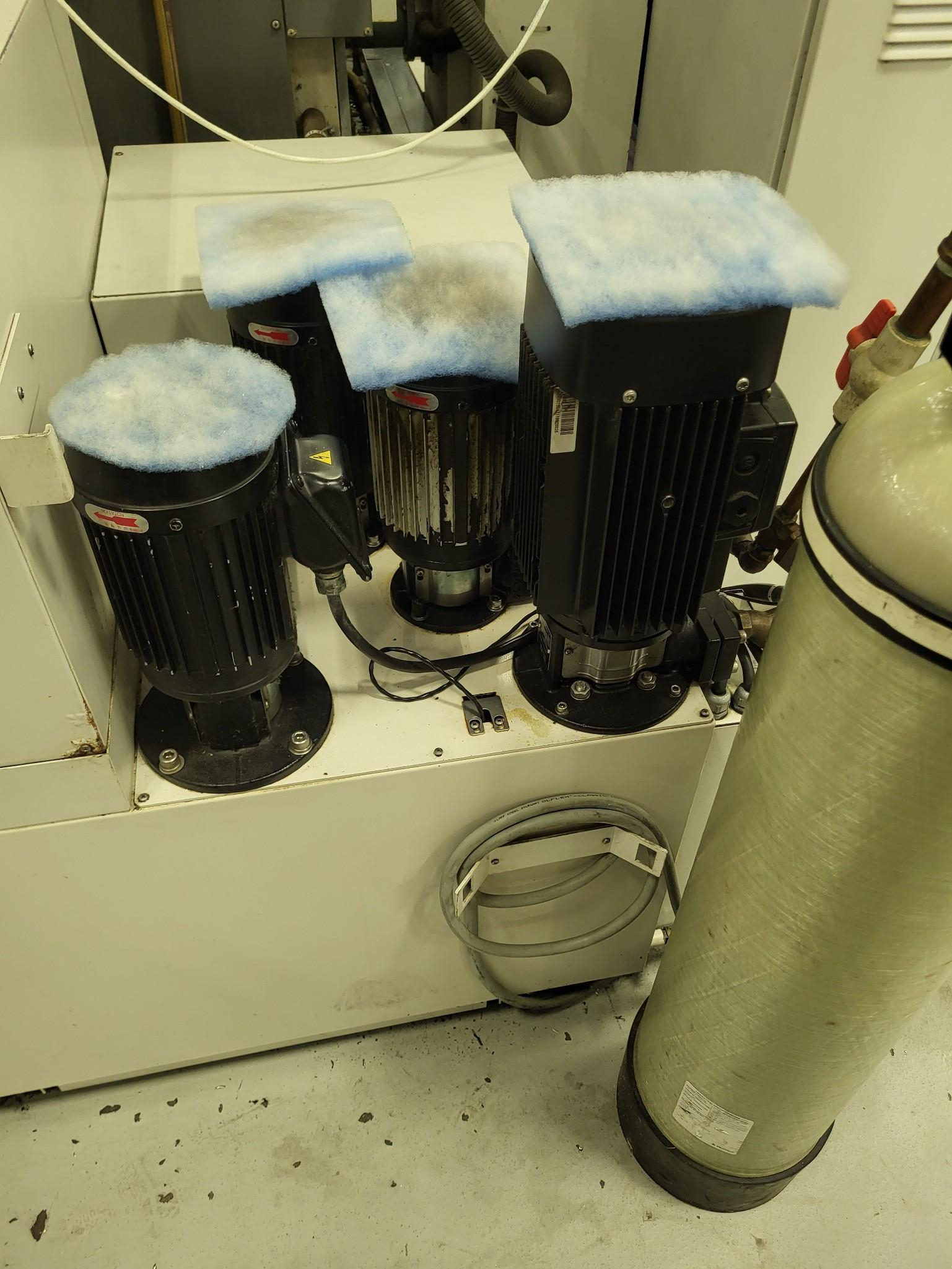

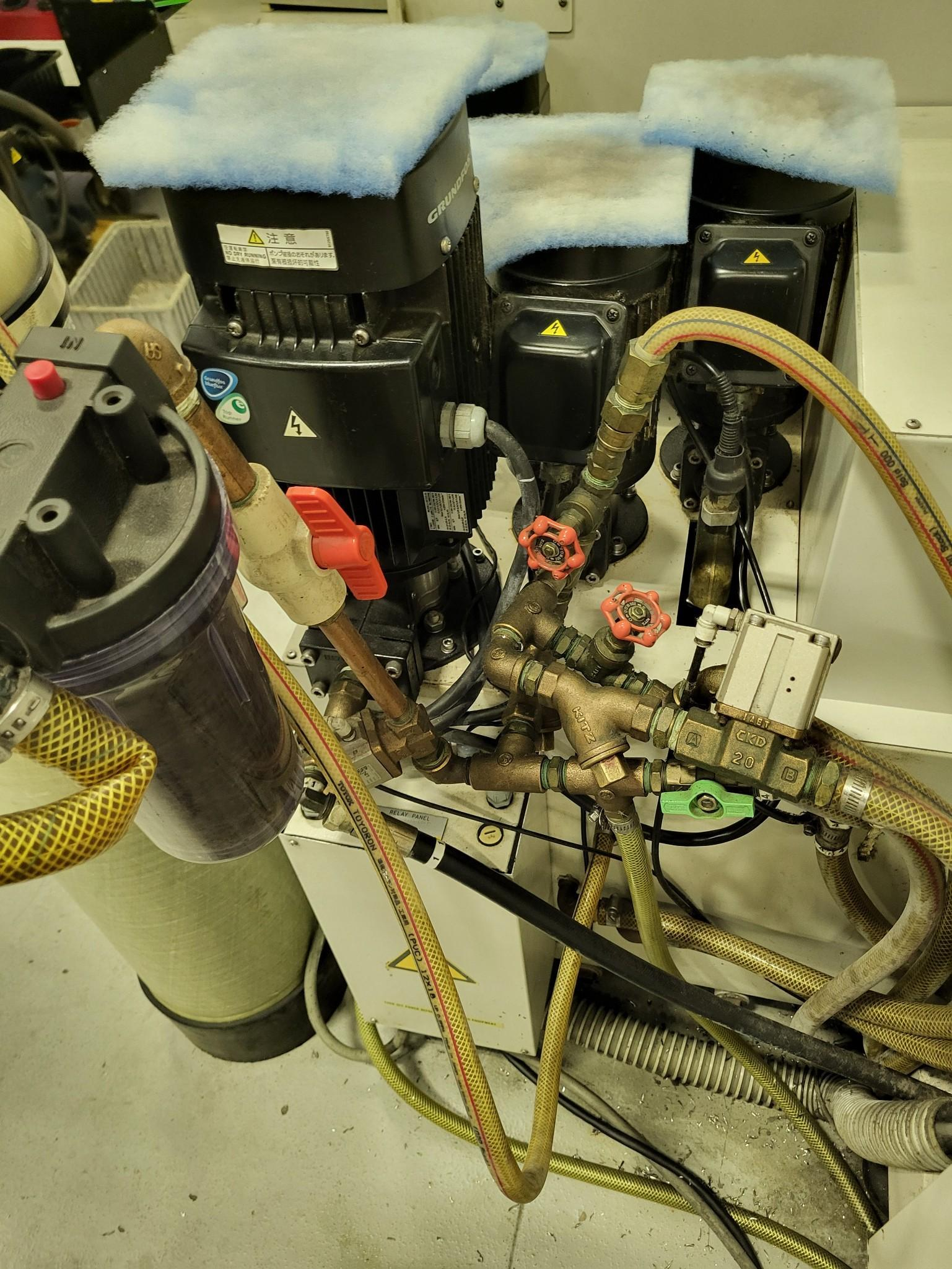

Dielectric system
Control cabinet

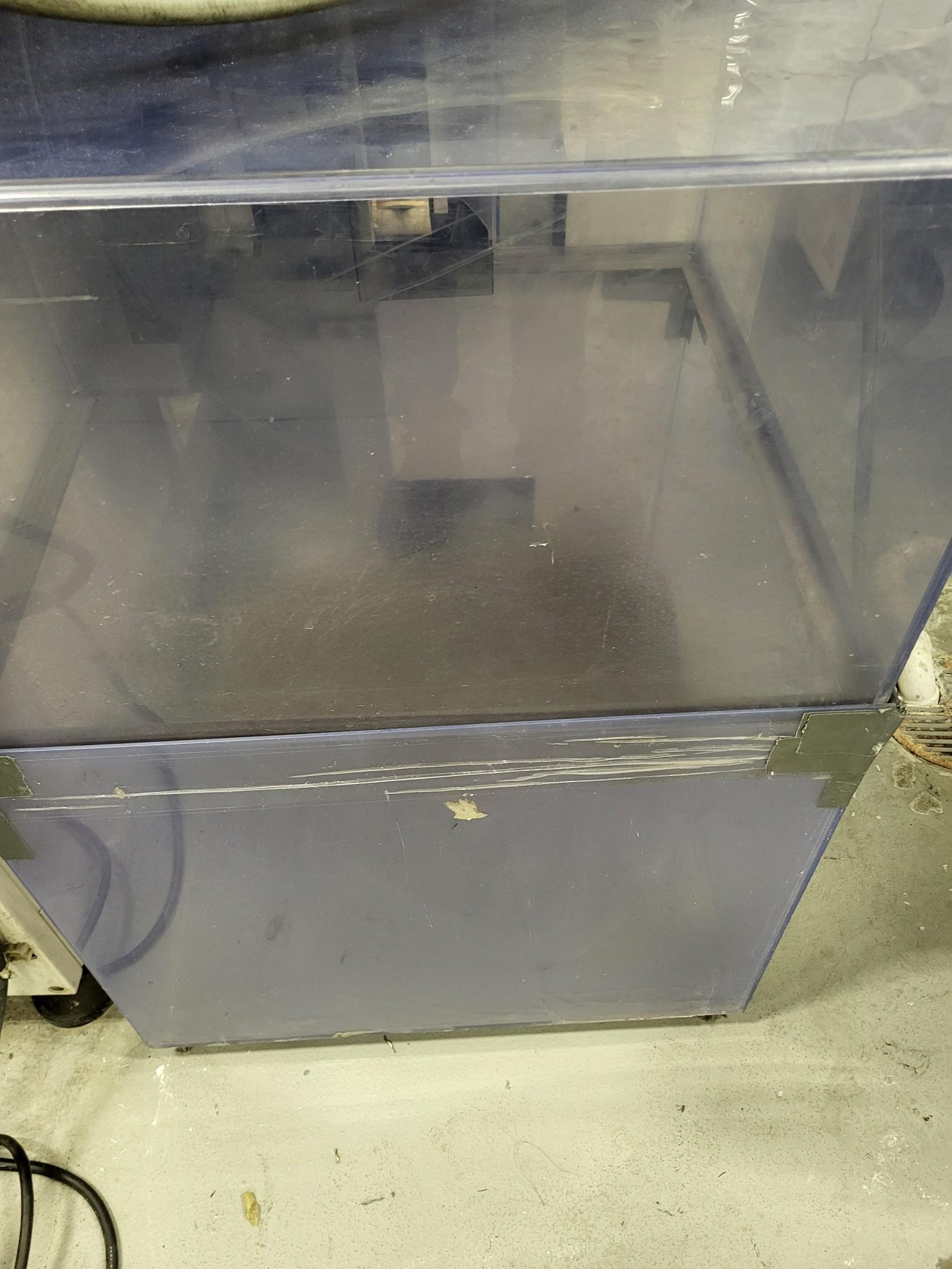

Wire reclaim bin
COMPONENT DIMENSIONS
Dielectric System (L × W × H): 40″ × 48″ × 44″
Control Cabinet (L × W × H): 68″ × 39″ × 77″
Wire Reclaim Bin (L × W × H): 26″ × 26″ × 38″
Chiller (L × W × H): 23″ × 18″ × 31″
KEY HIGHLIGHTS
CNC wire EDM technology for precision cutting
Automatic wire threading capability
Taper cutting capability with AWF on or off
Handles workpieces weighing up to 1,100 lbs
Includes chiller and dielectric system
APPLICATIONS
Precision tool and die manufacturing
Mold and insert production
Complex profile cutting
Precision machining of conductive materials
Industrial component manufacturing
