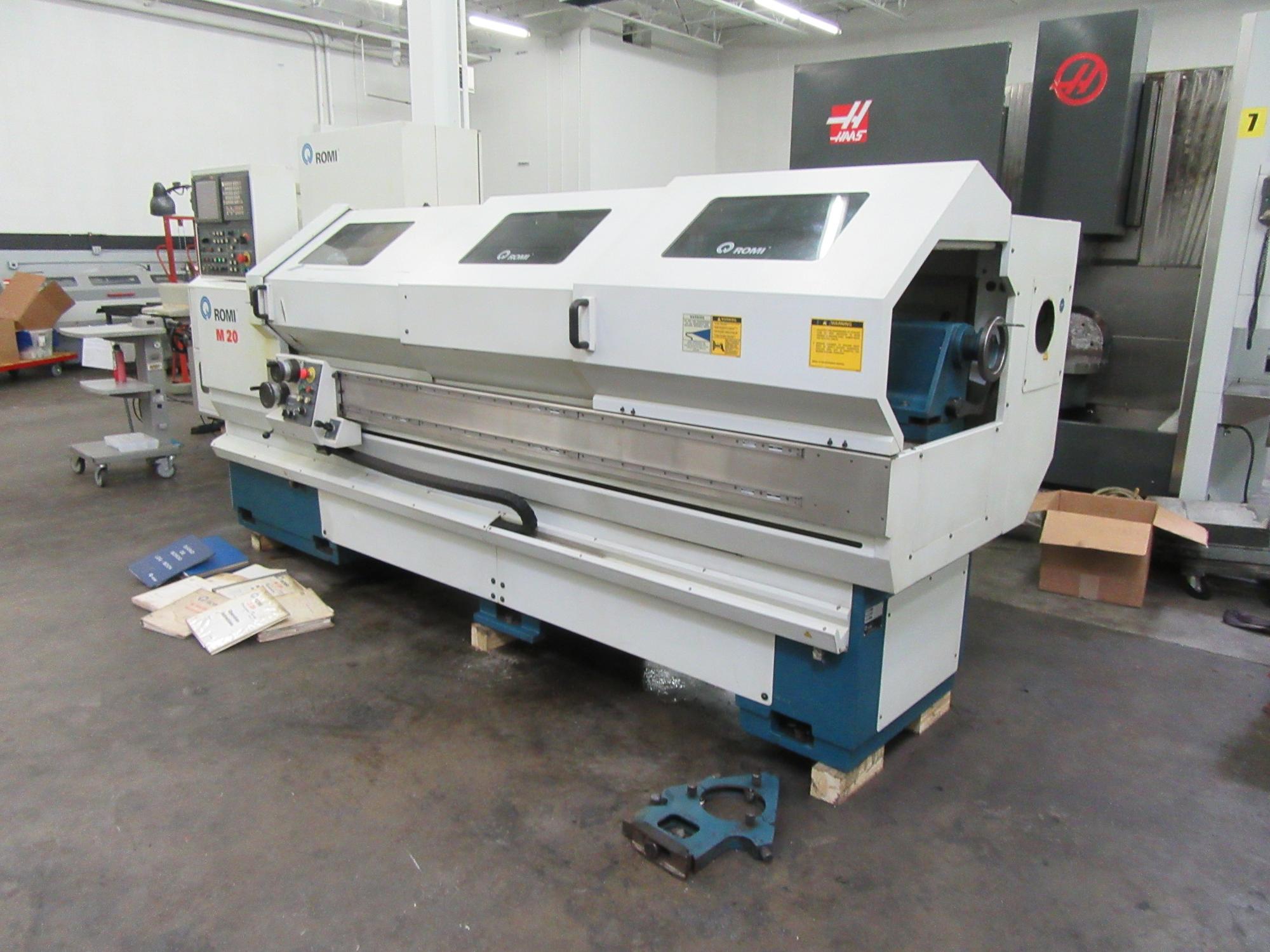

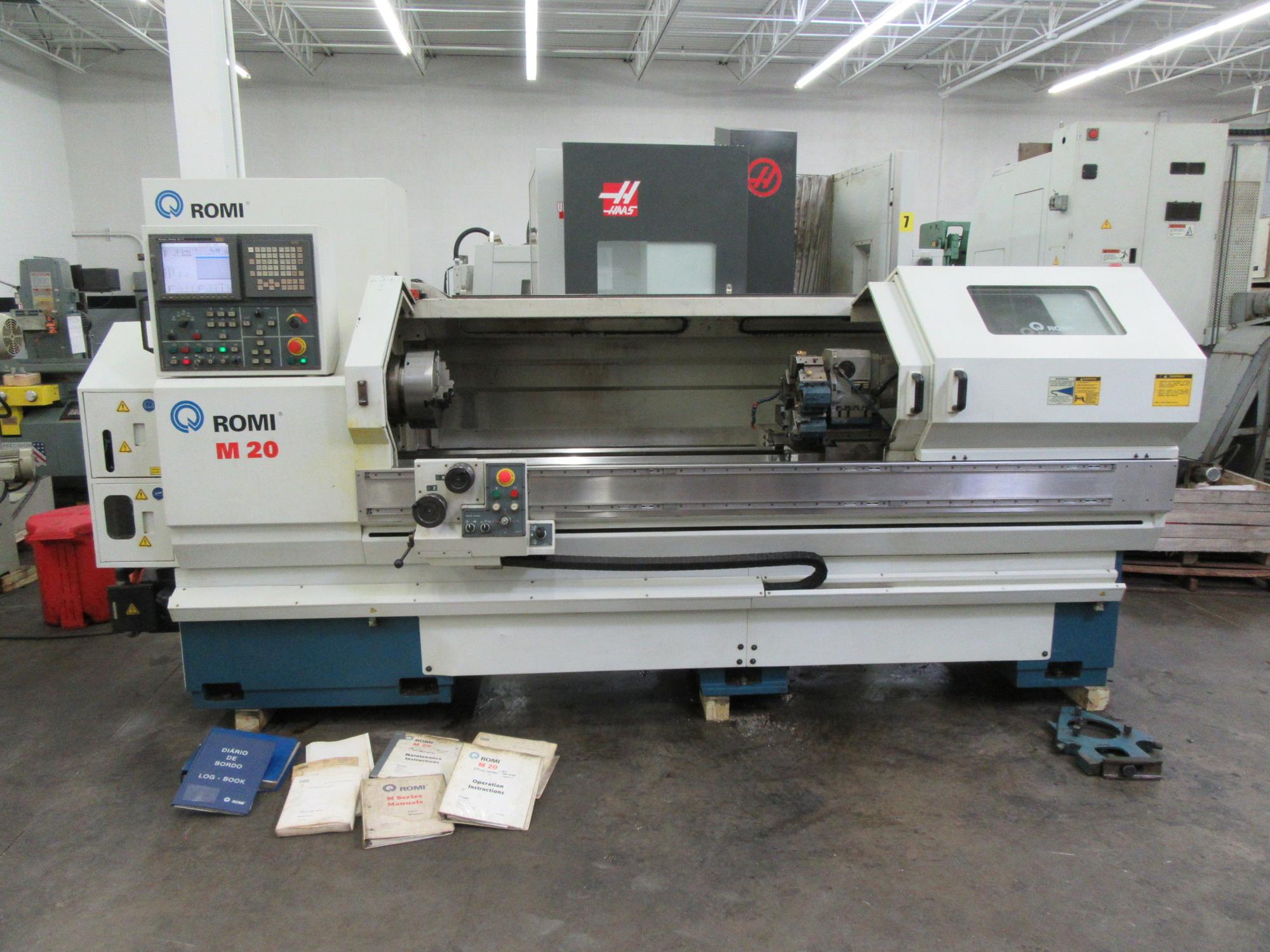

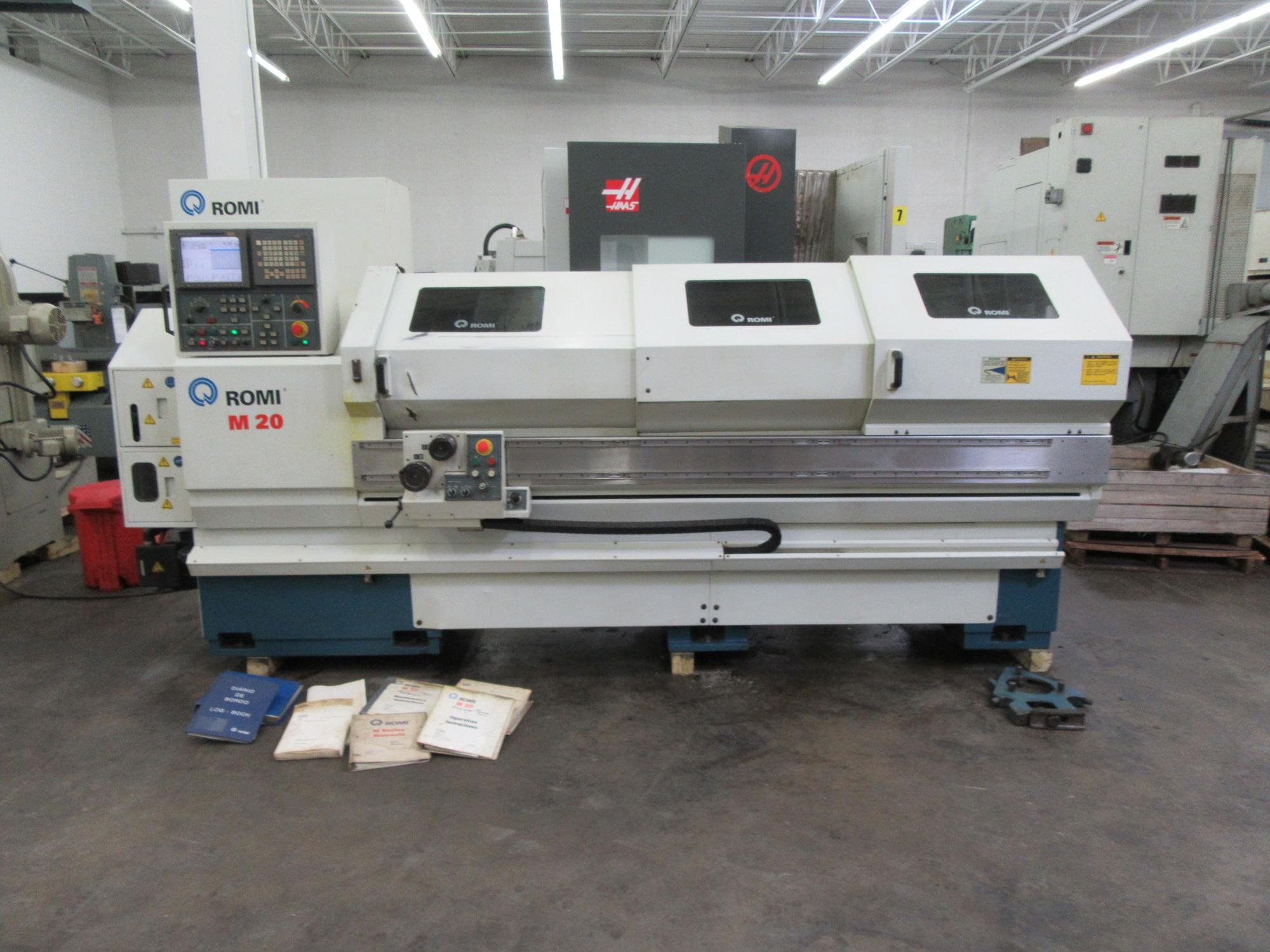

Romi M20 CNC Engine Lathe
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description
GENERAL INFORMATION
Manufacturer: Romi
Model: M20
Year: 2000
Machine Type: CNC Engine Lathe
CNC Control: Fanuc Series 21i-T
Electrical Requirements: 220 V, 3-phase
Spindle Drive Power: 15 HP
SPECIFICATIONS
Swing Over Ways: 20.5″
Swing Over Cross Slide: 10.2″
Maximum Center Distance: 80″
Center Height: 10.04″
Spindle Bore: 3.0″
X-Axis Travel: 11″
Z-Axis Travel: 80″
Spindle Nose: A2-6
Maximum Spindle Speed: 2,200 RPM, variable speed
Rapid Traverse Rate (X/Z): 295 / 395 IPM
Tailstock Quill Travel: 5.1″
Tool Turret: 8-station programmable turret
INCLUDED EQUIPMENT

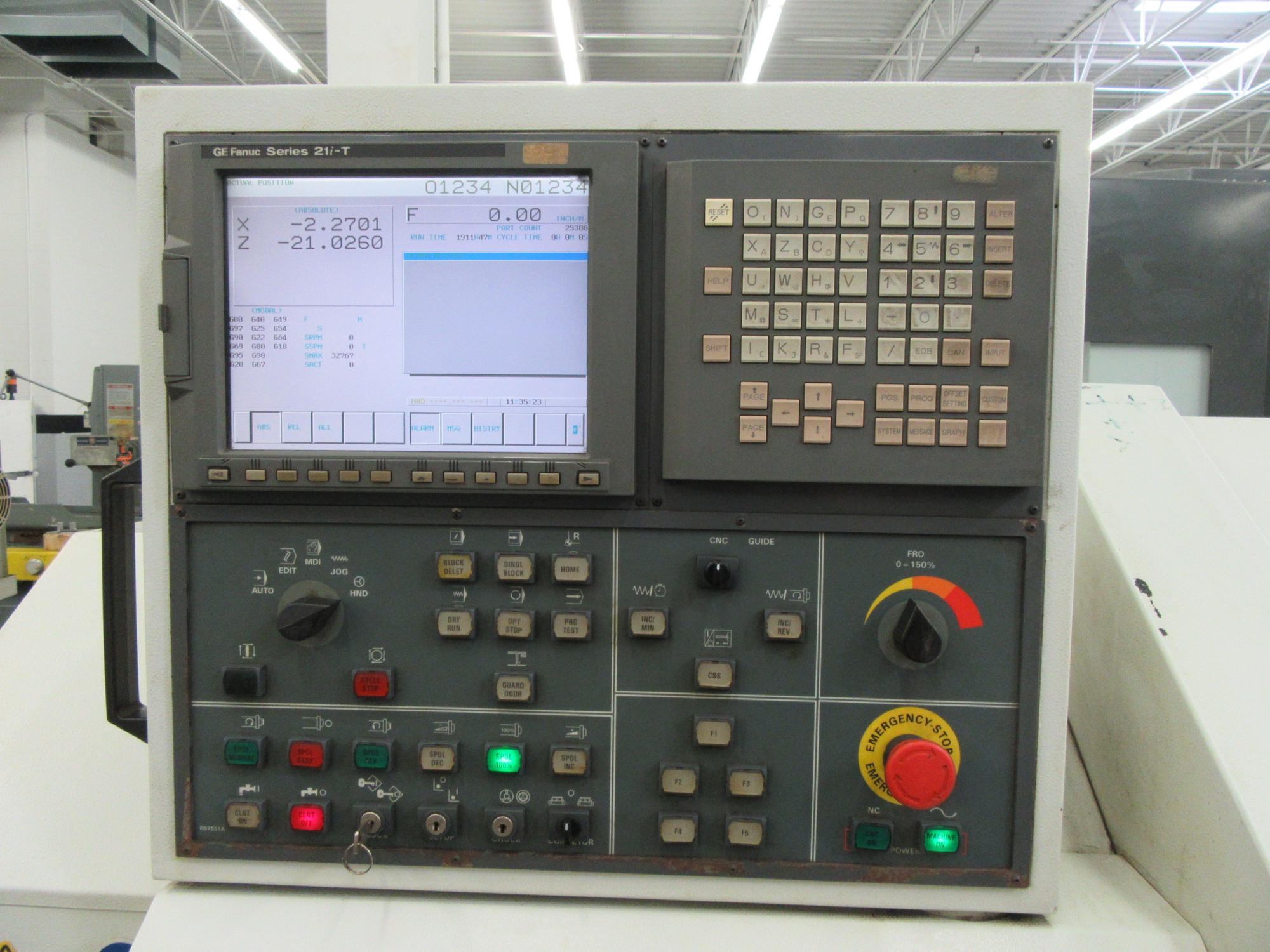

Fanuc Series 21i-T CNC control

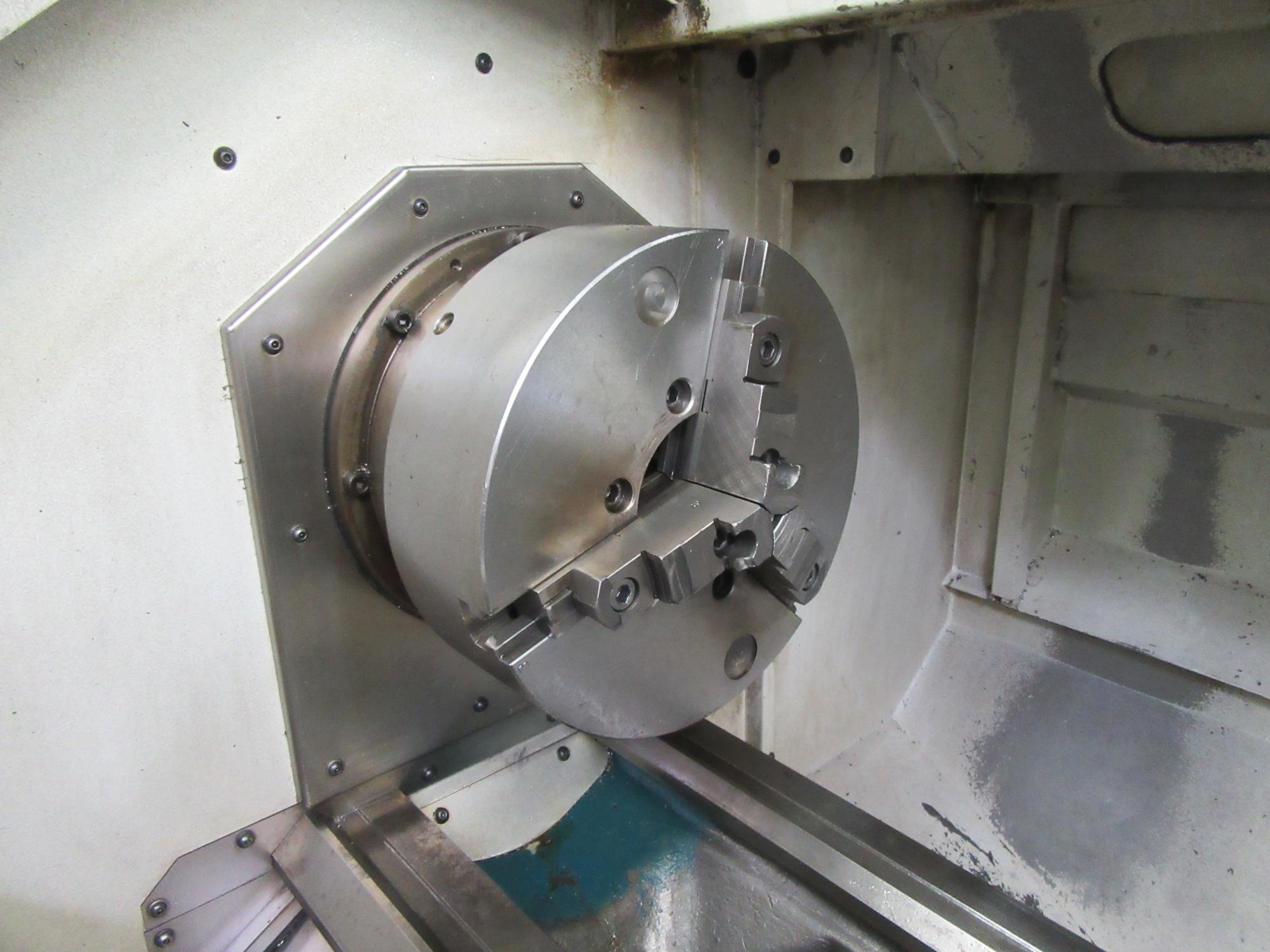

12″ 3-jaw scroll chuck

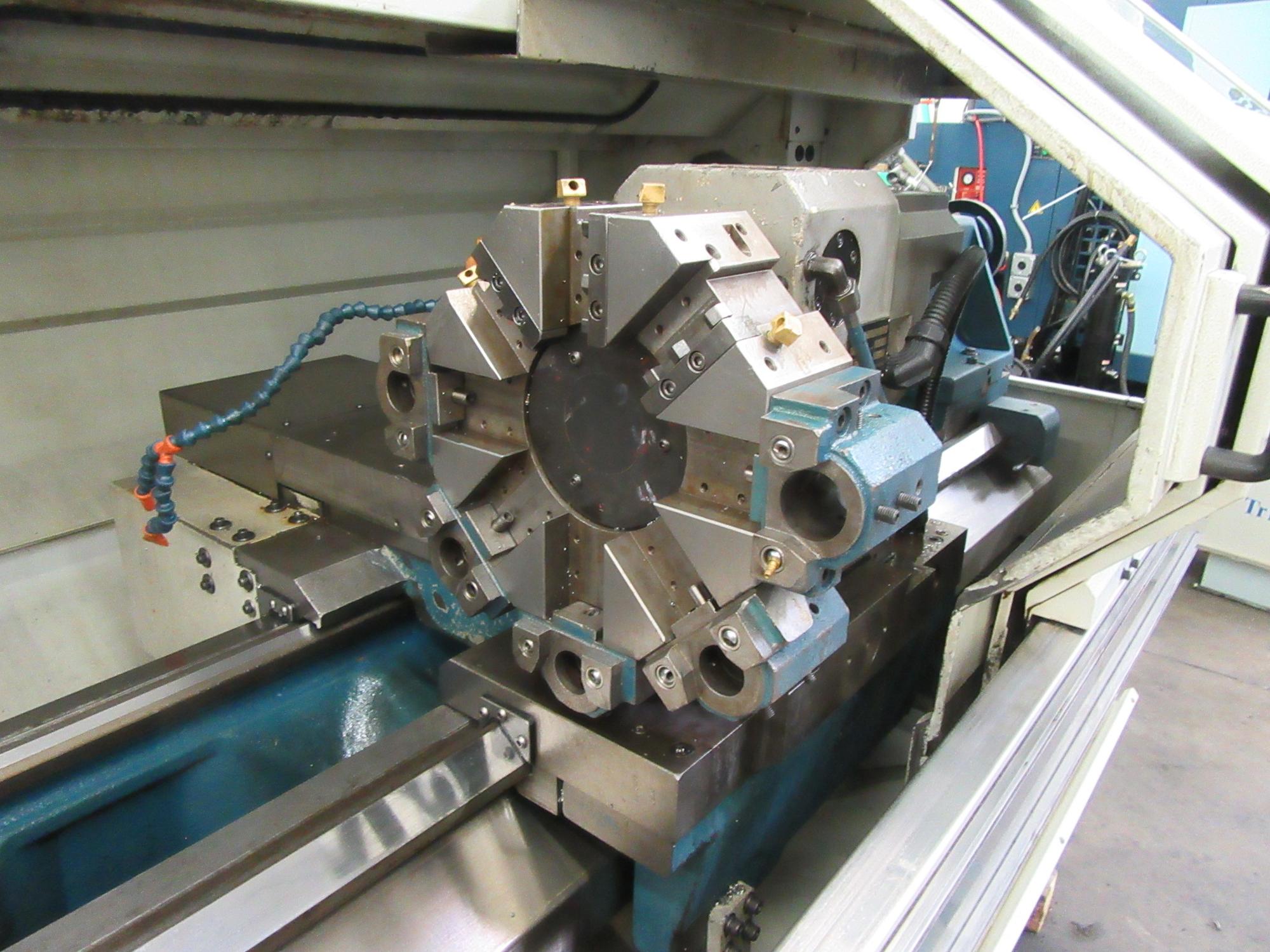

8-station programmable turret with bolt-on tooling

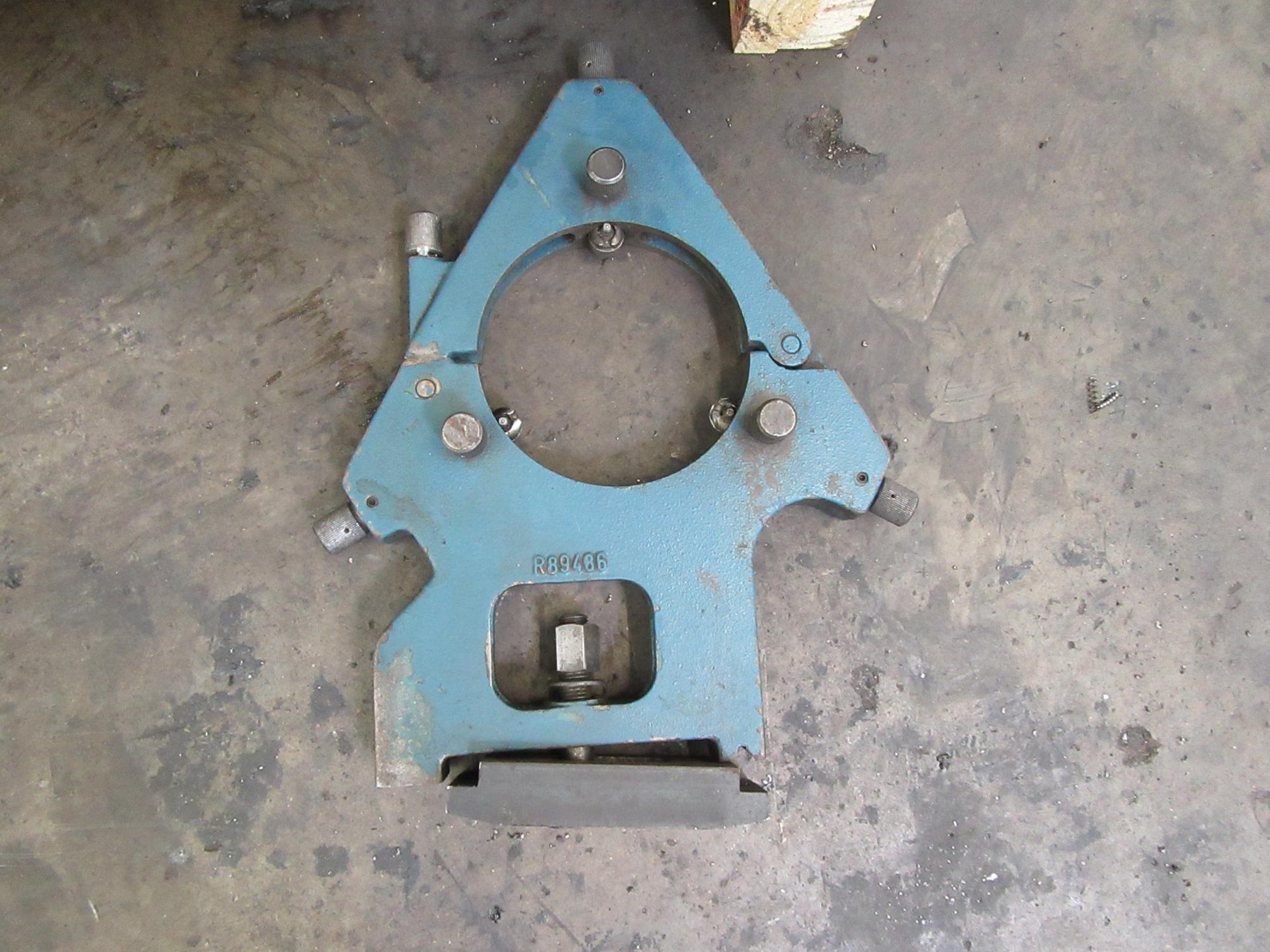

Steady rest

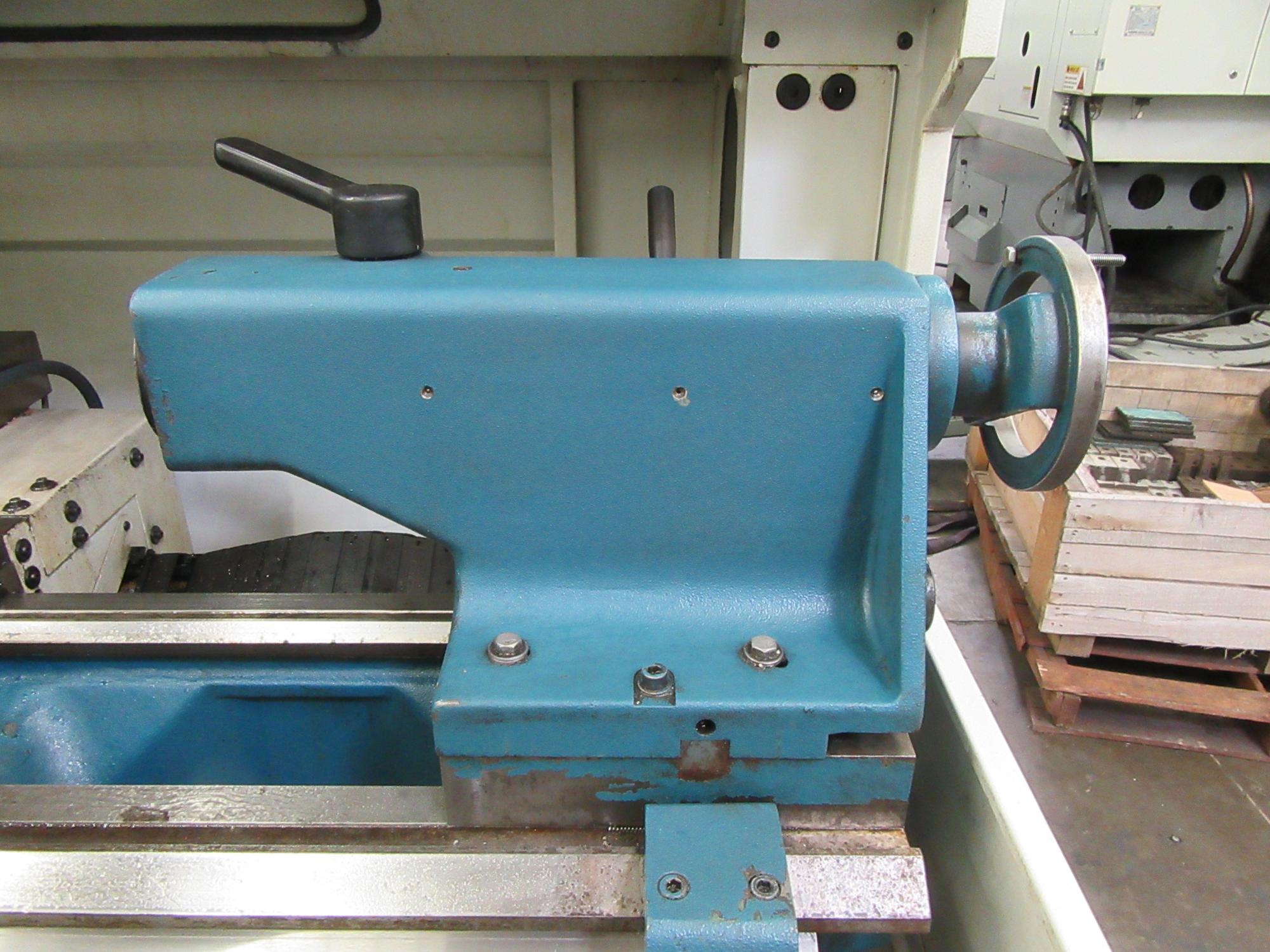

Tailstock
Inch/metric threading
Constant surface speed

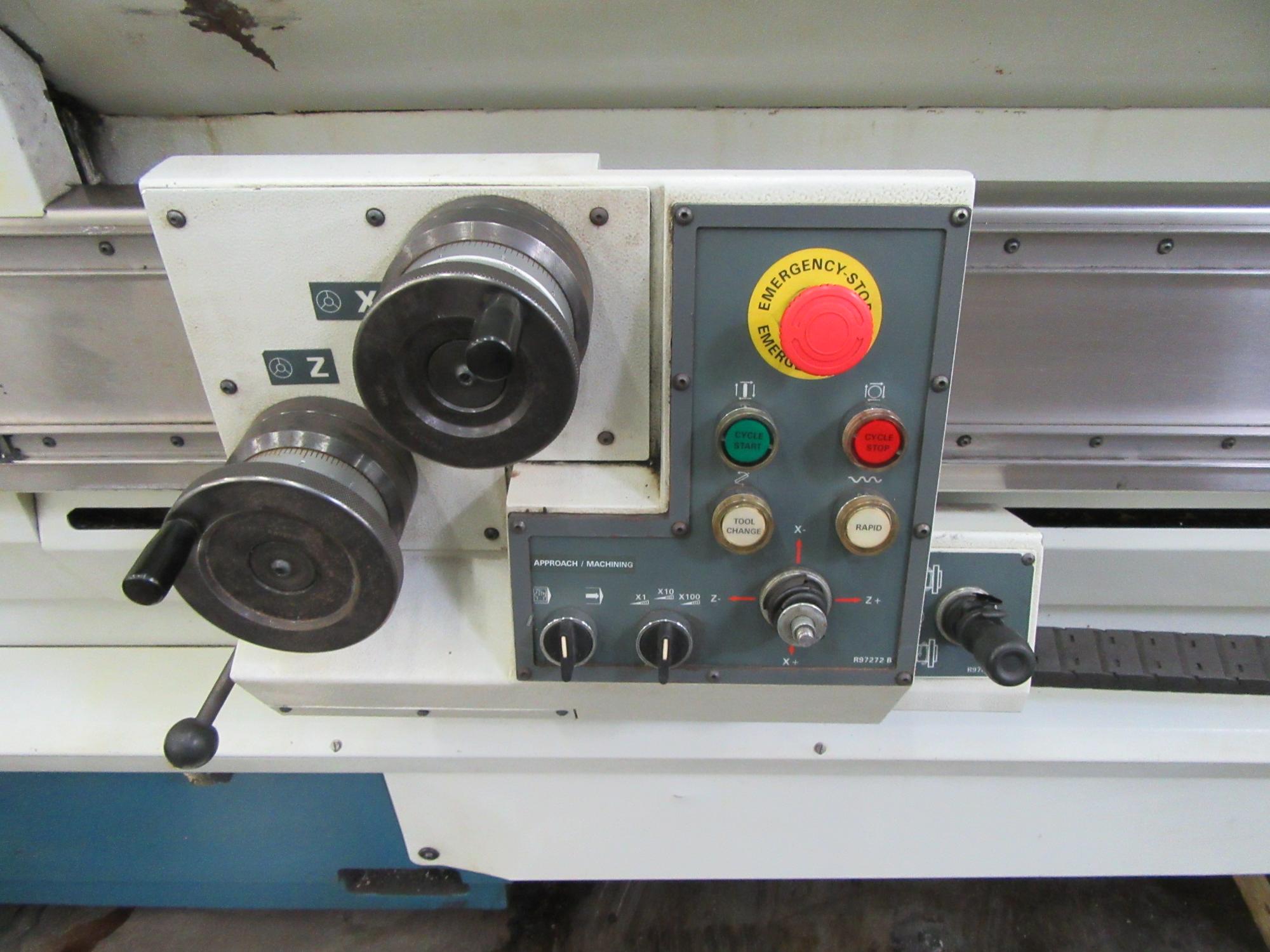

Electronic handwheels with rapid jog and spindle controls
Teach mode feature
Coolant tank and pump
Machine manuals
Slide-out chip pans

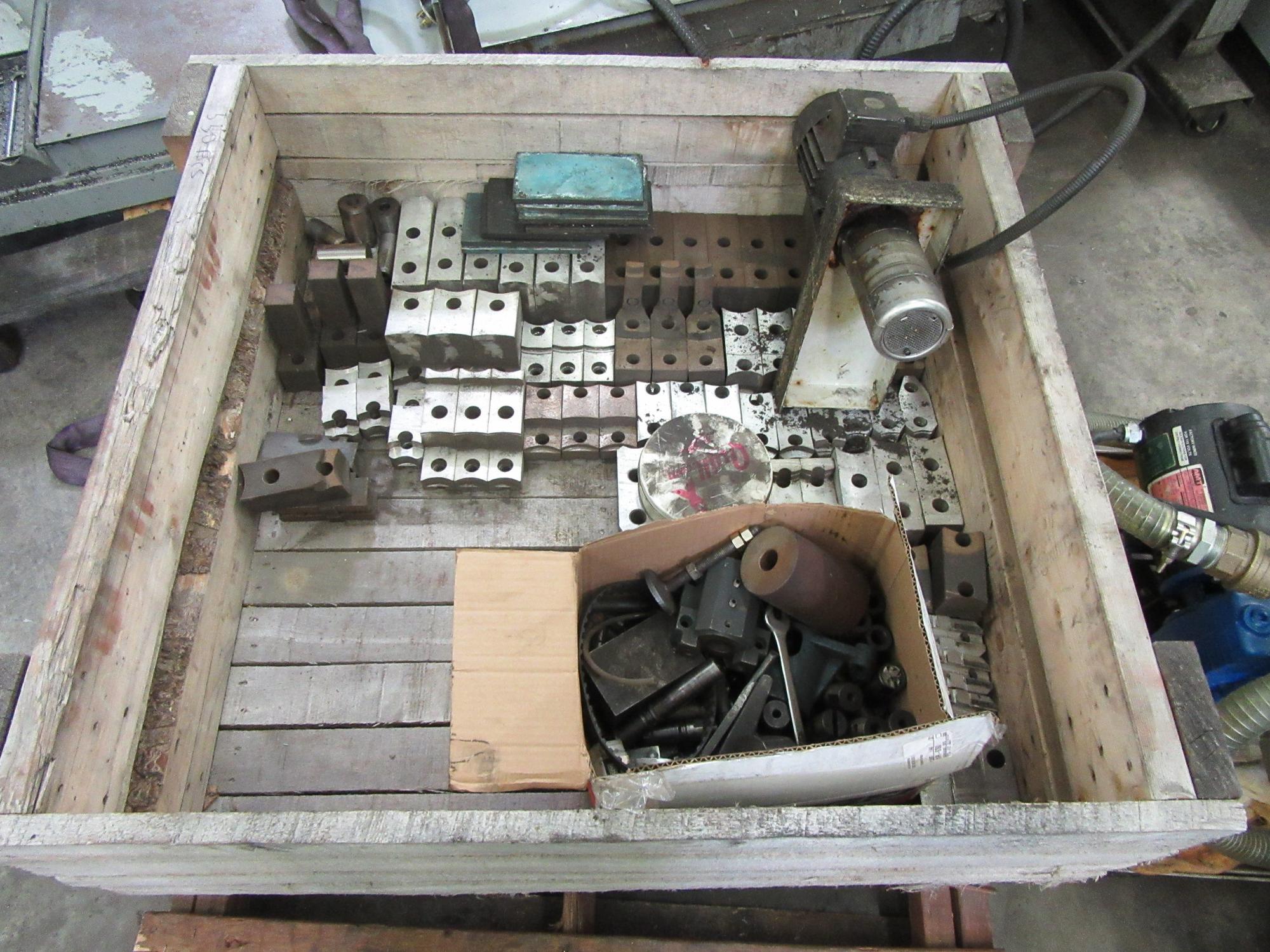

Additional tool holder blocks
Chuck jaws and boring holders
KEY HIGHLIGHTS
CNC turning capability with Fanuc control
80″ maximum center distance for longer workpieces
Variable-speed spindle up to 2,200 RPM
Programmable 8-station turret for versatile machining
Steady rest and tailstock for additional workpiece support
Inch/metric threading and constant surface speed functions
APPLICATIONS
Precision turning of long shafts and cylindrical components
Industrial and automotive component manufacturing
Threading, facing, and external or internal turning
General-purpose CNC machining and production work
