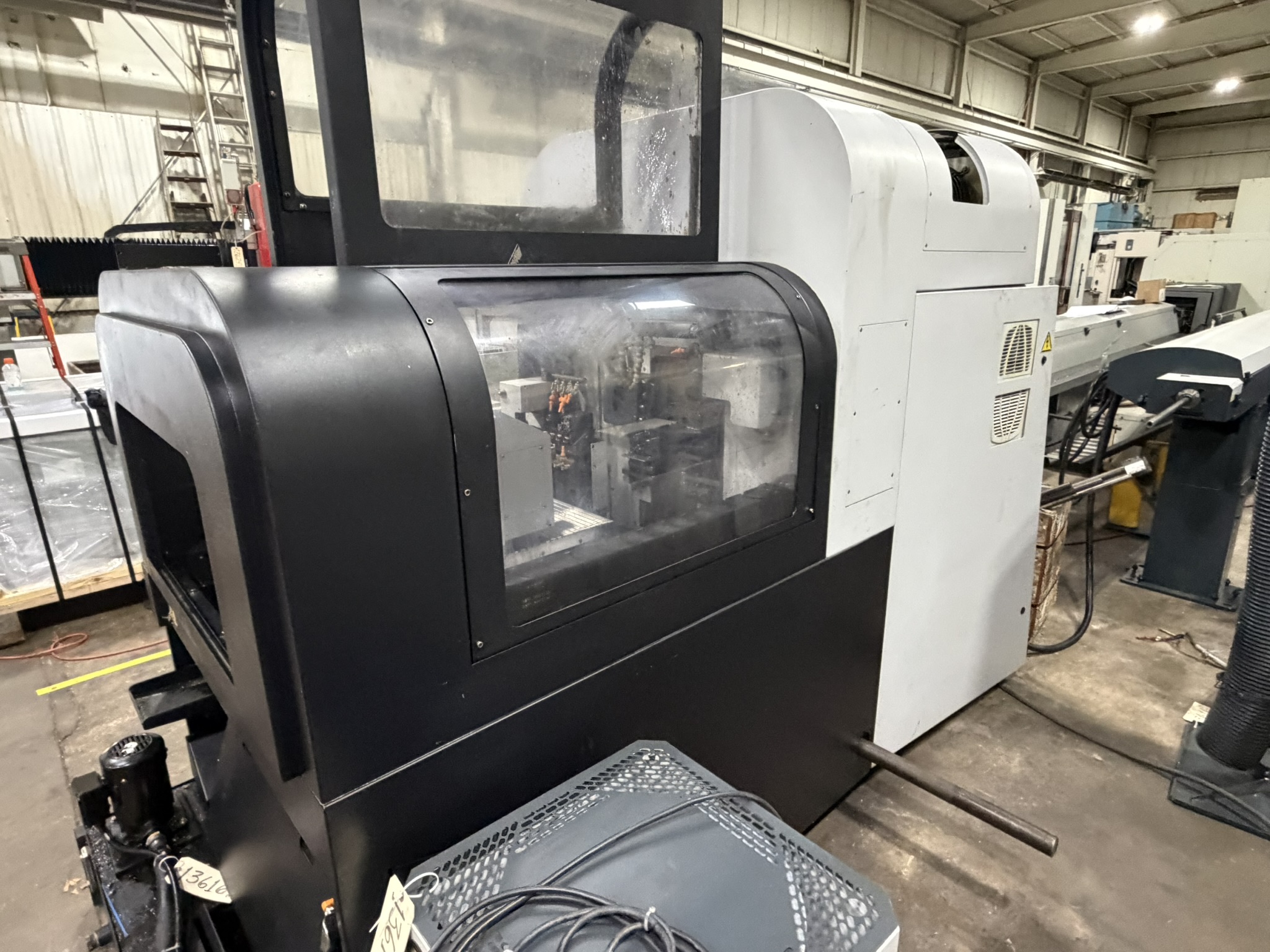

TORNOS GT-26/6 6-AXIS CNC SWISS-TYPE AUTOMATIC SCREW MACHINE
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description
GENERAL INFORMATION
Manufacturer: Tornos
Model: GT-26/6
Machine Type: 6-Axis CNC Swiss-Type Automatic Screw Machine
Year of Manufacture: 2015

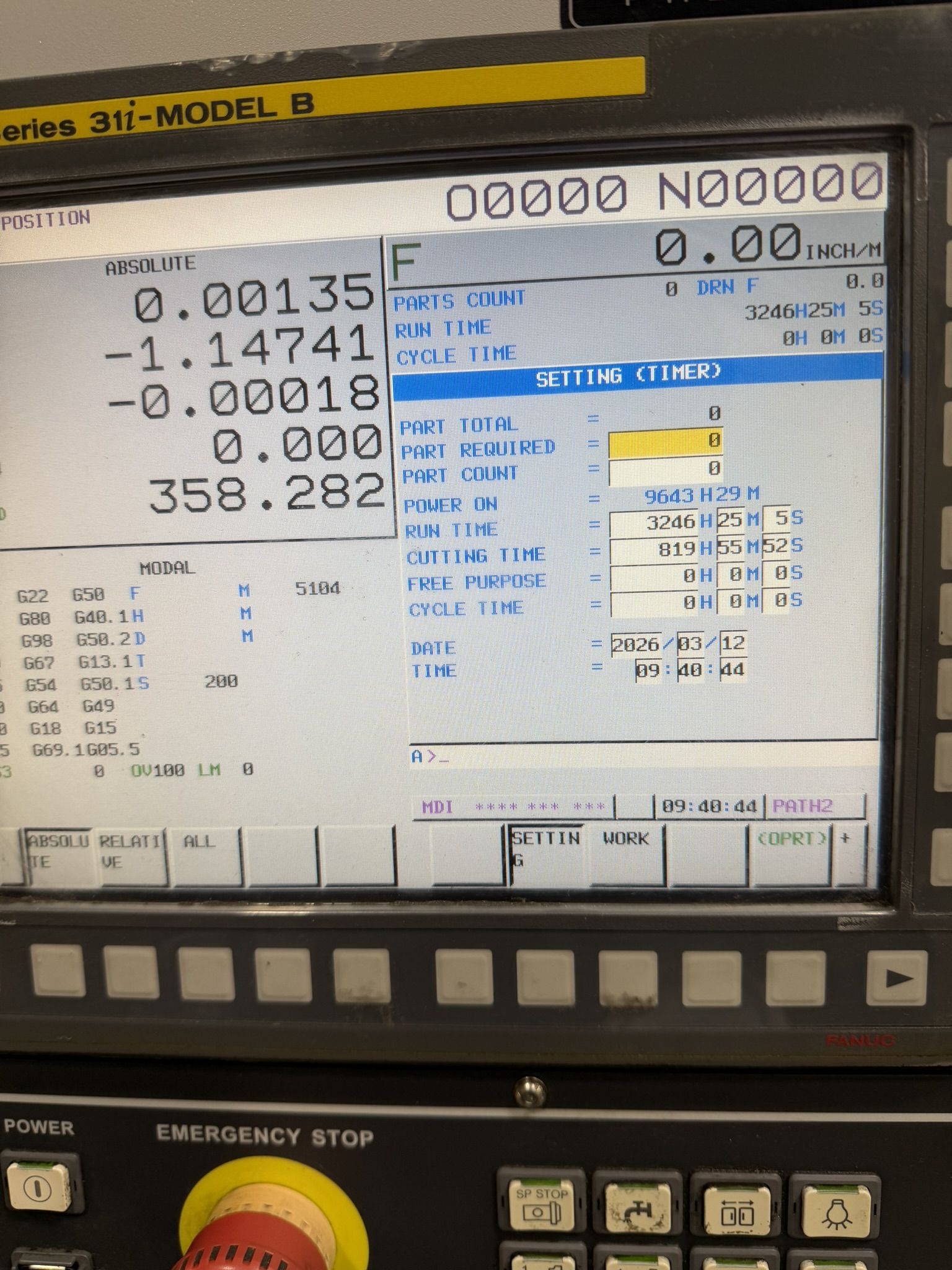

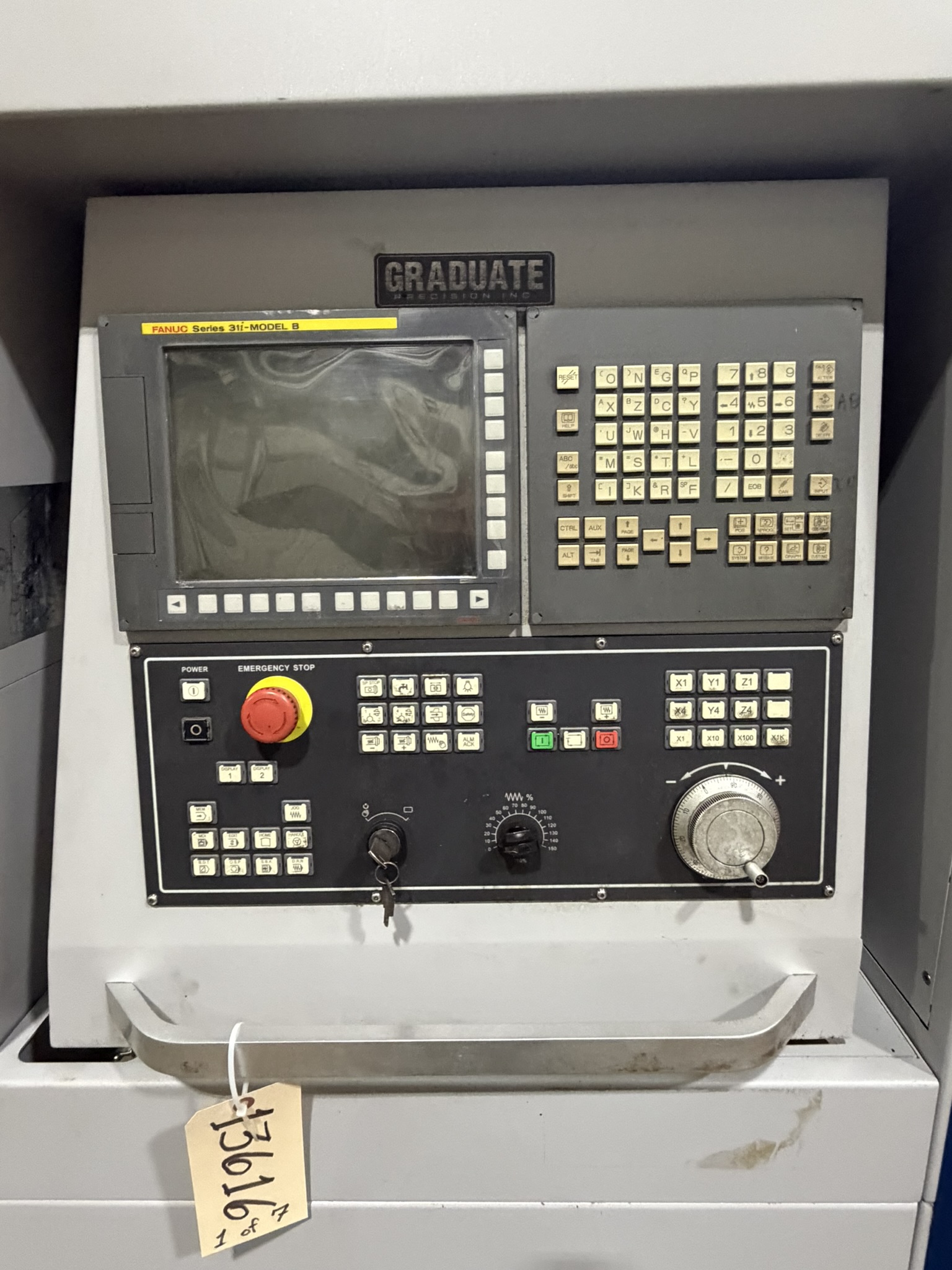

CNC Control: FANUC
Maximum Bar Capacity: Up to 26 mm
Total Tool Positions: Up to 40, depending on configuration
Number of Independent Tool Systems: 2
Approximate Machine Weight: 3,200 kg (7,055 lbs)

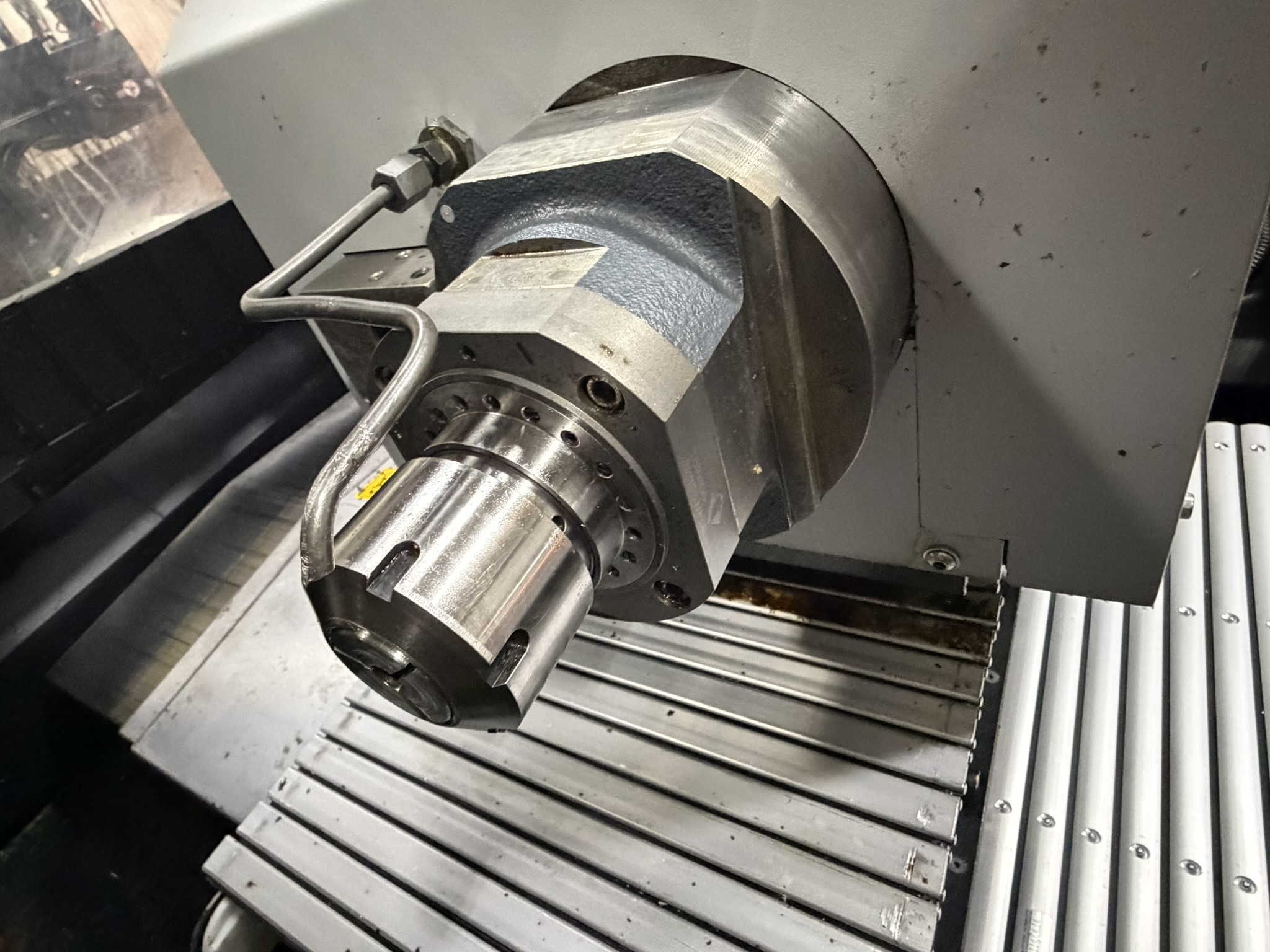

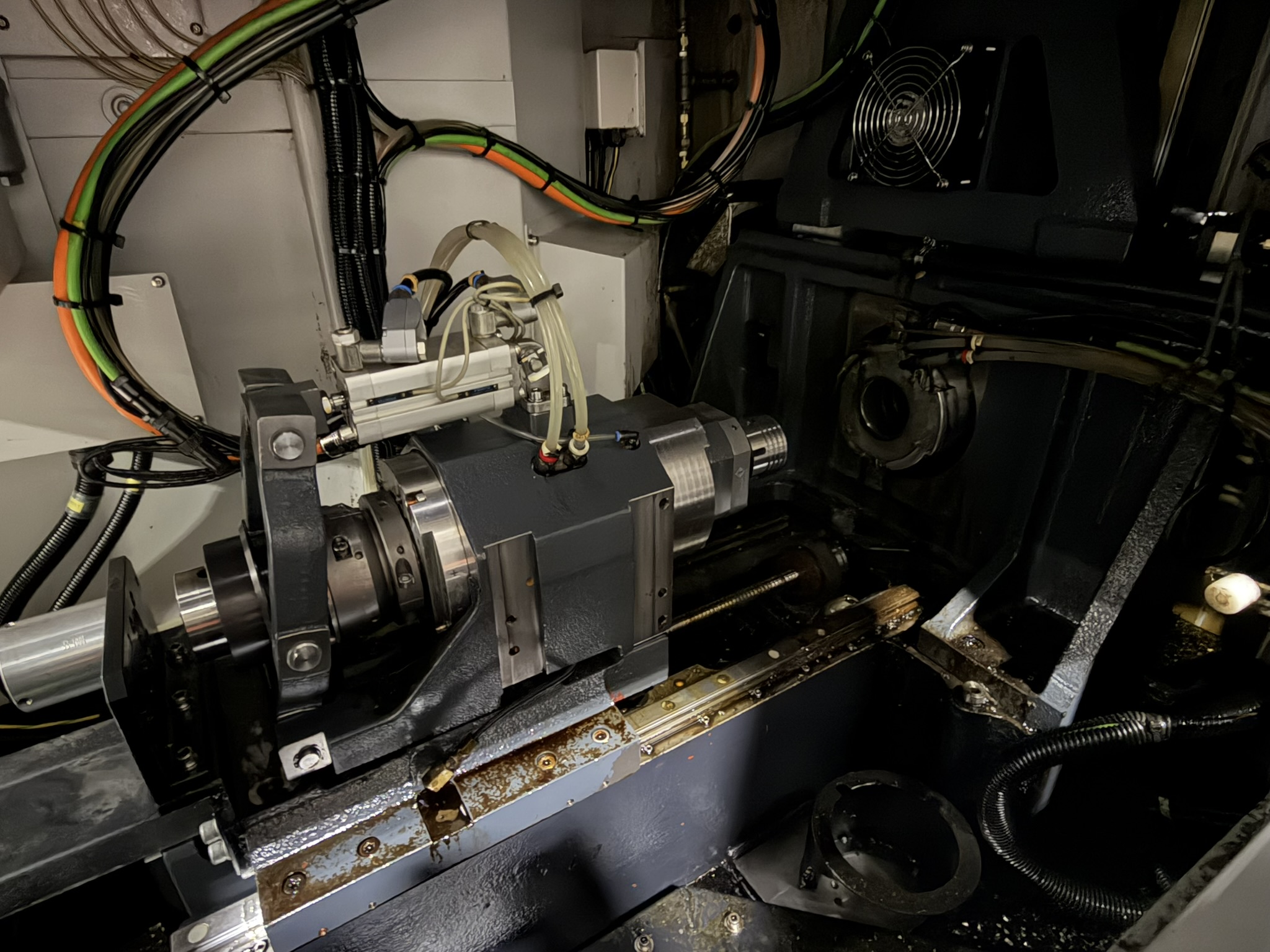

SPINDLE SPECIFICATIONS
Main Spindle Speed: 0–10,000 RPM
Counter Spindle Speed: 0–10,000 RPM
Main Spindle Power: 8.2 kW (10.5 kW peak, as listed)
Counter Spindle Power: 8.2 kW (10.5 kW peak, as listed)
Maximum Spindle Torque: 26 Nm
Main Spindle Bar Capacity: 23 mm (25.4 mm maximum, as listed)
Counter Spindle Bar Capacity: 25.4 mm
AXES & MACHINING CAPABILITIES
6 CNC linear axes and 2 C-axes
X1/Z1 axes for main spindle machining
X2/Z2 axes for counter spindle machining
X3 axis for cross machining and additional tooling
C1 main spindle axis and C2 counter spindle axis
Simultaneous main and counter spindle operation
Integrated turning, milling, and cross-machining capabilities
Two independent tool systems for complex part production

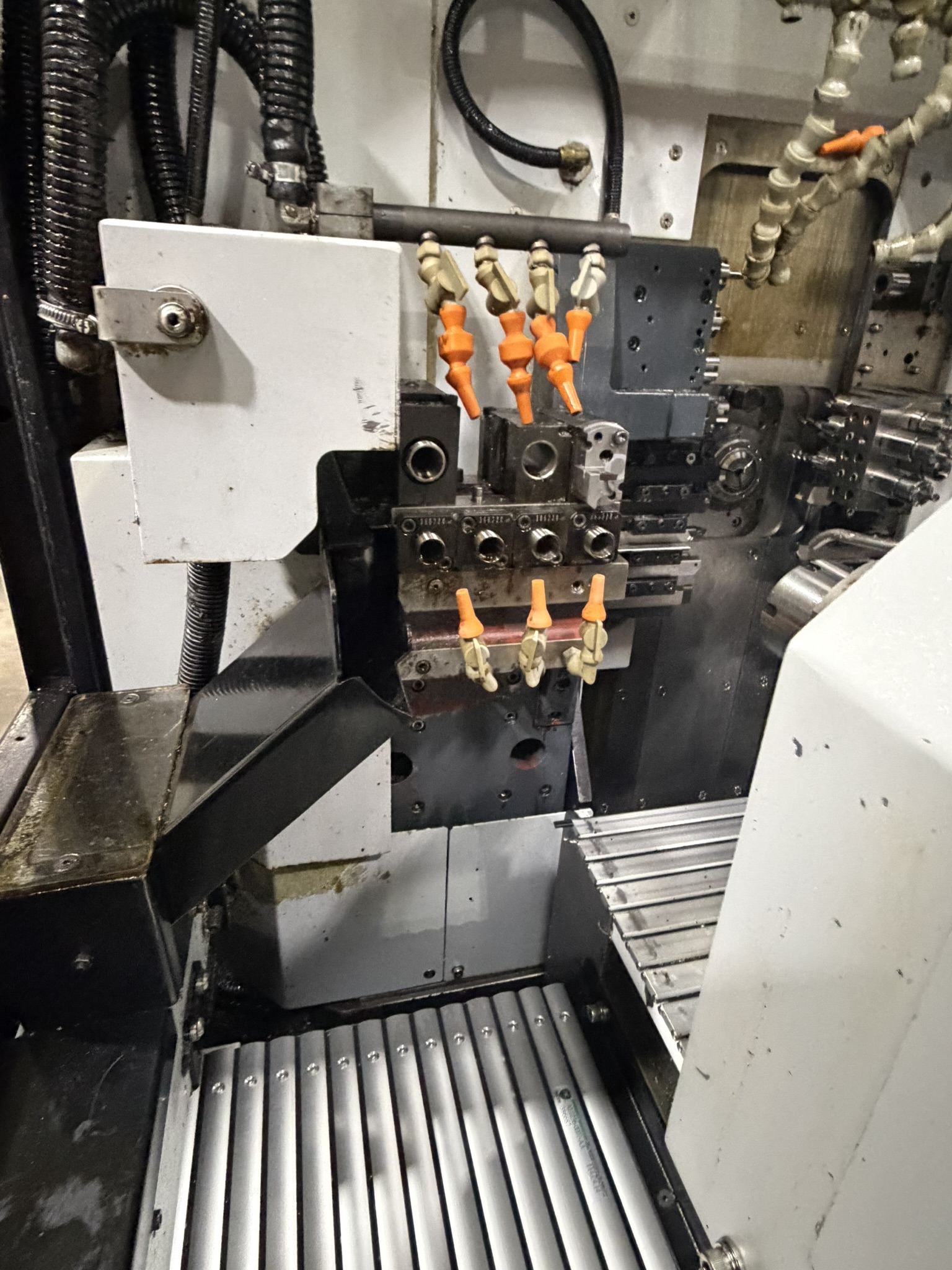

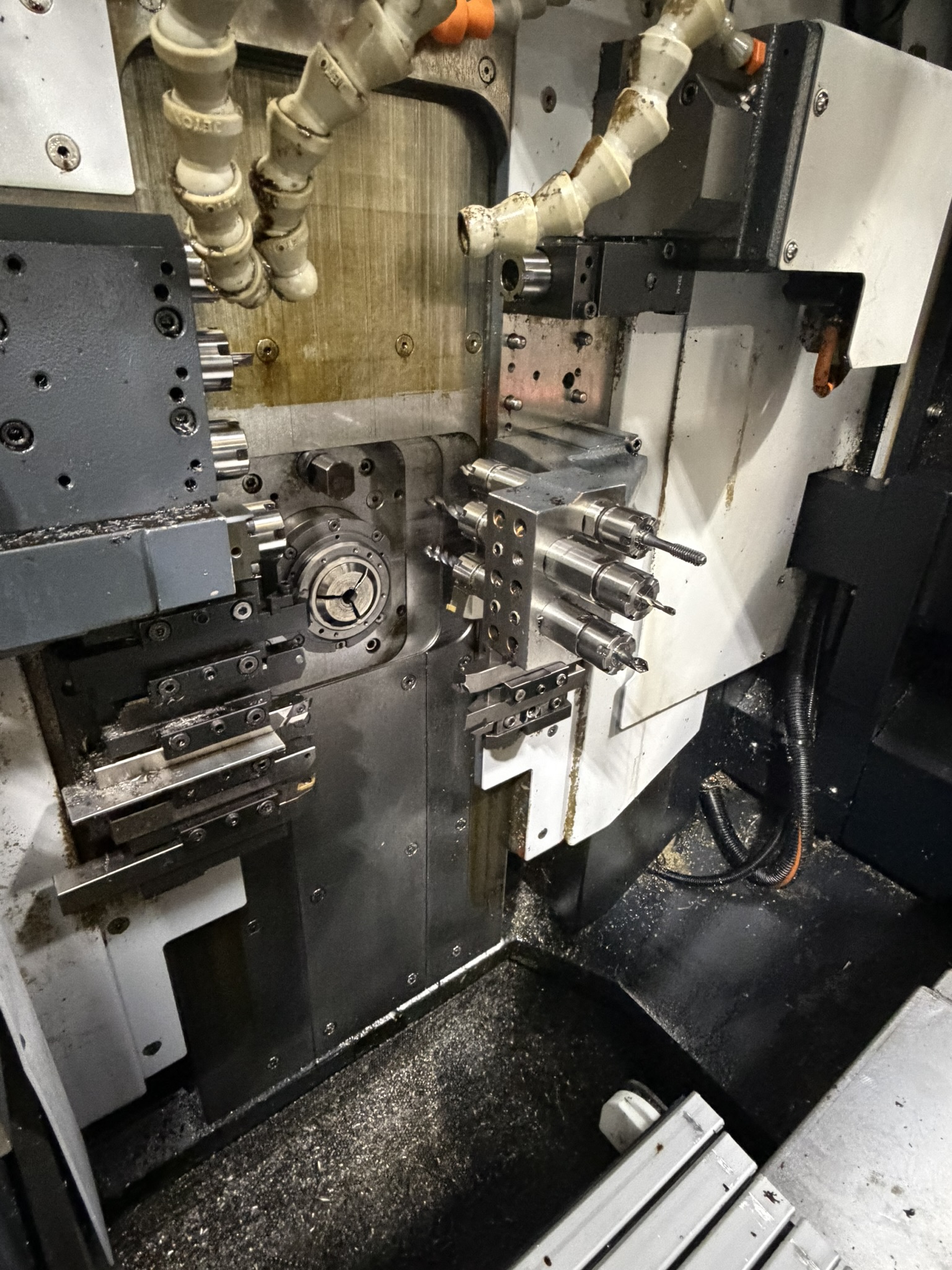

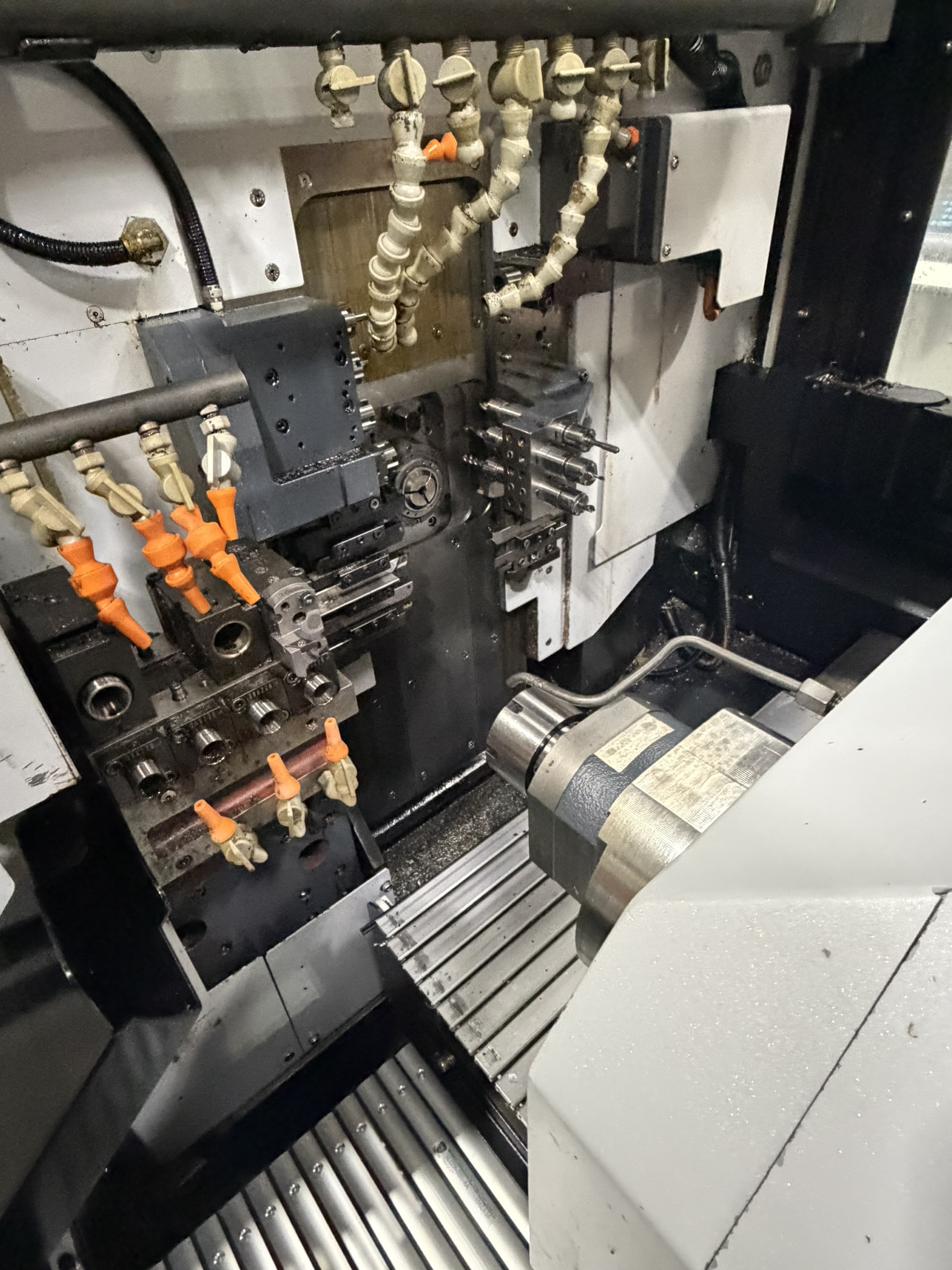

TOOLING & MACHINING CONFIGURATION
Up to 10 turning tool positions
Up to 5 frontal tool positions for opposite and counter operations, as listed
Rotating tool positions for milling and cross machining
Counter-operation tooling positions
Tool configuration varies by machine version
EQUIPPED WITH

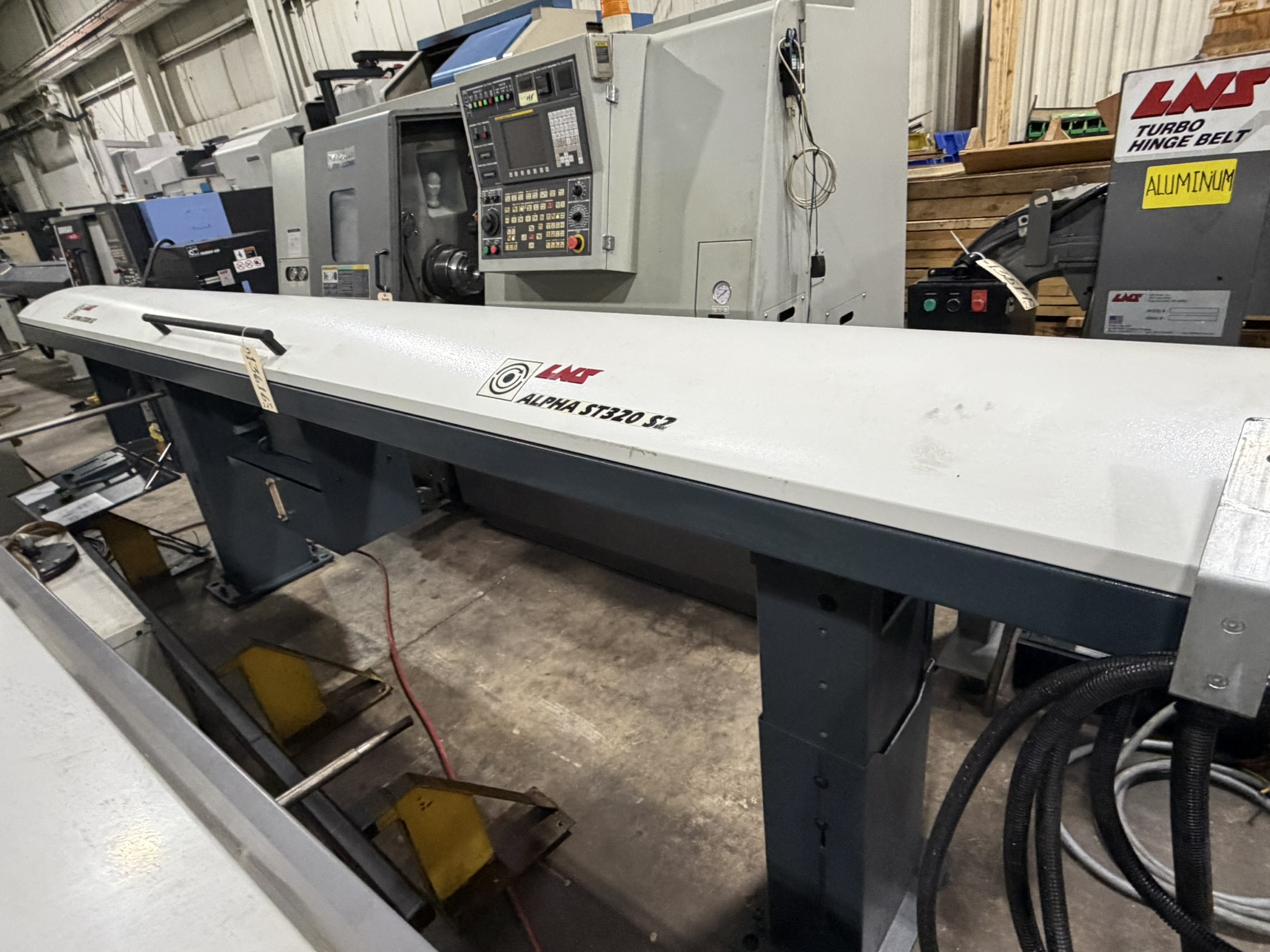

LNS Alpha ST320 S2 Bar Feeder
Bar Feeder Capacity: 3–25 mm diameter
BAR FEEDER SPECIFICATIONS
Model: LNS Alpha ST320 S2
Approximate Weight: 700 kg (1,543 lbs)
Dimensions: 3,500 × 800 × 1,500 mm (L × W × H)
DIMENSIONS & WEIGHT
Machine Transport Dimensions: Approximately 3,200 × 1,800 × 2,000 mm (L × W × H)
Machine Weight: Approximately 3,200 kg (7,055 lbs)
KEY FEATURES & BENEFITS
High-speed main and counter spindles operating up to 10,000 RPM
Simultaneous machining for improved productivity
Integrated turning and milling operations
Multi-axis capability for complex precision components
Automatic bar feeding for efficient series production
Designed for high-productivity manufacturing with reduced cycle times
APPLICATIONS
Precision turned components
Complex small-diameter parts
Automotive and industrial components
Medical and other precision-engineered parts
High-volume series production
