Description
GENERAL INFORMATION
Manufacturer: Toshiba
Model: BTD-110R16
Year: 2004

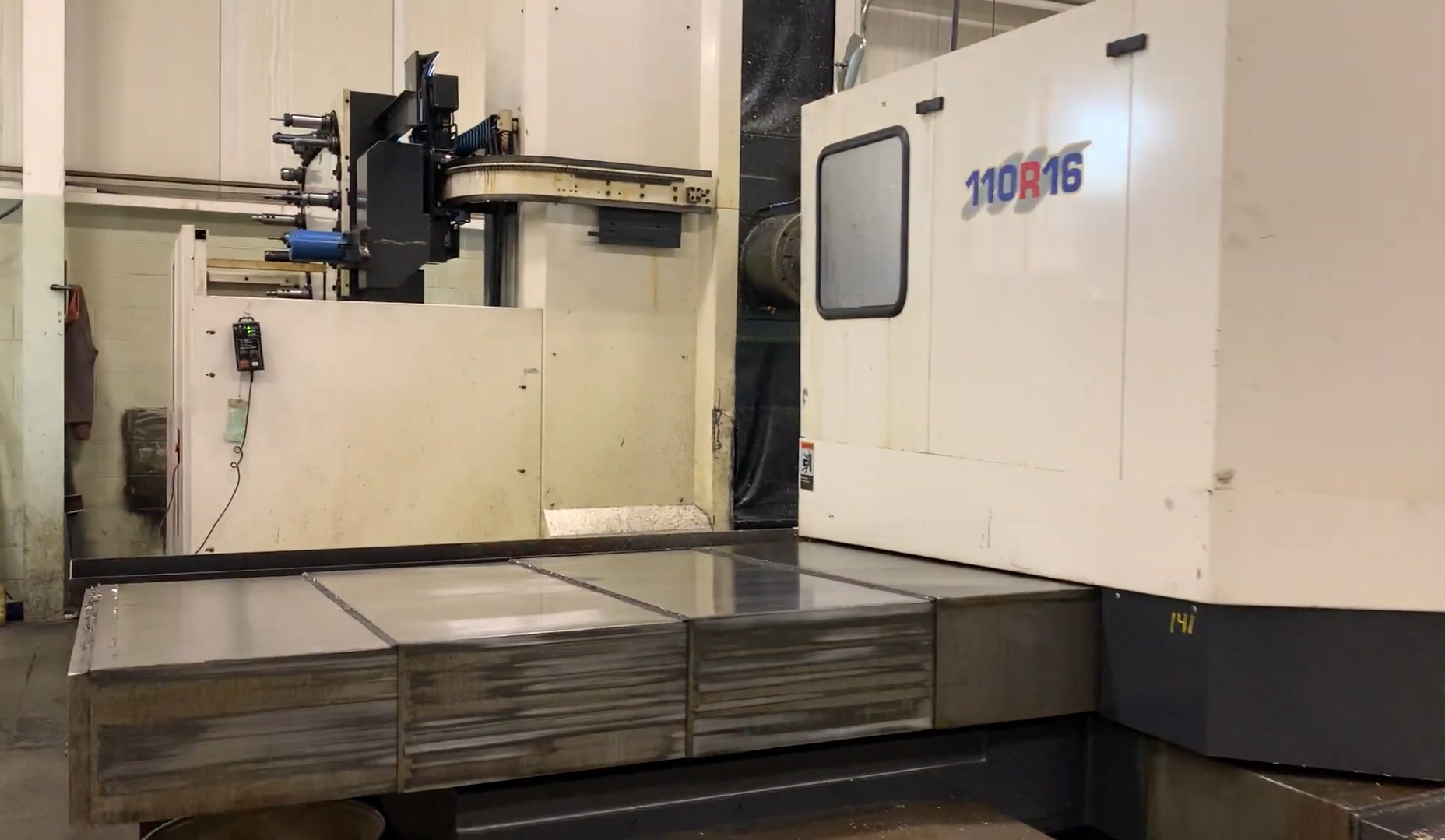

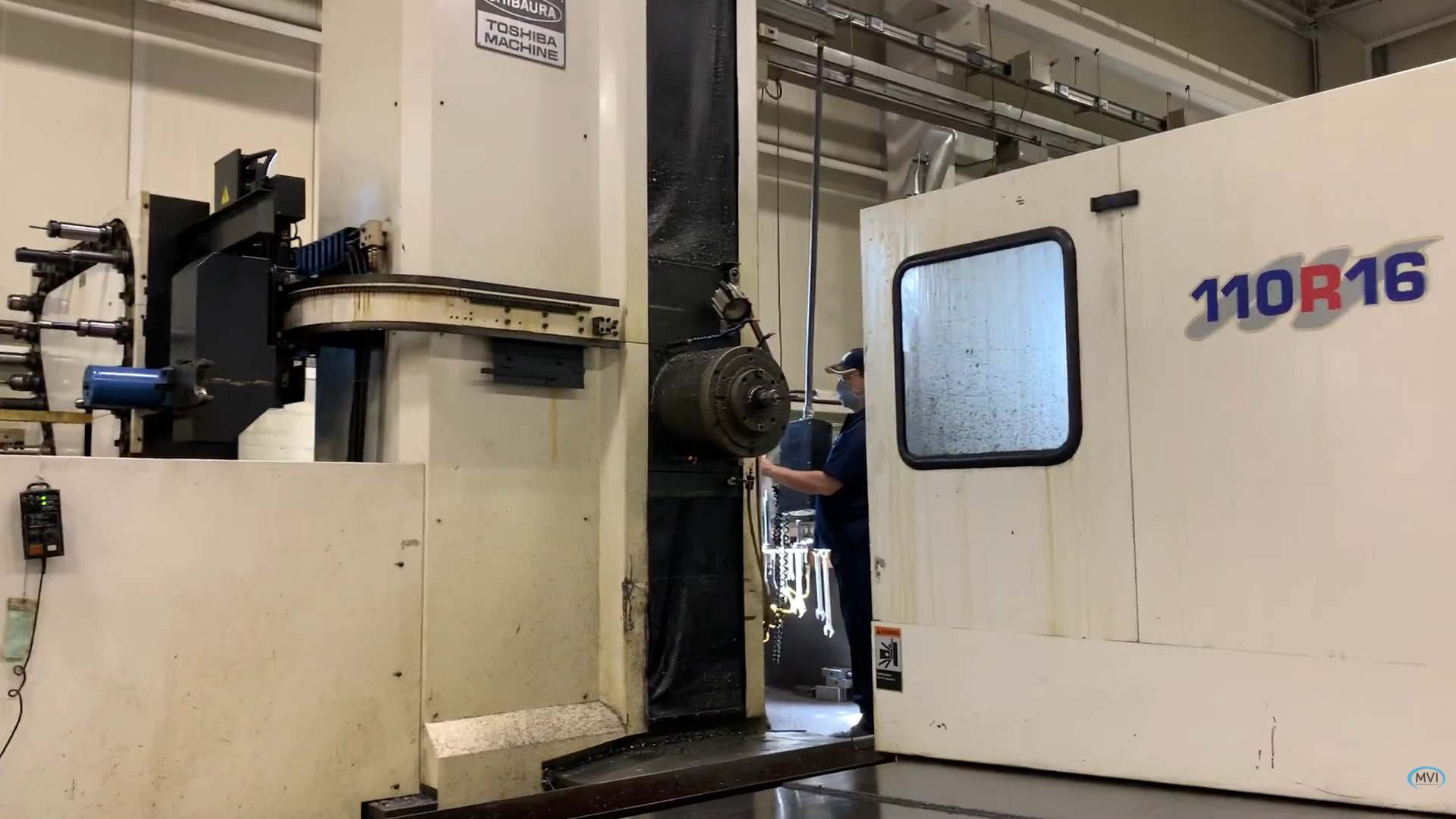

Machine Type: CNC Table-Type Horizontal Boring Mill

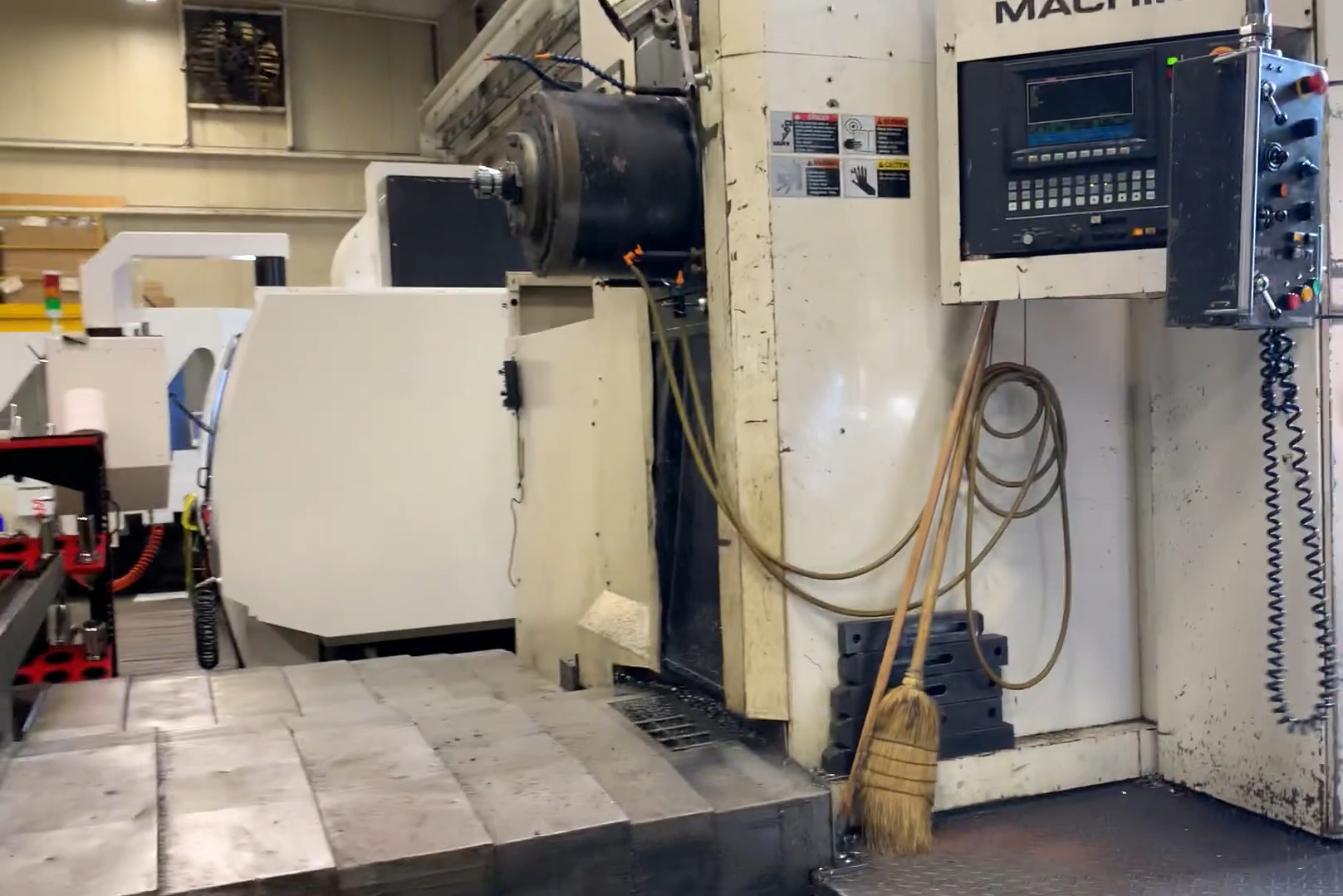

CNC Control: TOSNUC 888

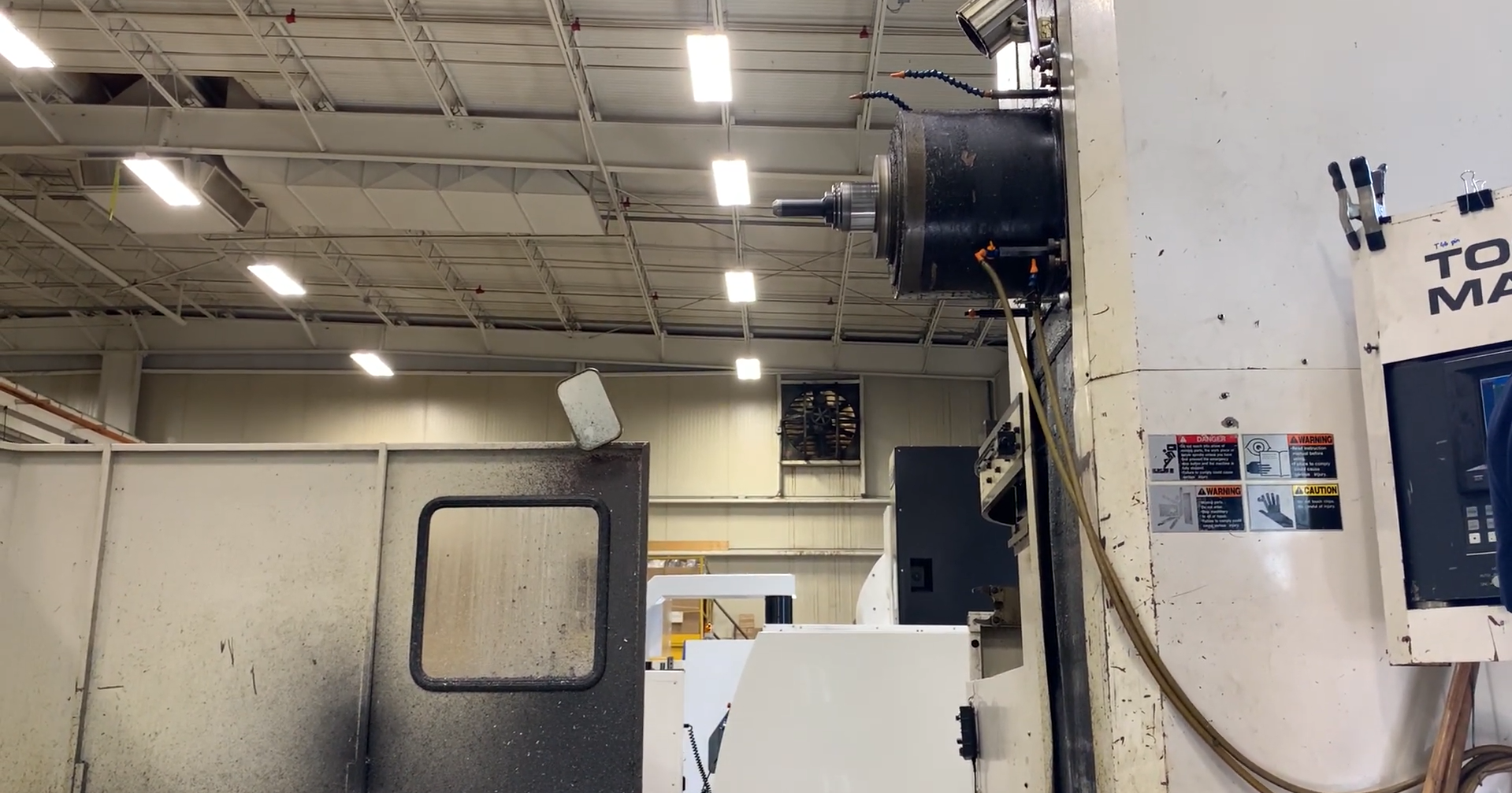

Spindle Diameter: 4.3″
Spindle Taper: BT50
Maximum Spindle Speed: 3,000 rpm
Spindle Motor Power: 40 HP
TECHNICAL SPECIFICATIONS

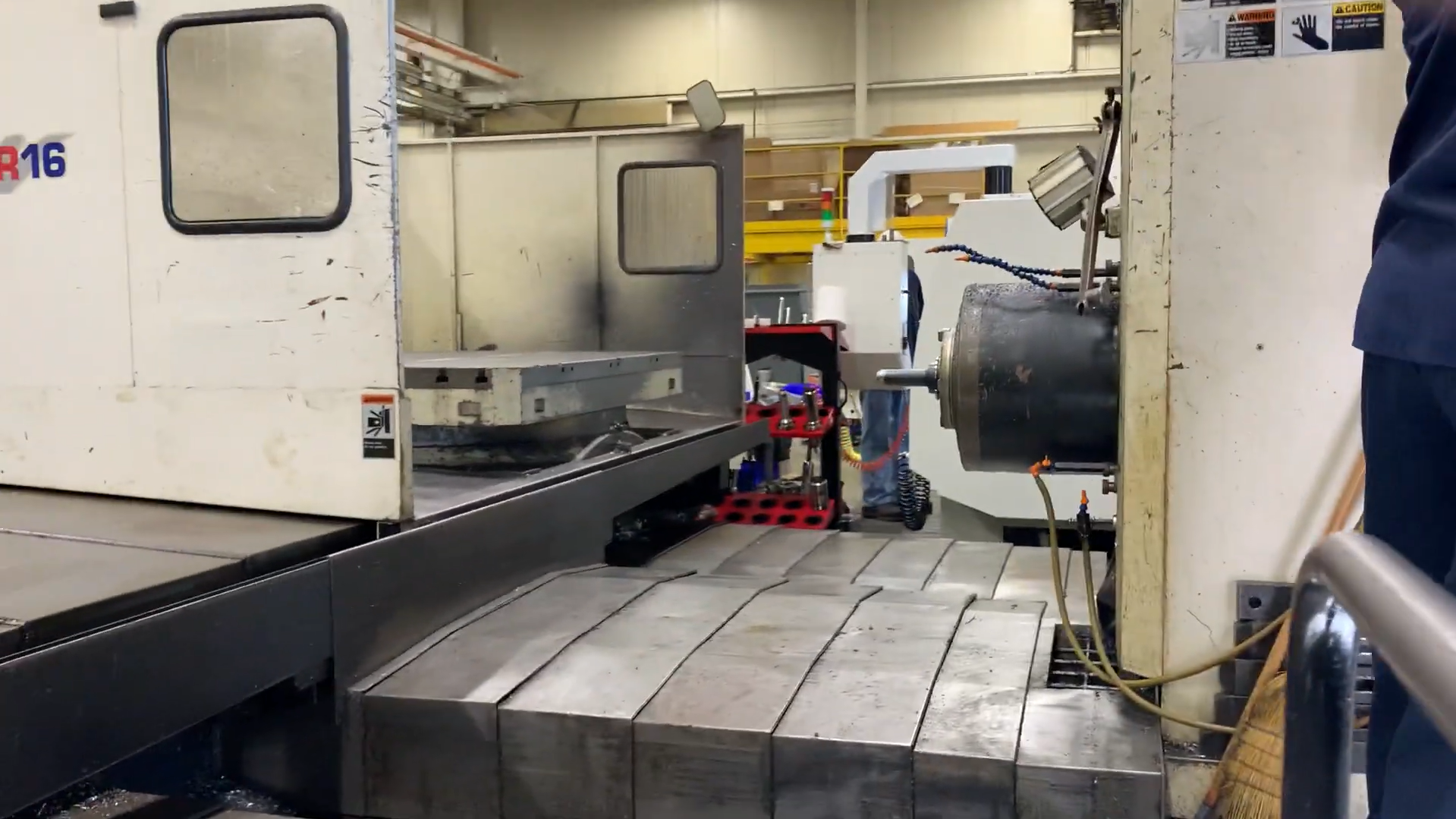

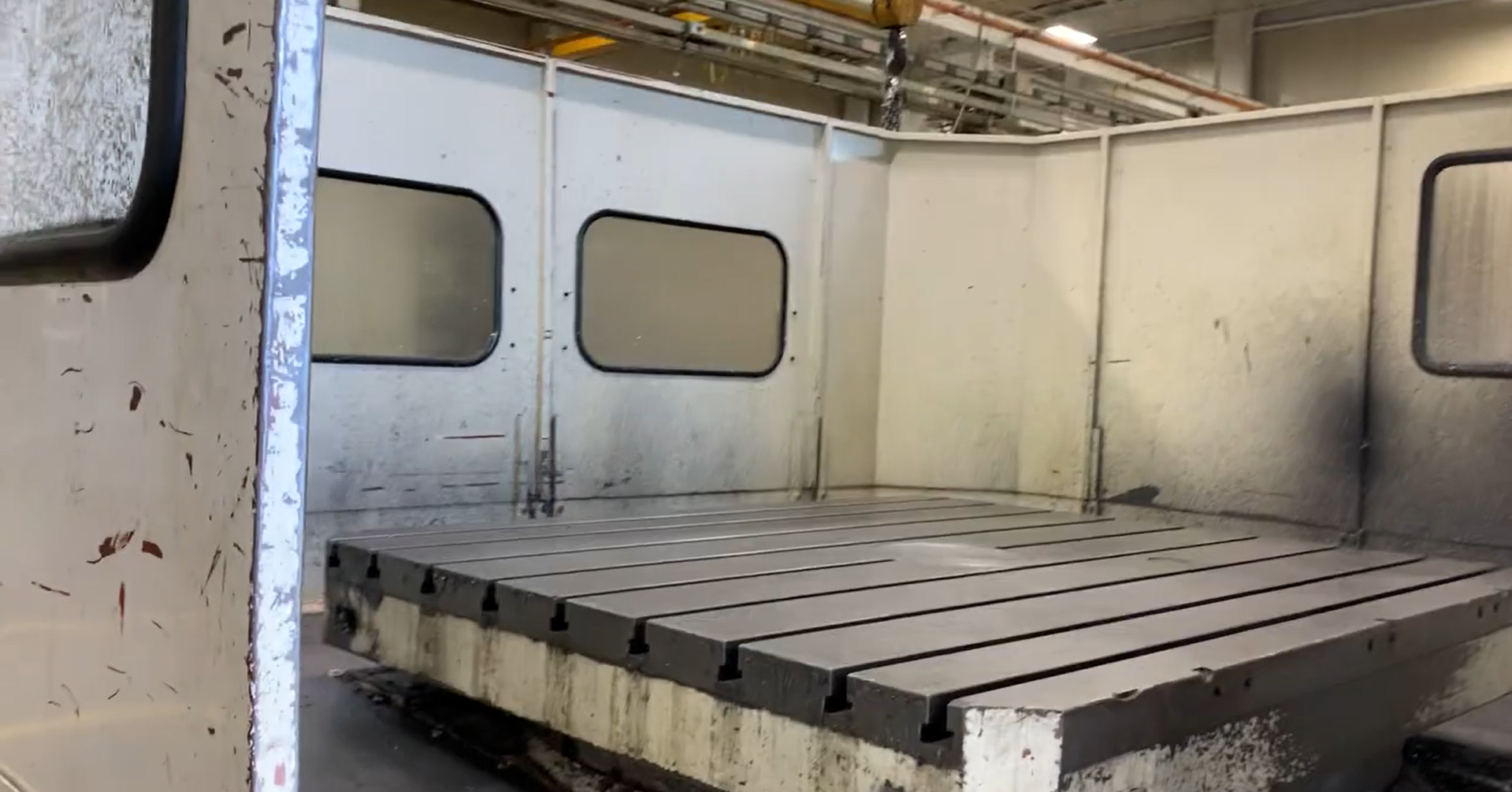

Rotary Table Dimensions: 63″ × 55″
X-Axis Travel: 78.7″
Y-Axis Travel: 59.1″
Z-Axis Travel: 57.1″
W-Axis Travel: 19.7″
B-Axis Rotation: 360°
B-Axis Indexing: 0.001° increments

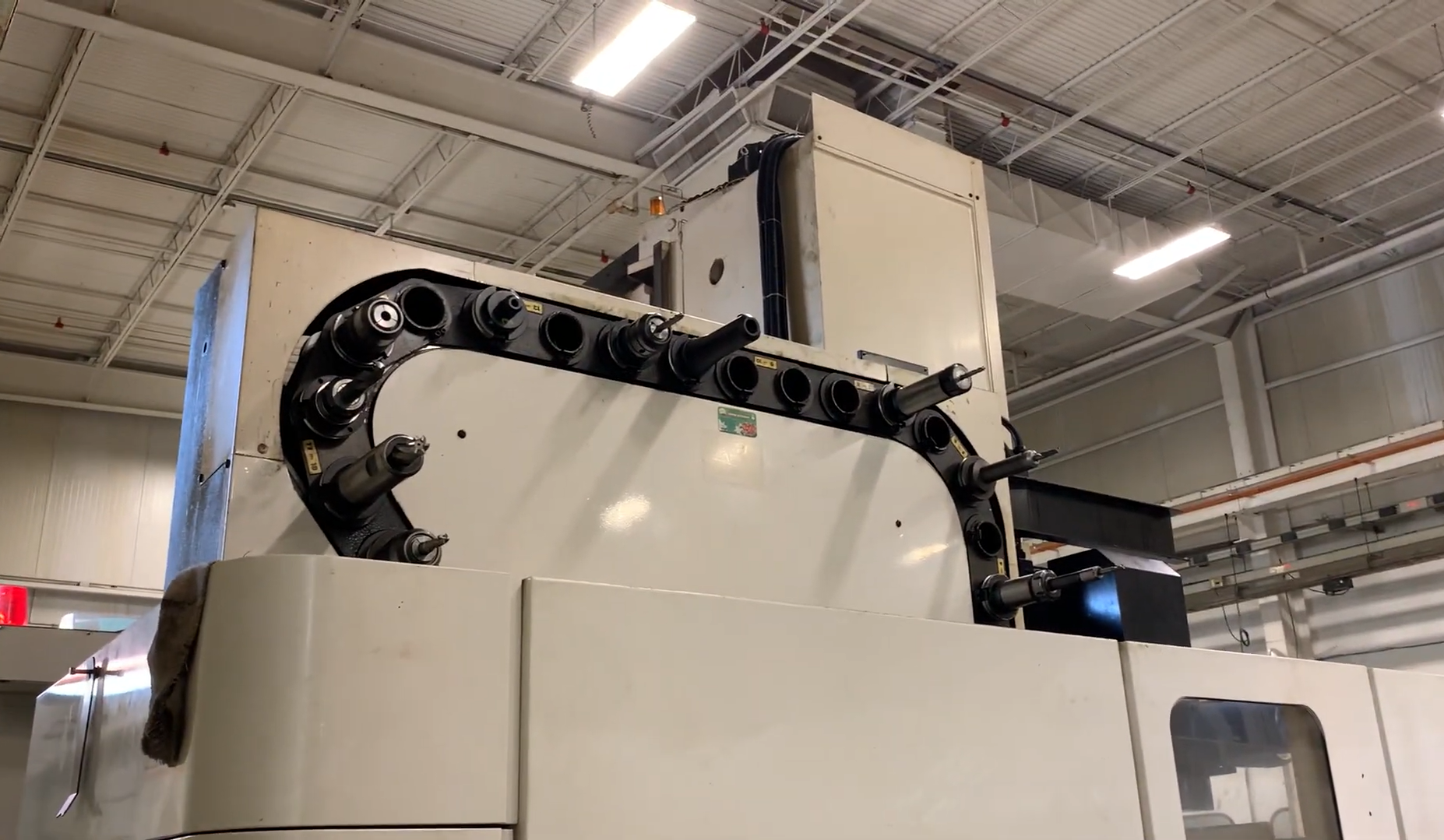

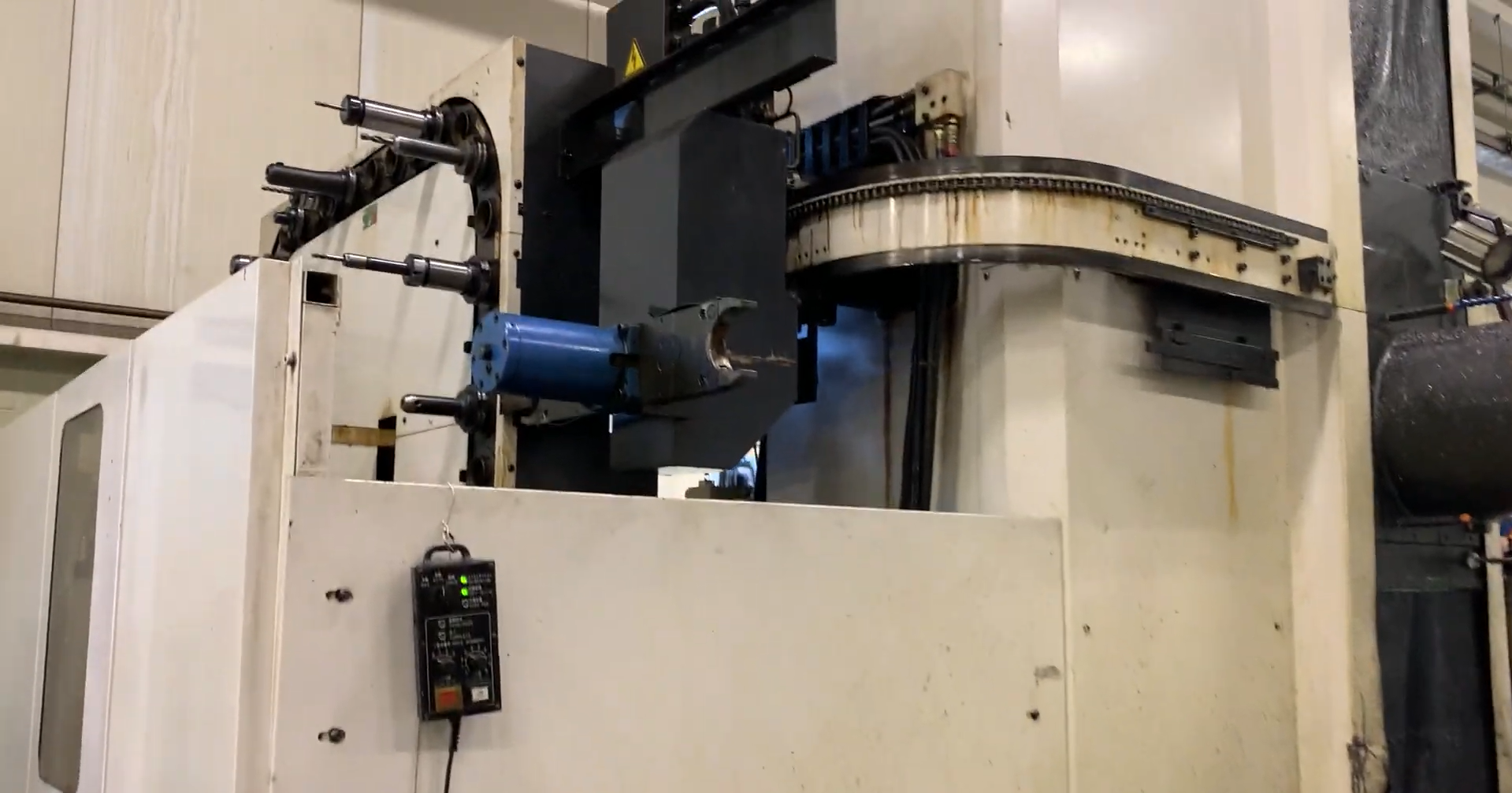

Automatic Tool Changer: 38-station ATC
INCLUDED EQUIPMENT
Coolant system
Chip conveyor
38-station automatic tool changer
KEY HIGHLIGHTS
4.3″ spindle with BT50 taper
Powerful 40 HP spindle motor
TOSNUC 888 CNC control
Large 63″ × 55″ rotary table
Multi-axis machining capability with 360° B-axis rotation
Automatic tool changing for efficient machining operations
APPLICATIONS
Precision boring and milling
Large component machining
Heavy-duty industrial manufacturing
Machining of machine bases, housings, and structural components
Multi-face machining of large workpieces
