2022 TORMACH 770M CNC VMC, 4TH AXIS ROTARY
A 2022 Tormach 770M CNC Vertical Machining Center with 4th Axis Rotary, 10-pocket automatic tool changer, PathPilot controller, and tool holders. Features 14″ x 7.5″ x 13.25″ travels, 10,000 RPM R8 spindle, and single-phase 115V power in a compact footprint.
- Freight delivery in 5-15 business days after your order is confirmed
- Shipping quotes at competitive prices, shown before you pay
- Local pickup available at our Othello, WA warehouse (by appointment)
- 10-day testing period and no restocking fee (see our Returns Policy)
- Support Monday-Friday, 10:00 AM - 4:00 PM
Description

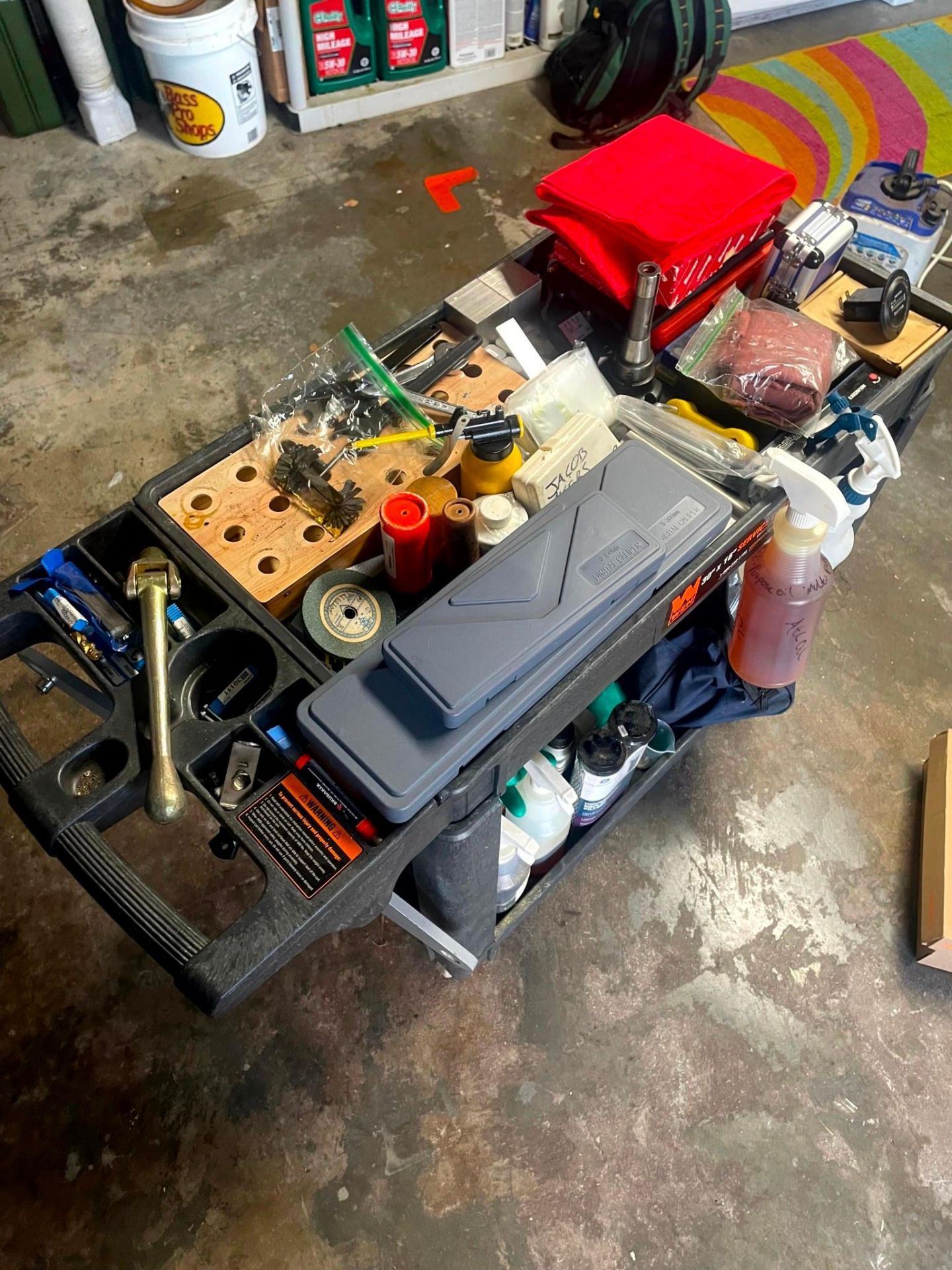

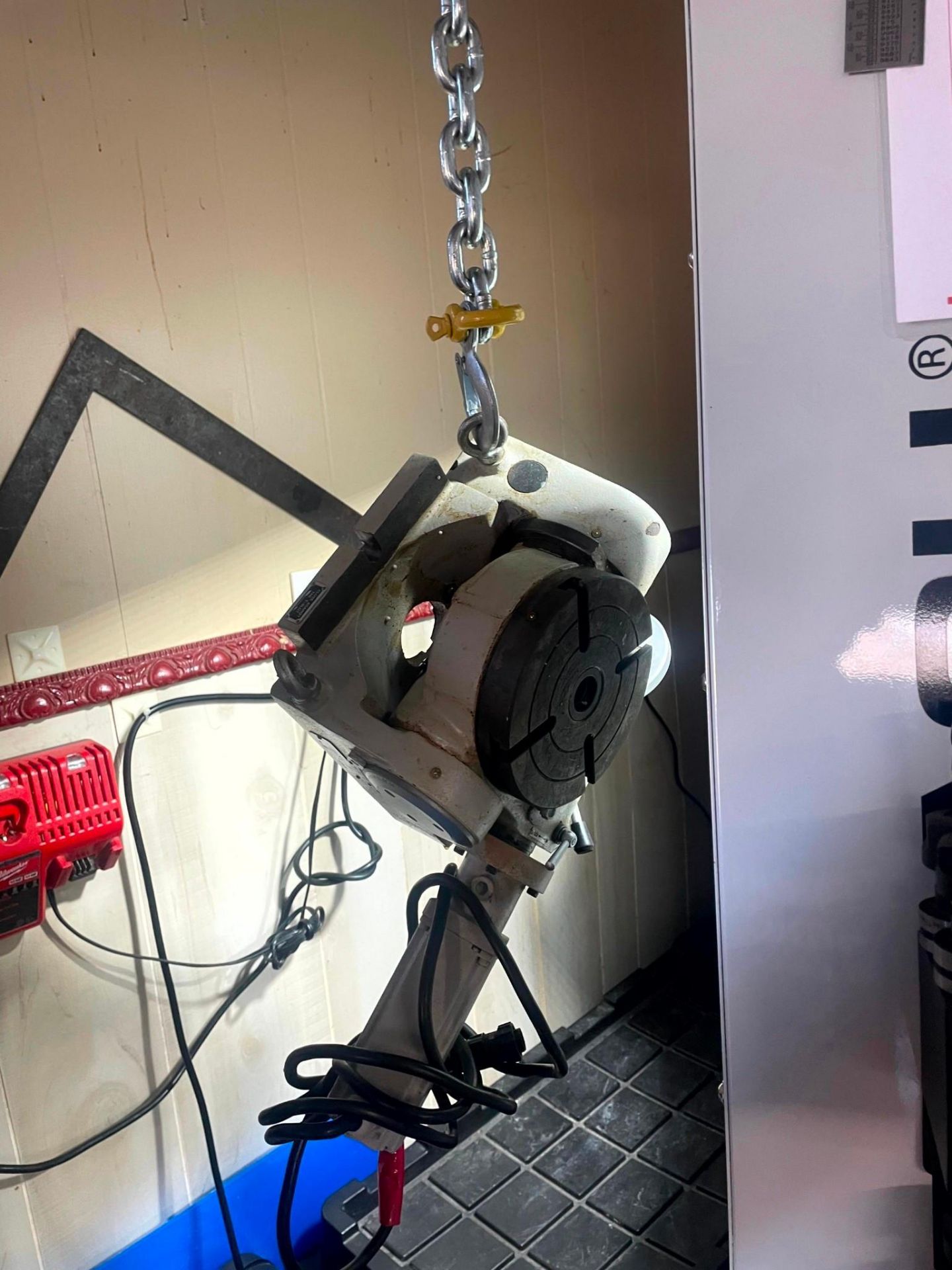

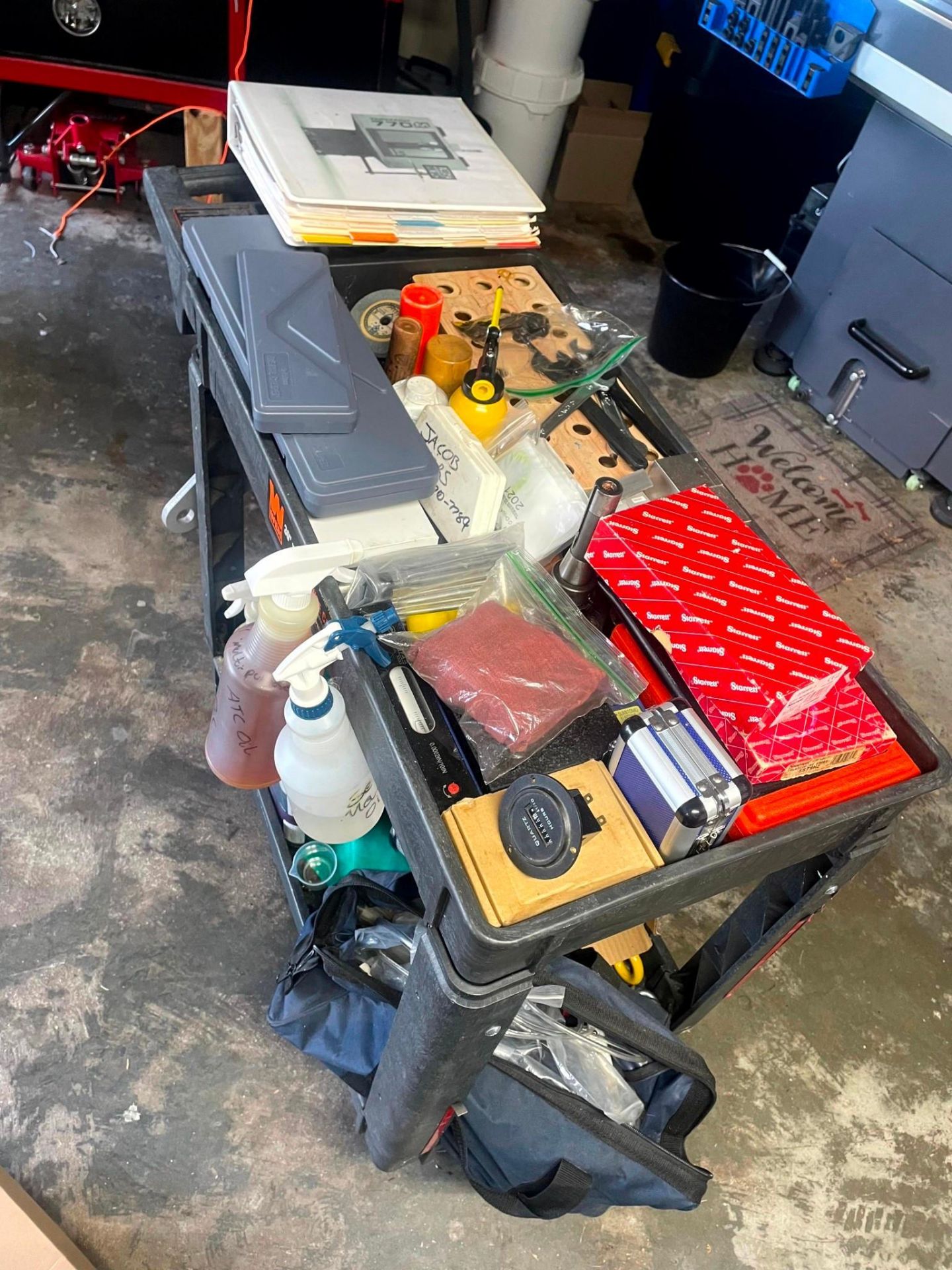

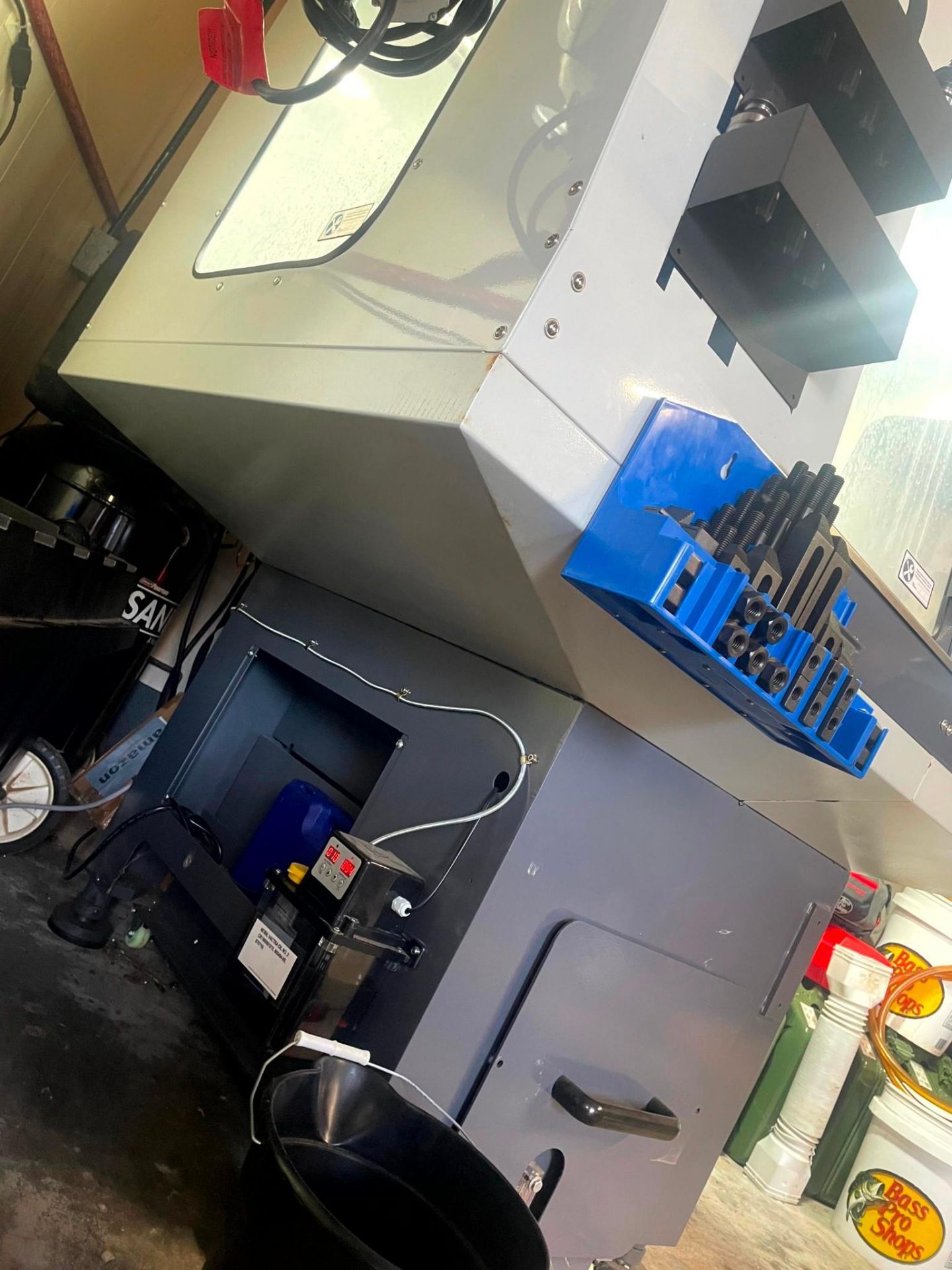

The 2022 Tormach 770M CNC Vertical Machining Center is a compact, versatile mill built for prototyping, light-to-medium production, and intricate part manufacturing. This machine is equipped with a 4th Axis Rotary, a 10-pocket automatic tool changer, a PathPilot computer, and tool holders, making it a turnkey solution for modern machining shops.
- Travels: X-Axis 14″, Y-Axis 7.5″, Z-Axis 13.25″
- Spindle: 1.5 HP power, 10,000 RPM max speed, R8 taper
- Feed Rates: 135 IPM (X/Y), 110 IPM (Z)
- Table Size: 26″ x 8″ with three 5/8″ T-slots, 500 lb max capacity
- Clearances: 14.25″ spindle nose to table; 8.6″ spindle centerline to column
- Electrical: 115V single-phase
The 770M handles tough materials including titanium, stainless steel, and hardened steel, along with plastics and wood. Its PathPilot controller supports up to 4-axis continuous machining with intuitive conversational programming. Operating on convenient single-phase power, this robust yet space-saving machine is ideal for shops seeking professional CNC capability in a compact footprint. All specifications should be confirmed by the purchasing entity.
Additional information
| Weight | 1499.14 lbs |
|---|---|
| Dimensions | 55.91 × 48.82 × 88.19 in |
