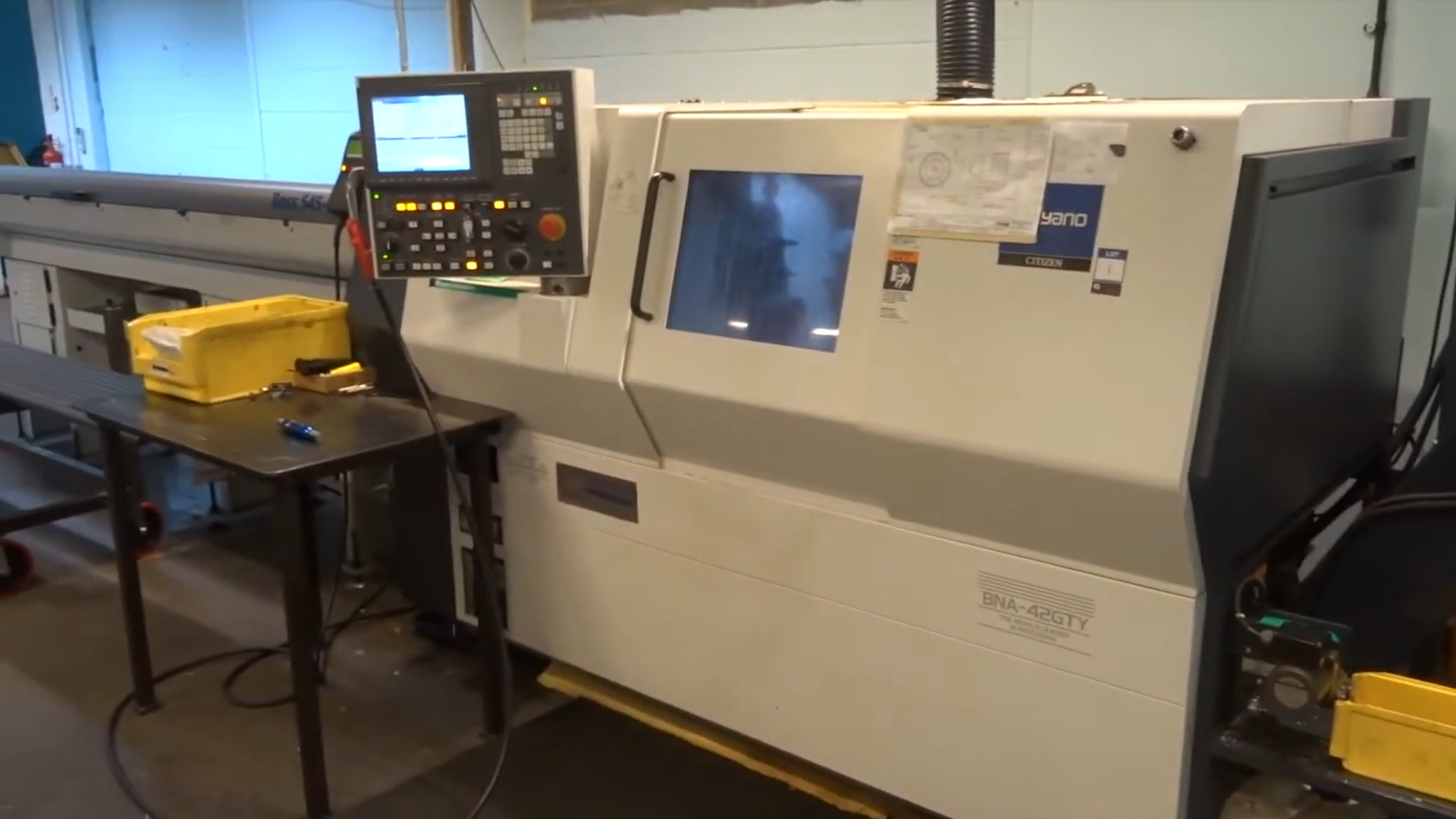

MIYANO BNA-42GTY MULTI-AXIS CNC TURNING CENTER

Description

GENERAL INFORMATION

Manufacturer: Miyano

Model: BNA-42GTY

Machine Type: Multi-Axis CNC Turning Center

Year of Manufacture: 2018

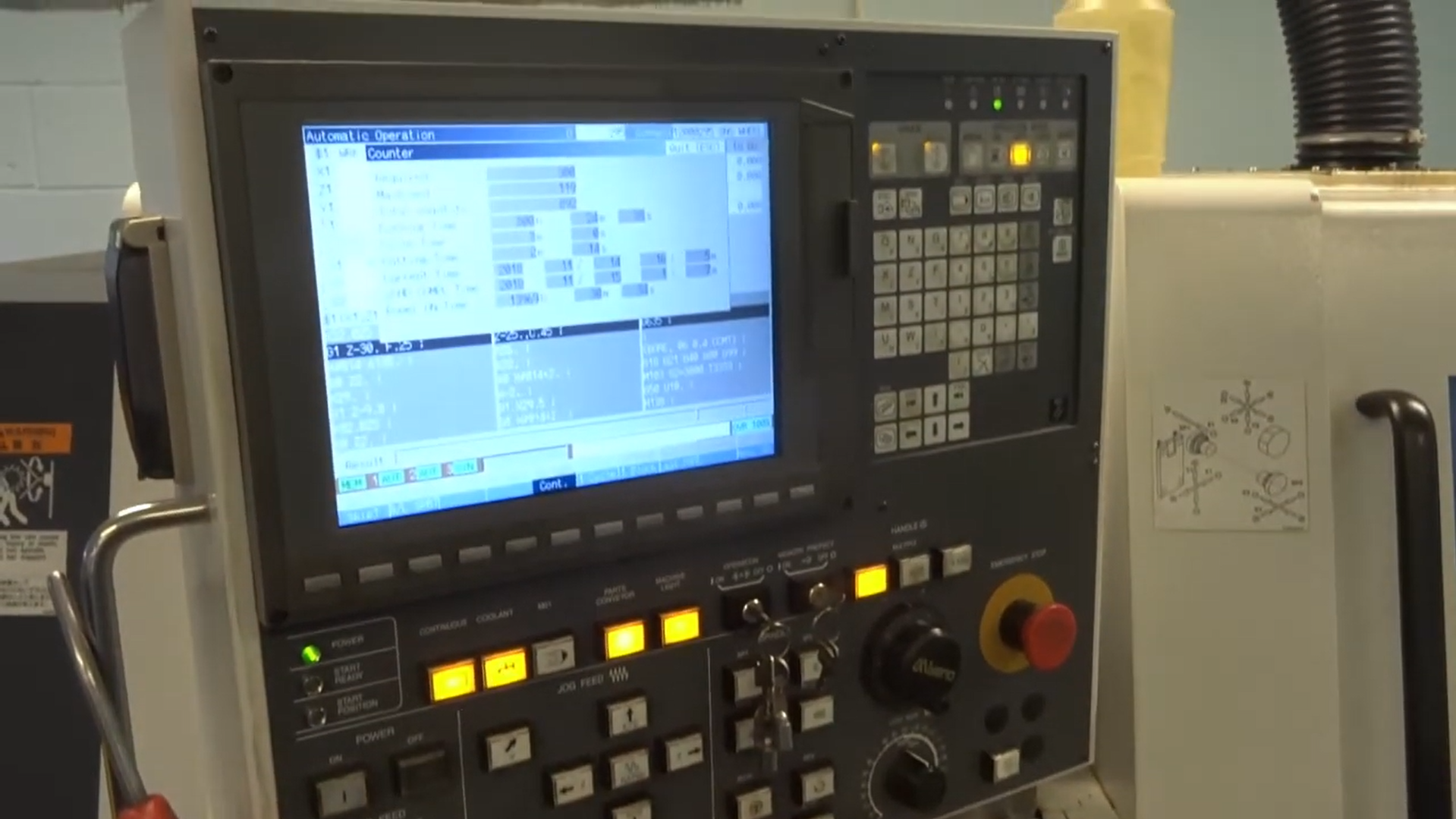

Running Time: Approximately 800 hours

Power-On Time: 13,969 hours

Machine Weight: 3,750 kg (approximately 8,267 lbs)

MACHINE SPECIFICATIONS

Maximum Bar Capacity — SP1: Ø42 mm

Maximum Bar Capacity — SP2: Ø34 mm

Maximum Machining Length: 100 mm

SP1 Spindle Speed: Up to 6,000 RPM

SP2 Spindle Speed: Up to 5,000 RPM

SP1 Spindle Motor Power: 11/7.5 kW (15-minute rating/continuous rating)

SP2 Spindle Motor Power: 5.5/3.7 kW (15-minute rating/continuous rating)

TURRET & TOOLING

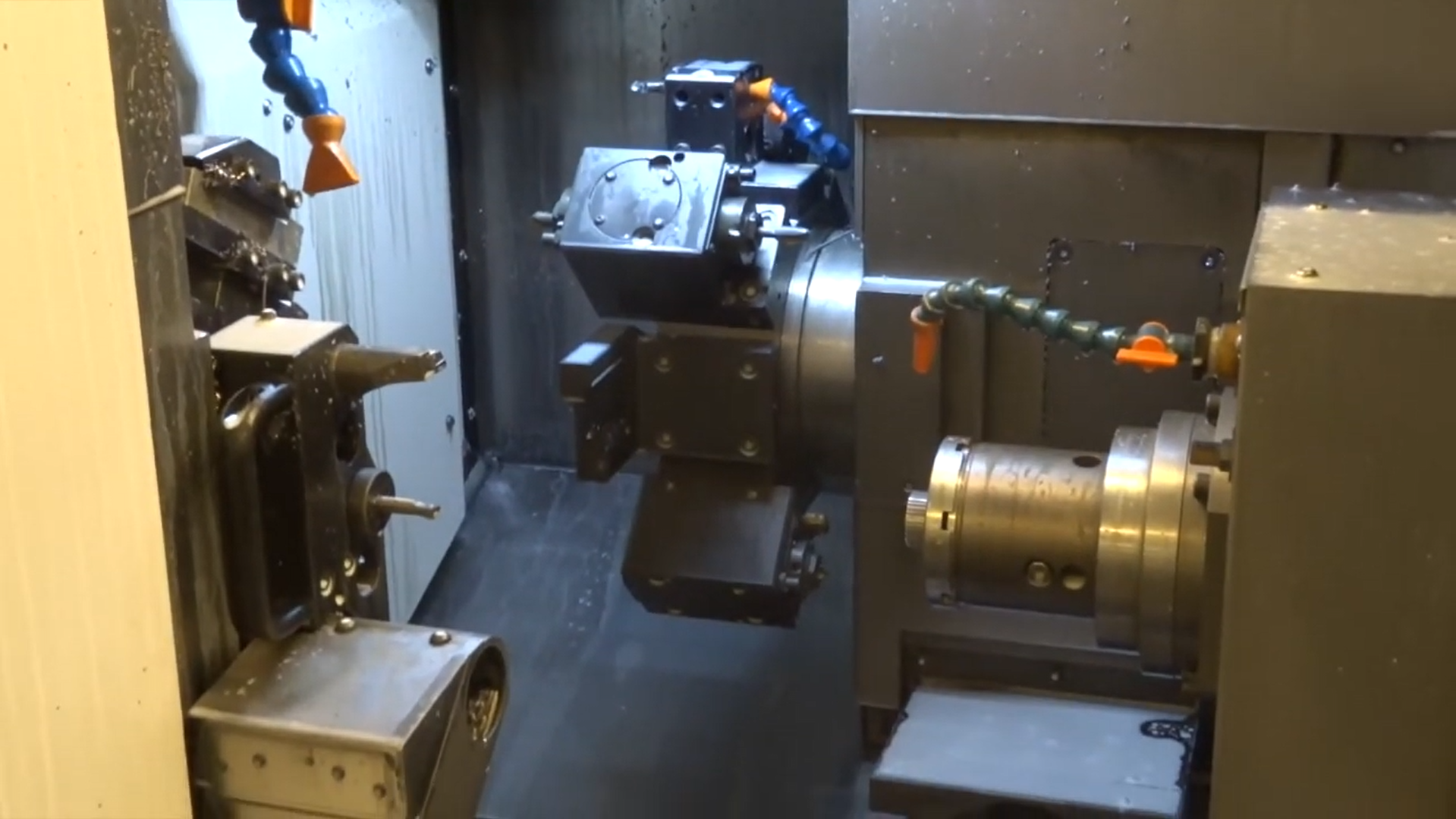

Turret Type: 8-station turret with half-indexing mechanism

Maximum Number of Revolving Tools: 8

Square Turning Tool Shank Height: 20 mm

Drill Shank Diameter: 25 mm

Lots of driven and manual tooling included

AXES & RAPID FEED RATES

Z1 Axis: 30 m/min

X1 Axis: 24 m/min

Y1 Axis: 30 m/min

Z2 Axis: 20 m/min

X2 Axis: 20 m/min

Y2 Axis: 12 m/min

Z3 Axis: 20 m/min

X3 Axis: 12 m/min

EQUIPPED WITH

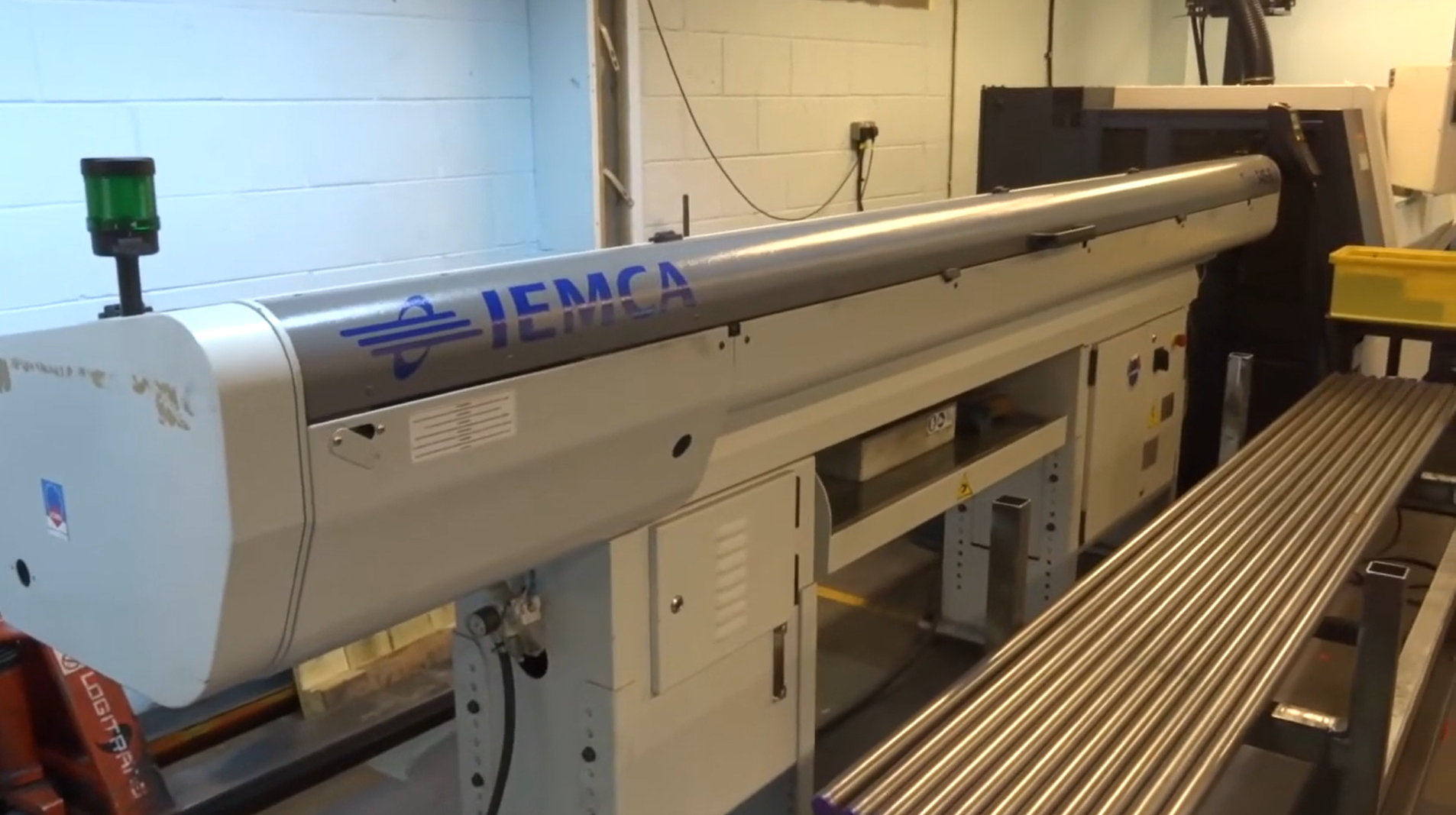

BOSS 545-E Bar Feed, Model 32L

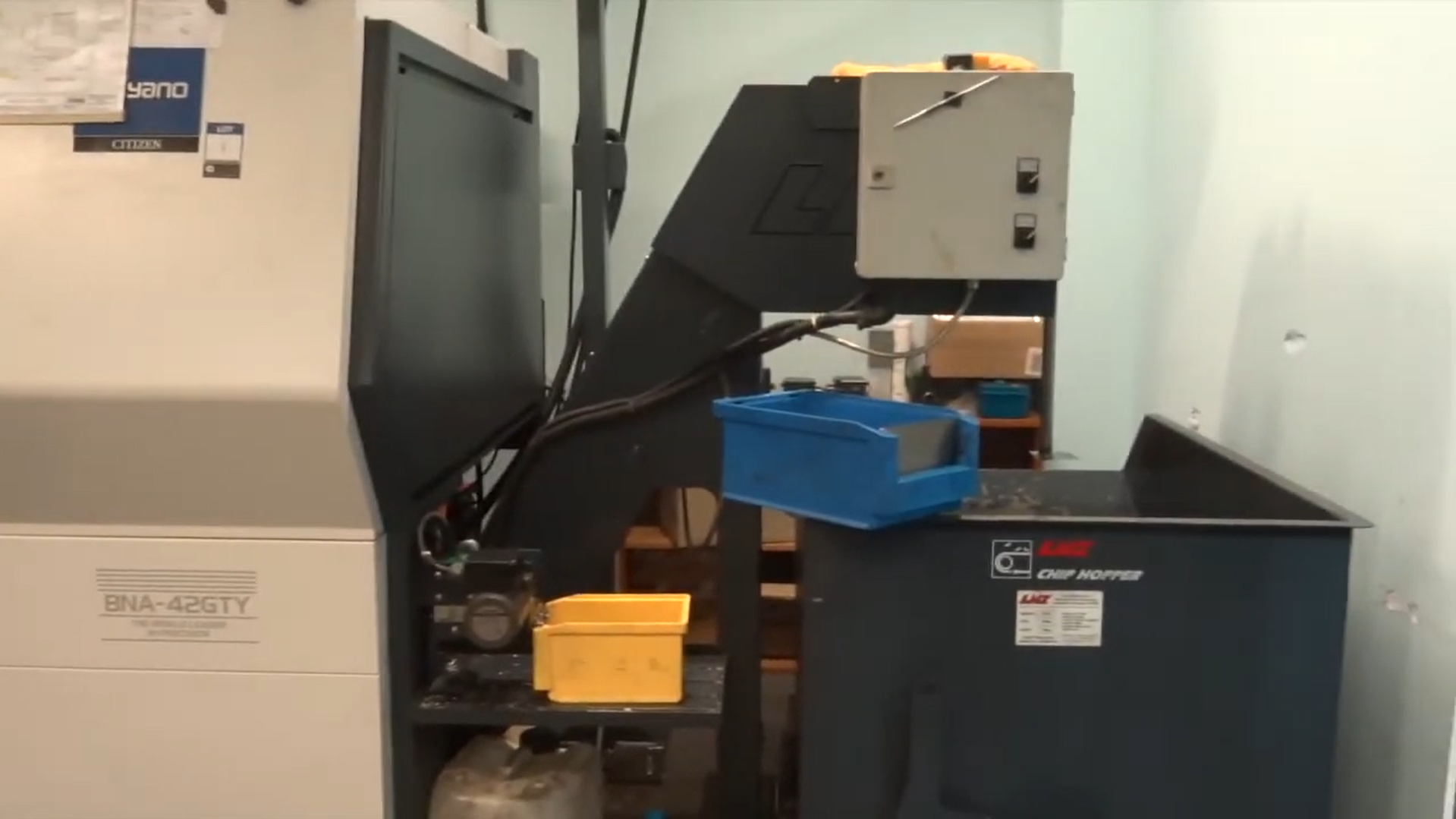

Swarf Conveyor

Swarf Skip

Driven and Manual Tooling

Machine Manuals

DIMENSIONS & WEIGHT

Machine

Dimensions: Approximately 2.4 × 1.3 × 1.6 m

Floor Space: 2,350 × 1,475 mm

Machine Height: 1,680 mm

Weight: 3,750 kg

Bar Feeder

Model: BOSS 545-E, 32L

Dimensions: Approximately 4.1 × 0.8 × 1.4 m

Weight: 830 kg

KEY FEATURES & BENEFITS

Multi-axis turning capability for complex precision components

Dual-spindle configuration for efficient machining operations

Driven tooling for milling and additional machining capabilities

Automatic bar feeding for production efficiency

Low reported running time of approximately 800 hours
